Harbor Freight Tools 96144 Installation manual

12V HEATER/FAN
Model 96144
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-
ments, actual product may differ slightly from the product described herein. Tools required for assembly
and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
REVISED MANUAL 08d, 09l

Page 2SKU 96144 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Overall Dimensions 7-1/4” W x 5-1/2” Deep x 2-3/16” H
Handle Dimensions 3” L x 1” W
Fuse 15 Amp
Power Source 12VDC, 13 Amps
Mounting Holes (2) 5/32” Diameter
Includes (1) Cigarette Lighter Plug Adapter
with green power LED indicator
Power Cord 87” L with 15 Amp in-line blade
fuse
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly dia-
gram, or write month and year of purchase if product has no number. Keep this manual
and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
Keep your work area clean and well lit.1. Cluttered benches and dark areas invite
accidents.
Do not use this product in rain or wet conditions.2. Water entering this product
will increase the risk of electric shock.
Stay alert. Watch what you are doing, and use common sense when using this3.
product. Do not use this product while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating this product may
result in serious personal injury.
Keep out of the reach of any children.4. A responsible adult should be present if
children are in the area while the Heater/Fan is being used.
Do not force the Heater/Fan. Use the correct product for your application.5.
The correct Heater/Fan will do the job better and safer at the rate for which it is

Page 3SKU 96144 For technical questions, please call 1-800-444-3353.
designed. Do not force the Heater/Fan and do not use it for a purpose for which it
is not intended.
Do not use the Heater/Fan if the On/Off Switch does not turn it on or off.6. Any
product that cannot be controlled with the On/Off Switch is dangerous and must be
replaced or repaired.
Disconnect the Power Cord Plug from the power source before making any7.
adjustments, changing accessories, or storing the Heater/Fan. Always unplug
the Heater/Fan from its electrical outlet before performing any inspection,
maintenance, or cleaning procedures.
Store idle equipment.8. When not in use, make sure Heater/Fan is cool to the touch
and then store in a dry location to inhibit rust. Always lock up the Heater and keep
out of reach of children. Store an idle Heater/Fan out of reach of children and other
untrained persons. This product is dangerous in the hands of untrained users.
Check for breakage of parts, and any other condition that may affect the9.
Heater/Fan operation. If damaged, have it serviced before using. Many ac-
cidents are caused by poorly maintained products.
Tool service must be performed only by qualified repair personnel.10. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
Only a qualified service technician should repair this product. Follow instruc-11.
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury. The fuse in this unit must only be replaced with
another 15 Amp Fast Acting Fuse of the same type.
Maintain labels and nameplates on the tool.12. These carry important information.
If unreadable or missing, contact Harbor Freight Tools for a replacement.
Never leave the Heater/Fan unattended when it is plugged in.13. Turn off the
Heater/Fan, and unplug it from its electrical outlet before leaving.
Do not allow the Heater/Fan to be exposed to fire or high heat as this may14.
result in an explosion.
Only plug into a DC12V Cigarette Lighter Adapter receptacle.15.
Do not block air vents. The Heater/Fan gets hot when operating, and blocking16.
the vents will cause overheating resulting in explosion or injury.
Risk of Burns!17. Keep children and pets away from this unit while it is hot. Do
not place hands or feet near the vent.
Do not deplete the vehicle battery.18. Only use this Heater when the vehicle’s en-
gine is running.

Page 4SKU 96144 For technical questions, please call 1-800-444-3353.
Not For Extended Use.19. Only use this Heater for 15 to 20 minutes at a time.
Place the Heater in the proper location.20. Set up the Heater in a level location that
allows at least 2 inches of air space around the sides of the unit. Make sure nothing
comes in contact with the Heater. Do not operate in close proximity to liquid.
Check vehicle manual to ensure the vehicle lighter socket is 15 amps or greater.21.
Do not use a socket extension or pigtail to operate this heater.
Do not overload the lighter socket by operating multiple appliances at the22.
same time.
UNPACKING
When unpacking, check to make sure that the item is intact and undamaged. If any
parts are missing or broken, please call Harbor Freight Tools at the number shown on the
cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
1. WARNING! Make sure the On/Off Switch of the Heater/Fan is in its “OFF” posi-
tion and that it is unplugged from its electrical outlet before making any adjustments
to it.
Your 12V Rubberized Heater/Fan comes completely assembled. Instructions on2.
replacing the Fuse and installing the Heater/Fan (optional) are outlined below.
Replacing the Fuse
Fuse Holder (18)
Figure 1
1. If the Heater Fan fails to operate when plugged into the cigarette lighter adapter
receptacle, check to see if the Fuse (12) should be changed. If the fuse for heater
is useable, check the fuse on your vehicle for the lighter socket and change if nec-
essary. Replace fuses with only same type and rating.

Page 5SKU 96144 For technical questions, please call 1-800-444-3353.
Using a small flat head screwdriver or similar tool, pull out the Fuse (12) from the2.
Fuse Holder (18)-see Figure 1.
Do not replace with a different size fuse, as this may result in excessive heat build3.
up and explosion, which can damage the CarHeater/Fan and cause injury.
Mounting
The Heater/Fan can be permanently mounted to the vehicle using Mounting Screws1.
(21) or can be mounted using the Adhesive Tape as desired. Mount the Heater
Fan so that it is out of direct sunlight. Do not mount the Heater Fan on upholstered
seats or flammable surfaces.
When using Mounting Screws, make certain that all drilling paths are clear of elec-2.
trical lines, cables, wire and any other obstructions.
Make certain that there is sufficient length in the Power Cord to reach the Cigarette3.
lighter.
Use the Mounting Base (6) as a guide to mark two holes in the desired surface.4.
Drill holes in the desired surface.
Align the holes in the Mounting Base (6) with the drilled holes. Mount the Mounting5.
Base (6) using Mounting Screws (21).
When using the Adhesive Tape (21) mount as follows:6.
Make certain that there is sufficient length in the Power Cord to reach the Cigarette
lighter. Wipe the Base (6) with alcohol for a grease-free surface. Peel off one face
of the Adhesive Tape (21). Place the tape on the face of the Base (6) and press
down and hold for one minute to adhere.
Prepare the mounting surface on the car following the same procedure as indicated7.
in the above mentioned paragraph. Peel the tape backing carefully and position
the Base (6) on the surface and press into place. Leave in place for an hour before
use.

Page 6SKU 96144 For technical questions, please call 1-800-444-3353.

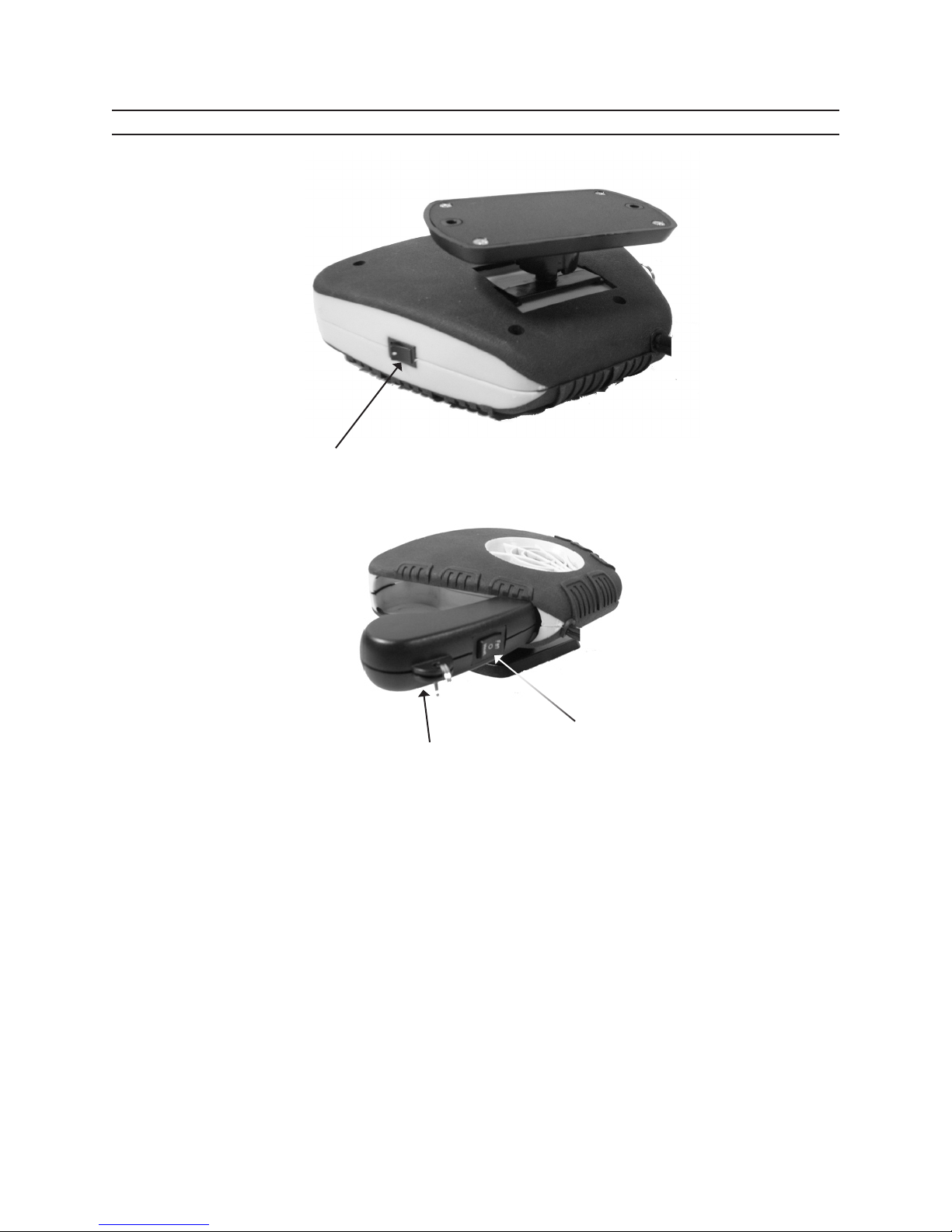

OPERATION INSTRUCTIONS
LED On/Off Switch (16)
Figure 2
Fan On/Off Switch (11)
Handle (4/5)
Figure 3
1. To operate the Heater-Fan, place the ON/OFF (11) switch in the Center (OFF)
position. Plug the Cigarette Plug (1) into the lighter plug receptacle of your vehicle.
Note: The Heater-Fan can be removed from the Mounting Base (6). By holding the
extended handle (4/5) the Heater-Fan can be moved around when greater mobility
as needed.
The LED On/Off Switch (16) turns the power ON.2.
To select either the Fan (10) or the Heater, press the Fan On-Off Switch (11) to the3.
setting as marked. Toggle the Fan On-Off Switch to the center position to turn off
these functions.
Remove unit from base and fold out handle to defrost windows. The Heater-Fan4.
Base swivels 180° to position air flow.
Do not leave the Heater/Fan running if your leave the area.5.

Page 7SKU 96144 For technical questions, please call 1-800-444-3353.
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Make sure that both the Fan On/Off Switch (11) and the LED On/Off
Switch are in their “OFF” position and that the Heater-Fan is unplugged from its power
source before performing any inspection, maintenance, or cleaning procedures.
BEFORE EACH USE,2. inspect the general condition of the Heater-Fan. Check for
loose screws, misalignment or binding of moving parts, cracked or broken parts,
damaged electrical wiring, and any other condition that may affect its safe operation.
Do not use damaged equipment.
Store the Car Fan in a dry location out of direct sunlight. Keep the Car Fan3.
out of the reach of children.
Clean with a soft cloth. Do not use flammable liquids or harsh detergents to4.
clean the Car Fan. Do not submerge in fluid to clean.
PARTS LIST
Part Description Qty
1 Main Upper Body 1
2 Main Lower Body 1
3 PTC Holder 1
4 Handle-Upper 1
5 Handle-Lower 1
6 Mounting Base 1
7 LED Reflector 1
8 LED Lens
9 Air Vent Window 1
10 Fan Assembly 1
11 On/Off Switch 1
Part Description Qty
12 Fuse-(15A)
13 Red LED
14 White LED
15 PCB 1
16 LED On/Off Switch 1
17 Cigarette Lighter Plug 1
18 Fuse Holder 1
19 PTC 1
20 Key Ring 1
21 Adhesive Tape (2 sided) 1
22 Mounting Screws 2
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEM-
BLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR
SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 8SKU 96144 For technical questions, please call 1-800-444-3353.

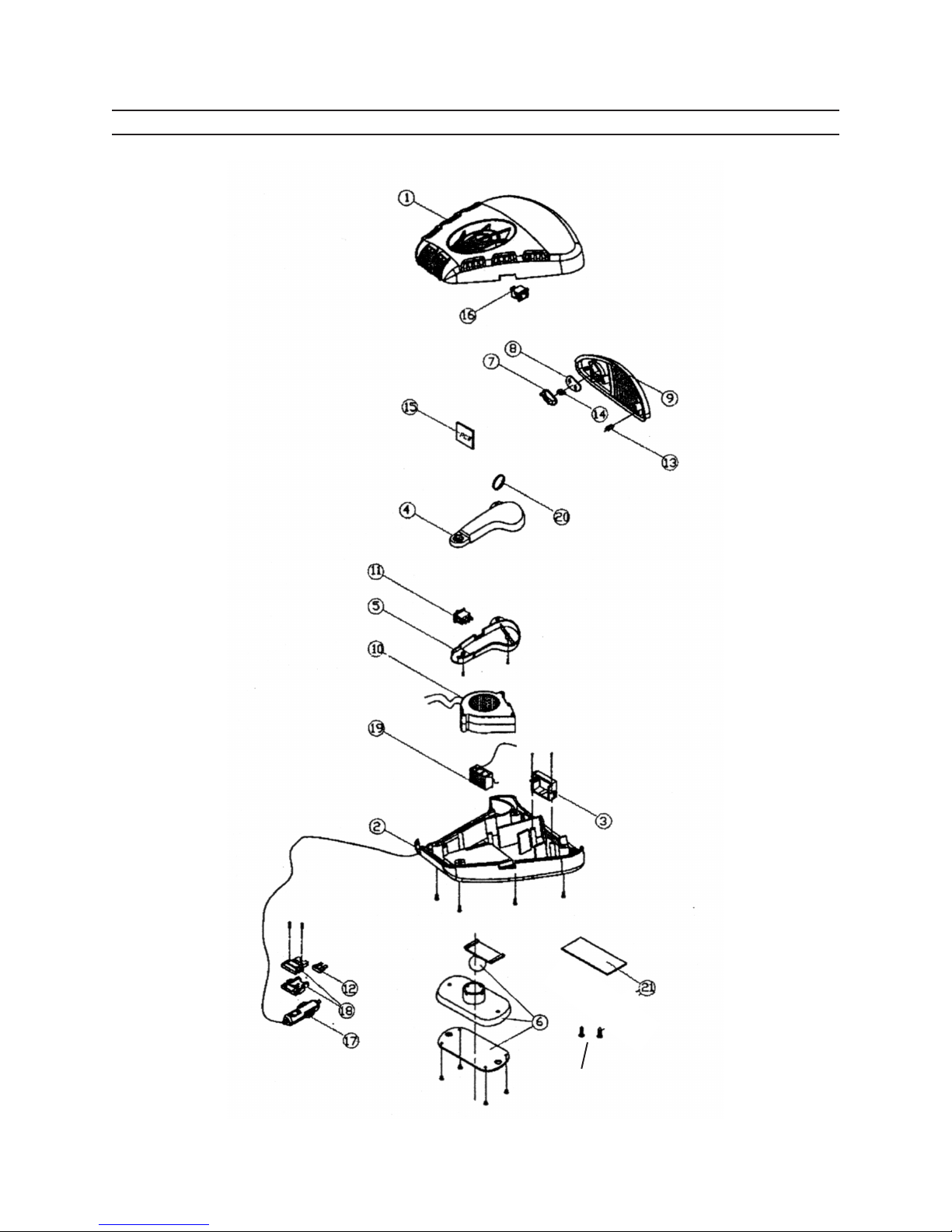

ASSEMBLY AND PARTS DIAGRAM
22
