Harbor Freight Tools Schneider 58005 Assembly instructions
Visit our website at: http://www.harborfreight.com
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21k
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 58005
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety ........................................................................2
Specifications ............................................................6
Setup .........................................................................6
Operation...................................................................7
Maintenance.............................................................10
Parts List and Diagram.............................................11
Warranty ...................................................................12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Power Tool Safety Warnings
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Page 3For technical questions, please call 1-888-866-5797.Item 58005
SAFETYOPERATIONMAINTENANCE SETUP
Electrical safety
1. Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with grounded
power tools.
outlets will reduce risk of electric shock.
2. Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
3. Do not expose power tools to rain or wet
conditions.
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
5. If operating a power tool in a damp location
is unavoidable, use a Ground Fault Circuit
Interrupter (GFCI) protected supply.
Use of a GFCI reduces the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medication.
2. Use personal protective equipment.
Always wear eye protection. Safety
such as dust mask, non-skid safety shoes,
3. Prevent unintentional starting. Ensure the
Trigger is in the off-position before connecting
to power source, picking up or carrying the tool.
have the Trigger on invites accidents.
4. Do not overreach. Keep proper footing and
balance at all times. This enables better control
5. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing
and gloves away from hot parts.
6. Only use safety equipment that has been
approved by an appropriate standards agency.
Power tool use and care
1. Do not force the power tool. Use the
correct power tool for your application.
safer at the rate for which it was designed.
2. Do not use the power tool if the Trigger
does not turn it on and off.
3. Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing power tools.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
6. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
intended could result in a hazardous situation.
Page 4 For technical questions, please call 1-888-866-5797. Item 58005
SAFETY OPERATION MAINTENANCESETUP
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
Specific Safety Rules
1. Avoid Serious Burns. The Soldering Iron has
a temperature range of 302° F - 896° F. Do
not point the Soldering Iron, or turn yourself
toward another person while soldering.
2. Do not open Soldering Iron. Do not
attempt to open and repair this unit. It must
be serviced by a qualified technician.
3. To prevent electric shock, always de-energize
any circuits or wires to be soldered before
making connections and soldering.
4. Exposure to soldering fumes can increase
the risk of developing certain cancers,
such as cancer of the larynx and lung
cancer. Also, some diseases that may be
linked to exposure to soldering fumes are:
• Early onset of Parkinson’s Disease
• Heart disease
• Ulcers
• Damage to the reproductive organs
• Inflammation of the small intestine or stomach
• Kidney damage
• Respiratory diseases such as
emphysema, bronchitis, or pneumonia
5. Keep head out of fumes. Do not
breathe soldering fumes. Use enough
ventilation to keep fumes and gases from
breathing zone and general area.
6. Never lay the Soldering Iron down where
the heated parts can contact flammable
materials or electrical wires.
7. This product is not a toy.
Keep it out of reach of children.
8. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
9. Do not leave the tool unattended when
it is plugged into an electrical outlet.
Turn off the tool, and unplug it from its
electrical outlet before leaving.
10. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the tool. Never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged,
have it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet
installed by a qualified electrician.
Page 5For technical questions, please call 1-888-866-5797.Item 58005
SAFETYOPERATIONMAINTENANCE SETUP
Grounded Tools: Tools with Three Prong Plugs
3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have
a three wire cord and three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity
away from the user, reducing the risk of
electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire
in the cord must be the only wire connected to
the tool’s grounding system and must never
be attached to an electrically “live” terminal.
(See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Extension Cords
1. Grounded tools require a three
wire extension cord. Double Insulated tools can
use either a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss
of power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord
to make up the total length, make sure
each cord contains at least the minimum
wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Page 6 For technical questions, please call 1-888-866-5797. Item 58005
SAFETY OPERATION MAINTENANCESETUP
Symbology
VVolts
~Alternating Current
AAmperes
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Specifications
Electrical Rating 120VAC / 60Hz / 80W
Temperature Range 302° F - 896° F
Tip Leakage Voltage <2mV
Soldering Tips 900M Conical: 0.2mm, 0.5mm
900M Chisel: 0.8mm
Setup - Before Use:
Components and Controls
Soldering
Tips
Soldering
Iron
Soldering
Iron
Holder
Power
Switch
Manual
Buttons
Soldering
Iron
Outlet
Preset
Buttons Screen
Power
Cord
Sponge
Page 7For technical questions, please call 1-888-866-5797.Item 58005
SAFETYOPERATIONMAINTENANCE SETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the
following pages, refer to Parts List and Diagram on page 11.
Workpiece and Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
4. If wires are to be soldered, thoroughly clean or
scrape the wires so that only the clean metal
is showing, then make the wire splice.
5. If other objects are to be soldered, thoroughly
clean or scrape the metal surfaces. It may
be necessary to apply acid flux (not included)
to the metal surfaces before soldering.
Notice: If soldering on printed circuit boards, too
much heat can soften the plastic form and loosen
the metal eyelet connections. Use minimal heat.
Never use acid-core solder on wiring circuits.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Unplug the tool from its electrical outlet before performing any procedure in this section.
Note: Practice soldering on scrap wires
and splices prior to actual use.
1. Set the Soldering Station on a fireproof
workbench away from all flammable materials.
2. Unplug unit, then plug Soldering Iron
into Soldering Iron Outlet.
3. Install Soldering Tip according to Maintenance
and Servicing on page 10.
4. Wet Sponge with water and wring out until
damp. Place sponge in Soldering Iron Holder.
5. Place Soldering Iron in Holder.
Page 8 For technical questions, please call 1-888-866-5797. Item 58005
SAFETY OPERATION MAINTENANCESETUP

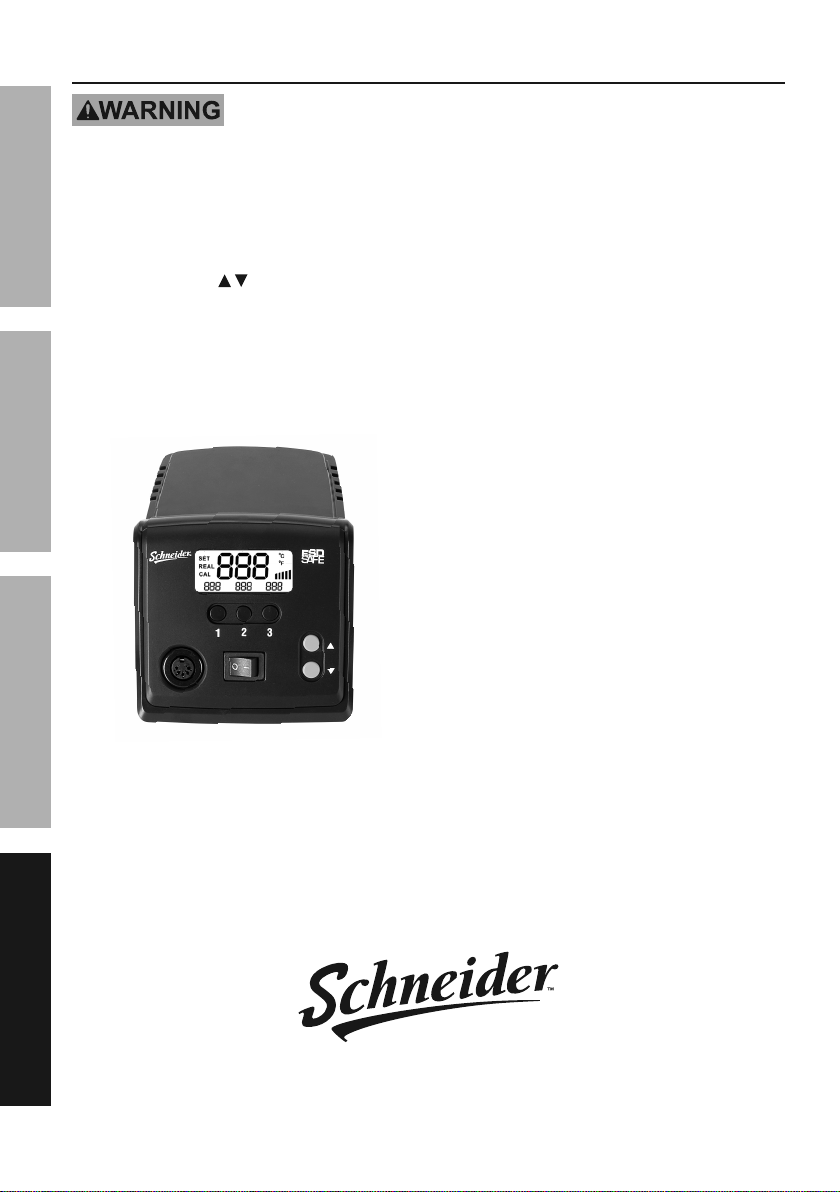

General Operating Instructions
TO PREVENT SERIOUS INJURY:
Wear ANSI-approved safety goggles with side shields.
1. Plug Power Cord into grounded 120VAC outlet.
2. Turn Power Switch on.
3. Set Temperature
a. When Screen displays REAL press
Manual Buttons until desired
temperature is selected.
b. To store temperature press and hold one of
the three Preset Buttons for three seconds.
c. To lock temperature press and hold
1, 2, and 3 Buttons for three seconds. Buttons
become non-operational. To unlock press and
hold 1, 2, and 3 Buttons for three seconds.
4. Clean and tin Tip, apply a sufficient amount
of rosin-core solder to melt over the entire
Soldering Tip. Wipe the Tip on the sponge
until the Tip is clean and shiny.
5. Apply solder to the wire splice or metal
to be soldered, not the Soldering Tip.
When the splice or metal is hot enough, it
will melt the solder causing it to flow within
the splice or between the metal surfaces.
6. When the solder has flowed over the entire
wire splice or metal surface, move Tip away.
7. After use, clean and tin Tip as explained in step 4.
8. To prevent accidents, turn off the tool and
unplug it after use. Let cool, then store the
tool indoors out of children’s reach.
Page 9For technical questions, please call 1-888-866-5797.Item 58005
SAFETYOPERATIONMAINTENANCE SETUP
Settings
To enter Settings mode, press and
hold for three seconds.
1. Calibration
a. Press 1, Screen will display CAL and
last calibration value will be shown.
b. Calibrate with Soldering Iron Tip
Thermometer (sold separately).
• Clean and tin Tip, then measure
temperature and record.
• Compare actual temperature to displayed
temperature. Record any difference.
• Adjust difference by pressing .
Example: measured temperature is 380° F,
displayed temperature is 400° F, difference
is -20° F. Press down to -20°.
c. Press 1 when finished to store setting.
2. Temperature Increments
a. Press 2, Screen will display F IΠ
and current setting will be shown.
Press to change setting.
• OΠ- Temperature will adjust 1° for
each press of Manual Buttons.
• OFF - Temperature will adjust 5° for
each press of Manual Buttons.
b. Press 2 when finished to store setting.
3. Switch Temperature Scale
a. Press 3, Screen will display C - F
and current scale will be shown.
b. Press to change temperature scale.
c. Press 3 when finished to store setting.
4. Automatic Standby
a. Enter Settings mode, then press .
b. Press 1, Screen will display Stb and
current status will be shown.
c. Press to set Standby time
(1 to 120 minutes) or set to OFF.
d. Press 1 when finished to store setting.
5. Automatic Shutdown
NOTE: This feature will only work if Automatic
Standby is on. After entering Shutdown,
the Soldering Station cannot be controlled
until power is turned off and back on.
a. Enter Settings mode, then press .
b. Press 2, Screen will display SdΠand
current status will be shown.
c. Press to set Shutdown time
(1 to 120 minutes) or set to OFF.
d. Press 2 when finished to store setting.
6. Sound
a. Enter Settings mode, then press .
b. Press 3, Screen will display bL and
current status will be shown.
c. Press to set to ON for audible beep
when pushing Buttons or set to OFF.
d. Press 3 when finished to store setting.
7. Restore Factory Settings
a. Enter Settings mode, then press twice.
b. Press 1, Screen will display FAC.
c. Press to set to ON then
press 1 to restore settings.
8. Manually Exit Settings
Note: After 10 seconds of no activity,
unit will automatically exit Settings.
a. While in Settings mode, press until
bottom of Screen displays FAC and ESC.
b. Press 2, Screen will display ESC.
c. Set to ON then press 2 to exit settings.
Page 10 For technical questions, please call 1-888-866-5797. Item 58005
SAFETY OPERATION MAINTENANCESETUP
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Make sure that the Trigger is in the off-position, unplug the tool from its electrical outlet,
and allow it to cool completely before performing any procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Inspection, Maintenance, and Cleaning
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• damaged cord/electrical wiring
• cracked or broken parts
• any other condition that may
affect its safe operation.
2. WARNING! TO PREVENT SERIOUS
INJURY: If the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.

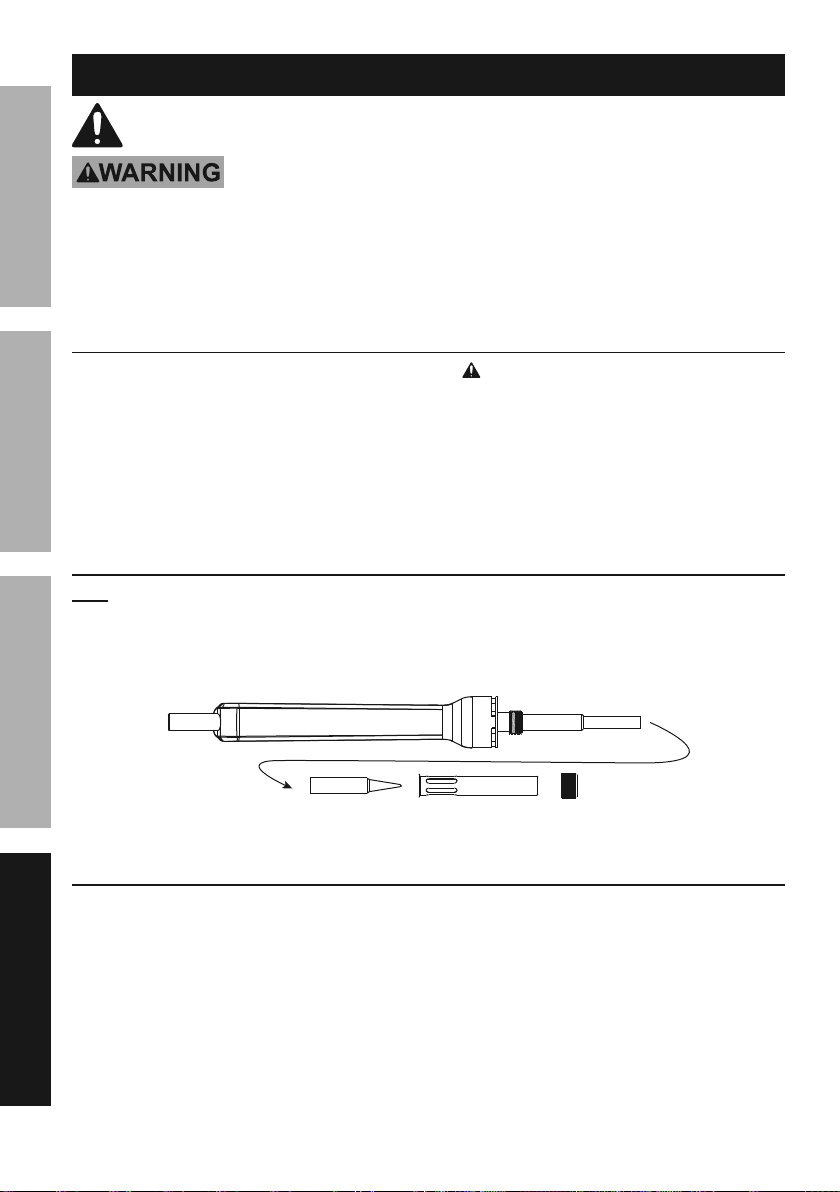

Change Tip
Note: Replace the Soldering Tip if it cracks or becomes eroded.
1. Let Soldering Iron cool.
2. Remove Nut, Sleeve and Tip.
3. Push Tip into Sleeve, place Sleeve over heating
element, then secure in place with Nut.
Heating
Element
Tip Sleeve Nut
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 11For technical questions, please call 1-888-866-5797.Item 58005
SAFETYOPERATIONMAINTENANCE SETUP
Parts List and Diagram
Part Description Qty
1 Power Cord 1
2 Fuse (T2.0A) 1
3 Male Socket 1
4 Soldering Iron Stand 1
5 Sponge 1
6 Top Housing 1
7 PCBA Screw 4
8 PCBA 1
9 Transformer Screw 4
10 Transformer 1
11 Bottom Housing 1
12 Bottom Housing Screw 4
13 Foot 4
14 Front Panel 1
15 Screen Cover 1
Part Description Qty
16 Preset Temperature Button Set 1
17 Manual Temperature Button Set 1
18 Power Switch 1
19 Soldering Iron Outlet 1
20 Soldering Iron Cable 1
21 Soldering Iron handle end sleeve 1
22 Soldering Iron handle sleeve 1
23 Soldering Iron handle 1
24 Metal board 1
25 Soldering iron PCBA 1
26 Heating Element 1
27 Fixing base 1
28 Soldering tip 1
29 Fixing swivel nut 1
30 Soldering tip fixing tube 1
30
22
Record Product’s Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement parts.
Specify UPC 193175430687 when ordering parts.
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability
standards, and warrants to the original purchaser that this product is free from defects in materials
and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to
damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside
our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion
may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Table of contents
Other Harbor Freight Tools Soldering Gun manuals
