SAFETY PRECAUTIONS
WARNING
Before servicing this unit, familiarize yourself with the following precautions:
1. Many electrical and mechanical parts in this
chassis have special safety characteristics that
often pass unnoticed and the protection
afforded by them cannot necessarily be
obtained by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts that have these special
safety characteristics are identified in this
manual and its supplements: electrical
components having such features are identified
by in the schematic diagram and the parts
list.
Before replacing any of these components,
read the parts list in this manual carefully. The
use of substitute replacement parts that do not
have the same safety characteristics as
specified in the parts list may create shock, fire,
or other hazards.
2. Before returning the set to the customer,
always do an AC leakage current check on the
exposed metal parts of the cabinet, such as
terminals, screw heads, and metal overlays, to
be sure the set is safe to operate danger of
electrical shock. Plug the AC line cord directly
into a 120 V AC outlet(USA Version) or 230 V
AC outlet(EU Version). (Do not use a line
isolation transformer during this check.) Be sure
your AC voltmeter has a sensitivity of 5000 Ω
per volt or greater. Then connect a 1500 Ω10
watt resistor, paralleled by a 0.15 µF 150 V AC
capacitor, between a known good earth
ground(such as a water pipe, or conduit) and the
exposed metallic parts, one at a time. Measure
the AC voltage across the combination of a 1500
Ωresistor and a 0.15 µF capacitor. Reverse the
AC plug at the AC outlet and repeat AC voltage
measurements for each exposed metalic part.
Voltage measured must not exceed 0.75 V
RMS. This corresponds to 0.2 mA AC. Any
value exceeding this limit constitutes a potential
shock hazard and must be corrected
immediately.

Model : AVR-133

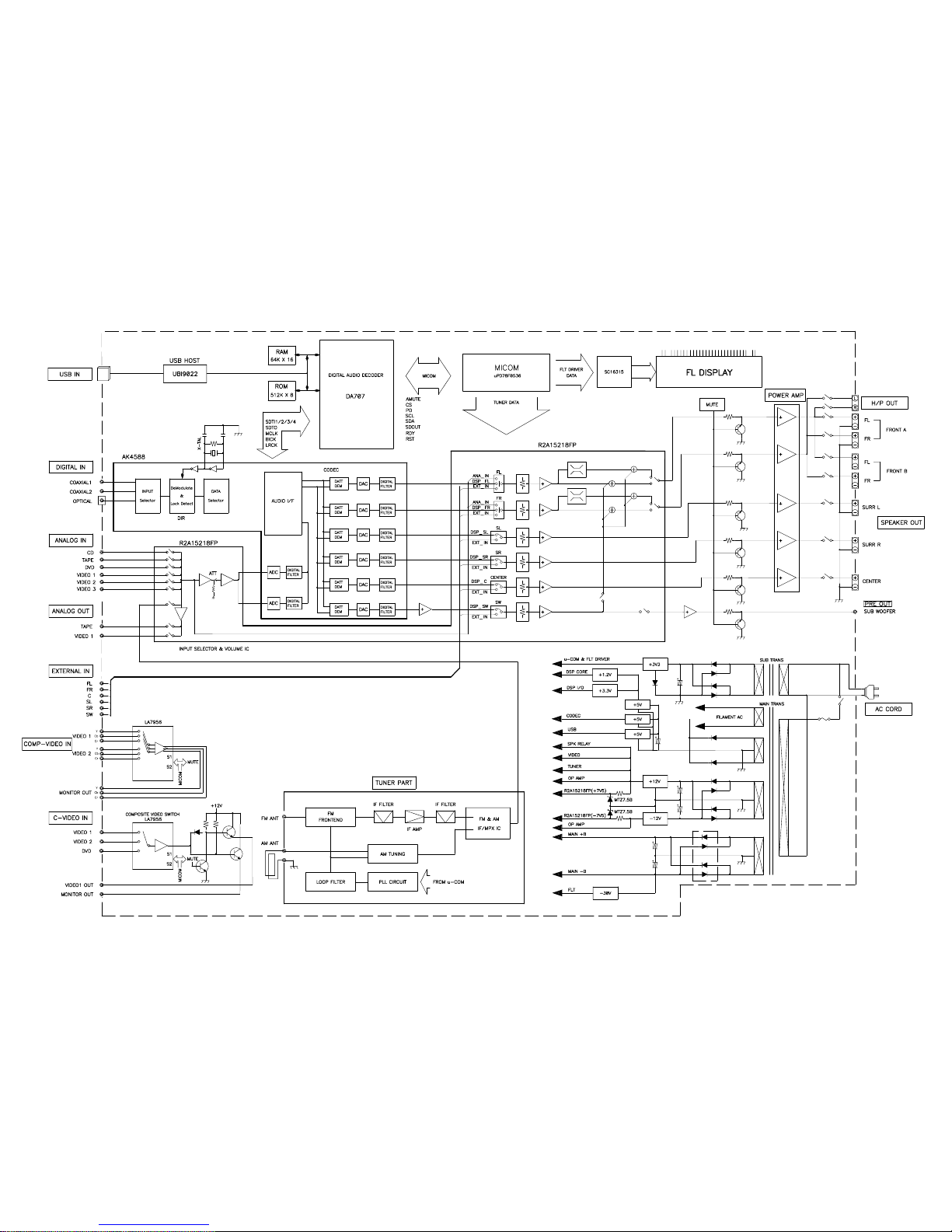

BLOCK DIAGRAM

WIRING DIAGRAM
Model : AVR-133

UPD78F0536GK : IC101

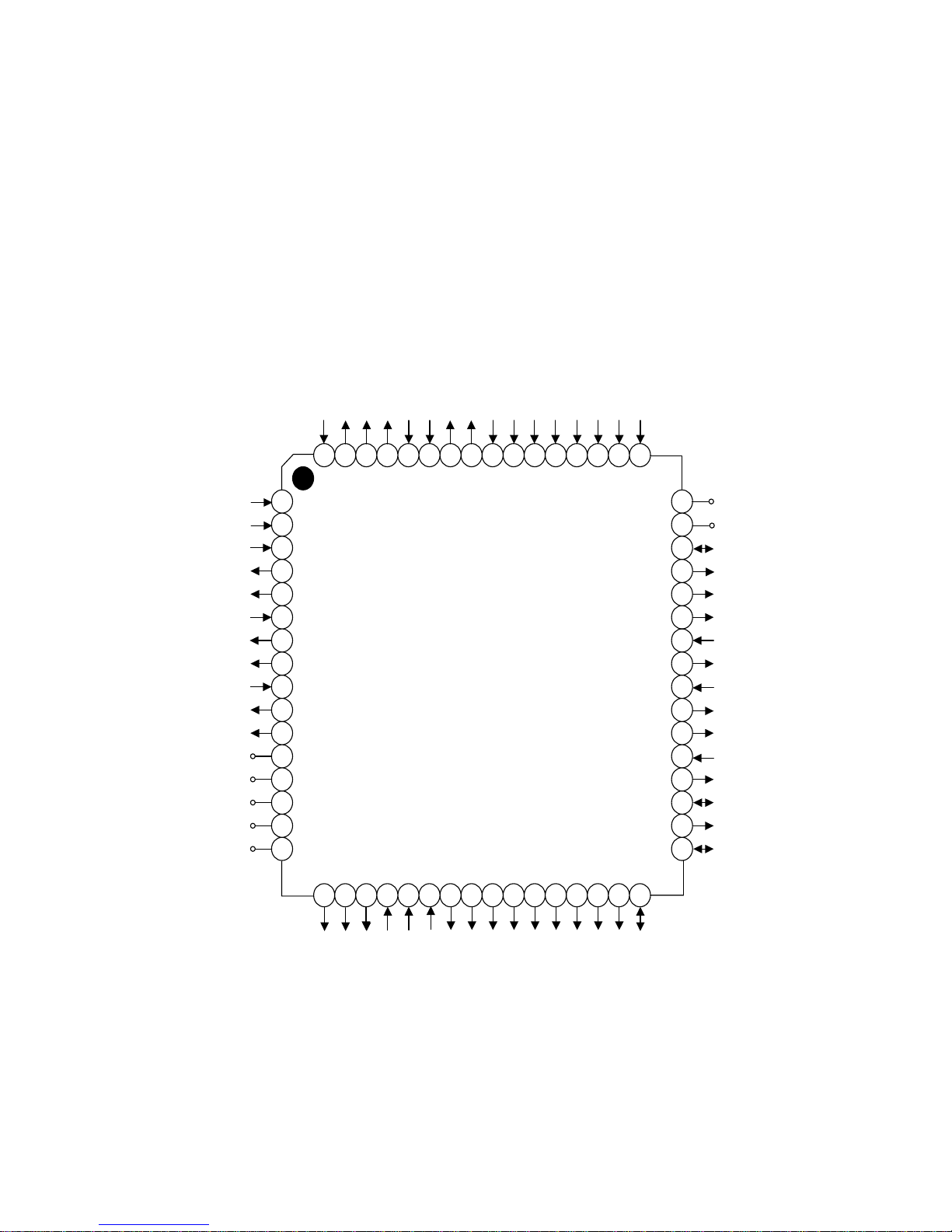

1. Pin Description
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
1 48
2 47
3 46
4 45
5 44
6 43
7 42
8 41
9 40
10 39
11 38
12 37
13 36
14 35
15 34
16 33
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
P32
HDMI_HPD(NC) HDMI_S2(NC)
FLMD0
V1OUT_MUTE
H/P_RLY
C_RLY
FLT/PLL_CLK FLT/PLL_DATA
RESET
CIRCUIT DESCRIPTION
FRONT B_RLY
TxD
(
UPD78F0536
)
FUNC_UP ST/BY_RLY/FLSW ST/BY_LED FUNC_DN KEY2
VOL_DN
RxD
DSP_RST
VDD
R2A15215FP_DATA
REGC
VSS
VIDEO_MUTE
VIDEO_S1 VIDEO_S2
R2A15215FP_CLK
EVDD
POWER_DOWN FLT_CE RMC
TRIG CONTROL
PROTECTION
VOL_UP
EVSS
S_RLY
F_RLY
HDMI_S1(NC) BT/THERMAL_DET KEY1 KEY3
GND
AVREF
24C08_SDA
24C08_SCLK
DSP_AMUTE
DSP_SDOUT
DSP_CE
DSP_RDY
DSP_PD
DSP/DIR_CDIN
DSP/DIR_CCLK
P31
TUNEND SW_MUTE PLL_DO S_MUTE RDS_CLK USB_PC F_MUTE PLL_CE RDS_DATA C_MUTE

16-bit TIMER/
EVENT COUNTER 00
16-bit TIMER/
EVENT COUNTER 01
TO00/TI010/P01
TI000/P00 (LINSEL)
RxD6/P14 (LINSEL)
TO01
Note 2
/TI011
Note 2
/P06
TI001
Note 2
/P05
TOH0/P15
TOH1/P16
TI50/TO50/P17
TI51/TO51/P33
RxD0/P11
TxD0/P10
RxD6/P14
TxD6/P13
SI10/P11
SO10/P12
SCK10/P10
8-bit TIMER H0
8-bit TIMER H1
WATCHDOG TIMER
WATCH TIMER
INTERNAL
LOW-SPEED
OSCILLATOR
SERIAL
INTERFACE UART0
78K/0
CPU
CORE
BANK
SERIAL
INTERFACE UART6
LINSEL
SERIAL
INTERFACE CSI10
8-bit TIMER/
EVENT COUNTER 50
8-bit TIMER/
EVENT COUNTER 51
SERIAL
INTERFACE IIC0
A/D CONVERTER
SERIAL INTERFACE
CSI11
Notes 1. Available only in the μPD78F0536, 78F0537, and 78F0537D.
2. Available only in the μPD78F0534, 78F0535, 78F0536, 78F0537, and 78F0537D.
3. Available only in the μPD78F0537D.
Note2
Note2
Note1
Note2
Note2
Note3
8
INTERRUPT
CONTROL
2
4
PORT 0
7
P00 to P06
PORT 1
8
P10 to P17
PORT 2
8
P20 to P27
PORT 3
4
P30 to P33
PORT 4
4
P40 to P43
PORT 5
4
P50 to P53
PORT 6
4
P60 to P63
PORT 7
8
P70 to P77
PORT 12
5
P120 to P124
PORT 13 P130
PORT 14
2
P140, P141
BUZZER OUTPUT BUZ/P141
CLOCK OUTPUT
CONTROL PCL/P140
KEY RETURN
8
KR0/P70 to
KR7/P77
RESET CONTROL
MULTIPLIER &
DIVIDER
ON-CHIP DEBUG
SYSTEM
CONTROL
INTERNAL
HIGH-SPEED
OSCILLATOR
VOLTAGE
REGULATOR
POWER ON CLEAR/
LOW VOLTAGE
INDICATOR
EXLVI/P120
RESET
REGC
X1/P121
X2/EXCLK/P122
XT1/P123
XT2/EXCLKS/P124
POC/LVI
CONTROL
FLASH
MEMORY
INTERNAL
HIGH-SPEED
RAM
INTERNAL
EXPANSION
RAM
VDD,
EVDD VSS, EVSS FLMD0
OCD0A
Note 3
/X1, OCD1A
Note 3
/P31
OCD0B
Note 3
/X2, OCD1A
Note 3
/P32
SI11
Note 2
/P03
SO11
Note 2
/P02
SCK11
Note 2
/P04
SSI11
Note 2
/P05
EXSCL0/P62
SDA0/P61
SCL0/P60
ANI0/P20 to
ANI7/P27
AVREF
AVSS
RxD6/P14 (LINSEL)
INTP0/P120 (LINSEL)
INTP1/P30 to
INTP4/P33
INTP5/P16
INTP6/P140,
INTP7/P141

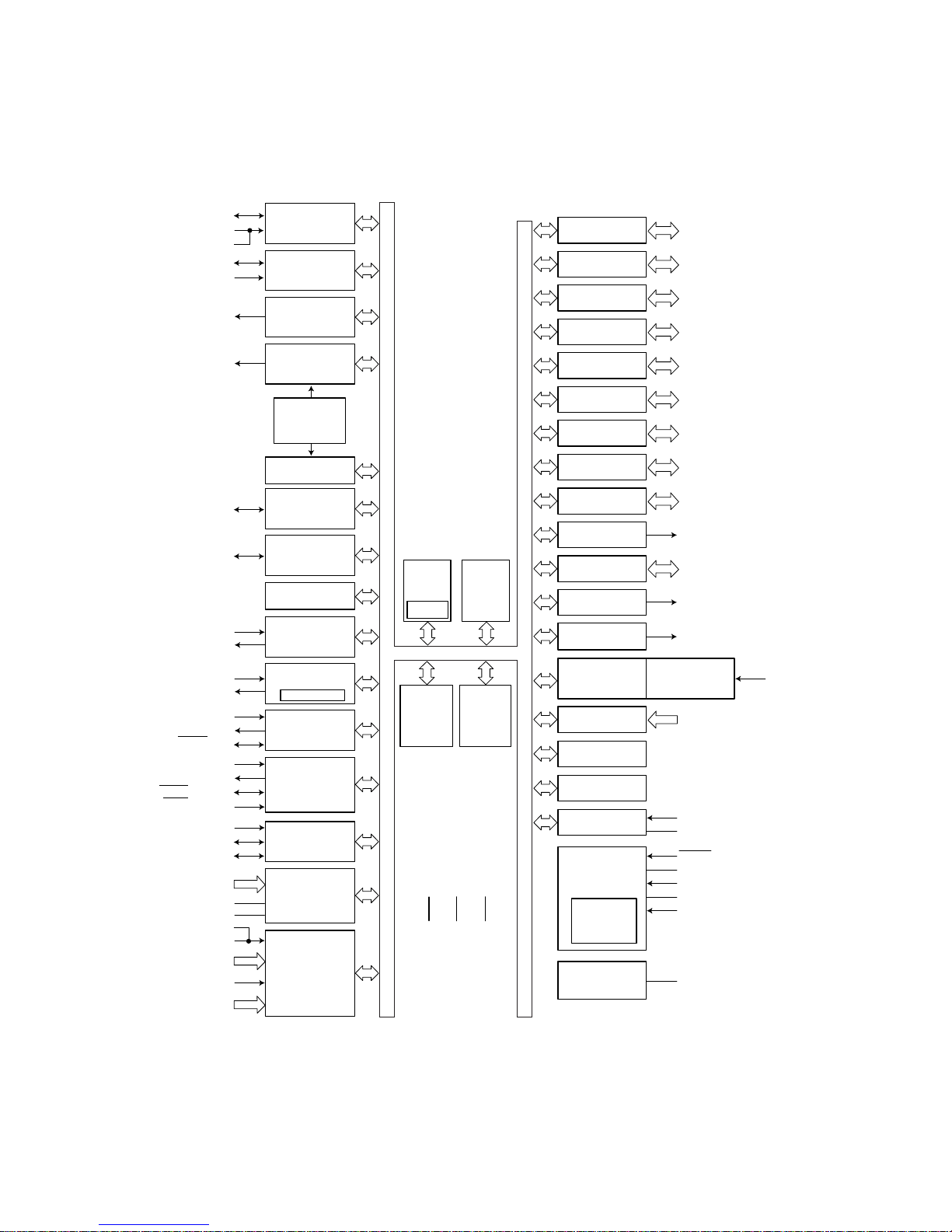

2. Block Diagram

3. Pin Functions
No. Pin Name Pin Symbol I/O Pin Description
1 P120/INTP0/EXLVI PROTECTION I Input for protection
2 P43 VOL_UP I Input for volume up
3 P42 VOL_DN I Input for volume down
4 P41 H/P_RLY O Output for headphone relay
5 P40 C_RLY O Output for center speaker relay
6 RESET RESET I Input for u-com reset
7 P124/XT2/EXCLKS S_RLY O Output for surround speaker relay
8 P123/XT1 F_RLY O Output for front speaker relay
9 IC/FLMD0 FLMD0 O Port for flash mode setting
10 P122/X2/EXCLK V1 OUT_MUTE O Output for VIDEO1 OUT MUTE
11 P121/X1 TRIG CONTROL O Output for DC TRIGGER ON/OFF
12 REGC Connect to ground via 0.47uF/50V E.Cap
13 VSS VSS Ground
14 EVSS EVSS Ground
15 VDD VDD 3V3
16 EVDD EVDD 3V3
17 P60/SCLO VIDEO_MUTE O Output for video mute
18 P61/SDA0 VIDEO_S1/HDMI_S2 O Output for video/HDMI function IC switching
19 P62/EXSCL0 VIDEO_S2/HDMI_S1 O Output for video/HDMI function IC switching
20 P63 TUNED I Input for tuner "TUNED" condition (L is active)
21 P33/TI51/TO51/INTP4 RDS_CLK I Clock signal input from tuner pack
22 P77/KR7 RDS_DATA I Input for RDS data from tuner pack
23 P76/KR6 PLL_CE O Chip select output for tuner pack
24 P75/KR5 PLL_DO O Data output for tuner pack
25 P74/KR4 SW_MUTE O Output for subwoofer channel mute
26 P73/KR3 C_MUTE O Output for center channel mute
27 P72/KR2 S_MUTE O Output for surround channel mute
28 P71/KR1 F_MUTE O Output for front channel mute
29 P70/KR0 USB_PC O Output for IC108(REGULATOR) ON/OFF
30 P06/TI011/TO01 R2A1521FP_CLK O Clock signal output for R2A1521FP
31 P05/TI001/SSI11 R2A1521FP_DATA O Output for R2A1521FP control data
32 P32/INTP3 P32 Port for flash upgrade
33 P31/INTP2 P31 Port for flash upgrade
34 P50 DSP/DIR_CCLK O Clock signal output for DIR/DSP
35 P51 DSP/DIR_CDIN I/O Input & output for DIR/DSP control data
36 P52 DSP_RESET O Output for DSP reset
37 P53 DSP_RDY I Input for DSP enable
38 P30/INTP1 DSP_CE O Chip select output for NJW1153
39 P17/TI50/TO05 DSP_ABOOT O Ouput for DSP Auto boot
40 P16/TOH1/INTP5 DSP_INTREQ I Interrupt signal output to DSP
41 P15/TOH0 DIR_PDN O Output for DIR power down
42 P14/RXD6 RxD I Input for flash upgrade
43 P13/TXD6 TxD O Output for flash upgrade
44 P12/SO10 Front B RLY O Output for SPK B ON/OFF
45 P11/SI10/RXD0 24C08_SCLK O Clock signal output for 24C08
46 P10/SCK10/TXD0 24C08_SDA I/O Input & output for 24C08 control data
47 AVREF AVREF 3V3
48 AVSS AVSS GROUND
49 P27/ANI7 KEY2 I Input for KEY2 scan
50 P26/ANI6 KEY3 I Input for KEY3 scan
51 P25/ANI5 KEY1 I Input for KEY1 scan
52 P24/ANI4 BT/THERMAL_DET I BLUETOOTH DETECT
53 P23/ANI3 HDMI_HPD O Ouput for HDMI HPD(NOT USED)
54 P22/ANI2 HDMI_S2 O Ouput for HDMI S2 CONTROL(NOT USED)
55 P21/ANI1 HDMI_S2 O Ouput for HDMI S1 CONTROL(NOT USED)
56 P20/ANI0 FUNC_DN I Input for function encoder down
57 P130 ST/BY_LED O Ouput for standby led
58 P04/SCK11 ST/BY_RLY O Onput for standby relay
59 P03/S111 FUNC_UP I Input for function encoder up
60 P02/S011 FLT/PLL_DATA O Output for FLT/PLL control data
61 P01/TI010/TO00 FLT/PLL_CLK O Clock signal output for FLT/PLL
62 P00/TI000 RMC I Input for remocon data
63 P141/BUZ/INTP7 FLT_CE O Chip select output for FLT
64 P140/PCL/INTP6 POWER_DOWN I Input for power down

1.Electrical specification.
1.Electrical specification.1.Electrical specification.
1.Electrical specification.
Local OSC
Frequency cover range
Standard supply voltage
FM Antenna input Impedance
AM Loop Antenna
2.Electrical Characteristics.
2.Electrical Characteristics.2.Electrical Characteristics.
2.Electrical Characteristics.
AF Output Level
Auto Stop Level
Stereo Separation 1kHz
AF Output Level
Auto Stop Level

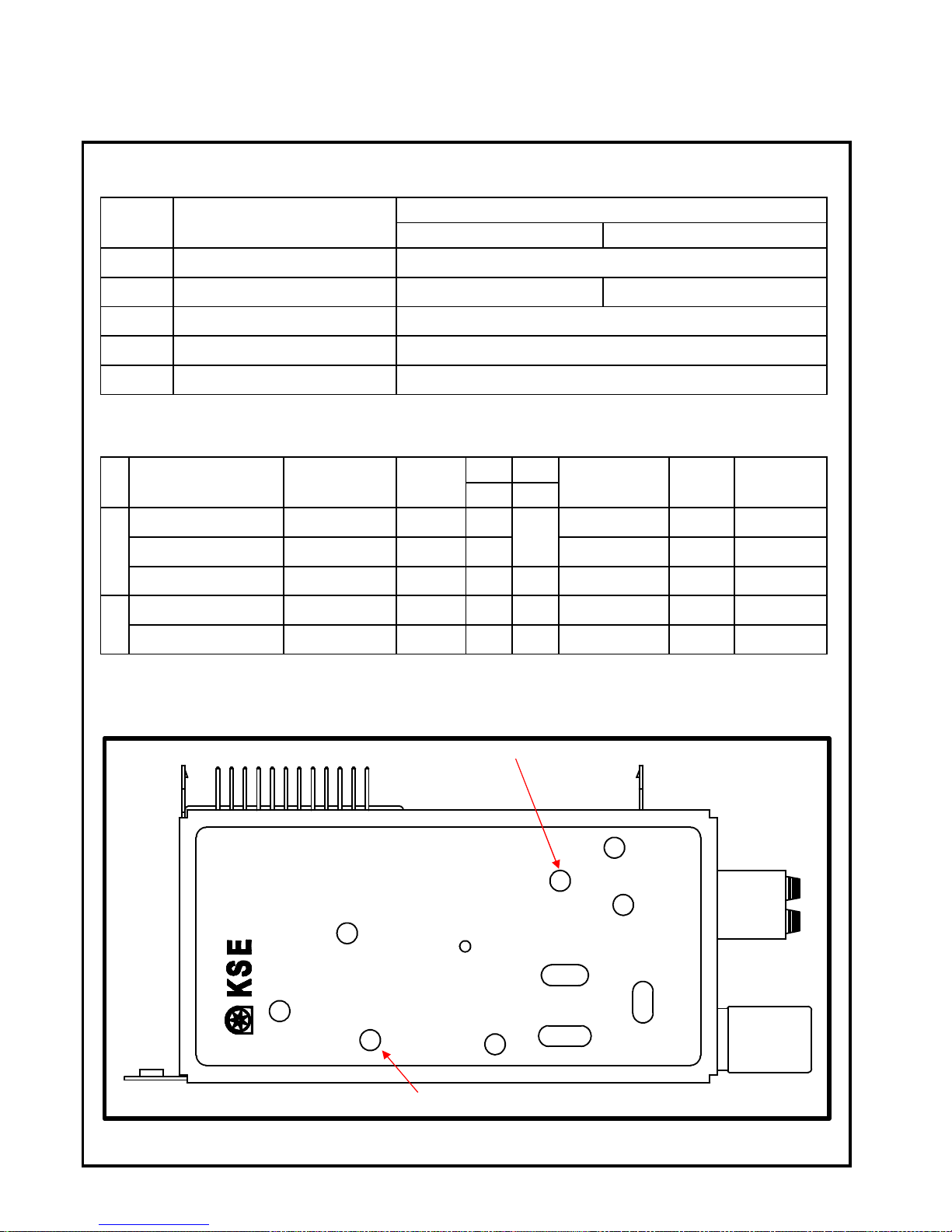

3.Adjust Point.
3.Adjust Point.3.Adjust Point.
3.Adjust Point.
98.1 60
<KST-MU004MV1-0 Adj POINT>
<KST-MU004MV1-0 Adj POINT><KST-MU004MV1-0 Adj POINT>
<KST-MU004MV1-0 Adj POINT>
75 ohm
40
FM
47• Load 98.1 60
MW
47• Load 999 74
--
30 180 ±60
280±100 mV
25 ±6 dBu
1-3
1-4
NO.
NO.NO.
NO.
9.5uH ( 1kHz ) : S0160BL-25
12.0(±0.5V)
Above the receiving Frequency
M W F M
522 ~1620kHz 87.5 ~ 108.0MHz
ITEMS
ITEMSITEMS
ITEMS SPECIFICATION
SPECIFICATIONSPECIFICATION
SPECIFICATION
1-1
kHz,%dBu
TEST
CONDITION T.P.
1-5
Adjustment
1-2
SVR01
UNITSpecification
NO
Non Adjust
98.1 --
TEST ITEMS MOD.T.L.
999
SVR02
Non Adjust30 55 ±15
25 min dB
mV Non Adjust
dBu
FM AUTO STOP LEVEL Adj.
FM STEREO SEPARATION Adj.
SVR02
SVR01
ALIGNMENT PROCEDURES

Ref No.
Power On Failure A) AC-Cord check.
1. FLT does not light up. B) Power Trans (Main/ST-BY) check.
2. ST-BY LED does not light up. C) Fuse's disconnection check. F ( 301)
D) Connector's disconnection or disjunction.
Change or close insertion of the connector. CN301,FPC101
E) Inferior ST-By switch. SW(700)
F) VFD Driver I.C & Resonator check. I.C701 SC16315
1. VFD Driver I.C VCC(+3.3)V check. I.C701 Pin No13
2. VFD Driver clock pulse check. I.C701 Pin No5
Fuse Disconnection. A) Inferior transformer.
(Power On) B) AMP drive TR out. (POWER TR) Q206( FL, FR, C, SL, SR )
C) AMP drive TR out. ( POWER TR ) Q205 ( FL, FR, C, SL, SR )
D) voltage check.
1. B+ ( 47 )V, B- ( 47 ) V
Key Disorder. A) Key's being pushed check.
B) Key signal input components inferior.
C) Key PORT check. I.C101 Pin No. (49,50,51 )
D) µ-COM I.C inferior.
1. µ-COM IC VCC +3.3V check. I.C101 Pin No. ( 15,16,47 )
Power Off in 2~3 sec. A) Regulator I.C out. I.C 300 (LM1117S_3.3V)
after Power On. 1. Signal IN/OUT check.
B) Drive transistor out. ( POWER TR ) Q205 ( FL, FR, C, SL, SR )
Q206( FL, FR, C, SL, SR )
C) Protection circuit check.
1. Output DC check.
2. µ-COM I.C protection terminal check. u-COM Pin No. ( 1 )
D) Connector's disconnection or disjunction CP (111)
E) SLEEP MODE cancellation.
Bump Sound A) FRONT Mute transistor's out and inferior. Q (105 )
(During input-select switch's change.) µ-Com front mute control PORT check. IC101 Pin No. ( 28 )
B) CENTER Mute transistor's out and inferior. Q ( 107 )
µ-Com center mute control PORT check. IC101 Pin No. ( 26 )
C) SURROUND Mute transistor's out and inferior. Q ( 109 )
TROUBLESHOOTING
Cause and RemedySymptom

Ref No.
Cause and RemedySymptom
µ-Com surround mute control PORT check. IC101 Pin No. ( 27 )
Sounds from Speaker when A) NOT Supported Headphone Detect.
Headphone's connected. Push the Speaker On/Off Button(Speaker off).
Bass / Treble Control Failure. A) Volume IC check. I.C109
1. Resister/Capacitor correction figure check.(Bass) I.C109 PIN No. ( 26,27,32,33)
2. Resister/Capacitor correction figure check.(Treble) I.C109 PIN No. ( 28,34)
AMP Sound Dead. A) Signal Mute TR's inferior. Q 105,107,109
1. "LEFT" Channel dead. B) Connector disconnection & disjunction. CP ( 111)
2. "RIGHT" Channel dead. Change or close insertion of the connector.
3. "CENTER" Channel dead. C) Speaker wire's disjunction.
4. "REAR" Channel dead. Close insertion of the speaker wire.
D) Volume IC check. I.C No. ( 109 )
1. I.C voltage check ( +7.5 )V, ( -7.5 )V I.C Pin No. ( 30,52)
2. I.C control data check. I.C PIN No. (49,50)
3. I.C signal IN/OUT check.
AC-3/DTS Failure. A) I.C Regulator check.
(DSP Sound Mode) DSP I/O + (3.3)V,DSP CORE + (1.2)V REG101,REG102
CODEC + ( 5)V,CODEC + ( 3.3)V I.C No. (112 ), REG100
B) DIR check. I.C103
1. OSC check. X-TAL ( 100 )
2. BICK, LRCK, RDATA Check. I.C Pin No. ( 15) ( 16 ) ( 14 )
3. Micom Interface Port Check. I.C Pin No. ( 21,22,31 )
C) DSP Check. I.C No. ( 102)
1. LRCK Check. I.C Pin No. ( 12 )
2. Micom Interface Port Check. I.C Pin No.(3,4,14,105,107,108,110,111)
3. SDATA 1, 2, 3,4 Check. I.C Pin No. ( 117,116,115,113)
D) D/A Check. I.C No. ( 103)
1. LRCK/BCK/SDATA check. I.C Pin No. ( 17,18,19)
2. Signal out check. I.C Pin No. ( 49,47,45,43,41,39,37,35 )
Video Output Dead. A) Video Regulator voltage check.
1. DC voltage check. + ( 12 )V I.C No. ( 106)
B) Micom control data check. I.C Pin No. ( 2,3 )
C) Video Mute(MONTOR,V1 OUT) port check.(IC101) I.C Pin No. ( 17,10)
Remote Controller Failure. A) Battery check.
B) RMC I.C & Resonator inferior.

Ref No.
Cause and RemedySymptom
1. µ-COM I.C B+( 3.3 )V check.
2. REMOCON data check. I.C NO. (101) / I.C Pin No. ( 62)
FM Failure. A) FM MUTE adjustment inferior.
B) FRONT-END inferior.
C) FM DET COIL inferior.
D) PLL&MPX IC check.
1. PLL&MPX I.C B+( 5 )V,B+( 3.3 )V check. I.C NO. (1 ) / I.C Pin No. ( 8,21 )
2. PLL control data check. (Data/CE/Clock)
E) TUNER B+ voltage inferior.
F) µ-COM I.C & Resonator inferior. I.C No. ( 101 )
1. µ-COM I.C B+( 3.3 )V check.
2. Micom control data check. I.C Pin No. ( 20,23,24,60,61)
AM Failure. A) PLL&MPX IC check.
1. PLL&MPX I.C B+( 5 )V,B+( 3.3 )V check. I.C NO. (1 ) / I.C Pin No. ( 8,21 )
2. PLL control data check (Data/CE/Clock)
B) TUNER B+ voltage inferior.
C) AM OSC COIL inferior.
D) µ-COM I.C & Resonator inferior. I.C No. (101 )
1. µ-COM I.C B+( 3.3)V check.
2. Micom control data check. I.C Pin No. ( 20,23,24,60,61)
Stereo Effect Failure. A) FM DET COIL Inferior.
Stereo does not light up. B) PLL&MPX IC check.
1. PLL&MPX I.C B+( 5 )V,B+( 3.3 )V check.
2. MPX control data check.
C) µ-COM I.C & Resonator inferior. I.C No. ( 101 )
1. µ-COM IC B+( 3.3)V check
2. Micom control data check. I.C Pin No. ( 20,23,24,60,61)
Tuner Sound Dead. A) Connector's disconnection or disjunction.
1. "L / R" Channel dead. Change or Close insertion of the connector.
2. "LEFT" Channel dead. B) FM DET COIL inferior.
3. "RIGHT" Channel dead. C) AM IFT COIL inferior.
D) PLL&MPX IC check.
1. Signal IN/OUT terminal.
2. I.C driving voltage check. ( +5V,+3V3 ) I.C NO. (1 ) / I.C Pin No. ( 8,21 )

★MECHANICAL PARTS LIST
(
AVR-133
)
♣Parts without Parts No. are not supplied.
No. DESCRIPTION Q'TY PARTS No.
PACKAGE
INSTRUCTION MANUAL 1 5707000001360S
BOX,GIFT(535*448*235) 1 6007211180010S
CUSHION,SNOW(EPS) 2 6230212064000S
PE,SHEET 750*1460/SET 1 6327040059000S
POLY BAG, 330*240*0.05 1 6337040062010S
POLY BAG, 85*70 1 6337210242000S
REMOCON 1 8300310000010S
ANTENNA, LOOP 1 E601016000010S
ANTENNA, WIRE(FM) 1 E605010070001S
BATTERY, AAA 3 G670001R50210S
CABINET & CHASSIS
1 WINDOW, DISPLAY 1 5077212543000S
2 FILTER, FLT 1 5200210262000S
3 BADGE 1 5630210548000S
4 PANEL, FRONT 1 3067213971000S
5 FELT, STRIP 2 2690040057010S
6 LENS, STANDBY 1 3710210793000S
7 BUTTON, STANDBY 1 5097213641000S
8 BUTTON, POWER SWITCH 1 5097213631000S
9 PCB ASS'Y, STANDBY SW 1
10 BRACKET, POWER SWITCH 1 4010213546000S
11 SW, PUSH 1 G000122006060S
12 PCB ASS'Y, POWER SW 1
13 PCB ASS'Y, FRONT 1
14 HEAT SINK, MAIN 1 2120210538100S
15 PCB ASS'Y, GUIDE1 1
16 BRACKET, H SINK 5 4010056906010S
17 CABINET, TOP 1 3007041236061S
18 PCB ASS'Y, AMP 1
19 CHASSIS, MAIN 1 3200200026020S
20 POWER TRANS, 240V/50HZ 1 8200858630220S

No. DESCRIPTION Q'TY PARTS No.
21 CUSHION, 12tX30X15 1 4050044345010S
22 PCB ASS'Y, STANDBY 1
23 PLATE, KNOB 1 4470211422000S
24 KNOB, CAP 1 5087211781000S
25 BUSHING, SHAFT 1 2410210061000S
26 KNOB, VOLUME 1 5080211793000S
27 PLATE, PANEL 1 4470211432000S
28 CN,PLUG CONTACT(USB) 1 G480040100010S
29 PCB ASS'Y, USB 1
30 SHIELD, PLATE USB 1 3070210456000S
31 BUTTON, FUNCTION 1 5097213651000S
32 SW, ENCODER 1 G121123070020S
33 TER,RCA 3PIN 1 G606040320020S
34 SHIELD, PLATE VIDEO 1 3070210466000S
35 PCB ASS'Y, GUIDE3 1
36 PCB ASS'Y, GUIDE2 1
37 FOOT, TITAN 2 4007040201060S
38 PCB ASS'Y, MAIN 1
39 HEAT SINK, H=45/REG TR 1 2120043538030S
40 HEAT SINK, REG TR(24X45) 1 2120044298010S
41 PCB ASS'Y, DSP 1
42 MODULE, JSR1165-C /OPTICAL 1 E100116500040S
43 TER,RCA 2PIN 1 G601206A0200YS
44 SHIELD, PLATE DSP 1 3070210476000S
45 TER,RCA 12PIN 1 G6081201A120YS
46 TER,RCA 3PIN 1 G60631901B20YS
47 TER,RCA 6PIN 1 G603610A0041YS
48 TUNER, FM/AM 1 E903004100010S
49 TER,RCA 3PIN 1 G606305A1400YS
50 TER,RCA 2PIN 1 G601207BE050YS
51 TER,RCA 9PIN 1 G6070902C016YS
52 PCB ASS'Y, COMPONENT 1
53 FOOT, PL 2 4000040201010S
54 TER,BOARD PUSH 8P 1 G598801SA090YS
55 TER,BOARD PUSH 6P 1 G596601SA090YS

No. DESCRIPTION Q'TY PARTS No.
56 CHASSIS, BACK 1 3207212506000S
57 SOCKET,POWER AC 1 G430040550010S
58 JACK,D6.5 1 G402PJ619A01YS
59 PCB ASS'Y, HEADPHONE 1
60 DISPLAY, FLT 1 K530080300010S
61 HOLDER, FLT 1 432004078301AS
62 POSISTOR 1 F320161020240S
SCREWS
S1 SCREW, +2S 4*8 B-TYPE(DOT) BK/BH 4 1500040083B10S
S2 SCREW, +2S 3*10 B-TYPE(DOT) BK/BH 30 B020030103B11S
S3 SCREW, 3X18 B-TYPE ZNW/BH 5 B020030181B10S
S4 SCREW, +3S 4*10 P+S-WASHER ZNW/BH 4 B028940101B10S
S5 SCREW, +2S 3*16+S-WASHER ZNW/HH 15 1507041146010S
S6 SCREW, +2S 3*8 ZnY WASHER PI12 2 1500001456010S
S7 SCREW, +2S 3*8 B-TYPE ZNW/BH 46 B020030081B10S
S8 SCREW, +2S 3*8 B-TYPE BK/BH 7 B020030083B10S
MISCELLANEOUS
Q206C KTB2510, PNP 1 J501251000010S
Q206FL KTB2510, PNP 1 J501251000010S
Q206FR KTB2510, PNP 1 J501251000010S
Q206SL KTB2510, PNP 1 J501251000010S
Q206SR KTB2510, PNP 1 J501251000010S
Q205C KTD1510, NPN 1 J503151000020S
Q205FL KTD1510, NPN 1 J503151000020S
Q205FR KTD1510, NPN 1 J503151000020S
Q205SL KTD1510, NPN 1 J503151000020S
Q205SR KTD1510, NPN 1 J503151000020S
Q204C 2SD947F, NPN 1 J503947F00000S
Q204FL 2SD947F, NPN 1 J503947F00000S
Q204FR 2SD947F, NPN 1 J503947F00000S
Q204SL 2SD947F, NPN 1 J503947F00000S
Q204SR 2SD947F, NPN 1 J503947F00000S
CN,WIRE 100MM (2P) 1 L000101020240S
CORD ASS'Y, 16A/250V 1 L068250160020S
CABLE,FLAT CARD 1.25MM 1 N712172234810S

EXPLODED VIEW
Model : AVR-133

★ELECTRICAL PARTS LIST
(
AVR-133
)
♣Parts without Parts No. are not supplied.
REF No. Q'TY PARTS No.
ASSEMBLY P.C.BOARD MAIN 7025HK0805010
COILS
BD103/BD104 BEAD COIL, 120ohm 2 D340160811210S
BD106-BD110 BEAD COIL, 120ohm 5 D340160811210S
BD113-BD115 BEAD COIL, 120ohm 3 D340160811210S
BD116-BD119 FILTER COIL, BFS2550A0F1 4 D320255000520S
CAPACITORS
C101L/R CERAMIC CHIP T.C 100 pF 50V J 2 D010101167160S
C102L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C103L/R CERAMIC CHIP T.C 100 pF 50V J 2 D010101167160S
C104L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C105L/R CERAMIC CHIP T.C 220 pF 50V J 2 D010221167160S
C106L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C107L/R CERAMIC CHIP T.C 220 pF 50V J 2 D010221167160S
C108L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C109L/R CERAMIC CHIP T.C 220 pF 50V J 2 D010221167160S
C110L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C111L/R CERAMIC CHIP T.C 220 pF 50V J 2 D010221167160S
C112L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C113L/R CERAMIC CHIP T.C 220 pF 50V J 2 D010221167160S
C114L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C115C CERAMIC CHIP T.C 100 pF 50V J 1 D010101167160S
C115L/R CERAMIC CHIP T.C 100 pF 50V J 2 D010101167160S
C115SL CERAMIC CHIP T.C 100 pF 50V J 1 D010101167160S
C115SR CERAMIC CHIP T.C 100 pF 50V J 1 D010101167160S
C115SW CERAMIC CHIP T.C 100 pF 50V J 1 D010101167160S
C116C ELECT GE 85C 10 uF 50V M 1 D040100087070S
C116L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C116SL ELECT GE 85C 10 uF 50V M 1 D040100087070S
C116SR ELECT GE 85C 10 uF 50V M 1 D040100087070S
C116SW ELECT GE 85C 10 uF 50V M 1 D040100087070S
C117L/R ELECT GE 85C 10 uF 50V M 2 D040100087070S
C118/C119 ELECT GE 85C 10 uF 50V M 2 D040100087070S
C120 CERAMIC CHIP HIK 0.022 uF 25V K 1 D011223777160S
C121 CERAMIC CHIP HIK 0.047 uF 16V K 1 D011473773160S
C122 CERAMIC CHIP HIK 0.15 uF 10V Z 1 D011154792160S
C123-C128 ELECT GE 85C 100 uF 10V M 6 D040101082090S
C131 ELECT GE 85C 47 uF 10V M 1 D040470083080S
C132 CERAMIC CHIP HIK 0.15 uF 10V Z 1 D011154792160S
C133 CERAMIC CHIP HIK 0.047 uF 16V K 1 D011473773160S
C134 CERAMIC CHIP HIK 0.022 uF 25V K 1 D011223777160S
C135 CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C1366 CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C137/C138 CERAMIC CHIP T.C 100 pF 50V J 2 D010101167160S
C139 ELECT GE 85C 47 uF 10V M 1 D040470083080S
C140SW ELECT GE 85C 10 uF 50V M 1 D040100087070S
C141SW CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C142SW CERAMIC CHIP HIK 1000 pF 50V K 1 D011102777160S
C143SW CERAMIC CHIP T.C 47 pF 50V J 1 D010470167160S
DESCRIPTION

REF No. Q'TY PARTS No.
DESCRIPTION
C144SW CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C145SW ELECT GE 85C 47 uF 10V M 1 D040470083080S
C146SW ELECT GE 85C 47 uF 10V M 1 D040470083080S
C147SW CERAMIC CHIP HIK 3300 pF 50V K 1 D011332777160S
C149SW ELECT GE 85C 10 uF 50V M 1 D040100087070S
C150SW CERAMIC CHIP T.C 330 pF 50V J 1 D010331167160S
C151SW CERAMIC CHIP T.C 680 pF 50V J 1 D010681167160S
C154C CERAMIC CHIP HIK 3300 pF 50V K 1 D011332777160S
C154L/R CERAMIC CHIP HIK 3300 pF 50V K 2 D011332777160S
C154SL CERAMIC CHIP HIK 3300 pF 50V K 1 D011332777160S
C154SR CERAMIC CHIP HIK 3300 pF 50V K 1 D011332777160S
C158C ELECT GE 85C 4.7 uF 50V M 1 D0404R7087250S
C158L/R ELECT GE 85C 4.7 uF 50V M 2 D0404R7087250S
C158SL ELECT GE 85C 4.7 uF 50V M 1 D0404R7087250S
C158SR ELECT GE 85C 4.7 uF 50V M 1 D0404R7087250S
C158SW ELECT GE 85C 10 uF 50V M 1 D040100087070S
C159C CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C159F CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C159S CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C159SW CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C160C FILM POLYESTER 0.1 uF 100V J 1 D02010406C060S
C160L/R FILM POLYESTER 0.1 uF 100V J 2 D02010406C060S
C160SL FILM POLYESTER 0.1 uF 100V J 1 D02010406C060S
C160SR FILM POLYESTER 0.1 uF 100V J 1 D02010406C060S
C161C FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161L FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161L1 FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161R FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161R1 FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161SL FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C161SR FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C162C FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C162L/R FILM POLYESTER 0.01 uF 100V J 2 D02010306C060S
C162SL FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C162SR FILM POLYESTER 0.01 uF 100V J 1 D02010306C060S
C164SW CERAMIC CHIP T.C 100 pF 50V J 1 D010101167160S
C165L/R FILM POLYESTER 0.01 uF 100V J 2 D02010306C060S
C167 ELECT GE 85C 2.2 uF 50V M 1 D0402R2087160S
C168-C170 CERAMIC CHIP T.C 0.01 uF 16V K 3 D010103777160S
C171-C174 CERAMIC CHIP T.C 100 pF 50V J 4 D010101167160S
C175 ELECT GE 85C 47 uF 10V M 1 D040470083080S
C176 ELECT GE 85C 10 uF 50V M 1 D040100087070S
C178 ELECT GE 85C 10 uF 50V M 1 D040100087070S
C179/C180 ELECT GE 85C 10000 uF 63V M 2 D040103088380S
C182-C186 FILM POLYESTER 0.1 uF 250V K 5 D02010407H080S
C187/C188 ELECT GE 85C 1 uF 50V M 2 D040010087150S
C189 ELECT GE 85C 330 uF 63V M 1 D040331088230S
C190 ELECT GE 85C 4.7 uF 100V M 1 D0404R708C060S
C191 ELECT GE 85C 10 uF 50V M 1 D040100087070S
C192 CERAMIC CHIP HIK 0.1 uF 50V K 1 D011104577160S
C193 ELECT GE 85C 330 uF 10V M 1 D040331082070S
C194 CERAMIC CHIP HIK 0.1 uF 50V K 1 D011104577160S
C195 ELECT GE 85C 330 uF 10V M 1 D040331082070S

REF No. Q'TY PARTS No.
DESCRIPTION
C196 CERAMIC CHIP HIK 0.1 uF 50V K 1 D011104577160S
C197 ELECT GE 85C 100 uF 10V M 1 D040101082090S
C198/C199 CERAMIC CHIP HIK 0.1 uF 50V K 2 D011104577160S
C200 ELECT GE 85C 6800 uF 16V M 1 D040682083000S
C201-C203 FILM POLYESTER 0.1 uF 100V J 3 D02010406C060S
C204/C205 ELECT GE 85C 1 uF 50V M 2 D040010087150S
C206 ELECT GE 85C 4700 uF 25V M 1 D040472084020S
C207 ELECT GE 85C 1000 uF 25V M 1 D040102084060S
C208-C210 FILM POLYESTER 0.1 uF 100V J 3 D02010406C060S
C211 ELECT GE 85C 0.47 uF 50V M 1 D040R47087050S
C212 CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C213 ELECT GE 85C 3.3 uF 50V M 1 D0403R3087050S
C214 CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C215/C216 CERAMIC CHIP T.C 100 pF 50V J 2 D010101167160S
C217 CERAMIC CHIP T.C 0.01 uF 16V K 1 D010103777160S
C218 ELECT GE 85C 47 uF 10V M 1 D040470083080S
C219 ELECT GE 85C 4.7 uF 50V M 1 D0404R7087250S
C220 CERAMIC CHIP HIK 0.047 uF 16V K 1 D011473773160S
C221 ELECT GE 85C 470 uF 6.3V M 1 D040471081070S
C222/C223 ELECT GE 85C 4.7 uF 50V M 2 D0404R7087250S
C224-C228 CERAMIC CHIP HIK 0.1 uF 50V K 5 D011104577160S
C230 CERAMIC CHIP HIK 0.1 uF 50V K 1 D011104577160S
C231-C234 CERAMIC CHIP T.C 0.01 uF 16V K 4 D010103777160S
C244/C245 CERAMIC CHIP HIK 0.1 uF 50V K 2 D011104577160S
C251 CERAMIC CHIP T.C 220 pF 50V J 1 D010221167160S
C252 ELECT GE 85C 47 uF 10V M 1 D040470083080S
C253 CERAMIC CHIP T.C 220 pF 50V J 1 D010221167160S
C254/C255 ELECT GE 85C 47 uF 10V M 2 D040470083080S
C256 CERAMIC CHIP T.C 220 pF 50V J 1 D010221167160S
C257/C258 ELECT GE 85C 470 uF 10V M 2 D040471082060S
C260 CERAMIC CHIP HIK 0.047 uF 16V K 1 D011473773160S
C264 ELECT GE 85C 100 uF 16V M 1 D040101083070S
C266/C267 CERAMIC CHIP HIK 1000 pF 50V K 2 D011102777160S
C268-C270 CERAMIC CHIP HIK 0.1 uF 50V K 3 D011104577160S
C354/C355 CERAMIC SEMI DISC 0.1 uF 50V M 2 D006104597050S
C407/C408 FILM POLYESTER 0.1 uF 100V J 2 D02010406C060S
C414-C416 CERAMIC CHIP HIK 0.1 uF 50V K 3 D011104577160S
C467/C468 CERAMIC CHIP T.C 0.01 uF 16V K 2 D010103777160S
CONNECTORS
CP101 CN.WAFER 7.92MM 1 L108353280360S
CP102 CN.WAFER 2.5MM (6P) 1 L102526700600S
CP103 CN.FPC 1.25MM (7P) 1 L131007100010S
CP104/CP115 CN.WAFER 2.0MM (5P) 2 L101200100510S
CP105 CN.WAFER 2.0MM (4P) 1 L101100040410S
CP106 CN.WAFER 2.0MM (9P) 1 L101200100910S
CP107/CP108 CN.WAFER 2.0MM (18P) 2 L101100041810S
CP110 CN.WAFER 2.0MM (10P) 1 L101200101010S
CP111 CN.WAFER 2.5MM (12P) 1 L102526701200S
CP116 CN.WAFER 2.0MM (4P) 1 L101200100410S
CP117 CN.WAFER 2.0MM (2P) 1 L101200100210S
FPC101 CN.FPC 1.25MM (17P) 1 L131111700010S
DIODES

REF No. Q'TY PARTS No.
DESCRIPTION
D101-D110 1N4148WS, SWITCHING CHIP 10 K005041483230S
D111/D112 RECTIFIER BRIDGE, KBPC604 6A 2 K047604000020S
D116-D119 1SS133T, SWITCHING 4 K000013300520S
D120/D121 1N4148WS, SWITCHING CHIP 2 K005041483230S
D122 1N4007, SWITCHING 1 K000400700010S
D123 1N4148WS, SWITCHING CHIP 1 K005041483230S
D124/D125 1SS133T, SWITCHING 2 K000013300520S
D126-D128 1N4148WS, SWITCHING CHIP 3 K005041483230S
D129-D134 1N4007, SWITCHING 6 K000400700010S
D135/D136 1N4148WS, SWITCHING CHIP 2 K005041483230S
D137 1SS133T, SWITCHING 1 K000013300520S
D142 1N4148WS, SWITCHING CHIP 1 K005041483230S
D201/D202 1N4148WS, SWITCHING CHIP 2 K005041483230S
INTEGRATED CIRCUITS
IC101 UPD78F0536GK, CPU 1 J020780536000S
IC103 KIA7812API, LINEAR-REGULATOR 1 J126781200040S
IC104 KIA7912PI, LINEAR-REGULATOR 1 J126791200060S
IC105 CF4558CB, LINEAR OP 1 J121455800150S
IC106 LA7956, MONITOR SW 1 J171795600010S
IC107 FT24C08, MEMORY-EEPROM 1 J000240800020S
IC108 KIA78R05PI, LINEAR-REGULATOR 1 J126780500370S
IC109 R2A15218FP, ELECT VR 1 J084152180010S
IC111/IC112 KIA7805API, LINEAR-REGULATOR 2 J126780500110S
JACKS
JACK101 TER,RCA 1 G6081201A120YS
JACK102 TER,RCA 3PIN 1 G60631901B20YS
JACK103 TER,RCA 6PIN 1 G603610A0041YS
JACK104 TER,RCA 3PIN 1 G606305A1400YS
JACK105 TER,RCA 2PIN 1 G601207BE050YS
JACK106 TER,BOARD PUSH 8P 1 G598801SA090YS
JACK107 TER,BOARD PUSH 6P 1 G596601SA090YS
TRANSISTORS
Q103/Q104 KTC2875B(MB), NPN 2 J5222875B0010S
Q105 KRA105S(PE), PNP 1 J520010500210S
Q106 KTC2875B(MB), NPN 1 J5222875B0010S
Q107 KRA105S(PE), PNP 1 J520010500210S
Q108 KTC2875B(MB), NPN 1 J5222875B0010S
Q109 KRA105S(PE), PNP 1 J520010500210S
Q110 KTC2875B(MB), NPN 1 J5222875B0010S
Q111 KRA105S(PE), PNP 1 J520010500210S
Q114/Q115 KTC2875B(MB), NPN 2 J5222875B0010S
Q116-Q120 KRC105S(NE), NPN 5 J522010500210S
Q121 KTA1268BL, PNP 1 J5001268B0050S
Q122 KTC3198Y, NPN 1 J5023198Y0000S
Q123/Q124 KTA1268BL, PNP 2 J5001268B0050S
Q125 KSA916Y, PNP 1 J5000916Y0050S
Q126 KTA1268BL, PNP 1 J5001268B0050S
Q127 KTC3198Y, NPN 1 J5023198Y0000S
Q128 KTA1268BL, PNP 1 J5001268B0050S
Q129/Q130 KTC3198Y, NPN 2 J5023198Y0000S
Q131 KTA1268BL, PNP 1 J5001268B0050S
Q132/Q133 KTC3198Y, NPN 2 J5023198Y0000S

REF No. Q'TY PARTS No.
DESCRIPTION
Q134 KTA1268BL, PNP 1 J5001268B0050S
Q135/Q136 KTC3198Y, NPN 2 J5023198Y0000S
Q137 KRC102S(NB), NPN 1 J522010200210S
Q138 KTC2875B(MB), NPN 1 J5222875B0010S
Q201/Q202 KTC3198Y, NPN 2 J5023198Y0000S
Q204/Q205 KRC105S(NE), NPN 2 J522010500210S
RESISTORS
R101L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R102L/R CHIP THICK 220 kohm 1/16W J 2 C20002246M160S
R103L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R104L/R CHIP THICK 220 kohm 1/16W J 2 C20002246M160S
R105L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R106L/R CHIP THICK 100 kohm 1/16W J 2 C20001046M160S
R107L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R108L/R CHIP THICK 100 kohm 1/16W J 2 C20001046M160S
R109L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R110L/R CHIP THICK 100 kohm 1/16W J 2 C20001046M160S
R111L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R112L/R CHIP THICK 100 kohm 1/16W J 2 C20001046M160S
R113L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R114L/R CHIP THICK 100 kohm 1/16W J 2 C20001046M160S
R115C CHIP THICK 330 ohm 1/16W J 1 C20003316M160S
R115L/R CHIP THICK 330 ohm 1/16W J 2 C20003316M160S
R115SL CHIP THICK 330 ohm 1/16W J 1 C20003316M160S
R115SR CHIP THICK 330 ohm 1/16W J 1 C20003316M160S
R115SW CHIP THICK 330 ohm 1/16W J 1 C20003316M160S
R116C CHIP THICK 2.2 Mohm 1/16W J 1 C20002256M160S
R116L/R CHIP THICK 2.2 Mohm 1/16W J 2 C20002256M160S
R116SL CHIP THICK 2.2 Mohm 1/16W J 1 C20002256M160S
R116SR CHIP THICK 2.2 Mohm 1/16W J 1 C20002256M160S
R116SW CHIP THICK 2.2 Mohm 1/16W J 1 C20002256M160S
R117 CHIP THICK 4.7 kohm 1/16W J 1 C20004726M160S
R120-R122 CHIP THICK 100 kohm 1/16W J 3 C20001046M160S
R123 CHIP THICK 4.7 kohm 1/16W J 1 C20004726M160S
R124/R125 CARBON FILM 470 ohm 1/5W J 2 C00004716P520S
R125SW CHIP THICK 1 kohm 1/16W J 1 C20001026M160S
R126SW CHIP THICK 47 kohm 1/16W J 1 C20004736M160S
R127SW CHIP THICK 3.3 kohm 1/16W J 1 C20003326M160S
R128SW CHIP THICK 4.7 kohm 1/16W J 1 C20004726M160S
R131SW CHIP THICK 1 kohm 1/16W J 1 C20001026M160S
R132SW CHIP THICK 100 kohm 1/16W J 1 C20001046M160S
R133SW CHIP THICK 4.7 kohm 1/16W J 1 C20004726M160S
R134SW CHIP THICK 2 kohm 1/16W J 1 C20002026M160S
R135SW CHIP THICK 4.7 kohm 1/16W J 1 C20004726M160S
R136SW CARBON FILM 4.7 kohm 1/5W J 1 C00004726P520S
R137SW CHIP THICK 100 kohm 1/16W J 1 C20001046M160S
R138C CHIP THICK 1 kohm 1/16W J 1 C20001026M160S
R138L/R CHIP THICK 1 kohm 1/16W J 2 C20001026M160S
R138SL CHIP THICK 1 kohm 1/16W J 1 C20001026M160S
R138SR CHIP THICK 1 kohm 1/16W J 1 C20001026M160S
R139C CHIP THICK 47 kohm 1/16W J 1 C20004736M160S
R139L/R CHIP THICK 47 kohm 1/16W J 2 C20004736M160S
