Harman JBL PARTYBOX 1000 User manual

PARTYBOX 1000
Quick Start Guide

2
1What’s in the box
1
2 3
45
1) Main unit
2) Air gesture wristband
3) Air gesture wristband batteries (2x 3V CR2032)
4) Power cord*
5) Quick Start Guide, Safety sheet, Warranty card
*Power cord quantity and plug type vary by regions.
Note:
– For more information, please download the owner’s manual
from www.jbl.com
2Overview
2.1 Top panel
11
13
2
3
4
1
5
6
17 16 15 14
78 9
10
12
1)
• Press to switch light show patterns.
• Press and hold for 2 seconds to turn the
strobe light on or off.
2)
• Power on/off.
3)
• Short Press to enter Bluetooth pairing mode.
• Press and hold for 20 seconds to disconnect
and pair with a new device.
4)
• Press repeatedly to select a music source
(Bluetooth / USB / AUX / LINE IN).
5)
• LED indicators to show the current music
source.
6)
• DJ control keys.
7)
• Press to record a new track. Up to 8 tracks
can be recorded.
8)
• Press to delete the last recorded track.
• Press and hold for 2 seconds to delete all
recorded tracks.
9)
• Press repeatedly to select a sound
effect (Drums / Keyboard / Piano / DJ /
Customized).
10)
• Press to enter color control mode to toggle
between different light colors of your PartyBox
front panel and wristband.
11)
• Press once to play or pause the music.
• Press twice to play the next track.
• Press three times to play the previous track.
12) /
• Press to decrease or increase the volume
level.
• Press both simultaneously to mute the audio
output.
13)
• Press repeatedly to switch between sound
boost level 1 and level 2 or turn off.
14)
• Press to turn the Smart DJ on or off.
Notes:
– Smart DJ analyze music rhythm and mix DJ effects with
harmonize beats.
– Smart DJ lls the void of silence between two tracks and play
music continuously with BT and USB sources.
15)
• Rotate to adjust echo volume.

3
EN
16)
• Rotate to adjust the key level.
17)
• Press to cancel or restore the human voice.
Notes:
– : Support only Bluetooth and USB.
– / : Support all the sources (Bluetooth, USB,
Aux, and RCA).
– / / : Work only when the Mic is plugged.

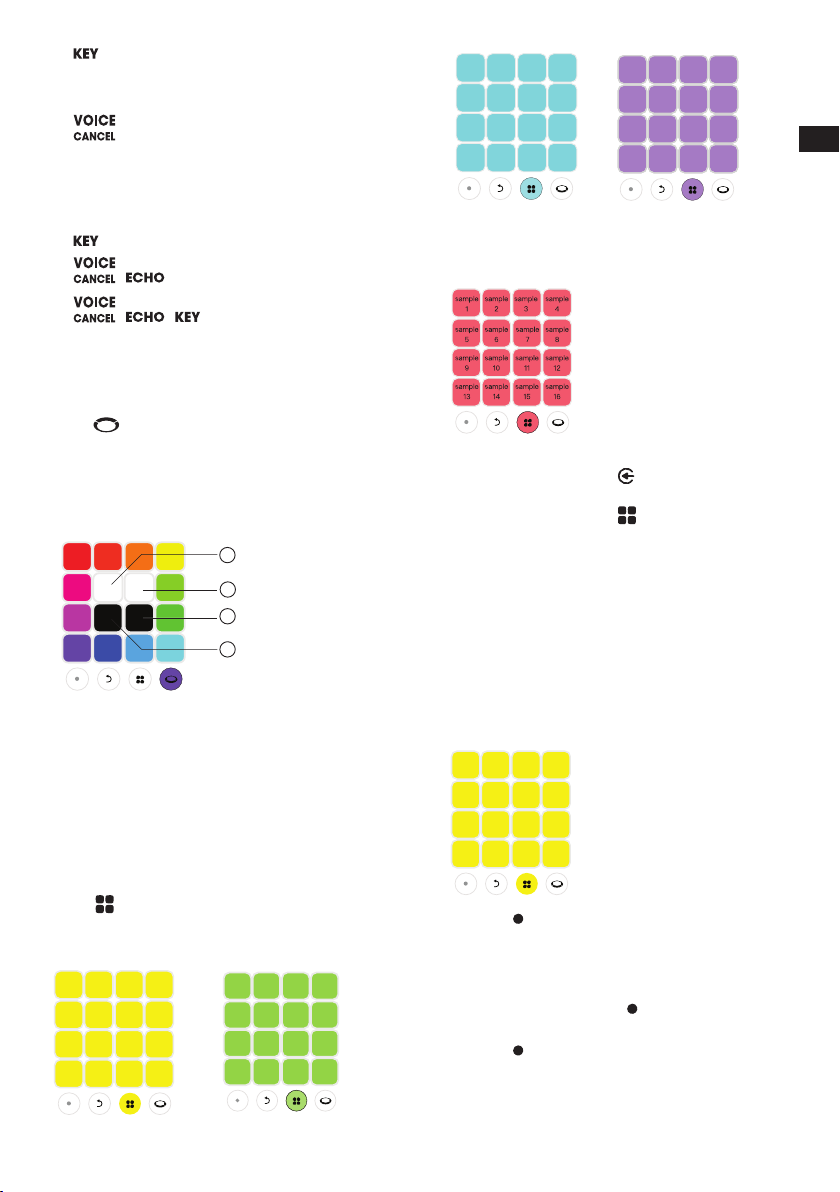

2.2 DJ pad
Color control
Press to enter color control mode, then press
any DJ control key to select color for the light of both
PartyBox and wristband nearby. The color will stay for
5 seconds. To keep the color constant, press and hold
the DJ control keys.
2
3
4
1
1) Press and hold until the left strobe light turns on.
2) Press and hold until the right strobe light turns on.
3) Press and hold until the ring light turns off.
4) Press and hold until the panel light turns off.
Sound effects
Press repeatedly to select a sound effect (Drums /
Piano / Keyboard / DJ / Customized).
Drums (defaulted) Keyboard
Piano DJ effects
Customized effects
1) Insert a USB stick.
2) Press repeatedly to select the USB source.
3) Press repeatedly to select customized effects.
4) The sound samples stored in the USB will be
loaded. During the loading, all keys will breathe
in pink by turns (The samples will be loaded in
Alphabetical order, up to 16 samples).
Note:
– Support MP3 format only.
Recording
1) Press to start recording, when a control key is
pressed, the white LED will light on. The harder
you press the keys, the louder sound will play.
After recording for 30 seconds, the recording will
automatically stop, or press again to complete
the recording.
2) Press to record a new track. The newly recorded
track will overlap play in a loop with previously
recorded tracks. Later recorded tracks will be
shorter or equal to the first track.

4
3) Press to delete the last recorded track. To
delete all recorded tracks, press and hold for 2
seconds.
2.3 Back panel
2
3
1
4
5
6
7
8
9
1) USB
• Connect to a USB storage device.
• Charge an external USB device.
2) AUX
• Connect to an external audio device through
an audio cable.
3) LINE OUT
• Connect to the analog audio input jacks of
another analog device through RCA audio
cable.
4) LINE IN
• Connect to the analog audio output jacks of
an analog device through RCA audio cable.
5) GUITAR
• Connect to a guitar (not provided).
6) MIC
• Connect to a microphone (not provided).
7) VOLUME (MIC)
• Rotate the knob to adjust the microphone
volume to your desire loudness level.
8) VOLUME (GUITAR)
• Rotate the knob to adjust the guitar volume
to your desire loudness level.
9) GAIN
• Guitar and microphone gain control buttons
to match different sensitivity of the mic and
guitar.
3Power on
4Connections
4.1 Bluetooth
10m (33ft)
2
DEVICES
JBL PartyBox 1000
Bluetooth
Bluetooth
1
4.2 USB

5
EN
4.3 AUX
2
1
4.4 LINE IN
R
L
AUDIO OUT
.
.
.
LINE IN
5Air Gesture Wristband
5.1 Power on / off
• Press to power on the Air Gesture Wristband,
and it will be automatically paired with the PartyBox.
• Press to power off the Air Gesture Wristband.
PAIRING
USING
15m
15m
Notes:
– For better performance make sure the wristband is worn
rmly.
– When the Wristband is connected to the PartyBox the LEDs
colors are sync to the PartyBox front panel.
– The Air Gesture Wristband will be connected automatically
with the closest PartyBox 1000.
– The DJ wristband has the battery life of 10 hours. When the
battery is low, the LED ashes red and the DJ wristband will
power off ve minutes later.
– Only one Wristband can connect to one PartyBox.
5.2 Control PartyBox by using Air Gesture
Wristband
Gesture Action
Clap ×2 Play sound effect 1
Shake ×4 Play sound effect 2
Rotate Switch light patterns
Notes:
– Each time you power on the device, Sound effect 1 and 2
return to the defaults.
– For the sound settings users select on the DJ pad, the last
chosen tones are synchronized to Sound effect 1 and the
chosen tones just before the last ones are synchronized to
Sound effect 2.
6
Mixing sound with microphone/
guitar (not provided)

6
7TWS (true wireless stereo)
mode
10m (33ft)
1) Press and hold on both speakers for 5 seconds,
TWS connection will be built up.
2) Press L/R button on one speaker to toggle between
L channel / R channel and Stereo, the other speaker
will change the setting automatically.
Note:
– For best performance do not place any obstacles between
the two speakers.
8LED behavior
Off Power off
White (Constant) Power on
Amber (Constant) Standby
Off Not connected
White (Constant) Connected
White (Flashing) Pairing
Off Off
White (Constant) On
Off Off
White (Constant) On
Off Off
White (Constant) On
Off Off
White (Constant) On
9Specifications
• AC power input: 100-240V ~ 50/60Hz
• Power consumption: 150W
• Standby power consumption:
<2W with BT connecting;
<0.5W without BT connecting
• USB output: 5V 2.1A
• Speaker drivers: 1 x12" Sub woofer + 2 x 7"
Mid-range + 1 x Compression driver
• Speaker impedance: Sub woofer 3ohm / Mid-
range 4ohm / Compression driver 4 ohm
• Total output power: 1100W
• Frequency response: 30Hz -20kHz(-6dB)
• Signal-to-noise (S/N) ratio: 80dBA
• Wristband battery usage time: 10h
• Bluetooth version: 4.2
• Bluetooth profile: A2DP V1.3, AVRCP V1.6
• Bluetooth transmitter frequency range:
2402-2480MHz
• Bluetooth maximum transmitter power: 15dBm
(EIRP)
• Bluetooth transmitter modulation: GFSK, π/4
DQPSK, 8DPSK
• Bluetooth range: Approx. 10m (33feet)
• USB file system: FAT16, FAT32
• USB file format: .mp3, .wma, .wav
• Air gesture wristband: BLE technology
• Dimensions (W x H x D): 397 x 1050 x 390 mm /
15.6 x 41.3 x 15.4 in
• Net weight: 34.7 kg / 76.5 lbs

7
DA
1Hvad er der i æsken
1
2 3
45
1) Hovedenhed
2) Armbånd til håndbevægelser
3) Batterier til armbånd (2x 3V CR2032)
4) Strømledning*
5) Lynvejledning, sikkerhedsblad, garantikort
* Omfanget af strømledninger og stiktype varierer
afhængigt af regionen.
BEMÆRK:
– Hent hele brugsanvisningen fra www.jbl.com
2Oversigt
2.1 Toppanel
11
13
2
3
4
1
5
6
17 16 15 14
78 9
10
12
1)
• Tryk for at skifte mellem lysshow-mønstre.
• Tryk og hold I 2 sekunder for at tænde og
slukke lyset.
2)
• Tænd/sluk.
3)
• Tryk for at aktivere Bluetooth-parringstilstand.
• Tryk og hold i 20 sekunder for at afbryde
forbindelsen og parre med en ny enhed.
4)
• Tryk flere gange for at vælge musikkilde
(Bluetooth / USB / AUX / LINE IN).
5)
• LED-indikatorer viser den valgte musikkilde.
6)
• DJ-kontrolknapper.
7)
• Tryk for at optage et nyt track. Der kan
optages op til 8 tracks.
8)
• Tryk for at slette det sidst optagede track.
• Tryk, og hold i 2 sekunder, for at slette alle
optagede tracks.
9)
• Tryk flere gange for at vælge en lydeffekt
(Trommer / Keyboard / Piano / DJ / Skræd-
dersyet).
10)
• Tryk for at gå til farvekontroltilstand og skifte
mellem forskellige lysfarver på fronten af din
PartyBox og armbånd.
11)
• Tryk en gang, for at afspille eller sætte
musikken på pause.
• Tryk to gange, for at afspille næste nummer.
• Tryk tre grange, for at afspille forrige nummer.
12) /
• Tryk for at skrue op eller ned for lydstyrken.
• Tryk på begge samtidig for at slå lyden fra.
13)
• Tryk for at tænde eller slukke for Bass Boost.
14)
• Tryk for at tænde eller slukke for Smart DJ.
Noter:
– Smart DJ analyserer musikkens rytme og mixer DJ-effekter
med harmoniserede rytmer.
– Smart DJ udfylder det tavse tomrum mellem to numre og
spiller musik kontinuerligt fra Bluetooth- og USB-kilder.
15)
• Drej for at justere ekko-lydstyrken (kun i
Karaoke-tilstand).

8
16)
• Drej for at justere key-level (kun i Karaoke-
tilstand).
17)
• Tryk for at annullere eller gendanne
sangstemmen (kun i Karaoke-tilstand).
Noter:
– : Understøtt kun Bluetooth og USB.
– / : Understøtt alle kilder (Bluetooth, USB, Aux
og RCA).
– / / : Arbejd kun, når mikrofonen er
tilsluttet.
2.2 DJ-pad
Farvekontrol
Tryk på for at gå til farvekontrol-tilstand, og tryk
så enhver DJ-kontrolknap for at vælge en farve til lyset
for både PartyBox og armbånd i nærheden. Farven
fastholdes i 5 sekunder. For at holde farven konstant
skal du holde DJ-kontrolknapperne nede.
2
3
4
1
1) Tryk og hold, indtil venstre stroboskoplys tænder.
2) Tryk og hold, indtil højre stroboskoplys tænder.
3) Tryk og hold, indtil ringlyset slukker.
4) Tryk og hold, indtil panellyset slukker.
Lydeffekter
Tryk flere gange på for at vælge en lydeffekt
(Trommer / Piano / Keyboard / DJ / Skræddersyet).
Trommer (standard) Keyboard
Piano DJ-effekter
Skræddersy effekter
1) Indsæt USB.
2) Tryk gentagne gange på for at vælge USB-kilden.
3) Tryk gentagne gange for at vælge
brugerdefinerede effekter.
4) Lydeksemplerne, der er gemt i USB, indlæses.
Under indlæsning indånder alle taster pink i sving
(prøver indlæses i alfabetisk rækkefølge, op 16
prøver).
Bemærk:
– Understøtt kun MP3-format
Optag og slet
1) Tryk for at starte optagelse. Når en kontrolknap
aktiveres, vil den hvide LED tænde. Jo hårdere
du trykker på knapperne, desto højere vil lyden
afspilles. Efter optagelse i 30 sekunder vil
optagelsen stoppe automatisk, eller tryk igen, for
at fuldføre optagelsen.
2) Tryk på for at optage et nyt track. Det
nyoptagede track vil spille i et loop ovenpå tidligere
optagede tracks. Tracks, der er optaget senere, vil
have en varighed, der er kortere eller lig med det
første track.

9
DA
3) Tryk på for at slette det sidst optagede track.
Hold inde i 2 sekunder for at slette alle optagede
tracks.
2.3 Bagpanel
2
3
1
4
5
6
7
8
9
1) USB
• Tilslut en USB-lagerenhed.
• Oplad en ekstern USB-enhed.
2) AUX
• Tilslut en ekstern lydenhed med et lydkabel.
3) LINE OUT
• Tilslut til den analoge indgang på en analog
enhed via RCA-lydkabel.
4) LINE IN
• Tilslut til den analoge udgang på en analog
enhed via RCA-lydkabel.
5) GUITAR
• Forbind til en guitar (medfølger ikke).
6) MIC
• Forbind til en mikrofon (medfølger ikke).
7) VOLUME (MIC)
• Drej knappen for at justeres mikrofonens
lydstyrke til dit ønskede lydniveau.
8) VOLUME (GUITAR)
• Drej knappen for at justeres guitarens
lydstyrke til dit ønskede lydniveau.
9) GAIN
• Gain-knapperne til guitar og mikrofon, for at
matche forskelsfølsomheden for mikrofon og
guitar.
3Tænd
4forbindelser
4.1 Bluetooth
10m (33ft)
2
DEVICES
JBL PartyBox 1000
Bluetooth
Bluetooth
1
4.2 USB

10
4.3 AUX
2
1
4.4 LINE IN
R
L
AUDIO OUT
.
.
.
LINE IN
5Air bevægelses-armbånd
5.1 Tænd/sluk
• Tryk at tænde Air bevægelses-armbånd. Det
parres automatisk med PartyBox.
• Tryk at slukke Air bevægelses-armbånd.
PAIRING
USING
15m
15m
Noter:
– For bedre ydeevne skal det sikres, at armbåndet bæres
stramt.
– Når armbåndet er sluttet til PartyBox, er LED-farverne
synkrone med PartyBox-frontpanelet.
– Armbåndet til håndbevægelser tilsluttes automatisk den
nærmeste PartyBox 1000.
– DJ-armbåndet har en batterilevetid på 10 timer. Når batteriet
er lavt, blinker LED’en rødt, og DJ-armbåndet vil slukke fem
minutter senere.
– Kun ét armbånd kan sluttes til en PartyBox.
5.2 Kontrollér PartyBox ved hjælp af
Air bevægelses-armbånd ved hjælp af
gestikulation
Bevægelse Effekt
Klap ×2 Spil lydeffekt 1
Ryst ×4 Spil lydeffekt 2
Rotér Skift lysmønstre
Noter:
– Hver gang enheden tændes, vender lydeffekt 1 og 2 tilbage
til standard.
– Når der vælges lydindstillinger på DJ Pad, vil de sidst valgte
toner blive synkroniseret med lydeffekt 1, mens de tidligere
valgte toner synkroniseres med lydeffekt 2.
6Mixe lyd med mikrofon/guitar
(medfølger ikke)
