Harper 2224P1 User manual

Description:________________________________________
NOTE: Be sure that you have all of the parts before you start to assemble.
Push Broom & Squeegee
Assembly Instructions

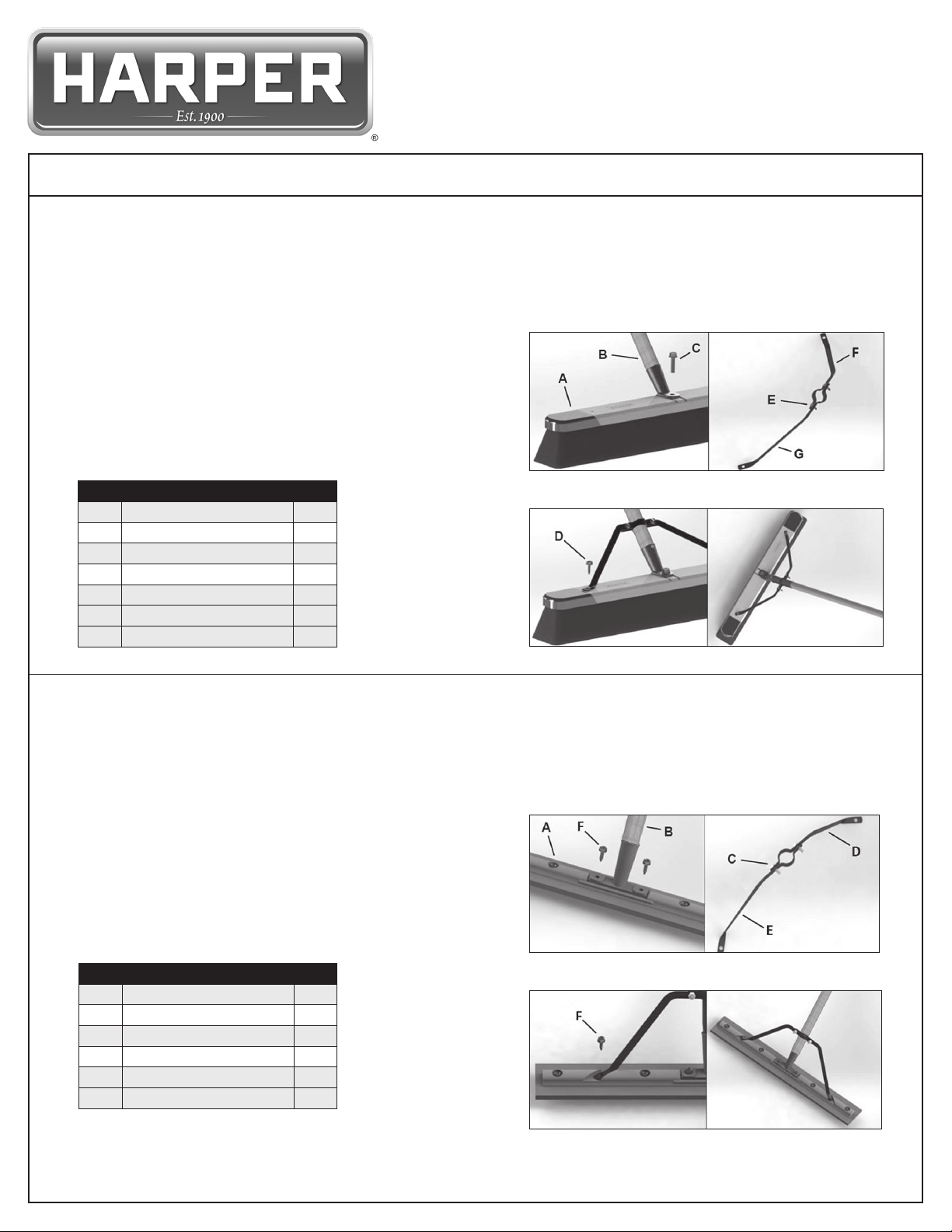

PUSH BROOM WITH BRACE – ASSEMBLY
Part #s 2224P1, 3424P1, 6724P1, 7324P1, 7924P1
• Align the Broom Handle (B) connector with the grooves
in the Broom Head (A)
• Securely tighten the Broom Handle to the Broom Block
using Bolt (C) and the ½” Socket or Wrench.
• Loosely assemble Left Broom Brace (F) and Right Broom
Brace (G) using Bolts (E). Do not tighten all the way.
• Slide the Brace down the handle to the Broom Head and attach
using Screws (D) and the 7/16” Socket or Wrench and tighten.
• Finish tightening Bolts (E)
SQUEEGEE-ASSEMBLY
Part # 5324224P1
• Place the Handle (B) in the center section of the Squeegee Head (A).
• Attach the Handle using 2 Bolts (F).
• Loosely assemble Left Squeegee Brace (D) and Right Squeegee
Brace (E) using Bolts (C). Do not tighten all the way.
• Slide the Squeegee Brace down the Handle and place the Brace
in the angled slots. Attach the Brace to the Squeegee Head
using 2 Bolts (F). Do not over-tighten.
• Finish tightening Bolts (C).
Part Description QTY.
A Broom Head 1
B Broom Handle 1
C Bolt, 5/16” - 18x1-1/4” 1
D Screw, 1/4” - 10x7/8” 2
E Carriage Bolt, 1/4” - 20x1” 2
F Left Broom Brace 1
G Right Broom Brace 1
Part Description QTY.
A Squeegee Head 1
B Squeegee Handle 1
C Bolt, 1/4” - 20x1” 2
D Left Squeegee Brace 1
E Right Squeegee Brace 1
F Bolt, 1/4” - 10x1.25” 4
REQUIRED TOOLS
1/2” SOCKET or WRENCH
7/16” SOCKET or WRENCH
REQUIRED TOOLS
7/16” SOCKET or WRENCH
Attach Handle
Attach Handle
Loosely Assemble
Broom Brace
Squeegee Brace
Attach Broom Brace
Attach Brace
Assembled Broom
Assembled Squeegee
The AMES Companies, Inc. | 465 Railroad Avenue | Camp Hill, PA 17011
Email: [email protected] | Technical Service: 800-500-9351
PART #12599
Printed in the USA
Rev. C

Description:________________________________________
NOTE: Be sure that you have all of the parts before you start to assemble.
Push Broom & Squeegee
Assembly Instructions
PUSH BROOM WITH UNBREAKABLE CONNECTOR – ASSEMBLY
Part #s 1425P1, 1426P1, 1434P1, 1435P1
• Align the Holes in Unbreakable Connector which is attached
to the Handle (B) to the holes in the Broom Head (A).
• Securely tighten the Socket Head Cap Screws (C) into the
Broom Head (A) with the included Allen Wrench.
Part Description QTY.
A Broom Head 1
B Handle 1
C Button Socket Head Cap Screw 1/4-20x1-1/2” 2
REQUIRED TOOLS
Allen Wrench Included
The AMES Companies, Inc. | 465 Railroad Avenue | Camp Hill, PA 17011
Email: [email protected] | Technical Service: 800-500-9351
PART #12599
Printed in the USA
Rev. C
