Harper DewEze S3 Programming manual

S3
S3 SUPER SLICER
8-2021
OPERATOR’S & PARTS
MANUAL

S3 1

S3
Thank you for purchasing a Deweze S3
TO THE OWNER OR OPERATOR:
As with all Harper products, the S3s have been thoroughly tested and built to provide a sturdy, de-
pendable product. This manual is written as an aid to operating and maintaining the DewEze S3.
Read and understand the manual thoroughly before operation to avoid damage to the unit or injury
to the operator or bystanders.
A S3 can present hazards to an operator who follows unsafe procedures in either the operation or
maintenance of the unit. Therefore, SAFETY WARNINGS are present at certain locations in the
text. Harper Industries is not responsible for accidents or injuries that result from the misuse or lack
of maintenance of the S3.
SYMBOL: SAFETY WARNING!
MEANING: Failure to understand and obey this warning may result in injury to you or others.
Whenever this symbol is used, please pay very close attention to the information presented, and
make sure you fully understand. If you do not, contact your dealer or Harper Industries for clarica-
tion.
151 E. HWY. 160 Harper, KS 67058
[phone] • Fax [phone]
Toll Free 800-835-1042
Email [email protected]
Website www.deweze.com
© 2021 Harper Industries, Inc.
The Harper and DewEze names are registered trademarks of Harper Industries, Inc. All other brand and productnames are trade-
marks or registered trademarks of their respective companies.
1

S3
Statement of Warranty
Harper Industries, Inc. (HII) warrants to each purchaser of a new DewEze S3 from an
authorized dealer or representative, that such equipment is free of manufacturer’s defects
in workmanship and materials which appear while in normal service for a period of ONE
YEAR commencing with delivery to the original user.
The obligation of HII under this warranty is expressly limited, at our option, to replacement
or repair at a service facility designated by Harper Industries or at the manufacturing plant
in Harper, KS. A part will be replaced after inspection discloses it to have been defective.
This warranty does not apply to defects caused by damage or unreasonable use (includ-
ing failure to provide reasonable and necessary maintenance, or by performing functions
without genuine DewEze S3 accessories) while in the possession of the consumer.
Warranty is limited to parts, labor and ground freight delivery of replacement parts. HII
shall not be liable for the consequential damages of any kind, including but not limited to
consequential labor costs or transportation charges in connection with replacement or
repair of defective parts.
This warranty does not apply to parts subjected to misuse, abuse, alteration, improper or
inadequate maintenance, or normal wear (including belts, chains, sickles).
Harper Industries makes no warranty with respect to trade accessories. They are subject
to the warranties of their respective manufacturers.
ANY IMPLIED OR STATUTORY WARRANTIES, INCLUDING ANY WARRANTY OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. HII makes no other ex-
press warranty, nor is anyone authorized to make any on behalf of HII.
For further information please contact your nearest DewEze S3 dealer.
RECORDS
Date of Purchase ______ / ______ / ______
Dealer’s Name _________________________________
Dealer’s Phone _________________________________
Serial Number Machine __________________________
2 3

S3
Table of Contents
OPERATOR SECTION
To the Owner or Operator...............................................
Warranty Statement........................................................
Table of Contents............................................................
Specications..................................................................
Safety Guidelines............................................................
Set-Up Instructions.........................................................
Operation
Hydraulic Requirements...................................
Loading Instructions.........................................
Feeding Instructions.........................................
Adjustments
Feed Rate.........................................................
Flow Control Valve Adjustments.......................
Table Speed Operating Range.........................
Suggusted Rebaling Settings...........................
Suggested Bunk Feeding Settings...................
Arm Width Adjustment Measurements.............
Maintenance Schedule...................................................
PARTS SECTION
Table and Feed Chain......................................
Trailer Assembly...............................................
Hub and Bearing Assembly..............................
Backboard and Sides.......................................
Safety Shields...................................................
Table Safety Stops...........................................
Sickle Height Adjustment..................................
Twine Box - Optional.........................................
Decals...............................................................
Sickle Drive Assembly......................................
PTO Kit.............................................................
Sickle Assy........................................................
PTO Holder.......................................................
Hose Assy - PTO..............................................
Hose Assy - Hydraulic......................................
3
1
2
3
4
5
6
7
8
8
8
9
10
10
10
12
12
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.1
2.2
2.3
2.4
2.5
2.6

S3
Specications
4 5
Power Hydraulic or PTO powered
Dimensions 91.63” H x 148” L x 119” W (in eld position)
Weight 2750 lbs. w/ trailer
Cutting Device 81” Sickle Bar - 27 individual sickle sections (knives)
Shipping Width 91.63” H x 148” L 102.0” W
Tire Pressure 35 psi cold
NOTE: Following publication of this manual, certain changes in standard equipment and options may have occurred which would
not be included in these pages. Your Harper dealer is the best source for up-to-date information.

S3
Safety Guidelines
• Use genuine factory parts or parts
with equivalent characteristics, includ-
ing type, strength and material. Fail-
ure to do so may result in product mal-
function and possible injury to the op-
erator and/or others.
• If hardware is not secure, or if some of
the hardware is over-tightened, equip-
ment failure may result, posing poss-
ible safety hazards.
• To prevent possible eye injury, always
wear SAFETY GLASSES while oper-
ating equipment.
• Replace locknuts and locking screws if
you can tighten them without feeling
considerable resistance for several
turns before they are completely tight.
Replace them with factory authorized
parts or their equivalent.
Guards & Shields
• Keep all safety devices in place.
• Replace all worn, damaged, unusable,
missing or lost safety shields and
guards before operating the equip-
ment.
• Keep the equipment in good operating
condition.
• Table safety stops have been
provided by the manufacturer and
we do not recommend removing
them for any reason. See parts
page 1.5.
Safety Decals
• If safety related or instructional decals
become illegible or are removed, re-
place them immediately. New decals
may be obtained from your local Harp-
er Dealer.
• If you replace parts that have such
decals attached to them, make sure
the decals are replaced with current
versions, and are on the replacement
parts before the machine is operated
again.
Hydraulics
To prevent serious injury or death:
• Relieve pressure on system before
repairing, adjusting or disconnecting
any hydraulic hose or tting.
• Wear proper hand and eye protection
when searching for leaks.
• Use wood or cardboard instead of
hands when looking for leaks.
• Keep all hoses, ttings and compo-
nents in good operating condition.
• Do not use any type of heat or ame
(welding, soldering, cutting torch, etc.)
near pressurized hydraulic lines.
SAFETY WARNING!
HIGH-PRESSURE FLUID HAZARD!
Escaping uid under pressure can pene-
trate skin causing serious injury or death.
5

S3
Set-Up Instructions
S3 Load Arm Assembly
• Remove Load arm from inside of table,
and lay on ground
• Align load arm bolt anges with table
anges
• Bolt the load arm anges on the back
side of the table anges, with the (9)
bolts, at & lock washers that are
provided. (Refer to Image Below)
Connect Load Cylinder to Load Arm
• Connect loading fork through loading
fork frame arm anges
• Insert washers as necessary so cotter
pin sits ush (Refer to Images Below)
• Grease Lubrication Points on lower
fork (3 Grease Zerks)
Install Outside Fork
• Raise load arm up enough to slide the
outer sleeve of the fork over the load
arm, slide down to align the pin to go
in place, and insert cotter pin.
• Raise load arm to upright position, and
hook safety chain in place.
Install Kicker Arm
• Install the Kicker Arm by pinning in
place, ensuring that the curved side
is facing down so that it can rest on
the load arm slides, and insert cotter
pins.
*Kicker Arm can only be installed if the
table has been shifted over into eldposi-
tion.

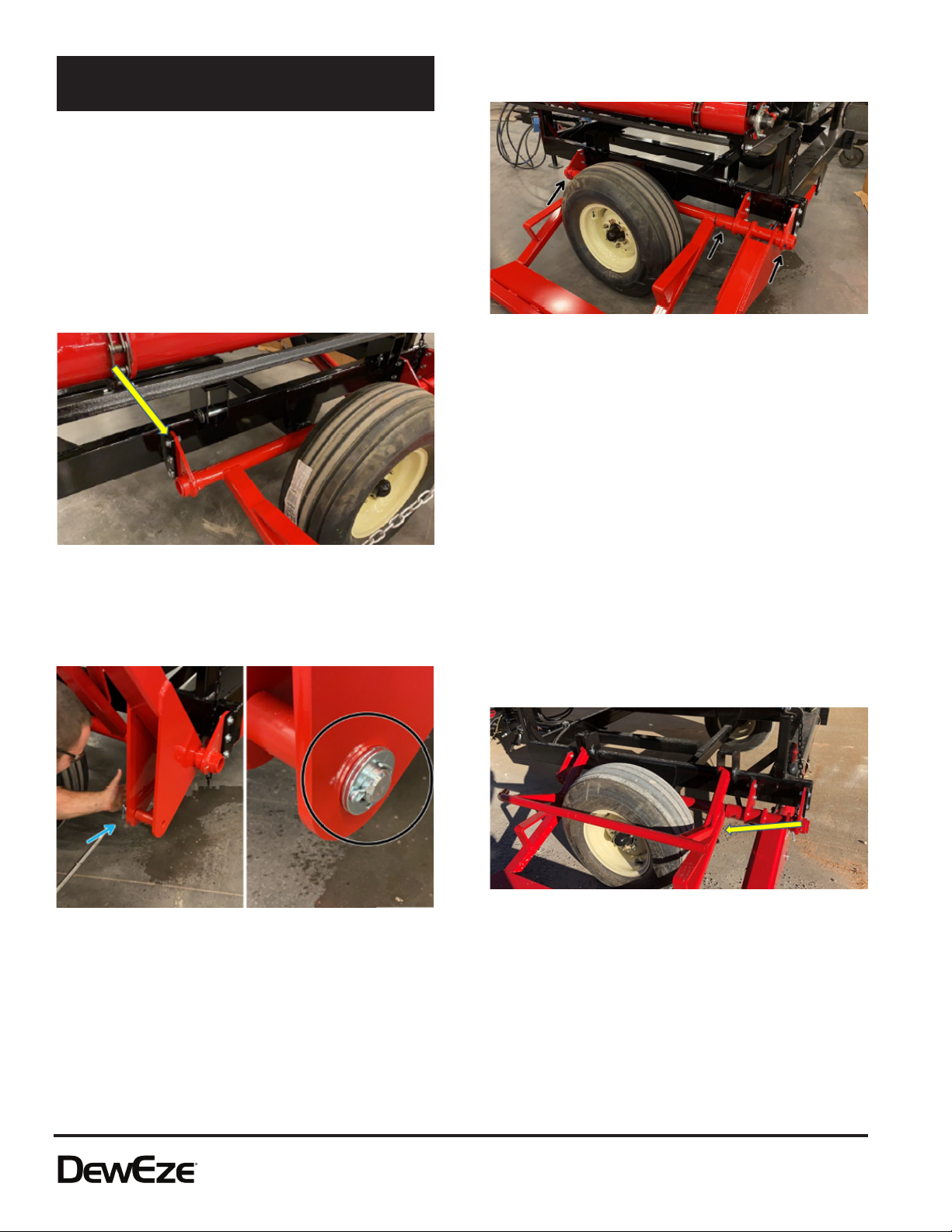

5. Slide table into feeding position (g 3)
and secure with bolts. The feeding
position is marked on the underside of
the table with bolt hole slots. The slots
are located on the trailer on the angle
iron rails the table is sitting on. They
are shown in gures 4 & 5 on next
page.
6 7

S3
SAFETY WARNING!
OPERATING THE S3 LIFTING ARM WITH
THE TABLE IN THE ROAD/TRANSPORT
POSITION WILL DO DAMAGE TO THE LIFT
ARM LINKAGE!
Fig. 4
Fig. 5

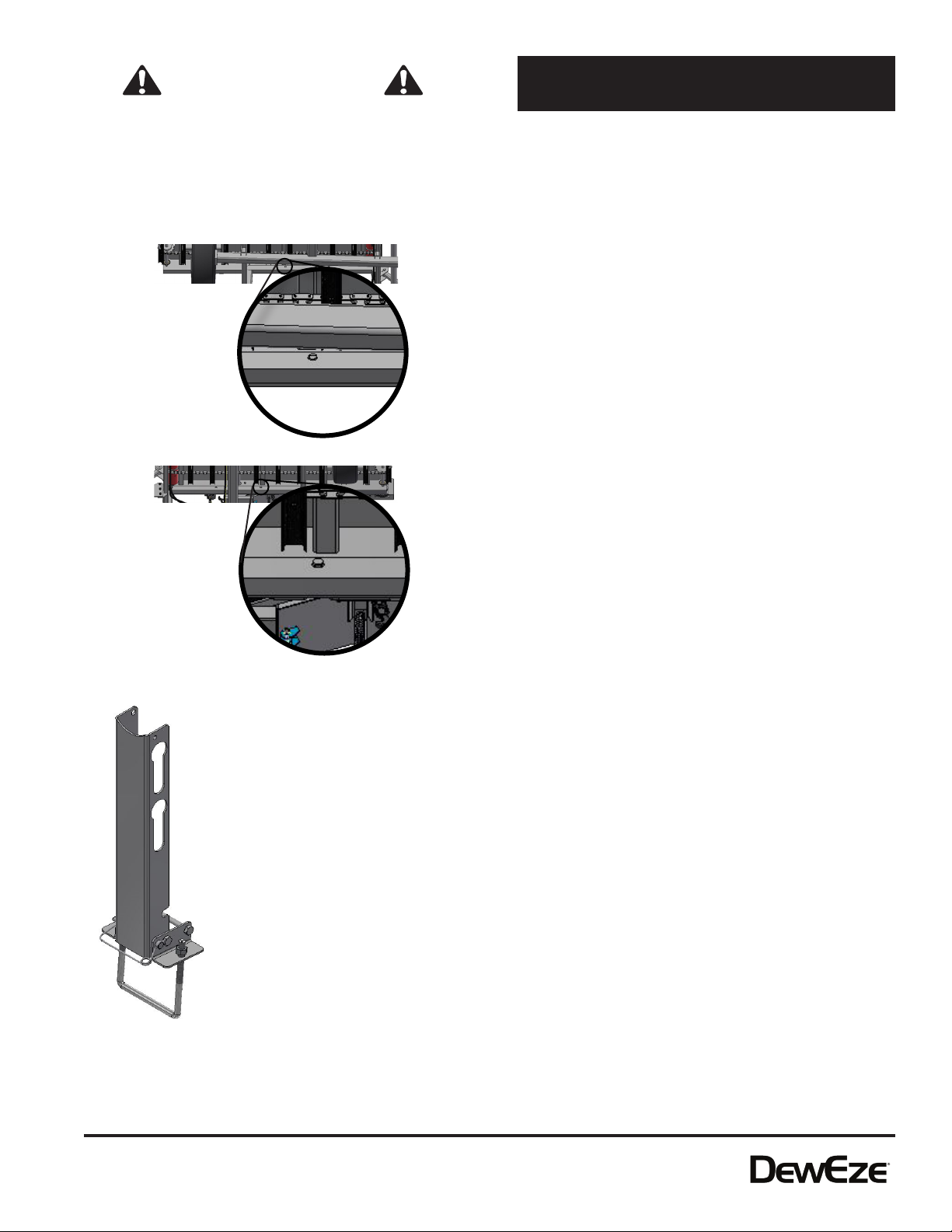

For PTO machines we
have installed a PTO stand for
your convenience. It also
contains key slots for your
hydraulic hoses. The PTO shaft
rests in the cutout on top of the
stand and the hydraulic hoses
insert into the key slots. When
using S3, be sure PTO stand is
in down (working) posi-
tion. Do so by pulling pin
and pushing down. Then
reinstall pin.
Operation
NOTE: BEFORE OPERATING YOUR NEW
S3 MAKE A COMPLETE INSPECTION OF
ALL COMPONENTS TO INSURE THAT ALL
THE NUTS AND BOLTS ARE TIGHT AND
THAT NO DAMAGE HAS OCCURRED DUR-
ING SHIPPING.
HYDRAULIC REQUIREMENTS
Your new DEWEZE S3 is designed to be
used as a mobile feeding unit mounted on a
trailer or as a stationary unit in a permanent
installation. Regardless of the type of use
the S3 WILL REQUIRE 15 GPM (gallons per
minute) of hydraulic oil ow and a minimum
of 1800 PSI (pounds per square inch) hy-
draulic pressure to operate properly. Be sure
that the hydraulic system you intend to use is
functioning properly and that the oil is clean
and of good quality.
Two hydraulic remotes are required to oper-
ate the trailer mounted S3. One is to control
the lift arm for loading the bales and the other
is to operate the slicer table. Each remote
must be capable of reversible ow. You may
want to mark the remotes to make sure that
you hook up the hydraulics the same way
each time you use the machine.
NOTE: When using a hydraulically driven
S3 continuously (for more than 3 bales in 10
minutes) the following adjustments must be
made to tractors equipped with a high ow,
pressure compensated load
sense hydraulic system.
7
Pin

S3
LOADING INSTRUCTIONS
(Trailer Mounted Unit Only)
Approach the bale on its right side with the
lift arm lowered to the ground. Cradle the
bale in the lift fork by moving forward so that
the bale is against the back of the fork. Lift
the bale all the way up so that the bale rolls
onto the table slats. Move the bale toward the
sickle by activating the feeder and stop as the
bale reaches the sickle. To load and carry a
second bale, repeat the above process and
raise the second bale until it rests snuggly
against the rst.
NOTE: Be sure to raise the lift arm to the
upright position and latch the safety chain
whenever you transport your S3 on the road!
FEEDING INSTRUCTIONS
To engage the feeding operation of the S3,
idle the tractor engine, engage the slicer table
hydraulics and increase the engine speed to
the tractor manufacturer’s suggested rated
speed. On a PTO slicer the PTO RPM is 540.
To engage the PTO we recommend idling the
engine, engaging the PTO then accelerating
the tractor’s engine to rated speed for correct
540 PTO RPM operation.
SAFETY WARNING!
Stay clear of the table and cutter bar when
the machine is in operation!
If the system stalls, reverse the slats and try
again.
NOTE: Always wait until the rst bale has
been processed completely and the table
slats have stopped before loading the second
bale onto the table.
8 9
1. Flow (speed) must be controlled on
the tractor remote outlet. To set this
speed rst set the Slicer ow as
outlined in the manual. Secondly,
turn the ow control toward the “turtle”
on the tractor selective control outlet
until the speed begins to decrease.
Stop turning as soon as you can notice
a decrease in speed. Failure to follow
these procedures may result in the
overheating of the tractor hydraulic
system, as the system will be at
maximum ow and pressure. (Load is
sensed at the tractor selective control
valve and if this valve is wide open the
system is at constant maximum
pressure / ow.
2. The alternative to the above is to buy a
“ow limiter valve” and attach it
between the quick disconnect and the
hose on the pressure side.
3. On PTO model S3, ow must also be
regulated at the selective control outlet
for the slat motor.
NOTE: If the above instructions are not fol-
lowed, the following symptoms may develop:
Rapid heating of the tractor hydraulic
oil, this will show up as a loss of speed
on the hydraulic motor speed. These
 motorsloseefciencyrapidlywhenoil
over heats.

S3
Suggestion: When adjusting the sickle and
the backboard sliding with it, loosen the bolts
and nuts shown. There are nuts, bolts, and
straps on both the front and rear sides of the
machine.
3. Retighten the four 5/8” bolts loosened
in step one on previous page.

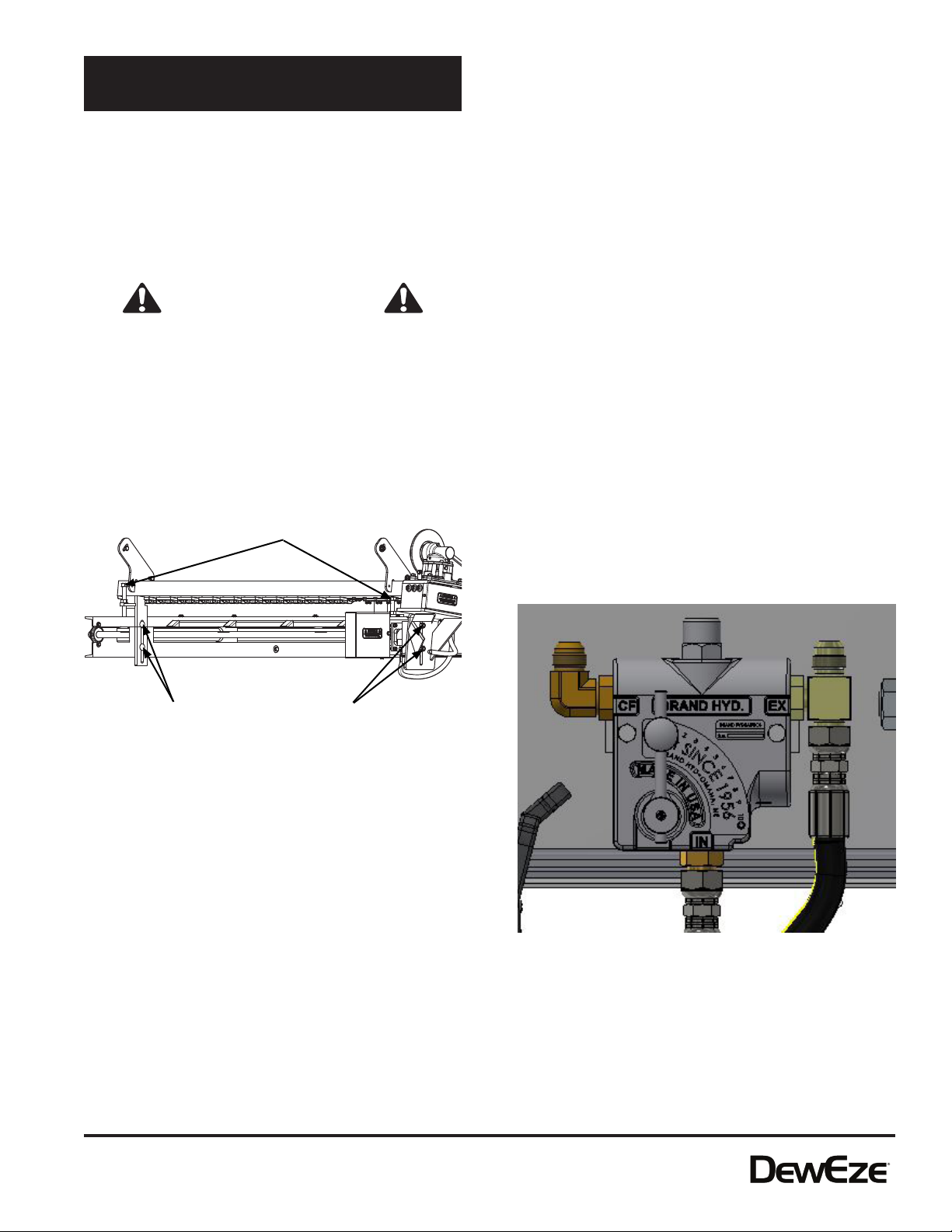

FLOW CONTROL VALVE ADJUSTMENT
The ow control valve on the right controls
the speed of the sickle. Loosen the knob on
the valve to adjust the lever and move the le-
ver to a higher number to increase the speed.
To lower the number is to decrease speed.
After moving the lever, tighten the knob to
hold the lever in place.
For initial setting of the valves, set each
adjusting lever on “2”. Fine tune the speed of
the sickle and slats by adjusting the valves
individually to get the proper cutting for the
type of hay you are processing.
FEEDING RATE
The feeding rate may be adjusted by chang-
ing the speed of the feeder chain, or by
adjusting the distance between the sickle and
the table slats. To change this distance, use
the following procedure.
SAFETY WARNING!
Turn off tractor and disconnect the hydrau-
lic hoses before making any adjustments
to the sickle! Failure to do so could result
in serious personal injury!
1. Loosen the two 5/8” hex bolts (1) and
two 5/8” carriage bolts (2) that hold the
sickle bar in place. (See Fig. 3)
2. Screw the 3/4” all thread adjustment
bolts (3) in or out at each end of the
sickle. Make sure that each end is
adjusted so that the sickle is parallel
with the table slats. Use a tape
measure to gauge each end.
Adjustments
9
2
3
1

S3
10
TABLE SPEED OPERATING RANGE
• Flow Control Valve Between 2 – 7.
• Below 2 can cause the table to stall
out.
• Above 7 any increase in speed with be
negligible, and could allow ow to by-
pass.
SUGGESTED REBALING SETTINGS
• Leave Sickle Height at Factory
Setting (3”)*.
*This measurement is taken at the top of the
slat to the bottom of the sickle guard.
• Set Flow Control Valve at 2.
• Set Tractor RPM between 1500-1800
RPM.
• Set Square Baler at Manufacturers
Recommended Speed.
• Adjust Table Flow accordingly to De-
sired Output.
SUGGESTED BUNK FEEDING SETTINGS
• Leave Sickle Height at Factory
Setting (3”).
*This measurement is taken at the top of the
slat to the bottom of the sickle guard.
• Set Flow Control at 3.
• Set Tractor RPM between 1500-1800
RPM.
• Make Adjustment to Table Speed,
Sickle Height, and Ground Speed
Accordingly, Based on Desired Feed
Output.

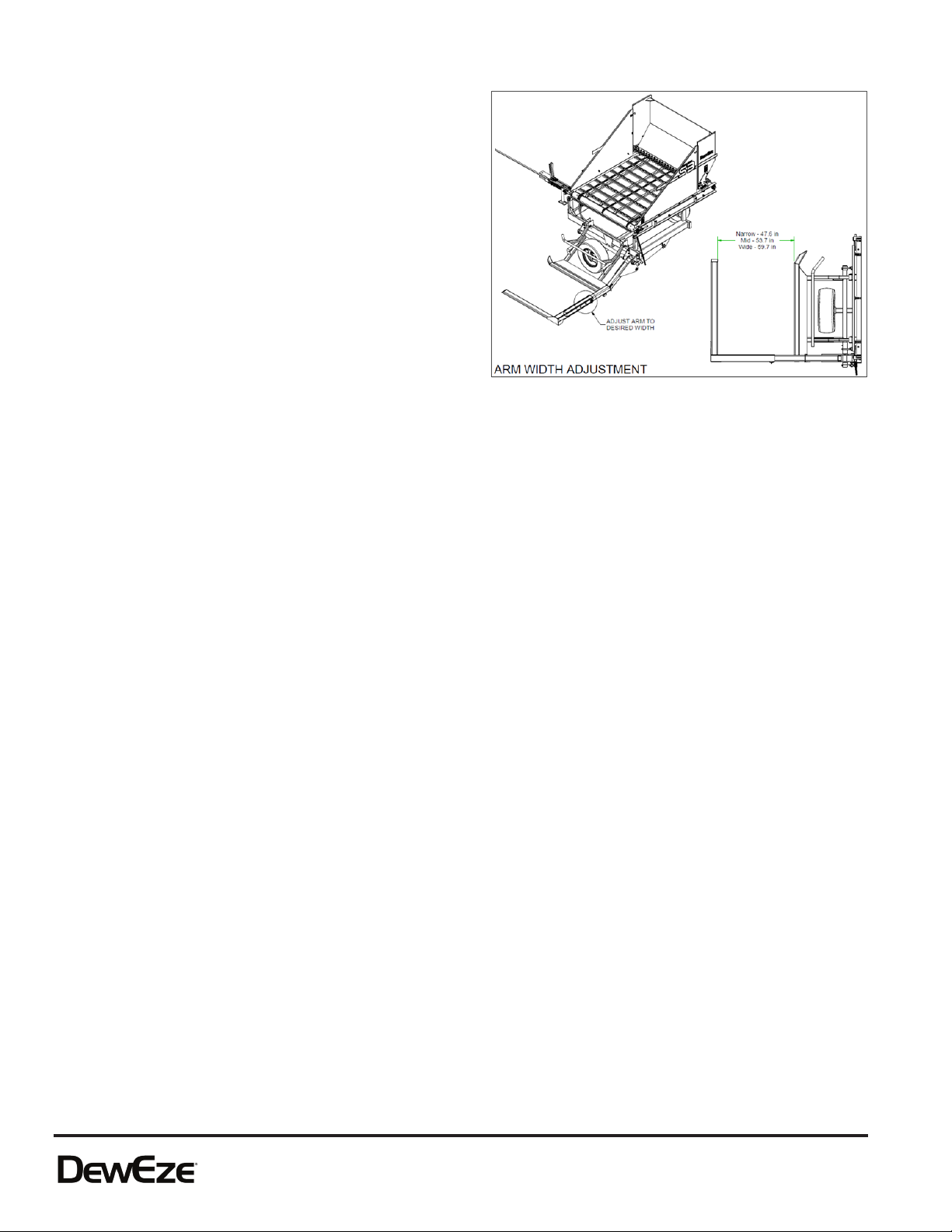

Arm Width Adjustment Measurements

S3 11

S3
TRAILER MAINTENANCE
MONTHLY (Or every 100 bales)
Grease the linkage of the lift arm to avoid binding and rust.
ANNUALLY
Clean and repack the wheel bearings.
TABLE MAINTENANCE
MONTHLY (Or every 100 bales)
Grease Shumacher gear box with MAX 5 shots of
lithium based grease every 50 operating hours.
Knife-head bearing should be greased every 12 operating hours with 1 shot of grease.
Check the conveyor chain for tightness. The chain should not swag more than 6” from the
bottom of the table at the center. Adjust the take-up roller equally at each end for
maximum chain life.
Take-up Roller
Maintenance
12

S3 13
Lubricate the system drive chains with chain oil.
- Non-detergent petroleum based or synthetic, multigrade 20/50 oil.

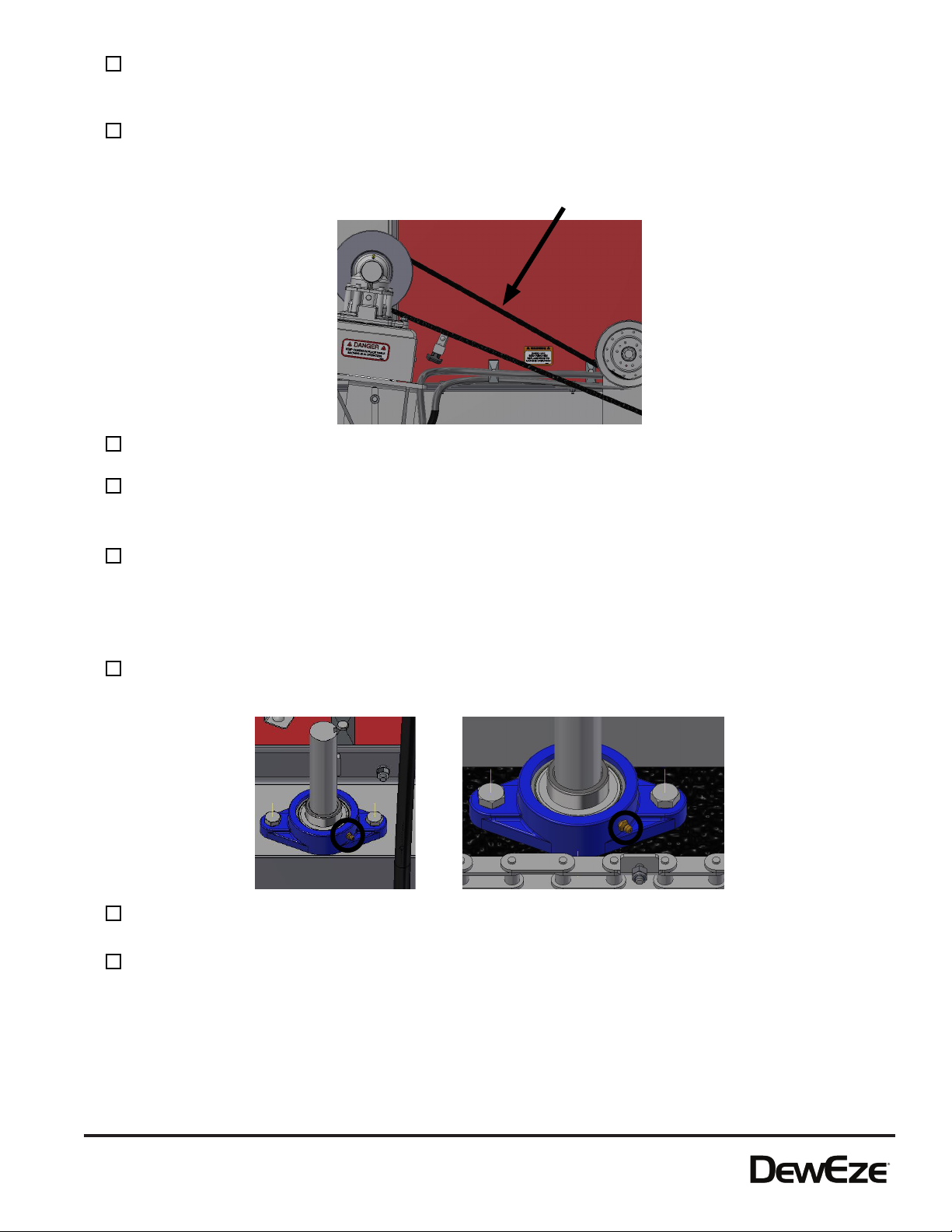

Inspect Schumacher drive belt for stretching from normal wear, tighten belt as necessary.
Inspect for unusual/excessive belt wear such as fraying, glazing, or other abnormalities,
replace as necessary. part # 440081 - 25-30 lbs. of tension with 3/4” deection between
tensioner pulley and Schumacher pulley.
Inspect sickle sections for wear, and replace as necessary.
Remove lower Schumacher shield and remove excess hay from drive area.
BI-ANNUALLY
Check belt tension - 25-30 lbs. with 3/4” deection between tensioner pulley and
Schumacher pulley.
DRIVE SHAFT MAINTENANCE
MONTHLY (Or every 100 bales)
Grease all grease zerks on the drive shaft.
(Zerks located at each end and one in the middle of the shaft.)
Inspect and replace any broken or missing safety shields.
Check for loose bolts on drive shaft.

S3

S3
PARTS SECTION

S3

S3
Table of Contents
PARTS SECTION
Table and Feed Chain......................................
Trailer Assembly...............................................
Hub and Bearing Assembly..............................
Backboard and Sides.......................................
Safety Shields...................................................
Table Safety Stops...........................................
Sickle Height Adjustment..................................
Twine Box - Optional.........................................
Decals...............................................................
Sickle Drive Assembly......................................
PTO Kit.............................................................
Sickle Assy........................................................
PTO Holder.......................................................
Hose Assy - PTO..............................................
Hose Assy - Hydraulic......................................
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.1
2.2
2.3
2.4
2.5
2.6

S3
1.1
405024
REV:
NC
Parts List
ITEM QTY PART # DESCRIPTION
1 5 110400 BOLT, 3/8-16 X 2.0 2 4 110402 Bolt, 3/8-16 X 1.25 in Carriage 34110419 BOLT, 1/2-13 X 1.75 4 4 110420 BOLT, 3/8-16 X 1.0 54 110425 BOLT, 3/8-16 X 1.25 6 2 110429 BOLT, 1/2-13 X 1.5 73 110437 BOLT, 3/8-16 X 0.75, WIZ FLANGE 8 126 110561 BOLT, 1/4-20 X .75 9 4 110610 NUT, 1/2-13
10 4 110615 NUT, 1/2-13, UNITORQUE LOCK 11 126 110630 NUT, 1/4-20 LOCK (NYLON INSERT) 12 1 110645 NUT, 3/8-16 WIZ FLANGE 13 4 110658 WASHER, 1/2" FLAT STANDARD 14 2 110663 WASHER, 5/8" FLAT SAE 15 16 110672 WASHER, 3/8" LOCK 16 21 110676 WASHER, 3/8" FLAT STANDARD 17 12 110826 NUT, 3/8-16 GR 5 18 1 340007 Sprocket, 6030 X 1.25 19 1 400014 DECAL, SHIELD REMOVED 20 1 405015 assembly, drive chain cover 21 5 410232 Bearing Insert, 2.83, 1.25" ec Lk
Parts List
ITEM QTY PART # DESCRIPTION
22 8 410233 Flange, 2 Hole 23 4 410238 Key, 1/4 X 1/4 X 2.25 24 2 410243 BEARING, 2fng Sd 1.375 25 2 410281 ADJUSTMENT BRACKET ASSY 26 1 410365 MOTOR ADJ. PLATE 27 1 410370 Shield, Slat Motor 28 1 410375 SPROCKET, 60b10 X 1.0 29 1 410441 Connecting Link, Half-offset #60 30 1 410442 Connecting Link, #60 Chain 31 3 411117 Chain, Feeder 32 10 411135 SLAT 33 1 411137 SHAFT, SLAT DRIVE 34 3 411170 Half Link, Offset, 2060h 35 1 411171 WELDMENT, SLAT ROLLER 36 2 411294 CENTER BEARING MOUNT 37 11 415003 Toothed Slat 38 1 415022 WELDMENT, TABLE 39 1 420128 Motor, Eaton 101-1014 (14.1 CI) 40 1 440034 Chain, Slat Drive 41 3 440070 Sprocket,2062b13x1.25k2ss,time 42 1 440078 DRIVE shaft

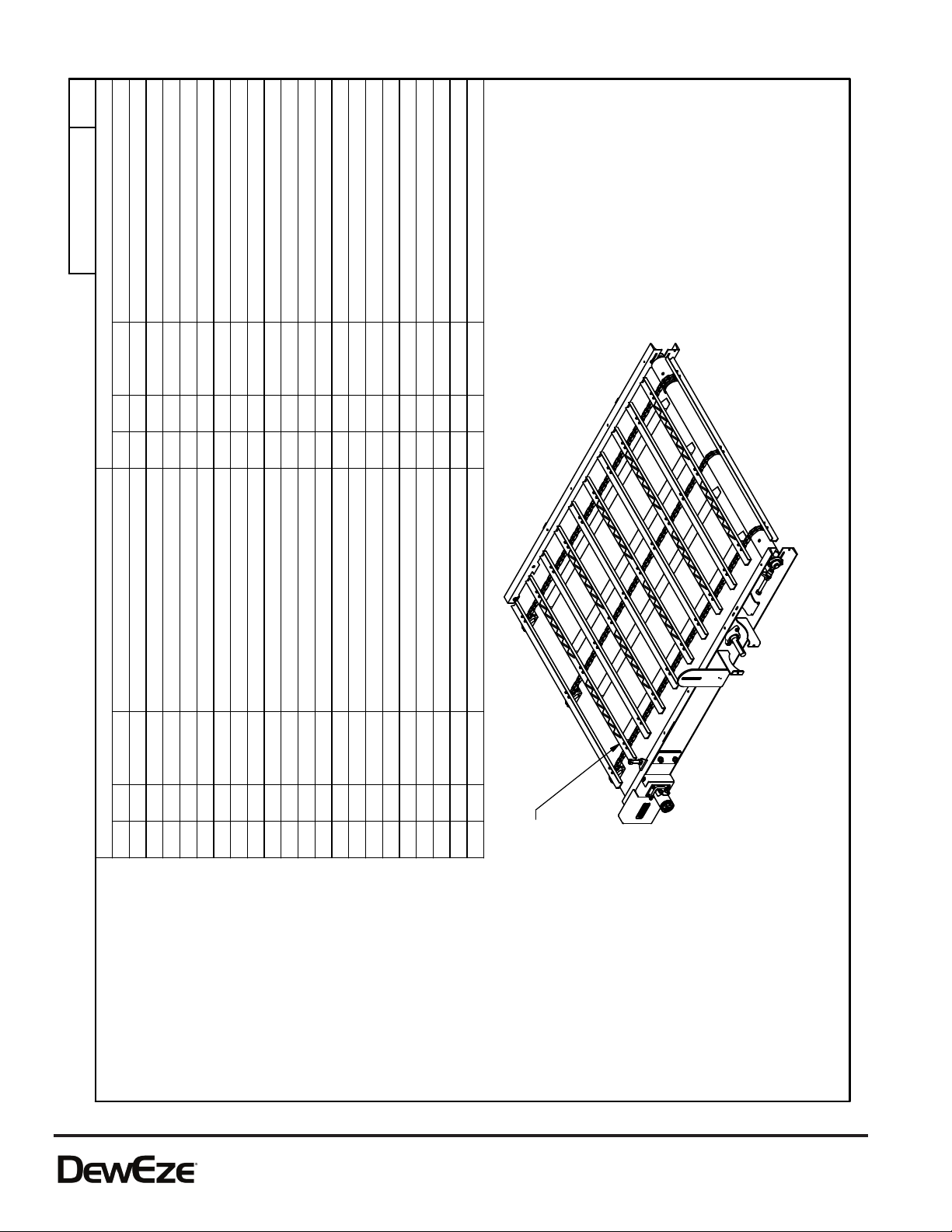

Table and feed chain
4/22/2021
Slats with teeth, teeth should be
on far side from back board of slicer.
Should be 11 slats with teeth and
10 without.
