Harvest TEC 601 User manual

1
601, 700, 701-17-OPR –Imp&Metric
6/22
Operation Manual
Model 601, 700, 701
Microwave Moisture Bale Chute System &
Pre-Compression Chamber System

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec LLC.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press and for the application of innoculants onto
forage crops.
MODEL: 601, 700, 701-17-OPR –Imp&Metric
BRAND: Harvest Tec
PATENT NUMBER: US 9,854,743 B2:
This application preservatives for hay Harvest Tec system meets the Directive 2006/42/EC of the
European Parliment and the Council of 17 May 2006 and other applicable European Directives
including Directive 2004/108/EC on the Electromagnetic compatability.
The application of preservatives for hay Harvest Tec system will be turned on after being installed on
a farm press has been declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and
making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
601, 700, 701 Operation Manual Table of Contents
PAGE
Introduction
4
System Requirements
4
Moisture System Setup
5-7
Moisture Sensor Setup –MWM-Chute
5
Moisture Sensor Setup –MWM-PCC
6
Operation Instructions
7
Selecting Moisture Sensor –MWM-Chute
7
Chamber Width Setup
7
Chamber Offset –Distance from the knotter to MWM-Chute sensor
7
Selecting Moisture Sensor –MWM-PCC
8
Chamber Width Setup
9
Selecting Baler OEM –MWM-PCC and MWM-Chute
9
SD LOG to US
11
ZA Value –MWM-PCC and MWM-Chute
10
Operation Screens –Automatic and Manual Mode
10

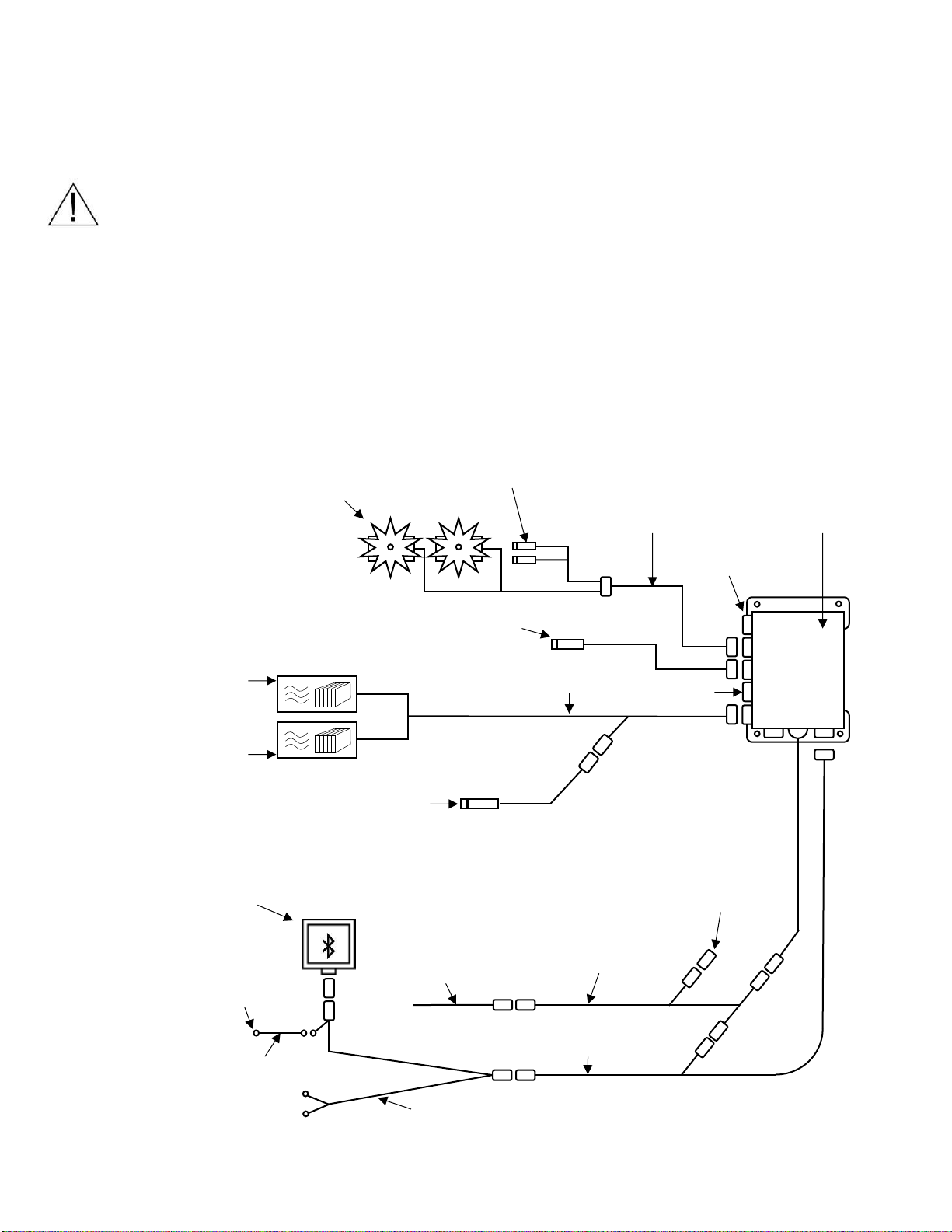

601BB - Wiring Diagram - Connecting to 600BB Moisture Only System
11

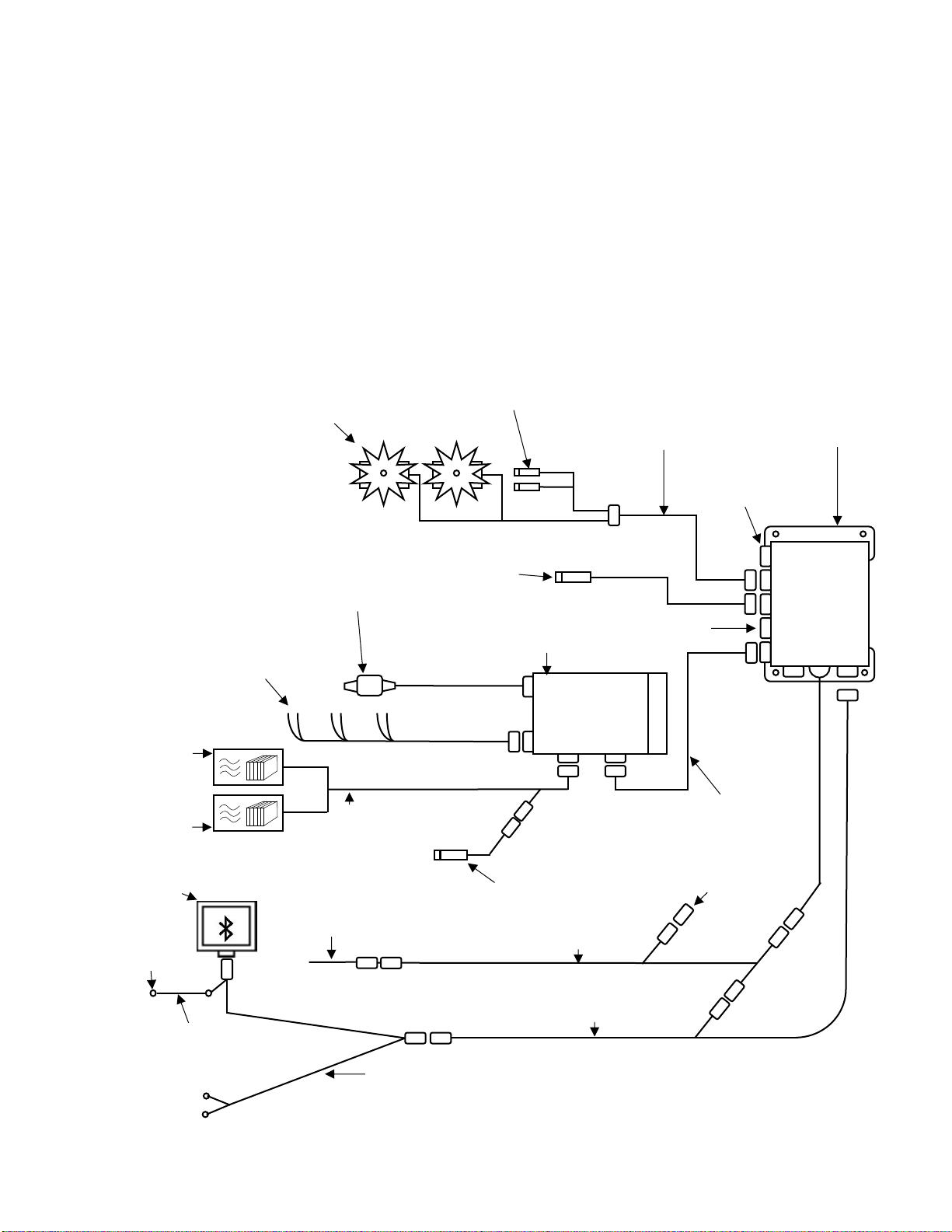

700BB - Wiring Diagram - Connecting to 696BB Preservative Applicator System (Pre-Compression)
12

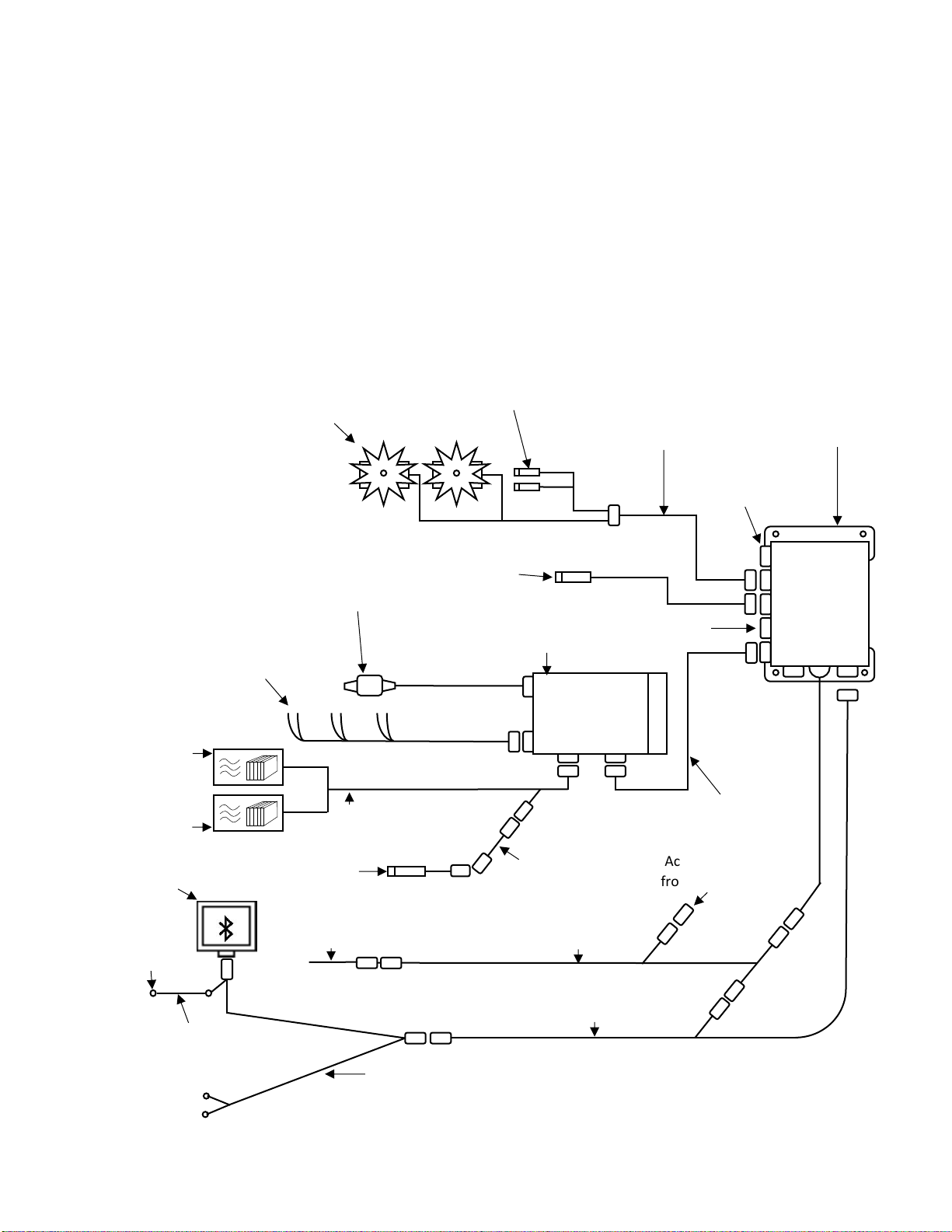

701BB - Wiring Diagram - Connecting to 696BB Preservative Applicator System (Chute)
13
601A - Wiring Diagram - Connecting to 600A Moisture Only System
14
700MWM - Wiring Diagram - Connecting to 696A Preservative Applicator System (Pre-Compression)
15
701MWM - Wiring Diagram - Connecting to 696A Preservative Applicator System (Chute)
16
Common Questions
17
Troubleshooting
18

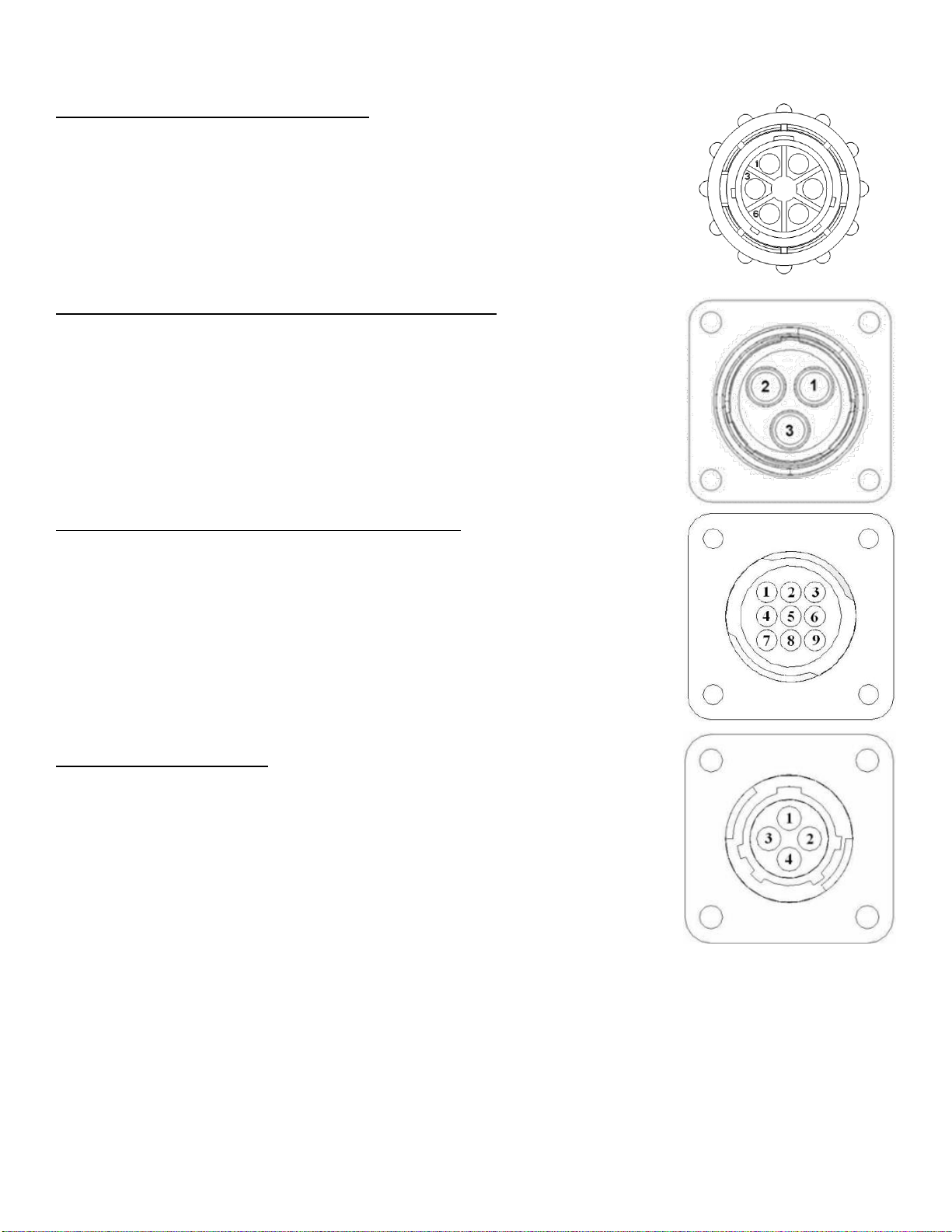

Pin Outs
19-21
Parts Breakdown
22-
Microwave Moisture Pre-Compression System –601 & 700MWM
22
Microwave Moisture Bale Chute System –701MWM
23
Notes
24-26
Warranty
27

4
Introduction
Thank you for purchasing this 601, 700 or 701 Microwave Moisture Sensor Kit. The Microwave Moisture
Sensor Kit is designed to operator through the baler’s ISOBUS system and/or an Apple iPad (not included)
using the Hay App.
This manual will take you through the steps of the operation of the moisture sensor. Please read this manual
carefully to learn how to operate the equipment correctly. Failure to do this can result in personal injury or
equipment malfunction. If you are unsure about operating the system after consulting this manual, contact your
local authorized dealership for additional assistance or look for the contact information on the back cover of
this manual. If you are in need of parts for the system please view the Parts Breakdowns in the back of this
manual and contact your local authorized dealer to order the parts.
Refer to your moisture only system or complete preservative applicator operation instructions
for the complete operation of the system.
System Requirements
CNH Balers
The Baler Control Module (BCM)
must have Version 4.2.0.0 or higher.
*Requirement to run iPad option are 3rd Generation iPad (2012) or newer with
iOS8 or greater operating system, plus the Hay App.
AGCO Balers
The Baler Processor must have Version 3.3 or higher.
C1000 must have version 3.0.1 or higher
*Requirement to run iPad option are
iOS8 or greater operating system, plus the Hay App.
**When new software is update to version 57464 (or newer) the amount of time to update the system
may take up to 3 hours depending on the amount of bale information saved on the DCP. This will clear
the prior information, restores default settings and turns on the Pump Module. **
Be sure to save any information on the applicator you may need before updating software

5

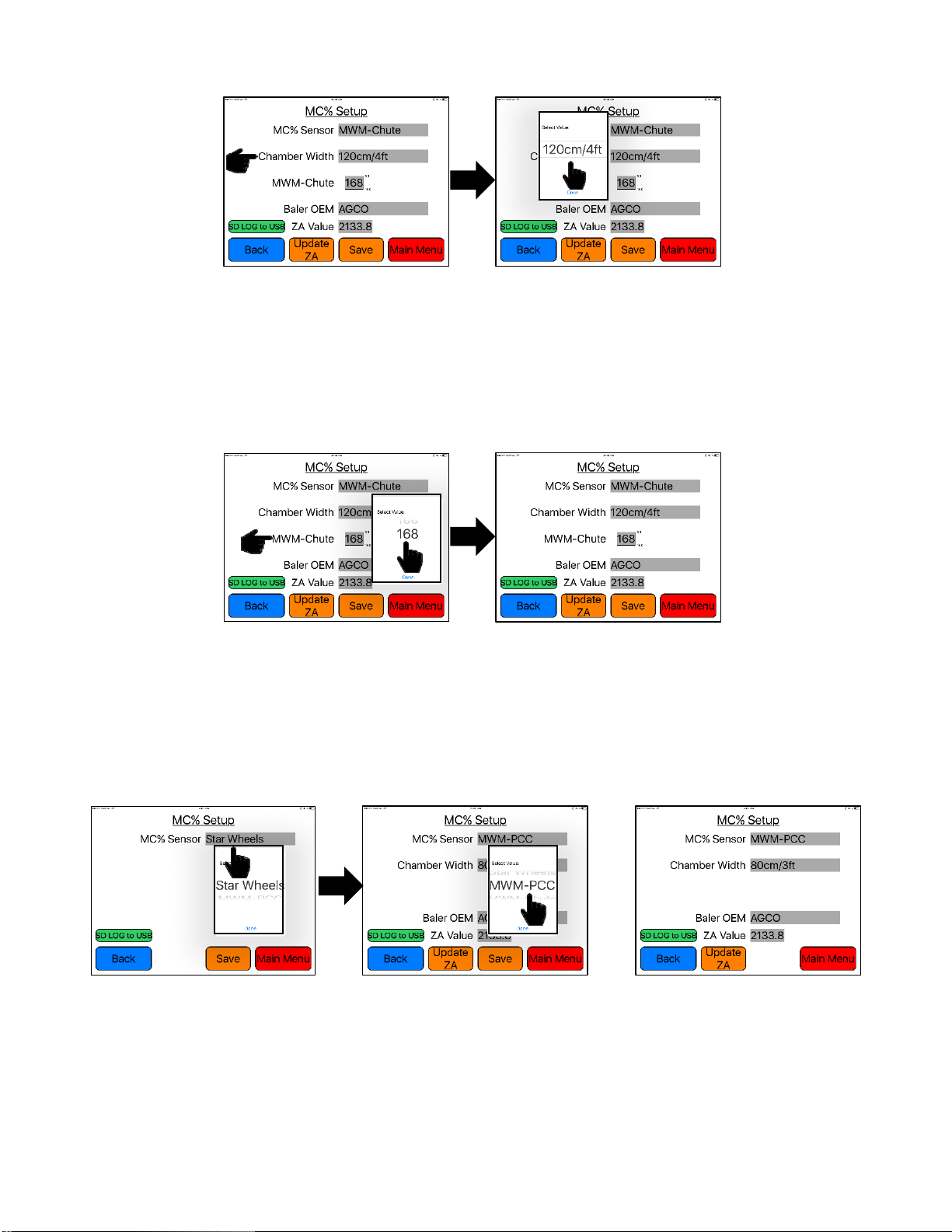

Moisture System Setup - MWM-Chute
Select the microwave mosture
sensor option
Select the correct chamber width
Select Chute Length
Change Baler OEM if Necessary
Choose between AGCO, CNH,
John Deere, Krone
