Harvest TEC 880 User manual

#010-0880
REVISED 6/22
OWNER’S MANUAL
Model 880
GPS Attachment
Forage Harvester

2
HARVEST TEC 880 TABLE OF CONTENTS
PAGE
INTRODUCTION
3
OVERVIEW
3
INSTALLATION OF GPS RECEIVER & HARNESS
4
Installation of GPS Receiver
4
Installation of GPS Harness
4
SYSTEM WIRING DIAGRAMS
SETUP INSTRUCTIONS
Harvest Tec 565 Software Updating Instructions
Display Setup
5-7
8-10
8-9
9-10
OPERATING INSTRUCTIONS
10
PROCESSING YIELD DATA FILE
11-12
PC Installation of Yield File Converter Program
10
Converting Yield Data File
12
COMMON QUESTIONS ABOUT THE 880
13
TROUBLE SHOOTING
13
PARTS BREAKDOWN FOR MODEL 880
14
NOTES
15
WARRANTY STATEMENT
BACK PAGE
***Note: Need to Purchase Trimble 162 AgGPS***
Case Pt. #: 87491749
New Holland Pt. #: 87491753

3
INTRODUCTION
Congratulations on purchasing a Harvest Tec Model 880 GPS attachment. The GPS harness
will allow you attach the Trimble 162 AgGPS receiver (NOT included in 880 kit) to Harvest
Tec’s 500/600 moisture monitoring system or the 565/665 preservative applicator systems.
This will allow you to collect important baling information to create yield files for each
individual job. The model 880 includes the harness to connect the Trimble 162 receiver to
your Harvest Tec system, a USB flash drive and PIP Removable Storage Cover for a 500/565
system, and Harvest Tec’s yield mapping file converter program.
OVERVIEW
The Harvest Tec model 880GPS gathers WAAS information on the fly and sends it to the
main processor. With this information the system creates a yield mapping file that will be
stored onto the USB flash drive on 500/565 systems and within the processor on 600/665
systems. This yield file, after being converted by Harvest Tec’s yield mapping conversion
program, can be useful to the user for present and future field management. The yield file is
capable of being loaded into any type of field management software.
The yield file created will indicate where each bale was tied off. If you have Harvest Tec’s
Bale Identification System you will then have the ability to write that coordinate to the Tag and
this will give you not only proof of what field the bale came from but also the approximate
location of where the bale was made.

4
INSTALLATION OF GPS RECEIVER & HARNESS
Installation of GPS Receiver
Locate the Trimble AgGPS 162 receiver. The GPS receiver will be mounted on top of your
baler in front of the misstie flag indicators or if they’re not present on a flat surface near the
knotter cover/door. This location should give the GPS receiver the best available location.
Installation of GPS Harness
Connect the square plug end of the GPS harness (006-5650GPS) to GPS receiver. Connect
opposite end into one of the following:
a. Attach the GPS harness to Tagger Control (Modular Port) if Bale Identification
system is present.
b. Attach the GPS harness to the Modular Port on the Pump Controller (006-5672) if
using an Automatic Preservative Applicator.
c. If user doesn’t have Bale Identification system or Applicator and has a Moisture only
system, attach GPS harness to the Pump Control port of the Harvest Tec
processor.
Secure harness to baler with supplied cable ties, making sure wiring harness is not in any
pinch points and will not come in contact with moving parts on the baler.

5
SYSTEM WIRING DIAGRAMS
System Wiring Diagram for use with Bale Identification System
Proximity Sensor (2X)
006-7303S
Trimble GPS
Receiver
End of Bale Sensor
006-7400
Moisture/Bale Rate Harness
006-7303H
Star Wheel Assembly (2X)
006-4641
Tagger
Antenna
006-8601
Tagger Control
Harness
006-5650F
Tagger Control
006-5673
GPS harness
006-5650GPS
Harvest Tec
500/600
Processor

6
System Wiring Diagram for use with Automatic Applicator
Harvest Tec
500/600
Processor
Pump Controller
006-5672
Pump Controller Harness
006-5650FM
Pump Harness
006-4660Z
Flow Meter
006-4725A
GPS Harness
006-5650GPS
Trimble GPS
Receiver
Star Wheel Assembly (2X)
006-4641
Moisture/Bale Rate Harness
006-7303H
Proximity Sensor (2X)
006-7303S
End of Bale Sensor
006-7400

7
System Wiring Diagram for use with Moisture Only Systems
500 Moisture Kit
Precision Information Processor (PIP)
006-5671LS
500 Moisture Kit
Precision Information Processor (PIP)
006-5671LS2
600 Moisture Kit
Dual Channel Processor (DCP)
006-6671LS
USB data
stick
USB data stick
006-5650GPS
harness
006-5650GPS
harness
006-5650GPS
harness

8
SETUP INSTRUCTIONS
Harvest Tec 565 Software Updating Instructions (500/565 Systems Only)
1. With the addition of the GPS attachment to the user’s existing 500/565 system, it will need to
be updated with software.
2. Start by downloading all of your existing Job Records off of your PIP (refer to 500, 565 or 596
manual for downloading instructions). Once any software update is done to the 500/565
system all Job Records are erased. Also, write down all important application/bale
rate/tagger settings that you may want to reuse. These are returned to default once the
update is complete.
3. All software files are on the USB flash drive included in the 880 GPS Attachment kit.
a. Insert your USB flash drive into the Data Transfer port on the PIP
4. Power the system on and the update will begin automatically. (***Note: Do not power the
system down or remove the USB flash during an update.)
a. The PIP and display should beep once when powered on. The display should show
‘Checking for Updates’ for approximately 1 minute.
b. After the 1-2 minutes, the display should beep once and the display should change to
‘Updating…’ Depending on how much software needs to be changed, the screen may
stay on the ‘Updating…’ screen for another minute. The display will flash every 2-3
seconds. It will continue to do this until the software is updated within the Display.
c. Once the display stops flashing, the software will need to finish configuring itself. It
may take another 30 seconds to a minute for the update to take effect.
(***The whole software updating process should take 2-3 minutes)
5. Once the update process is complete, the ‘Screen Calibration’ layout will be displayed.
Please recalibrate the screen to proceed to the main menu.
6. Once at the Main Menu screen, verify that in the bottom left-hand corner it displays Version:
16050-56080. (******If the correct version numbers aren’t displayed re-start update
process beginning with step 2.)
7. Select the ‘Setup Mode’ button then find the ‘PIP Setup’ button on the lower left side. Press
the ‘PIP Setup’ button to enter the ‘PIP Setup’ menu.
8. Once in the ‘PIP Setup’ screen, three item descriptions are displayed next to three mating
numerical. For Model and TSD Model press the number next to it, re-enter that default value,
press ‘Enter’ to confirm (ex: Model: re-enter 5 and press enter to confirm). For the OEM
selection press the number related to you respective manufacturer and again press ‘Enter’ to
confirm.
Model:
5
OEM:
Harvest Tec
Agco
Case
New Holland
0
1
2
3
TSD Model:
4
9. If all three options are programmed correctly, the system will revert back to the main menu.
Please verify that the ‘PIP Setup’ button that was in ‘Setup Mode’ has now disappeared.

9
10. Press ‘Options’ once screen is displayed press the 0next to Flow Rate.It will then advance
to another screen, Press 1 then press ‘Enter’ to confirm. The system will power down, touch
the screen start the system again.
11. Once system reaches ‘Main Menu’ create a new Job and the system will be ready for setup
(See ‘Setup Instructions’ on p. 8).
12. ****Remove USB FLASH DRIVE before system is turned off using key power ON**** If
the system is restarted using key power it will go through the updating process once again
resetting all of the users application parameters. Take the USB flash drive and insert it into the
USB port on a computer. Open the USB flash drive and delete the files labeled as: tsd16073
(BIN file), pac01024 (BIN file), htp56104 (BIN file). ****DO NOT delete the file labeled
ydConverterSetup-V1_0_0_0****
DISPLAY SETUP INSTRUCTIONS (All Systems)
1. Turn the control system on. After a few seconds the Main Menu screen should appear. Press
Setup Mode, the Setup Mode screen will then appear.
2. Press Yield Mapping setup.
a. Yield Mapping Setup should now be displayed.
3. Press the underlined value next to Swath Width (Ft). Enter in the swath width that will be
baled, press Enter to confirm.
4. Enter the underlined value next to GPS. Enabling the GPS will require entering the
appropriate value. Press 0 to Disable, 1 to enable the Trimble GPS . Press Enter to confirm.
5. For 500/565 systems, Make sure the USB flash drive is inserted into the PIP’s Data
Transfer port before baling. Without the USB flash drive a yield file will not be created.
(USB flash drive provided in the 880 kit)
2
3
4

10
.
OPERATION INSTRUCTIONS
1. Once installation and setup is complete the system is ready for baling. There is a GPS
indicator icon that will appear in either of the Automatic or Manual mode screens. The GPS
icon shows the user that the GPS is transmitting data to the PIP to be processed. The GPS
icon, if getting a good satellite signal, will continually increase/decrease in size. While all this
is going on a Yield file is being created and saved to the USB flash drive. Additionally as you
enter the Automatic/Manual mode work screens an alert message will appear above the
Override key. This the alert message will display “Opening USB flash” and if the PIP locates
the USB flash drive successfully the alert message will disappear and the yield data will be
written too the flash drive. If a different alert message is being displayed see pg. 12 for
troubleshooting.
2. Once baling is complete, create a New Job and the yield data file that was written to the USB
flash drive will be complete and ready to be converted. See CONVERTING YIELD DATA
FILE for the next step.
****NOTE: If you’re a first time user, begin with the INSTALLATION OF YIELD DATA FILE
CONVERTER PROGRAM before attempting to convert the yield data file.
GPS
ICON
USB flash
drive

11
CONVERTING YIELD DATA FILE

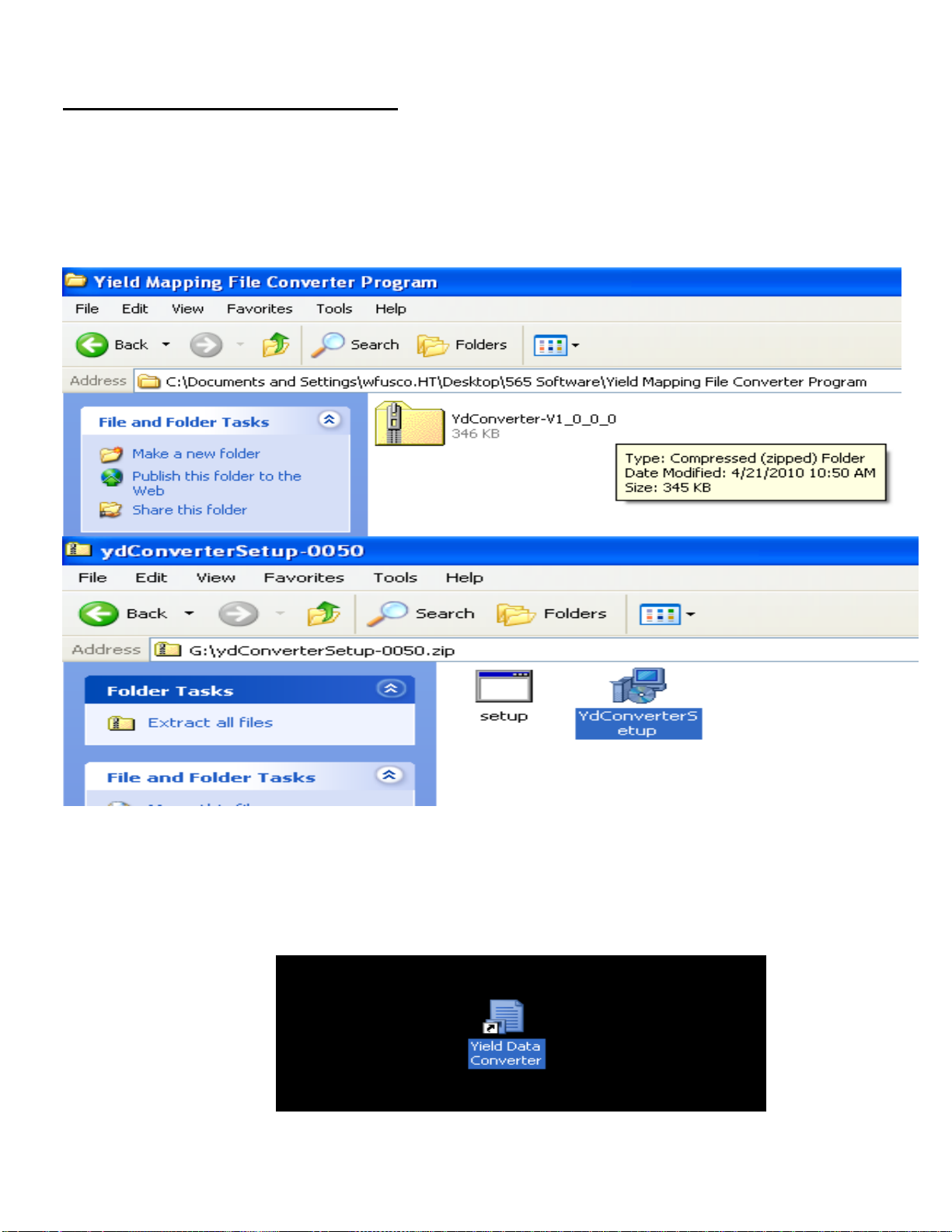

PC Installation of Yield Data File Converter Program
1. Plug the USB flash provided in the 880 kit into the USB port on the computer.
2. The USB flash will have a zipped file on it and will be labeled ydConverterSetup-V1_0_0_0.
a. Double click on that folder to open it and there will be two files inside labeled setup &
ydConverterSetup. Double click on ydConverterSetup.
b. A setup screen will appear, click Next.
c. The next screen will ask you what folder you would like to save the File Converter
Program in. Use the default option and click Next to accept. Next a confirmation screen
will appear, press Next to confirm. The computer will then let the Yield File Converter
Program install itself (Computer will take up to a 1 min to save the yield file converter
program to its desktop).
d. Once the program has been installed you will see and Icon on the computers desktop
as pictured above.

12
Converting Yield Data File
1. The yield data file that was created on the USB flash while baling will need to be converted
before it can be utilized in a yield mapping program. Start by double clicking on the yield
mapping file converter Icon located on the computers desktop.
2. The program should open. Click on Select Files and navigate to the USB flash where the data
files are located. Selected the file labeled as the users created job name .YDT
3. Once the .YDT file has been selected, click open to start the conversion. This process will
take up to a few seconds. The converted file will read; the users created job name –ym. It will
be located on the USB flash that the yield data file was created on.
NOTE: Once converted, the file is in the appropriate format and it can be used by any yield
mapping software/program.

13
COMMON QUESTIONS ABOUT THE 880
1. How do I verify that the yield file is being created?
Once you enter Automatic or Manuals mode the message ‘Opening USB Flash File’ should
appear. This indicates that the PIP is creating a yield file on the USB flash drive.
2. How many acres of yield mapping data can I get on my USB flash drive?
The USB flash drive provided has the ability to save 37,000 acres of yield information.
.
TROUBLE SHOOTING:
880 & Yield Mapping
PROBLEM
POSSIBLE CAUSE
SOLUTION
Alert Message ‘USB Flash not
found’ appears in Auto or
Manual modes.
1. USB flash drive not in
USB port on PIP.
1. Check to see if USB flash has
fallen out or if one needs to be
installed.
‘Opening USB Flash File’ is not
appearing when entering
Manual or Automatic mode.
1. GPS disabled.
1. Check Yield Mapping Setup to
make sure that the GPS is enabled.
Yield Map not showing up on
USB flash drive
1. GPS is disabled.
2. GPS did not connect to
GPS satellites prior to
baling.
3. Harness is damaged or the
connection is
dirty/damaged.
1. Check Yield Mapping Setup to
make sure that the GPS is enabled.
2. Verify that the GPS icon is beign
displayed in Automatic/Manual
modes
3. Inspect GPS wiring harness and
connections.

14
PARTS BREAKDOWN FOR MODEL 880
Ref
Description
Part#
Qty
1
PIP/GPS Harness
006-5650GPS
1
2
Removable Storage
006-5650USB
1
3
PIP Removable Storage
Cover
006-5650RSC
1
1
2
3
Use with 500/565 only
Use with 500/565 only

15
NOTES:

16
Harvest Tec, LLC. Warranty and Liability Agreement.
Harvest Tec, LLC. will repair or replace components that are found to be defective within 12 months
from the date of manufacture. Under no circumstances does this warranty cover any components
which in the opinion of Harvest Tec, LLC. have been subjected to negligent use, misuse, alteration,
accident, or if repairs have been made with parts other than those manufactured and obtainable from
Harvest Tec, LLC.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original
purchaser any part that in our judgment shows evidence of defective or improper workmanship,
provided the part is returned to Harvest Tec, LLC. within 30 days of the failure. Parts must be
returned through the selling dealer and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, LLC. liable for injury or damages of any
kind, direct, consequential, or contingent, to persons or property. Furthermore, this warranty does
not extend to loss of crop, losses caused by delays or any expense prospective profits or for any
other reason. Harvest Tec, LLC. shall not be liable for any recovery greater in amount than the cost
or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular
purpose intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, LLC. will
not affect our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, LLC. reserves the right to make design changes, improve design, or change
specifications, at any time without any contingent obligation to purchasers of machines and parts
previously sold.
Revised 6/22

17
HARVEST TEC, LLC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016
PHONE: 715-386-9100
1-800-635-7468
FAX: 715-381-1792
Email: info@harvesttec.com
Table of contents
Other Harvest TEC Tractor Accessories manuals
