Hatco AMERICAN RANGE MSD-1 User manual

OWNER'S MANUAL, INSTALLATION, USE AND CARE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
This equipment is design engineered for commercial use only.
BEFORE USING YOUR APPLIANCE, PLEASE READ THIS MANUAL, PAYING SPECIAL ATTENTION
TO THE IMPORTANT SAFETY INSTRUCTIONS LOCATED IN THE NEXT SEVERAL PAGES
13592 Desmond St., Pacoima, CA 91331 tel: [phone].753.9898 www.AmericanRange.com
IMPORTANT – PLEASE READ AND FOLLOW!
Instructions to be followed in the event the user smells gas must be posted in a prominent location.
This information must be obtained by consulting the local gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, injury or death. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
FOR YOUR SAFETY
Do not store or use gasoline
or other ammable vapors
and liquids in the vicinity of
this or any other appliance.
Check your local building codes for proper installation methods. In the absence of local codes, this appliance
must be installed in accordance with the National Fuel Gas Code No. Z223.1 current issue, and the National
Electrical Code ANSI/NFPA No. 70 current issue, or the CAN – B149 Installation Codes for Gas Burning
Appliances, and C22.1 Canadian Electrical Code Part 1.
Verify the type of gas supplied to the location, being sure that the appliance is connected to the type of gas for
which it is certied. Models come from the factory certied for use with Natural Gas (NG) or Liquid Propane (LP)
gas. Your product, shown on the rating label and the supplied gas type must be the same. Upon opening your
product, the rating label can be located on the front panel. The rating label location is shown in Figure 2 on page
8 and is also referenced on page 4.
If connecting this appliance to propane gas, make certain the propane gas tank is equipped with its own high-
pressure regulator – in addition to the pressure regulator supplied with this product when applicable. The
maximum propane gas pressure to this appliance must not exceed 14.0 inches of water column (34.9 millibar)
from the propane gas tank to the pressure regulator.
!
CAUTION
MODELS: MSD-1, MSD-2, MSD-1HE, MSD-2HE, MSDE-1, MSDE-2, MSDE1HE, MSDE2HE,
M-1, M-2, M-1HE, M-2HE, ME-1, ME-2, ME-HE1, ME-HE2
!

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
2
INSTALLATION, OPERATION AND SERVICE PERSONNEL
Installation of the equipment should be performed by qualied, certied, licensed and/or authorized personnel who are experienced in
state/local installation codes. Have the technician show you the exact location of the gas shut-o valve on the incoming gas line so you
know how to turn o the gas if necessary.
Operation of the equipment should be performed by qualied or authorized personnel who have read this manual and understand and
are familiar with the functions of the equipment.
Service of the equipment should be performed by qualied and licensed personnel who are knowledgeable with
American Range products.
!
DANGER
Gas Standards and Codes
Hazards or unsafe practices which will result in severe personal injury or death.
Hazards or unsafe practices which may result in severe personal injury or death.
Hazards or unsafe practices which may result in minor personal injury or property damage.
This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards which will result in severe injury or death.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
!
DANGER
!
!
CAUTION
1. A manual gas shut-o valve must be installed in the gas supply (service) line ahead of the appliance and gas pressure regulator in the
gas stream for safety and ease of future maintenance/service.
2. The gas pressure regulator supplied with the appliance must be installed prior to connecting the equipment to the gas supply line.
Failure to install a regulator will void the equipment warranty and result in a potentially hazardous condition.
3. Please contact the factory, a factory representative, or local service company to perform maintenance and
repairs.

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
3
This is a vented appliance. The appliance is not to be installed in conjunction with an air curtain,
range hood, or ventilation systems which operates by blowing air downward towards the
appliance. This type of ventilation system may cause ignition and combustion problems with the
gas cooking appliance resulting in personal injury or unintended operation.
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING
»Before beginning, please read all the instructions carefully.
» DO NOT remove permanently axed labels, warnings, or plates from
product. This may void the warranty.
»All local and national codes and ordinances must be observed,
installation must conform with local codes.
»The Installer must leave these instructions with the consumer who must
retain for local inspector’s use and for future reference.
»Installation and service must be performed by a qualied installer,
service agency or gas supplier.
»Please ensure that the product is properly grounded.
»In the Commonwealth of Massachusetts, installation must
be performed by a licensed plumber or gas tter.
Your safety and the safety of others is very important. We have provided
many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
IMPORTANT SERVICE NOTICE!
Using any part other than genuine
American Range factory supplied parts
relieves the manufacturer of all liability.
American Range reserves the right
to change specications and product
design without notice. Such revisions do
not entitle the buyer to corresponding
changes, improvements, additions
or replacements for the previously
purchased equipment.
Shipping Damage Claim Procedure
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company
assumes full responsibility for the safe delivery upon acceptance of the equipment.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
1. Note on the freight bill or express delivery any visible loss or damage and have the note signed by the person making the
delivery.
2. File claim for damages immediately regardless of the extent of damages.
3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and le a
“Concealed Damage” claim with them. This must be done within ve (5) days from the date that delivery is made to you.
Retain the shipping container for inspection.
CA PROPOSITION 65: The burning of gas cooking fuel generates some chemical by-products
which may expose you to chemicals including benzine, carbon monoxide, formaldehyde and
soot, which are known to the state of California to cause cancer and birth defects or other
reproductive harm. To minimize exposure to these substances, always operate this unit
according to the Owners Manual, ensuring to provide proper ventilation. For more information
go to www.P65warnings.ca.gov
!
WARNING

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
4
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
DAMAGE, PERSONAL INJURY OR DEATH.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER
»Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
»Please observe all local and national codes and ordinances.
»Do not remove any permanent warning labels or plates from this product.
»Please ensure that this product is electrically grounded.
»Consumers must retain these instructions for local inspectors and for future use.
WHAT TO DO IF YOU SMELL GAS
»Do not try to light any appliance
»Do not touch any electrical switch
»Do not use any phone in your building
IMPORTANT SAFETY INSTRUCTIONS
»Using a neighbor’s phone, immediately call your gas company
»Follow the gas supplier instructions
»If you can not reach your gas supplier, call the Fire Department
VENTILATION HOODS
Means must be provided for any commercial, heavy-duty cooking
appliance to exhaust combustion waste products to the outside
of the building. Usual practice is to place the unit under an
exhaust hood. Filters and drip troughs should be part of any
industrial hood. Consult local codes before constructing and
installing a hood.
Room air movement should be monitored during installation.
Strong exhaust fans in the hood or in the overall air conditioning
system can produce a slight vacuum in the room and/or cause
air drafts – either may interfere with the pilot or main burner
performance and can also be hard to diagnose. If pilot burner or
main burner outage problems persist – make up air openings or
baes may have to be provided in the room.
Provisions shall be incorporated in the design of the kitchen to
ensure adequate supply of fresh air and adequate clearance for air
openings into the combustion chamber, for proper combustion
and ventilation. For proper operation of the appliance, do not
obstruct the ow of combustion and ventilation air.
INSTALLATION
INSTALLATION – GAS STANDARDS AND CODES
IMPORTANT – The installation of this appliance must conform
to local codes or, in the absence of local codes, with the National
Fuel Gas Code ANSI Z223.1/NFPA 54 Natural Gas Installation
Code, CAN/CGA-B149-1 or the Propane Installation Code,
CAN/CGA-B149-2 as applicable, including:
1. The appliance and its individual shut-o valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressure in excess of
1/2 psi (3.45 kPa).
2. The appliance must be isolated from the gas supply piping
system by closing the individual manual shut-o valve during
any pressure testing of the gas supply piping system at test
pressure, equal to or less than 1/2 psi (3.45 kPa).
The appliance, when installed, must be wired and electrically
grounded in accordance with local codes, or in the absence of
local codes, with the National Electric Code, ANSI/NFPA 70, or
the Canadian Electrical Code, CSA C22.2 as applicable.
!
WARNING

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
5
RATING PLATE – The information on the rating plate denes the model, serial
number, gas type (natural or liquid propane), operating pressures and burner BTU
ratings. Keep this information for future reference. It is essential for proper identication
of the unit when requesting additional information or factory support.
Appliances must be connected only to the type of gas identied on the rating plate.
GAS CONNECTION – The single deck oven requires one gas connection; the double deck oven requires two gas connections. The
gas inlet line size of this appliance is 3/4" NPT. For proper operation, the gas service supply line must be the same size or greater than the
inlet line size of the appliance.
MANUAL SHUT-OFF VALVE – A gas pressure regulator and a contractor-supplied shut-o valve must be plumbed in the gas
service line ahead of the appliance – in a physical location where it can be reached quickly in the event of an emergency.

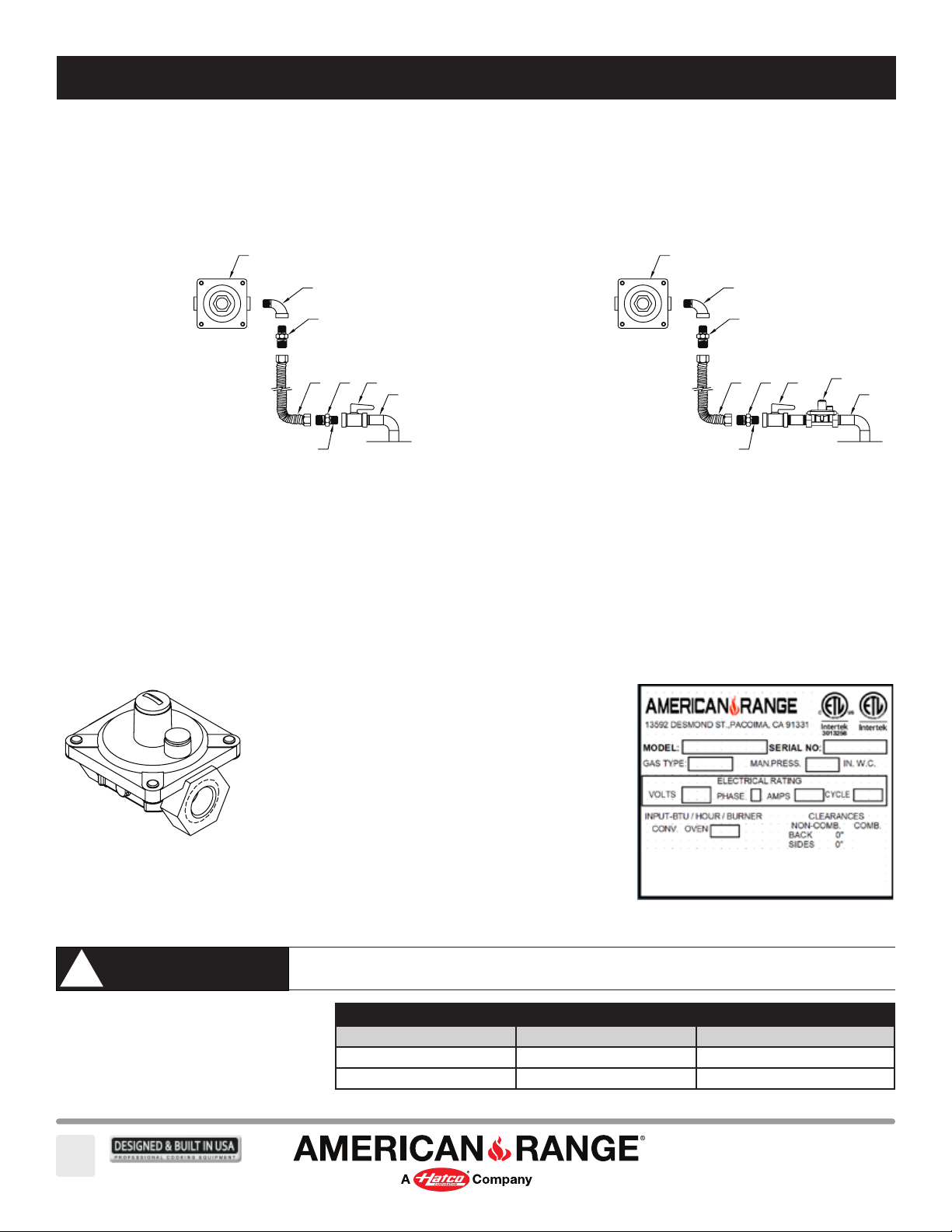

A
DCE
F
G
C
B B
C
G
F
ECD
A
H
NATURAL GAS LP GAS
A
. Gas pressure regulator
B. 90º Street elbow
C. Adapter (must be 3/4" male pipe thread)
D. Flexible connector
E. Manual gas shut-off valve
F. 3/4" gas supply
G. Use pipe-joint compound
A. Gas pressure regulator
B. 90º Street elbow
C. Adapter (must be 3/4" male pipe thread)
D. Flexible connector
E. Manual gas shut-off valve
F. 3/4" gas supply
G. Use pipe-joint compound
H. Step down regulator
The gas pressure regulator must be installed in the gas line – failure to install a pressure regulator will void the equipment warranty. The
regulators supplied with ranges have 3/4" NPT connections; the regulator is adjusted at the factory for 5" W.C. (water column) manifold
gas pressure (natural gas) or 10" W.C. manifold gas pressure for propane gas operation.
Before connecting the regulator, check the incoming line pressure – as these regulators can only withstand a maximum inlet pressure of
14" W.C. (1/2 PSI); exceeding this pressure will damage them. Visually double check any installer-supplied intake pipes and/or blow them
out using compressed air to clear any dirt or debris, threading chips, or other foreign matter – before installing a service line. Those
particles will clog gas orices when gas pressure is applied. Compounds used on threaded joints of this appliance piping must be resistant
to the action of NG and LP gas and provide a gas tight seal to prevent leaks. If the gas supply line pressure is greater than this amount, a
step-down regulator will be required. A gas ow direction arrow is cast into the body of the regulator to minimize installation error – it
should point downstream to the appliance. The blue air vent cap on the top of the regulator is part of the regulator and should not be
removed.
Any adjustment to the regulator must be made
only by qualied and licensed service personnel
with the proper calibrated test equipment. Gas
connections should be performed by a qualied
licensed contractor.
INSTALLATION
!
WARNING
Rating Plate
Clearances – The appliance must be
kept free and clear from all combustible
materials. This unit is designed and certied
for the following installation only:
CLEARANCE FROM MINIMUM COMBUSTIBLE AND NON-COMBUSTIBLE CONSTRUCTION
COMBUSTIBLE NON-COMBUSTIBLE
Back 0" 0"
Side 6" 0"
0"
6"
INTENDED FOR OTHER THAN HOUSEHOLD USE.
FOR INSTALL ATION UNDER VENTILATION HOOD ONLY,
AND NONCOMBUSTIBLE LOCATION ONLY.
ANSI Z83.11-2016 / CSA 1.8-2016.
FOOD SERVICE EQUIPMENT

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
6
ELECTRICAL CONNECTION – The standard gas operated convection ovens require a 120 VAC, 60 Hz, 20 AMP electrical service
for operation. The supply cord provided on the appliance is equipped with a three-prong (grounding) plug for protection against
electrical shock hazard. The electrical service in the building must be equipped with a properly grounded three-prong receptacle, in
accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or in
Canada – to Canadian electrical codes, CSA C22.2. Do not cut or remove the grounding prong from this plug.
For gas red 120 VAC units and any NEC compliant receptacle, proper ground and correct
polarity is required.
Electric convection ovens are congured at the factory for operation from 208 VAC, single
phase, or 208 VAC, three-phase electrical service is also an available conguration.
ELECTRICAL GROUNDING INSTRUCTIONS
The appliance is equipped with a three-prong (grounding) plug for your protection against
electrical shock hazard and should be plugged directly into a properly grounded three-
prong receptacle. Do not cut or remove the grounding prong from this plug.
No attempt should be made to operate this appliance during an electrical
service failure or in the event of a prolonged power failure. The appliance is
not capable of operation without specied gas and electric requirements.
NL NL
GG
GOOD NO GOOD
CAUTION
120 VAC POLARITY SPECS A39074
INSTALLATION – ELECTRIC UTILITY CONNECTIONS – STANDARDS AND CODES
Qualied installation personnel, licensed and bonded, must be experienced in such work, familiar with all precautions required and
have complied with all requirements of state or local authorities having jurisdiction.
U.S. AND CANADIAN INSTALLATIONS – All ovens, when installed, must be electrically grounded in accordance
with local codes, or in the absence of codes, with the National Electrical Code ANSI/NFPA 70 – Latest Edition
and/or Canadian National Electrical Code C22.2 as applicable.
The ventilation of these ovens should be in accordance with local codes. In absence of local codes, refer to the national ventilation
code titled, Standard for the Installation of Equipment for the Removal of Smoke and Grease Laden Vapors from Commercial
Cooking Equipment, NFPA-96 – Latest Edition.
GENERAL EXPORT INSTALLATIONS – Installation must conform to Local and National Standards. Local installation codes
and/or requirements may vary. If you have any questions regarding the proper installation or operation of your American Range
Convection Oven, please contact your local distributor. If you do not have a local distributor, contact American Range
Corporation at 1.888.753.9898 or visit us at www.americanrange.com
The installation instructions contained here are for the use of qualied installation and
service personnel only. Installation or service by other than qualied personnel will void the
warranty and may result in damage to the oven and/or injury to the operator.
INSTALLATION
!
WARNING
!
WARNING
!
WARNING

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
7
OVENS WITH CASTERS
In order to be able to service this appliance, it must be installed with the locking front casters, a exible connector complying
with ANSI Z21.69.CGA6.16 and a quick disconnect device complying with ANSI Z21.41CGA 6.9. Adequate means must
be provided to limit the movement of the appliance without depending on the connector and the quick
disconnect device or its associated piping to limit the appliance movement.
If the kitchen oor is relatively smooth and level, the unit may be leveled by turning the "foot" section of the leg, since casters are not
adjustable. Identify the high corner and level the unit if the adjustment required exceeds the 1-1/4" limit use metal shims.
All American Range Corporation appliances are adjusted and tested before leaving the factory, eectively matching them to
appropriate atmospheric conditions. We recommend that adjustments and calibrations are performed upon installation to assure
proper operation of the unit and avoid possible problems caused by rough handling or vibration during shipment. This work must be
performed only by qualied service personnel. These adjustments are the responsibility of the customer and/or dealer and are not
covered by warranty.
Check all gas connections for leaks with a soapy water solution before lighting the oven. DO NOT USE AN OPEN FLAME TO
CHECK FOR LEAKS! Putting an open ame beside a new gas connection is extremely dangerous and may result in serious injury or
death.
When lighting the gas oven, DO NOT stand with your face close
to the combustion chamber.
INSTALLATION
!
CAUTION
Oven Wall
When an appliance is equipped with casters, instructions that: the installation shall be made with a connector that complies with the
Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 • CSA 6.16, and a quick disconnect device that complies with
the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41 • CAS 6.9; adequate means must be provided to
limit the movement of the appliance without depending on the connector and the quick-disconnect device or its associated piping to
limit the appliance movement; and the location(s) where the restraining device or its associated piping to limit the
appliance movement; and the locations(s) where the restraining means may be attached to the appliance shall
be specied.
When an appliance is supplied on casters and is connected to the supply piping by means of a connector for movable appliances, a
statement making the operator aware there is a restraint on the appliance and, If disconnection of the restraint is
necessary, to reconnect this restraint after the appliance has been returned to its originally installed position.

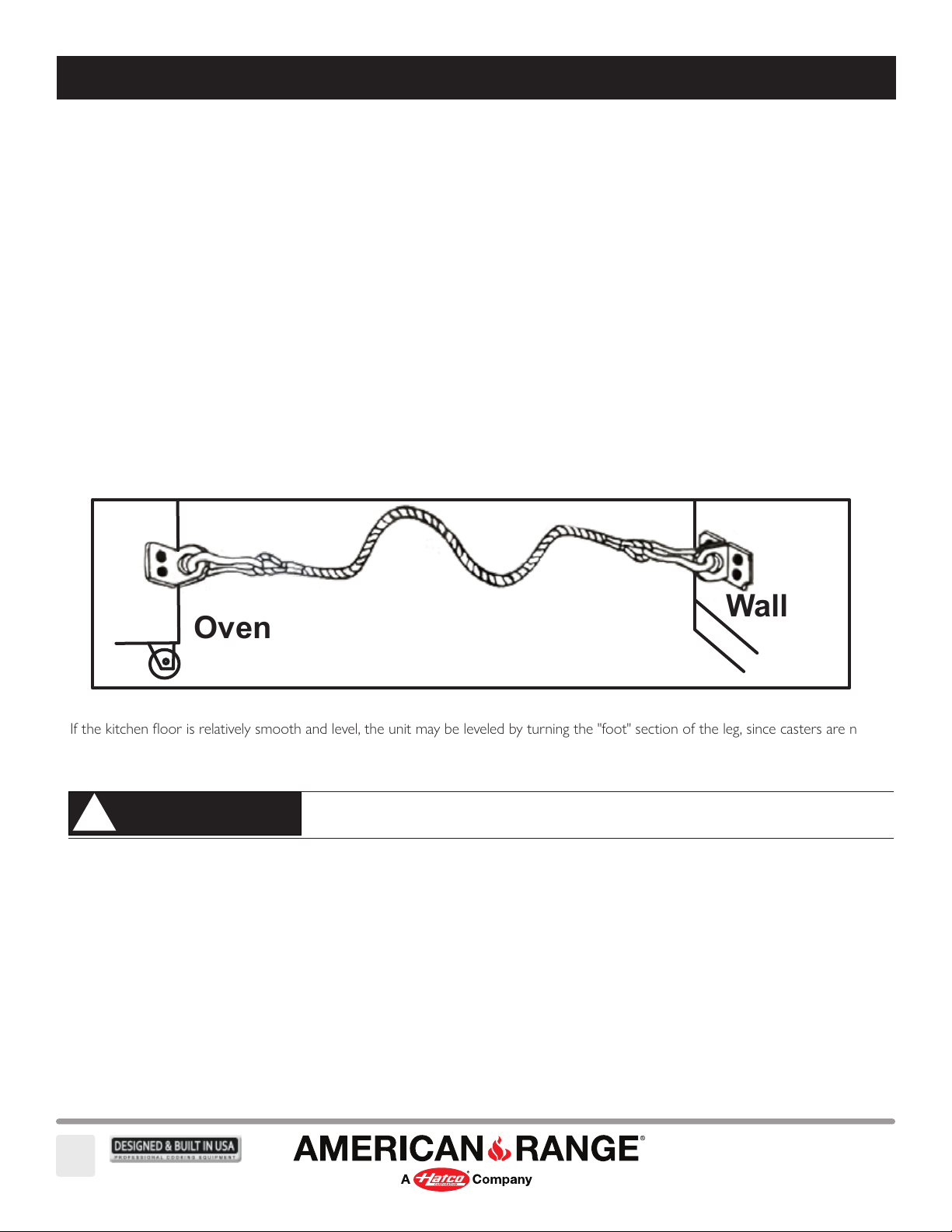

RESTRAINING DEVICE

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
8
INSTALLATION
SCREW TOTAL QTY. (16) W/CASTERS
#14 1/4 X 3/4
SCREW TOTAL QTY. (12) W/LEGS
BOLT TOTAL QTY. (32)
#20 1/4 X 3/4
LEG TOTAL QTY. (4)
BOTTOM SHELF QTY. (1)
CASTER
MOUNT HOLE
PATTERN
PATTERN
MOUNT HOLE
LEG
Do Not Mount the oven on a curb base. Use casters. Adequate air space at the bottom and rear of the unit must be provided for the
proper venting of the blower motor.
Assembly – Do not use the door to lift or move the oven! The double ovens are installed on casters shipped with the unit.
The standard assembly parts or casters for the single oven are shipped separately, within the crated unit.
Single Oven – Assemble the leg / stand assembly as follows:
1. Remove the legs from the package.
2. Referring to Figure 1, secure bottom shelf to the legs, using bolts, and nuts provided. Tighten all bolts securely.
3. Place oven on the top of leg / stand assembly. Match holes on the frame with oven bottom base. Fasten with bolts
provided. For the bottom shelf and rack support:
a. Screw the bottom shelf to the legs.
b. Screw the guide support angles to the bottom shelf and top leg frame.
Figure 1

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
9
Double Oven – Only 6" casters can be used with the double oven.
1. Match holes on the casters with the oven bottom base and assemble with hardware provided.
2. Stack top oven on top of bottom oven.
3. Remove top kick plate by lifting and pulling forward. Then bolt by rear and front joiner brackets as shown in Figure 2.
4. Assemble the ue extension as shown in the same gure.
5. Do not use other manufacturer or aftermarket casters or legs.
Caster Installation – When installing provided casters, match holes on the caster with holes on the oven bottom base and fasten with
the hardware provided. Locking-type casters must be installed in the front.
Ovens with casters must be installed with the locking front casters supplied, a exible connector complying with ANSI Z21.69.CGA6.16
and a quick-disconnect device complying with ANSI Z21.41CGA 6.9. Adequate means must be provided to limit the movement of the
appliance without depending on the connector and the quick-disconnect device or its associated piping to limit the appliance movement.
Leveling – A carpenter’s spirit level should be placed on the oven’s center baking rack, and the unit leveled both front-to-back and side-
to-side. If the unit is not level, cakes, casseroles and any other liquid or semi-liquid batter will not bake evenly, burner combustion may
become erratic, and the unit will not function properly.
If the oor is relatively smooth and level, the unit may be leveled by turning the “foot” section of the leg, since casters are not adjustable.
Identify the high corner and level the unit - using metal shims if the adjustment amount required exceeds the 1-1/4” adjustment amount
available. Casters must be leveled with shims. A unit will probably not return to the same position after being moved, so be sure to
re-level as necessary.
Air Supply and Ventilation – The area in front of, around and above the appliance must be kept clear to avoid any
obstruction of the ow of combustion and ventilation air. Adequate clearance must also be maintained at all times in front
and at the sides of the appliances for proper operation and servicing. Refer to the chart “Clearance from Minimum Combustible and
Non-Combustible Construction” presented on page 5 of this manual.
Figure 2
Majestic
OFF
200500
350
250
300400
450
0
60
LOW
FANLIGHT
OFF
COOK
COOL
OFF
POWER
THERMOSTAT
TIMER
TIMER
THERMOSTAT
POWER
OFF
COOL
COOK
OFF
LIGHTFAN
LOW
60
0
450
400 300
250
350
500 200
OFF
Majestic
MOTOR
JOINER BRACKET
(2 REAR)
LIGHT
FLUE EXTENSION
(2 FRONT, BEHIND
JOINER BRACKET
KICK PLATE)
FRONT VIEW REAR VIEW
FLUE EXTENSION BRACKET
RATING PLATE
INSTALLATION

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
10
Appearance and Aesthetics
0Exterior
0Top section
0Oven interior
Installation
0Read User Manual
0Review Safety Instructions
0Proximity to cabinets
0Backguard in place
0Level
0Ventilation system
Ignition
0Top Burners
0Griddle
0Char Broiler
0Oven Burner
0Infrared Broiler
Controls
0Burner Knobs
0Thermostats
0Char Broiler
0Convection Oven Fan and Switch
0Oven Light Switch
Air/Gas Mixture
0Top Burners
0Griddle
0Char Broiler
0Oven Burner
0Infrared Broiler
Flame Adjustment
0Top Burners
0Griddle
0Char Broiler
0Oven Burner
0Infrared Broiler
Oven Door
0Alignment
0Door Seal
0Hinges
Valve Operation
0Top Burners
0Griddle
0Char Broiler
0Oven Burner
0Infrared Broiler
Customer Copy
Electrical Connection
0Correct voltage
0Grounded outlet
0Polarized outlet
0No GFCI
Gas Connection
0Verify fuel: 0Natural –or– 0LP
0Gas shut-o present and accessible
0Gas Supply line properly sized
0Gas Supply pressure checked
0Operating pressure checked
0All connections checked for leaks
CHECK ALL THAT APPLY
INSTALLATION CHECKLIST
This checklist has been developed to assure proper installation of your appliance.
REGISTRATION CARD
TO VALIDATE YOUR WARRANTY,
YOU MUST MAIL, EMAIL OR REGISTER ONLINE
WITH A COPY OF YOUR RECEIPT TO:
AMERICAN RANGE CUSTOMER SERVICE,
13592 DESMOND STREET, PACOIMA, CA 91331
EMAIL: [e-mail]
Model Number: ____________________________________ *
Serial Number:_____________________________________ *
Gas Type: _________________________________________ *
Electrical Information: _______________________________ *
Purchase Date: _____________________________________
Dealer: ____________________________________________
Installation Date: _________________________________________
Installation Company: _____________________________________
Installation Rep’s Name:____________________________________
Installer’s Address: ________________________________________
Installer’s Phone: _________________________________________
*As specied on appliance Rating Plate – see page 4 for reference.
REGISTER ONLINE AT
https://www.americanrange.com/warranty-registration/

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
11
TO CHECK FOR GAS LEAKS USING A SOAPY WATER SOLUTION
1. Turn ON the manual gas valve at the inlet side of the gas supply line.
2. Remove the kick plate by lifting and pulling away from the unit.
3. Check for gas leaks at the exible coupling or gas connector tting using a solution of one part soap and three parts water.
4. Sparingly spray or brush the soapy solution at the gas ttings; active bubbling indicates location of gas leak.
5. If a gas leak is detected turn o the manual gas valve at the inlet side of the gas line. Call your certied and licensed service
technician.
LIGHTING INSTRUCTIONS FOR GAS FIRED CONVECTION OVENS
1. Before attempting to light this appliance, the cover, if so equipped should be open.
2. Turn OFF the manual gas valve located at the outlet side of the gas supply line.
3. Turn the manual gas supply valve to the OFF position.
4. Set the thermostat to the OFF position.
5. Press the power switch to the OFF position.
6. Wait ve minutes.
7. This appliance is equipped with an automatic spark ignition device which automatically lights the pilot burner.
Do not try to light the burner with a match.
8. Turn the manual gas supply valve to the ON position.
9. Press the power switch to the ON COOK position.
10. Set the thermostat to the desired temperature. The direct spark ignitor will light the burner. If burner does not light, go
back to steps 2 to 9 above and repeat the process. If the problem persists, call your factory personnel.
11. The cover, if so equipped, should be replaced in the closed position.
12. If gas odor is detected, turn o the gas valve and follow lighting instructions beginning from step 1.
TO SHUT DOWN THE GAS FIRED CONVECTION OVEN
1. Set the thermostat to the OFF position.
2. Press the power switch to the OFF position.
3. Turn the manual gas supply valve to the OFF position.
FINAL PREPARATION
On initial installation, turn the oven thermostat to 250°F and operate the unit for about one hour, then reset the thermostat to its
maximum temperature and operate the unit for an additional hour. This will drive o any manufacturing oils remaining in the unit. Let the
unit cool, then thoroughly clean interior surfaces using hot soapy water.
MAINTENANCE SUMMARY
1. Never attempt to run oven with motor o.
2. Cool down after cooking is nished.
3. Periodically lubricate the pivot pins of the oven door hinge. Use a multi-purpose lubricating oil sparingly.
4. Door chain assembly and door bushing must be inspected periodically and adjusted or replaced to ensure satisfactory operation of
doors.
5. Clean the burner air shutter and burner chamber. Remove any accumulation of debris by hand.
6. Check blower wheel for any accumulation of debris. Remove by hand, do not use any tools.
7. Replace burned out light bulbs
8. Excessive use will result in excessive wear and tear.
OPERATING INSTRUCTIONS

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
12
OPERATING INSTRUCTIONS
Never use ammonia in an oven that is warmer than room temperature and always provide direct
fresh air ventilation when cleaning the unit.
!
CAUTION
CLEANING AND MAINTENANCE
Any piece of equipment operates better and lasts longer when properly maintained. Cooking equipment is no exception. Your American
Range convection oven must be kept clean during the working day and thoroughly cleaned at the end of the day.
To increase the lifetime of the motor, follow these instructions:
a. Do not run an empty oven at higher temperatures for an extended period of time.
b. After you nish cooking place the rocker switch in the COOL position and open the door. Air will be hot
use care. When the oven temperature is equal to the room temperature, turn the unit OFF.
Contact the factory, a factory representative or a local service company
to perform maintenance and repairs.
Disconnect the power supply to the appliance before cleaning or servicing.
!
CAUTION
DAILY CLEANING – CONVECTION OVENS
1. Your appliance should be checked for safe and ecient operation at least yearly by a qualied service company.
2. Never spray water at or near equipment at any time as this could damage internal parts of the unit.
3. Stainless Steel Care – All stainless steel appliance parts should be wiped regularly with hot soapy water during
the day, and with a liquid cleaner designed for this material at the end of each day as well.
DO NOT USE steel wool, abrasive cloths, cleaners or powders to clean stainless steel surfaces! If it is necessary to scrape stainless
steel to remove encrusted materials, soak in hot water to loosen the material, then use a wooden or nylon scraper. DO NOT USE a
metal knife, spatula, or any other metal tool to scrape Stainless Steel! Scratches are almost impossible to remove.
4. Remove the baking racks.
5. Be very careful about scratching the porcelain nish on the oven liner panels. Scrape o any food particles with a nylon
griddle scraper.
6. Wash all the above with hot soapy water, then reassemble.
7. Baked-on spills and stubborn stains may be removed with ordinary household ammonia. Scrub with
a nylon pad while oven is at room temperature only.
8. Do not allow any spray-type oven cleaners to come into contact with the temperature probe in the oven.
9. After cleaning the oven, rinse well with a solution of 1/4 cup of vinegar to one quart of clear water to neutralize any
caustic residue remaining from the cleaning agent. Use water sparingly.
PERIODIC MAINTENANCE
1. Check the ventilation system periodically to see that nothing has fallen down into the exhaust vents.
2. Lubricate the pivot pins of the oven door hinge. Use a multi-purpose lubricating oil sparingly.

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
13
Tips On Using The Convection Oven
GENERAL GUIDELINES
The American Range Convection Oven is a high performance commercial cooking appliance. You may need to adjust cook time and
temperature to achieve best results for your product.
TEMPERATURES and COOK TIMES
Preheating The Oven - Always preheat the oven before baking or roasting. to the desired temperature. When “Oven Indicator Light”
is o the unit is at temperature.
Cook Temperatures - Generally should be 25ºF (10ºC) lower than the deck or range oven recipes. If the edges of the product
are done but the center is raw, or if there is color variation, consider reducing the thermostat setting another 15 - 25ºF (10-15ºC).
Continue to reduce the cook temperature on successive loads until the desired results are achieved.
NOTE:Cooking at excessive temperatures will not reduce the cook time, and more likely, will produce unsatisfactory baking and
roasting results.
Cook Time - Check the product in about half the time recommended for deck and range oven recipes. Record cook times and
temperatures that provide the best results for future reference.
NOTE: Cook time will vary with the amount of product loaded, the type of pan and the temperature.
OPERATING TIPS
Pans and Racks - Product or pan height determines how many racks are used. The oven holds up to ten - 18” x 26” (45.7 x 66.0 cm)
pans.
Load the oven from the bottom, centering the pans on the rack. Never place a pan or aluminum foil on the bottom of the oven as
this will obstruct the convection air ow and result in uneven baking and roasting.
Roasting - To reduce shrinkage when roasting, place meat directly on the racks. Place a sheet pan one-half full of water in the bottom
rack position. The water will evaporate, increasing humidity in the oven chamber. The pan catches grease from the meat, making
oven cleaning easier.
Baking - Weigh the product to ensure equal distribution in each pan. Varying amounts of product will cause uneven baking results.
Fan - The fan must be operating for the oven to heat.
Lights - The oven light switch is momentary contact. Press the switch to see what’s cooking – this feature will lengthen the lifetime of
the bulb.
OPERATING INSTRUCTIONS

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
14
OPERATING INSTRUCTIONS

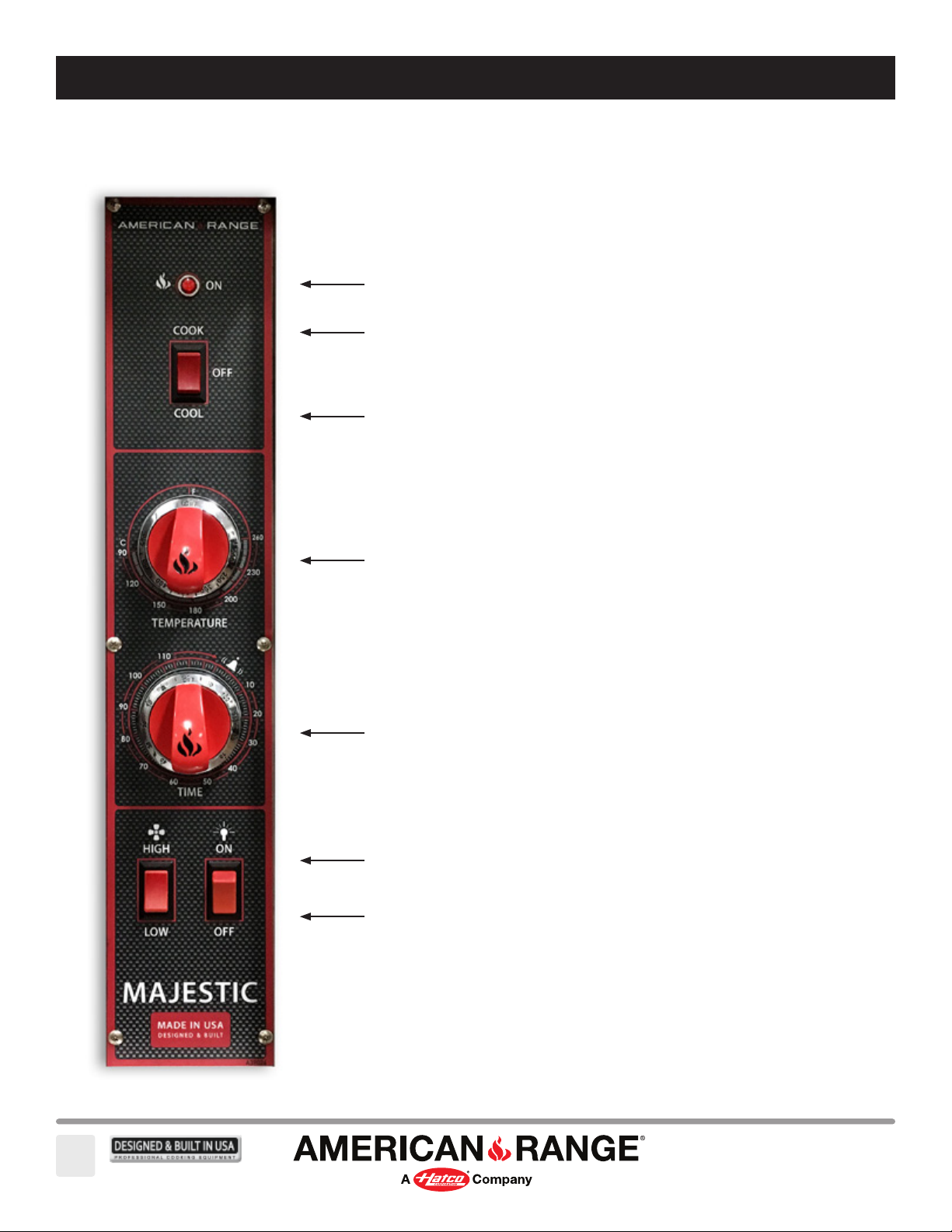

Control Description
1. Oven Indicator Light – This light indicates the heating elements are
energized. When the light goes out, the oven has reached the requested
operating temperature.
2. Selector Switch – This switch controls power to the oven. It turns the
oven on to COOK, OFF or COOL if the door is open to activate the cooling
fan. Press up to COOK, set to middle position to turn OFF, press down to
COOL the unit with door open.
3. Thermostat – This allows the operator to set cooking temperatures from
200ºF to 500ºF. (90ºC to 260ºC)
4. Timer – Turn knob to desired cook time. When cook period ends a buzzer
sounds.
5. Hi Speed, Lo Speed Convection Fan Switch – Use this switch to set
the fan speed for best cooking results.
6. Light switch – This momentary contact switch is used to control the light.
Reliable KXT Thermostat Manual Controls

13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevE 01082024
15
Always disconnect the electrical power service before cleaning
or servicing the range.
TROUBLESHOOTING GUIDE
!
WARNING
POSSIBLE CAUSE SUGGESTED ACTION
SYMPTOM: Oven not heating.
Unit is not connected to gas or electrical service Visually check unit is wired to gas or electrical service
Power switch is on Set the power switch to COOK
Thermostat is set to very low temperature Set temperature to desired value
Doors are open Close the door
SYMPTOM: Oven does not reach selected temperature.
May not have been on long enough Unit preheats to 350ºF in about ten minutes
Thermostat may be defective Unit will require service
Too little gas pressure, dirty gas line Call factory for authorized servicer
SYMPTOM: Convection fan does not operate.
Unit is not connected to electrical service Visually check unit is wired to electrical service
Power switch is o Set the power switch to COOK
Circuit breaker is tripped Reset the breaker, observe operation
SYMPTOM: General baking problems.
Unit set to “standard” bake temperature Set unit to convection bake temperature
Thermostat out of calibration Unit will require service

WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment must be installed by
a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
In the event the equipment requires service during the standard warranty period, the receipt proving
certied installation must be made available to American Range for verication.
If installation was not performed by a certied/licensed contractor, be prepared to submit a major credit
card for payment for proper installation prior to service.
© 2023 American Range All Rights Reserved
13592 Desmond St Pacoima CA 91331
T. 818.897.0808 Toll Free: 888.753.9898
www.AmericanRange.com
A70701 RevF 12042023
16
