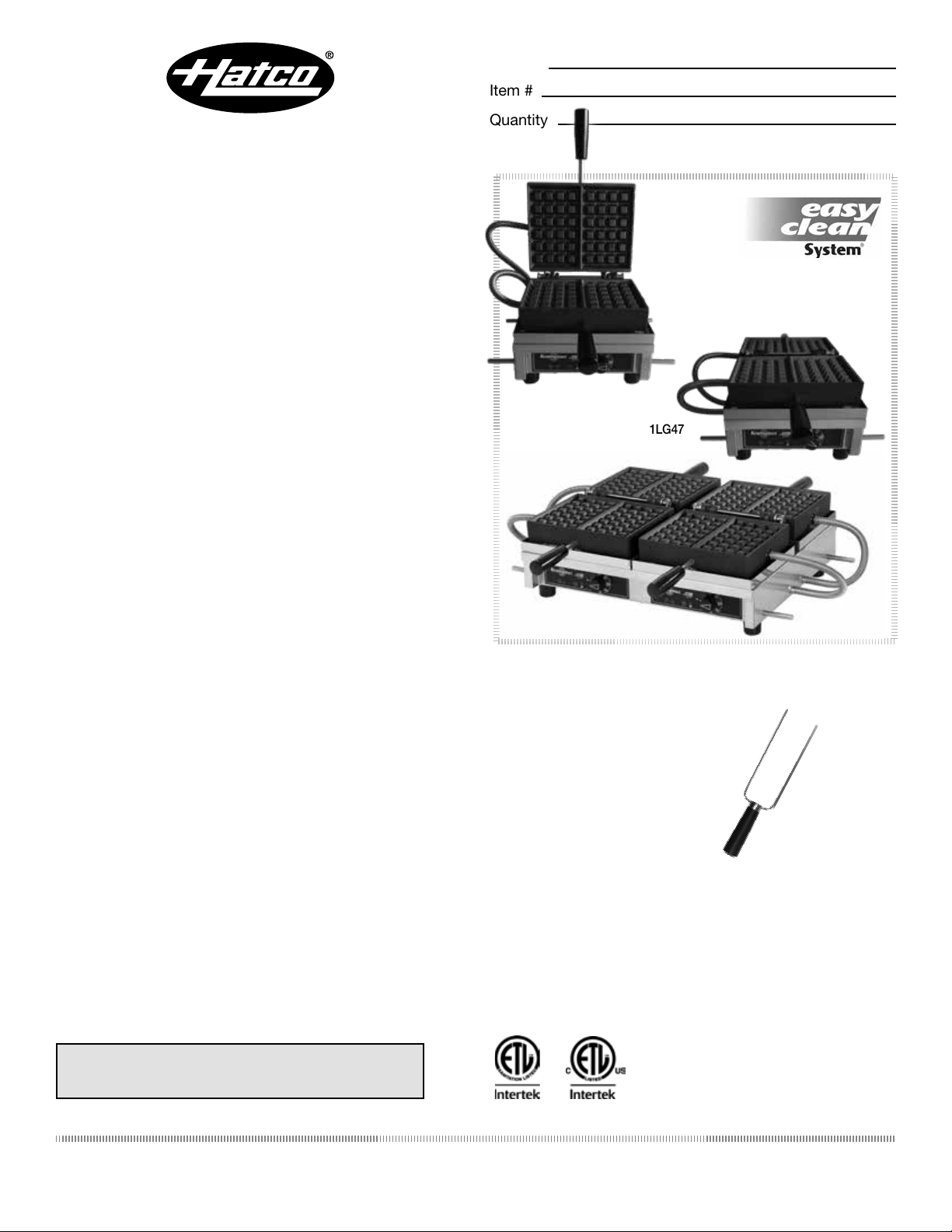

Hatco Krampouz KWM09-1BR46 User manual

Project
Item #
Quantity
HATCO CORPORATION
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone]
l
[phone]
l
www.hatcocorp.com
l
[e-mail]
For operation, location and safety information,
please refer to the Installation & Operating Manual.
Wafe Makers
Models: KWM09-1BR46, 1LG47
KWM18-1BR35, -1LG47,-1BR46, -2LG47
Hatco®/Krampouz Wafe Makers cook continuous,
excellent-quality wafes for commercial kitchens and
display cooking locations. The adjustable temperature
control enables operators to cook consistent quality
wafes from a variety of different batters. Exclusive,
removable top and bottom heating element packs
provide exceptional heat distribution over the entire
wafe plate surface. The Wafe Maker’s Easy Clean
System®provides quick removal and easy cleaning
of the wafe plates.
Standard features
• KWM09 models are designed with 90° hinged wafe plates,
designed for reheating pre-cooked wafes
• KWM18 models are designed with 180° hinged wafe plates,
designed for cooking wafes from batter/dough as well as
reheating pre-cooked wafes
• Stainless steel frame for durability and easy cleaning
• Removable cast iron plates
• Adjustable Temperature Control(s) with a range from
120°F–570°F (50°C–300°C)
• Wafe plates are available for either Brussels (Belgian) or
Liege-style wafes
• Also comes with a power indicator, a heating indicator,
a removable drip tray and a 6' (1829 mm) cord and plug
Form No. KWM Spec Sheet Page 1 of 3 May 2019
KWM09-1BR46
KWM18-1LG47
KWM18-2LG47
Accessories
c
Waffle Pick - Metal Forks with Plastic Handle

HATCO CORPORATION
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone]
l
[phone]
l
www.hatcocorp.com
l
[e-mail]
Wafe Makers
Models: KWM09-1BR46, -1LG47 KWM18-1BR35, -1LG47, -1BR46, -2LG47
Form No. KWM Spec Sheet Page 2 of 3 May 2019
FRONT VIEW SIDE VIEW
9.11"
(232 mm)
14.96" (380 mm) 18.64" (473 mm)
12.40" (315 mm)
KWM09-1 series
FRONT VIEW SIDE VIEW
9.13"
(232 mm)
23.18" (589 mm)
16.61" (422 mm)
15.28" (388 mm) 17.32" (440 mm)
KWM18-1 series
SPECIFICATIONS
Wafe Makers
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM09-1BR46 KWM09.1BR46 515 90°, single, 4" x 6" Brussel 14.96" x 18.64" x 9.11"
(380 x 473 x 232 mm) 120 1440 12.0 NEMA 5-15P 37 lbs. (17 kg)
KWM09-1LG47 KWM09.1LG47 515 90°, single, 4" x 7" Liege 14.96" x 18.64" x 9.11"
(380 x 473 x 232 mm) 120 1440 12.0 NEMA 5-15P 37 lbs. (17 kg)
KWM18-1BR35 KWM18.1BR35 515 180°, single, 3" x 5" Brussel 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm) 120 1440 12.0 NEMA 5-15P 40 lbs. (18 kg)
KWM18-1LG47 KWM18.1LG47 515 180°, single, 4" x 7" Liege 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm)
120 1440 12.0 NEMA 5-15P 40 lbs. (18 kg)
KWM18.1LG47 620 208-240
⌾
1352-1800 6.5-7.5 NEMA 6-20P 40 lbs. (18 kg)
KWM18-1BR46 KWM18.1BR46 620 180°, single, 4" x 6" Brussel 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm) 208-240
⌾
1352-1800 6.5-7.5 NEMA 6-20P 40 lbs. (18 kg)

* Shipping weight includes packaging.
⌾Unit is designed to operate on supply voltages between 208V and 240V.

HATCO CORPORATION
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone]
l
[phone]
l
www.hatcocorp.com
l
[e-mail]
PRODUCT SPECS
Wafe Makers
The Wafe Makers shall be Model ... as manufactured by the Hatco Corporation,
Milwaukee, WI 53234 U.S.A.
The Wafe Maker shall be rated at ... watts, ... volts, and be ... inches (millimeters) in
overall width.
It shall consist of stainless steel frame and cast iron wafe plates. Wafe Makers
feature removable cast iron wafe plates for either Brussels (Belgian) or Liege-style
wafes. The Wafe Makers's Easy Clean System provides quick removal and easy
cleaning of the wafe plates. Also, an adjustable Temperature Control(s), a power
indicator and a removable drip tray. All units are equipped with a factory attached
6' (1829 mm) power cord and plug.
Accessories shall include a wafe pick.
Warranty consists of 24/7 parts and service assistance (US and Canada only).
Form No. KWM Spec Sheet Page 3 of 3 May 2019
CORD LOCATION
Bottom center of unit.
NEMA 6-20P
PLUG CONFIGURATIONS
NEMA 5-15P
SPECIFICATIONS
Wafe Makers
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-2LG47 KWM18.2LG47 620 180°, double, 4" x 7" Liege 26.93" x 23.58" x 9.11"
(684 x 599 x 232 mm) 208-240
⌾
2704-3600 13.0-15.0 NEMA 6-20P 78 lbs. (35 kg)

* Shipping weight includes packaging.
⌾Unit is designed to operate on supply voltages between 208V and 240V.
FRONT VIEW SIDE VIEW
9.11"
(232 mm)
23.58" (599 mm)
26.93" (684 mm)
25.83" (656 mm) 17.32" (440 mm)
KWM18-2
Wafe Makers
Models: KWM09-1BR46, -1LG47 KWM18-1BR35, -1LG47, -1BR46, -2LG47
