Form No. KWM18 Spec Sheet Page 1 of 3 October 2022
180 ° Electric Wafe Makers
Models: KWM18-1BR35, -1BR46, -MBR43515,-1LG47
KWM18-1BU
KWM18-2LG47, -2BR46
KWM18-1RO7
Hatco®/Krampouz®KWM18 180° Wafe Makers produce
excellent-quality wafes for commercial kitchens and
display cooking locations. The adjustable temperature
control enables operators to prepare wafes of consistent
quality from a variety of different batters or doughs.
Exclusive, removable top and bottom heating element
packs provide exceptional heat distribution over the
entire wafe plate surface. The Makers' Wafe Easy
Clean System®provides quick removal and easy cleaning
of the wafe plates.
Standard features
• KWM18 models are designed with 180° hinged wafe plates
for cooking wafes from batter or dough
• Available with Liège or Brussels (rectangle or round) cast iron
wafe plates
• Stainless steel frame, with a cast iron griddle, is designed for
quality and durability
• Innovative Easy Clean System®allows for instant removal of
the wafe plates, providing ease of maintenance and increased
reliability
• Adjustable Thermostatic Control(s) with a range from
120°F – 570°F (50°C – 300°C) allows for precise temperature
control
• Also comes with a power indicator, a heating indicator,
a removable drip tray and a 6' (1829 mm) cord and plug
Accessories
c
Waffle Pick - Metal Forks with Plastic Handle
KWM18-1BR46
KWM18-1BU
KWM18-1RO7
KWM18-MBR43515

HATCO CORPORATION
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
l
[phone]
www.hatcocorp.com
l
[email protected]
l
Find a Hatco Rep
l
Image Library
l
Document Library
l
Patents
l
Chat

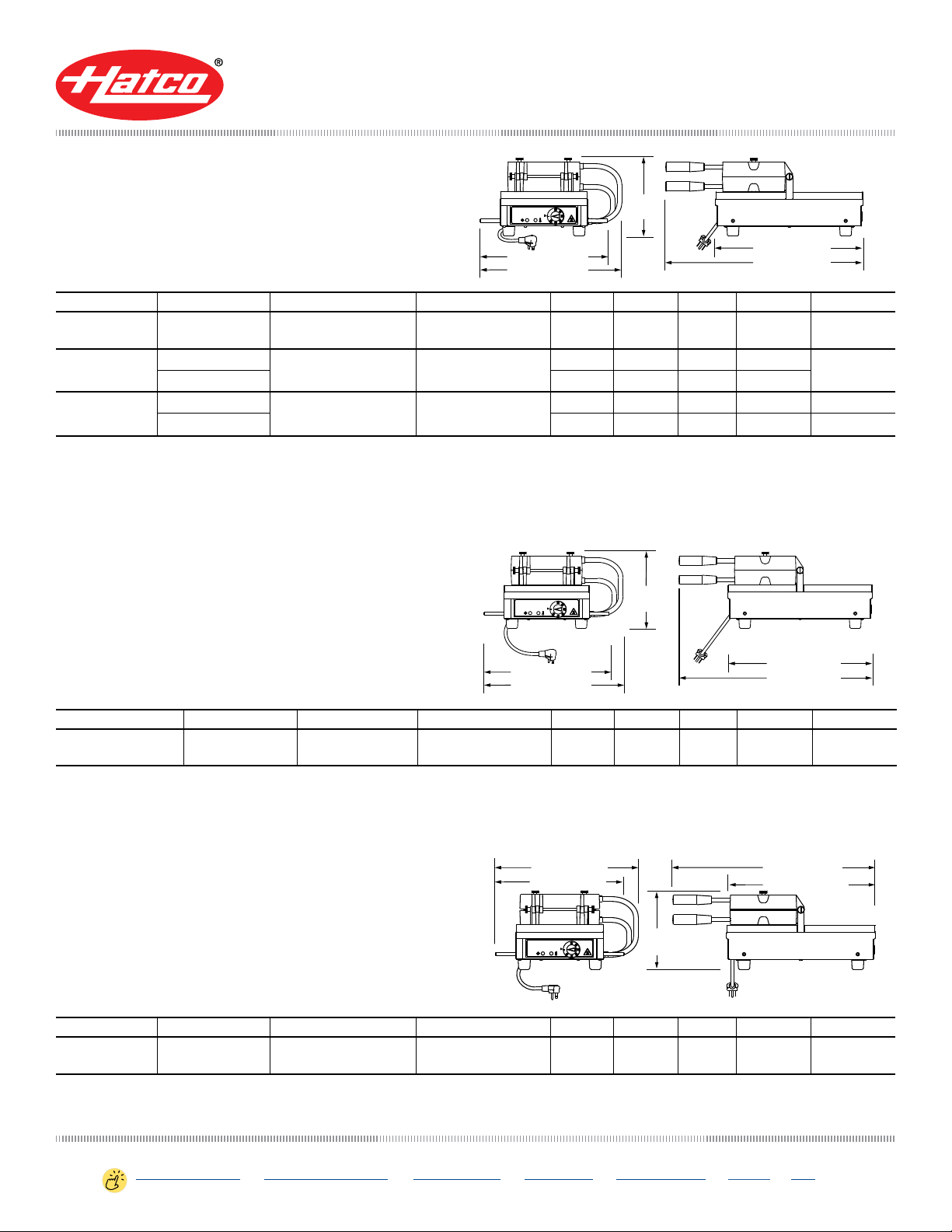

Wafe Makers
Models: KWM18-1BR35, -1BR46, MBR43515, -1LG47 KWM18-1BU
KWM18-2LG47, -2BR46 KWM18-1RO7
CORD LOCATION
Bottom center of unit.
FRONT VIEW SIDE VIEW
9.13"
(232 mm)
23.18" (589 mm)
16.61" (422 mm)
15.28" (388 mm)
17.32" (440 mm)
SPECIFICATIONS
180˚ Hinge, Single Head Wafe Makers
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-1BR35 KWM18.1BR35515 180°, single, 3" x 5" Brussel 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm) 120 1440 12.0 NEMA 5-15P 46 lbs. (21 kg)
KWM18-1BR46 KWM18.1BR46515 180°, single, 4" x 6" Brussel 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm)
120 1440 12.0 NEMA 5-15P 49 lbs. (22 kg)
KWM18.1BR46620 208-240
©
1352-1800 6.5-7.5 NEMA 6-20P
KWM18-1LG47 KWM18.1LG47 515
180°, single, 4" x 7" Liege 16.61" x 23.18" x 9.13"
(422 x 589 x 232 mm)
120 1440 12.0 NEMA 5-15P 45 lbs. (20 kg)
KWM18.1LG47620 208-240
©
1352-1800 6.5-7.5 NEMA 6-20P 45 lbs. (20 kg)
* Shipping weight includes packaging.
©Unit is designed to operate on supply voltages between 208V and 240V.
KWM18-1 series
180º hinge, single head Waffle MaKers
These models have 180º hinged wafe plates
and are designed for cooking wafes from
batter/dough.
Form No. KWM18 Spec Sheet Page 2 of 3 October 2022
CORD LOCATION
Bottom center of unit.
SPECIFICATIONS
180˚ Hinge, Single Head Bubble Wafe Maker
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-1BU KWM18.1BU515 180°, single, Bubble 16.61" x 23.57" x 9.11"
(422 x 599 x 232 mm) 120 1440 12.0 NEMA 5-15P 53 lbs. (24 kg)
* Shipping weight includes packaging.
FRONT VIEW SIDE VIEW
9.11"
(232 mm)
16.61" (422 mm) 23.57" (599 mm)
17.32" (440 mm)
14.96" (380 mm)
KWM18-1 series
180º hinge, single head bubble Waffle MaKer
This model has 180º hinged wafe plates and is
designed for cooking wafes from batter/dough.
FRONT VIEW SIDE VIEW
9.13"
(232 mm)
23.18" (589 mm)
16.61" (422 mm)
14.96" (380 mm)
17.32" (440 mm)
CORD LOCATION
Bottom left side of unit.
KWM18-Mbr43515 180º hinge, single head Mini
brussels Waffle MaKer
These models have 180º hinged mini brussels
plates and are designed for cooking wafes
from batter.
SPECIFICATIONS
180˚ Hinge, Single Head Mini Brussels Wafe Maker
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-MBR43515 KWM18.MBR43515 180°, single, square 23.18" x 16.61" x 9.13"
(589 x 422 x 232 mm) 120 1440 12.0 NEMA 5-15P 53 lbs. (24 kg)
* Shipping weight includes packaging.

HATCO CORPORATION
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
l
[phone]
www.hatcocorp.com
l
[email protected]
l
Find a Hatco Rep
l
Image Library
l
Document Library
l
Patents
l
Chat
Form No. KWM18 Spec Sheet Page 3 of 3 October 2022
Wafe Makers
Models: KWM18-1BR35, -1BR46, MBR43515, -1LG47 KWM18-1BU
KWM18-2LG47, -2BR46 KWM18-1RO7
CORD LOCATION
Facing controls, bottom left side of unit.
SPECIFICATIONS
180˚ Hinge, Single Head Round Wafe Maker
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-1RO7 KWM18.1RO7515 180°, single, Round 16.34" x 26.05" x 9.13"
(415 x 662 x 232 mm) 120 1440 12.0 NEMA 5-15P 57 lbs. (26 kg)
* Shipping weight includes packaging.
FRONT VIEW SIDE VIEW
9.13"
(232 mm)
16.34" (415 mm) 26.05" (662 mm)
19.69" (500 mm)
14.96" (380 mm)
KWM18-1 round series
180º hinge, single head round Waffle MaKer
This model has 180º hinged wafe plates and is
designed for cooking wafes from batter/dough.
SPECIFICATIONS
180˚ Hinge, Dual Head Wafe Makers
Model Item No. Description Dimensions (W x D x H) Voltage Watts Amps Plug Ship Weight*
KWM18-2LG47 KWM18.2LG47620 180°, double, 4" x 7" Liege 26.93" x 23.58" x 9.11"
(684 x 599 x 232 mm) 208-240
©
2704-3600 13.0-15.0 NEMA 6-20P 72 lbs. (33 kg)
KWM18-2BR46 KWM18.2BR46620 180°, double, 4" x 6" Brussels 26.93" x 23.58" x 9.11"
(684 x 599 x 232 mm) 208-240
©
2704-3600 13.0-15.0 NEMA 6-20P 72 lbs. (33 kg)
* Shipping weight includes packaging.
©Unit is designed to operate on supply voltages between 208V and 240V.
FRONT VIEW SIDE VIEW
9.11"
(232 mm)
23.58" (599 mm)
26.93" (684 mm)
25.20" (640 mm) 17.32" (440 mm)
KWM18-2 series
180º hinge, dual head Waffle MaKers
These models have 180º hinged wafe
plates and is designed for cooking wafes
from batter/dough.
CORD LOCATION
Bottom center of unit.
PRODUCT SPECS
Wafe Makers
The Wafe Makers shall be Model ... as distributed by the Hatco Corporation,
Milwaukee, WI 53234 U.S.A.
The Wafe Maker shall be rated at ... watts, ... volts, and be ... inches (millimeters)
in overall width.
It shall consist of stainless steel frame and cast iron wafe plates. Wafe Makers
feature removable cast iron wafe plates for either Brussels (Belgian), Mini Brussels
(Belgian) or Liège-style bubble wafes. The Wafe Makers' Easy Clean System
provides quick removal and easy cleaning of the wafe plates. Also, an adjustable
Temperature Control(s), a power indicator and a removable drip tray. All units are
equipped with a factory attached 6' (1829 mm) power cord and plug.
Accessories shall include a wafe pick.
Warranty consists of 24/7 parts and service assistance (US and Canada only).
NEMA 6-20P
PLUG CONFIGURATIONS
NEMA 5-15P
