Hathaway Ng1137h User manual

NG1137H

Ver. 06176

DRIFTWOOD 7-FT AIR HOCKEY

TABLE SET WITH BENCHES

ASSEMBLY INSTRUCTIONS

Please Do Not Hesitate to

Contact Our Consumer Hotline

at 800-759-0977

with Any Questions That May

Arise During Assembly or

Use of This Product!

THANK YOU!

Thank you for purchasing this product. We work around the clock and around the globe to ensure

that our products maintain the highest possible quality. However, in the rare case of issues during

assembly or use of this product, please contact our Consumer Hotline at 800-759-0977for immediate

assistance before contacting your retailer. Please read the warranty information at the back of these

assembly instructions for further details.

CARE AND USE

1. This product is intended for INDOORuse only.

2. Do NOT drag the table when moving it, as this will damage the legs.

ASSEMBLY TIPS

1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults

work together to assemble this game. You may want to carefully cut or tear the four corners of the box

so that the bottom of the box can be used as your work surface.

2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts

List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.

3. Some figures or drawings may not look exactly like product.

4. When installing parts that have more than one screw orbolt, hand tighten all screws orbolts

in place before final tightening with screwdriver orwrench.

5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use

extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the

electric screwdriver’s torque is set too high.

WARNINGS!

READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.

CHOKE HAZARD - THIS ITEM MAYCONTAIN SMALL BALLS AND PARTS

NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.

IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS

IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

DRIFTWOOD 7-FT AIR HOCKEY TABLE SET - NG1137H

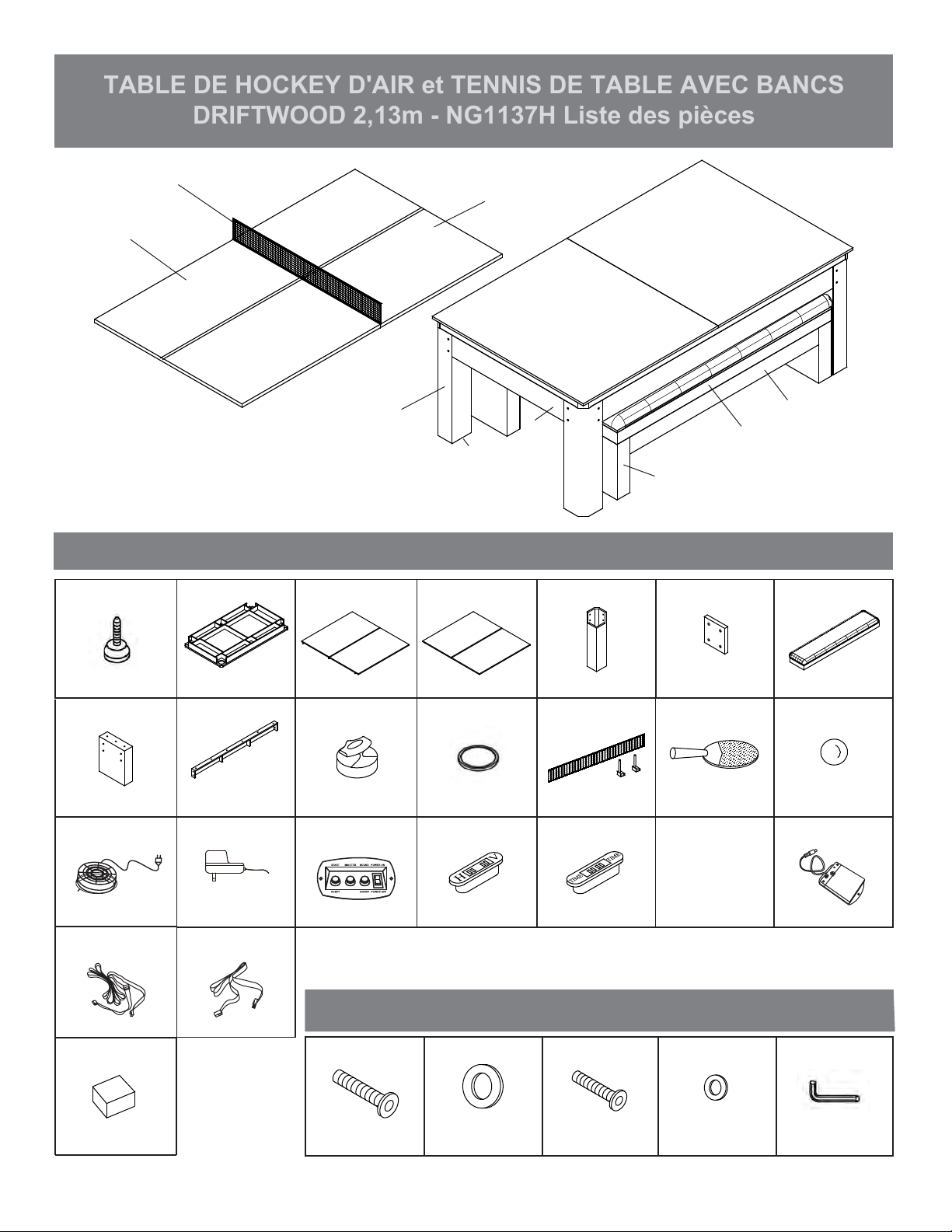

Parts List

#3NGP50785 #8NGP2755 #9NGP6227 #10 NGP6228 #11 NGP6229 #12 NGP5956 #13 NGP6230

#14 NGP6231 #15 NGP6232 #16 NGP5993 #17 NGP5774 #18 NGP51226

NGP5951 #19 NGP5138 #20 NGP5029

313

X4 X4 X4 X4 X2 X2 X2

X4 X1 X1 X1 X4 X8 X2

11,12

PARTS

TABLE TOP A

LEG LEVELER TABLE BODY

CONNECTING

PLATE

LEG BENCH

BENCH

SUPPORTING

PLATE STRIKER TABLE TENNIS

NET & POSTS

TABLE TOP B

PUCK

TABLE TENNIS

RACKET

TABLE TENNIS

BALL

Illustrations Not to Scale

BENCH ENDS

#7NGP2098

Part of Table Body

6/17 3

For replacement parts please call 800-759-0977.

#25 NGP20991

Long Wire

NGP20992

Short Wire

#26 NGP20993

BLOWER MOTOR

#27 NGP20994

Part of Table Body

#28 NGP20995

#22 NGP2089

POWER SWITCH

Part of Table Body

#23 NGP2099

#24 NGP20996

ELECTRONIC

SCORER SCORER

SENSOR WIRES

Part of Table Body

#21 NGP58763

POWER ADAPTER

X1 X1

ELECTRONIC

TIMER

Part of Table Body

SCORER HARNESS

TIMER HARNESS

BATTERY HOLDER

Part of Table Body

#29 NGP5117

EVA

SUPPORT BLOCK

Place Under Table Top

HARDWARE PACK - NGP2090

#1#2#4#5

5/16” BLACK FLAT

WASHER

5/16” x1-1/4” BOLT HEX WRENCH

1/4” x1-1/8” BOLT

1/4” BLACK FLAT

WASHER

X32 X52 X52

X32 X1

All items are packaged

in Carton A except 11,

13 & 15 are packaged

in Carton B

Parts List

#14

#15

#14

#13 #14

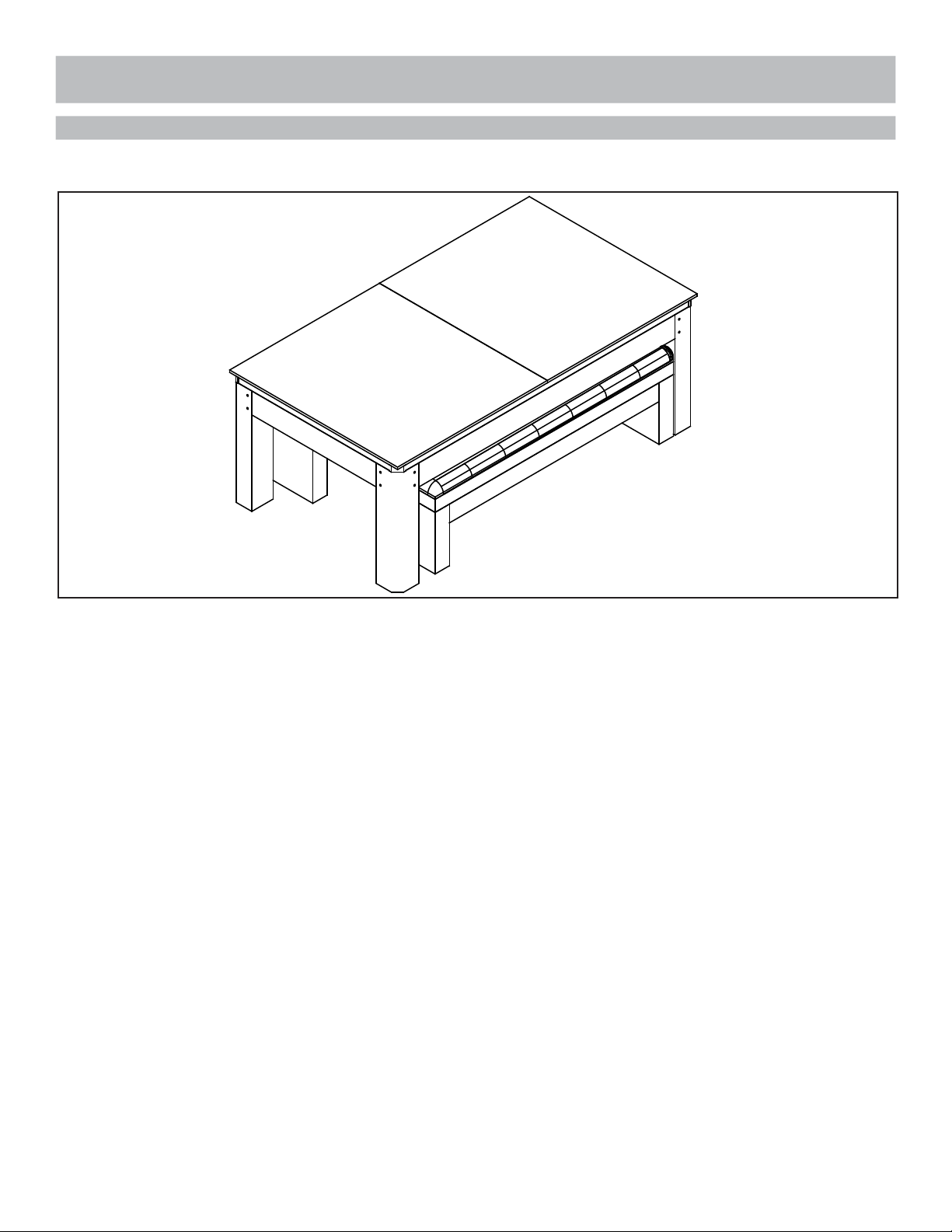

ASSEMBLY INSTRUCTIONS

#11

#12

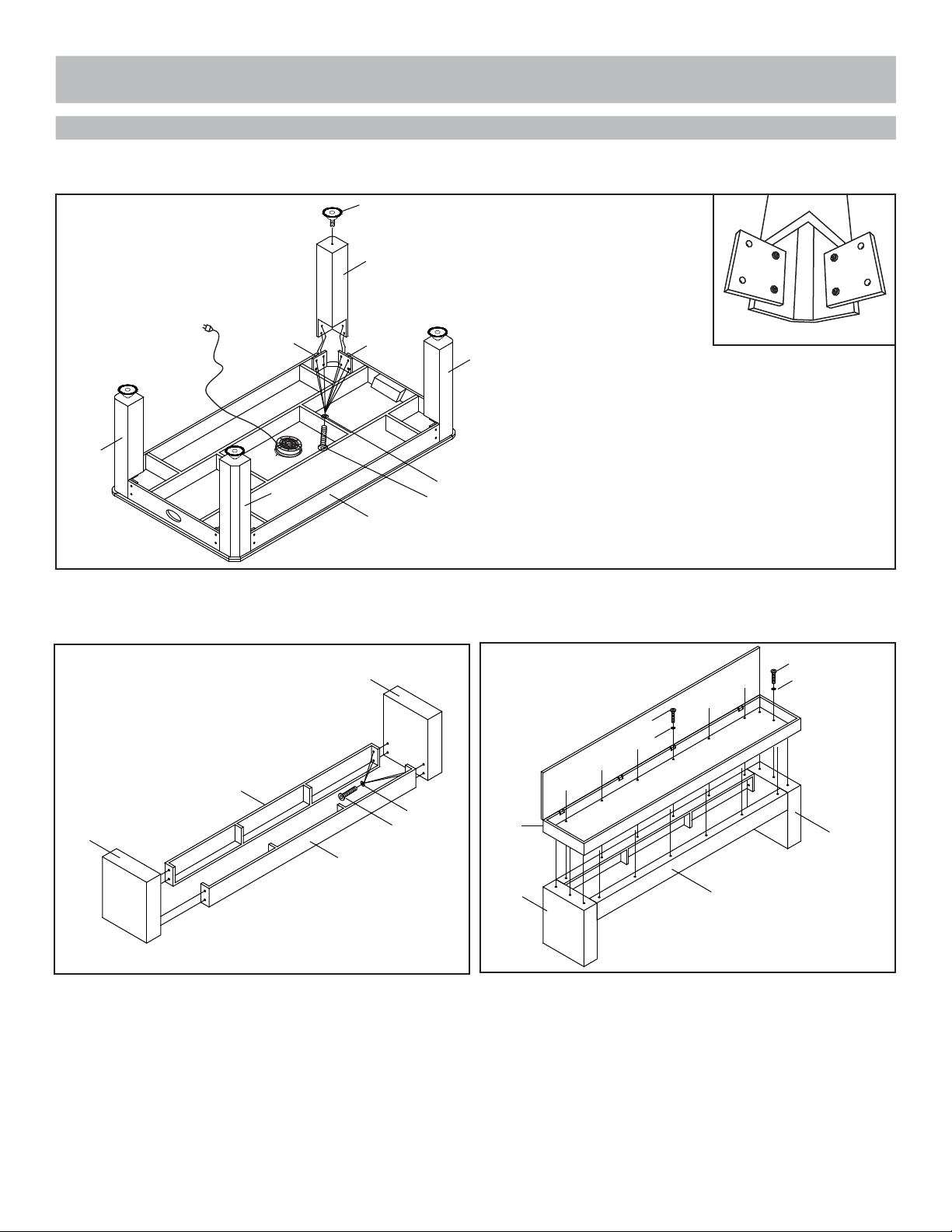

Alternative Leg Attachment (Fig. 1)

Attach the CONNECTING PLATES #12 to the LEGS

#11 with BOLTS #1 & WASHERS #2 through only the

two inside holes of plates as shown. Then slide this

assembly down onto table corner and secure to table

with fourbolts and washers using outer holes.

Figure 1

WARNING: To prevent injury, exercise caution when opening and closing bench lid. Do NOT let bench lid drop shut.

Do NOT let children operate bench lid. Be cautious when moving bench on floor. EVA pads will allow bench to slide

on hard flooring, but may cause tipping oncarpeting. Lift bench ends to move.

ASSEMBLY INSTRUCTIONS (Cont.)

#10

#18

#29

ASSEMBLY INSTRUCTIONS (Cont.)

180-DAY LIMITED WARRANTY

This product is warranted to the original purchaser to be free from defects in material or workmanship

for a period of 180 days from the date of the original retail purchase.

This warranty does not cover defects or damage due to improper installation, alteration, accident or

any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,

abuse or negligence will void this warranty. This warranty does not cover scratching or damage that

may result from normal usage.

This product is not intended for institutional or commercial use; the manufacturer does not assume

any liability for such use. Institutional or commercial use will void this warranty.

This warranty is nontransferable and is expressly limited to the repair or replacement of the defective

product. During the warranty period, the manufacturer shall repair or replace defective parts at no

cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of

the purchaser. Labor charges and related expenses for removal, installation or replacement of the

product or components are not covered under this warranty.

The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable

or obsolete.

The manufacturer shall not be liable for loss of use of the product or other consequential or incidental

costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of

injury resulting from the use of this product.

This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of

. Neither the manufac-

turer nor any of its representatives assumes any other liability in connection with this product.

All warranty claims must be made through the retailer where the product was originally

purchased. A purchase receipt or other proof of date of purchase will be required to process

all warranty claims. The model number and part numbers found within the assembly

instructions will be required when submitting any parts requests or warranty claims.

For further warranty information or inquiries, please call 800-759-0977

NG1137H

TABLE DE HOCKEY D'AIR et TENNIS DE

TABLE AVEC BANCS DRIFTWOOD 2,13m

INSTRUCTIONS D’ASSEMBLAGE

Ver. 06176

Contactez notre

service à la clientèle au

800-759-0977

avec des questions sur le montage

ou l'utilisation de ce produit.

MERCI!

Merci d’avoir acheté notre produit. Nous travaillons 24 heures sur 24, partout dans le monde, à garantir

que nos produits sont de la meilleure qualité possible. Toutefois, dans les rares cas de problèmes lors

du montage ou de l'utilisation de ce produit, se il vous plaît communiquer avec notre service à la clientèle

au 800-759-0977 pour une aide immédiate avant de contacter votre revendeur. Pour obtenir de plus amples

renseignements, veuillez lire l'information relative à la garantie au verso de ce guide d’instructions.

ENTRETIEN ET USAGE

1. Ce produit doit être utilisé À L’INTÉRIEUR seulement.

2. NE JAMAIS déplacer la table en la traînant, cela pourrait endommager les pieds.

INSTRUCTIONS D’ASSEMBLAGE

1. Trouver une surface propre et plane, pour commencer le montage de votre table de jeu. La table

s’assemble à l’envers pour être ensuite retournée sur ses pieds, une fois l’assemblage complété.

Cette table est lourde et nécessite au moins deux adultes forts pour la soulever et la retourner.

2. Retirez le contenu de la boîte, avant de commencer l’assemblage, assurez-vous d’avoir toutes

les pièces telles que listées et illustrées au tableau d’identification. Avis : certaines pièces sont

préassemblées ou préinstallées.

3. Certaines illustrations ou dessins peuvent ne pas ressembler au produit que vous avez acheté.

4. Quand vous fixez en place une pièce avec plus d’une vis ou écrou, veuillez, en premier, les

visser à la main et terminer la fixation avec un tournevis ou une clé.

5. Un tournevis électrique peut être utile lors de l’assemblage, mais veuillez le régler à basse torque

et l’utiliser avec prudence; si la torque est trop élevée, la vis peut se défaire ou être trop serrée.

AVERTISSEMENTS!

LIRE TOUTES LES INSTRUCTIONS D’ASSEMBLAGE ET LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT.

RISQUE D’ÉTOUFFEMENT – CERTAINS ÉLÉMENTS DU PRODUIT CONTIENNENT

DE PETITES PIÈCES - NE CONVIENT PAS À UN ENFANT DE MOINS DE TROIS ANS.

IMPORTANT! VEUILLEZ LIRE, EN ENTIER, TOUTES LES

INSTRUCTIONS AVANT D’ASSEMBLER VOTRE PRODUIT.

#3NGP50785 #8NGP2755 #9NGP6227 #10 NGP6228 #11 NGP6229 #12 NGP5956 #13 NGP6230

#14 NGP6231 #15 NGP6232 #16 NGP5993 #17 NGP5774 #18 NGP51226

NGP5951 #19 NGP5138 #20 NGP5029

313

X4 X4 X4 X4 X2 X2 X2

X4 X1 X1 X1 X4 X8 X2

11,12

#7NGP2098

6/17 3

#25 NGP20991

longue fil

NGP20992

court fil

#26

#27 NGP20994 #28

#22 NGP2089

#23 NGP2099 #24 NGP20996#21 NGP58763

X1 X1

CÂBLAGE BUTEUR

CÂBLAGE MINUTERIE

SUPPORT DE BATTERIE

#29 NGP5117

#1#2#4#5

X32 X52 X52

X32 X1

NGP20993

Tous les articles sont

emballés dans le Carton A,

sauf que 11, 13 et 15 sont

emballés dans Carton B

TABLE DE HOCKEY D'AIR et TENNIS DE TABLE AVEC BANCS

DRIFTWOOD 2,13m - NG1137H Liste des pièces

PIÈCES

SAC DE QUINCAILLERIE – NGP2090

Rondelle plate noire

90 mm

Boulon 3,1 cm x 90 mm clé hexagonale

DESSUS DE TABLE (A)

PIED NIVELEUR STRUCTURE

PRINCIPALE

PLAQUE DE

RACCORDEMENT

PIED BANC

EXTRÉMITÉS DE BANC

PLAQUE DE

SUPPORT

POUR BANC

FILET ET SUPPORTS

DE TENNIS DE TABLE

RAQUETTE DE

TENNIS DE TABLE

BALLE DE

TENNIS DE TABLE

Boulon 2,9 cm x 63 mm Rondelle plate noire

63 mm

DESSUS DE TABLE (B)
