HAUL MASTER HAULMASTER 97214 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [e-mail] 97214
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21f
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools requir e d f o r a ssem b l y a nd ser v i c e may no t b e i n clud e d .
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 97214
Specifications
Capacity Fits most Category 1
Tractors up to 45 HP
Inside Clearance 27-3/16″
Max. Weight Capacity 2000 lb*
*Depends on tractor’s hitch capacity
IMPORTANT SAFETY INFORMATION
General Warnings
1. Work Area Safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2. Personal Safety
a. Stay alert, watch what you are doing and
use common sense when using tool. Do
not use tool while you are tired or under the
influence of drugs, alcohol or medication.
A moment of inattention while operating tool
may result in serious personal injury.
b. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
d. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
e. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
f. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI-approved and breathing protection
must be NIOSH-approved for the
specific hazards in the work area.
g. Use as intended only.
h. Inspect before every use; do not use
if parts are loose or damaged.
i. Do not exceed listed weight capacity.
Be aware of dynamic loading!
Sudden load movement may briefly create
excess load causing product failure.
j. This product is not a toy.
Keep it out of reach of children.
k. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
3. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
b. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
4. Specific Safety Warnings
a. For off-road use only.
b. Hitch connections need to be capable
of supporting the weight of the Hitch
and attached implement, plus load.

Page 3For technical questions, please call 1-888-866-5797.Item 97214
Setup - Before Use:

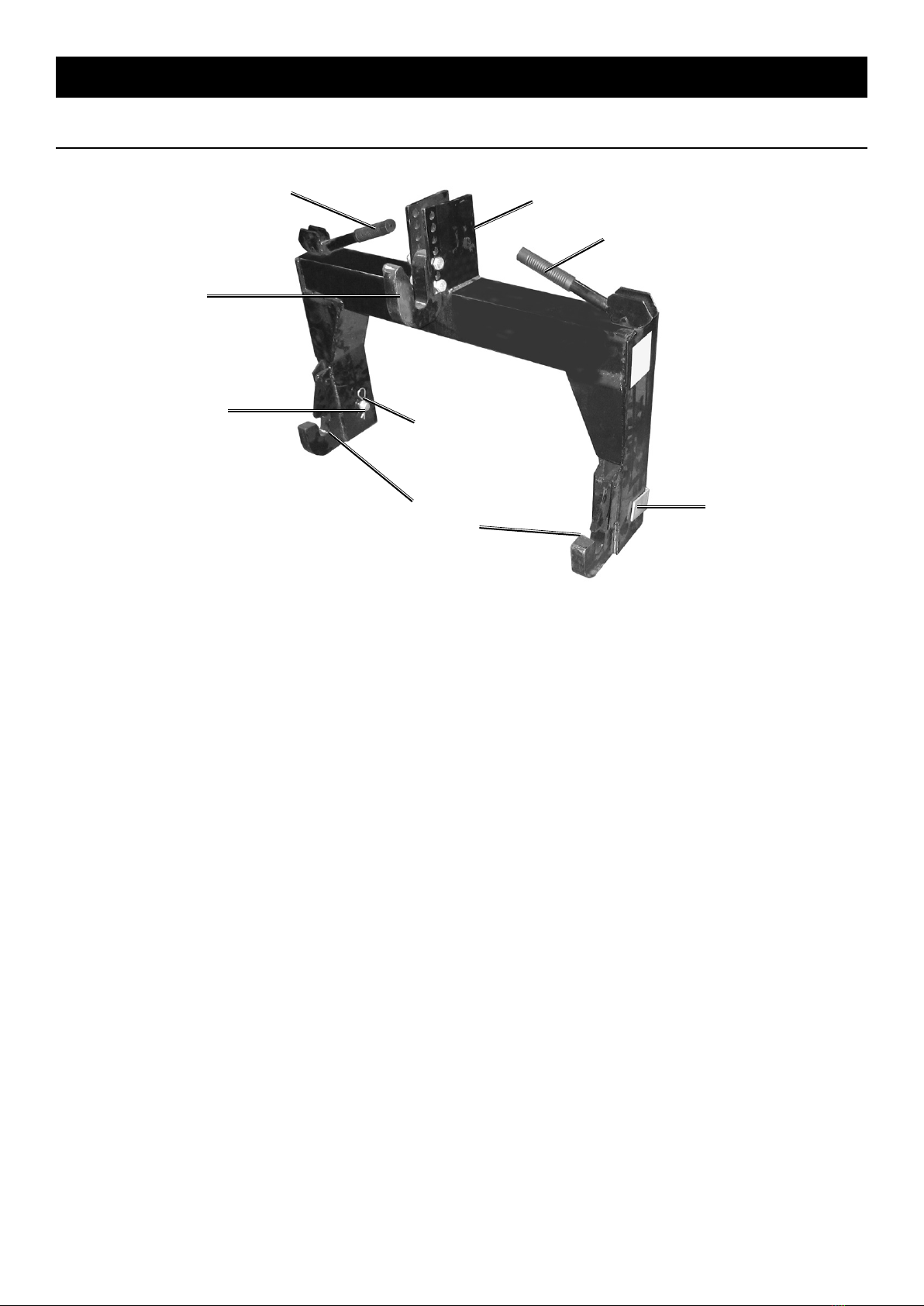

Components
Latch Handle
Latch Handle
Top Hook
Top Bracket
Lower
Hooks
Bracket with
Clevis Pin
Bracket with
Clevis Pin (3) R-Pin

Page 4 For technical questions, please call 1-888-866-5797. Item 97214
Assembly
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. Fasten the Quick Hitch to the tractor’s lift
arms using a Bracket with Clevis Pin on each
end. Secure with R-Pins. See Figure A.
Top
Hook
Implement
Tractor’s
Lift Arms
Tractor’s
Top Link
Lower
Hooks
Bracket with
Clevis Pin
Top
Bracket
Figure A
2. Fasten the tractor’s top link to the Top
Bracket with the Top Link Pin (8).
3. Adjust the height of the Top Hook and connect it
to the implement with a link pin (not included).
4. Insert the implement’s lower mounts inside the Lower
Hooks, and lock by pressing down the latch handles.
5. Check that all connections are tight
before starting the work task.
6. If the tractor has stabilizer arms, they will not fit
into the Quick Hitch mounting area along with
the lift arms. Use stabilizer chains, or some
other longer mounting pin (neither included)
to fasten the Quick Hitch to the tractor.
Mounting Non-ASAE Implements
Note: If the implement does not meet
ASAE specifications, use Hitch Adapter
(29309, sold separately).
1. Remove the Top Hook by taking out
the two Hex Bolts (2), Lock Washers
(6), and Nut (7). Save hardware.
2. Slide the Hitch Adapter over the Top
Bracket and secure with Top Link Pin.
3. For most implements, the front hole
(closest to implement) is recommended
for the best vertical alignment.
4. Attach the implement to the Hitch Adapter
with a Link Pin (sold separately).
5. Check that all connections are
tight before starting a task.
Top Link
Pin
Implement
Quick Hitch
Tractor Top Link
(sold separately)
Hitch Adapter
(sold separaetly)
Link Pin
(sold separately)
Top Bracket

Page 5For technical questions, please call 1-888-866-5797.Item 97214
Maintenance and Servicing Instructions
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Lubricate the Quick Hitch periodically for best results.

Page 6 For technical questions, please call 1-888-866-5797. Item 97214
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175450111 when ordering parts.

Page 7For technical questions, please call 1-888-866-5797.Item 97214

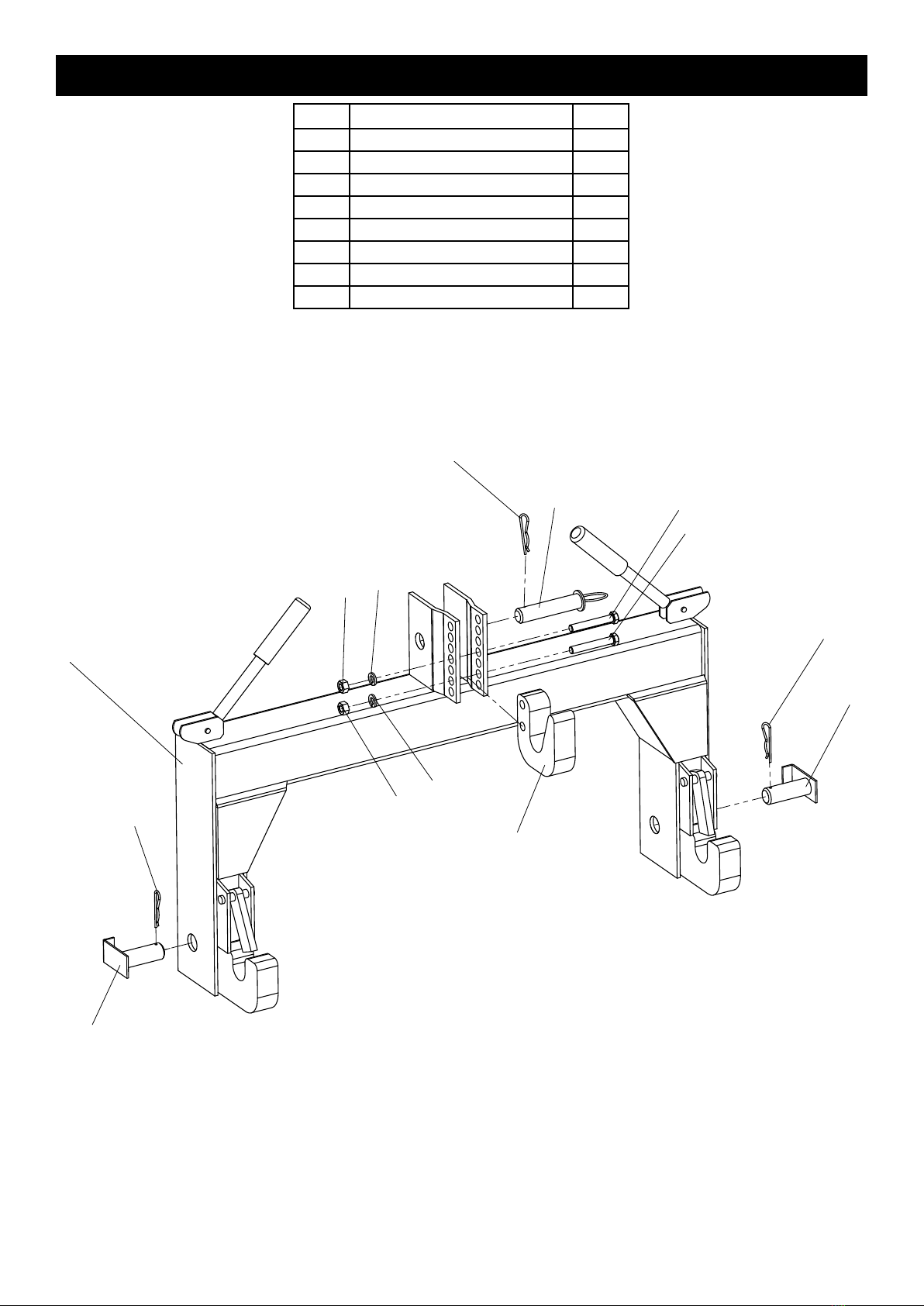

Parts List and Diagram
Part Description Qty
1 Main Frame 1
2 Hex Bolt, M12x65 2
3 Bracket with Clevis Pin 2
4 R-Pin 3
5 Hook 1
6 Nut (M12) 2
7 Lock Washer (M12) 2
8 Top Link Pin 1
45
1
3
2
8
6
3
7
4
2
7
6
4

26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
