Haussmann SLM40C User manual

Manual reel mower
Operator’s Manual (p.2)
Tondeuse manuelle à rouleau
Manuel d’utilisation (p.17)
MODEL/MODÈLE: SLM40C
59595081
CUSTOMER SERVICE / SERVICE À LA CLIENTÈLE: 1-866-206-0888
Our Customer service staff is available to help you. For help with product assembly, to report damaged or missing parts, or for any other
information, please call our toll-free number: 1-866-206-0888.
Register your product
We invite you to register your product online to make future communications easier. To do so, simply visit our website
www.haussmanntools.com.
SAVE THIS MANUAL
You will need this manual for safety instructions, operating procedures, and warranty. Put it and the original sales invoice in a safe, dry place
for future reference.
Notre personnel du service à la clientèle est disponible pour vous aider. Pour obtenir de l’aide pour le montage de votre produit, pour signaler
des pièces endommagées ou manquantes, ou pour toute autre information, veuillez composer notre numéro sans frais: 1-866-206-0888.
Enregistrez votre produit
www.outilshaussmann.com
CONSERVEZ CE GUIDE
Vous aurez besoin de ce guide pour les règles de sécurité, le fonctionnement et la garantie. Conservez-le avec votre facture d'origine dans
un endroit sûr au sec pour référence future.

1
1
2
3
4
5
6
7
8
9

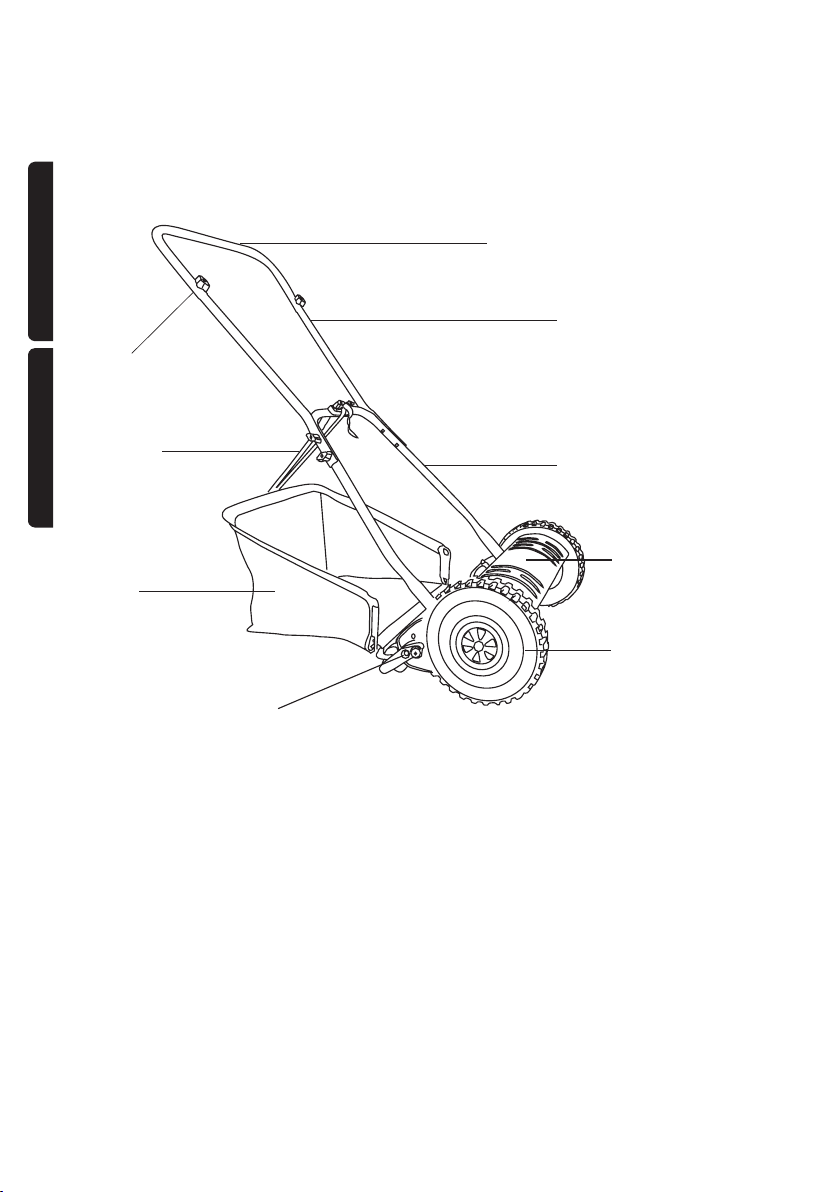

Parts list
1. Upper handle
2. Mid handle
3. Lower handle
4. Housing
5. Wheel
6. Mowing spindle
7. Grass catcher
8. Holding belt
9. Knob & bolt
(Fig. 1 ).
Nomenclature des pièces
1. Barre supérieure
2. Barre intermédiaire
3. Barre ajustable
4. Boîtier
5. Roue
6. Axe de tondeuse
7. Bac de ramassage de l’herbe
8. Ceinture de maintien
9. Bouton et verrou
ENGLISH FRANÇAIS

2
Safety symbols…………………………………………………
Safety instructions ……………………………………………
Application ……………………………………………………
Technical data …………………………………………………
Assembly………………………………………………………
Operation ………………………………………………………
Maintenance …………………………………………………
Warranty………………………………………………………
Parts List………………………………………………………

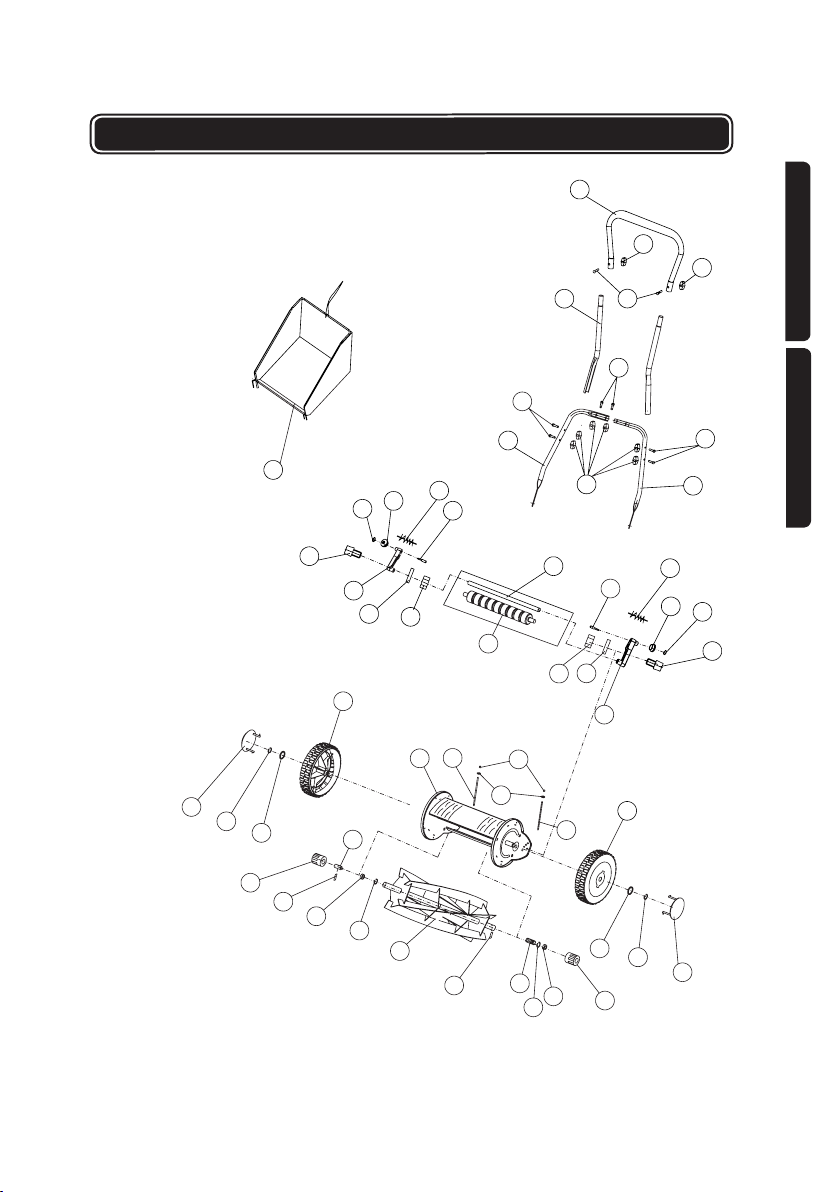

Schematic Drawing……………………………………………
TABLE OF CONTENTS

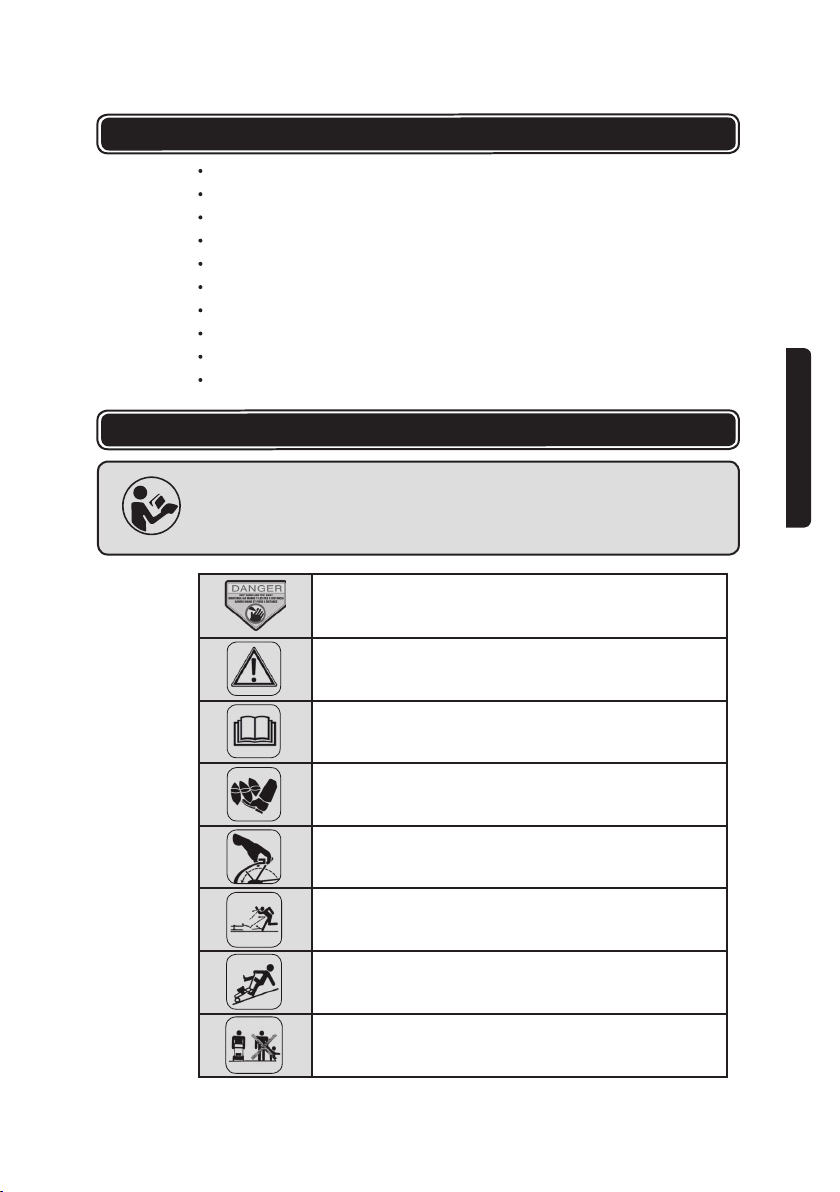

SAFETY SYMBOLS
Please read all of the safety and operating instructions carefully before
using this tool. Please pay particular attention to all sections of this User
Guide that carry warning symbols and notices. Some of the following
symbols may be used on this tool.
Keep hands and feet away
Read the operator’s manual
Risk of cut,keep hands and feet away from tines
and cutting area
Severing of toes or ngers-rotary mower blade
Risk of slipping on slope
Keep bystanders/children away
Thrown objects and rotating line can cause
severe injury
Safety alert
ENGLISH
P2
P3
P5
P7
P7
P10
P12
P14
P15
P16

3
SAFETY INSTRUCTIONS
General Operation
Read this operator's manual carefully in its entirety before attempting to
assemble this machine.Read,understand,and follow all instructions on the
machine and in the manual before operation.Keep this manual in a safe
place for future and regular reference and for ordering replacement parts.
Be completely familiar with the proper use of this machine before operating it.
This machine is a precision piece of gardening equipment,not a toy.
Therefore,exercise extreme caution at all times.This machine has been
designed to mow grass only.Do not use it for any other purpose.
Never allow children under 10 years of age to operate this machine.
Children 10 and over should read and understand the instructions and
safe operation practices in the manual and on the machine and should be
trained and supervised by an adult.
Only responsible individuals who are familiar with these rules of safe
operation should be allowed to use this machine.
Thoroughly inspect the area where the equipment is to be used.Remove
all stones,sticks,wire,bones,toys and other foreign objects.
To help avoid blade contact,stay in operator zone behind handles and
keep children,bystanders,helpers and pets away from mower while it is in
operation.Stop machine if anyone enters area.
Wear sturdy,rough-soled work shoes and close-fitting slacks and shirts.
Shirts and pants that cover the arms and legs and steel-toed shoes are
recommended.Never operate this machine in bare feet,sandals,slippery or
light-weight (e.g. canvas) shoes.
Do not put hands or feet near rotating blades.Contact with blades can
amputate ngers and toes.
Many injuries occur as a result of the mower being pulled over the feet
during a fall caused by slipping or tripping.Do not hold on mower if you are
falling;release the handle immediately.
Be careful when pulling the machine backward.Look down and behind to
avoid tripping.Be sure you are well balanced with sure footing.
Do not operate the mower while under the inuence of alcohol or drugs.
Never operate the mower in wet grass.Always be sure your footing.A slip
and fall can cause serious personal injury.
Mow only in daylight or good articial light.Walk,never run.
The cutting blade may continue to rotate for a few seconds after the
mower has stopped moving.Never place any part of body in the blade area
until you are sure has stopped rotating.
Use safe lifting practices when moving mower.
Only use parts and accessories made for this machine by the
manufacturer.
If situations occur which which are not covered in this manual,use care
and good judgement.Contact customer support if you have any questions
or problems, by calling the number given on the front page of this manual.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
ENGLISH

4
SAFETY INSTRUCTIONS
Slope Operation
Children
Slopes are a major factor related to slip and fall accidents,which can
result in severe injury.Operation on slopes requires extra caution.If
you feel uneasy on a slope,do not mow it.If the slope is greater that 15
degrees,do not mow it.
Tragic accidents can occur if the operator is not alert to the presence of
small children.Children are often attracted to the mower and the mowing
activity.Children younger than 10 years-old do not understand the
dangers.Never assume that children will remain where last saw them.
Keep children younger than 10 years-old out of the mowing area and
under watchful care of a responsible adult other than the operator.
Be alert and stop mowing if a child or others enter the area.
Use extreme care when approaching blind corners,doorways,shrubs,tre
es,or other objects that may obscure your vision of a child who may run
into the mower.
Never allow children under 10 years of age to operate this machine.
Children 10 and over should read and understand the instructions and
safe operation practices in this manual and on the machine and be
trained and supervised an adult.
Mow across the face of slopes,never up and down.Exercise caution
when changing direction on slopes.
Watch for holes,ruts,rocks,hidden objects,or bumps which can cause
you to slip or trip.Tall grass can hide obstacles.
Always be sure of your footing.A slip and fall can cause serious
personal injury.
Do not mow near drop-offs,ditches or embankments,you could lose
your footing or balance.
Do not mow slopes greater than 15 degrees.
Do not mow on wet grass.Unstable footing could cause slipping.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
ENGLISH

5
APPLICATION
Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or
serious injury.
The HAUSSMANN manual reel mower is intended for cutting grass.
Carefully remove the power tool from its packaging and check that the
following parts are present:
-- Mower body
-- Upper handle(Fig.2)
-- 2 pcs Mid handle and 2 pcs lower handle (Fig.3)
-- 8 pcs knobs and 8 pcs bolts (Fig.4)
If any parts are missing or damaged, please contact Customer Service at
1-866-206-0888.
Intended Use
Check Package Contents
ENGLISH

6
The numbering of the product parts refers to the illustration of the
power tool on page 1 (Fig. 1 ).
1. Upper handle
2. Mid handle
3. Lower handle
4. Housing
5. Wheel
6. Mowing spindle
7. Grass catcher
8. Holding belt
9. Knob & bolt
Product Features
(Fig. 4 ).
(Fig. 2 ). (Fig. 3 ).
ENGLISH

7
TECHNICAL DATA
ASSEMBLY
Product code 59595081
Model number SLM40C
Cutting width 16″(406 mm)
Cutting height 0.8″-1.8″(20 mm-46 mm)
Cutting height adjustment 4 positions
Propel type push
Wheel size 8.5″ (21.5 cm)
Grass Collection volume 15 L
Weight 16.5 lbs (7.8 kg)
Unpacking
Assembling Handle
Carefully remove the machine and accessory from the box. Make sure
that all items listed on previous page are included. Inspect the machine
carefully to make sure no breakage or damage occurred during shipping.
Keep the packing materials until you have carefully inspected and
satisfactorily operated the machine.
NOTE: Do not completely tighten knobs until assembly is completed.

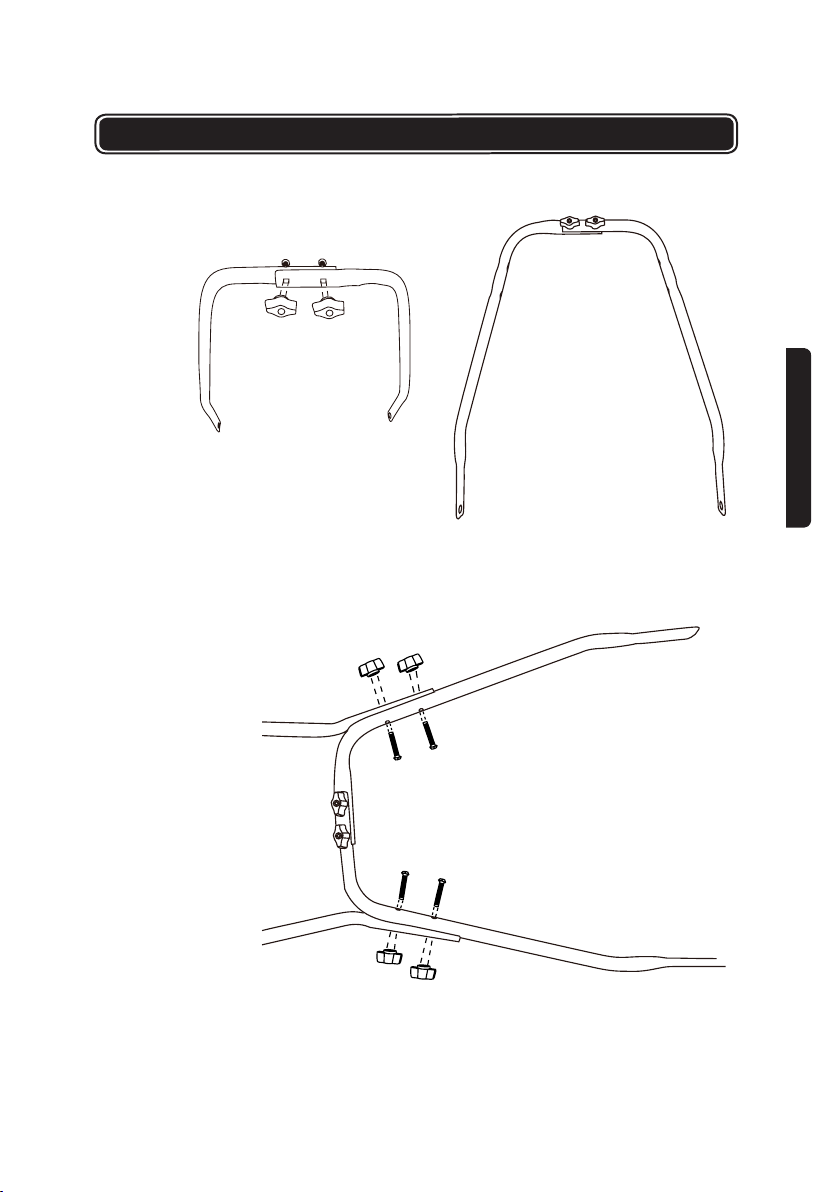

1. Lay handles at on ground.
2. Insert the two mid handles into the upper handle and secure with two
carriage knobs and bolts provided, but not tighten.(Fig.5).
(Fig.5)
ENGLISH

8
Connect and secure two lower handles with carriage knobs and bolts as
shown(Fig.6).
Secure the handle assembled in step 2 to the lower handle assembled
in step 3 with four carriage knobs and four carriage bolts (Fig.7).
Tighten all the knobs on the joints of the handle assembly.
(Fig.6)
(Fig.7)
4.
5.
3.
ASSEMBLY
ENGLISH

9
Position the complete handle assembly over the studs on the mower
frame (Fig.8).
Clip the bag onto the frame.
Place the completed rear bag and hook onto the roller bar end shaft.
Place locking strap from the rear bag to the center bars of the middle
handle, adjust strap for proper height so the bag does not rub the
ground while mowing or transporting.
6.
1.
2.
3.
(Fig.8)
Attaching Grass Catcher(Fig.9)
Clip onto frame
(Fig.9)
ASSEMBLY
ENGLISH

10
The cutting height of the 16" (40.6 cm) reel mower can be adjusted
from 0.8"-1.8" (2.0 cm-4.6 cm) with 4 positions for adjustment
height, using the roller assembly.

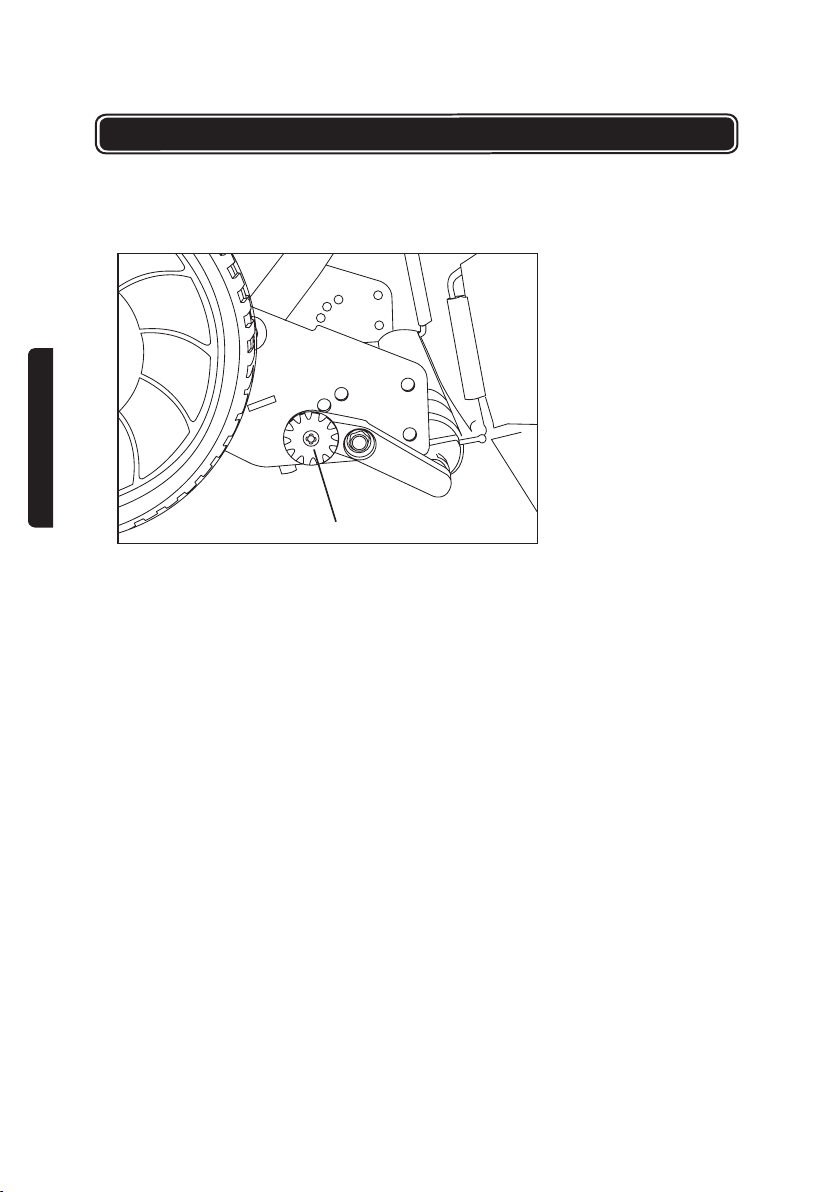

For the highest cutting position, place the adjustment knobs
through the top hole located on the side frame. (Position A) (Fig.10)
For the lowest cutting position, place the adjustment knobs through
the bottom hole located on the side frame. (Position B) (Fig.10)
OPERATION
WARNING!The operation of any lawn mower can result in foreign objects
being thrown into the eyes,which can cause severe eye injury.Always
wear safety glasses while operating the mower,or while performing any
adjustments or repairs on it.
WARNING!If you strike a foreign object,stop the mower immediately and
inspect it thoroughly for any damage.Repair any damage before operating
mower again.
Cutting Height Adjustment
1.
2.
3.
(Fig.10)
Highest cutting position
Position A
Position B
Lowest
cutting
position
ENGLISH

11
Position B
Other cutting heights are achieved by moving the adjustment
knobs to any stop between the highest and lowest positons.
To adjust cutting height, pull knob out and rotate to desired setting.
Be sure lawn is clear of stones, sticks,wire,or other objects which
could damage lawn mower or engine.
Mow the mower when the grass is relatively dry.Attempting to mow
wet grass can result in an uneven cut.
Maintain a consistent walking pace while pushing the mower in
straight passes.
Slightly overlap each pass to even the cut and avoid leaving uncut
strips.
Mow the lawn regularly,at least once a week during the growing
season.Mow more frequently than you would with a conventional
rotary lawn mower.
Always mow with the blade height adjusted to cut no more than
1/3 the total height of grass.
If the height of your lawn's grass exceeds four inches,adjust
the blade height to its highest position before mowing.After
mowing,readjust the blade to your preferred cutting height and
mow the lawn a second time within the next one or two days.
Please observe the following when operating your reel mower.
Height adjustment knob
4.
5.
1.
2.
3.
4.
5.
6.
7.
Using Your Lawn Mower
(Fig.11)
OPERATION
ENGLISH

12
Attach grass catcher following instructions in the Assembly section.
Grass clippings will automatically collect in catcher as you operate
the mower.The faster you push the mower,the more effectively it will
collect clippings.Operate the mower until grass catcher is full.
Remove the grass catcher's strap from the lower handle's crossbar
and lift the grass catcher up and away from the mower to remove
the bag.Dispose of the grass clippings and reinstall the bag when
complete.
Minimum care is required to ensure smooth operation of your mower.
To avoid damage to mower or cutting blades, keep area to be mowed
free from debris.
For best results, regularly apply lubricant to mower’s cutting
surfaces, cutting reel axle shaft and wheels.
Spread a thin layer of lapping compound on the front edge of the reel
blades.
Adjust the cutter bar so that the blade has light but firm contact
across the full width of the cutter bar.
CAUTION: Do not overtighten adjusting screws, as this could
damage the cutter bar. Tighten both screws during nal adjustment.
Turn the reel blades until the front edge of the cutter bar blade is
polished.
NOTE: Use industrial or valve lapping compound between 100 and
240 grit. Lubricate the axle and pinion with a light film of wheel
bearing grease.
You can use the grass catcher to collect clippings while you are
operating the mower.
1.
2.
1.
2.
3.
1.
2.
3.
Using Grass Catcher
Sharpening the Cutting Blades
MAINTENANCE
WARNING!Clean any grinding compound or debris from the cutter bar
blade, reel blade, pinions and pawls.
OPERATION
ENGLISH

13
Cleaning and Storage
Maintenance Tips
Clean the exterior of the machine thoroughly using a soft brush and
cloth before storing. Do not use water, solvents or polishes.
Turn the mower on its side to clean the blade area.
Store the mower in a dry place. Do not place other objects on top of
the mower during storage.
1.
2.
1.
2.
3.
WARNING!Do not place hands in the mower near blades. If grass
cuttings are compacted in the blade area, remove using a wood or
plastic cleaning tool appropriate for the cleaning of the blades.
Reel mowers are relatively low maintenance. For consistent cutting
follow the below instructions:
Always keep the cutting bar properly adjusted. Refer to the
instruction manual for further directions.
Regularly clean and lube cutting edges with light spray oil.
Note: Reel mowers have a difficult time with tall weeds such as
dandelions which most times will cause the weeds to bend and not cut
– cut your lawn often to prevent this.
MAINTENANCE
ENGLISH

14
Thank you for investing in a HAUSSMANN power tool. These products
have been made to demanding, high-quality standards and are
guaranteed for domestic use against manufacturing faults for a period
of 36 months from the date of purchase.
This guarantee does not affect your statutory rights. In case of any
malfunction of your tool (failure, missing part, etc.), please contact one
of our service technician at our toll free service line at 1-866-206-0888
from 8 AM to 6 PM, Monday to Friday, Eastern time. RONA reserves
the right to repair or replace the defective tool, at its discretion.
The product is guaranteed for 36 months if used for normal trade
purposes. Any guarantee is invalid if the product has been overloaded
or subject to neglect, improper use or an attempted repair other than by
an authorized agent. Heavy-duty, daily professional or hire usage are
not guaranteed. Due to continuous product improvement, we reserve
the right to change the product specications without prior notice.
We invite you to register your product online to make future
communications easier. To do so, simply visit our website
www.haussmanntools.com.
WARRANTY
Register your product
ENGLISH

15
Please refer to the schematic drawing on the next page.
PARTS LIST
ENGLISH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NO. DESCRIPTION
15
NO. DESCRIPTION
16
Housing assembly Roller
Blade assembly Nut M8
Clip Washer
Bearing Roller bracket
Spring Bolt
Pin Clip
Shaft Height adjustment knob
Gear Height adjustment spring
Wheel Height adjustment shaft
Washer Upper handle
Clip Mid handle
Wheel cover Lower handle
Adjusting pole Bolt M6x35
Washer Knob
Nut M6 Grass catcher
Roller shaft
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

16
SCHEMATIC DRAWING/SCHÉMA
10
8
6
6
8
5
3
4
4
3
2
12
11
25
11
12
20
19
18
17
15
14
13
13
10
9
7
1
31
30
28
25
24
23
22
21
20
19 18
16
21
9
29
28
24
23 22
29
26
29
27
30
30
29
ENGLISH
FRANÇAIS

17
Veuillez consulter le schéma à la page précédente.
LISTE DES PIÈCES
FRANÇAIS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NO. DESCRIPTION
15
NO. DESCRIPTION
16
Boîtier assemblé Rouleau
Lame assemblée Écrou M8
Pince Nettoyeur
Support Support de rouleau
Ressort Boulon
Goupille Pince
Axe Bouton de réglage
Vitesse Ressort de réglage
Roue Tige de réglage
Rondelle Poignée supérieure
Pince Poignée intermédiaire
Couvre-roue Poignée inférieure
Tige de réglage Verrou M6x35
Rondelle Bouton
Écrou M6 Bac de ramassage
Axe du rouleau
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

18
Schéma...............................................................................
Liste des pièces...................................................................
Symboles de sécurité..........................................................
Directives de sécurité..........................................................
Application...........................................................................
Caractéristiques techniques................................................
Assemblage.........................................................................
Fonctionnement...................................................................
Entretien..............................................................................
Garantie...............................................................................
TABLE DES MATIÈRES
SYMBOLES DE SÉCURITÉ
Merci de bien vouloir lire avec soin tous les symboles et instructions avant
l’utilisation de cet outil. Apportez une attention particulière aux sections de
ce Guide d’Utilisation qui comprennent des symboles et des remarques.
Certains des symboles suivants peuvent être utilisés sur votre outil.
Ne pas approcher les mains et les pieds
Se référer au manuel d’utilisation
Risque de se couper,garder les mains et les pieds
loin des sections tranchantes et coupantes
Risque de coupure de doigt ou d’orteil sur la lame
rotative
Risque de chute sur pentes glissantes
Tenir hors de portée des enfants et passants
Des objets projetés sur la ligne de rotation peut
causer des blessures graves
Alerte de sécurité
FRANÇAIS
P16
P17
P18
P19
P21
P23
P23
P26
P28
P30

19
DIRECTIVES DE SÉCURITÉ
Utilisation générale
Lisez avec soin le manuel d’utilisation dans son intégralité avant de
commencer à assembler la machine. Lisez, comprenez, et suivez toutes
les directives situées sur la machine et dans le manuel avant toute
opération. Conservez ce manuel dans un endroit sûr pour pouvoir s’y référer
régulièrement, dans le futur, et pour remplacer des pièces.
Soyez entièrement familier avec les caractéristiques de cette machine avant
de l’utiliser.
Cette machine est un outil de jardinage, pas un jouet. Par conséquent, prenez
des précautions extrêmes en tout temps. Cette machine a été conçue pour
tondre la pelouse uniquement. Ne pas en faire un autre usage.
Aucun enfant âgé de moins de dix ans ne peut utiliser cette machine. Les enfants
âgés de 10 ans et plus sont en mesure de lire et comprendre les instructions ainsi
que d’utiliser de manière sécuritaire la machine conformément au manuel mais ils
doivent être entraînés et encadrés par un adulte.
Seules les personnes qui sont responsables et familières avec ces règles
d’utilisation doivent être autorisées à utiliser cette machine.
Inspectez soigneusement tous les secteurs où l’équipement va être utilisé. Retirez
toutes pierres, bâtons, ls métalliques, os, jouets et autres objets étrangers.
An d’éviter le contact avec une lame, restez dans la zone d’utilisation située
derrière la barre et gardez éloignés de la tondeuse les enfants, les passants,
les assistants, et les animaux de la machine en cours d’utilisation. Arrêtez la
machine si une personne entre dans l'aire de travail.
Portez des chaussures de travail à semelle robuste et des pantalons et
chandails bien ajustés. Les chandails et les pantalons qui couvrent les bras et
les jambes et des chaussures à embout d’acier sont recommandés. Ne faites
jamais fonctionner cette machine pieds nus, sandales, chaussures glissantes
ou légères (ex: en toile).
Ne pas poser les mains ou les pieds à proximité des lames rotatives. Le
contact avec des lames peuvent amputer des doigts ou des orteils.
De nombreuses blessures surviennent lorsque la tondeuse passe sur le
corps après une chute. Ne tenez pas la tombeuse si vous tombez, relâchez la
poignée immédiatement.
Soyez prudent lorsque vous tirez la machine vers l'arrière. Regardez vers le bas et l’arrière
pour ne pas trébucher. Soyez certain d’être bien équilibré et d'être en position stable.
N’utilisez pas la tondeuse sous inuence d’alcool ou de drogues.
N’utilisez jamais la tondeuse dans l'herbe mouillée. Gardez toujours une position
sûre. Une glissade et une chute peuvent causer des blessures graves.
Tondez uniquement à la lumière du jour ou sous un bon éclairage articifiel.
Marcher, ne jamais courir.
La lame de coupe peut continuer à tourner pendant quelques secondes
après l’arrêt de la tondeuse. Ne placez jamais aucune partie de votre corps
dans la zone de la lame tant que vous ne vous êtes pas assurés de l’arrêt du
fonctionnement de la lame.
Soulevez la tondeuse en utilisant des méthodes sécuritaires.
N’utilisez que des pièces et accessoires conçus par le fabricant pour cette machine.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
FRANÇAIS
