Hawking PN5614XP User manual

System Requirements:
· 486, Pentium Processor, or faster
· Microsoft Windows 95/98/2000/ME/NT/XP.
· One available Serial (RS232) port
·CDROMDriver
PN5614XP
Easy Installation
Supports Telephone Answering Machine
2 Year Warranty
PACKAGE CONTENTS:
56K External D/F modem and cable
Data/Fax Software CD, On-Line Manual
Serial Patch cable
RJ-11 Phone cable
Get Connected with Hawking
Hawking's PN5614XP is a compactly designed Data/Fax Modem with high
performance and easy-to-use features. It supports the V.90/K56 Flex dual mode, offering
connections faster than ordinary phone lines. Installation process is Plug & Play and it is fully compatible with
Windows 95, 98, 2000, XP, NT, ME, DOS, and Linux. The Data/Fax Software is also included.
CAREFREE NETWORKING
CONNECT WHEREVER YOU WANT•WHENEVER YOU WANT
56K V.90 Data/Fax External Modem

PN5614XP
Easy Installation
Telephone Answer Machine capability
2 Year Warranty
HAWKING TECHNOLOGIES, INC
USA: Irvine, California Europe: Rotterdam, The Netherlands
Website: www.hawkingtech.com Website: www.hawkingeurope.com
Email: [e-mail] Email: [e-mail]
Tel: [phone] Tel: [phone]
SPECIFICATIONS:
Host Interface
RS232, DTE data rate up to 115,200 bps
Modem Standards
V.90 (down-stream up to 56,000 bps)
V. 34bis, V.32 bis, V.32, V.22bis, V.22, V.21
Error Correction Protocol
V.42 and MNP Class 2 to 4
Data Correction Protocol
V.42 and MNP Class 5
Fax Compatibility
EIA Class 1, Group 3, up to 14,400bps
ITU-T V.17, ITU-T V.29, V.27ter, V.21
Dialing Compatibility
DTMF tone
Rotary pulse
Opertating Modes
Asynchronous full duplex
Manual/ Automatic answer
Flow Control
Hardware CTS/RTS
Software XON/XOFF
Line Interface
RJ-11, 2 wires dial-up
Software Control Interface
Hayes compatible AT command set
Call Progress Monitoring
Dial tone, busy tone and ring-back detection
Power
5V DC
Dimensions
4.5" L x 2.875" W x1.00" H
Weight
4.0oz
EMI Conformance
FCC Class B
CE Mark Class B
RELATED PRODUCTS:
HM92
56K PCI Modem (for desktops)
HCF690V CompactFlash 56K Modem w/ PC Card Adapter
PN612 56K PC Card Modem (for notebooks)

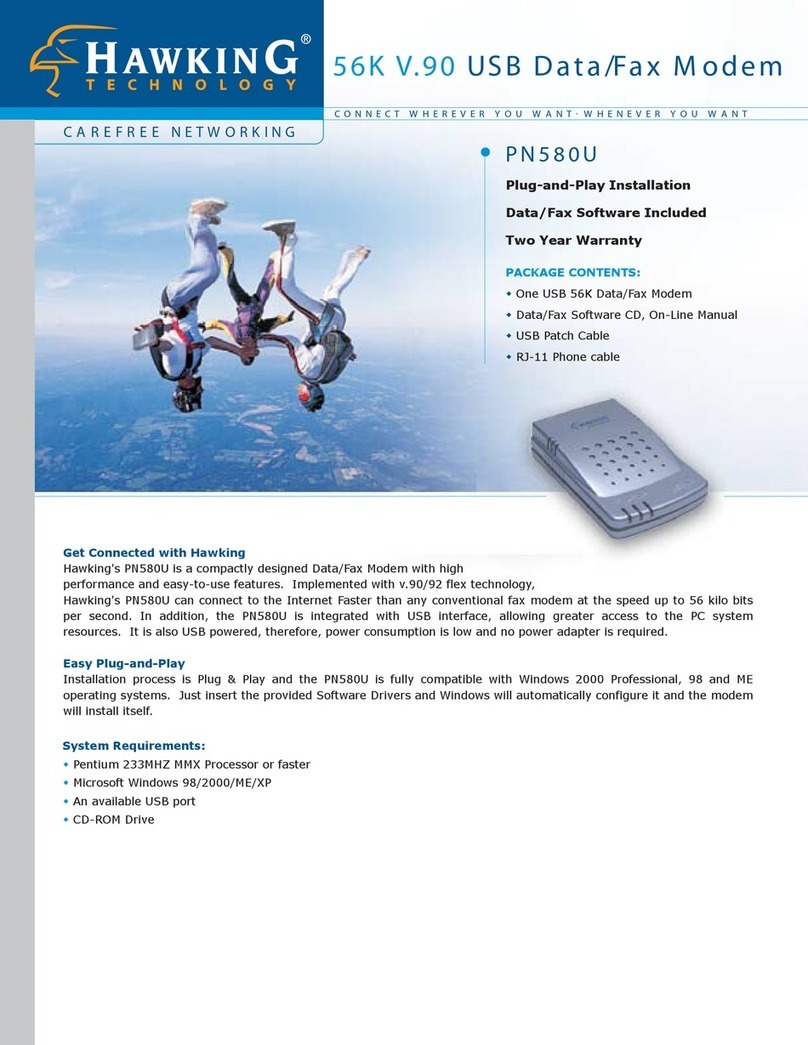

PN580U 56K USB Win Modem
SETUP DIAGRAM:
FEATURES BENEFITS
ITU V.90 Standard Faster Internet connection and
backwards compatible with V.34+ and
V. 3 4
High-speed Data Transmission Saves time, telephone cost, and
connection charges
Plug & Play Easy-to-install and Easy-to-use
Compatible with Windows 95/98/ME/NT/2000/XP
READY, NETWORK & GO!
It's easy to install, it's easy to use! Everyone can do it.
Step 1 - Install the PN5614XP Modem
Connect the Modem to a Desktop or a Labtop's Serial Port. Insert the Software Drive CD
into the CD-ROM DRIVE. Windows 98/2000/ME will automatically install and configure for
you.
Step 2 - Get Connected
Connect the Modem's RJ11 Line Port to the phone outlet (phone jack).
Step 3 - Get Started
Enter your ISP phone number, user name, and password. Now it is ready to connect in the
faster lane
CAREFREE NETWORKING
CONNECT WHEREVER YOU WANT•WHENEVER YOU WANT
56K V.90 Data/Fax External Modem
Copyright © Hawking Technologies, Inc. 2004. All rights reserved. All trademarks herein are the property of their respective
owners. Product specification subjects to change without notice.
