Hawking PN580U User manual

System Requirements:
Pentium 233MHZ MMX Processor or faster
Microsoft Windows 98/2000/ME/XP
An available USB port
CD-ROM Drive
Get Connected with Hawking
Hawking's PN580U is a compactly designed Data/Fax Modem with high
performance and easy-to-use features. Implemented with v.90/92 flex technology,
Hawking's PN580U can connect to the Internet Faster than any conventional fax modem at the speed up to 56 kilo bits
per second. In addition, the PN580U is integrated with USB interface, allowing greater access to the PC system
resources. It is also USB powered, therefore, power consumption is low and no power adapter is required.
Easy Plug-and-Play
Installation process is Plug & Play and the PN580U is fully compatible with Windows 2000 Professional, 98 and ME
operating systems. Just insert the provided Software Drivers and Windows will automatically configure it and the modem
will install itself.
CA R EFREE NETW ORK ING
CONNECT W HEREVER YOU W ANT•WHENEVER YOU WANT
56K V.90 USB Data/Fax Modem
PN580U
Plug-and-Play Installation
Data/Fax Software Included
Two Year Warranty
PACKAGE CONTENTS:
One USB 56K Data/Fax Modem
Data/Fax Software CD, On-Line Manual
USB Patch Cable
RJ-11 Phone cable

PN580U
Plug-and-Play Installation
Data/Fax Software Included
Two Year Warranty

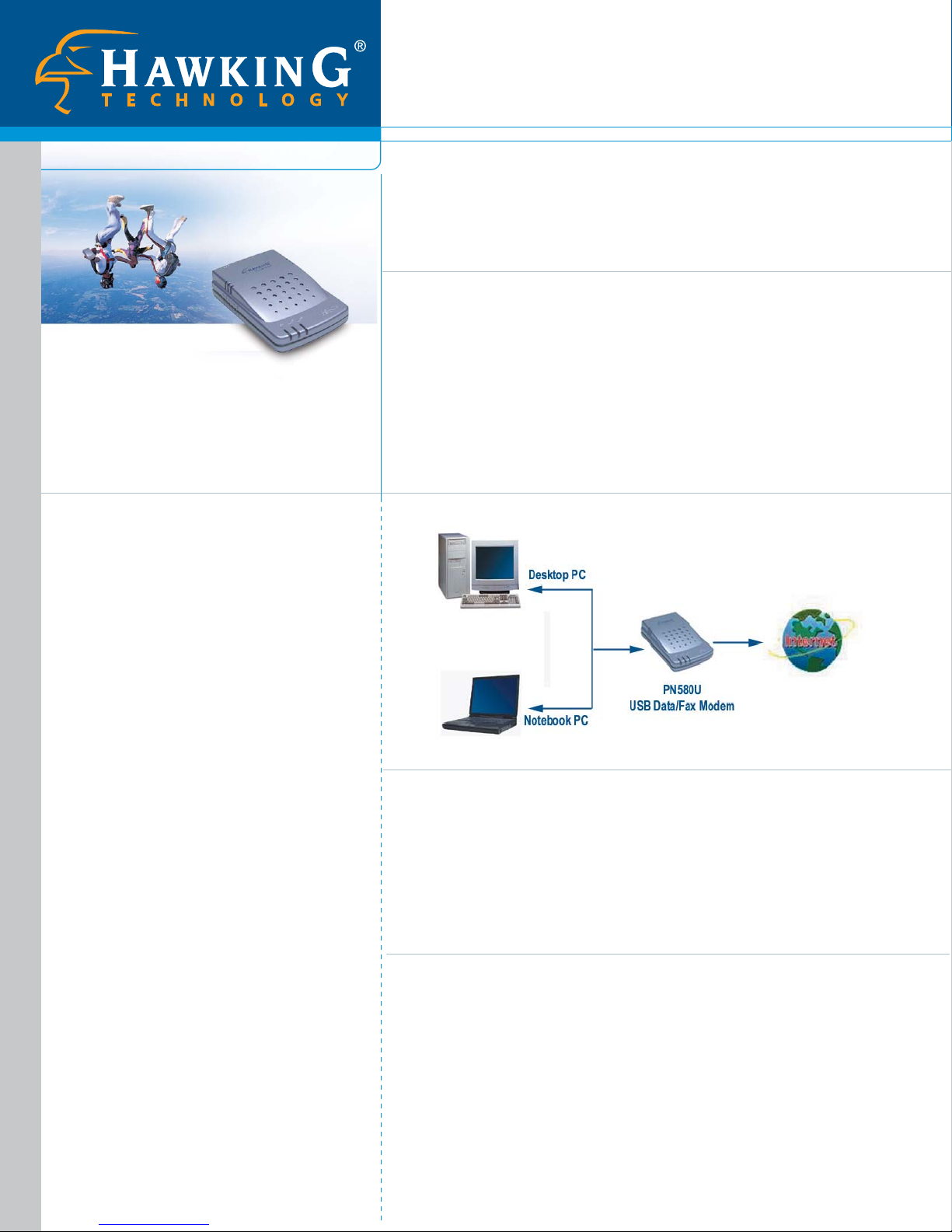

NETWORK DIAGRAM:
CA R EFREE NETW ORK ING
CONNECT W HEREVER YOU W ANT•WHENEVER YOU WANT
56K V.90 USB Data/Fax Modem
Copyright © Hawking Technologies, Inc. 2003. All rights reserved. All trademarks herein are the property of their respective
owners. Product specification subjects to change without notice.
HAWKING TECHNOLOGIES, INC
USA: Irvine, California Europe: Rotterdam, The Netherlands
Website: www.hawkingtech.com Website: www.hawkingeurope.com
Email: [e-mail] Email: [e-mail]
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
HAWKING PRODUCT iNFORMATION:
PN612 56Kbps V.90 PCMCIA Data/Fax Modem
HM92P 56Kbps V.92 PCI Modem
PN5614XP 56K V.90 External Modem
HCF690V CompactFlash 56K V.90 Modem Card
w/PCMCIA Adapter
READY, NETWORK & GO!
It's easy to install, it's easy to use! Everyone can do it.
Step 1 - Install the PN580U Modem
Connect the Modem to a Desktop or a Labtop's USB port. Insert the Software Drive CD into
the CD-ROM DRIVE. Windows 98/2000/ME will automatically install and configure for you.
Step 2 - Get Connected
Connect the Modem's RJ11 Line Port to the phone outlet (phone jack)
Step 3 - Get Started
Enter your ISP phone number, user name, and password. Now, you're ready to connect in the
faster lane.
FEATURE
ITU V.90 Standard
Faster Internet connection
Backward compatible with V.34+, V.34
High speed data transmission
Saves time, telephone cost, and connection fee
SPECIFICATIONS:
Host Interface:
USB 1.1, 12Mbps
Modem Standards:
V.90 (down-stream up to 56,000 bps)
V.34bis, V.32bis, V.32, V.22bis, V.23, V.22, V.21
Error Correction Protocol
V.42 and MNP Class 2 to 4
Data Compression Protocol
V.42bis and MNP Class 5
Fax Compatibility:
EIA Class 1, Group 3, up to 14,400 bps
ITU-T V.17, ITU-T V.29, V.27ter, V.21
Dialing Capability:
DTMF tone and rotary pulse
Operating Modes:
Asynchronous full duplex
Manual/Automatic answer
Flow Control:
Hardware CTS/RTS
Software XON/XOFF
Line Interface:
RJ-11, 2-wire dial-up
Software Control Interface:
Hayes compatible AT command set
Call Progress Monitoring:
Dial tone, busy tone and ring-back detection
Power:
USB Power, No external power required
Dimension:
3.78" L x 2.44" W x 0.79" H (96 x 62 X 20mm)·
Weight: 2.0 OZ
EMI Conformance:
FCC Class B, CE Mark Class B, and VCCI v3 Class B
Plug-and-Play
Easy to install and Easy to use
No configuration is required
USB powered
External power is not required
