Hawking H2BR4 User manual

H2BR4
Connect 2 Broadband Internet Lines
to Your Network
Advanced Firewall Protection
Two Year Warranty
PACKAGE CONTENTS:
One 4-Port Dual WAN Firewall Router
One Power Adapter
One Setup CD with User's Manual
Easy-to-follow Quick Installation Guide
Get Connected with Hawking
The high performance Hawking H2BR4 Dual WAN Firewall Router with
built-in 4-port 10/100M Ethernet Switch provides an easy-to-use,
cost-effective means of sharing two broadband Internet connections with
your LAN (Local Area Network). With the H2BR4's two WAN ports, users experience
significantly faster data rates as a result of increased and more efficient use of bandwidth. The dual WAN ports also
provide an easy way to utilize two different types of broadband Internet connections on the same network (i.e., DSL,
Cable, etc.), a method for selectively managing traffic between Internet connections (i.e., by port or IP address), and a
back-up method that activates the second WAN if the first WAN should get disconnected.
The H2BR4 features high-level security and is equipped with true, hardware-based firewall protection. The firewall utilizes
Stateful Packet Inspection (SPI) technology, Network Address Translation, and prevents against Denial of Service (DoS)
attacks from outside intruders. In addition, the VPN (Virtual Private Network) pass-through feature allows for fast,
reliable, and secure access to your corporate network via a public Internet network.
The H2BR4 includes a full set of powerful features. It utilizes Network Address Translation (NAT) to expand your existing
network without affecting existing IP based account schemes. The router supports DSL, Cable, and other broadband
modem connections that connect to an RJ-45 Ethernet port. The H2BR4 also features Virtual Server and DMZ functions,
which allow the user to protect clients on the network behind the router while permitting specified traffic to be opened up
outside the network. The router has a built-in DHCP server, which eliminates the need to configure each IP address
manually. The user-friendly web management interface provides the user with an easy way to configure the router from
anywhere in the world using a web browser. The H2BR4 can easily be firmware upgraded and is compatible with all
standard Internet applications.
System Requirements:
Network Software Requirements
Windows 95/98/NT/2000/ME/XP, or
Any TCP/IP-enabled system such as Mac OS, Linux or UNIX
Network Hardware Requirements
IEEE 802.3 10Base-T, or
IEEE 802.3u 100Base-TX
DSL/Cable Modem Requirements
DSL modem with RJ-45 (10Base-T) interface, or
Cable modem with RJ-45 (10Base-T) interface
CA R EFREE NETW ORK ING
CONNECT W HEREVER Y OU W ANT•WHENEVER YOU WANT
4-Port Dual WAN Firew all Router

H2BR4
Connect 2 Broadband Internet
Lines to Your Network
Advanced Firewall Protection
Two Year Warranty
HAWKING TECHNOLOGIES, INC
USA: Irvine, California Europe: Rotterdam, The Netherlands
Website: www.hawkingtech.com Website: www.hawkingeurope.com
Email: [e-mail] Email: [e-mail]
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
SPECIFICATIONS:
Ports
WAN: (2) 10/100Mbps RJ-45 ports
LAN: (4) 10/100Mbps RJ-45 ports
Switching Scheme
Store-and-forward
Reset Button
Returns device to factory default settings
Dual WAN Ports
Traffic Distribution: distribute traffic between
WAN ports by setting desired ratio
Back-Up: second WAN activates when first WAN
is disconnected or fails
Firewall
Stateful Packet Inspection (SPI), NAT, Anti-DoS
(Denial of Service) VPN Pass-through IPSec,
PPTP, L2TP
LED Indicators
Power
WAN (1-2): Link/Activity, 10/100M
LAN (1-4): Link/Activity, 10/100M
Power
12V DC, 1A Power Adapter
RELATED PRODUCTS:
H2WR54G Wireless Dual WAN 4-Port Firewall Router

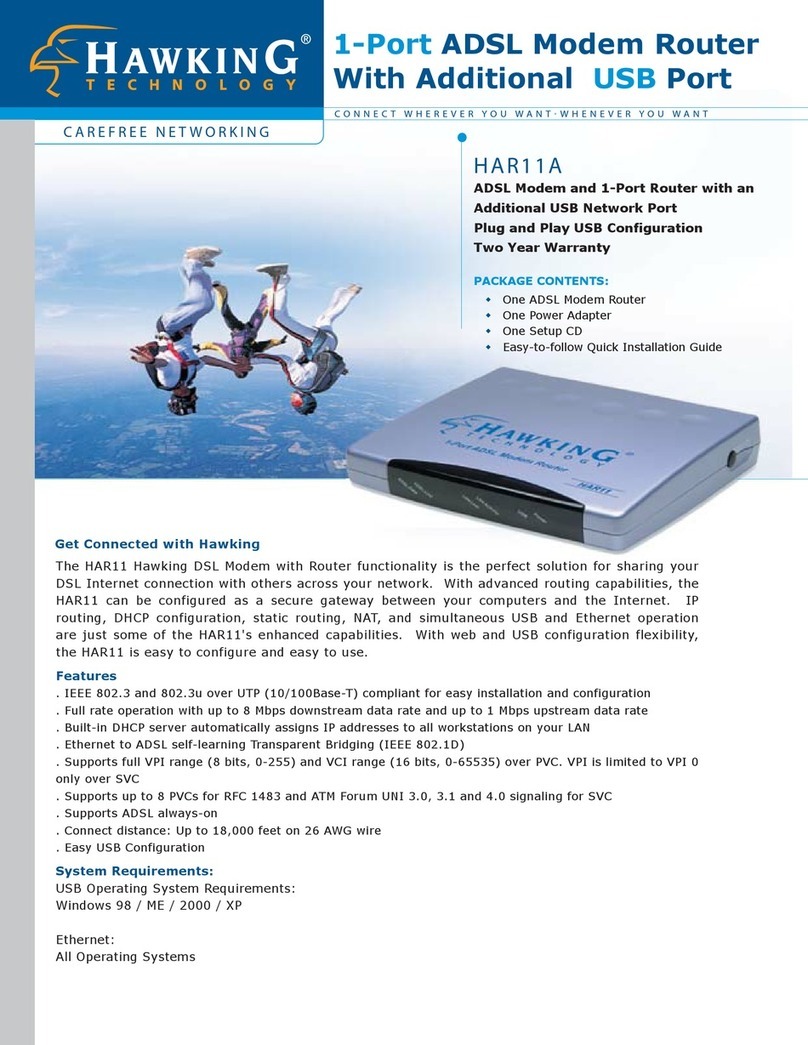

HAR11A 1-Port ADSL USB Modem Router
HAR14 4-Port ADSL Modem Router
HGA32T 32-Bit Gigabit Ethernet PCI Adapter
NETWORK DIAGRAM:
FEATURES
Supports up to 253 Users
Superb throughput of up to 50Mbps
Allows multiple users to share one Internet line or two Internet lines
Interner access via Cable or xDSL modem
Equipped with two WAN ports (10/100M) and four LAN ports (10/100M)
Remote management and configuration over the Internet
Easy-to-use web-based user interface for configuration and management purposes
READY, NETWORK & GO!
It's easy to install, it's easy to use!
Step 1 - Install the H2BR4 Fireall Router
Connect Broadband Modem RJ-45 ports to the Router's WAN ports.
Step 2 - Get Connected
Connect the Router's LAN ports to your computers, switches, etc.
Step 3 - Get Started
Use the setup wizard or your web browser to configure the Router. It's that easy!
CA R EFREE NETW ORK ING
CONNECT W HEREVER Y OU W ANT•WHENEVER YOU WANT
4-Port Dual WAN Firew all Router
Others Features
Virtual Server and DMZ functions
Web User Interface (Remote Configuration)
NAT/NAPT IP Sharing
Supports DDNS (DynDNS/TZO)
Supports Special Applications such as Port Triggers
System Status (Port Connectivity) function
Security Log
Multimedia Streaming Protocol Support: RTSP (Real Player, QuickTime,
IP/TV Video on Demand, NetMeeting, etc.)
Protocol Support: TCP/IP, DHCP, RIP I & II, NAT, Dynamic DNS, SMTP
Supports Network Access Control
Supports Content Filtering
Dimensions
7.36" x 3.94" x 1.18" (W x D x H)
187mm x 100mm x 30mm (W x D x H)
Product Weight
0.60 lbs.
270 g
