Hayward HP50CLEE Service manual

Models HP50CLEE
HP65CLEE
HP75CLEE
Hayward Pool Products Canada, Inc.
2880 Plymouth Dr., Oakville, ON L6H 5R4
Haywardpool.ca / 1.888.238.7665
Variable Speed
Swimming Pool Heat Pump
Installation & Instruction Manual
HP75CLEE

CONTENTS
1ecaferP.1
2snoitacificepS.2
2.1 Performance Data of Swimming Pool Heat Pump Unit
2.2 Dimensions for Swimming Pool Heat Pump Unit
5noitcennoCdnanoitallatsnI.3
5metsySfonoitallatsnI1.3
6
2
3
noitacoLspmuPtaeHlooPgnimmiwS2.3
6?looPruoYotesolCwoH3.3
7
gnibmulPspmuPtaeHlooPgnimmiwS4.3
8gniriWlacirtcelEspmuPtaeHlooPgnimmiwS5.3
8tinUehtfo
pu-tratSlaitinI6.3
9noitarepOdnaegasU.4
9
10
12
13
15noitcepsnIdnaecnanetniaM.5
6. Appendix 16
16
6.2 Wiring Diagram 18
15
15
6.3 Exploded View and Spare Parts List 20
26
4.1 Function of the controller
4.2 Usage of the controller
4.3 Parameter table
4.4 Mulfunction table
6.1 Connection of PCB: Illustration
6.5 Cable specification 27
6.6 Warranty 28
6.4 Caution & Warning
5.1 Maintenance and inspection
5.2 Winterization

1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has been made
to strict production standards. This manual includes all the necessary information about installa-
tion, debugging, discharging and maintenance. Please read this manual carefully before you open
or maintain the unit. The manufacture of this product will not be held responsible if someone is
injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary
maintenance. It is vital that the instructions within this manual are adhered to at all times. The unit
must be installed by qualified personnel.
The unit can only be repaired by qualified installer centre , personnel or an authorised dealer.
Maintenance and operation must be carried out according to the recommended time and frequency,
as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to suit a
luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged exposure to
swimming pool water.
2 Installation flexibility
The unit must be installed outdoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor, which
guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be set.
Operation status can be displayed on the LCD wire controller. Remote controller can be chosen
as future option.
1

2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
REFRIGERANT : R410A
2
HP50CLEE
2.68
0.2-2.68
12.0
1.1-12.0
208-230V~/60Hz
1
rotary
1
100
500-650
horizontal
43-53
1.5’’
4.1/18
4.3/ 0.62
HP75CLEE
3.86
0.31-3.86
16.9
1.5-16.9
208-230V~/60Hz
1
rotary
1
100
300-750
horizontal
42-57
1.5’’
6.2/ 27.3
4.9/ 0.71
see nameplate
see package label
Rated Heating: *Outdoor air temp: 27℃/24.3℃, Inlet water temp:26.7℃
During heating: Running ambient temperature: -5℃~43℃.
Model
kW
kW
A
A
V/Hz
W
RPM
dB(A)
inch
m3/h /gpm
kPa/psi
mm/ in
mm/ in
kg
kg
1165×485×870/
45.9×19.1×34.3
1210×510×880/
47.6×20.1×34.6
HP65CLEE
3.35
0.25 3.35
14.6
1.2 14.6
208-230V /60Hz
1
rotary
1
75
400-700
horizontal
38-54
1.5’’
5.1/22.5
5.2/0.75
1165×485×870/
45.9×19.1×34.3
1210×510×880/
47.6×20.1×34.6
1048×442×770/
41.2×17.4×30.3
1130×460×780/
44.5×18.1×30.7
UNIT
Rated Heating Power Input
Range
Rated Running Current Input
Range
Power Supply
Compressor Quantity
Compressor
Fan Quantity
Fan Power Input
Fan Rotate Speed
Fan Direction
Noise
Water Connection
Water Flow Volume
Water Pressure Drop(max)
Unit Net Dimensions
(L/W/H)
Unit Ship Dimensions
(L/W/H)
Net Weight
Shipping Weight

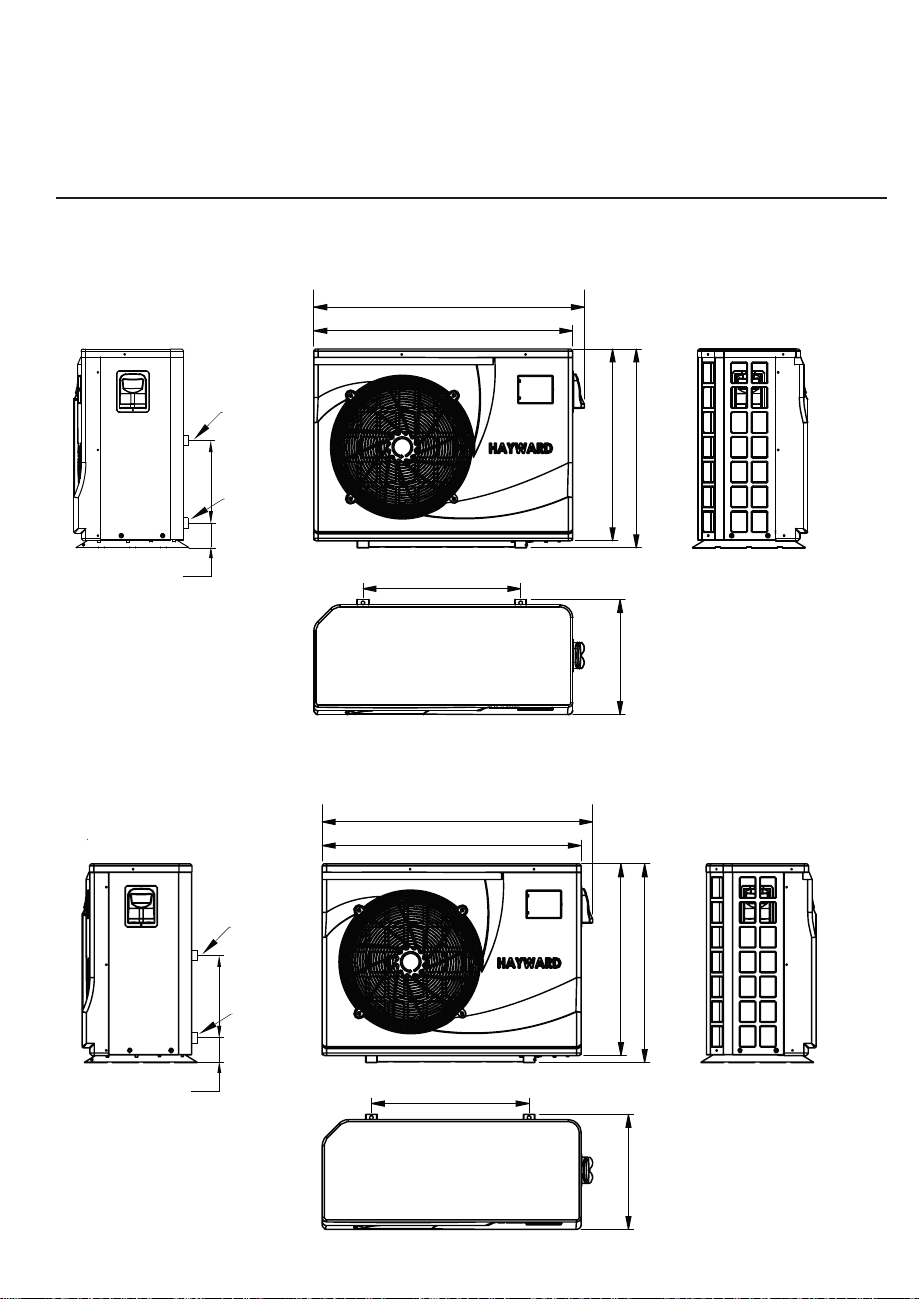

2.2 The dimensions for Swimming Pool Heat Pump Unit
2.SPECIFICATION
3
HP50CLEE
HP65CLEE
unit：mm/in
unit：mm/in
1002/ 39.4
1048/ 41.2
water outlet
water inlet
104/4.1
350/ 13.8
1.5’’
1.5’’
770/30.3 743/29.3
610/24.0
445/17.5
1115/ 43.9
1059/ 41.7
water outlet
water inlet
102/4.0
400/15.7
1.5’’
1.5’’
867/34.1 838/33.0
815/ 32.0
484/19.1

2.2 The dimensions for Swimming Pool Heat Pump Unit
2.SPECIFICATION
4
HP75CLEE unit：mm/in
1115/ 43.9
1059/ 41.7
water outlet
water inlet
102/4.0
400/15.7
1.5’’
1.5’’
867/34.1 838/33.0
815/ 32.0
484/19.1

3.INSTALLATION AND CONNECTION
Chlorinator cell Water outlet Valve
Water supply
Water inlet

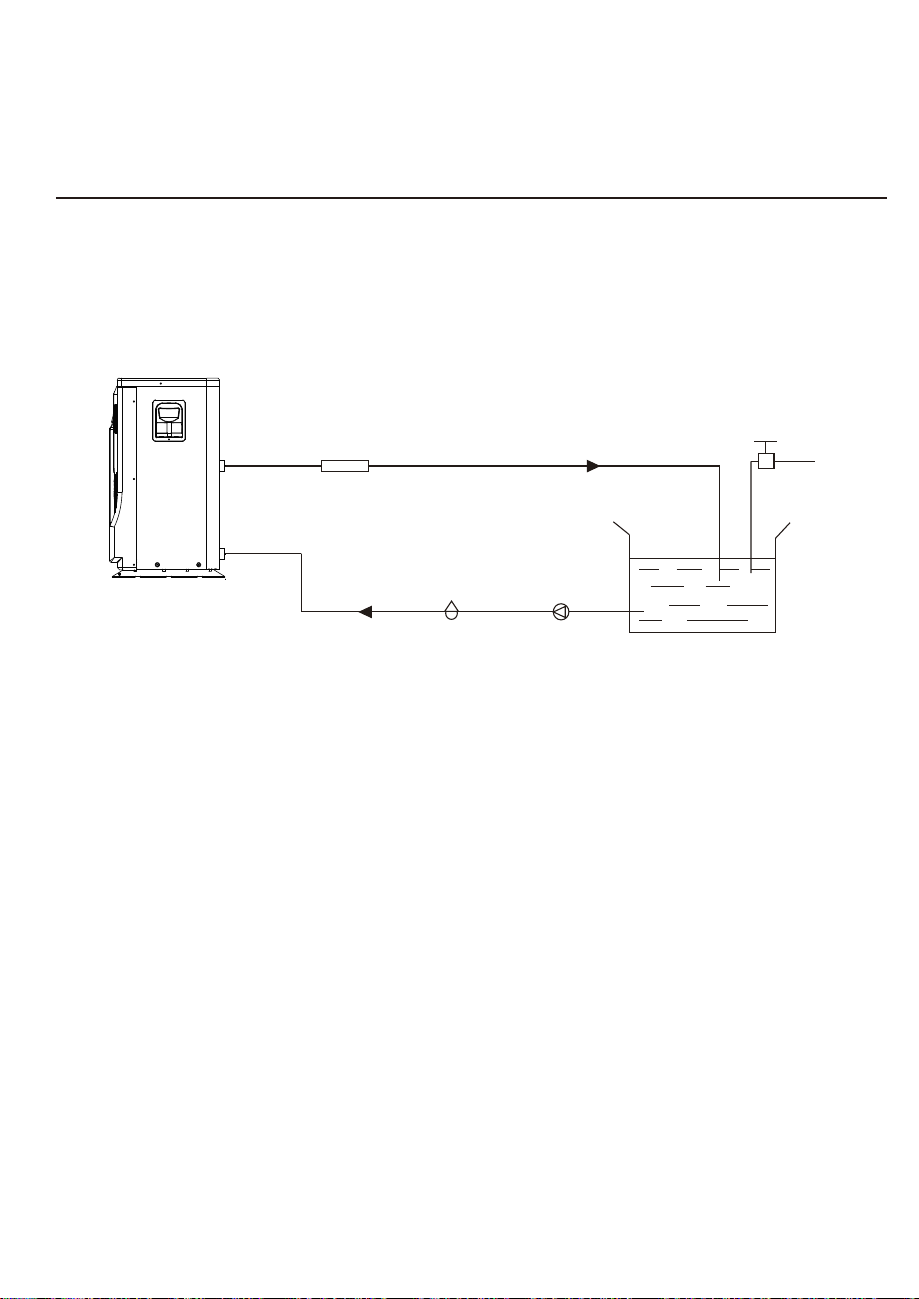

3.1 Installation illustration
Pool
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration are
necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat
pump while plumbing installation.
Sand filter
(or other type filter)
Water pump
5

3.INSTALLATION AND CONNECTION
3.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. Unlike
a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units discharge air will be
re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a continuous
source of fresh air which reduces it efficiency and may prevent adequate heat delivery.
3.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the distance from the
pool, the greater the heat loss from the piping. For the most part ,the piping is buried. Therefore, the heat
loss is minimal for runs of up to15 meters(15 meters to and from the pump = 30 meters total), unless the
ground is wet or the water table is high. A very rough estimate of heat loss per 30 meters is 0.6 kW-hour,
(2000BTU) for every 5 ℃difference in temperature between the pool water and the ground surrounding the
pipe, which translates to about 3% to 5% increase in run time.
Air inlet
Air outlet
300/ 11.8
300/ 11.8
700/ 27.6
700/27.6
500/ 19.7
Unit：mm/inch
6

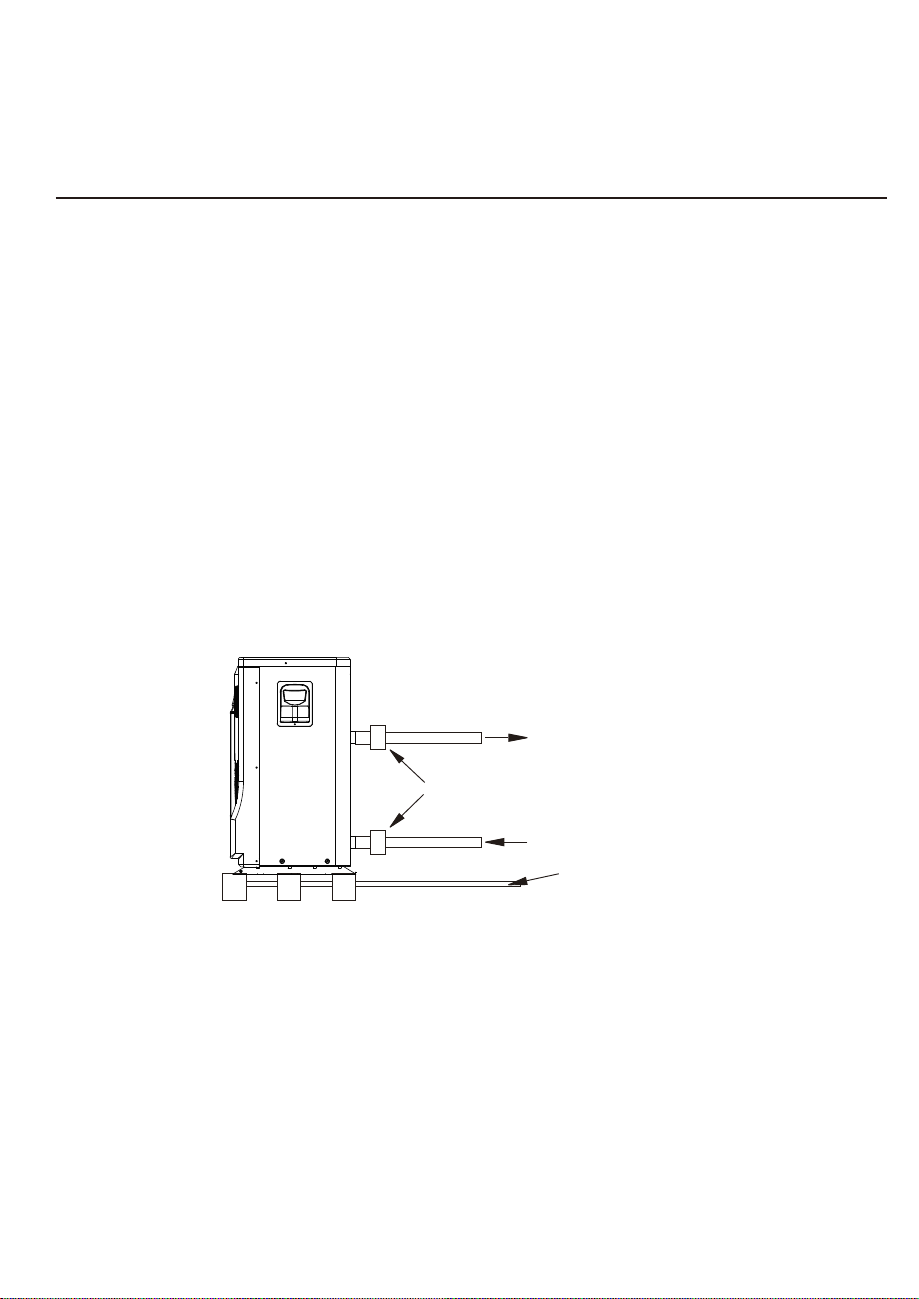

3.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special
plumbing arrangements except bypass(please set the flow rate according to the nameplate). The water
pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Tempera-
tures, The unit does not need copper heat sink piping. PVC pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and pool
pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 32mm or 50 mm PVC pipe for connection to the
pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 40NB
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy
draining of unit for winterizing and to provide easier access should servicing be required.
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on the fins
of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as
several litres an hour. The water will run down the fins into the basepan and drain out through the
barbed plastic condensation drain fitting on the side of the basepan. This fitting is designed to accept
20mm clear vinyl tubing which can be pushed on by hand and run to a suitable drain. It is easy to
mistake the condensation for a water leak inside the unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump
running. If the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS
to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine present, then it's condensation.
3.INSTALLATION AND CONNECTION
To pool
PVC COUPLER
RECOMMENDED(Provided)
From pump
CONDENSATION DRAIN
BARB FTG
7

3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply
prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect
you against short circuits inside the unit. Bonding is also required.
The unit has a separate molded-in junction box with a standard electrical conduit nipple already in
place. Just remove the screws and the front panel, feed your supply lines in through the conduit nipple
and wire-nut the electric supply wires to the three connections already in the junction box (four
connections if three phase). To complete electrical hookup, connect Heat Pump by electrical conduit,
UF cable or other suitable means as specified (as permitted by local electrical authorities) to a
dedicated AC power supply branch circuit equipped with the proper circuit breaker, disconnect or time
delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be located within
sight of and readily accessible from the unit, This is common practice on commercial and residential air
conditioners and heat pumps. It prevents remotely-energizing unattended equipment and permits
turning off power at the unit while the unit is being serviced.
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to circulate water
through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire controller, It
should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is reached.
When the water-in temperature reach setting, The unit just shuts off. The unit will now automatically
restart (as long as your pool pump is running)when the pool temperature drops more than 2℃below set
temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to protect
control circuit components and to eliminate restart cycling and contactor chatter. This time delay will
automatically restart the unit approximately 3 minutes after each control circuit interruption. Even a brief
power interruption will activate the solid state 3 minute restart delay and prevent the unit from starting
until the 5 minute countdown is completed. Power interruptions during the delay period will have no
effect on the 3 minute countdown.
3.INSTALLATION AND CONNECTION
8
NOTICE: When GFCI breakers are required by installation codes, the product will operate satisfactorily when
using a Siemens QFxxxA series GFCI breaker. This GFCI series breaker has been tested and found to not
cause nuisance trips.
GFCI nuisance trips are not covered under warranty.

4.1. Function of wire controller
Timer on
indicator
Timer off
indicator
LED display
4. USAGE
Press this key to turn on/off the unit
Press this key to select the upward option
or increase the parameter value.
Press this key to select the downward
option or decrease the parameter value.
ON/OFF
Up
Down
Key Key name Key function
9

4.2. Usage of wire controller
4.2.1
Turn ON/OFF the unit
4.2.2 Setting temperature
When the unit is off, press the key“ ”0.5s to turned on the unit;
When the unit is on, press the key“ ”0.5s to show down the unit.
Standinterfaceby Running interface
Press“ ”0.5s
Press“ ”0.5s
Heating/ Cooling
actual water Temp.
In the running interface，press“ ”or“ ”then the current mode target-temperature flashes,
then press“ ”to increase the temp.value, or press“ ”to decrease it. Press“ ”will not
save setting parameter but back to the main interface; Attention：If there is no operation for
5s，system would remember parameter setting and back to the main interface. In the main
interface，press“ ”for 2s you can see the outlet temp.The parameter is then flashed and the
display is back to the main interface after 10s.
Press“ ”
Press“ ” Press“ ”
Press“ ”2s
or “ ”
Heating/ Cooling
Target Temp.
Heating/ Cooling
Target Temp.
Outlet Temp.
System will save user's
setting and return back
to main interface if there
is no operation in 5s.
4. USAGE
10

Press the“ ”
or“ ” key,
current set pt
flashes
When unit is operating, press either “ ” or “ ” and the current temperature set point flashes.
Then press either “ ” or “ ” to increase or decrease the temperature set point. Pressing will
cancel the change and return operation to the original temperature display mode. To save the new
temperature set point, do not press a key for 5s and the displayed value will be saved and operation
will return to temperature display mode. To view the outlet temperature while in the temperature
display mode press and hold “ ” for 2s. The outlet temperature is temporarily displayed, and then
the display is returned to temperature display mode.
In the main interface,press “ ” and “ ” for 0.5s can set the mode,press “ ” or “ ” to change
the current mode,you can switch different modes of colling, heating and auto mode. If there is no
operation for 5s system will save the current mode and back to the main interface,press “ ” can
not save setting. (The modes switching is useless of the unit you buy is singel-cold/single-heat unit.)
4.2.3 Mode switch
4.2.4 Setting/ Displaying
Temperatures
Press the“ ”
or“ ” key,
to adjust
set pt temp
Press the“ ”
key 2s to
temporarily
display outlet
temp.
Press“ ”
and “ ”
Press“ ”
or “ ”
Press“ ”
or “ ”
Press“ ”
or “ ”
Press“ ”
or “ ”
Cooling mode Auto mode Heating mode
4. USAGE
11
To switch between Fahrenheit and Celsius,
Press“ ”and“ ”hold theand keys for 5s
and display units will be converted
To avoid mis-operations, please lock the controller after parameter setting.
At the main interface, pressing “ ” for 5 seconds, when hearing one sound, the keyboard is locked.
When the keyboard is locked, pressing “ ” for 5 seconds, when hearing one sound, the keyboard
lock is open.
NOTES: When the unit is in alarming state, the key lock can be removed automaticly.
4.2.5 Keyboard lock
Fahrenheit and Celsius Setting:

4.2.6 Malfunction display
There will be malfunction code showing on the controller screen when relative malfunction occurs.
If there are more than one malfuctions occurs at the same time, you can check the current error codes
list by pressing “ ” or “ ” key.
You can refer to the malfunction table to find out the failure cause and solution. For example：
Water Inlet Temp. Sensor failure
4.3. Parameter table
Meaning Default Remarks
Set-point of auto mode target temp. 27 Ajustable
Remark:
The wire controller can display the temperature unit as "℉" or "℃" according to the unit Model
you bought.
4. USAGE
12

4.4
Malfunction Table
4.4.1The common failure cause and solution.
4. USAGE
13

14
4.4.2 Frequency conversion board fault table:
Drv1 MOP alarm
Inverter offline
IPM protection
Comp. Driver Failure
DC Fan Fault
IPM Overcurrent
Inv. DC Overvoltage
Inv. DC Lessvoltage
Inv. Input Lessvolt.
Inv. Input Overvolt.
Inv. Sampling Volt.
Comm. Err DSP-PFC
Input Over Cur.
PFC fault
IPM Over heating
Weak Magnetic Warn
Inv. Input OutPhase
IPM Sampling Cur.
Inv. Temp. Probe Fail
Inverter Overheating
Inv. Overheating Warn
Comp. OverCur. Warn
Input Over Cur. Warn
EEPROM Error Warn
Protection/fault
F01
F02
F03
F04
F05
F06
F07
F08
F09
F10
F11
F12
F26
F27
F15
F16
F17
F18
F19
F20
F22
F23
F24
F25
MOP drive alarm
Frequency conversion board and main
board communication failure
IPM modular protection
Lack of phase, step or drive hardware
damag
Motor current feedback open circuit or
short circuit
IPM Input currentis large
DC bus voltage>Dc bus over-voltage
protection value
DC bus voltage<Dc bus over-voltage
protection value
The input voltage is low, causing the
inputcurrent is high
The input voltage is too high, more than
outage protection current RMS
The input voltage sampling fault
DSP and PFC connect fault
The equipment load is too large
The PFC circuitprotection
The IPM module is overheat
Compressor magnetic force is not
enough
Recoveryafter the 150s
Checkthe communicationconnection
Recoveryafter the 150s
Checkthe measuringvoltage check
requencyconversion board hardware
Checkwhether currentreturn wires
connectedmotor
Checkand adjustthe current
measurement
Checkthe input voltagemeasurement
Checkthe input voltagemeasurement
Checkthe input voltagemeasurement
Checkthe input voltagemeasurement
Checkand adjustthe current
measurement
Checkthe communicationconnection
ck thePFC switch tube
short circuit
not
Checkand adjustthe current
measurement
Checkand measurethe voltage
adjustment
Checkand adjustthe current
measurement
Inspectand replacethe sensor
Checkand adjustthe current
measurement
Checkand adjustthe current
measurement
The compressorover-current
protection
Checkand adjustthe current
measurement
Checkwhether the chip is damaged
Replacethe chip
Fault Reason Elimination methods
The input voltage lost phase
IPM sampling electricity is fault
Sensor is short circuit or open circuit
The transducer is overheat
Transducer temperature is too high
Compressor electricity is large
Input current is too large
MCU error
F28
V15V over/undervoltage fault The V15V is overload or undervoltage ChecktheV15V input voltage in range
13.5v~16.5vornot
4. USAGE

Check the water supply device and the release often. You should avoid the condition of no water or
air entering into system, as this will influence unit's performance and reliability. You should clear the
pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter.
The area around the unit should be dry, clean and well ventilated. Clean the side heating exchanger
regularly to maintain good heat exchange as conserve energy .
The operation pressure of the refrigerant system should only be serviced by a certified technician.
Check the power supply and cable connection often. Should the unit begin to operate abnormally,
switch it off and contact the qualified technician.
Discharge all water in the water pump and water system ,so that freezing of the water in the pump or
water system does not occur. You should discharge the water at the bottom of water pump if the unit
will not be used for an extended period of time. You should check the unit thoroughly and fill the
system with water fully before using it for the first time after a prolonged period of no usage.
5. MAINTENANCE AND INSPECTION
5.1 Maintenance and inspection
5.2 Winterization
The following winterization steps are important to prevent freeze damage.
A HEAT PUMP DAMAGED BY FREEZING IS NOT COVERED UNDER THE
MANUFACTURER’S WARRANTY.
Set the heat pump in “OFF” mode.
Remove power power to the heat pump.
Drain the appliance of all its water:

int towards the ground and allow
water to drain completely.
leaner. Connect the
exhaust side of the vacuum cleaner to the upper port (outlet) of the heat pump to push
any remaining water that may be left inside.
Do not reconnect the plumbing to the heat pump.
Plug the water inlet and outlet to prevent intrusion of small animals or debris during winter.
Do not wrap the heat pump with canvas or tarpaulin as some ca nvas can cause
discoloration of the equipment. This can also trap moisture which can promote rusting of
metal components.
Parameter list
skrameR
tluafeDgninaeM
27
27
27
Ajustable
Ajustable
Ajustable
Refrigeration target temperature set point
Heating the target temperature set point
Automatic target temerature set point
15

6.APPENDIX
6.1 Connection of PCB illustration
V
T
A
B
G
Sign Meaning
V
T
A
B
G
12V power +
NET
485A
485B
GND(power-)
(1) Wire control interface diagram and definition
(2) Controller interface diagram and definition
16

Connections explanation᧶
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Symbol Meaning
OUT1
OUT2
OUT3
OUT4
OUT5
AC-L
AC-N
AI/DI01
AI/DI02
AI/DI03
AI/DI04
AI/DI05
AI/DI06
AI/DI07
AI/DI08
AI/DI09
AI/DI10
AI/DI11
AI12(50K)
0_5V_IN
PWM_IN
PWM_OUT
0_10V_OUT
+5V
+12V
GND
485_B1
485_A1
12V
GND
485_B2
485_A2
12V
Cn9
GND
485_B3
485_A3
12V
FUSE
Compressor ( output 220-230VAC）
Water pump ( output 220-230VAC）
4-way valve ( output 220-230VAC）
High speed of fan ( output 220-230VAC）
Low speed of fan (output 220-230VAC）
Live wire ( input 220-230VAC）
Neutral wire ( input 220-230VAC）
Emergency switch （input）
Water flow switch （input）
System low pressure （input）
System high pressure （input）
System suction temperature （input）
Water input temperature （input）
Water output temperature ( input )
System fan coil temperature（input）
Ambient temperature（input）
Mode switch / coil 2 temperature（input）
Master-slave machine switch / Antifreeze temperature（input）
System Exhaust temperature （input）
Compressor current detection/Pressure sensor(input)
Master-slave machine switch / Feedback signal of EC fan ( input )
AC fan control ( output )
EC fan control ( output )
+5V ( output )
+12V ( output )
Frequency conversion board communications
Color line controller communication
Electronic expansion valve
The port for centralized control
T5AL250V
6.APPENDIX
17
