Hayward TriStar VS SP3200VSPND User manual

IS3200VSP Rev-C
Hayward Pool Products
620 Division St, Elizabeth, NJ 07201
Phone: [phone]
www.haywardpool.com
TriStar®VS
Owner’s Manual
Models SP3200VSP, SP3200VSPND
TriStar VS Variable Speed Pump
Hayward’s TriStar VS variable speed pump delivers incredible energy savings via its advanced hydraulic
design combined with a totally enclosed, permanent magnet motor. TriStar VS is easily installed either
as a programmable stand-alone pump or with a Hayward or third party controller and features an easy-
to-use digital control interface that can be mounted in four different positions on the pump or removed
and mounted on the wall for total user convenience.
NOTE - To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and
completely.
SAVE THIS INSTRUCTION MANUAL

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 2 of 36 TriStar VS Pump IS3200VSP Rev-C
Table of Contents
1. IMPORTANT SAFETY INSTRUCTIONS .............................................................................................................. 4
2. General Information .....................................................................................................................................7
2.1. Introduction 7
2.2. Primary Features 7
2.3. Product Dimensions 7
3. Energy Efficiency Overview .......................................................................................................................... 8
4. Installation and Wiring................................................................................................................................ 8
4.1. Pump Location 8
4.2. Pump Mounting 9
4.3. Pipe Sizing Chart 9
4.4. Plumbing 9
4.5. Electrical 10
4.6. Electrical Specs 10
4.7. Voltage 10
4.8. Grounding and Bonding 10
4.9. Wiring 10
4.10. Remote Control Wiring/Operation 11

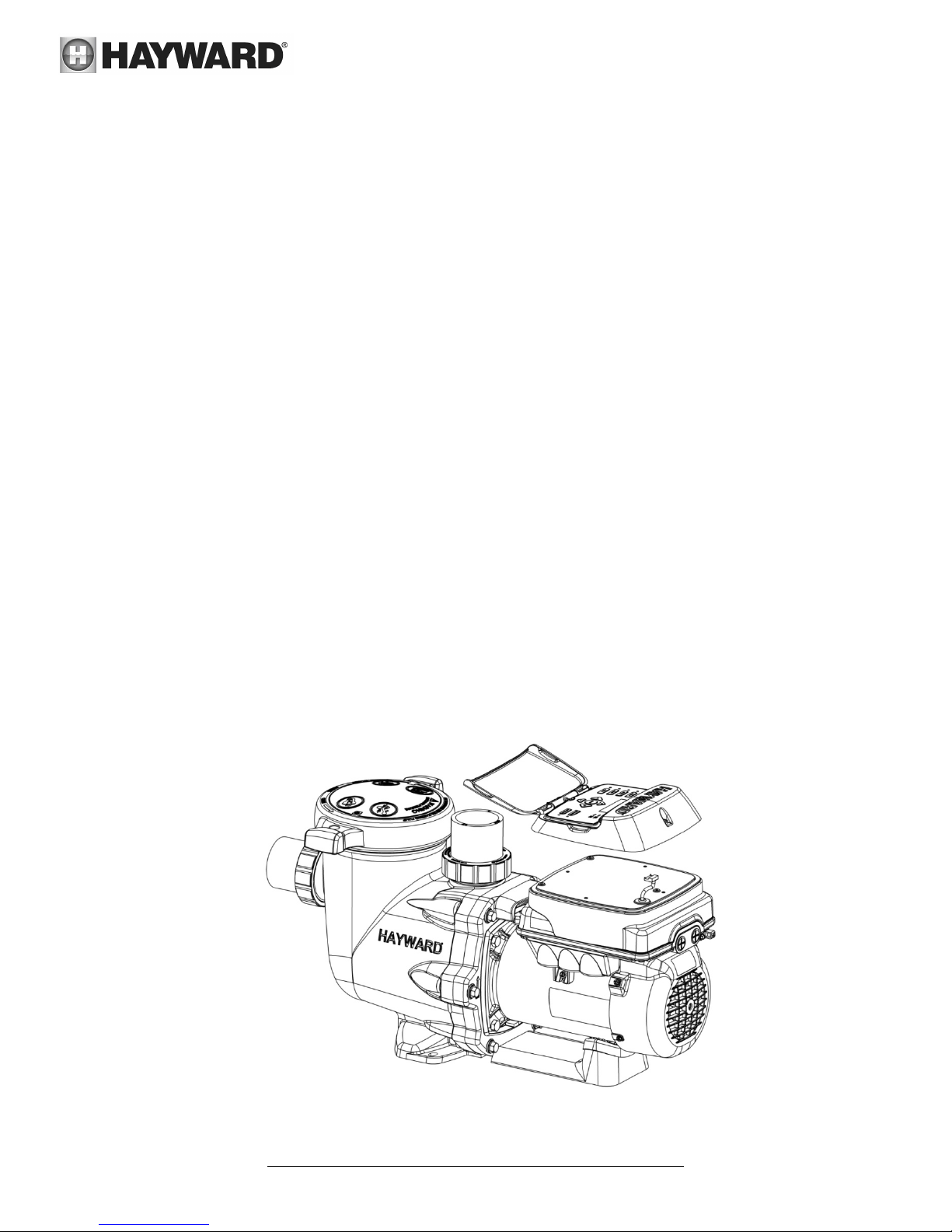

4.11. Digital Control Interface Orientation 11
4.12. Interface Wall Mounting 12
4.13. Installation Procedure 14
5. Wiring Diagrams......................................................................................................................................... 15
5.1. Input Power Wiring (Required) 15

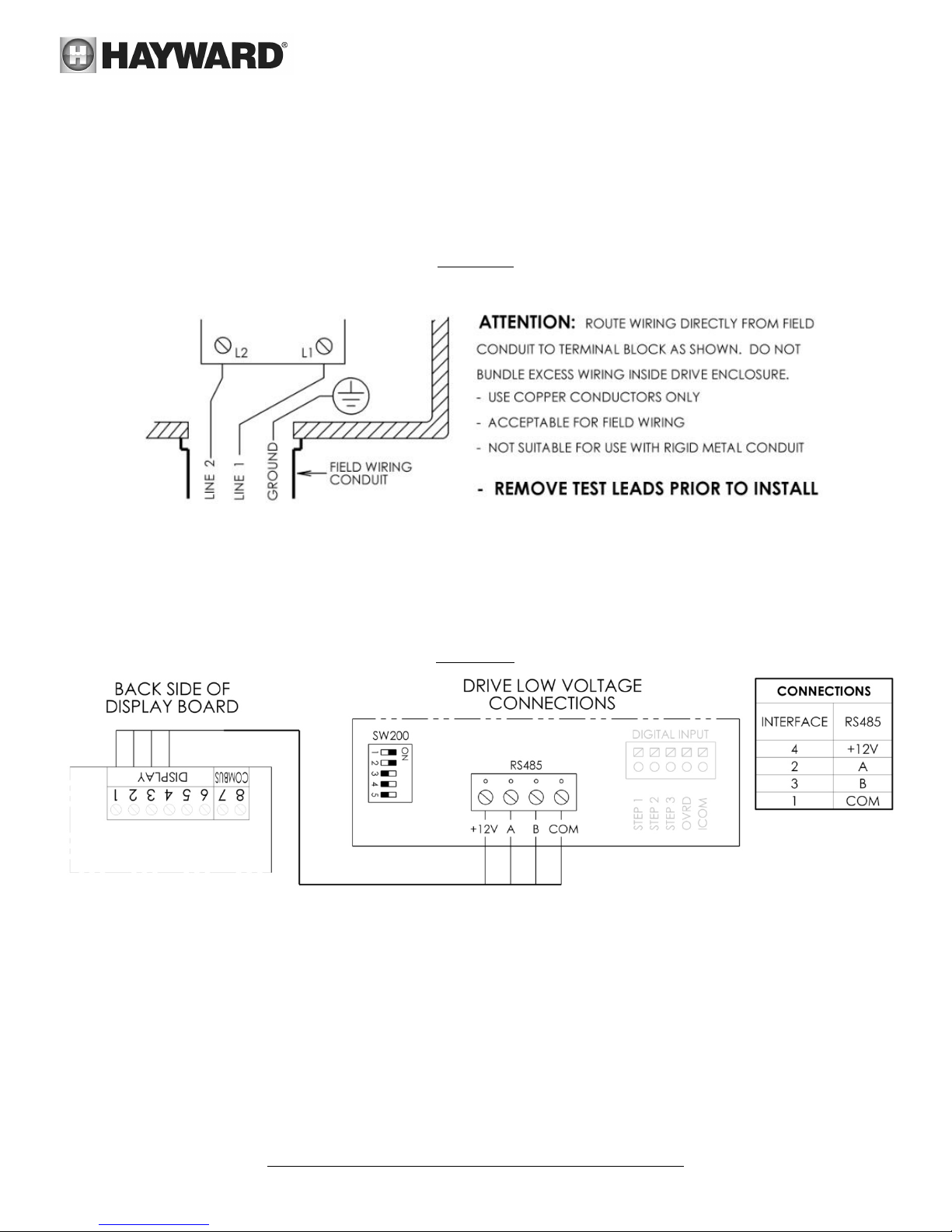

5.2. Wall Mounted Digital Control Interface Wiring (Optional) 15

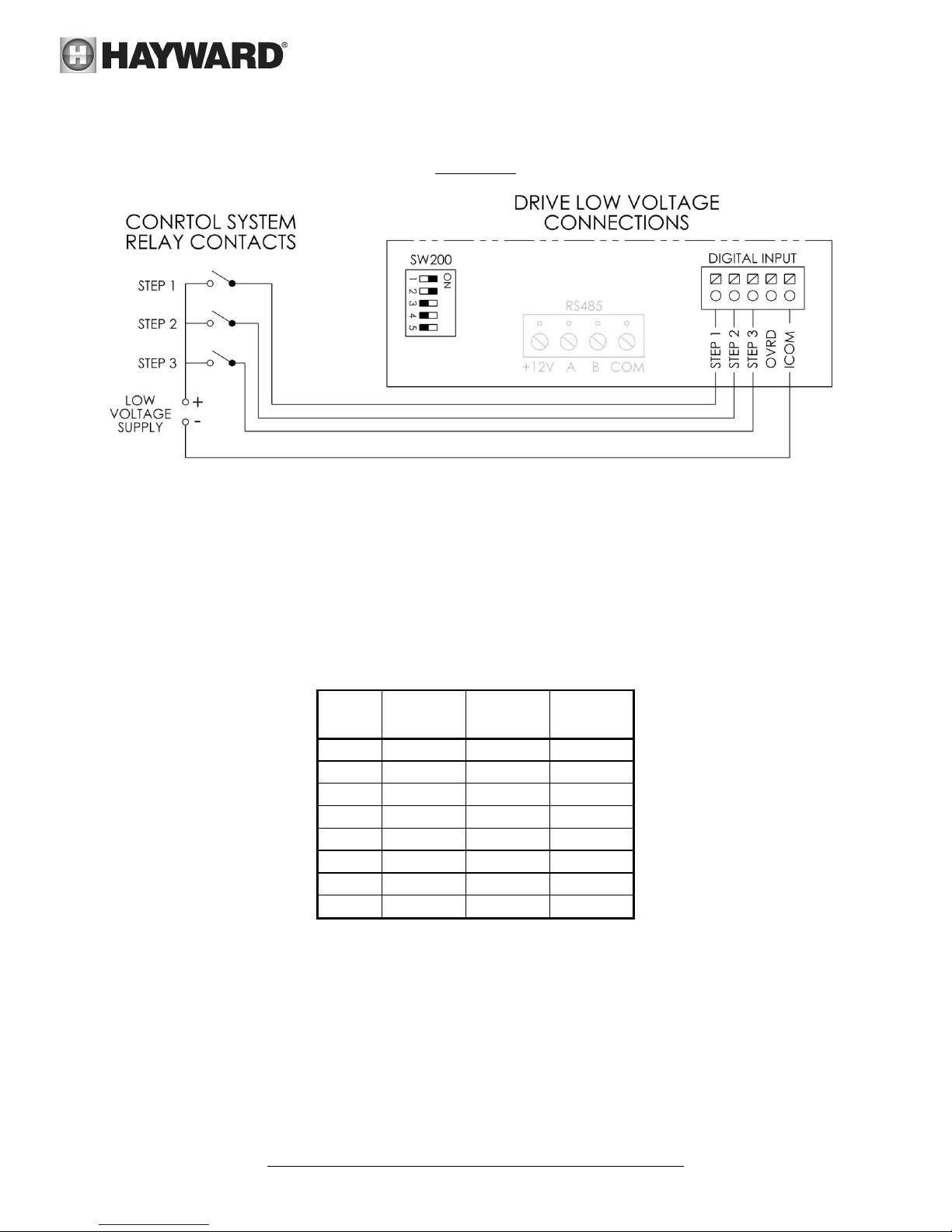

5.3. External Relay Speed Control Wiring (For remote selection of pump speed) 16
5.4. Hayward Pro Logic Control Wiring (For remote control of pump speed) 17
5.5. Remote Stop Switch Wiring (Optional) 18
6. Startup & Operation...................................................................................................................................18
6.1. Prior to Start-Up 18
6.2. Starting/Priming the Pump 19
6.3. User Interface Summary 20
6.4. Menu Outline 21
6.5. Initial startup 21
6.6. Configuration Menu 22
6.7. Timer Menu 23
6.8. Preset Speed Setup Menu 24
6.9. Diagnostic Menu 24
6.10. Stop/Resume 25
6.11. Quick Clean 25
6.12. Remote Stop 26
7. Maintenance............................................................................................................................................. 26
8. Storage / Winterization ............................................................................................................................. 26
8.1. Storing Pump For Winterization 26
9. Shaft Seal Change Instructions...................................................................................................................27
9.1. Removing the Motor Assembly 27

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 3 of 36 TriStar VS Pump IS3200VSP Rev-C
9.2. Removing the Impeller 27
9.3. Removing the Ceramic Seat 27
9.4. Seal Installation 27
9.5. Replacing the Impeller and Diffuser 28
9.6. Replacing the Motor Assembly 28
10. Replacement Parts.................................................................................................................................... 28
10.1. Parts Diagram 28
10.2. Parts Listing 29
11. Troubleshooting.........................................................................................................................................30
11.1. General Problems 30
11.2. Error Messages 32
12. Warranty....................................................................................................................................................33
13. Product Registration...................................................................................................................................33

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 4 of 36 TriStar VS Pump IS3200VSP Rev-C
Basic safety precautions should always be followed, including the following: Failure to follow instructions may result in
injury.
This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the
following signal words, and be alert to the potential for personal injury.
WARNING warns about hazards that could cause serious personal injury, death or major property damage
and if ignored presents a potential hazard.
CAUTIONwarns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
1. IMPORTANT SAFETY INSTRUCTIONS
Before installing or servicing this electrical equipment, turn power supply OFF.
WARNING – READ AND FOLLOW ALL INSTRUCTIONSin this owner’s
manual and on the equipment. Failure to follow instructions can cause severe injury and/or death.
WARNING – This product should be installed and serviced only by a qualified professional.
CAUTION – All electrical wiring MUST be in conformance with all applicable local codes, regulations, and
the National Electric Code (NEC).
USE OF NON-HAYWARD REPLACEMENT PARTS VOIDS WARRANTY.
ATTENTION INSTALLER - THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION,
OPERATION, AND SAFE USE OF THIS VARIABLE SPEED PUMP THAT MUST BE FURNISHED TO THE END USER OF THIS
PRODUCT. FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.
WARNING – To reduce risk of injury, do not permit children to use or climb on this product. Closely
supervise children at all times. Components such as the filtration system, pumps, and heaters must be positioned
to prevent children from using them as a means of access to the pool.
CAUTION – This pump is intended for use on permanently installed swimming pools and may also be used
with hot tubs and spas if so marked. Do NOT use with storable pools. A permanently installed pool is constructed in
or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is
constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
Though this product is designed for outdoor use, it is strongly advised to protect the electrical components from the
weather. Select a well-drained area, one that will not flood when it rains. It requires free circulation of air for
cooling. Do not install in a damp or non-ventilated location. If installed within an outer enclosure or beneath the
skirt of a hot tub or spa, adequate ventilation and free circulation of air must be provided to prevent overheating of
the motor.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 5 of 36 TriStar VS Pump IS3200VSP Rev-C
WARNING – Pool and spa components (seals, gaskets, etc.) have a finite life. All components should be
inspected frequently and replaced at least every ten years, or if found to be damaged, broken, cracked, missing, or
not securely attached.
WARNING – Risk of Electric Shock. All electrical wiring MUST be in conformance with applicable local
codes, regulations, and the National Electric Code (NEC). Hazardous voltage can shock, burn, and cause death or
serious property damage. To reduce the risk of electric shock, do NOT use an extension cord to connect unit to
electric supply. Provide a properly located electrical receptacle. Before working on pump or motor, turn off power
supply to the pump.
WARNING – To reduce the risk of electric shock replace damaged wiring immediately. Locate conduit to
prevent abuse from lawn mowers, hedge trimmers and other equipment.
WARNING – Risk of Electric Shock. In accordance with the National Electric Code (NEC), connect only to a
branch circuit protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot
verify that the circuit is protected by a GFCI. The unit must be connected only to a supply circuit that is protected by
a ground-fault circuit-interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a
routine basis. To test the GFCI, push the test circuit button. The GFCI should interrupt power. Push the reset button.
Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts
power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an
electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by a qualified service
representative before using.
WARNING – Failure to bond pump to pool structure will increase risk for electrocution and could result in
injury or death. To reduce the risk of electric shock, see installation instructions and consult a professional
electrician on how to bond pump. Also, contact a licensed electrician for information on local electrical codes for
bonding requirements.
Notes to electrician: Use a solid copper conductor, size 8 or larger. Run a continuous wire from external bonding lug
to reinforcing rod or mesh. Connect a No. 8 AWG (8.4 mm2) [No. 6 AWG (13.3 mm2) for Canada] solid copper bonding
wire to the pressure wire connector provided on the pump housing and to all metal parts of swimming pool, spa, or
hot tub, and to all electrical equipment, metal piping (except gas piping), and conduit within 5 ft. (1.5 m) of inside
walls of swimming pool, spa, or hot tub. IMPORTANT - Reference NEC codes for all wiring standards including, but
not limited to, grounding, bonding and other general wiring procedures.
WARNING – Suction Entrapment Hazard. Suction in suction outlets and/or suction outlet covers, which are
damaged, broken, cracked, missing, or unsecured cause severe injury and/or death due to the following entrapment
hazards (symbols complements of APSP):
Hair Entrapment - Hair can become entangled in suction outlet cover.
Limb Entrapment - A limb inserted into an opening of a suction outlet sump or suction outlet cover that is damaged,
broken, cracked, missing, or not securely attached can result in a mechanical bind or swelling of the limb.
Body Suction Entrapment - A differential pressure applied to a large portion of the body or limbs can result in an
entrapment.
Evisceration/ Disembowelment - A negative pressure applied directly to the intestines through an unprotected
suction outlet sump or suction outlet cover which is damaged, broken, cracked, missing, or unsecured can result in
evisceration/disembowelment.
Mechanical Entrapment - There is potential for jewelry, swimsuits, hair decorations, fingers, toes, or knuckles to be
caught in an opening of a suction outlet cover resulting in mechanical entrapment.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 6 of 36 TriStar VS Pump IS3200VSP Rev-C
WARNING – To Reduce the risk of Entrapment Hazards:
When outlets are small enough to be blocked by a person, a minimum of two functioning suction outlets per
pump must be installed. Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of
three feet (3’) [0.91 meter] apart, as measured from near point to near point.
Dual suction fittings shall be placed in such locations and distances to avoid “dual blockage” by a user.
Dual suction fittings shall not be located on seating areas or on the backrest for such seating areas.
The maximum system flow rate shall not exceed the values shown in the “Pipe Sizing Chart” found in section
4.3 below.
Never use pool or spa if any suction outlet component is damaged, broken, cracked, missing, or not securely
attached.
Replace damaged, broken, cracked, missing, or not securely attached suction outlet components
immediately.
In addition to two or more suction outlets per pump installed in accordance with latest APSP standards and
CPSC guidelines, follow all national, state, and local codes applicable.
Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended.
WARNING – Hazardous Pressure. Pool and spa water circulation systems operate under hazardous
pressure during start-up, normal operation, and after pump shut-off. Stand clear of circulation system equipment
during pump start-up. Failure to follow safety and operation instructions could result in violent separation of the
pump housing and cover due to pressure in the system, which could cause property damage, severe personal injury,
or death. Before servicing pool and spa water circulation system, all system and pump controls must be in off
position and filter manual air relief valve must be in open position. Before starting pump, all system valves must be
set in a position to allow system water to return back to the pool. Do not change filter control valve position while
pump is running. Before starting pump, fully open filter manual air relief valve. Do not close filter manual air relief
valve until a steady stream of water (not air or air and water mix) is discharged from the valve. All suction and
discharge valves MUST be OPEN when starting the circulation system. Failure to do so could result in severe
personal injury and/or property damage.
WARNING – Separation Hazard. Failure to follow safety and operation instructions could result in violent
separation of pump components. Strainer cover must be properly secured to pump housing with strainer cover lock
ring. Before servicing pool and spa circulation system, all system and pump controls must be in off position and
filter manual air relief valve must be in open position. Do not operate pool and spa circulation system if a system
component is not assembled properly, damaged, or missing. Do not operate pool and spa circulation system unless
filter manual air relief valve body is in locked position in filter upper body. All suction and discharge valves MUST be
OPEN when starting the circulation system. Failure to do so could result in severe personal injury and/or property
damage.
WARNING – Never operate the circulation system at more than 50 PSI maximum.
WARNING – Fire and burn hazard. Motors operate at high temperatures and if they are not properly
isolated from any flammable structures or foreign debris they can cause fires, which may cause severe personal
injury or death. It is also necessary to allow the motor to cool for at least 20 minutes prior to maintenance to
minimize the risk for burns.
WARNING – Failure to install according to defined instructions may result in severe personal injury or
death.
SAVE THESE INSTRUCTIONS

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 7 of 36 TriStar VS Pump IS3200VSP Rev-C
2.General Information
2.1. Introduction
This manual contains information for the proper installation and operation of the Hayward TriStar VS Variable Speed
Pump. The instructions in this manual MUST be followed precisely.
2.2. Primary Features
Totally enclosed, permanent magnet motor
Advanced hydraulic design
Fully programmable with a self-contained 24-hour clock and up to 8 custom speed and timer functions
(SP3200VSP only)
For enhanced pool management, can be controlled by Hayward (SP3200VSPND only) or third party (SP3200VSP
only) pool and spa control platforms, without the need for additional accessories
Digital control interface that can be mounted in four different positions on the pump or removed and mounted
on the wall
No-rib, extra large basket design ensures easy debris removal and extends time between cleanings
Motor drive includes built-in protection for high temperatures and voltage fluctuations. Drive is also designed to
withstand temperatures below freezing without issue
2.3. Product Dimensions

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 8 of 36 TriStar VS Pump IS3200VSP Rev-C
3.Energy Efficiency Overview
The energy consumed by a pool pump is measured in terms of Watts (W) or Kilowatts (kW). The TriStar VS Variable Speed
Pump displays power consumption in Watts. Given this information, you can determine the cost of operating the pump:
Power consumption of pump X Cost of electricity = Cost of Pump Operation per Hour
Example: TriStar VS Variable Speed Pump operating at 300 W. Cost of electricity = $0.10 per kWh
Convert Watts to Kilowatts: 300 W = 0.3 kW
0.3 kW X $0.10/kWh = $0.03 per hour
Note the power consumption is greatly affected by the speed of the pump. Lowering the speed of the pump can
drastically reduce the power that is consumed. Below are some of the major benefits of running the pump at lower
speeds.
Benefits of running at low speeds
Save electricity and money
Improved filtration – the filter can often remove smaller particles when the water moves slower
Quiet operation
Reduced Total Dynamic Head – less stress on equipment (e.g. filter) which can lengthen equipment life
When determining the speed(s) to operate your pump, you must also take into account the minimum requirements for
proper sanitation and equipment/water feature functionality.
It is recommended you filter (“turnover”) all the water in the pool at least once every 24 hours. Check with local
requirements for the minimum turnover rate. Running the pump at a lower speed may require running the pump for a
longer period of time in order to meet the turnover requirements for proper sanitation.
Equipment such as heaters, skimmers, and chlorinators require minimum flows to operate correctly. Refer to individual
equipment manuals for specific flow requirements.
After setting the pump speed(s), it is recommended you check that all other equipment/water features are functioning as
intended. For example, when running at a low speed for daily filtration, verify water is adequately flowing over the
skimmer weirs. Operate the pump at higher speeds for the shorter periods of time needed to operate a heater, water
feature, etc.
4.Installation and Wiring
WARNING – This product should be installed and serviced only by a qualified professional.
4.1. Pump Location
Locate pump as close to pool as practical and run suction lines as direct as possible to
reduce friction loss. Suction lines should have continuous slope upward from lowest
point in line. Joints must be tight (but not over-tightened). Suction line diameter must
equal or be larger than the discharge line diameter.
Though the pump is designed for outdoor use, it is advised to place pump and filter in
the shade to shield them from continuous direct heat. Select a well-drained area that
will not flood when it rains. Do NOT install pump and filter in a damp or non-ventilated location. Keep motor clean.
Pump motors require free circulation of air for cooling.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 9 of 36 TriStar VS Pump IS3200VSP Rev-C
4.2. Pump Mounting
Install pump on a level concrete slab or other rigid base to meet all local and national codes. Secure pump to base
with screws or bolts to further reduce vibration and stress on pipe or hose joints. The base must be level, rigid, and
vibration free.
Pump mount must:
Allow pump inlet height to be as close to water level as possible.
Allow use of short, direct suction pipe (to reduce friction losses).
Allow for valves in suction and discharge piping.
Be protected from excess moisture and flooding.
Allow adequate access for servicing pump and piping.
4.3. Pipe Sizing Chart
MAXIMUM RECOMMENDED SYSTEM FLOW RATE BY PIPE SIZE
Pipe Size
in. [mm]
Maximum Flow Rate
GPM [LPM]
Minimum Straight
Pipe
Length “L” in. [mm] *
1 ½” [50]
45 [170]
7 ½” [190]
2” [63]
80 [300]
10” [254]
2 ½” [75]
110 [415]
12 ½” [317]
3” [90]
160 [600]
15” [381]
* Note: It is recommended that a minimum length of straight piping (shown as “L” in above diagram), equivalent to
5 pipe size diameters, be used between the pump suction inlet and any plumbing fittings (elbows, valves, etc.).
When installing the TriStar VS, care should be taken to ensure proper pipe and equipment sizing to handle the
maximum flow required. It is recommended to set the maximum speed in order to not exceed the maximum flow
rate. See section 6.6 item #7.
WARNING – Hazardous Pressure. Pumps, filters, and other equipment/ components of a swimming pool
filtration system operate under pressure. Incorrectly installed and/or improperly tested filtration equipment and/or
components may fail resulting in severe personal injury or death.
4.4. Plumbing
1. Use Teflon tape to seal threaded connections on molded plastic components. All plastic fittings must be new or
thoroughly cleaned before use. NOTE - Do NOT use Plumber’s Pipe Dope as it may cause cracking of the plastic
components. When applying Teflon tape to plastic threads, wrap the entire threaded portion of the male fitting
with one to two layers of tape. Wind the tape clockwise as you face the open end of the fitting, beginning at the
end of the fitting. The pump suction and outlet ports have molded-in thread stops. Do NOT attempt to force
hose connector fitting past this stop. It is only necessary to tighten fittings enough to prevent leakage. Tighten
fitting by hand and then use a tool to engage fitting an additional 1 ½ turns. Use care when using Teflon tape as
friction is reduced considerably; do NOT over-tighten fitting or you may cause damage. If leaks occur, remove
connector, clean off old Teflon tape, re-wrap with one to two additional layers of Teflon tape, and re-install
connector.
2. Fittings (elbows, tees, valves, etc.) restrict flow. For better efficiency, use the fewest possible fittings. Avoid
fittings that could cause an air trap. Pool and spa fittings MUST conform to the International Association of
Plumbing and Mechanical Officials (IAPMO) standards.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 10 of 36 TriStar VS Pump IS3200VSP Rev-C
4.5. Electrical
WARNING – All electrical wiring MUST conform to local codes, regulations, and the National Electric Code
(NEC).
WARNING – Ground and bond pump before connecting to electrical power supply. Failure to ground and
bond pump can cause serious or fatal electrical shock hazard. Do NOT ground to a gas supply line. To avoid
dangerous or fatal electrical shock, turn OFF power to pump before working on electrical connections. Fire Hazard -
match supply voltage to pump nameplate voltage. Insure that the electrical supply available agrees with the pump’s
voltage, phase, and cycle, and that the wire size is adequate for the amps rating and distance from the power
source. Use copper conductors only.
4.6. Electrical Specs
1. Voltage: 230VAC, 60Hz, Single Phase
2. Amps: 0.4 - 11.0
3. Speed Range: 600-3450 rpm
Use copper conductors only. For indoor & outdoor use. Connect pump to a 15 amp branch circuit in accordance with
local codes, regulations, and the National Electric Code (NEC). A disconnecting means located at least 5 ft. from the
inside wall of the pool, spa, or hot tub must be provided.
4.7. Voltage
Voltage at pump MUST NOT be more than 10% above or below nameplate rated voltage, or components may
overheat, causing overload tripping and reduced component life. If voltage is less than 90% (207 VAC) or more than
110% (253 VAC) of rated voltage (230VAC) when pump is running at full load, consult the power company.
4.8. Grounding and Bonding
1. Install, ground, bond, and wire pump in accordance with local or national electrical code requirements.
2. Permanently ground pump. Use green ground terminal provided under access plate; use size and type wire
required by code. Connect ground terminal to electrical service ground.
3. Bond pump to pool structure. Bonding will connect all metal parts within and around the pool with a continuous
wire. Bonding reduces the risk of a current passing between bonded metal objects, which could potentially
cause electrical shock if grounded or shorted. Reference NEC codes for all wiring standards including, but not
limited to, grounding, bonding and general wiring procedures.
4. Use a solid copper conductor, size 8 or larger. Run wire from external bonding lug to reinforcing rod or mesh.
Connect a No. 8 AWG (8.4 mm2) [No. 6 AWG (13.3 mm2) for Canada] solid copper bonding wire to the pressure
wire connector provided on the motor housing and to all metal parts of swimming pool, spa, or hot tub, and to
all electrical equipment, metal piping (except gas piping), and conduit within 5 ft. (1.5 m) of inside walls of
swimming pool, spa, or hot tub.
4.9. Wiring
WARNING – All electrical wiring MUST conform to local codes, regulations, and National Electric Code (NEC)
1. Pump MUST be permanently connected to circuit. If other lights or appliances are also on the same circuit, be
sure to add their amp loads before calculating wire and circuit breaker sizes. Use the circuit breaker as the
master On-Off switch.
2. If the TriStar VS pump is being used to replace an existing pump that was controlled by a separate mechanical
time clock, the TriStar VS pump should be connected directly to the line power supply, bypassing the time clock.
The time clock can then be used to power other equipment (such as a heater, heat pump, or booster pump) that
requires the filter pump to be operating when used. If the time clock is used in this manner, it should be set to

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 11 of 36 TriStar VS Pump IS3200VSP Rev-C
power the equipment during a time cycle when the TriStar VS pump is operating at an appropriate flow rate to
operate the other equipment, as defined by the timers set in the Timer Menu. See section 6.7
4.10. Remote Control Wiring/Operation
TriStar VS can be controlled in a wide variety of ways as described below:
1. TriStar VS (SP3200VSP) can operate by itself in Stand-Alone Mode using its built-in programmable timers.
2. TriStar VS (SP3200VSP) can also be controlled from third party controls (i.e. another manufacturer’s control) and
Hayward controls that are not software compatible using relay contacts. See section 5.3 for more information
regarding connecting TriStar VS and third party/non-software compatible Hayward controls.
3. TriStar VS (SP3200VSPND) can communicate with and be controlled by Hayward Pro Logic. See section 5.4 for
more information regarding connecting TriStar VS and Hayward Pro Logic.
4.11. Digital Control Interface Orientation
The Digital Control Interface can be rotated to any of four desired positions after installation by removing the two
screws securing the interface to the motor drive, lifting the interface and rotating it to the desired position, and
replacing the two screws in the new position. (Figure 4.11-1)
Figure 4.11-1

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 12 of 36 TriStar VS Pump IS3200VSP Rev-C
4.12. Interface Wall Mounting
The interface can also be wall mounted using the parts supplied in the wall mount kit using the following procedure.
1. TURN OFF THE ELECTRICAL POWER AT THE CIRCUIT BREAKER.
2. Remove the two screws securing the interface to the motor drive. (Figure 4.12-1)
3. Disconnect the short cable that extends out from the motor drive to the interface. (Figure 4.12-1)
4. Loosen the three screws securing the interface mounting plate to the motor drive and remove the interface
mounting plate to gain access to the drive wiring compartment. (Figure 4.12-2)
5. Disconnect the short cable on the interface mounting plate from the RS485 terminal block on the drive PCB.
Apply electrical tape to the exposed conductors. See (Figure 4.12-2)
6. Mount the wall mount plate, SP3200DR10, in the desired location. (Figure 4.12-4)
7. Connect the interface cable as shown in the Wall Mounted Digital Control Interface Wiring diagram shown in
section 5.2 to the motor drive RS485 terminal block and interface PCB. Use multi-conductor, jacketed cable
suitable for the installation location. The cable must be routed through the left side conduit opening on the
motor drive and through the slot provided on the backside of the wall mount plate, SP3200DR10. Use a liquid
tight cordgrip, appropriately sized for the cable being used, to seal the left side conduit opening. Cable used
may be up to 500 feet in length. (Figure 4.12-4)
8. Mount the interface to the wall mount plate, SP3200DR10, using the two screws. (Figure 4.12-4)
9. Reinstall the interface mounting plate, taking care to make sure it is properly aligned with the motor drive, and
tighten the three screws to secure.
10. Install the blank cover, SP3200DR9, on the motor drive in the desired orientation. This cover is important to
protect internal electronics. (Figure 4.12-3)
11. Apply power to the system and resume normal operation.
The following diagrams illustrate the interface wall mounting procedure.
Figure 4.12-1: Removing the Digital Control Interface for Wall Mounting

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 13 of 36 TriStar VS Pump IS3200VSP Rev-C
Figure 4.12-2: Removing the Interface Mounting Plate to access the Drive wiring compartment
Figure 4.12-3: Adding the Blank Cover

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 14 of 36 TriStar VS Pump IS3200VSP Rev-C
Figure 4.12-4: Wall Mounting the Interface
4.13. Installation Procedure
Please review sections 4.1 through 4.12 before continuing with this section.
1. TURN OFF THE ELECTRICAL POWER AT THE CIRCUIT BREAKER.
2. Remove the two screws securing the interface to the motor drive.
3. Disconnect the short cable that extends out from the motor drive to the interface.
4. Loosen the three screws securing the interface mounting plate to the motor drive and remove the interface
mounting plate to gain access to the drive wiring compartment.
5. Disconnect the short cable on the interface mounting plate from the RS485 terminal block on the drive PCB.
6. Connect 230VAC line power supply wiring to the terminals and ground screw as shown in the Input Power Wiring
diagram. Wiring must be routed through the right side conduit opening. See section 5.1 for diagram.
7. If the pump will be controlled using a Hayward Pro Logic control (SP3200VSPND only), connect a two-conductor
cable as shown in the Hayward Pro Logic Control Wiring diagram. See section 5.4.
8. If the pump will be controlled using relay contacts from an external control (SP3200VSP only), connect the
digital input terminals to the relay contacts as shown in the External Relay Speed Control Wiring diagram. See
section 5.3.
9. If the installation will use the remote stop feature of the drive, connect the digital input terminals to the remote
stop switch as shown in the Remote Stop Wiring diagram. See section 5.5.
10. Wiring for remote control and/or remote stop functions must be routed through the left side conduit opening.
Use a multi-conductor, jacketed cable suitable for the installation location. Use a liquid tight cordgrip,
appropriately sized for the cable being used, to seal the left side conduit opening.
11. Connect the pump to the pool bonding system using 8AWG (6AWG for Canada) wire. A lug for bonding is
provided on the outside of the drive enclosure.
12. Reconnect the short cable on the interface mounting plate to the RS485 terminal block on the drive PCB.
13. After all electrical connections have been made, replace the interface mounting plate, taking care to make sure it
is properly aligned with the motor drive, and tighten the three screws to secure.
14. Reconnect the short cable that extends out from the motor drive to the interface.
15. Mount the interface to the interface mounting plate in the desired orientation.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 15 of 36 TriStar VS Pump IS3200VSP Rev-C
16. Apply power to the system, and proceed to “Configuration Menu”, section 6.6 (SP3200VSP only), or see section
5.4 for details regarding Pro Logic control of SP3200VSPND.
5.Wiring Diagrams
5.1. Input Power Wiring (Required)
Figure 5.1-1
DRIVE HIGH VOLTAGE CONNECTIONS
5.2. Wall Mounted Digital Control Interface Wiring (Optional)
Figure 5.2-1
Note: Connection wire must be rated for a minimum of 300V, and may be up to 500 feet in length. Use removable
4-position terminal block connectors for wiring connection to interface and motor drive PCB’s taking care to note the
wire colors and corresponding numbers next to the connectors. SW200 DIP switch #1 and #2 must be “ON”.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 16 of 36 TriStar VS Pump IS3200VSP Rev-C
5.3. External Relay Speed Control Wiring (For remote selection of pump speed)
Note: For third party controls and Hayward controls that are NOT software compatible.
Figure 5.3-1
Connection wire must be rated for a minimum of 300V. Inputs are rated to accept a low voltage supply of 18-30VAC
(24VAC+/-20%) or 9-30VDC (12/24VDC +/-20%). SW200 DIP switch #1 and #2 must be “ON”.
The TriStar VS pump can be controlled from third party pool controls as well as Hayward controls that are not
software compatible using relay contacts to select the speeds set in the Timer Menu (see section 6.7). In addition to
this section you may also consult the applicable pool control installation manual for electrical connection details.
Once installed, Remote Control Mode must be set to Relay Control in the pump Configuration Menu (see section 6.6).
Preset Speeds 1-4 and Quick Clean are disabled when the pump is remotely controlled. When inputs STEP 1-3 are
activated via the pool control relay contacts, timer speeds 1-8 are selected according to the following table (see
section 6.7):
Timer
Speed
STEP 1
Status
STEP 2
Status
STEP 3
Status
1
OFF
OFF
OFF
2
ON
OFF
OFF
3
OFF
ON
OFF
4
ON
ON
OFF
5
OFF
OFF
ON
6
ON
OFF
ON
7
OFF
ON
ON
8
ON
ON
ON
The number of speeds available depends on the number of auxiliary relays used as noted below:
1. Filter pump relay plus 1 auxiliary relays allows control of 2 speeds
2. Filter pump relay plus 2 auxiliary relays allows control of 4 speeds
3. Filter pump relay plus 3 auxiliary relays allows control of 8 speeds

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 17 of 36 TriStar VS Pump IS3200VSP Rev-C
5.4. Hayward Pro Logic Control Wiring (For remote control of pump speed)
Note: For software compatible Hayward Pro Logic controls only
Figure 5.4-1
The TriStar VS pump can communicate with and be controlled by the Hayward Pro Logic pool control (SP3200VSPND
only). The ProLogic must have a minimum software revision of 4.41 or higher. To determine Hayward control
software revision, consult the appropriate Hayward pool control installation manual or visit our website at
www.haywardpool.com. Connection wire must be rated for a minimum of 300V, and may be up to 500 feet in length.
Use removable 4-position terminal block connector for wiring connection to motor drive PCB taking care to note the
wire colors and corresponding numbers next to the connectors.
Once installed, the pump address must be set using the SW200 DIP switch on the drive PCB. To determine which
address should be used, consult the appropriate Hayward Pro Logic pool control installation manual, or visit our
website at www.haywardpool.com. Pump addresses are set according to the following table:
SW200 DIP SWITCH STATUS
PUMP
ADDRESS
#1
#2
#3
#4
#5
Pool Filter
OFF
OFF
OFF
OFF
OFF
Aux 1 / Spa Filter
OFF
ON
OFF
OFF
OFF
Aux 2
OFF
OFF
ON
OFF
OFF
Aux 3
OFF
ON
ON
OFF
OFF
Aux 4
OFF
OFF
OFF
ON
OFF
Aux 5
OFF
ON
OFF
ON
OFF
Aux 6
OFF
OFF
ON
ON
OFF
Aux 7
OFF
ON
ON
ON
OFF
Aux 8
OFF
OFF
OFF
OFF
ON
Aux 9
OFF
ON
OFF
OFF
ON
Aux 10
OFF
OFF
ON
OFF
ON
Aux 11
OFF
ON
ON
OFF
ON
Aux 12
OFF
OFF
OFF
ON
ON
Aux 13
OFF
ON
OFF
ON
ON
Aux 14
OFF
OFF
ON
ON
ON
Lights Button
OFF
ON
ON
ON
ON

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 18 of 36 TriStar VS Pump IS3200VSP Rev-C
5.5. Remote Stop Switch Wiring (Optional)
Figure 5.5-1
Note: Connection wire must be rated for a minimum of 300V. Switch must be latching type; pump is stopped when
circuit is closed. Inputs are rated to accept a low voltage supply of 18-30VAC (24VAC +/-20%) or 9-30VDC (12/24VDC
+/-20%).
6.Startup & Operation
6.1. Prior to Start-Up
If it is necessary to perform a water pressure test prior to initial use to ensure plumbing system is functioning
properly, then the following criteria should be maintained for this test:
1. Have a professional perform this test.
2. Ensure all Hayward pump and system components are removed from system prior to performing test.
WARNING – If circulation equipment must remain in the plumbing system during water pressure test, do
not apply more than 10 psi pressure to the system. Be sure water pressure has been released, using the filter
manual air relief valve, before removing pump strainer cover.
WARNING – All suction and discharge valves MUST be OPEN, as well as filter air relief valve (if available) on
filter, when starting the circulating pump system. Failure to do so could result in severe personal injury.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 19 of 36 TriStar VS Pump IS3200VSP Rev-C
6.2. Starting/Priming the Pump
Refer to item #9 in section 6.6 for priming time selection.
Fill strainer housing with water to suction pipe level. If water leakage occurs from anywhere on the pump or filter, DO
NOT start the pump. If no leakage occurs, stand at least 10 feet from pump and/or filter and proceed with starting
the pump.
WARNING – Return to filter to close filter manual air relief valve when a steady stream of water (not air or air
and water) is discharged from valve. Failure to do so could result in severe personal injury.
ATTENTION – NEVER OPERATE THE PUMP WITHOUT WATER. Water acts as a coolant and lubricant for the
mechanical shaft seal. NEVER run pump dry. Running pump dry may damage seals, causing leakage, flooding, and
voids warranty. Fill strainer housing with water before starting motor.
ATTENTION – Do NOT add chemicals to pool/spa system directly in front of pump suction. Adding
undiluted chemicals may damage pump and voids warranty.
ATTENTION – Before removing strainer cover:
1. STOP PUMP before proceeding.
2. CLOSE VALVES in suction and outlet pipes.
3. RELEASE ALL PRESSURE from pump and piping system using filter manual air relief valve. See filter owner’s
manual for more details.
4. Remove strainer cover and fill strainer housing with water.
5. Clean and lubricate strainer cover O-ring with "Jack's 327" if necessary.
6. Replace strainer cover on strainer housing.
7. OPEN VALVES in suction and outlet pipes.
NOTE - Tighten strainer cover lock ring by hand only (no wrenches).
Turn on power and wait for pump to prime, which can take up to ten (10) minutes. Priming time will depend on
vertical length of suction lift and horizontal length of suction pipe. If pump does NOT prime within 10 minutes, stop
motor and determine cause. Be sure all suction and discharge valves are open when pump is running. See
Troubleshooting Guide.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 20 of 36 TriStar VS Pump IS3200VSP Rev-C
6.3. User Interface Summary
Figure 6.3-1
1. Preset Speeds: Buttons labeled SPEED 1 thru SPEED 4 can be used to run the pump at a predetermined speed
for a certain length of time. Preset Speed settings can be quickly updated using the + and - arrow buttons to
change the speed and then pressing the > button to save the new speed setting. When a speed is selected, the
LED beside the button will illuminate to indicate operation.
a. Default Speeds:
Speed 1: 1000 rpm
Speed 2: 1750 rpm
Speed 3: 2500 rpm
Speed 4: 3250 rpm
2. Menu/navigation buttons: The MENU button will scroll through the setup menus when pressed. The < and >
arrow buttons are used to move between displays and to select parameters to edit, and the + and - arrow
buttons are used to change parameters.
3. Status LEDs: The CHECK SYSTEM LED will illuminate when the pump is experiencing an error condition. The
TIMERS ACTIVE LED will illuminate once timers have been programmed to run the pump, even if the pump is not
presently running.
4. Stop/Resume: This button is used to stop the pump to allow strainer basket cleaning, etc. When this button is
pressed, the pump will remain stopped until the button is pressed a second time to resume normal operation.
When the pump is stopped, the red LED beside the button will illuminate to indicate that the pump has been
stopped.
5. Quick Clean: QUICK CLEAN is a mode intended for use when the pool will be cleaned with a suction side
vacuum.
