Hayward Ntech Evac-sharkvac User manual
Hayward robotic cleaners represent the highest standard in design, performance, and quality. The
cleaner independently scrubs, vacuums, and lters your pool. It is completely automatic and requires
no installation, no attachments. Just drop it in and turn it on. Filter cleaning is much easier with the
top-access lter cartridge element. Adaptive Seek Control Logic (ASCL®) Microprocessor control
optimizes cleaning routine for each individual pool size and shape. Electronic Self-Diagnostics,
Overload Protection, and simple Direct Drive design with non-corrosive bearings provide high reliability.
HAYWARD POOL EUROPE - Parc Industriel de la Plaine de l’Ain - Allée des Chênes - 01150 Saint Vulbas - France
ISRC9740 - Rev F
OWNER’S MANUAL
Page 2 of 17 Robotic cleaner Rev. F
Basic safety precautions should always be followed, including the following: Failure to follow instructions can cause
severe injury and/or death.
⚠ This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for one of the
following signal words and be alert to the potential for personal injury.
⚠ warns about hazards that cause serious personal injury, death or major property damage
and if ignored presents a potential hazard.
⚠ warns about hazards that or cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are unpredictable
and unsafe.
The label indicates special instructions that are important but not related to hazards.
⚠ -
⚠
⚠
⚠
⚠
⚠
⚠
⚠ Before installing this product, read and follow all warning notices and instructions which
are included. Failure to follow safety warnings and instructions can result in severe injury, death, or property
damage.
⚠ Deterioration, discoloration or brittleness of any pool finish can be caused over time
separately by, or in combination with, age, incorrect pool water chemistry, improper installation, and other
factors. Customer hereby disclaims any and all claims, and releases Manufacturer from any and all claims
for damages to any pool plaster or vinyl liner in Customer’s pool by reason of the use and/or operation of the
Cleaner. Under no circumstances shall the Manufacturer be liable for any loss or damage, whether direct,
consequential or incidental, arising out of the use or inability to use the cleaner in Customer’s pool.
Page 3 of 17 Robotic cleaner Rev. F
⚠
The electrical supply to this product must be installed in accordance with all applicable
local codes (see p17) and ordinances. Improper installation will create an electrical hazard
which could result in death or serious injury to pool users or others due to electrical
shock, and may also cause damage to property.
⚠ Do not play with cleaner or cable or apply to body. Can trap or tear hair or body parts.
Cable can trip or entangle swimmers which could result in drowning.
⚠ Before installing the cleaner, understand cleaner coverage. The cleaner was not designed
to automatically clean steps or to work under a solar cover. It was also not designed to do
initial cleanup for a new pool installation.
Operating the Cleaner
⚠ A 30 mA differential protection device must be installed to protect your electrical outlet and
to prevent any possible electric shock. Failure to do so could create an electrical hazard
which could result in death or serious injury to pool users or others due to electrical shock
and may also cause damage to property.
⚠ switch the pool cleaner to if it is not immersed in the water. Operating the
cleaner out of the water may cause severe damage and will result in loss of warranty.
Always remember to turn off the power supply and unplug it from the power outlet
before removing the cleaner from the pool.
⚠ It is mandatory to allow a safety distance between the power supply and the pool as
required by the current installation standard (3.5 m minimum).
Page 4 of 17 Robotic cleaner Rev. F
Dear Hayward Robotic Cleaner Owner:
Thank you for choosing Hayward. In order to achieve optimal performance, please read and follow
these steps:
1. Allow the cleaner the rst 10 minutes of each use to calculate pool size and conguration. The
normal programmed cycle is not designed to begin until after this period.
2. Cleaner lter cartridges should be thoroughly cleaned after each use or as often as needed to ensure
cleaner’s optimal performance.
3. Before using your cleaner and especially when opening the pool for the rst time remove larger
items from the pool that may diminish the cleaner’s performance. Clean lter frequently when pool is
excessively dirty.
4. For the rst use, run cleaner for the full cycle (2 hours) to ensure a clean pool and give yourself a full
understanding of the cleaner’s capabilities. Subsequent cleanings may take less than a full cycle.
5. Cleaner may periodically go to the wall but not necessarily climb to the vertical position. This is a
normal part of the programmed cycle.
6. Cleaner may stop in the middle of the pool and reverse during cleaning cycle. This is a normal part
of the programmed cycle.
7. start cleaner out of the water. Power button should only be switched to position when
unit is submerged. The unit will automatically shut off, but it is best to put power switch in
position when unit completes cleaning.
8. Plug in only to a protected 230 V
outlet that is close and protected from short-circuits. Fit a 30 mA
differential protection device to protect people from electric shock caused by a possible break in the
electrical insulation.
9. Place the cleaner power supply so that it is at a minimum distance of 3.5 meters from the pool edge.
The length of the standard cleaner cable is 15.24 meters.
STOP READ THESE IMPORTANT OPERATING
TIPS BEFORE USING YOUR UNIT!
Page 5 of 17 Robotic cleaner Rev. F
Take a moment to get familiar with the cleaner using the gure 3. Throughout this manual reference to
this gure is made when referring to different components of the cleaner.

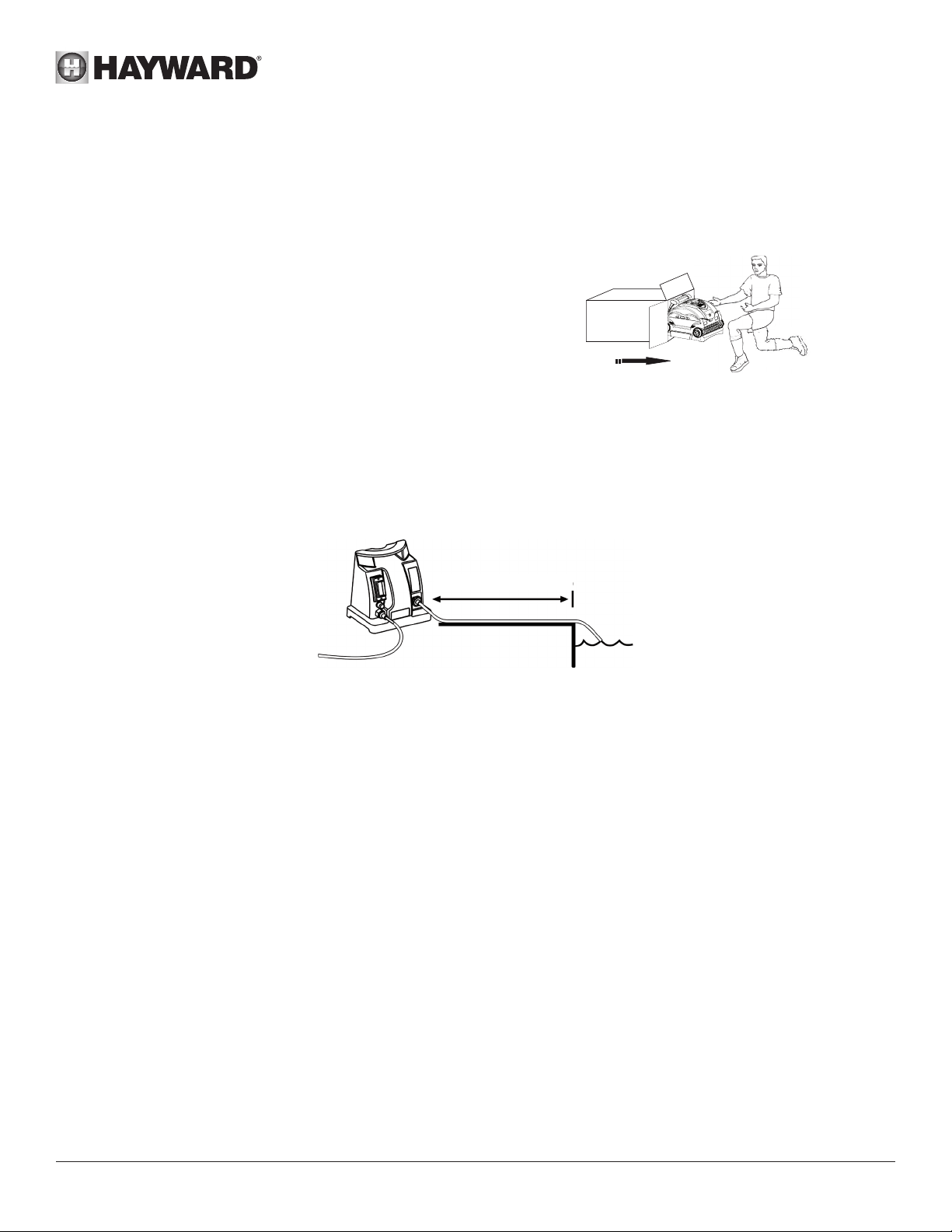

Remove the cleaner by placing the carton down and removing
it from the box as shown. The cleaner and the Power Supply is
premounted to the cart. See the gure 4 for Caddy Cart.
1. Select the nearest 230 V
outlet that is close and protected from short-circuits. Fit a 30 mA differential
protection device to protect people from electric shock caused by a possible break in the electrical
insulation.
2. Place the power supply so that it is at a minimum distance of meters from the pool edge. The
length of the standard cable is meters.
3. Connect the oating cable to the power supply. Use only the original Power Supply manufactured by
.
4. Place the cleaner in the pool. It will slowly sink to the bottom of the pool as the air inside is released.
5. Connect the power supply to the protected outlet and switch it on. The cleaner will perform a self-
diagnostics routine for several minutes before starting the cleaning cycle.
⚠ Caution: switch power supply when the cleaner is out of water. This may result in
damage to the pump and drive motor seals, which will the warranty.
6. The cleaner will automatically shut off after a cleaning cycle of 2 hours. If your pool is cleaned in less
time than 2 hours, you may shut the cleaner off manually by switching the power supply to the off
position.
Fig. 1
3.5 m
Fig. 2
Page 6 of 17 Robotic cleaner Rev. F
7. After the pool has been cleaned, switch OFF the power supply before removing the cleaner from the
pool.
8. Remove the cleaner from the water at the shallow end of the pool by pulling the cable until the cleaner
reaches the surface.
9. If the supply cord is damaged it must be replaced by the manufacturer, service agent, or similarly
qualied persons in order to avoid a hazard.
10. All electrical connections must be done by a qualied electrician according to local electrical standard
(see p16).
: When pulling the cable, reel it in hand-over-hand - do reel it around your arm.
Optimum operating water temperature range for the cleaner is
Remove the cleaner from the pool after each use. Keeping the cleaner permanently in the pool may
result in additional service requirements.
Page 7 of 17 Robotic cleaner Rev. F
Fig. 3
14
5
12
11
9
10
13
7
68
1
4
2
3
1. Power Supply 8. Wheel Brush
2. Floating Cable 9. Sealed Motor Unit
3. Handle 10. Side Panel
4. On/Off Switch 11. Dome Assy
5. Filter Cartridge 12. Filter Bucket
6. Drive Track 13. Wheel
7. Wheel Tube 14. Filter Door
Page 8 of 17 Robotic cleaner Rev. F

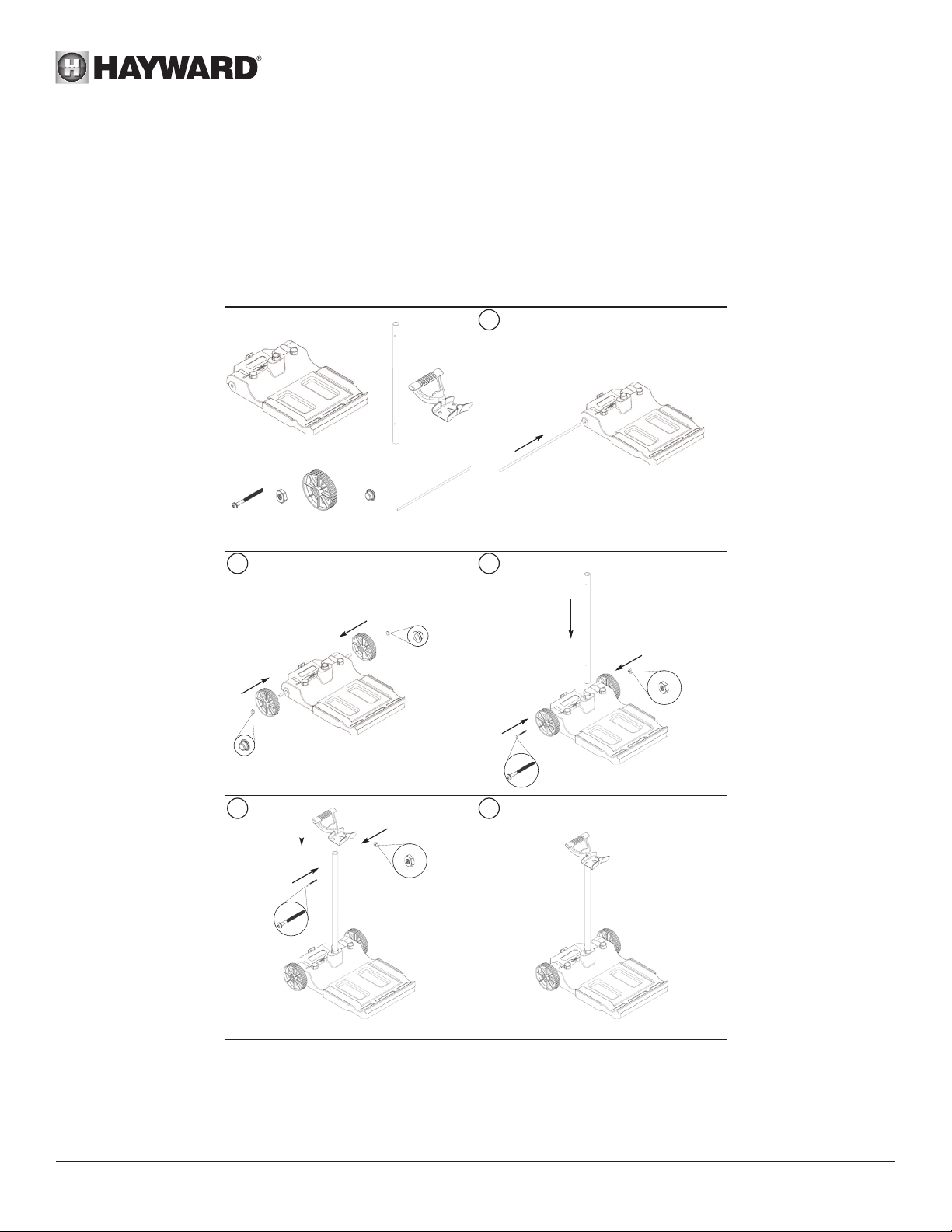

- Caddy Cart will come partially assembled in the carton less the handle & tube.
- Insert the screw into the tube at the base of the caddy cart & secure with bolt (3)
- Insert the handle into the top of the tube & insert the screw securing it with the bolt (4)
X 1 X 1
X 2 X 2 X 2 X 1
1
2 3
54
X 2
X 1
1
2
2
1
2
2
Fig. 4
Page 9 of 17 Robotic cleaner Rev. F

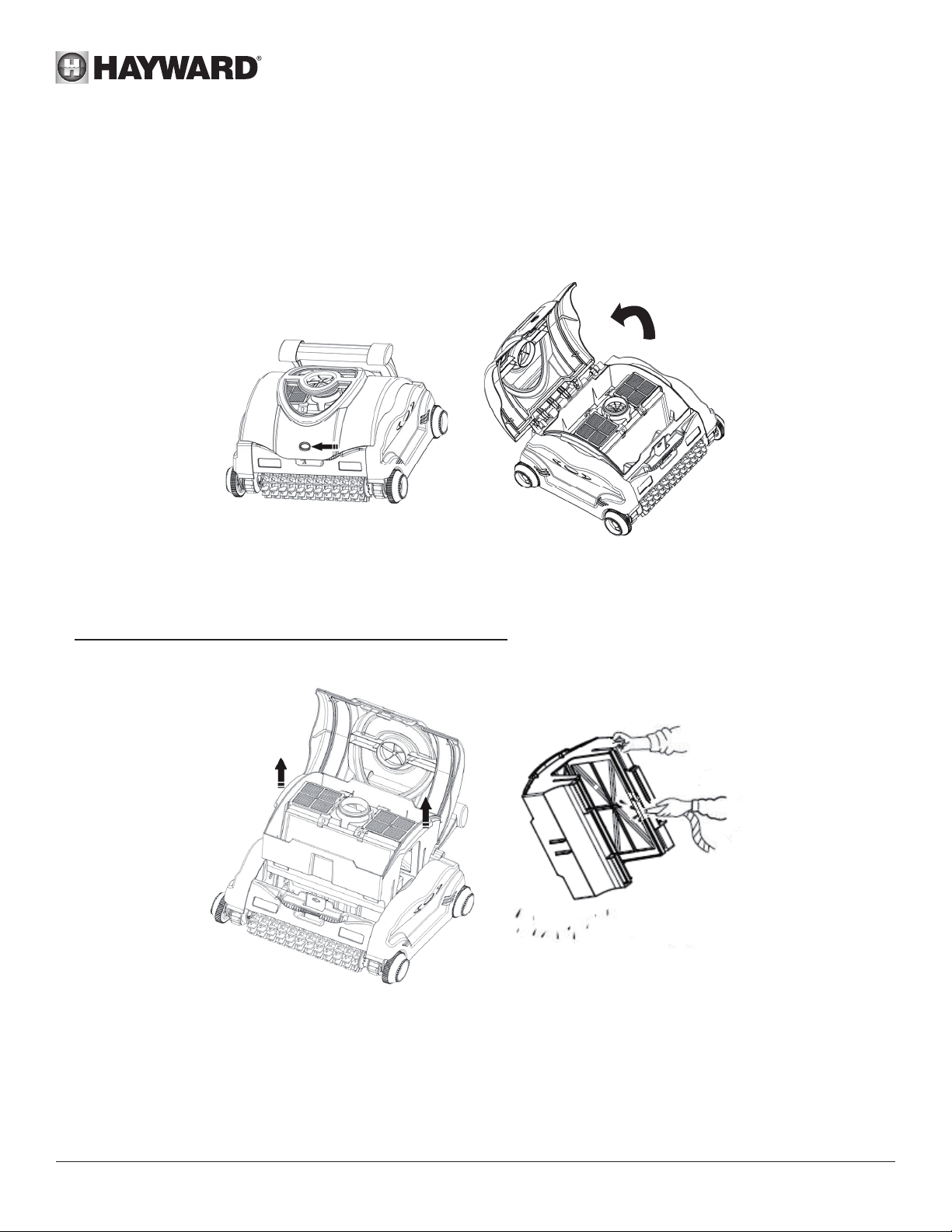

Clean the lter cartridge after each use:
1. Open the cleaner by pressing the lid button and lifting up the dome cover.
2. Remove the lter bucket assembly by lifting it up out of the cleaner with both hands from each side.
3. Flip the bucket assembly over to remove the debris and then rinse with a garden hose to remove
small particles.
4. Filter cartridges do not need to be removed to clean.
Page 10 of 17 Robotic cleaner Rev. F

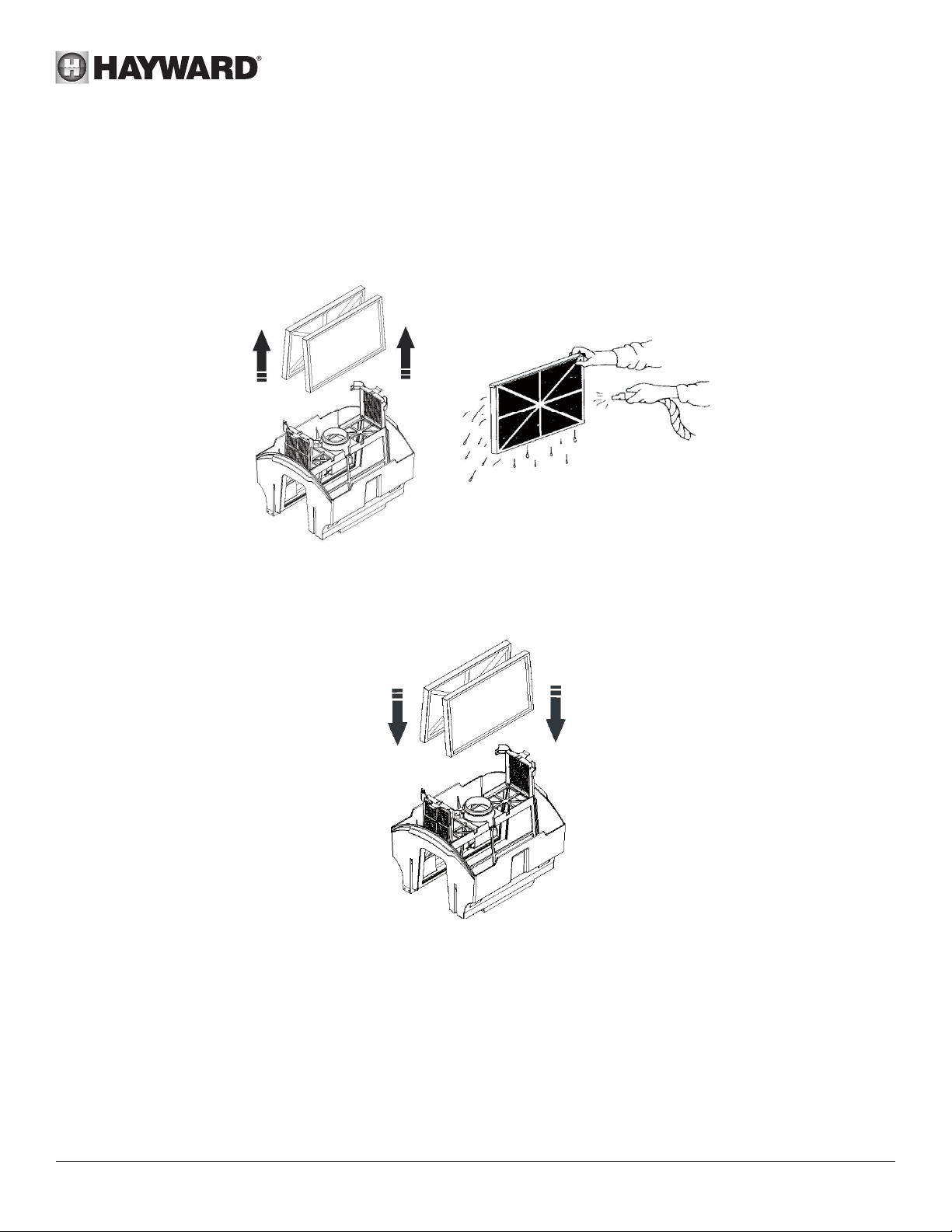

5. Remove the lter cartridges:
a. Unsnap and lift up both lter door latches.
b. Pull out the lter cartridges. Using a garden hose with a spray nozzle, wash the lter elements to
remove debris. Hold the lter elements as shown to allow the debris to fall out.
c. Wash the entire lter bucket assembly. (Previously shown).
d. Place the lter cartridges back into the lter bucket assembly with the center frame reinforcements
facing inward
e. Snap the lter door latches into place.
Page 11 of 17 Robotic cleaner Rev. F
Periodic Cleaning of Moving Parts
⚠ : Disconnect the power supply from electrical outlet before cleaning moving parts.
• Inspect the venturi to ensure that no debris or hair has clogged the impeller.
• The impeller can be cleaned by spraying it with a garden hose.
• Remove any debris that has accumulated between the tracks and wheels.
When unit is out of the water, store the cleaner in a dry, shady location at temperatures between
4°C-46°C
With continued use, the cable may become coiled (like a telephone cord). To correct this, periodically
stretching the cord out in the sun should remove any cord twists.
: The cable should be checked periodically for any external damage.
6. Return the lter bucket assembly into the cleaner using the diagram shown to determine the front and
back.
7. Close the dome and press the lid button to snap dome into place.
: Filter cleaning solution can be used to remove excessive dirt and/or sand.
Remember: The cleaner your lter is, the more cleaning will be effective.
Page 12 of 17 Robotic cleaner Rev. F
• Avoid dropping or throwing machine into pool. Place cleaner away from the pool wall but do not throw
the cleaner in the pool.
• Cleaning the lter cartridge after every use maximizes the unit’s performance.
• Replace worn brushes and foam rollers.
• To avoid clogging the cleaner’s lter elements, be sure all chemical powders are fully dissolved before
operating the cleaner.
• In a pool with high calcium content, more frequent cleaning of the lter is recommended.
• Save the original carton for extended storage or shipping requirements should your cleaner require
dealer service.
• Remove items such as thermometer, toys and the like from the pool before operating the unit. Such
items can jam the cleaner and cause damage to the unit and/or your pool.
• The lter bucket is designed to be cleaned with the lters installed for normal clean up. For deep
cleaning, the user can remove each lter cartridge and clean separately.
• During the normal operating cycle of the cleaner, the handle side of the unit will rise from the pool
bottom to allow the unit to clear obstacles, such as elevated main drains and stair steps.
• For cleaners used in areas that have a lot of sand the cleaner may need to be rinsed with water at all
apper (lter bucket’s apper is at intake port) areas, and may need rinsing at the dome push button
to allow free operation.
Page 13 of 17 Robotic cleaner Rev. F
• If the cleaner fails to pick up ne or heavy debris:
ο Clean the lter. It may be clogged. A lter cleaning solution can be used to remove excessive dirt
and/or sand
• If the cleaner starts working momentarily but then stops working:
ο Impeller may be clogged or jammed with debris, check and clean if necessary following the
instructions in the maintenance section.
ο Brush roller or drive tracks may be stuck, check for debris and clean if necessary.
o Cleaner performs by both timing and a pool wall detection sensor, whichever comes rst.
• It is normal to see the cleaner ride the wall for a short period of time; this allows the unit to change
position in the pool to assure full bottom coverage.
• Cleaner may get stuck if a high main drain is installed in the pool. Cleaner may remain lodged on the
drain for a short period of time, but will eventually free it’s self by virtue of the cleaner’s embedded
program.
• Perception of cleaner performance: Confusion may exist over the perception of how the cleaner
operates at different times during each cycle. It is important to judge the performance of the cleaner
by observing improved pool cleanliness after the cleaner has run a complete cleaning cycle.
• If a cleaner has poor coverage of the pool in one cycle or only covers a small area, check the lter and
clean if necessary and make sure the unit is not getting caught on drains, oor cleaning heads or toys.
The user may try starting the cleaner in different locations to nd the optimum cleaning location.
• If debris falls from cleaner while removing from pool, it may be caused by lter overload, increase
frequency of lter cleaning. Assure that there is no large debris blocking any of the three intakes.
Large debris must be removed from the pool before using machine. If drain aps are out of place or
stuck by sand or leaves in the open position, the aps can be snapped back into place, after cleaning
the area.
• If the otation cord gets twisted which can be caused by the cleaner getting stuck on large objects
such as rocks, toys or main drains, it can be straightened by laying the otation cord at full length (if
possible) in the sun; heat from the sun will help reduce the twisting.
• If a high level of debris is visible through the dome windows, remove cleaner quickly from the water to
reduce the chance of the debris escaping the lter bucket and reentering the pool.
Page 14 of 17 Robotic cleaner Rev. F
Weight (w/o cable) 9.75 Kg
Cable Length, Type 15.24 m
Materials High Impact ABS - Metal Parts of Non-Ferous Stainless Steel
Motor Unit Pump Drive PCB
Speed (rpm) 2 700 55 -
Voltage 24 V ⎓22 V ⎓5 V ⎓
Current (amp) 2.62 A 0.63 A -
Waterproof Sealing Double Redundant Radial Shaft Seals & O-ring
Motor Housing Sealed, Watertight, High Impact Polypropylene
Overload Protection Electronic Overload Monitoring with auto-shutoff
Filter
Type Removable, Re-Usable, Pleated Element Cartridge
Media Pleated Cellulose/Polyester Blend
Cleaning Routine Control
Type Adaptive Seek Control Logic (ASCL®) Microprocessor
Cleaning Cycle 2 hours
Drive System Direct Drive w/Polyurethane Drive Track & Acetal
Stainless Steel Bearing System
Power Supply
Input Primary Voltage 230 V
Output Secondary Voltage 24 V ⎓
Rated Output Current 4 A
Weight 3.8 Kg
Shipping
Length Width Height
Carton Dimensions (mm) 620 440 752
Shipping Weight with Caddy 22.3 Kg
Page 15 of 17 Robotic cleaner Rev. F
This robotic swimming pool cleaner has been manufactured with the highest degree of care and concern
for safety. We suggest the following safety precautions become part of your pool safety regulations:
1. ALWAYS PUT THE MACHINE INTO THE WATER BEFORE CONNECTING IT TO THE ELECTRICAL OUTLET.
2. T IS IMPORTANT FOR SWIMMERS’ SAFETY TO REMOVE THE UNIT IMMEDIATELY FOLLOWING USE. THIS CAN
ALSO IMPROVE THE OPERATING LIFE OF YOUR CLEANER.
3. BE CERTAIN THE MACHINE IS ONLY PLUGGED INTO A PROTECTED 230 V
OUTLET THAT IS PROTECTED
FROM SHORT-CIRCUITS. FIT A 30 MA DIFFERENTIAL PROTECTION DEVICE TO PROTECT PEOPLE FROM
ELECTRIC SHOCK CAUSED BY A POSSIBLE BREAK IN THE ELECTRICAL INSULATION.
4. DO NOT HANDLE MACHINE WHILE IT IS PLUGGED INTO THE ELECTRICAL OUTLET.
5. DO NOT USE AN EXTENSION CORD. THIS COULD CREATE A SAFETY HAZARD AND/OR DAMAGE YOUR
CLEANER.
7. NEVER ALLOW PLUG TO ENTER THE POOL.
8. DO NOT OPERATE THE MACHINE OUT OF WATER. THIS WILL DAMAGE THE MOTOR SEAL AND VOID THE
WARRANTY.
9. DO NOT DRAG THE MACHINE OUT OF THE POOL AGAINST THE SIDE WALL. THIS COULD DAMAGE UNIT AND/OR
YOUR POOL WALL.
⚠
While the cleaner has been made to operate as safely as possible, we suggest you exercise reasonable care in the handling
of the vacuum and inspect the electrical cord frequently for damage or wear, as with any other electrical appliance. After
use, remove the unit and rinse with fresh water and remove any twists that may be present in the cord.
Page 16 of 17 Robotic cleaner Rev. F
All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date
of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would
therefore advise you to keep your invoice.
The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD, of the faulty products, provided that they
have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products
have not been altered in any way, and provided that they have been used exclusively with HAYWARD parts and components.
The warranty does not cover damage due to frost and to chemicals. Any other costs (transport, labour, etc.) are excluded from
the warranty.
HAYWARD may not be held liable for any direct or indirect damage resulting from incorrect installation, incorrect connection,
or incorrect operation of a product.
In order to claim on a warranty and in order to request repair or replacement of an article, please ask your dealer.
No equipment returned to our factory will be accepted without our prior written approval.
The cleaner must be used with electrical requirements as indicated on the Power Supply. Otherwise damage, defects, malfunc-
tions or other failures of the cleaner arising from use on electrical supply not as indicated are excepted and excluded from this
warranty.
Defects, malfunctions, failure or damage of the cleaner caused by improper, unreasonable, or negligent use or abuse by the
consumer, are excluded from this warranty.
If any repair is made on your cleaner by anyone other than authorized personnel (designated to perform such work) without
first having obtained factory instructions, HAYWARD, at its sole option, may determine that this warranty will not apply and that
reimbursement for such repair will not be made because of failure to comply with such factory specified instructions.
Filter cartridges are not covered by this warranty and will be replaced only with your prior approval of the charges.
Electric standard/country
F NF C 15-100 GB BS7671:1992
D DIN VDE 0100-702 EW EVHS-HD 384-7-702
A ÖVE 8001-4-702 H MSZ 2364-702:1994 / MSZ 10-533 1/1990
E UNE 20460-7-702 1993, REBT ITC-BT-31 2002 M MSA HD 384-7-702.S2
IRL Wiring Rules + IS HD 384-7-702 PL PN-IEC 60364-7-702:1999
I CEI 64-8/7 CZ CSN 33 2000 7-702
LUX 384-7.702 S2 SK STN 33 2000-7-702
NL NEN 1010-7-702 SLO SIST HD 384-7-702.S2
P RSIUEE TR TS IEC 60364-7-702
Page 17 of 17 Robotic cleaner Rev. F
Congratulations on your purchase of a microprocessor controlled fully automatic pool cleaner. This
manual contains important information regarding the operation and maintenance of your cleaner. Please
retain it for reference. For Technical Assistance, call Hayward at +33 474 465 962.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Record the following information for your convenience:
1) Purchase Date_________________________________________________________
2) Complete Name ________________________________________________________
3) Address ______________________________________________________________
4) Zip code______________________________________________________________
5) Email Address__________________________________________________________
6) Part number______________________Serial number__________________________
7) Pool Dealer____________________________________________________________
__
8) Address_______________________________________________________________
9) Zip code____________________Country____________________________________
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hayward Robotic Cleaners should not be used to clean the pool for spring start-up. On those occasions,
where your pool is subjected to an abnormal debris load, maintenance steps should be taken to return
the pool to “pre-installations” condition.
This manual suits for next models
2
Table of contents
Other Hayward Swimming Pool Filter manuals
Hayward
Hayward ColorLogic Bubbler User manual
Hayward
Hayward AquaRite UV LS User manual
Hayward
Hayward SWIMPURE User manual
Hayward
Hayward S310T User manual
Hayward
Hayward S0166T User manual
Hayward
Hayward C1200 User manual
Hayward
Hayward SwimClear User manual
Hayward
Hayward Perflex EC40 User manual
Hayward
Hayward AQUARITE FLO User manual
Hayward
Hayward Aqua Rite Specification sheet
Hayward
Hayward DEX2420MAR2 User manual
Hayward
Hayward SwimClear User manual
Hayward
Hayward AquaRite S3 Series Installation guide
Hayward
Hayward S-210T User manual
Hayward
Hayward Aqua Rite® Pro User manual
Hayward
Hayward Saline C HCSC60EU User manual
Hayward
Hayward EcoStar User manual
Hayward
Hayward SandMaster SM1700T Series User manual
Hayward
Hayward S210SV User manual
Hayward
Hayward Aqua Plus® User manual
Popular Swimming Pool Filter manuals by other brands
AQUEA
AQUEA 475-201 Installation & Care Guide
BIO-LAB CANADA
BIO-LAB CANADA Pool Pilot Digital 60 Installation and operation manual
AquaTools
AquaTools AT71184 quick start guide
Steinbach
Steinbach 040590 instruction manual
DESJOYAUX PISCINES
DESJOYAUX PISCINES JD Surf user manual
New Water
New Water 400 user manual
CMP
CMP 25100 Series INSTALLATION INSTRUCTIONS & PRODUCT MANUAL
Tetra
Tetra PS1000 instructions
Clear Comfort
Clear Comfort CCW100 Installation, operation & maintenance manual
POLYGROUP LIMITED
POLYGROUP LIMITED RS600 Filter System with F600C Pump instructions
Zodiac
Zodiac Nature 2 Express Installation and operation manual
Lomart
Lomart Deluxe Thru-Wall Skimmer 1-4113-006 owner's guide
