HBM SomatXR CX23-R User manual

CX23-R and EX23-R
SomatXR Ultra-Rugged DAQ
User Manual
English

Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64293 Darmstadt
Germany
Tel. [phone]
Fax [phone]
i[email protected]
www.hbm.com
HBM, Inc.
19 Bartlett Street
Marlborough, MA 01752
USA
Tel. [phone]
i[email protected]om
Mat.:
DVS: a4275-8.0 en HBM: public
03.2018
© HBM, Inc.
Subject to modifications.
All product descriptions are for general information only. They are
not to be understood as a guarantee of quality or durability.

CX23-R and EX23-R a4275-8.0 enHBM: public 3
Contents Page
Safety instructions 8
1 Getting started 13
1.1 SomatXR hardware options 13
1.1.1 Module transducer overview 15
1.2 CX23-R data processor 17
1.2.1 Setting up a basic system 17
1.2.2 Configuring and running a basic test 19
1.3 EX23-R Ethernet switch 19
2 Setting up the hardware 21
2.1 Connecting MX modules to a CX23-R 21
2.2 Setting up SomatXR wireless 23
2.3 Setting up an Axis network camera 27
2.4 Setting up a remote power switch 29
2.5 Powering from a vehicle 29
3 Configuring the system 33
3.1 Configuring network settings 33
3.2 Managing users and privileges 34
3.3 Configuring MX modules for use with the CX23-R 35
3.4 Updating main processor firmware 36
4 Setting up and running a test 37
4.1 Setting up a test 37
4.2 Configuring input channels 37
4.2.1 Configuring TEDS sensors 37
4.2.2 Vector CAN databases 38
4.2.3 eDAQ CAN databases 38
4.2.4 HBM sensor databases 38
4.3 Input channels 39
4.3.1 Input channel generic parameters 39
4.3.2 Input channel scaling parameters 40
4.3.3 Analog channels 44
4.3.4 CAN channels 46
4.3.5 GPS channels 48
4.3.6 System channels 49
4.3.7 Digital input channels 49
4.3.8 Message channels 50
4.3.9 Camera channels 50

4 a4275-8.0 enHBM: public CX23-R and EX23-R
4.4 Computed channels 51
4.4.1 Computed channel generic parameters 51
4.4.2 Anomaly detect 52
4.4.3 Bitmap trigger 53
4.4.4 Directional velocity 53
4.4.5 Down sampler 54
4.4.6 Function generator 54
4.4.7 Profile generator 55
4.4.8 Integrator 55
4.4.9 Interactive trigger 56
4.4.10 Over range detector 56
4.4.11 Pulse frequency 56
4.4.12 Run stopper 57
4.4.13 Signal calculator 58
4.4.14 Smoothing filter 60
4.4.15 State mapper 61
4.4.16 Statistics 62
4.4.17 Time base shifter 63
4.4.18 Time channel 63
4.4.19 Timed trigger 63
4.4.20 Track 64
4.4.21 Triggered latch 64
4.4.22 Triggered zero suppression 65
4.4.23 Up sampler 65
4.5 Output channels 66
4.5.1 Analog output channels (MX878B) 66
4.5.2 Digital output channels 66
4.6 DataModes™ 67
4.6.1 DataMode™ generic parameters 67
4.6.2 Burst history 67
4.6.3 Burst message logger 68
4.6.4 Event slice 69
4.6.5 Message logger 69
4.6.6 Peak valley 70
4.6.7 Peak valley matrix 71
4.6.8 Rainflow 72
4.6.9 Time at level (One Dimensional) 74
4.6.10 Time history 75

CX23-R and EX23-R a4275-8.0 enHBM: public 5
4.7 Running a test 75
4.8 Personal computer support applications 76
5 SomatXR hardware 77
5.1 CX23-R Data Processor 77
5.1.1 CX23-R inputs and outputs 77
5.1.2 CX23-R status LEDs 78
5.1.3 CX23-R INPUT PWR and AUX PWR pin assignments 80
5.1.4 CX23-R CAN pin assignments 80
5.1.5 CX23-R DIO pin assignments 80
5.1.6 CX23-R GPS pin assignments 81
5.2 EX23-R PoE Switch 81
5.2.1 EX23-R status LEDs 81
5.2.2 EX23-R POWER pin assignments 82
5.3 MXB modules 82
5.3.1 MX840B-R Universal Module 84
5.3.2 MX1615B-R Bridge Module (Strain Gage Amplifier) 87
5.3.3 MX1601B-R Standard Module (Universal Amplifier) 89
5.3.4 MX1609KB-R Thermocouple Amplifier 91
5.3.5 MX411B-R Highly Dynamic Universal Module 92
5.3.6 MX460B-R Frequency / Counter Module 95
5.3.7 MX471B-R CAN Module 97
5.4 Inputs and wiring diagrams 99
5.4.1 Strain gage transducers 99
5.4.2 Inductive transducers 102
5.4.3 Piezoresistive transducers 105
5.4.4 Potentiometric transducers 106
5.4.5 Voltage sources 108
5.4.6 Current-fed piezoelectric transducers (IEPE, ICP®) 109
5.4.7 Current sources 110
5.4.8 Resistance-based measurements 112
5.4.9 Thermocouples 113
5.4.10 Digital inputs 114
5.4.11 Digital outputs 115
5.4.12 Digital timer inputs 117
5.4.13 Passive inductive encoder 123
5.4.14 Pulse width, pulse duration, period duration (PWM) 123
5.4.15 CAN devices 125

6 a4275-8.0 enHBM: public CX23-R and EX23-R
5.4.16 Encoders 126
5.4.17 Crank wheel sensors 131
6 Web browser interface 134
6.1 Recommended browsers 134
6.2 Interface tour 134
6.3 Grid interface 139
6.4 System logs 141
6.5 User preferences 141
6.6 Changing user password 144
6.7 System configuration 145
6.7.1 Profiles 145
6.7.2 Users 146
6.7.3 Databases 147
6.7.4 Networks 149
6.7.5 Notifications 150
6.7.6 FTP Servers 152
6.7.7 Date and time 153
6.7.8 Firmware 153
6.7.9 System preferences 154
6.7.10 Customer support 157
6.8 Test configuration 158
6.8.1 Test setup 158
6.8.2 Hardware 164
6.8.3 Input channels 166
6.8.4 Computed channels 169
6.8.5 Output channels 171
6.8.6 DataModes™ 173
6.9 Test and data control 174
6.9.1 Test control 175
6.9.2 SIE data 185
7 Operational notes 189
7.1 System timing 189
7.2 Data synchronization 190
7.3 Error handling 190
7.4 Long term unattended testing considerations 190
7.5 Troubleshooting 191
7.6 Reset to factory defaults rescue 191

CX23-R and EX23-R a4275-8.0 enHBM: public 7
7.7 Shunt scaling based on a known shunt scaling 192
7.8 SIE file metadata 192
7.9 SIE file size issues 197

Safety instructions
8 a4275-8.0 enHBM: public CX23-R and EX23-R
Safety instructions
Appropriate use
The module and the connected transducers may be used for measurement and
directly related control tasks only. Any other use is not appropriate.
To ensure safe operation, the module may only be used as specified in the operating
manual. It is also essential to follow the respective legal and safety regulations for
the application concerned during use. The same applies to the use of accessories.
Each time, before starting up the modules, you must first run a project planning and
risk analysis that takes into account all the safety aspects of automation technology.
This particularly concerns personal and machine protection.
Additional safety precautions must be taken in plants where malfunctions could
cause major damage, loss of data or even personal injury. In the event of a fault,
these precautions establish safe operating conditions.
This can be done, for example, by mechanical interlocking, error signaling, limit value
switches and such.
Safety rules
A module must not be connected directly to a power supply network. The maximum
permissible supply voltage is:
CX23-R modules 10 VDC ... 30 VDC
EX23-R module 10 VDC ... 36 VDC
MX modules 10 VDC ... 30 VDC
UPX modules (1-UPX001-2 or 1-UPX002-2) 10 VDC ... 30 VDC
CX22B(-R) modules 10 VDC ... 30 VDC
The supply connection, as well as the signal and sense leads, must be installed in
such a way that electromagnetic interference does not adversely affect device
functionality. (HBM recommendation: "Greenline shielding design," downloadable
from the Internet at www.hbm.com.)
Automation equipment and devices must be covered over in such a way that
adequate protection or locking against unintentional actuation is provided (such as
access checks, password protection, etc.).
When devices are working in a network, these networks must be designed in such a
way that malfunctions in individual nodes can be detected and shut down.
Safety precautions must be taken both in terms of hardware and software, so that a
line break or other interruptions to signal transmission, such as via the bus
interfaces, do not cause undefined states or loss of data in the automation device.

Safety instructions
CX23-R and EX23-R a4275-8.0 enHBM: public 9
Conditions on site
For all modules:
 Observe the maximum permissible ambient temperatures given in the
specifications.
 Minimize device exposure to direct sunlight in hot operating environments.
Maintenance and cleaning
The modules are maintenance-free. Please note the following when cleaning the
housing:
 Before cleaning, disconnect the equipment completely.
 Clean the housing with a soft, slightly damp (not wet) cloth. Never use solvents,
since these could damage the labeling on the front panel and the display.
 Do not apply high water pressure to the unit for cleaning.
General dangers of failing to follow the safety instructions
The module is a state of the art device and, as such, is fail-safe. The module may
give rise to further dangers if it is inappropriately installed and operated by untrained
personnel. Any person instructed to carry out installation, commissioning,
maintenance or repair of the module must have read and understood the User
Manuals and in particular the technical safety instructions.
Remaining dangers
The scope of supply and performance of the module covers only a small area of
measurement technology. In addition, equipment planners, installers and operators
should plan, implement and respond to the safety engineering considerations of
measurement technology in such a way as to minimize remaining dangers.
Prevailing regulations must be complied with at all times. There must be reference to
the remaining dangers connected with measurement technology. After making
settings and carrying out activities that are password-protected, you must make sure
that any controls that may be connected remain in safe condition until the switching
performance of the module has been tested.
Product liability
In the following cases, the protection provided for the device may be adversely
affected. Liability for device functionality then passes to the operator:
 The device is not used in accordance with the operating manual.
 The device is used outside the field of application described in this chapter.
 The operator makes unauthorized changes to the device.

Safety instructions
10 a4275-8.0 enHBM: public CX23-R and EX23-R
Working safely
Error messages should only be acknowledged once the cause of the error is
removed and no further danger exists.
The equipment complies with the EMC standards of EN61326-1 / EN61326-2-x.
These standards define emission limits and immunity requirements for multiple
environments.
With respect to emissions, the standards contain limits for industrial (class A) and
residential / commercial (class B) environments. The standard herein references
CISPR11:2009+A1:2010.
With respect to immunity, the standards contain limits for electromagnetic protected
(lowest requirements), general and industrial (highest requirements) environments.
The SomatXR modules listed in the declaration of conformity are conformal to the
requirements for:
 Emissions: Class A
 Immunity: Industrial
The SomatXR series and its modules are intended for use in an industrial
environment. When used in residential or commercial environments, additional
arrangements may be required to limit electromagnetic emissions.
Conversions and modifications
The module must not be modified from the design or safety engineering point of view
except with our expressed agreement. Any modification shall exclude all liability on
our part for any resultant damage.
In particular, any repair or soldering work on motherboards or replacement of
components is prohibited. When exchanging complete modules, use only original
parts from HBM.
The module is delivered from the factory with a fixed hardware and software
configuration. Changes can only be made within the possibilities documented in the
manuals.
Qualified personnel
Qualified persons means persons entrusted with the installation, fitting,
commissioning and operation of the product who possess the appropriate
qualifications for their function. This module is only to be installed and used by
qualified personnel, strictly in accordance with the specifications and the safety rules
and regulations.
This includes people who meet at least one of the three following requirements:
 Knowledge of the safety concepts of automation technology is a requirement and
as project personnel, you must be familiar with these concepts.

Safety instructions
CX23-R and EX23-R a4275-8.0 enHBM: public 11
 As automation plant operating personnel, you have been instructed how to handle
the machinery and are familiar with the operation of the modules and technologies
described in this documentation.
 As commissioning engineers or service engineers, you have successfully
completed the training to qualify you to repair the automation systems. You are
also authorized to activate, to ground and label circuits and equipment in
accordance with safety engineering standards.
It is also essential to comply with the legal and safety requirements for the
application concerned during use. The same applies to the use of accessories.
Markings used
The following symbols may be found on the module:
Meaning: Electrostatic sensitive device
Devices marked with this symbol can be damaged beyond repair by electrostatic
discharge. Please observe the handling instructions for components exposed to the
risk of electrostatic discharge.
Meaning: Electric shock hazard
Devices marked with this symbol may allow improper use to result in an electric
shock. Please observe handling instructions for components capable of delivering
an electric shock.
Meaning: CE mark
The CE mark enables the manufacture to guarantee that the product complies with
the requirements of the relevant CE directives (the declaration of conformity is
available at www.hbmdoc.com).
Meaning: Statutory waste disposal mark
National and local regulations regarding the protection of the environment and
recycling of raw materials require old equipment to be separated from regular
domestic waste for disposal.
For more detailed information on disposal, please contact local authorities or the
dealer from whom you purchased the product.
The following symbols may be found in this manual.
WARNING
Meaning: Dangerous situation
Warns of a dangerous situation in which failure to comply with safety
requirements can result in death or serious bodily injury.
CAUTION
Meaning: Potentially dangerous situation
Warns of a potentially dangerous situation in which failure to comply with safety
requirements could result in bodily injury or damage to property.

Safety instructions
12 a4275-8.0 enHBM: public CX23-R and EX23-R
NOTE
Meaning: Important information
Points out important information about the product or its handling.

1 Getting started
CX23-R and EX23-R a4275-8.0 enHBM: public 13
1 Getting started
1.1 SomatXR hardware options
The SomatXR Ultra-Rugged DAQ series is a modular and universally applicable
measurement system. The modules of this family can be individually combined and
intelligently connected according to the measurement task. The distributed operation
makes it possible to position individual modules close to the measuring points,
resulting in short sensor lines.
The SomatXR Ultra-Rugged DAQ series consists of the following modules:
The following ruggedized SomatXR MX modules are currently supported in
theCX23-R interface:
CX23-R data processor: The CX23-R hosts its own secure web-based data
recorder for intuitive and easy-to-use test setup, control, monitoring and data
visualization. This server-based interface supports multiple users, and the
capability to define system access restrictions on a per user basis. To manage
test data, the CX23-R has the capacity to perform a broad range of on-board data
processing. This includes a diverse set of computed channels for defining triggers
and gates for the Somat DataModes™ as well as supporting arbitrarily complex
mathematical computations. The acquired test data is stored in the efficient and
robust SIE file format using a high-speed SATA storage drive. In addition, the
CX23-R provides direct data sourcing for six interfaces including digital inputs and
outputs, three CAN ports, one GPS and one auxiliary port (AUX).
EX23-R Ethernet switch: The EX23-R is a ruggedized 10-port Gigabit switch that
supports IEEE1588 PTPv2 transparent clock time synchronization. The EX23-R
supports both IPv6 and IPv4 Internet protocols. Five ports provide Power over
Ethernet (PoE) to support cameras and other low power Ethernet based data
sources. This module is factory configured to work seamlessly with the CX23-R.
MX1601B-R Standard Module (Universal Amplifier): Up to 16 configurable inputs
for DC voltage sources (60 V, 10 V, 100 mV), DC current sources (20 mA) or
current-fed piezoelectric transducers (IEPE, ICP®).
MX1609KB-R Thermocouple Amplifier: Up to 16 type K thermocouples (NiCrNi)
for measuring temperatures.
MX1615B-R Bridge Module (Strain Gage Amplifier): Up to 16 individually
configurable inputs, including strain gage-based transducers, standardized
voltage and resistance or resistance-based measurements.
MX840B-R Universal Module: Up to eight (8) universal inputs for connecting more
than 16 transducer technologies including one connector compatible with CAN
inputs.
MX411B-R Highly Dynamic Universal Module: Up to four (4) inputs, including
strain gage and inductive bridges, standardized voltage and DC current sources
(20 mA) or current-fed piezoelectric (IEPE, ICP®) and piezoresistive transducers.
MX460B-R Frequency / Counter Module: Up to four (4) digital inputs to measure
digital pulses up to 1 MHz (speed, torque, angle position, displacement, PWM in
general). CX23-R/eDAQXR support is limited in the following aspects. Math

1 Getting started
14 a4275-8.0 enHBM: public CX23-R and EX23-R
functions are not supported. Interactive zeroing of the “crank shaft” sensors is not
supported.
MX471B-R CAN Module: Up to four (4) independent CAN bus nodes electrically
isolated from each other and from the power supply.

1 Getting started
CX23-R and EX23-R a4275-8.0 enHBM: public 15
1.1.1 Module transducer overview
 Transducer MX840B-R MX1615B-R MX1601B-R MX1609KB-R MX411B-R MX460B-R MX471B-R Wiring
diagram
Strain gage, full bridge
six-wire configuration ● ●   ●  99
Strain gage, half bridge
five-wire configuration ● ●   ●  99
Strain gage, quarter bridge
three- or four-wire configuration
●*
3-wire only ●  ●* 3-wire only   99
Inductive full bridge ●   ●  102
Inductive half bridge ●   ●  102
LVDT
(linear variable differential transformer) ●      102
Piezoresistive transducer ●   ●  105
Potentiometric transducer ● ●      106
Voltage,
60 V, 10 V, 100 mV ●● 60 V only ●● 10 V only   108
Current-fed piezoelectric
transducer
(IEPE, ICP®)
●† ●† ●†  109
Current, 20 mA ●●●  110
Resistance
or resistance-based measurements ● ●      112

1 Getting started
16 a4275-8.0 enHBM: public CX23-R and EX23-R
 Transducer MX840B-R MX1615B-R MX1601B-R MX1609KB-R MX411B-R MX460B-R MX471B-R Wiring
diagram
Resistance thermometer (RTD),
PT100 or PT1000 ●● PT100 only      112
Thermocouple ●‡  ●
K-type only 113
Frequency / pulse counter
(timer, TTL)
●
connectors
5-8
    ●117
Incremental encoder
(timer, TTL)
●
connectors
5-8
    ●117
Torque / speed
●
connectors
5-8
    ●117
Passive inductive encoder      ●123
PWM - Pulse width, pulse
duration, period duration      ●123
Crank wheel sensors      ●131
SSIprotocol
●
connectors
5-8
      117
CAN bus
database or raw message
●
connector 1     ●§ database only 125
* Use quarter bridge adapter 1-SCM-R-SG1000-2, 1-SCM-R-SG120-2 or 1-SCM-R-SG350-2.
† Use ODU 14-pin to BNC adapter 1-KAB430-0.3.
‡ Use thermocouple adapter 1-SCM-R-TCK-2 for K-type, other types need a dedicated adapter.
§ Including support for CCP/XCP-on-CAN (not in combination with CX23-R/EXRCPU).

1 Getting started
CX23-R and EX23-R a4275-8.0 enHBM: public 17
1.2 CX23-R data processor
The CX23-R data processor is the central module of the rugged SomatXR family. It
synchronizes all connected modules with Ethernet PTPv2, stores recorded
measurement data and provides computed channels and smart data compression
using Somat DataModes™. The SIE file format is used to assure data integrity and
to enable configuration parameters to be retrieved. In addition, the CX23-R provides
direct data sourcing for six interfaces including one DIO, three CAN, one GPS and
one AUX.
The CX23-R back panel includes the input power and AUX power ports, power
switch, status LEDs and Ethernet communication ports. The front panel includes the
connectors for DIO, GPS, AUX and CAN data inputs.
The CX23-R/eDAQXR hosts its own secure web interface for intuitive and easy to
use test setup, control, monitoring and data visualization interfaces. This server-
based interface supports multiple users and the capability to define system access
restrictions on a per user basis.
1.2.1 Setting up a basic system
To set up a CX23-R module with basic connectivity, perform the following steps:

1 Getting started
18 a4275-8.0 enHBM: public CX23-R and EX23-R

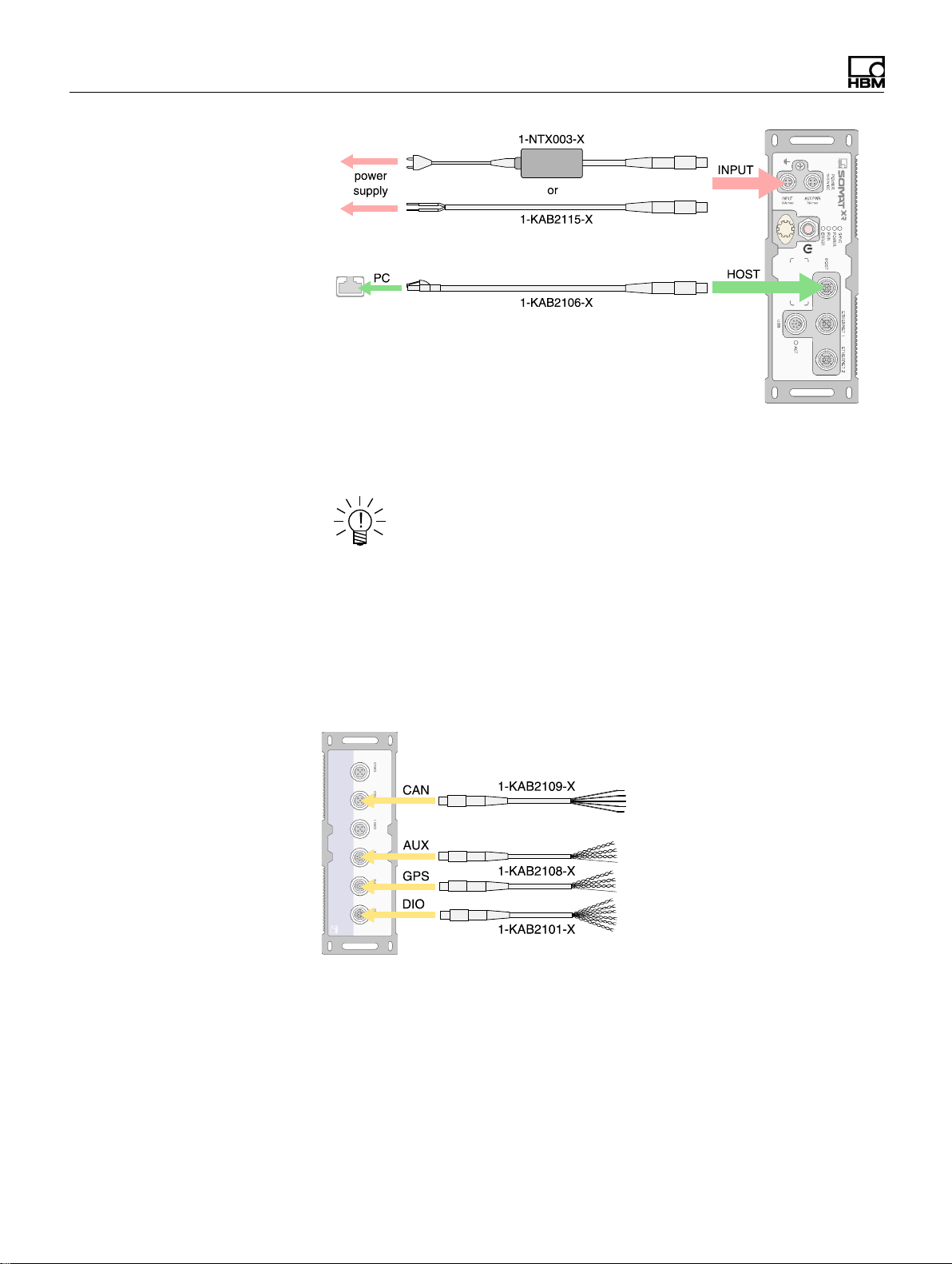

1. Connect the 1-KAB2115 power cable from the INPUT connector to a 10-30VDC
power source. Alternatively, use the 1-NTX003 power supply.
NOTE
The green wire of the 1-KAB2115 cable must be insulated or tied to
+VDC.
2. Connect the 1-KAB2106 Ethernet cable from the HOST connector to the host
PC. The host PC network settings must be compatible with the system default
IP address 192.168.100.101.
3. Connect desired transducers to DIO, GPS, AUX and CAN ports using the
appropriate sensor cables. Refer to the SomatXR Accessories Data Sheet for a
complete list of sensor cables.
4. Wait at least five seconds after supplying power to the unit.
5. Press and release the power button. The green and blue LEDs turn on. Wait
about 15 seconds for the unit to boot up.
6. Open a web browser and navigate to the default IP address 192.168.100.101. If
presented with a certificate warning, choose to proceed. The web interface is
displayed.

1 Getting started
CX23-R and EX23-R a4275-8.0 enHBM: public 19
1.2.2 Configuring and running a basic test
1. Open the web-based interface at the default IP address 192.168.100.101. In
the header, click the Setup button to navigate to the Test configuration
section.
2. In theTask pane, select Setup, then click the New button to define a new test
setup. Edit the setup name and description as desired. The default name is
"test_name."
3. In the Task pane, select Input channels, then click the Add button. Select the
desired inputs and click OK. New channels show in the All input channels tab
of the grid.
4. Click the Save button in the header or Task pane to save changes.
5. In the header, click the Control button to navigate to the Test and data control
section. In the Task pane, Test control shows.
6. To view real time data, select a check box by a name in the Channels panel. A
chart for that channel shows in the Display Views panel.
7. In the Task pane, click Start to run the test. The yellow LED flashes in the
status bar of the web interface and on the unit. Real time data shows in the
channel chart during the test run.
8. Click Stop to end the test run.
9. To download the SIE data file, click the file name in the Test run statistics
panel.
1.3 EX23-R Ethernet switch
Use the EX23-R Ethernet Switch to network SomatXR modules with other devices
such as cameras. Use the power over Ethernet (PoE) ports to provide power to
compatible network devices.
The EX23-R is designed to be used straight out of the box.

1 Getting started
20 a4275-8.0 enHBM: public CX23-R and EX23-R
1. Connect the 1-NTX003 power supply or 1-KAB2115 power pigtail cable from the
power connector on the EX23-R to a 10-36VDC power source.
NOTE
Connect only the red and black wires of the 1-KAB2115 cable.
Do NOT use a 1-KAB2110 cable to power the EX23-R from the CX23-R.
2. Connect the desired devices to the Ethernet ports using 1-KAB2100, 1-KAB2106
or 1-KAB2107 Ethernet cables, depending on the device.
CAUTION
Drawing PoE power lowers the maximum operating temperature. Please refer to
the data sheet for the exact de-rating specifications.
