HBM TTS User manual
Mounting Instructions | Montageanleitung |
Notice de montage
English Deutsch Français
TTS
Hottinger Brüel & Kjaer GmbH
Im Tiefen See 45
D-64293 Darmstadt
Tel. +49 6151 803-0
Fax +49 6151 803-9100
www.hbm.com
Mat.: 7-2001.1571
DVS: A01571_04_Y00_00 HBM: public
07.2021
EHottinger Baldwin Messtechnik
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
Änderungen vorbehalten.
Alle Angaben beschreiben unsere Produkte in allgemeiner
Form. Sie stellen keine Beschaffenheits- oder Haltbarkeits
garantie dar.
Sous réserve de modifications.
Les caractéristiques indiquées ne décrivent nos produits
que sous une forme générale. Elles n'impliquent aucune
garantie de qualité ou de durablilité.
Mounting Instructions | Montageanleitung |
Notice de montage
English Deutsch Français
TTS
2A01571_04_Y00_00 HBM: public TTS
English
1 Safety instructions 3........................................
2 Scope of supply 6..........................................
3 Application 7...............................................
4 Structure and mode of operation 8...........................
4.1 Mechanical construction 8....................................
4.2 Installation position 8.........................................
4.3 Conditions at the usage site 9.................................
5 Assembling the torque wrench 10............................
5.1 Fitting the square adapter on the measuring head 10..............
5.2 Fitting the lever 11............................................
5.2.1 One‐piece lever (nominal (rated) torque 100 N@m) 11..............
5.2.2 Two‐piece lever (nominal (rated) torque 200 N@m) 12..............
5.2.3 Three‐piece lever (nominal (rated) torque 500 N@m, 1 kN@m) 13....
6 Electrical connection 14......................................
6.1 General instructions 14........................................
6.2 Connector pin assignment 15...................................
7 Maintenance 16..............................................
8 Dimensions 17..............................................
9 Accessories 19..............................................
10 Specifications 20............................................
Safety instructions
TTS A01571_04_Y00_00 HBM: public 3
1 Safety instructions
Use in accordance with the regulations
The TTS Transfer torque wrench may be used for torque measurement and
calibration tasks only. Use for any additional purpose shall be deemed to be
not in accordance with the regulations.
In the interests of safety, the transducer should only be operated as described
in the Mounting Instructions. It is also essential to observe the appropriate legal
and safety regulations for the application concerned during use. The same
applies to the use of accessories.
The transducer is not a safety element within the meaning of its use as
intended. Proper and safe operation of this transducer requires proper trans
portation, correct storage, assembly and mounting and careful operation.
General dangers of failing to follow the safety instructions
The transducer corresponds to the state of the art and is fail‐safe. The
transducer can give rise to remaining dangers if it is inappropriately installed
and operated by untrained personnel.
Everyone involved with the installation, commissioning, maintenance or repair
of the transducer must have read and understood the mounting instructions
and in particular the technical safety instructions.
Remaining dangers
The scope of supply and performance of the transducer covers only a small
area of torque measurement technology. In addition, equipment planners,
installers and operators should plan, implement and respond to the safety
engineering considerations of torque measurement technology in such a way
as to minimize remaining dangers. Prevailing regulations must be complied
with at all times. Reference must be made to remaining dangers connected
with torque measurement technology.
In these mounting instructions, remaining dangers are pointed out using the
following symbols:
Safety instructions
4A01571_04_Y00_00 HBM: public TTS

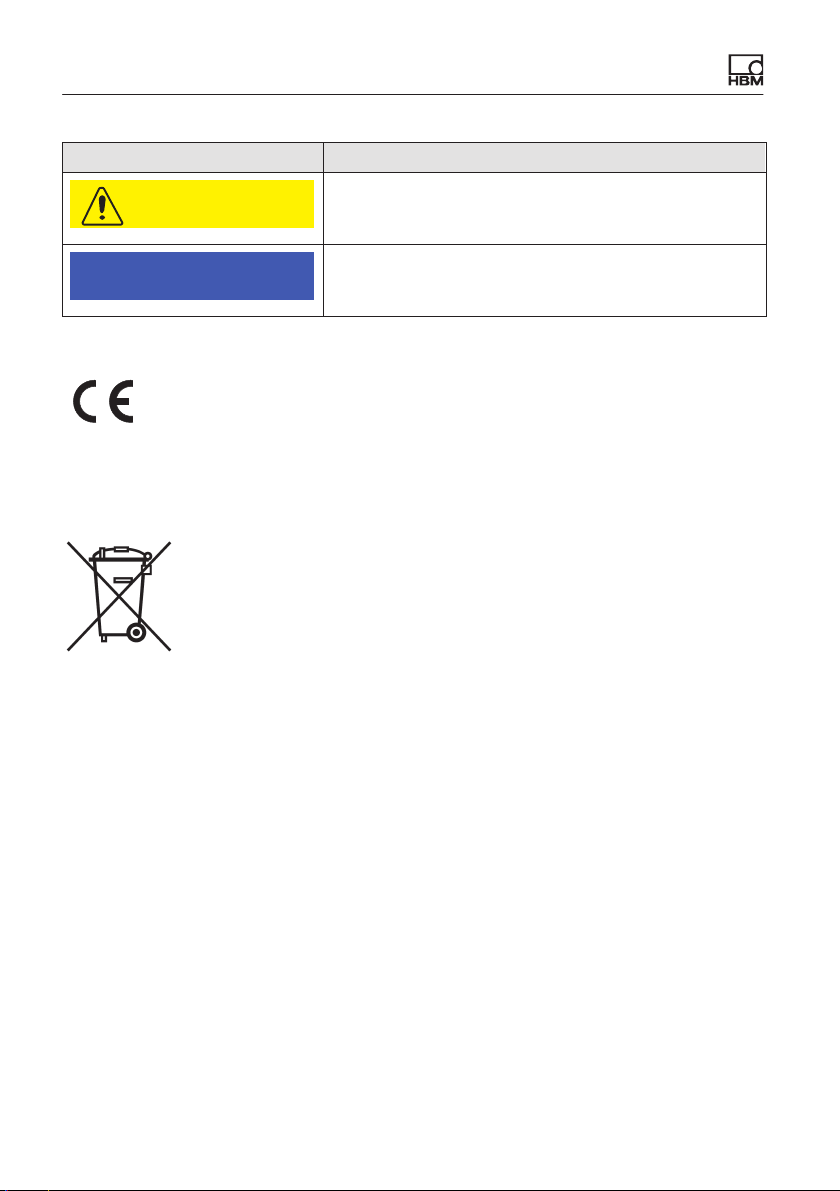

Symbol Significance
CAUTION This marking warns of a potentially dangerous situa
tion in which failure to comply with safety require
ments can result in slight or moderate physical injury.
Notice This marking draws your attention to a situation in
which failure to comply with safety requirements can
lead to damage to property.
CE mark
The CE mark enables the manufacturer to guarantee that
the product complies with the requirements of the rele
vant EC directives (the declaration of conformity is avail
able at http://www.hbm.com/HBMdoc).
Statutory marking requirements for waste disposal
National and local regulations regarding the protection of
the environment and recycling of raw materials require
old equipment to be separated from regular domestic
waste for disposal.
For more detailed information on disposal, please contact
the local authorities or the dealer from whom you purchased the product.
Conversions and modifications
The transducer must not be modified from the design or safety engineering
point of view except with our express agreement. Any modification shall
exclude all liability on our part for any damage resulting therefrom.
Qualified personnel
The transducer must only to be installed and used by qualified personnel,
strictly in accordance with the specifications and with safety requirements and
regulations. It is also essential to observe the appropriate legal and safety
regulations for the application concerned during use. The same applies to the
use of accessories.
Safety instructions
TTS A01571_04_Y00_00 HBM: public 5
Qualified personnel means persons entrusted with the installation, fitting,
commissioning and operation of the product who possess the appropriate
qualifications for their function.
Scope of supply
6A01571_04_Y00_00 HBM: public TTS
2 Scope of supply
STransfer torque wrench (measuring head, lever, connecting elements) in
aluminum case
SSquare adapter with external square shaft for test object (square size see
specifications for the respective nominal (rated) torque)
SConnecting cable, with Lemo® connector on transducer side, 15‐pin Sub D
connector on amplifier side, length 3 m
SMounting Instructions
Application
TTS A01571_04_Y00_00 HBM: public 7
3 Application
The transfer torque wrench is used as a transfer standard for calibrating torque
wrench calibrating devices.
Generally, when a torque wrench calibrating device is used, torque is gener
ated by exerting force on the lever of the torque wrench to be calibrated (e.g.
the triggering torque wrench to be used in the workshop). When calibrating the
torque wrench calibrating device, on the other hand, a transfer torque wrench
(the indicating torque wrench) is inserted into the calibrating device instead of a
torque wrench in need of calibration. The torque is generated in the same way
as for normal use, so that the measurement conditions for the calibrating
device are identical. This is of particular importance with respect to the para
sitic loads acting at the same time as the actual calibration torque, namely lat
eral force and bending moment.
The design of the TTS transfer torque wrench is adapted to German Calibra
tion Service guideline DKD‐R 3‐8 1), which regulates the calibration of torque
wrench calibrating devices.
To conform to the strict requirements regarding the traceability of a transfer
standard, a transfer torque wrench must be calibrated in an accredited calibra
tion laboratory (in Germany, this is a DKD laboratory). The DKD calibration
certificate in accordance with guideline DKD‐R 3‐7 2) has to be ordered sepa
rately.
1) Guideline DKD‐R 3‐8 “Statische Kalibrierung von Kalibriereinrichtungen für Drehmoment
schraubwerkzeuge" (Static calibration of calibrating devices for torque tightening tools), pub
lished by the German Calibration Service.
2) Guideline DKD‐R 3‐7 “Statische Kalibrierung von anzeigenden Drehmomentschlüsseln“ (Static
calibration of indicating torque wrenches), published by the German Calibration Service.
Structure and mode of operation
8A01571_04_Y00_00 HBM: public TTS
4 Structure and mode of operation

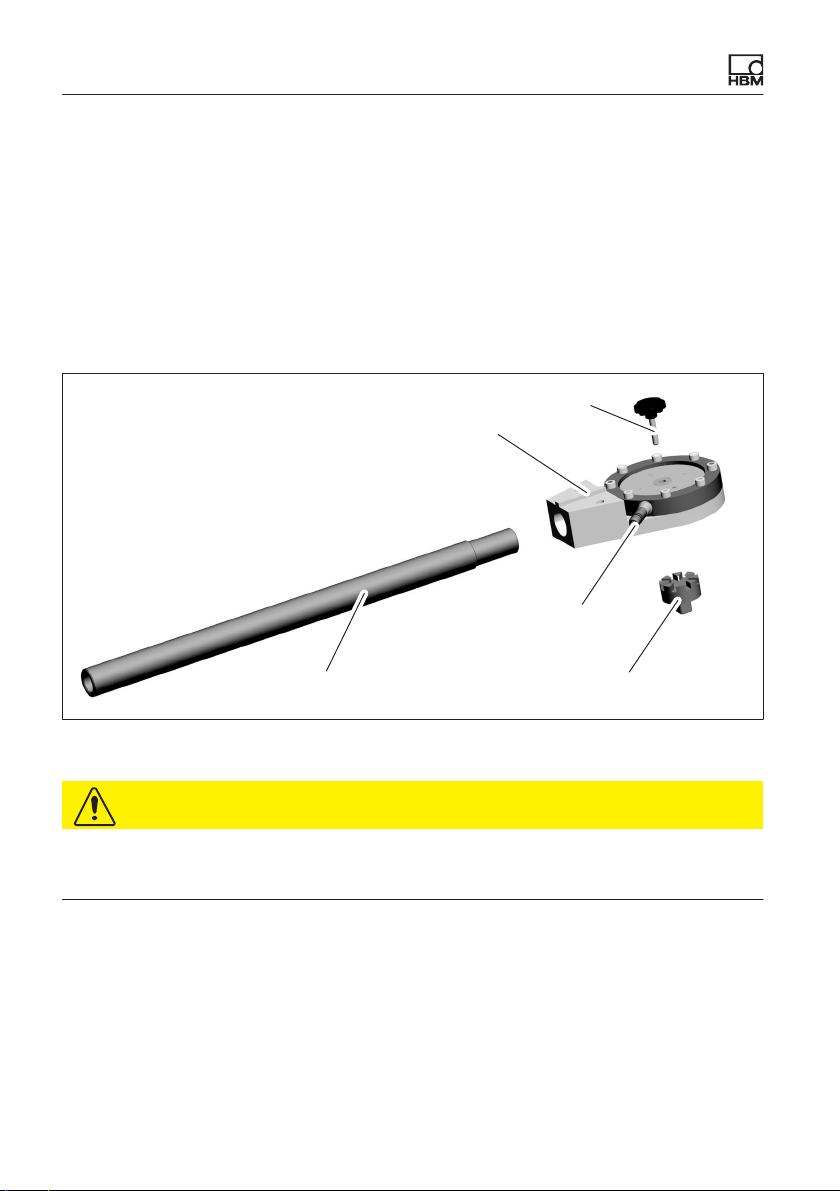

4.1 Mechanical construction
The transfer torque wrench comprises a measuring head and a lever. A mea
suring body and an interchangeable square adapter are integrated in the mea
suring head. The supplied connecting cable is connected with the transducer
via a six‐pin Lemo®socket.
Measuring head
Lever
Lemo®socket
Knurled screw
Square adapter
Fig. 4.1 Mechanical construction
CAUTION
The hexagon‐socket screws on the measuring head are marked with a locking
varnish and must not be loosened!
4.2 Installation position
The transfer torque wrench can be mounted in any position. With a clockwise
torque, a positive output signal is produced in conjunction with HBM measuring
amplifiers.
Structure and mode of operation
TTS A01571_04_Y00_00 HBM: public 9
4.3 Conditions at the usage site
The transfer torque wrench is protected to IP22 according to EN 60529.
Transducers must be protected against coarse dirt particles, dust, oil, solvents
and humidity.
During operation, the prevailing safety regulations for the security of personnel
must be observed.
Assembling the torque wrench
10 A01571_04_Y00_00 HBM: public TTS
5 Assembling the torque wrench
The transfer torque wrench is taken apart and delivered in a carrying case. The
measuring head, the square adapter, the knurled screw, the lever and the con
necting cable are all separate. Depending on the nominal (rated) torque, there
are one, two or three parts to the lever.
CAUTION
If you want to use a different square adapter from the accessories program,
instead of the one supplied, you must keep to its maximum permissible torque
(see Section 9, Page 19).

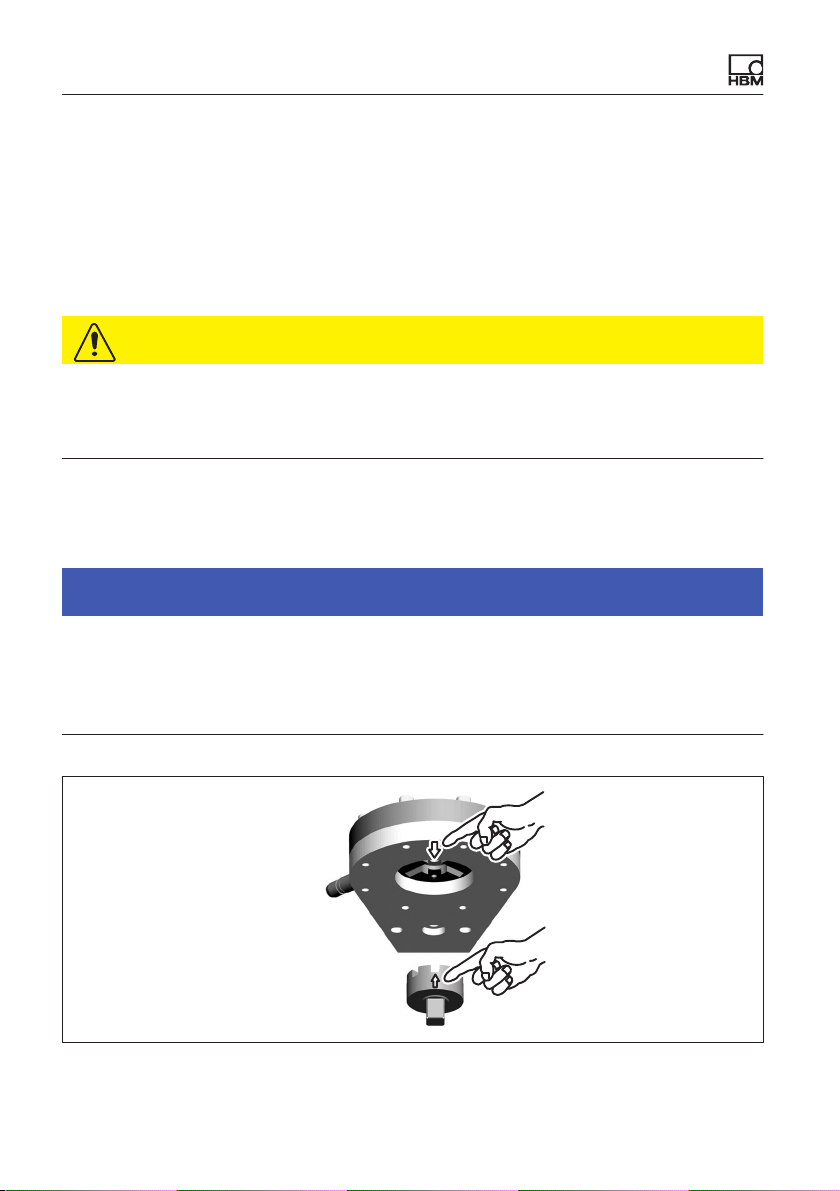

5.1 Fitting the square adapter on the measuring head
Notice
We recommend that the square adapter is always installed in the same angular
position. The later transfer torque wrenches have arrows on the measuring
head and on the square adapter for ease of positioning (see Fig. 5.1). The
points of the arrows should point to one another.
Fig. 5.1 Positional markings
Assembling the torque wrench
TTS A01571_04_Y00_00 HBM: public 11
Knurled screw
Measuring
head
Square adapter
Fig. 5.2 Fitting the square adapter on the measuring head
Position the square adapter in accordance with the arrow markings (see
Fig. 5.1) on the measuring head; insert the knurled screw into the central hole
in the measuring head and screw the square adapter in tight.
Information
By keeping to the same angular position, any symmetry deviation will not affect
the reproducibility of the measurement results.
5.2 Fitting the lever
Depending on the nominal (rated) torque, there are one, two or three parts to
the lever. To make assembly easier, apply a little oil to the mating surfaces of
the individual components.
5.2.1 One‐piece lever (nominal (rated) torque 100 N@m)
SPress down the spring bolts of the lever.
SPush the lever as far as it will go into the receiving hole in the measuring
head.
STurn the lever from side to side until you hear the spring bolts engage.
Assembling the torque wrench
12 A01571_04_Y00_00 HBM: public TTS
Spring bolt
Measuring head
Fig. 5.3 One‐piece lever
5.2.2 Two‐piece lever (nominal (rated) torque 200 N@m)
SFirst join the parts of the lever together by pushing the longer piece into the
shorter one.
SFit the lever and the measuring head, as described in sub‐section 5.2.1.
Spring bolt
Spring bolt
Fig. 5.4 Two‐piece lever
Assembling the torque wrench
TTS A01571_04_Y00_00 HBM: public 13
5.2.3 Three‐piece lever (nominal (rated) torque 500 N@m, 1 kN@m)
SFirst attach the connection bolt of the lever with the two supplied
hexagon‐socket screws (a./f. 5) in the measuring head.
SPush the center piece over the connection bolt and tighten the knurled
screw.
SNow push the end piece into the center piece and turn the knurled screw
tight.
Connection bolt
Center piece
End piece
Fig. 5.5 Three‐piece lever (500 N@m, 1 kN@m)
Electrical connection
14 A01571_04_Y00_00 HBM: public TTS
6 Electrical connection
6.1 General instructions
Electric and magnetic fields often cause interference voltages in the measuring
circuit. This interference comes primarily from power lines lying parallel to the
measuring leads, but it can also come from nearby contactors or electric
motors. Interference voltage can also be coupled galvanically, especially by
grounding the measurement chain at a number of points.
Please follow the below instructions:
SUse only shielded and low‐capacitance measurement cables for six wire
circuit from HBM.
SDo not position the measurement cables parallel to power lines or control
circuits. If this is not possible (e.g. in cable shafts), protect the
measurement cable with armoured steel tubing, for example and keep it a
minimum distance of 50cm away from the other cables. Power lines or
control circuits should be twisted together (15 twists per meter).
SGuard against stray fields from transformers, motors and contactors.
SDo not ground the transducer, the amplifier and the indicator more than
once. All the measurement chain devices must be connected to the same
grounded conductor.
Grounding concept (Greenline)
The cable shield of the connection cable is connected to the measuring head of
the transducer. This encloses the measurement system in a Faraday cage.
Any electromagnetic interference active here does not affect the measurement
signal.
In the event of interference due to potential differences (equalization currents)
the zero operating voltage and the housing ground should be isolated from one
another at the amplifier and a potential equalization line should be run between
the housing and the amplifier housing (flexible stranded wire, 10 mm2
conductor cross‐section).
Electrical connection
TTS A01571_04_Y00_00 HBM: public 15
6.2 Connector pin assignment
The transfer torque wrench comes supplied with a ready‐made 6‐wire
connection cable (six‐wire circuit).
The pin assignment for the HBM amplifier can be found in the following table:
Top view
1
8
9
15
Pin Wire color Connection
1 yellow Shielding connected to enclosure
ground
5 black Excitation voltage (-UB)
6 blue Excitation voltage (+UB)
8 white Measurement signal (+UA)
12 gray Sensor circuit (-)
13 green Sensor circuit (+)
15 red Measurement signal (-UA)
Extension cables should be of the shielded, low‐capacitance type. HBM pro
vides the 1‐KAB254‐10 cable (ready‐made) and the KAB8/00‐2/2/2 cable (by
the meter, can also be supplied with fitted connecting plug) specifically for this
purpose.
Maintenance
16 A01571_04_Y00_00 HBM: public TTS
7 Maintenance
The transfer torque wrench is maintenance free.
Dimensions
18 A01571_04_Y00_00 HBM: public TTS
Nominal
(rated)
torque
(NVm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
L
(mm)
Square
adapter
across flats
(inch)
100 100 29 110 55 160 36 555 1/2
200 120 29 120 55 180 36 760 1/2
500 156 24 200 115 278 50 1040 3/4
1 k 156 24 200 115 278 50 1040 1/1
100 N@m
200 N@m
500 N@m
and 1 kN@m
Lever versions
495
445
∅30
690
245 195
495 (445)
∅30
∅32
∅40
250
(100) 495
940
495
(345)
Other manuals for TTS
2
Table of contents
Languages:
Other HBM Measuring Instrument manuals
