HBM GK7000 User manual
Operating Manual | Bedienungsanleitung |
Manuel d'emploi
English Deutsch Français
GK7000 / GK7600
Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64293 Darmstadt
Tel. +49 6151 803-0
Fax +49 6151 803-9100
www.hbm.com
Mat.:
DVS: A03435_01_Y00_01 HBM: public
04.2020
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
Änderungen vorbehalten.
Alle Angaben beschreiben unsere Produkte in allgemeiner
Form. Sie stellen keine Beschaffenheits- oder Haltbarkeits
garantie dar.
Sous réserve de modifications.
Les caractéristiques indiquées ne décrivent nos produits
que sous une forme générale. Elles n'impliquent aucune
garantie de qualité ou de durabilité.
Operating Manual | Bedienungsanleitung |
Manuel d'emploi
English Deutsch Français
GK7000 / GK7600
2A03435_01_Y00_01 HBM: public GK7000 / GK7600
English
1 Safety information 4........................................
2 Markings used 8............................................
2.1 Symbols on the product 8.....................................
2.2 The markings used in this document 9..........................
3 Scope of supply 10..........................................
4 Application notes 11.........................................
4.1 Panel‐PC GK7000 / GK7600 11................................
4.2 FASTpress Software EASYmonitorCE 11........................
4.3 Lizensierung 11..............................................
4.4 Softwarefunktionen im Überblick 12.............................

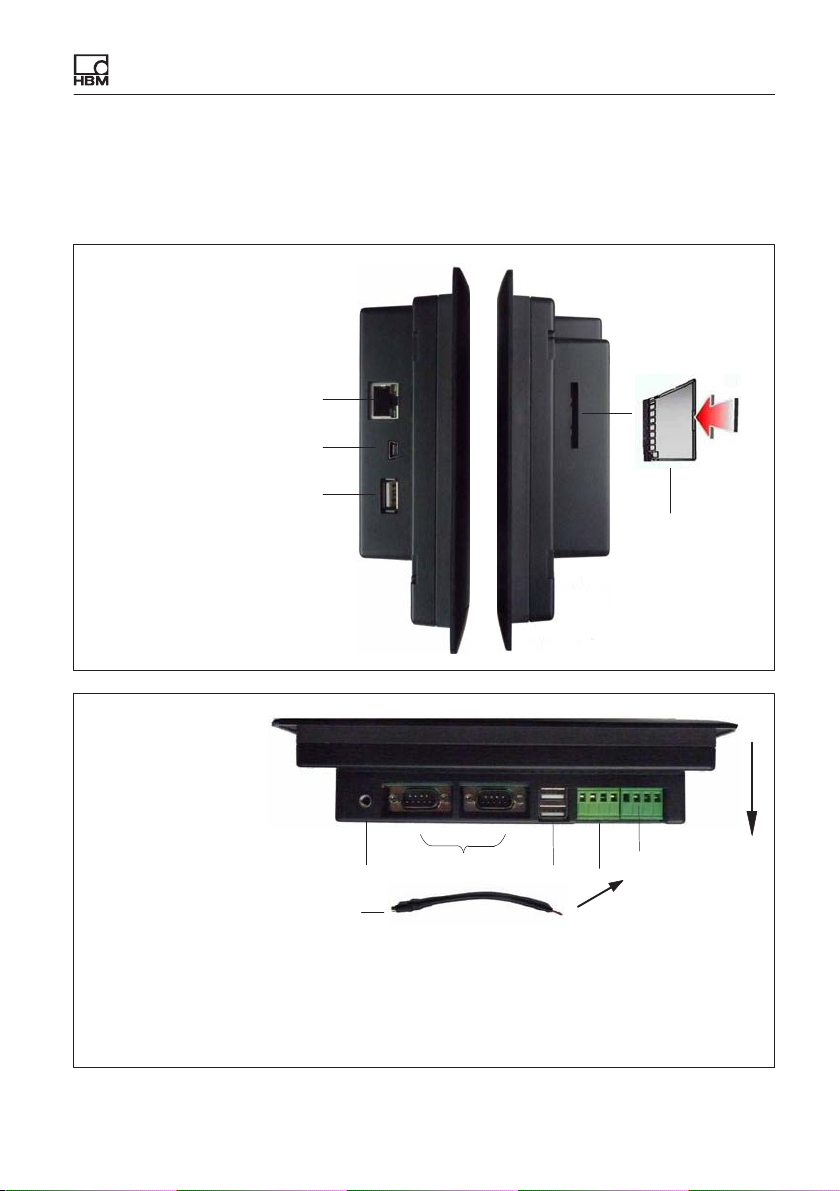

5 GK7000 / GK7600 overview 13................................
6 Battery installation (optional) 15..............................
7 Mounting and installation 17.................................
8 Setup and operate the GK7000 / GK7600 19....................
8.1 Connect the GK7000 / GK7600 with the MP85 19.................
8.2 Quick Start Guide 19..........................................
8.3 Worker level 24...............................................
8.4 Admin level 26...............................................
8.5 Data Storage 31..............................................
9 Error debugging 32..........................................
9.1 Power issues 32..............................................
9.2 Screen issues 32.............................................
9.3 Touch screen calibration 33....................................
Safety information
4A03435_01_Y00_01 HBM: public GK7000 / GK7600
1 Safety information
Appropriate use
The GK7000 / GK7600 with its connected amplifiers must only be used for
measurement tasks and directly associated control tasks. Use for any purpose
other than the above shall be deemed to be inappropriate.
In the interests of safety, the device should only be operated as described in
the Operating Manual. It is also essential to observe the appropriate legal and
safety regulations for the application concerned during use. The same applies
to the use of accessories.
Each time, before starting up the equipment, you must first run a project plan
ning and risk analysis that takes into account all the safety aspects of automa
tion technology. This particularly concerns personal and machine protection.
Additional safety precautions must be taken in plants where malfunctions could
cause major damage, loss of data or even personal injury. In the event of a
fault, these precautions establish safe operating conditions.
This can be done, for example, by mechanical interlocking, error signaling, limit
value switches, etc.
General dangers of failing to follow the safety instructions
The GK7000 / GK7600 is a state of the art unit and as such is fail‐safe. The
device may give rise to further dangers if it is inappropriately installed and
operated by untrained personnel.
Any person instructed to carry out installation, commissioning, maintenance or
repair of the device must have read and understood the Operating Manual and
in particular the technical safety instructions.
Conditions on site
SProtect the module from direct contact with water.
SProtect the GK7000 / GK7600 from moisture or weather conditions such as
rain, snow, etc. The protection class under the IP standard DIN EN 60 529,
is IP52/IP20.
SDo not expose the module to direct sunlight.
Safety information
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 5
SComply with the maximum permissible ambient temperatures stated in the
specifications.
SThe module is classified in overvoltage category II, degree of pollution 2.
SInstall the module so that it can be disconnected from the mains at any time
without difficulty.
SIt is safe to operate the GK7000 / GK7600 up to a height of 2000 m.
Maintenance and cleaning
The GK7000 / GK7600 is maintenance-free. Please note the following points
when cleaning the housing:
SBefore cleaning, disconnect the device from the power supply.
SClean the housing with a soft, slightly damp (not wet!) cloth. You should
never use solvent, since this could damage the labeling on the front panel
and the display itself.
SWhen cleaning, ensure that no liquid gets into the device or the connec
tions.
Remaining dangers
The scope of supply and performance of the GK7000 / GK7600 covers only a
small area of measurement technology. In addition, equipment planners, in
stallers and operators should plan, implement and respond to the safety engi
neering considerations of measurement technology in such a way as to mini
mize remaining dangers. Prevailing regulations must be complied with at all
times. There must be reference to the remaining dangers connected with mea
surement technology.
Product liability
In the following cases, the protection provided for the device may be adversely
affected. Liability for device functionality then passes to the operator:
SThe device is not used in accordance with the operating manual.
SThe device is used outside the field of application described in this Chapter.
SThe operator makes unauthorized changes to the device.
Safety information
6A03435_01_Y00_01 HBM: public GK7000 / GK7600
Working safely
A module must not be directly connected to the power supply system. The sup
ply voltage for GK7000 must be 10…24 V DC and for GK7600 11…36 V DC.
Error messages must only be acknowledged once the cause of the error has
been eliminated and the danger no longer exists.
The device complies with the safety requirements of DIN EN 61010 Part 1
(VDE 0411 Part 1).
To ensure adequate immunity from interference, the bus lines must be
shielded cables.
The power supply connection cables always need to be shielded.
When connecting the cables (attaching and detaching terminals), action must
be taken to prevent electrostatic discharge which could damage the electron
ics.
The GK7000 / GK7600 must be operated on a safety extra-low voltage (supply
voltage for GK7000 10…24 V DC and for GK7600 11…36 V DC), which usu
ally supplies power to one or more consumers within a control cabinet.
Should the device be operated on a dc voltage network1), additional precau
tions must be taken to discharge excess voltages.
Automation equipment and devices must be covered over in such a way that
adequate protection or locking against unintentional actuation is provided (such
as access checks, password protection, etc.).
When devices are working in a network, these networks must be designed in
such a way that malfunctions in individual nodes can be detected and shut
down.
Safety precautions must be taken both in terms of hardware and software, so
that a line break or other interruptions to signal transmission, such as via the
bus interfaces, do not cause undefined states or loss of data in the automation
device.
1) Distribution system for electrical energy with greater spatial expansion (e.g. over a number of
control cabinets) that may even supply consumers with large nominal currents.
Safety information
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 7
Conversions and modifications
The module must not be modified from the design or safety engineering point
of view except with our express agreement. Any modification shall exclude all
liability on our part for any damage resulting therefrom.
In particular, any repair or soldering work on motherboards is prohibited. When
exchanging complete modules, use only original parts from HBM. The module
is delivered from the factory with a fixed hardware and software configuration.
Changes can only be made within the possibilities documented in the manuals.
Qualified personnel
The equipment may be used by qualified personnel only; the specifications and
the special safety regulations need to be followed in all cases.
This means people who meet at least one of the three following requirements:
SKnowledge of the safety concepts of automation technology is a require
ment and as project personnel, you must be familiar with these concepts.
SAs automation plant operating personnel, you have been instructed how to
handle the machinery and are familiar with the operation of the equipment
and technologies described in this documentation.
SAs commissioning engineers or service engineers, you have successfully
completed the training to qualify you to repair the automation systems. You
are also authorized to activate, to ground and label circuits and equipment
in accordance with safety engineering standards.
It is also essential to comply with the appropriate legal and safety regulations
for the application concerned during use. The same applies to the use of ac
cessories.
Qualified personnel means personel familiar with the installation, fitting,
start-up and operation of the product, and trained according to their job.
Markings used
8A03435_01_Y00_01 HBM: public GK7000 / GK7600
2 Markings used
2.1 Symbols on the product
Symbol Meaning
Statutory waste disposal mark
See chapter 13, „Waste disposal and environmental protec
tionpage
Statutory mark of compliance with emission limits in electronic
equipment supplied to China
See chapter 13,
„Waste disposal and environmental protection“
CE mark
The CE mark is used by the manufacturer to declare that the
product complies with the requirements of the relevant EC
directives (the Declaration of Conformity can be found at
http://www.hbmdoc.com/en/industrial-amplifiers/
pmx.html?geoip_cn=none
Components marked with this symbol can be damaged bey
ond repair by electrostatic discharge. Please observe the
handling instructions for components exposed to the risk of
electrostatic discharge.
Markings used
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 9
2.2 The markings used in this document
Important instructions for your safety are specifically identified. It is essential to
follow these instructions in order to prevent accidents and damage to property.
Symbol Significance
WARNING This marking warns of a potentially dangerous
situation in which failure to comply with safety
requirements can result in death or serious physical
injury.
CAUTION This marking warns of a potentially dangerous
situation in which failure to comply with safety
requirements can result in slight or moderate physical
injury.
Notice This marking draws your attention to a situation in
which failure to comply with safety requirements can
lead to damage to property.
Important
This marking draws your attention to important
information about the product or about handling the
product.
Tip
This marking indicates application tips or other
information that is useful to you.
Information
This marking draws your attention to information
about the product or about handling the product.
Emphasis
See….
Italics are used to emphasize and highlight text and
references to other chapters and external documents.
Scope of supply
10 A03435_01_Y00_01 HBM: public GK7000 / GK7600
3 Scope of supply
SGK7000 / GK7600 display and control unit
SFour mounting elements with screws
SSoftware drive CD
SGK7000 / GK7600 operating manual
Accessories (not included in scope of supply)
SUSB connection line
STouch pen
SBattery
SWLAN USB Stick
Application notes
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 11
4 Application notes
4.1 Panel‐PC GK7000 / GK7600
The GK7000 / GK7600 display terminal is a display and operating unit with
high performance embedded technology for industrial applications.
This device has the same integrated developing environment with GK7000 /
GK7600, users can use Embedded Visual C++ 4.0 (the same developing envi
ronment & entire compatible API, including MFC with GK7000 / GK7600 Visual
C++), and Visual Studio, etc. That makes developing application interfaces and
writing widget's matter processing codes easily.
4.2 FASTpress Software EASYmonitorCE
EASYmonitorCE is a HBMsoftware for use with the MP85 ProcessController.
It can be used on WindowsCE based computers with OS 6.0 or 7.0 and sup
ports a screenresolution of 800 x 480 pixel and 640 x 480 pixel(starting with
version 2.. The software is developed for touch operation in industrial environ
ments.
With EASYmontiorCE it is possible to do the complete adjustment and opera
tion of MP85. In addition the software handles the visualisation and the storage
of the processcurves and -results, as well as the visualisation of the stored
processdata.
4.3 Lizensierung
The Software EASYmonitorCE is preinstalled on the GK7000 / GK7600, and
don't need any further licence.
Application notes
12 A03435_01_Y00_01 HBM: public GK7000 / GK7600
4.4 Softwarefunktionen im Überblick
It offers following features:
SDisplay and storage of fitting, press-fit and checking procedures of the
MP85 amplifier, optionally on GK7000 / GK7600 (flash disc), USB stick, PC/
server network, or on an SD card in the MP85
STolerance windows can be parameterized completely, envelope curves and
tolerance band can be displayed but cannot be parameterized (that has to
be done via the PME wizard beforehand)
SThe displays and the operation of the MP85 with switch test and haptics
test are unavailable
SAutomatic connection with the MP85 measuring amplifier and connection
monitoring
SGraphic visualization of all measured values and pressfit curves including
OK/NOK decision and statistics function
SParameterization and control of the MP85 amplifier via Ethernet interface
(password protected)
SNo fan, maintenance free, small installation depth
SMobile operation via optional rechargeable battery (GK7000 / GK7600 don't
supply MP85)
SWireless operation via optional WiFiadapter
Information
For more information please access the software help for EASYmonitorCE,
which is available on each page via the button, or read the operating
instructions of the MP85 measuring amplifier.
GK7000 / GK7600 overview
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 13
5 GK7000 / GK7600 overview
Interfaces and Structure GK7000
1
USB‐Host
USB Interface
SD Card slot
(max. 4 GB size)
SD Card insert
direction
2
3
4
5
1
2
3
4
5
RJ45‐Ethernet
Interface
15
6
234Earphone jack
RS232 Interface
USB Interfaces
RS485: connect RS485 communication line A B Z Y from left to right
Power switch cable
Red cable for ”+” white cable for ”-”
Power supply 10…24 V DC
1
2
3
4
5
6
GK7000 / GK7600 overview
14 A03435_01_Y00_01 HBM: public GK7000 / GK7600
Interfaces and Structure GK7600
1
USB‐Host
SIM Card Slot
Micro SD Card Slot
2
3
4
1
2
3
4
LAN
1
Earphone jack
RS232
USB Interfaces 5
2
34
Power supply 11…36 V DC
1
2
3
4
5
RS485
Information
Make sure that power supply connected well to avoid unnecessary problems.
Battery installation (optional)
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 15
6 Battery installation (optional)
Battery
Plug power line into socket of battery slot
Battery installation (optional)
16 A03435_01_Y00_01 HBM: public GK7000 / GK7600
After plug in and put the battery into slot
Settle the power line in the slot, then finish installation
Mounting and installation
GK7000 / GK7600 A03435_01_Y00_01 HBM: public 17
7 Mounting and installation
Cutout in the panel-frame
GK7000 / GK7600
Wall
Mounting elements
Screw (Semicircle 4*20)
About Mounting Process for Device
1. Mounting the whole device into the wall. (ps: the thickness of wall should be
within 15mm)
2. Insert the 4 iron sheets to the sockets at the back of device. (as the guiding
lines of above chart)
3. Lock the 4 screws (semicircle 4*20) up to the holes of iron sheets until the
end.
Mounting and installation
18 A03435_01_Y00_01 HBM: public GK7000 / GK7600
Screw (Semicircle 04)
Iron sheet or Wall
Whole device
Wall mount/Swivel arm attachment
Lock the 4 screws (semicircle 04) through the holes of iron sheet or wall up to
the standard VISA sockets at the back of device. (Ps: with the standard of
thickness is 1mm for iron sheet or wall, the length of screw is 6 mm; when the
thickness of iron sheet or wall added by 1 mm, as well as the length of screw
accordingly, and so forth).
This manual suits for next models
1
Table of contents
Languages:
Other HBM Touch Panel manuals
