HDMI2.0 Extender over Single
CAT6 with IR Control

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
4 / 16
4
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
5 / 16
5
life of your equipment.
Table of Contents
1. Introduction ....................................................................................................... 5
2. Features ............................................................................................................. 7
3. Package Contents ............................................................................................... 8
4. Specifications ..................................................................................................... 8
5. Operation Controls and Functions .................................................................... 10
5.1 Transmitter Panel..................................................................................... 10
5.2 Receiver Panel ......................................................................................... 12
5.3 IR Pin Definition....................................................................................... 14
6. Application Example......................................................................................... 15
1. Introduction
The HDMI Extender over Single Cat6 extends high definition video and audio

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
6 / 16
6
signals and one-way IR, at a distance of up to 164ft/50m over a single Cat6
cable. With only one cost effective Cat6 cable, high definition sources with
HDMI outputs can be connected to high definition displays with HDMI inputs
over long distances. DTS-HD or Dolby TrueHD audio is supported and compatible
with the extender. In addition, the extender is also equipped with one-way
pass-through IR which allows for source control and one HDMI loop output.
The extender includes two units: transmitting unit and receiving unit. The
Transmitting unit is responsible for capturing the HDMI input and carries the
signals via one cost effective Cat6 cable, and reconstructing IR control signals.
The receiving unit is responsible for equalizing the transmitted HDMI signal
and transmitting IR control signals. The extender can copy the EDID signal
from transmitter’s or receiver’s display device to source device by dip switch
with the transmitter end,The extender offers the most convenient solution for
HDMI extension over a single Cat6 with long distance capability, and is the

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
7 / 16
7
perfect solution for any application.
2. Features
☆HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
☆Supports 18Gbps bandwidth
☆Supports input and output video resolutions the maximum up to 4k2k@60Hz
RGB/Ycbcr 4:4:4/Ycbcr 4:2:2, extends distance the furthest up to 164ft/50m
☆Supports one route HDMI loop output
☆Supports one-way IR control
☆Supports HDR function
☆Supports copy the EDID signal from transmitter’s or receiver’s display
device

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
8 / 16
8
☆Compact design for easy and flexible installation.
3. Package Contents
①1×HDMI2.0 Extender Transmitter
②1×HDMI2.0 Extender Receiver

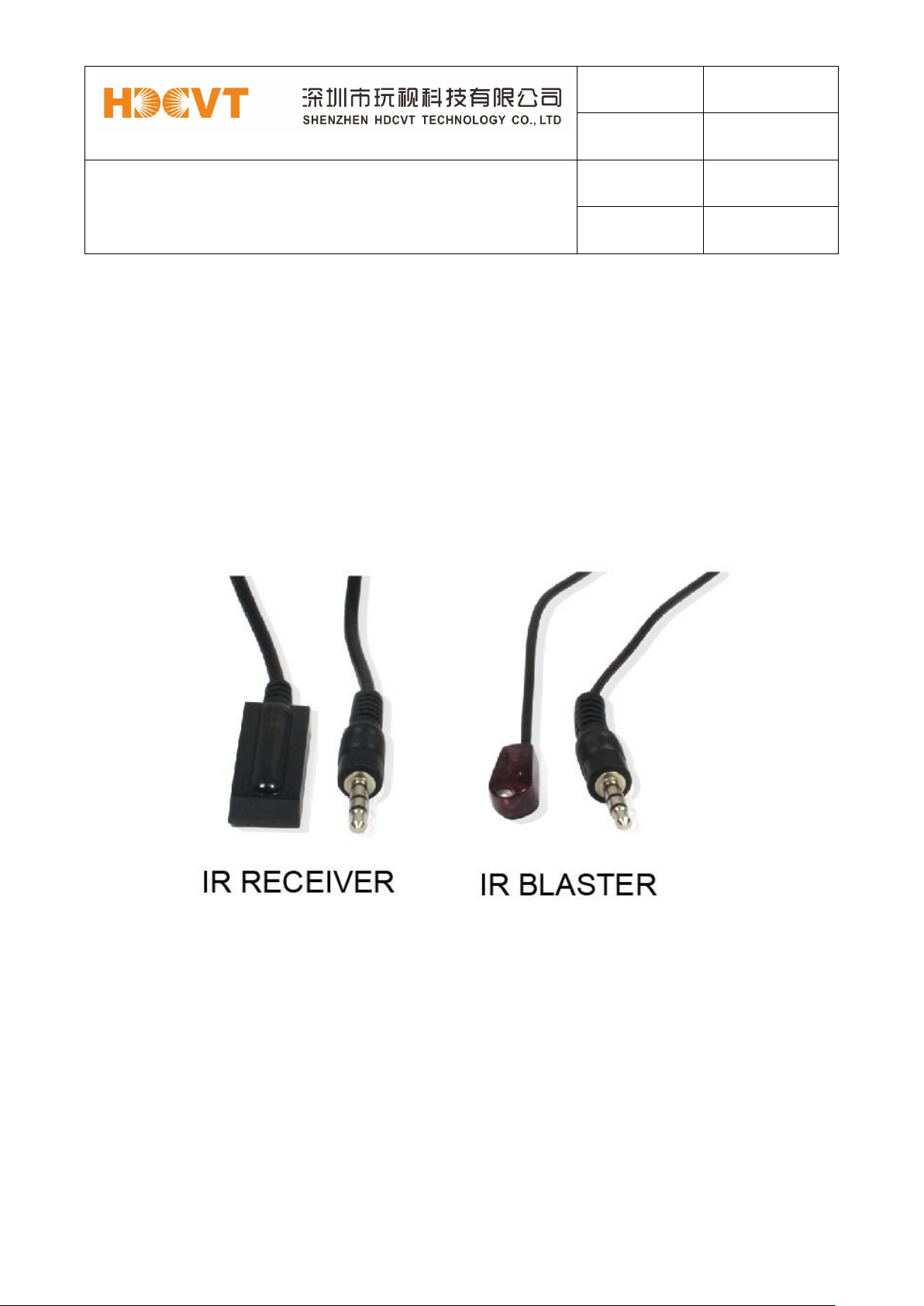

③1×Wideband IR Blaster cable
④1×Wideband IR Receiver cable
⑤1×12V/1A Locking Power adapter
⑥1×User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
9 / 16
9
HDCP Compliance
HDCP 2.2/HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
Up to 4K60Hz 4:4:4
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth
8/10/12-bit
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master
Audio, DSD
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
1x SERVICE [Micro USB, Update port]
Outputs: 1x HDMI Type A [19-pin female]

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
10 / 16
10
Mechanical
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
101.5mm [W] x 69.3mm [D] x 13.3mm [H]
Weight
Transmitter: 150g, Receiver: 144g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
6.36W
Operation Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
5. Operation Controls and Functions

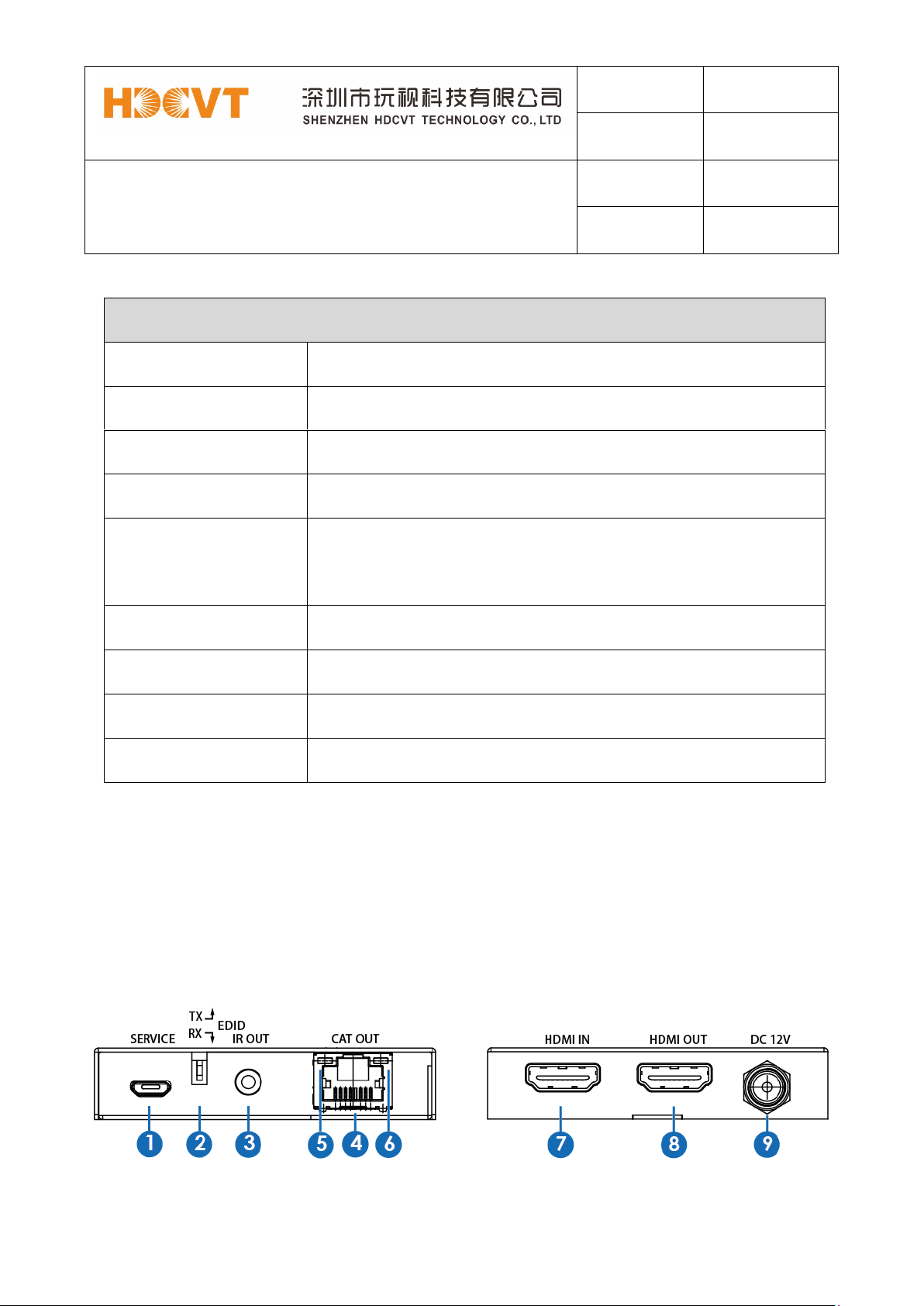

5.1 Transmitter Panel

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
11 / 16
11
Number
Name
Function description
1
SERVICE port
For firmware updated use.
2
COPY TX / RX
▪When in “TX”position, the unit will copy the EDID
setting of the HDMI loop output display device to
source device. The source device will send again
matching the loop output display device audio / video
signal to all HDMI outputs.
▪When in “RX”position, the unit will copy the EDID
setting of the HDMI output display device on the
receiving end to source device. The source device
will send again matching the HDMI output display
device on the receiving end audio / video signal to
all HDMI outputs.
3
IR OUT
Connect to wideband IR Blaster cable.
4
CAT OUT
Connect to CAT IN port on the receiving end with a CAT6
cable.
5
Power Indicator
Lamp
The lamp will illuminate when the transmitter is power
on.
6
Connection signal
Indicator Lamp
The lamp will illuminate when the transmitter and
the receiver have signal transmission.

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
12 / 16
12
7
HDMI IN
HDMI input port, connect to HDMI source device
such as DVD or PS4 player with an HDMI cable.
8
HDMI OUT
HDMI loop output port, connect to HDMI display
device such as TV or Projector with an HDMI cable.
9
DC 12V
Plug the 12V/1A adapter to AC wall outlet for power
supply.
5.2 Receiver Panel
Number
Name
Function description
1
SERVICE port
For firmware updated use.
2
IR IN
Connect to wideband IR Receiver cable.
3
CAT IN
Connect to CAT OUT port on the transmitter end
with a CAT6 cable.
4
Power Indicator
The lamp will illuminate when the receiver is power

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
13 / 16
13
Lamp
on.
5
Connection signal
Indicator Lamp
The lamp will illuminate when the transmitter and
the receiver have signal transmission.
6
HDMI OUT
HDMI output port, connect to HDMI display device
such as TV or Projector with an HDMI cable.

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
14 / 16
14

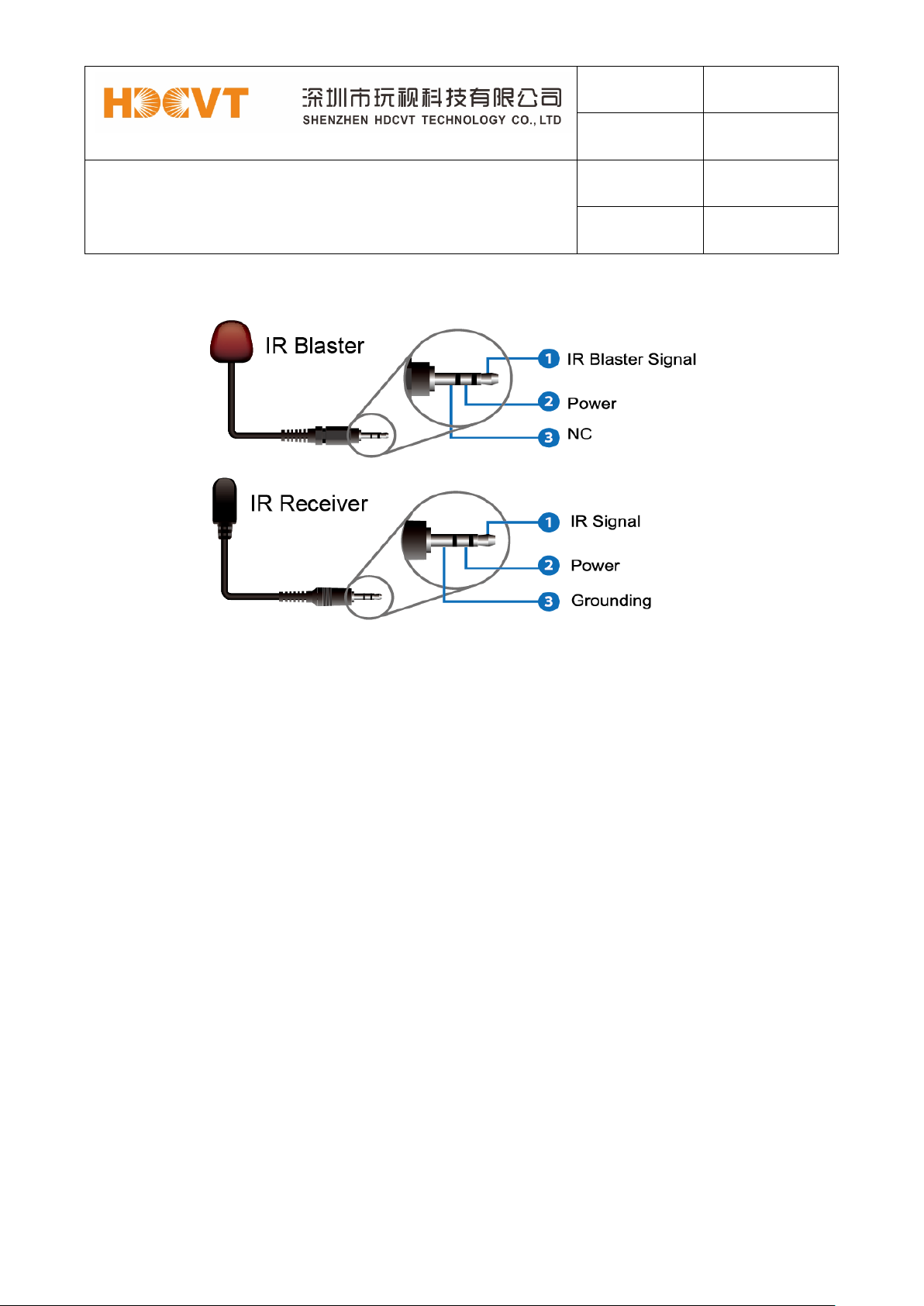

5.3 IR Pin Definition
IR Receiver and Blaster pin’s definition as below:

File No.
RD-I-18-005
Version
1.0
HDV-BE50 User Manual
Effective Date
2018-11-16
Page
15 / 16
15
6. Application Example
