Health in motion 421 Supplement

Sunset Swings
By Health In Motion
ASSEMBLY & OPERATION MANUAL
MODEL 421
LOUNGE SWING
RECORD SERIAL NUMBER HERE
www.sunsetswings.com by Health In Motion LLC. 5-01-09

421 OWNERS MANUAL
READ! VERY IMPORTANT
RESIDENTIAL USE ONLY,
FOR ADULTS ONLY
Caution: Make sure swing has completely stopped before entering or
exiting the swing. Be careful as swing may shift while entering or exiting.
This swing is for casual relaxation swinging only.
Make sure bystanders are at least 5 feet away from the swing while it is in
motion.
Be cautious swinging while children are present as they may stray into the
path of the swing.
In freezing climates, the canopy option should be removed, folded and stored in a
dry place before the first freeze or snow, and until the last freeze or snow has
passed.
The canopy option is not designed for high winds. If high winds are expected,
please remove the canopy. Failure to follow this instruction can result in broken
canopy rods.
Page 1

Thank you for choosing Sunset Swings. Please read the contents of this manual thoroughly.
The information inside will help you in many different areas. You will need to send in your
customer registration card at the back of this manual to validate your warranty.
Table of Contents
Positioning your swing 3
Tools required for assembly 3
Helpful installation hints 3
PartsList 4
HardwareList 4
AssemblyInstructions 5-14
LevelingInstructions 15
Label Reference Images 16
Label Placement___________________________________________17
General Maintenance_______________________________________ 18
SafetyTips 18
LimitedWarranty 19
Warranty Claim Procedure 19
Sunset Swings by Health In Motion LLC reserves the right to alter the specifications of this product at any time.
Page 2

Positioning Your Swing
1. The swing is designed to be installed on a level surface.
2. There should be a minimum clearance of four feet in front and back, and two feet on
each side of your swing. It should be placed in an area where children will not stray or
walk into the path of the swing.
Tools required for assembly
1. 3/4” box or ratchet wrench
2. 9/16” box or ratchet wrench
3. 4, 5, 6 mm and 3/16” Allen wrenches (included)
Helpful installation hints
1. At least 2 people are recommended to assemble this swing. Some parts are large and
heavy. Use care when handling.
2. Identify all of the parts for your swing. Empty the box and lay out the parts for
identification using the Parts List.
3. Read all the way through the instructions completely before beginning the assembly.
4. Do not tighten hardware completely until instructed. It helps to have some
adjustment for bolt alignment while you are connecting parts. Follow the tightening
sequence as mentioned in the steps. After you have completed the assembly,
recheck that all hardware is secure and tight.
Page 3

Parts List
2…………………Male Base Tube
2…………………Female Base Tube
1…………………Lower Upright
1…………………Upper Upright
1…………………Cup Holder
1…………………Top Bracket Assembly
1…………………Canopy Support Assembly
2…………………Arc Support Tube
2…………………Bent Seat Tube
2…………………Separator Assembly
1…………………Seat Fabric
1…………………Head Cross Assembly
4…………………Canopy Rod
1…………………Canopy
1…………………Pillow
1…………………Bearing Assembly
Hardware List
4………5/16”-18 x 1 3/4" Button Head Bolt
2………3/8”-16 x 3” Button Head Bolt
1………3/8”-16 x 2 1/2" Carriage Bolt
2………3/8”-16 x 2 5/8" Carriage Bolt
6………3/8”-16 x 2 3/4" Carriage Bolt
2………3/8”-16 x 3 5/8" Carriage Bolt
2………3/8”-16 x 4 1/4” Carriage Bolt
4………1/2”-13 x 3 1/4" Carriage Bolt
4..……..5/16” Flat Washer
16……..3/8” x 21mm OD Flat Washer
4………1/2” Flat Washer
4………5/16” Lock Washer
15……..3/8”-16 Lock Nut
4………1/2”-13 Lock Nut
2………5/16” x 1 3/4" T-Nut
1………3/16” Allen Wrench
1………4 mm Allen Wrench
1………5 mm Allen Wrench
1………6 mm Allen Wrench
Page 4

Lower Upright
4 – ½” x 3 ¼” Carriage Bolts
STEP 2
4 – ½” Flat Washers
4 – ½” Lock Nuts
FemaleBaseTube MaleBaseTube
MaleBaseTube FemaleBase
Tube
STEP 1

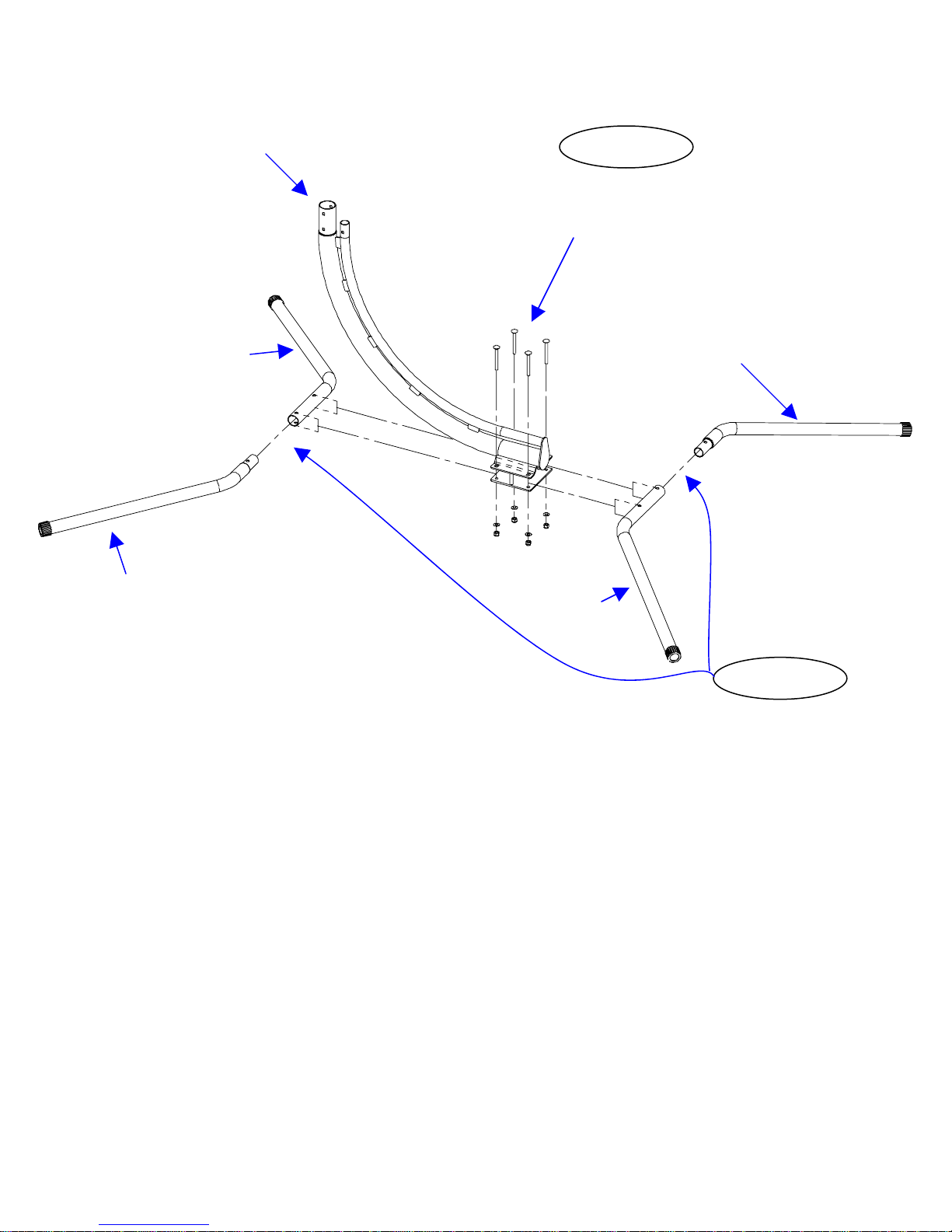

Step 1: Connect the Male Base Tubes to the Female Base Tubes as shown in the diagram above.
Step 2: Attach the Lower Upright to the Base Tubes using:
Four (1/2” x 3 ¼” Carriage Bolts)
Four (1/2” Flat Washers)
Four (1/2” Lock Nuts)
NOTE: Make sure Base Tubes are angled downward, and that drain holes near
the outside end caps are facing downward.
NOTE: Tighten Bolts Now
Page 5

Upper Upright
2 – 3/8” x 3 5/8” Carriage Bolts
STEP 3
2 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Cup Holder
STEP 4
1 – 3/8” x 2 1/2” Carriage Bolt Lower Upright
1 – 3/8” Flat Washer
1 – 3/8” Lock Nut
Step 3: Attach Upper Upright to Lower Upright using: Two (3/8” x 3 5/8” Carriage Bolts)
Two(3/8”FlatWashers)
NOTE: Tighten Bolts Now Two (3/8” Lock Nuts)
Step 4: Attach Cup Holder to Upper Upright using: One (3/8” x 2 1/2” Carriage Bolts)
Cup Holder can also be put on lower bolt hole One (3/8” Flat Washer)
but do not allow the smaller inner tube to One (3/8” Lock Nut)
slide down into the Lower Upright
NOTE: Tighten Bolts Now One (3/8” Lock Nuts)
Page 6

STEP 5
STEP 6 A
2 – 3/8” x 4 1/4”” Carriage Bolts NOTE: The Button Head Adjustment
should face toward the Upper Upright.
2 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
NOTE: Do NOT attach upside down!
Bolt holes must be on bottom of Top
Bracket Assembly
2 – 3/8” x 3” Button Head Bolts
2 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Bearing Assembly
Top Bracket
Assembly
Button Head Adjustment
Step 5: Drop the two 4-1/4” Carriage Bolts through the Canopy Support Assembly, Upper
Upright, and Bearing Assembly. Fasten each bolt with a Flat Washer and Lock Nut and tighten
them.
IMPORTANT – The Carriage Bolts must be threaded at least 1/8” through the Lock
Nuts.
Step 6: Attach the Top Bracket Assembly to the Bearing Assembly using:
2 – 3/8” x 3” Button Head Bolts
2 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Do NOT attach the Top Bracket Assembly upside down.
IMPORTANT – The Button Head Bolts must be threaded at least 1/8” through the
Lock Nuts.
Step 7 has been deleted. Please proceed to Step 8 in your instruction manual.
Page 7

Arc Support Tube
Arc Support Tube
Top Bracket Assembly
STEP 8
4 – 3/8” x 2 ¾” Carriage Bolts
4 – 3/8” Flat Washers
4 – 3/8” Lock Nuts
Step 8: Attach the Arc Support Tubes to the Top Bracket Assembly using:
Four (3/8” x 2 ¾” Carriage Bolts)
Four(3/8”FlatWashers)
Four(3/8”LockNuts)
Page 8

Arc Support Tubes
STEP 9
NOTE:
Bolts do not get
installed in these
holes until step 10
Bent Seat Tubes
(with threaded holes on this
end to the outside)
Step 9: Attach the Bent Seat Tubes (with threaded holes on bottom end to the outside)
to the Arc Support Tubes using:
Two (3/8” x 2 5/8” Carriage Bolts)
Two(3/8”FlatWashers)
Two(3/8”LockNuts)
NOTE: On bottom end of Bent Seat Tubes, make sure weld is to the inside and
threaded holes are to the outside.
NOTE: Tighten Bolts Now
Page 9

IMPORTANT: Do not tighten the bolts in Step 10 until fabric is installed.
STEP 10
2 – 5/16” x 1 ¾” Button Head Bolts
2 – 5/16” Lock Washers (against bolt head)
2 – 5/16” Flat Washers
2 – 5/16” T-Nuts
STEP 11
Arc Support
Tubes
Separator Assembly
Step 10: Attach a Separator Assembly to the Arc Support Tubes using:
Two (5/16” x 1 ¾” Button Head Bolts)
Two(5/16”LockWashersagainstbolthead)
Two(5/16”FlatWashers)
Two(5/16”T-Nuts)
NOTE: Just engage 3 or 4 threads of the bolts into the T-Nuts. Do Not Tighten Bolts
until after Fabric is installed and positioned correctly.
Step 11: Install Fabric as shown in the diagram above.
NOTE: Be sure that the Velcro side is face down.
NOTE: Slide fabric up until it touches the flanges on the Separator Assembly. The
carriage bolt installed in Step 9 will be covered by the fabric.
NOTE: Tighten Bolts from Step 10 Now, but only until the fabric is taught. DO NOT
OVERTIGHTEN!
Page 10

STEP 12
2 – 5/16” x 1 ¾” Button Head Bolts
2 – 5/16” Lock Washers (against bolt head)
2 – 5/16” Flat Washers
Bent Seat Tubes
Separator Assembly
Step 12: Attach a second Separator Assembly to the Bent Seat Tubes using:
Two (5/16” x 1 ¾” Button Head Bolts)
Two(5/16”LockWashersagainstbolthead)
Two(5/16”FlatWashers)
NOTE: Tighten Bolts Now, but only until the fabric is taught.
DO NOT OVERTIGHTEN!
Page 11

(Figure 1) Head Cross Assembly Enlarged View
STEP 13
STEP 14
Note the orientation of the Head Cross Assembly
If the holes do not line up correctly, rotate the
Head Cross Assembly 180 degrees horizontally.
2 – 3/8” x 2 ¾” Carriage Bolts
2 – 3/8” Flat Washers
Arc Support Tubes 2 – 3/8” Lock Nuts
(Figure 2)
Fabric
Head Cross Assembly
(Figure 1) Step 13: Attach Head Cross Assembly to Arc Support Tubes using:
Two (3/8” x 2 ¾” Carriage Bolts)
Two(3/8”FlatWashers)
Two(3/8”LockNuts)
NOTE: Tighten Bolts Now
(Figure 2) Step 14: Wrap Fabric around Head Cross Assembly and Velcro to under side.
NOTE: Be sure to pull fabric tight before securing Velcro.
NOTE: Velcro MUST have full area engagement. To ensure maximum Velcro adhesion,
apply pressure while rubbing on both sides of Velcro engagement region.
Page 12

INSTALL THE FIBERGLASS CANOPY RODS
STEP 16
Canopy Support Canopy Rod
Assembly
STEP 15
Canopy Rod
Canopy Rod
Canopy Rod
Attach Pillow
Step 15: Install Pillow by attaching the Pillow straps to the Velcro patches on the back of the
Seat Fabric.
Step 16: Install all four Canopy Rods by sliding them into the Canopy Support Assembly.
Page 13

A B
Install the Canopy
Canopy
C
Canopy Rod
Canopy Rod
Canopy Rod
Canopy Rod
D
Step 17: The Canopy for the 421 Lounge Swing is a square piece of fabric with
pocketed corners. Begin by laying the canopy on top of the Canopy Rods.
Next, slide one of the pocketed corners of the Canopy onto one of the
Canopy Rods. Continue in a clockwise fashion, from corner “A” to corner “D”,
as shown in the diagram above.
NOTE: Getting the last corner (corner “D”) onto its Canopy Rod
requires pulling the canopy fabric down and towards the end of
Canopy Rod D. Continue stretching the Canopy toward the end of the
Canopy Rod until it slides into the corner pocket of the Canopy.
Page 14

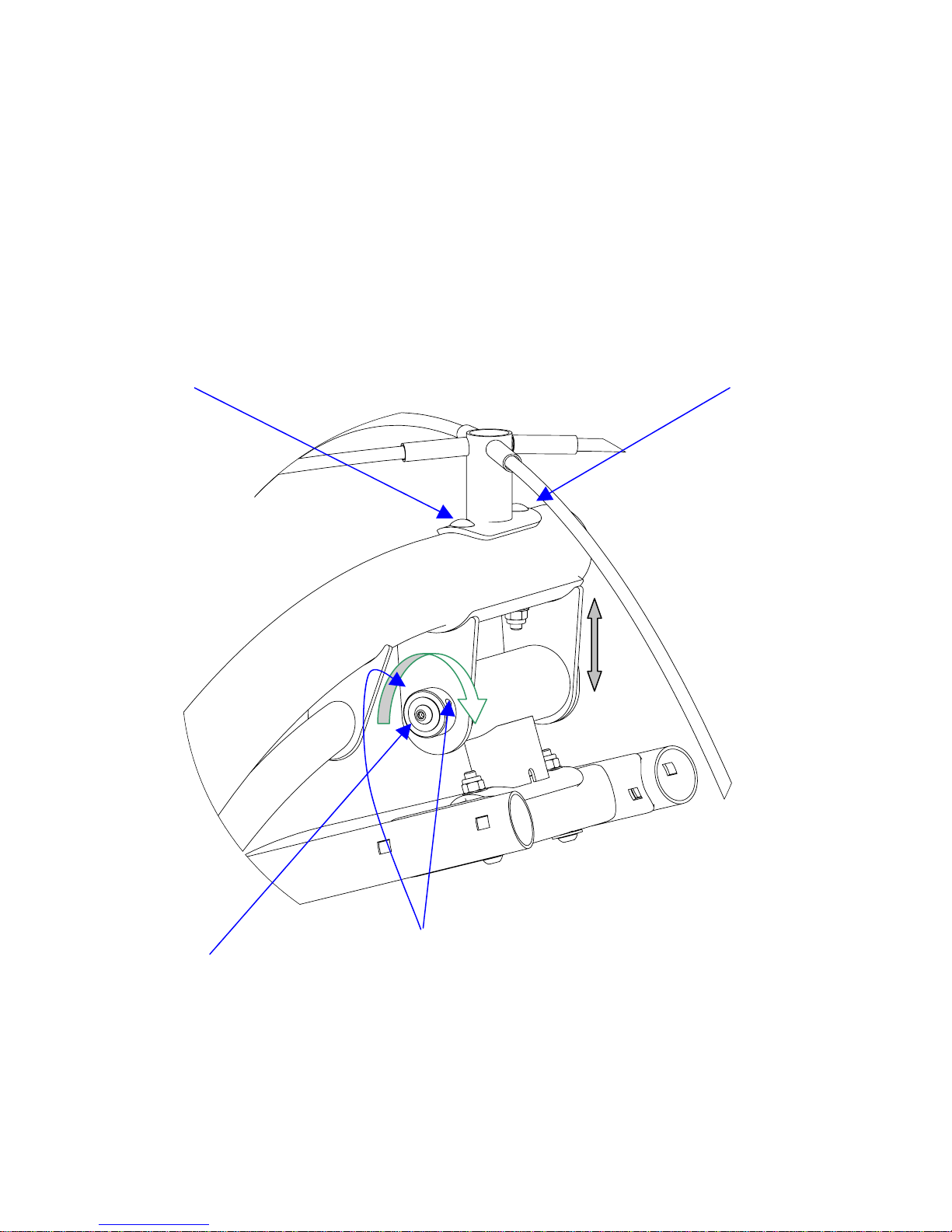

Leveling the Seat (Optional)
With the 4mm Allen wrench, make sure the two set screws are loose and do not come in contact
with the inner shaft. Then rotate the button head adjustment, with the 6mm Allen wrench,
clockwise to tilt swing up and down until seat is level and visually pleasing. Then tighten both
set screws.
Leveling the Canopy (optional)
Leveling the Canopy can be achieved by placing an extra washer or two on either carriage bolt A
or carriage bolt B, between the Canopy Support Assembly and the Upper Upright.
Carriage Bolt A Carriage Bolt B
Set Screws
Button Head Adjustment
Page 15

Label Reference Images
Page 16

Label Placement
421 Logo Label
Serial # Label
on black end cap
Warning Label
Maximum Weight
Capacity Label
Page 17

GENERAL MAINTENANCE INFORMATION
Canopy: In freezing climates, the canopy option should be removed, folded and stored in a
dry place before the first freeze or snow, and until the last freeze or snow has passed.
The canopy option is not designed for high winds. If high winds are expected, please remove
the canopy fabric. Failure to follow this instruction can result in broken canopy rods.
Nuts and Bolts: Inspect all nuts and bolts for any loosening and tighten if needed.
Go through a re-tightening sequence periodically to ensure that all hardware is tensioned
properly.
Decals: Inspect and familiarize yourself with any safety warnings or other user information
posted on each decal.
Location of Swing: This swing should not be placed near the ocean or next to a swimming
pool due to the harshness of the salt and chemicals in these environments. Failure to follow
this instruction can result in rust forming on the swing frame.
SAFETY TIPS
The Velcro below the Head Cross Assembly MUST have full area engagement. To
ensure maximum Velcro adhesion, apply pressure while rubbing on both sides of Velcro
engagement region. Check Velcro adhesion each time before using swing. Please see the
note on the bottom of page 12 of the manual
Make sure swing has completely stopped before entering or exiting the swing. Be careful
as swing may shift while entering or exiting.
This swing is for casual relaxation swinging only.
Make sure bystanders are at least 5 feet away from the swing while it is in motion.
Be cautious swinging while children are present as they may stray into the path of the
swing.
Page 18

PLEASE KEEP THIS FOR YOUR RECORDS
Sunset Swings
By Health In Motion LLC
LIMITED TEN YEAR WARRANTY
Sunset Swings warrants this product to the original purchaser to be free from defects in workmanship and/or materials
under normal use. If at any time a component part is defective, Sunset Swings shall repair or replace it (at Sunset Swings
option) within a reasonable period of time. This warranty does not cover costs of removal, transportation or
reinstallation. This warranty shall not apply if the defect was caused by misuse, neglect or normal wear and tear.
Starting from the original date of purchase, normal wear and tear shall be considered as the following: All
malfunctions of the rubber, foam and polyester fabric that occur after 90 days, all malfunctions of acrylic canopy fabric
that occurs after 3 years, all malfunctions of wood, bearings, bushings or hardware that occur after ten years. The
powder coated frame and all welded components are warranted for ten years. Sunset Swings sole responsibility shall be
to repair or replace the component within the terms stated above. Sunset Swings shall not be liable for any loss or
damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any
warranty expressed or implied or any other failure of this product.
WHAT IS NOT COVERED BY THIS WARRANTY
Sunset Swings sole obligation under this warranty is limited to either repair or replacement of parts, subject to the
additions below. This warranty neither assumes nor authorizes any person to assume obligations other than expressly
covered by this warranty.
NO CONSEQUETIAL DAMAGES. Sunset Swings is not responsible for economic loss; profit loss; or special,
indirect, or consequential damages.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original
purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made and shall
void all warranties, express, implied or statutory. There are no warranties which extend beyond the description on the
face hereof.
ALTERATION, NEGLECT, ABUSE, MISUSE, NORMAL WEAR AND TEAR, ACCIDENT, DAMAGE DURING
TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. Sunset Swings is not responsible for the repair or
replacement of any parts that Sunset Swings determines have been subjected after the date of manufacture to alteration,
neglect, abuse, misuse, normal wear and tear, accident, damage during transit or installation, fire, flood, or an ACT OF
GOD.
TRANSPORTATION COSTS. Sunset Swings will accept parts covered under this warranty freight collect, provided
that shipment has received prior approval. Sunset Swings is not responsible for any other transportation costs, but will
ship freight collect parts either repaired or replaced under these warranties.
WARRANTY CLAIM PROCEDURE. All claims should include: model number, the serial number, proof of purchase,
date of installation, and all pertinent information supporting the existence of the alleged defect. Please call for approval
of shipment of warranty parts. Sunset Swings
Health In Motion LLC
637 S. State College Blvd.
Fullerton, CA 92831
[phone]
[phone]
Page 19
