HealthUp OG-BT5UW100 User manual

HealthUp
IoT Gateway
Multifunctional Smart Healthcare IoT Gateway
개요
설치방법
LED
센서
DC IN
(5V 1A) PoE
RJ45
Micro
USB
나사(별매)
#8(4.2mm)
QUICK
START
GUIDE
Korean
품질보증카드
HealthUp OG-BT5UW100
INPUT: 5.0V / 2.0A Max
KC ID: R-R-oic-BT5UW100
FCC ID: 2AVY3BT5UW100
보증 기간
상품을 구매 한후12개월 이내
무료 서비스
보증기간 내에 품질문제로 인한 결함이 발생한 경우
품질보증카드와 구매 영수증을 제시하시면 무료 교환 서비스를 받으실 수있습니다..
다음과 같은 상황에서는 무료 교환 서비스를 받으실 수없습니다.
1. 사용자가 임의 분해하여 손상된 경우
2. 액체 등이물질 유입 또는 낙하로 인한 물리적 손상 시
3. 정격용량을 초과하는 어댑터 사용 등과전압으로 인한 손상 시
4. 천재지변에 의한 피해
상기 상황을 제외하고 귀사의 제품 손상 또는 결함이 발생 한경우 당사 또는 대리점에 문의하여 무료
교환 서비스를 받으실 수있습니다.
Step #1
전원 방법을 선택합니다.
DC IN, PoE RJ45, Micro USB 중하나를 선택할 수있습니다.
(PoE의경우 전원 공급이 불가한 경우 별도의 전원 연결이 필요합니다.)
Step #2
LED 점등을 확인합니다.
1) Blue: 부팅 상태를 나타내며 15초표시됩니다.
2) White: 정상동작 중을 나타냅니다.
3) Red: 네트워크 끊김 등장애 발생을 나타내며 점검이 필요할 수있습니다.
Step#3
공유기(또는 스위치 허브)의설정(일반적으로 ‘내부 네트워크 설정’으로 표현되어 있음)에서
HealthUp IoT Gateway 기기에 부착되어 있는 Mac-Address와일치하는 IP주소를 확인, 메모
합니다.
Step #4
인터넷 브라우저 주소창에 Step #3에서 메모했던 IP 주소를 입력합니다.
환경설정 내용(URL, ID 등)을순서대로 입력합니다.
Manufactured by Openit Inc. in Seoul
Made in Korea
Reset
WPS
Antenna
Connector
(SMA Type)
Antenna
Connector
(SMA Type)
어댑터를 사용하는 경우 입력 전류량이 2.0A를넘지 않도록 주의하세요.
FCC 고지사항
경고: 본장치는 FCC 규칙의 파트 15를준수합니다.
작동은 다음의 두가지 조건을 전제로 합니다. (1) 본장치는 해가 되는 유해한 간섭을 야기하지 않거나, (2) 원하
지않는 작동을 야기할 수있는 전파 방해를 포함한 다른 전파를 수용해야 합니다.

HealthUp
IoT Gateway
Multifunctional Smart Healthcare IoT Gateway

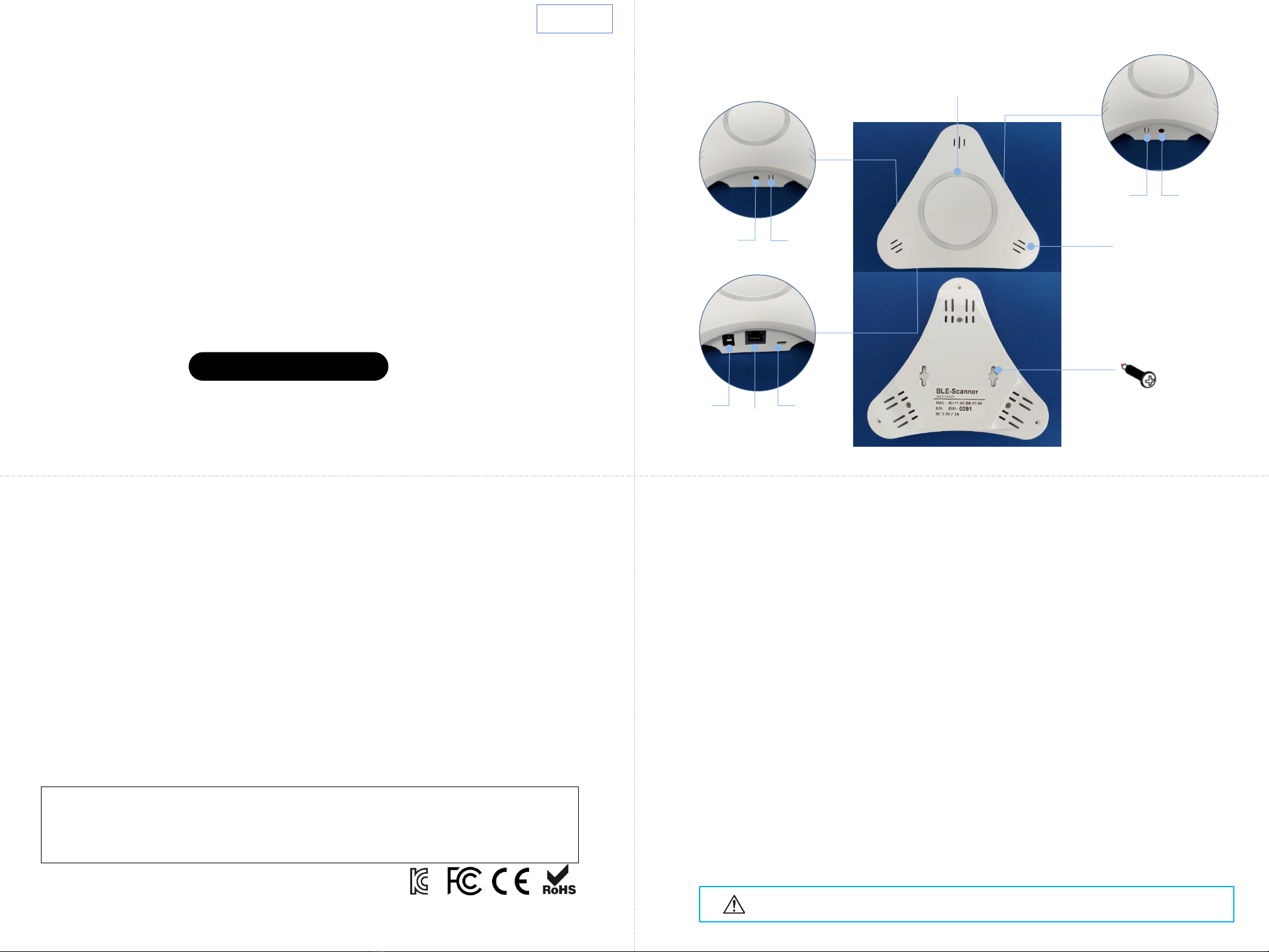

Overview
How to Install
QUICK
START
GUIDE
English
Warranty Card
Warranty Period
12 months after you purchase this item
Free Service
Supposing any defects caused by quality issues occur within the warranty period,
Please take this warranty card and purchase receipts to your distributor for free
exchange service
Free exchange service will not be accessed under following circumstances:
1. Damages caused unauthorized disassembly.
2. Defect or physical damages caused by leaking or dropping off.
3. Damages by act of God.
Supposing your item is within any damages or defects except the above circumstances,
please return to us or your distributor for free exchange service.
LED
Sensor
DC IN
(5V 1A) PoE
RJ45
Micro
USB
Reset
WPS
#8(4.2mm)
Not provided
Antenna
Connector
(SMA Type)
Antenna
Connector
(SMA Type)
Step #1
Select a power method.
You can choose from DC IN, PoE RJ45 and Micro USB.
(PoE requires additional power connection if power is not available.)
Step #2
Check the LED status.
1) Blue: Indicates the booting status and display for 15 seconds.
2) White: Indicates normal operation.
3) Red: Indicates network failure.
Step#3
Check and note the IP address in the router (or switch hub) settings.
Step #4
Enter the IP address you noted in Step # 3 into the Internet browser address bar.
Then enter the settings in order.
HealthUp OG-BT5UW100
INPUT: 5.0V / 2.0A Max
KC ID: R-R-oic-BT5UW100
FCC ID: 2AVY3BT5UW100
Manufactured by Openit Inc. in Seoul
Made in Korea
FCC Notice
Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Exceeding maximum input current specification(2.5A) may damage device.

FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
