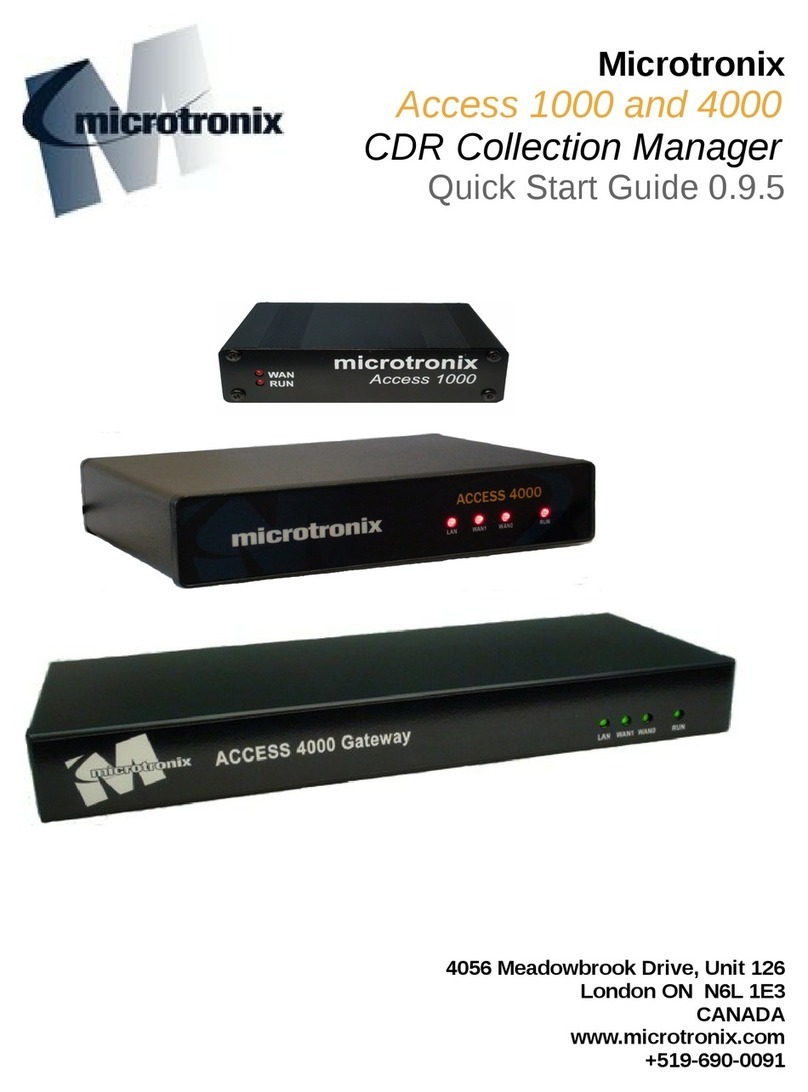

MICROTRONIX Access 1000-S04 User manual

Microtronix Datacom
Access 1000 and 4000
Terminal Server
Synchronous Server
X.25/T P Gateway
SIP/SMDI MWI Gateway
DR ollection Manager
Access User Guide
Software Revision 0.11.1
4056 Meadowbrook Drive, Unit 126
London ON N6L 1E3
ANADA
www.microtronix.com
[phone]

Microtronix Access User Guide
Table of Contents
1 ABOUT THE A ESS 1000/4000 GATEWAY.........................................................................8
1.1 Overview....................................................................................................................................... 8
1.1.1 Serial-TCP Terminal Server...................................................................................................8
1.1.2 HDLC-TCP/UDP Synchronous Server...................................................................................8
1.1. X.25-TCP/IP Gateway...........................................................................................................8
1.1.4 SIP/SMDI MWI Gateway.......................................................................................................8
1.1.5 CDR Collection Manager.......................................................................................................8
1.2 Hardware Features and Interfaces................................................................................................9
1.2.1 Model 1000-S04 and 1000-N04.............................................................................................9
1.2.2 Model 4002-S04 and 4002-N04.............................................................................................9
1.2. Model 4002-N04-RM............................................................................................................. 9
1.2.4 Model 4002-N44-RM...........................................................................................................10
1. Software/Application Features....................................................................................................10
1. .1 System Configuration and Management..............................................................................10
1. .2 Redundancy........................................................................................................................10
1. . Terminal Server...................................................................................................................10
1. .4 Synchronous Server............................................................................................................10
1. .5 X.25..................................................................................................................................... 11
1. .6 X.25-TCP/IP Gateway..........................................................................................................11
1. .7 X.25 Packet Switching.........................................................................................................11
1. .8 MWI Gateway......................................................................................................................11
1. .9 CDR Collection Manager.....................................................................................................11
2 INSTALLATION.......................................................................................................................12
2.1 Packing List................................................................................................................................. 12
2.1.1 Model 1000-S04..................................................................................................................12
2.1.2 Model 1000-N04..................................................................................................................12
2.1. Model 4002-S04..................................................................................................................12
2.1.4 Model 4002-N04..................................................................................................................1
2.1.5 Model 4002-N04-RM...........................................................................................................1
2.1.6 Model 4002-N44-RM...........................................................................................................1
2.1.7 Optional items......................................................................................................................1
2.2 Location......................................................................................................................................14
2. Mounting..................................................................................................................................... 14
2.4 Electrostatic Considerations........................................................................................................14
2.5 Environmental Specifications......................................................................................................14
2.6 Power Requirements...................................................................................................................15
2.6.1 -48VDC Electrical Connection.............................................................................................15
3 INITIAL START-UP PRO EDURE.........................................................................................17
.1 Configuring IP from the Ethernet port..........................................................................................17
.2 Configuring Default IP from the Console port..............................................................................17
. Emergency IP Address Recovery................................................................................................18
2

Microtronix Access User Guide
.4 Web Configuration Interface........................................................................................................19
.5 Configuring a Terminal Server.....................................................................................................21
.6 Configuring a Synchronous Server..............................................................................................21
.7 Configuring the X.25/TCP Gateway............................................................................................21
.8 Configuring the SIP/SMDI MWI Gateway....................................................................................21
.9 Configuring the CDR Collection Manager...................................................................................22
4 SYSTEM ONFIGURATION...................................................................................................23
4.1 Date and Time............................................................................................................................. 2
4.1.1 Date and Time Setup...........................................................................................................2
4.1.2 NTP Server..........................................................................................................................2
4.2 Ethernet......................................................................................................................................24
4.2.1 Network Setup..................................................................................................................... 24
4.2.2 System Parameters.............................................................................................................25
4.2. Interface Parameters...........................................................................................................25
4. Web Server................................................................................................................................. 26
4. .1 Update web server user password......................................................................................26
4. .2 Add web server user............................................................................................................26
4. . Update web server configuration.........................................................................................26
4. . .1 Web Server Parameters...............................................................................................26
4.4 SNMP......................................................................................................................................... 28
4.4.1 SNMP Parameters............................................................................................................... 28
4.5 Authentication............................................................................................................................. 29
4.5.1 Update system user password............................................................................................29
4.5.1.1 Sytsem user Parameters..............................................................................................29
4.5.2 RADIUS Authentication........................................................................................................29
4.5.2.1 RADIUS Parameters....................................................................................................29
4.6 Maintenance............................................................................................................................... 0
4.6.1 General................................................................................................................................ 0
4.6.2 Firmware............................................................................................................................. 0
4.6.2.1 Update Firmware.......................................................................................................... 0
4.6. Configuration....................................................................................................................... 1
4.7 System Logging.......................................................................................................................... 2
4.7.1 Remote logger IP address................................................................................................... 2
4.7.2 Rotation age........................................................................................................................ 2
4.7. Remote File server.............................................................................................................. 2
4.8 Redundancy................................................................................................................................
4.8.1 Remote peer IP address......................................................................................................
4.8.2 Secondary IP address interface name.................................................................................
4.8. ARP timeout.........................................................................................................................
4.8.4 Enable local X.25 interface watchdog.................................................................................. 4
4.8.5 Poll interval.......................................................................................................................... 4
4.9 Edit System Files........................................................................................................................ 5
4.10 Edit Config Files........................................................................................................................ 5

Microtronix Access User Guide
5 TERMINAL SERVER ONFIGURATION...............................................................................36
5.1 Serial - TCP................................................................................................................................ 6
5.1.1 Terminal Server Setup......................................................................................................... 7
5.1.2 Terminal Server Parameters................................................................................................ 7
5.1.2.1 Serial Interface Settings............................................................................................... 7
5.1.2.2 Conversion Settings..................................................................................................... 8
5.1.2. Network Settings.......................................................................................................... 8
5.2 Status.......................................................................................................................................... 8
5. Control and Log..........................................................................................................................41
6 SYN HRONOUS SERVER ONFIGURATION.....................................................................42
6.1 HDLC – TCP/UDP....................................................................................................................... 42
6.1.1 Synchronous Server Setup..................................................................................................4
6.1.2 Synchronous Settings..........................................................................................................44
6.1. Network Settings.................................................................................................................45
6.2 Status.......................................................................................................................................... 46
6. Control and Log..........................................................................................................................48
7 X.25 WAN INTERFA ES ONFIGURATION.........................................................................49
7.1 HDLC Physical Layer.................................................................................................................. 49
7.1.1 Physical Layer (HDLC) Setup..............................................................................................49
7.1.2 HDLC Parameters...............................................................................................................50
7.2 LAPB Link Layer......................................................................................................................... 51
7.2.1 LAPB Setup......................................................................................................................... 51
7.2.2 LAPB Parameters................................................................................................................51
7. X.25 Packet Layer.......................................................................................................................5
7. .1 X.25 Packet Layer Setup.....................................................................................................5
7. .2 X.25 Parameters..................................................................................................................54
7.4 X.25 Status................................................................................................................................. 56
7.4.1 HDLC Interface Status.........................................................................................................57
7.4.2 LAPB Status........................................................................................................................ 58
7.4. X.25 Status.......................................................................................................................... 59
7.5 LCI Status................................................................................................................................... 60
8 X.25/T P GATEWAY ONFIGURATION...............................................................................62
8.1 TCP to X.25 Routes....................................................................................................................62
8.1.1 Route Table.........................................................................................................................6
8.1.2 Creating a New Route.........................................................................................................6
8.1. Editing an Existing Route.....................................................................................................6
8.1.4 Remove an Existing Route..................................................................................................6
8.1.5 Show Facilities.....................................................................................................................64
8.1.6 TCP to X.25 Route Parameters...........................................................................................64
8.1.6.1 Identify inbound TCP/IP connection.............................................................................64
8.1.6.2 Generate outbound X.25 connection............................................................................64
8.2 X.25 to TCP Routes....................................................................................................................67
8.2.1 Route Table.........................................................................................................................68
4

Microtronix Access User Guide
8.2.2 Creating a New Route.........................................................................................................68
8.2. Editing an Existing Route.....................................................................................................68
8.2.4 Remove an Existing Route..................................................................................................69
8.2.5 X.25 to TCP Route Parameters...........................................................................................69
8.2.5.1 Identify inbound X.25 connection.................................................................................69
8.2.5.2 Generate outbound TCP/IP connection........................................................................70
8. X.25 Connection Status..............................................................................................................71
8.4 Control and Log.......................................................................................................................... 72
9 SIP/SMDI MWI GATEWAY......................................................................................................73
9.1 SMDI to SIP Translation..............................................................................................................7
9.2 SIP to SMDI Translation..............................................................................................................74
9. MWI Routing...............................................................................................................................74
9.4 Configuration............................................................................................................................... 75
9.4.1 UMS SIP Interface............................................................................................................... 75
9.4.2 VMS SMDI Interface............................................................................................................77
9.4. Switch Interfaces Configuration...........................................................................................79
9.4. .1 Serial Via Internal Terminal Server...............................................................................81
9.4. .2 Serial Via External Terminal Server or Translator.........................................................8
9.4. . TCP/IP Direct to PBX...................................................................................................84
9.5 MWI Test..................................................................................................................................... 85
9.5.1 Overview............................................................................................................................. 85
9.5.2 Telephone number (DN)......................................................................................................85
9.5. Message Waiting Indication.................................................................................................85
9.5.4 Message format...................................................................................................................85
9.5.5 Test Button...........................................................................................................................85
9.6 Telephone Number Database......................................................................................................86
9.6.1 Overview............................................................................................................................. 86
9.6.2 Learning Telephone Numbers..............................................................................................86
9.6. Database Manager..............................................................................................................86
9.7 SMDI Messaging Examples........................................................................................................87
9.8 Standards.................................................................................................................................... 87
10 STATISTI S & LOGS............................................................................................................88
10.1 Interface Statistics.....................................................................................................................88
10.2 System Logs............................................................................................................................. 90
10.2.1 Log View Parameters........................................................................................................90
11 ABLES AND ONNE TORS.............................................................................................91
11.1 NETWORK - 10/100 Ethernet Interface.....................................................................................91
11.1.1 Ethernet Cables................................................................................................................. 91
11.2 WAN Interface – Synchronous Operation..................................................................................92
11.2.1 Connecting to a DTE Device..............................................................................................9
11.2.1.1 Straight Through Cables.............................................................................................94
11.2.2 Connecting to a DCE Device.............................................................................................95
11.2.2.1 Crossover Cables.......................................................................................................95
5

Microtronix Access User Guide
11.2.2.2 Tail Circuit Cables.......................................................................................................97
11.2. Split clock configuration.....................................................................................................97
11. WAN Interface – Asynchronous / Serial Operation....................................................................99
11. .1 Connecting to a DTE Device..............................................................................................99
11. .1.1 Straight Through Cables.............................................................................................99
11. .2 Connecting to a DCE Device...........................................................................................100
11. .2.1 Null Modem Cables..................................................................................................100
11.4 USB Host Port.........................................................................................................................101
12 ONVERSION AND EN APSULATIONS..........................................................................102
12.1 RAW........................................................................................................................................ 102
12.2 RAW-MBIT..............................................................................................................................102
12. MBIT.......................................................................................................................................10
12.4 RFC1006.................................................................................................................................104
12.5 Q-MBIT...................................................................................................................................104
12.6 OFTP...................................................................................................................................... 104
12.7 LINE........................................................................................................................................ 105
12.8 IAC-ESC................................................................................................................................. 105
12.9 RBP.........................................................................................................................................105
12.10 QRBP.................................................................................................................................... 105
12.11 AEPN..................................................................................................................................... 105
13 SAFETY AND LEGAL.........................................................................................................107
1 .1 Regulatory Compliances......................................................................................................... 107
1 .2 Radio Frequency Interferences Statements............................................................................107
1 .2.1 Industry Canada(IC)........................................................................................................107
1 .2.2 Federal Communications Commission (FCC) Declaration of Conformity.........................107
1 .2.2.1 Complies with Part 15 of the FCC Rules..................................................................107
1 .2.2.2 Important Notice about Cables.................................................................................108
14 WARRANTY AND SUPPORT.............................................................................................110
14.1 Warranty..................................................................................................................................110
14.1.1 Microtronix One Year Limited Hardware Warranty...........................................................110
14.1.2 Microtronix 90-Day Limited Firmware Warranty...............................................................110
14.1. Limited Liability................................................................................................................110
14.2 Customer Service &Technical Support....................................................................................110
15 PRODU T ORDERING INFORMATION............................................................................112
15.1 Access Gateway Models.........................................................................................................112
15.1.1 Serial/TCP Converter (Terminal Server)...........................................................................11
15.1.2 X.25/TCP Gateway..........................................................................................................11
15.1. CDR Collection Manager.................................................................................................11
15.1.4 MWI Gateway (SIP and SMDI Message Waiting Indicator Solutions)..............................114
15.2 Accessories............................................................................................................................. 115
16 SPE IFI ATIONS...............................................................................................................116
6

Microtronix Access User Guide
16.1 Hardware and Interfaces.........................................................................................................116
16.1.1 Enclosure.........................................................................................................................116
16.1.2 System............................................................................................................................. 116
16.1. Ethernet Interface............................................................................................................116
16.1.4 USB Interface.................................................................................................................. 116
16.1.5 WAN Interface..................................................................................................................116
16.1.6 Serial Interface (on USB adapter)....................................................................................116
16.2 Software and Protocols...........................................................................................................117
16.2.1 X.25 Features.................................................................................................................. 117
16.2.2 X.25 / TCP Encapsulation and Conversion methods........................................................117
16.2. X.25 to TCP Connection Mapping and Address Translation.............................................117
16.2.4 TCP to X.25 Connection Mapping and Address Translation.............................................118
16.2.5 Asynchronous X.28/Serial Features.................................................................................118
16.2.6 Synchronous HDLC Features..........................................................................................118
16.2.7 System Services..............................................................................................................119
16.2.8 CDR Collection Manager Option......................................................................................119
16.2.9 SIP/SMDI MWI Gateway Option......................................................................................120
7

Microtronix Access User Guide
1 About the Access 1000/4000 Gateway
1.1 Overview
The Access 1000/4000 Gateway has serial and Ethernet ports to provide a number of serial/IP
conversions. It comes with a number of standard and optional applications that make use of these
interface conversions. An easy to use, intuitive, web-based server is built in, allowing any standard
Internet browser for configuration and monitoring. Context-sensitive help is available.
1.1.1 Serial-T P Terminal Server
The Terminal Server provides conversion of asynchronous/serial interfaces to TCP/IP sockets. This
allows external TCP applications, or internal applications like the MWI Gateway and CDR Collection
Manager to make a connection to a serial interface.
The Terminal Server comes standard.
1.1.2 HDL -T P/UDP Synchronous Server
The Synchronous Server provides conversion of synchronous/HDLC interfaces to TCP/IP sockets.
This allows external TCP or UDP applications, or internal applications like the CDR Collection Manager
to make a connection to a synchronous interface.
It can also act as a bridge to interconnect 2 synchronous interfaces, replacing any leased line or dial-up
modem with an IP network connection.
The Synchronous Server comes standard.
1.1.3 X.25-T P/IP Gateway
The X.25/TCP Gateway provides conversion of X.25 and TCP/IP for external and internal applications
like the CDR Collection Manager. X.25 logical channels are mapped to TCP/IP sockets using a
comprehensive routing table that allows for full control of call setup and recognition. Several message
encapsulation methods are supported for preservation of messages to suit a variety of applications.
Connections can be made from one X.25 port to another to provide X.25 switching, and X.25 network
replacement can be achieved using XOT (X.25 Over TCP).
1.1.4 SIP/SMDI MWI Gateway
The MWI Gateway provides routing and translation of Message Waiting Indicator (MWI) notifications
from VoIP Unified Messaging Servers and legacy Voice Mail Systems to one or more legacy or VoIP
telephone switches or PBX's.
1.1.5 DR ollection Manager
The CDR Collection Manager provides collection of Call Detail Records, and other file types, from
legacy X.25 Central Office voice switches and IP-based soft switches.
8

Microtronix Access User Guide
1.2 Hardware Features and Interfaces
1.2.1 Model 1000-S04 and 1000-N04
●-48VDC connector for Central Office (CO) installation
●S04 includes 100-240VAC adapter, N04 includes -48VDC cable
●10/100 Base-T Ethernet - RJ45
●WAN (console) interface - DB25F RS5 0[A] configurable for RS2 2/V.24, X.21, V. 5, RS449/V. 6
●USB Host Port interface - for additional serial interfaces or storage device
●Rack-mountable using 19” or 25” shelf
1.2.2 Model 4002-S04 and 4002-N04
●-48VDC connector for Central Office (CO) installation
●S04 includes 100-240VAC adapter, N04 includes -48VDC cable
●10/100 Base-T Ethernet – RJ45
●2 - WAN interfaces - DB25F RS5 0[A] configurable for RS2 2/V.24, X.21, V. 5, RS449/V. 6
●USB Host Port interface for additional serial interfaces or storage device
●Rack-mountable using 19” or 25” shelf
1.2.3 Model 4002-N04-RM
●19” 1U rack mount enclosure (25” rack extension available)
●-48VDC connector for Central Office (CO) installation
●10/100 Base-T Ethernet – RJ45
●2 WAN interfaces - DB25F RS5 0[A] configurable for RS2 2/V.24, X.21, V. 5, RS449/V. 6
●Internally-mounted USB Host port interface for internal flash drive or 4 port serial expansion
9

Microtronix Access User Guide
1.2.4 Model 4002-N44-RM
●19” 1U rack mount enclosure (25” rack extension available)
●-48VDC connector for Central Office (CO) installation
●10/100 Base-T Ethernet – RJ45
●2 WAN interfaces - DB25F RS5 0[A] configurable for RS2 2/V.24, X.21, V. 5, RS449/V. 6
●4 Serial ports – DB9M RS2 2 (internally mounted USB serial adapter)
1.3 Software/Application Features
1.3.1 System onfiguration and Management
●Web-based interface accessible through any Internet browser
●Context-sensitive help on all web pages
●Command line interface available on WAN or Serial ports; ssh or telnet interfaces
●Syslog with optional remote syslog and/or storage on remote file server
1.3.2 Redundancy
●Redundancy on a pair of units using IP takeover
●Primary with redundant backup unit
●Co-redundancy between a pair of active units
●Redundancy may use primary or secondary/virtual IP addresses
1.3.3 Terminal Server
●Asynchronous Serial interface to TCP/IP
●Client or server support
●Configurable speed, parity, stop bits, and flow control method
●1, 2, 4, or 8 additional ports on USB-attached serial adapter (optional)
1.3.4 Synchronous Server
●Synchronous HDLC interface to TCP/IP or UDP/IP
●Cient or server support
●Configurable speed, internal or external clocking
●Configurable Encoding (NRZ/NRZI)
●Configurable CRC checking and generation (16 bit, 2 bit)
●Unumbered Information (UI) header recognition and generation
10

Microtronix Access User Guide
1.3.5 X.25
●1024 logical channels
●SVC and PVC
●Negotiable packet sizes 16 to 4096 bytes
●Modulo-8 and 128
●DTE or DCE individually selectable at physical, data link, and packet layers
1.3.6 X.25-T P/IP Gateway
●X.25 to TCP routing
●TCP to X.25 routing
●X.25 encapsulation using X.25 Over TCP (XOT)
●Configurable X.25-TCP conversion/encapsulation methods or RAW
1.3.7 X.25 Packet Switching
●Switching calls between local ports (using local XOT connections)
●Switching calls between remote units using XOT
1.3.8 MWI Gateway
●SIP to SMDI MWI Conversion
●SMDI to SIP MWI Conversions
●MWI Routing by DN
1.3.9 DR ollection Manager
●Collects CDR and other files from Central Office switches
●Multiple file streams
●Client (pull) and server supported
●Supports X.25, serial, synchronous/HDLC/LAPB, and IP switch interfaces
●File distribution via FTP or SFTP/IP
11

Microtronix Access User Guide
2 Installation
The first step that should be taken is to ensure that you have received all the equipment ordered and
that it has not been damaged in transit. If there are any external signs of damage, note them in writing
and contact the transport company to make a claim.
2.1 Packing List
Unless pre-arranged, the following are the lists of the standard items that are packed and shipped with
each model:
2.1.1 Model 1000-S04
Qty Part Number Part Description
1 1000-S04 Access 1000 Gateway unit with -48VDC input connector
1 588 -PSC 0U-48 100-240VAC adapter
1 Country-specific AC power cord (NA, EU)
1 [284-MC1MF DB9F-DB25M Console cable
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
2.1.2 Model 1000-N04
Qty Part Number Part Description
1 1000-N04 Access 1000 Gateway unit with -48VDC input connector
1 W1000 -48VDC Power cord
1 [284-MC1MF DB9F-DB25M Console cable
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
2.1.3 Model 4002-S04
Qty Part Number Part Description
1 4002-S04 Access 4000 Gateway unit with 12VDC input connector
1 589-PS-121 AP 120/240VAC adapter
1 Country-specific AC power cord (NA, EU)
1 [284-MC1MF DB9F-DB25M Console cable
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
12

Microtronix Access User Guide
2.1.4 Model 4002-N04
Qty Part Number Part Description
1 4002-N04 Access 4000 Gateway unit with -48VDC input connector
1 W4002 -48VDC Power cord
1 [284-MC1MF DB9F-DB25M Console cable, 6 ft
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
2.1.5 Model 4002-N04-RM
Qty Part Number Part Description
1 4002-N04-RM Access 4000 Gateway 19” 1U rack mount enclosure with -48VDC connector
1 W4002 -48VDC Power cord
1 [284-MC1MF DB9F-DB25M Console cable, 6 ft
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
2.1.6 Model 4002-N44-RM
Qty Part Number Part Description
1 4002-N44-RM Access 4000 Gateway 19” 1U rack mount enclosure with 4 Serial ports and
-48VDC connector
1 W4002 -48VDC Power cord
1 [284-MC1MF DB9F-DB25M Console cable, 6 ft
1 811-W6002-06 RJ45 Ethernet patch cable (blue), 6 ft
2.1.7 Optional items
In addition to the above standard items, one of more of the following may be ordered:
●Additional WAN or serial cables
●19” 1U rack mount shelf for holding 1, 2, or Access 1000 units
●19” 1U rack mount shelf for holding 1 or 2 Access 4000 units
●19” to 25” rack mount adapter kit
●External USB serial adapter: 1, 2, 4, or 8 ports
●Internally mounted 4-port USB serial adapter for model 4002-N04-RM
●USB 8GB or 2GB flash drive (standard with CDR Collection Manager)
●-48VDC to 100-240VAC adapter
1

Microtronix Access User Guide
2.2 Location
Select a location for the Access Gateway that meets the following requirements:
●Is within cabling distance of the network equipment and power connections.
●Complies with the Environment and Electrical Requirements outlined in this section.
●Does not have restricted airflow. There must be at least 2 inches clearance on all sides so that
proper air ventilation is not obstructed. If space is at a premium, you may place light equipment,
such as the network modem, on top of the unit.
●Permits access to the back of the unit to allow user to make cable connections.
2.3 Mounting
The Access Gateway may be placed on any flat surface or shelf provided that the unit is within feet of
an AC power source. At least 2” of space on each side of the unit is required to ensure proper air flow.
The physical dimensions (D x W x H) and nominal weight of the Access Gateways are:
●Model 1000 – . 4“ x 5.625“ x 1.25”, 0.5 lb (.0.22 kg)
●Model 4002 – 5.5” x 7.25” x 1.6” (14 x 18.5 x 4 cm), 1.4 lb (0.64 kg).
●Model 4002-RM – 5.4” x 14” x 1.72”, 4 lb
●Model 4002-RM – 5.4” x 14” x 1.72”, 4 lb
2.4 Electrostatic onsiderations
All microcomputers are sensitive to electrostatic discharges (ESD). A direct ESD discharge to the
chassis or cables can disrupt unit operation, induce a latent failure condition, or even permanently
damage circuit components. For these reasons, you must use good ESD control procedures that
electrically ground you when making direct physical contact with the unit or cables. The use of
grounding wrist straps and cords is strongly recommended for controlling discharges and preventing
ESD damage.
WARNING:
To prevent damage to port drivers and receivers, you must use proper electrostatic control
precautions when attaching or handling cables.
2.5 Environmental Specifications
The environmental specifications recommended for maximum reliability of the Access Gateway are:
Ambient Temperature 5 to 40 degrees C (For short term operation to 45 degrees C)
Temperature rate of change degrees / hour
Humidity 10% to 95% (non-condensing)
Humidity rate of change 2% / hour
14

Microtronix Access User Guide
2.6 Power Requirements
The Access Gateway operates from a -48VDC power source.
The maximum power dissipation is listed below.
Operating Voltage Access 1000
-48 VD
Access 4000
-48 VD
urrent Draw (maximum) 125 mA 50 mA
Power 6 Watts 17 Watts
BTU 21 BTU / hour 58 BTU / hour
Fuse 1 Amp 1 Amp
2.6.1 -48VD Electrical onnection
The Access 1000 and 4000 with the -48VDC option are designed to operate from an approved -48VDC
Secondary Extra-low Voltage (SELV) commercial battery backed power source used in TELCO Central
Office (CO) applications. A -pin male power connector – suitably labeled – is provided on the rear of
the unit for connecting the -48VDC power source. The unit is protected against reverse polarity
connection of the -48VDC power source. The 48VDC power connection should be protected with a
2A, 50VDC fuse or circuit breaker.
A flame retardant wire harness with a -pin female jack is provided for making the -48VDC power
connection. Three #22 AWG wires in the harness provide the DC power: red +, black -, and one green
wire provides the chassis ground connection.
The Frame Ground screw connection on the rear panel must be used in order to comply with
installation requirements. This #8- 2 machine screw has two external toothed (star) lock washers to
secure the unit rear plate Frame Ground connection to the Central Office GND system.
The terminal lug of the green wire ground wire must be placed between the star washers to assure an
adequate connection. A #14 AWG or larger copper wire must be used; its length should be minimized
to assure effectiveness for controlling ESD and EMI.
The Access 1000 wire harness (part number W1000) has an On Shore Technology # OSTTJ0 15 0
(Digi-Key # ED287-ND) -position female jack.
Model 1000-Nxx -48VD power connector and W1000 wire harness
15

Microtronix Access User Guide
The Access 1000 and 4000 may also operate from an AC power source using the safety and agency
approved (CSA/UL etc.) external 100-240 VAC switching power supply.
Model 1000-Sxx -48VD A power supply
The Access 4000 wire harness (part number W4002) has a Molex # 9860-070 (Digi-Key # WM5855-
ND) female jack.
Figure 3: Model 4002-Nxx -48VD power connector and W4002 wire harness
16

Microtronix Access User Guide
3 Initial Start-up Procedure
The first step in the initial setup is to configure the IP address and network parameters. This may be
accomplished through the serial console port, or using a web browser from a PC on a reachable
Ethernet network.
Obtain the following information from your network administrator:
●IP address to be assigned to the Access Gateway
●subnet mask
●address of the default gateway
●Domain Name Server (DNS)
3.1 onfiguring IP from the Ethernet port
The IP address can be configured using a standard Internet browser from a PC. The default IP address
of the Access Gateway is 10.1.1.240. The procedure is:
1) Configure a PC's Ethernet/LAN to have an IP Address on the same subnet, for example:
10.1.1.200, subnet mask 255.255.255.0
2) Connect an Ethernet patch cable between the PC and the unit, or connect to a common hub.
) Connect power cord to the Access Gateway unit
4) Open an Internet browser on the PC to navigate to http://10.1.1.240.
5) Login with username “admin” and password “admin”.
6) Select the Ethernet option from the menu in the left pane of the main screen.
7) Configure the desired IP address and network parameters as outlined in the Ethernet section.
8) Remove the cable from the PC and connect to the network.
9) Restore the PC's previous IP settings.
3.2 onfiguring Default IP from the onsole port
WAN port 0 on the Access 1000 and WAN port 1 on the Access 4000 also serve as console ports
during boot-up after power is applied. There is a 10 second window that interrupts the boot process to
allow configuration using the console port.
To configure default IP network values in the bootup environment:
1) Connect the Console Cable (DB25M-DB9F) between a PC COM port and the console port of the
Access Gateway. A USB serial adapter will be required on the PC if it does not have a serial COM
port.
2) Start a terminal emulator like putty or HyperTerminal on the PC and select the correct COM port.
) Set the COM port for: 9600 bits per second, 8 data bits, no parity, 1 stop bit, no flow control.
4) Connect power cord to apply power to the Access Gateway unit. Startup messages will appear
followed by the message: “Autoboot in 10 seconds (Enter password to stop)…”
5) Before the 10 second timer expires, type the password “foad”. (The “A4K:>” prompt will be
displayed). Retype from the beginning if an error is made.
17

Microtronix Access User Guide
6) Enter the following commands replacing the example values with those provided by your network
administrator:
set ipaddr 10.1.1.240
set netmask 255.255.255.0
set gatewayip 10.1.1.1
7) (optional) Enter a new host name:
set hostname NEWNAME
8) Enter the following commands to save the changes and restart the system.
save
boot
3.3 Emergency IP Address Recovery
The u-boot console may be used to recover a forgotten IP address. While in the U-Boot console mode, the
default IP address and other parameters may be displayed:
print ipaddr
print netmask
print gatewayip
If the default values are not in current effect, they may override the system-defined values temporarily by setting
new default values (if desired) and entering the U-Boot commands:
set ipaddr 10.1.1.240
set netmask 255.255.255.0
set gatewayip 10.1.1.1
set runlevel 2
save
boot
When the system starts up, it will be using the default IP address information, and should be reachable on that
network. Browse into the web interface and access the Ethernet page to view the “forgotten” values. Restart the
system to get the U-Boot console, and reset run level:
set runlevel
save
boot
The system will restart with the system-defined values.
18

Microtronix Access User Guide
3.4 Web onfiguration Interface
To access the web-based configuration interface, use an Internet browser to navigate to the IP address
of the gateway (default 10.1.1.240). When the authentication pop-up appears, use the default
username “admin” and password “admin” to log on.
Click OK, and the Home page will be displayed with the main menu down the left side. The page will
reflect model, hostname, version, and installed applications.
Click the Help button for a general configuration guide, and to download full documentation manuals.
19

Microtronix Access User Guide
Using the main menu in the left hand pane of the displayed page, click the desired configuration or
display options. Edit as needed and remember to click any Apply or Update button to save changes.
Under the System section of the main page menu, Date and Time settings can be used to configure
date, time, time zone, and NTP server. The IP network settings are available with the Ethernet menu
item. Refer to the following sections for more detail: Date and Time, and Ethernet.
Context-sensitive help is available with the Help button located in the top right of each page. These
contain the most up-to-date information, and should be used in preference to this manual. An overview
is available from the help button on the main page:
If there is a Microtronix USB flash drive installed in the unit, the manuals (including this one) are
available by following the Download manuals link in Menu subsections:
