HealthyAir HA-SCE-G1 User manual

Source Capture
Fan-Filter Exhauster System
HA-SCE-G1
Owner’s Manual
Table of Contents
HealthyAir® HA-PF7-1111 Filter
1
Important Safety Instructions
2
Technical Specifications
3
Packaging Reference
4
Component Reference
5
Assembly Instructions
6-7
Assembly Instructions –Extraction Hose
8
Assembly Instructions –Pop-Up Source Capture Vent
9-10
Assembly Instructions –Outside Vent Adapter Kit
11-13
Operation Guidelines
14-15
Filter Replacement
16-18
Maintenance
19
Basic Service and Troubleshooting
20-24
Electrical Wiring Schematic
25
1-Yeart Limited Warranty
26
Product Registration Form
27
Healthy Air Inc.
800-259-2535
www.HealthyAir.com

1
HealthyAir®Model HA-SCE-G1
Source Capture Fan-Filter Exhauster System
with
HealthyAir®HA-PF7-1111 Filter
at
www.HealthyAir.com

2
WARNING
Unplug the power cord before servicing or replacing filters. Failure
to do so could result in serious personal injury and death.
I. Important Safety Instructions
Read the Owner's Manual and Important Safety Instructions carefully. Failure to
follow these instructions could cause a malfunction of the filter or unsatisfactory
performance. Follow a regular service and maintenance schedule for efficient
operation.
To reduce the risk of electric shock, fires, and/or injury:
Do not use the air purifier in wet or damp locations
Do not use outdoors
Do not use at ambient temperature of above 95°F/35°C
Do not use fabrics or other material to cover the inlet and outlet of the unit
Do not allow children to operate or play with the unit
For safety reasons and to prevent electric shock, unplug the power cord from the
electric outlet socket under the following conditions:
When not in use for a long period of time
When cleaning, servicing the machine or during replacement of filters
When moving the air purifier
To prevent electric shock, do not dismantle, repair or modify this product.
Maintenance and cleaning instructions should be followed exactly as directed in
this manual. In case of malfunction, please contact an authorized distributor or
Healthy Air Inc. for service instructions.
To reduce the risk of electric shock, the equipment has a grounding type plug that
has a third (grounding) pin. This plug will only fit into a grounding type power
outlet. If the plug does not fit into the outlet, contact qualified personnel to install
the proper outlet. Do not alter the plug in any way.
To reduce the risk of electric shock, do not pull the cord to remove the plug from
its outlets. Protect the cord against heat, oil and sharp objects. Do not run any
appliance over the cord. Do not pull or carry by the cord, use cord as a handle,
close a door on the cord, or pull cord around sharp edges or corners.

3
II. Technical Specifications
Model Number
HA-SCE-G1-W/B/G
Rated Voltage
120V/60HZ
Power Consumption
200W
Weight
37 lbs. (17 kg)
Base Dimensions
14x12x24 in. (350×310×615 mm)
Flex Hose Length
45 in. (114.3 cm)
Air Flow Rate
240 cfm (400 m3/h)
Noise Level
56 dB

4
III. Packaging Reference
The Source Capture Fan-Filter Exhauster System is shipped in two (2) or three (3)
cartons, as follows:

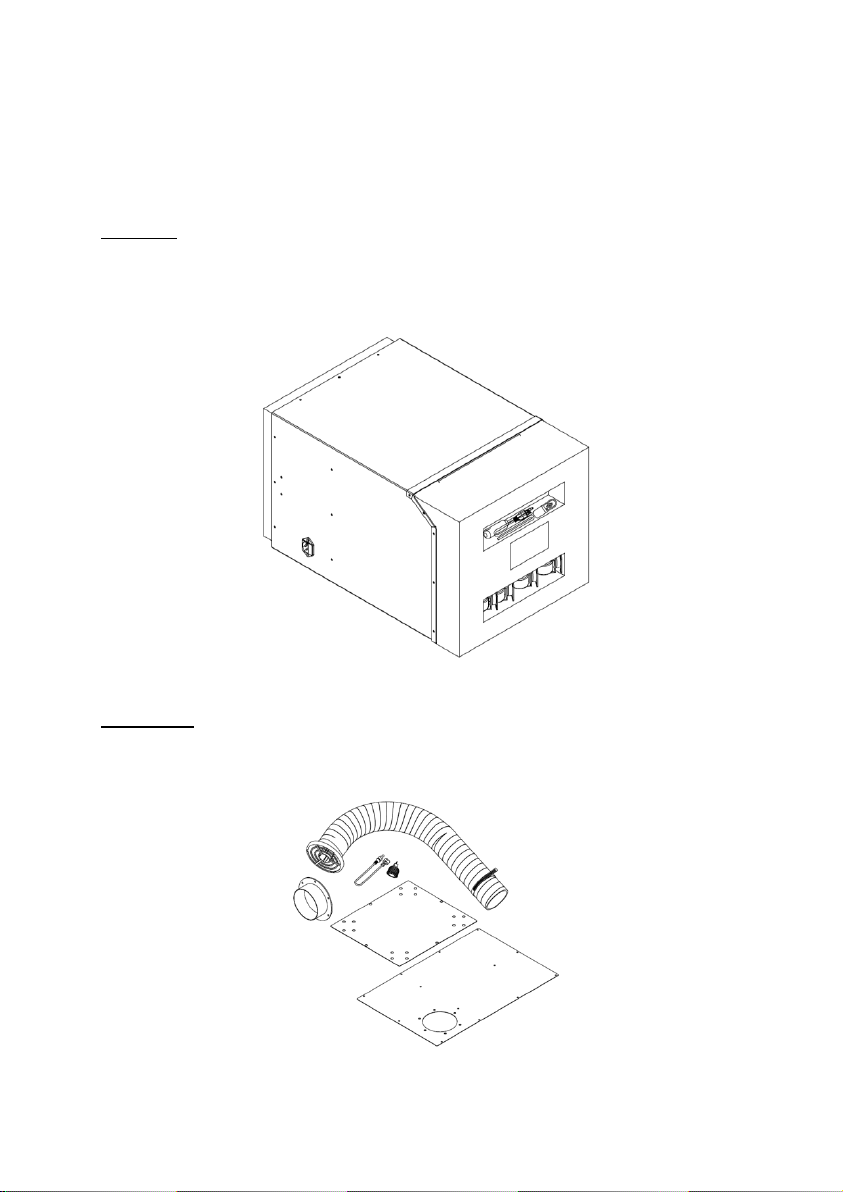

Carton 1: (1) Air Purification Unit with (1) Pocket Filter, (4) Wheel Casters,
(1) Acoustic Mat, (1) Manual, (1) Remote Control, (1) Power
Cord, (1) Screwdriver
Carton 2/3: (1/2) Extraction Hose + Hood, (1/2) Hose Clamp, (1/2) Grill + LED
Cable + LED Bulb (Optional), (1) Outside Vent Adapter Kit –Outlet
Flange + Base Blank-Off Plate +Back Panel (Optional)

5
IV. Component Reference

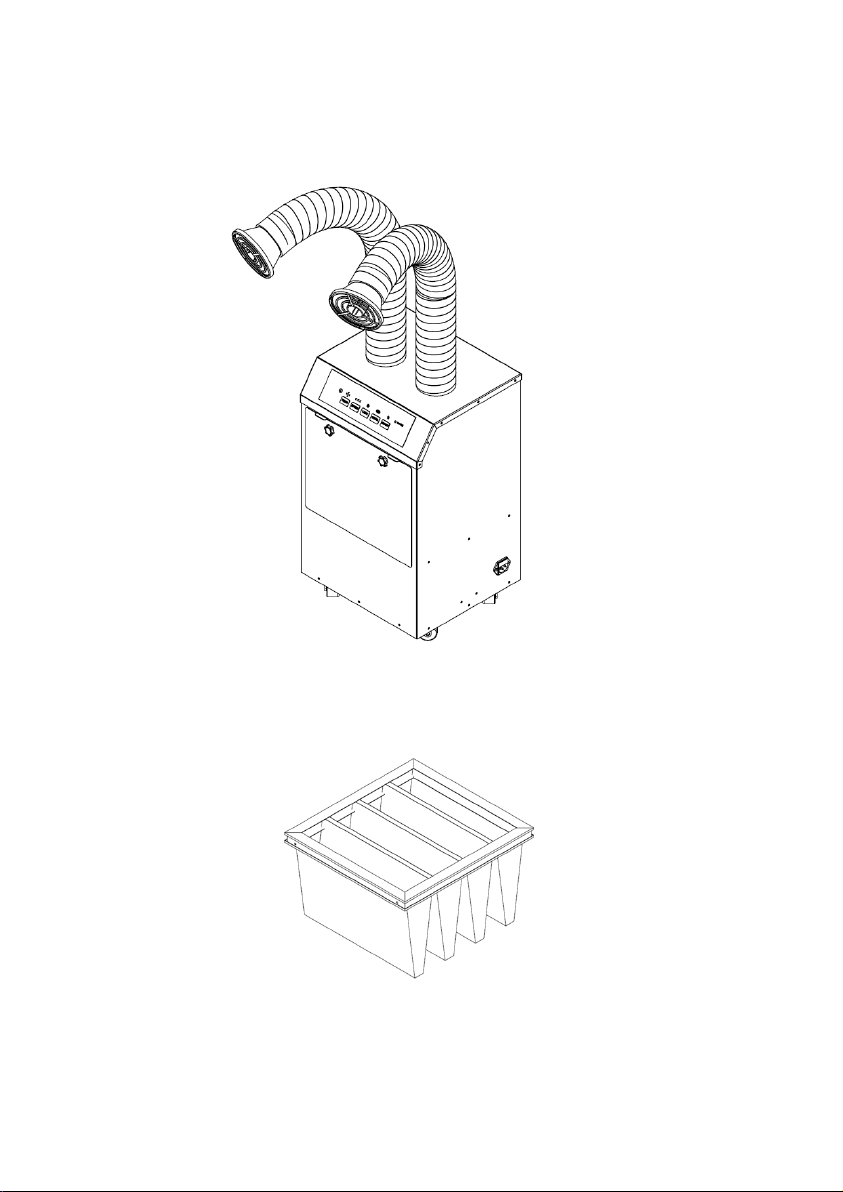

1. Outer Frame
2. Acoustic Mat
3. Blower/Motor
4. Metal Screen
5. Caster Wheels
6. Base Plate
7. Motor Mount Plate
8. Baffle Plate
9. Guide Ring
10. Safety Screen
11. Pocket Filter HA-PF7-1111
12. Hose Clamp
13. Safety Switch
14. Capacitor
15. PCB Board
16. Extraction Hose
17. LED Light Bulb (Option)
18. Hood
19. G4 Bulb Mount (Option)
20. LED Grill (Option)
21. LED Cable Plug (Option)
22. LED Cable Socket
23. Top Cover
24. Control Panel Display
25. Control Panel
26. Thumb Screw
27. Access Door
28. Power Cord
29. Remote Control
30. Base Blank-Off Plate
(Optional)
31. Outlet Flange (Optional)

6
V. Assembly Instructions
5.1 Install Caster Wheels
The following procedure is for Standard Application of the unit, whereby purified
air is vented through the Base Plate and recirculated within the facility.
For Outside Vent Applications, in which filtered air is vented out of the facility,
skip Section 5.1 and refer to the wheel installation instructions in Section 5.4.
5.1.1 Place the unit on its side on a flat surface, as shown in Fig. 1.
5.1.2 Locate the four (4) Caster Wheels and the Screwdriver that are provided
in Carton 1.
5.1.3 Unscrew and remove the screws that are pre-mounted onto the Base
Plate, on the bottom of the unit. There are four (4) screws per wheel, for a
total of sixteen (16) screws.
5.1.4 Align the holes of the Caster Wheel Mount with the holes on the Base
Plate, and use four (4) screws to securely mount each Caster Wheel to
the Base Plate one by one.
Fig. (1) –Caster Wheel Installation
Base Plate
(16) Screws for
mounting wheels

7
V. Assembly Instructions
5.2 Install LED Lighting (Optional)
Note that, the LED Lighting system is an optional feature. To add this feature,
visit www.HealthyAir.com and select LED Lighting from the Accessories tab in
the Products dropdown menu.
If LED Lighting was not purchased, skip section and proceed to Section 5.3.
5.2.1 Mount the LED Light Bulb on the Grill, by inserting the lip of the bulb
into the 4-piece cylinder located in the center of the Grill.
5.2.2 Connect the LED Cable to the LED Light Bulb, by sliding the two (2)
prongs of the bulb into the G4 Bulb Mount.
5.2.3 Pass the 52” LED Cable through the Hood and entire length of the
Extraction Hose, such that the LED Cable Plug passes through the
bottom of the Extraction Hose.
5.2.4 Connect the Grill to the Hood by snapping the Grill onto the rim of the
Hood, as shown in Fig. 2.
5.2.5 Connect the LED Cable Plug to the LED Cable Socket of the LED
Cable that is fixed to the edge of the Inlet Port.

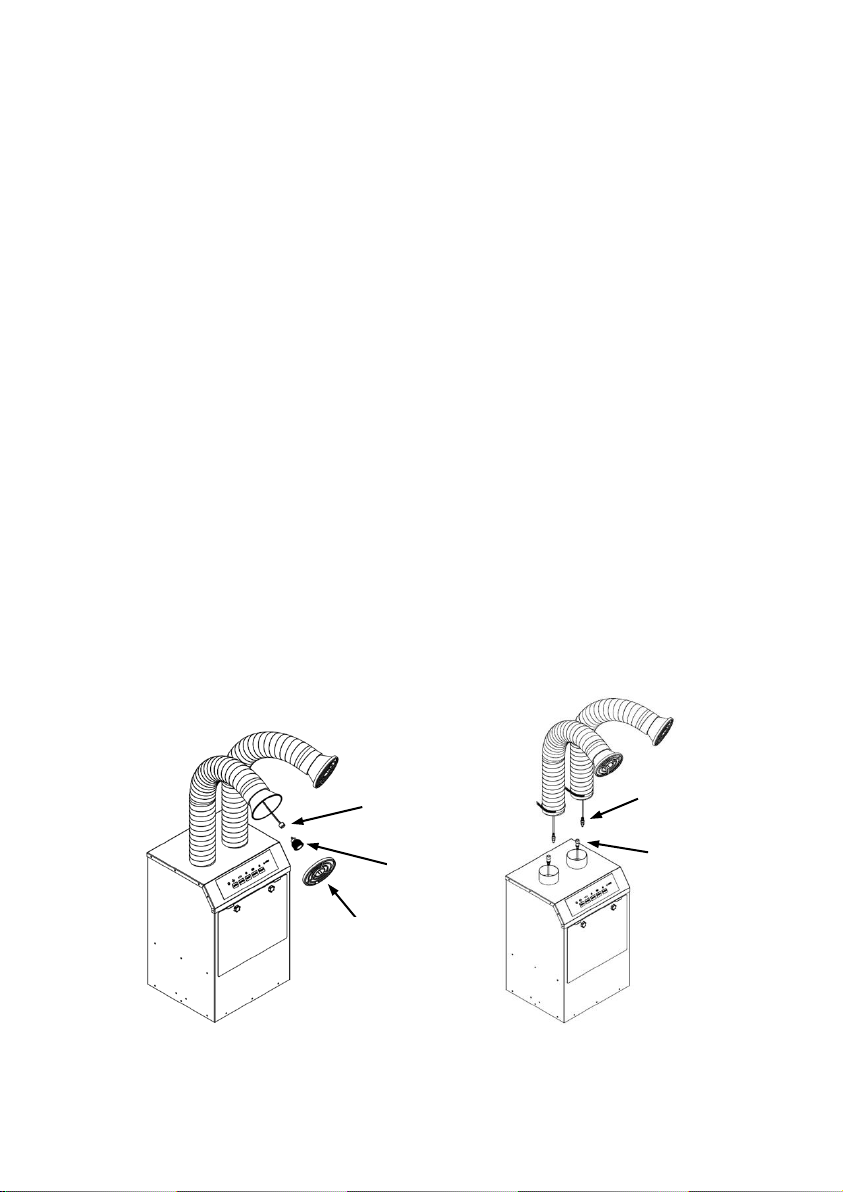

Fig. (2) –LED Lighting System Installation
Grill
LED
Bulb
LED Cable w/
Bulb Mount
LED Cable
Plug
LED Cable
Socket

8
V. Assembly Instructions
5.3 Install Extraction Hose
The Extraction Hose is constructed of interlocking bands that enable its length
and shape to be adjusted. Note that, the Extraction Hose will unravel if it is
lengthened or bent past its tolerance point. The diameter of the Extraction Hose
can be also adjusted by 10% by rotating sections of the hose counterclockwise.
5.3.1 Install the Extraction Hose on the unit by sliding the end of the
Extraction Hose over the Inlet Port, as shown in Fig. 3.
If the diameter of the Extraction Hose needs to be increased, rotate the
end of the hose counterclockwise.
5.3.2 Hold the end of the Extraction Hose and rotate it clockwise, to reduce
its diameter, to fit it to the diameter of the Inlet Port.
5.3.3 Position the Hose Clamp at the base of the Extraction Hose and screw
the hex nut to tighten the Hose Clamp and secure the Extraction Hose
on the Inlet Port. Ensure that the connection is tight to optimize
performance.
Fig. (3) –Extraction Hose Installation
Hood
Inlet Port
Grill w/
LED Light
(Optional)
Extraction Hose
Hose
Clamp

9
V. Assembly Instructions
5.4 Install Pop-Up Source Capture Vent (Optional)
Visit www.HealthyAir.com to download the manual with complete installation
instructions for the HealthyAir® Source Capture®“Pop-Up” Vent.
The HealthyAir®Source Capture® “Pop-Up” Vent provides an alternative to the
use of extraction arms for source capture at the point of chemical application.
The Single-Inlet provides source capture for a single station, and the Dual Inlet
Pop-Up Vent serves two stations that are adjacent to one another.
The Pop-Up unit is designed to be installed in a table or work surface and
integrated with the HealthyAir®Source Capture Fan-Filter Exhauster System,
as shown in Fig. 4.
The innovative design of this patented product enables the 8"x6" inlet vent to
"Pop-up" when the system is in use. When inactive, the vent may be
"Pushed-down" to hide it from view. The result is a system that offers
increased collection efficiency, optimized airflow, aesthetically appealing
design and simplicity of use.
Note that, the HealthyAir®Source Capture Fan-Filter Exhauster System can
either be set to exhaust in the room, as a Recirculating Ventilation system, or
exhaust to outside, as an Outside Ventilation system, and unit can either be
located near the table or positioned in a remote location.
5.4.1 Install the Source Capture®Vent in the table or work surface in
accordance with the complete instructions provided in the HealthyAir®
Source Capture®“Pop-Up” Vent (download from
www.HealthyAir.com)
5.4.2 Duct the outlet of the Source Capture®Vent to the inlet of the
HealthyAir®Source Capture Fan-Filter Exhauster. Refer to Fig. 4 for
an example of the setup for Recirculating Ventilation and Refer to Fig.
5 for an example of the setup for Outside Ventilation.

10
V. Assembly Instructions
5.4 Install Pop-Up Source Capture Vent (Optional)

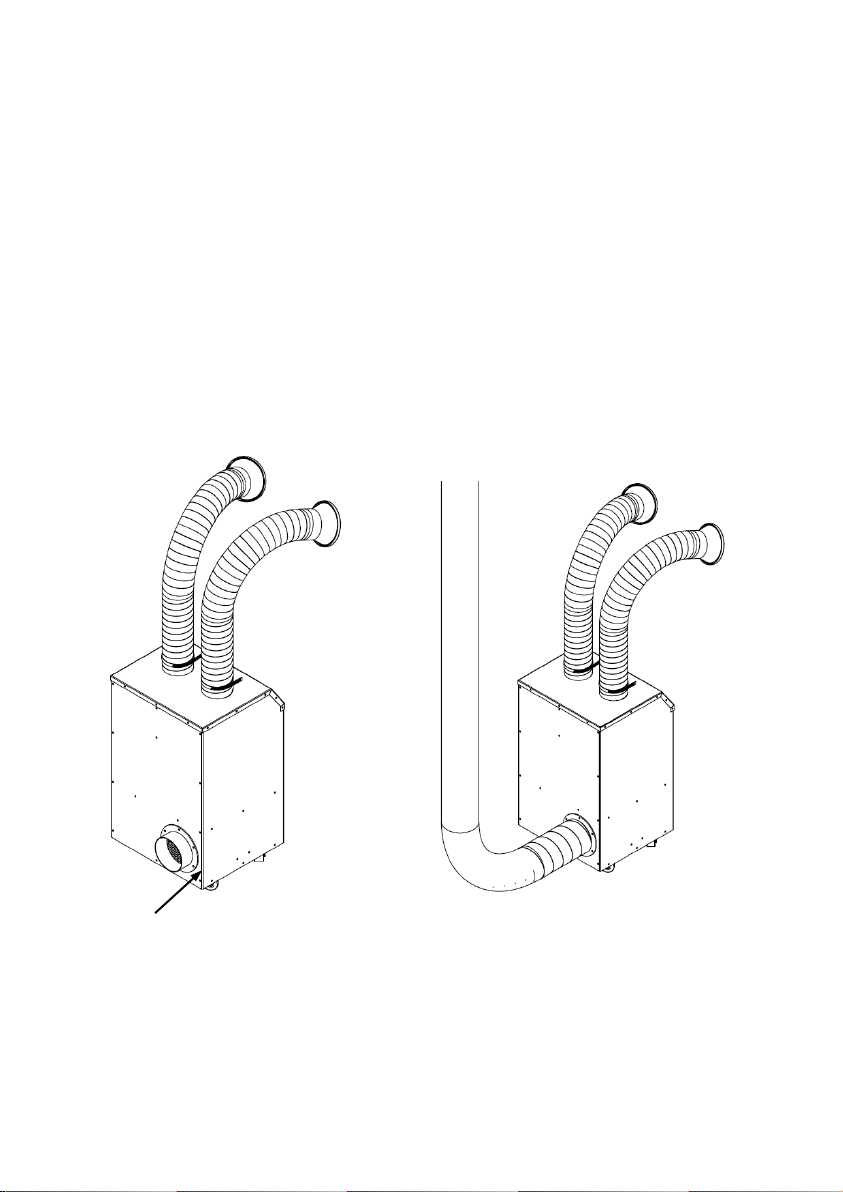

Fig. (4) –Pop-Up Vent Integration for Recirculating Ventilation
Fig. (5) –Pop-Up Vent Integration for Outside Ventilation

11
V. Assembly Instructions
5.5 Install Outside Vent Adapter Kit (Optional)
Note that, the Outside Vent Adapter Kit is an optional feature that enables a
Recirculating Ventilation unit to be converted to an Outside Ventilation unit,
which is capable of exhausting filtered air out of the facility with connection to
exhaust ducting.
To add this feature, visit www.HealthyAir.com and select Outside Vent Adapters
from the Accessories tab in the Products dropdown menu.
The Outside Vent Adapter kit comes with one (1) Outlet Flange and one (1)
Base Blank-Off Plate, as shown in Fig. 6.

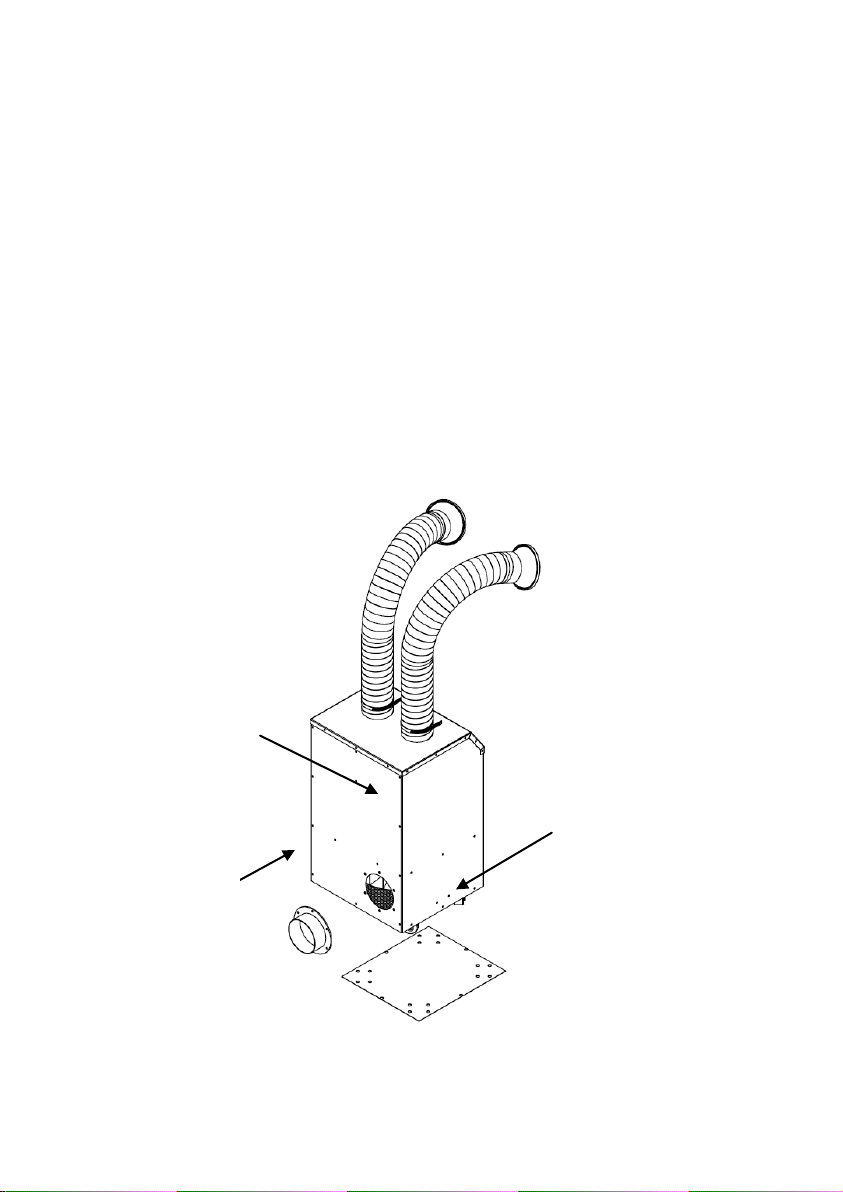

Fig. (6) –Outside Vent Adapter Kit
Outlet Port
Base Blank-Off Plate
Outlet Flange

12
V. Assembly Instructions
5.5 Install Outside Vent Adapter Kit (Optional)
The HealthyAir® HA-SCE-G1 has an Outside Vent Outlet Port located on the
back panel, as shown in Fig. 7. This Outlet Port serves as the connection point
to exhaust ducting.

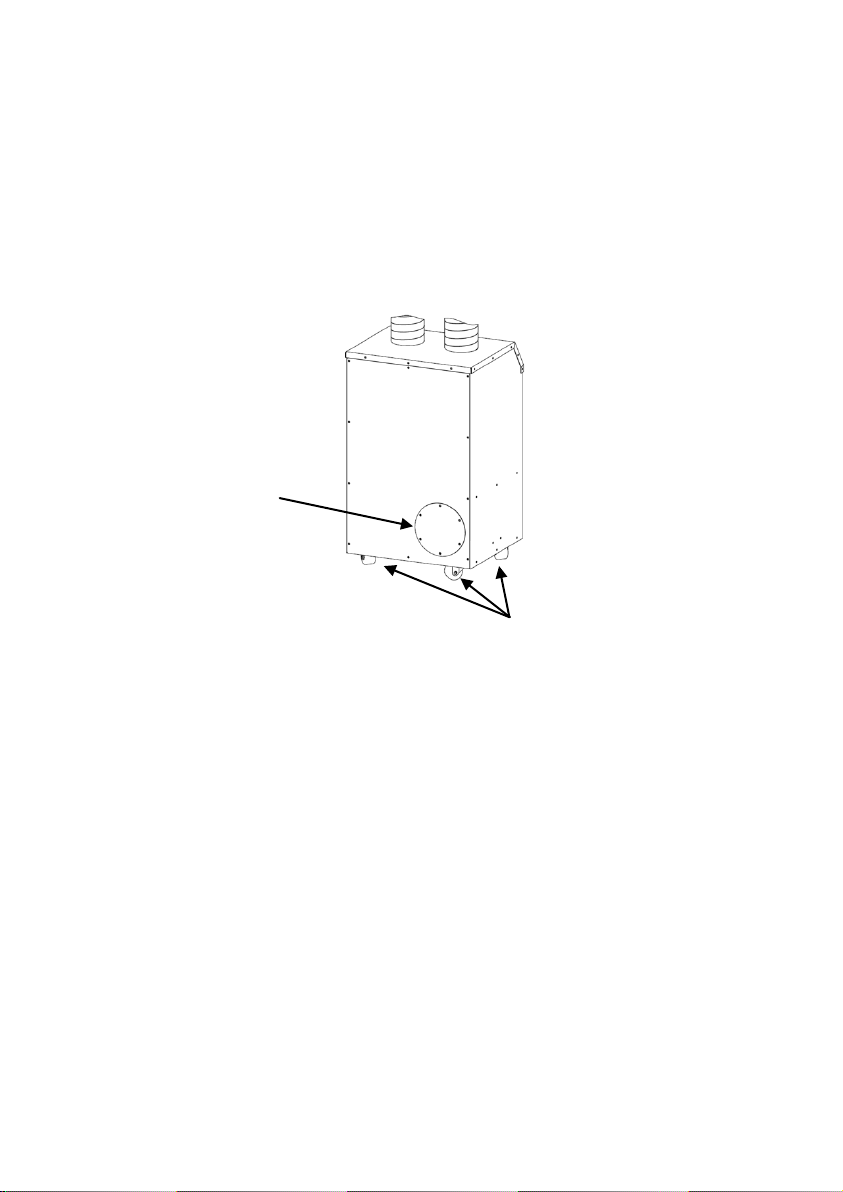

Fig. (7) –Outside Vent Outlet Ports
5.5.1 If the Caster Wheels were initially installed on the unit for Recirculating
Ventilation (as described in Section 6.1), remove each Caster Wheel
from the Base Plate, and set aside the wheels and the mounting
screws.
5.5.2 Turn the unit upside down and position the Base Blank-Off Plate over
the Base Plate.
5.5.3 Position the Base Blank-Off Plate such that the bolt pattern for the
Caster Wheels on the Base Blank-Off Plate aligns with the bolt pattern
on the Base Plate.
5.5.4 Re-install each of the four (4) Caster Wheels and ensure that they are
tightly screwed in to secure the Base Blank-Off Plate.
Outside Vent
Outlet Port
Caster Wheels

13
V. Assembly Instructions
5.5 Install Outside Vent Adapter Kit (Optional)
5.5.5 Install the Outlet Flange on the Outside Vent Outlet, as shown in Fig. 8.
5.5.6 Connect a standard 4’’ diameter Exhaust Duct (not supplied) to the
Outlet Flange and use a standard hose clamp to secure the connection.
5.5.7 Run the Exhaust Duct out of the facility per applicable IMC codes.
Fig. (8) –Outlet Flange Installation
Outlet
Flange

14
VI. Operation Guidelines
6.1 Source Capture System Positioning
Place the HealthyAir®Source Capture Fan-Filter Exhauster System in the
desired location and place the Acoustic Mat below the unit to dampen the sound.
Once the unit is in place, adjust the Flex Hose to position the Hood
approximately 6” from the source of the particulate and fumes.
6.2 Source Capture System Activation
6.2.1 Plug the Power Cord into the Power Socket, located on the bottom of
the side panel of the unit, and then plug the other end of the cord into a
wall power socket.
Once plugged in, the Power indicator light [ ] will turn on and
display a red light.
6.2.2 Activate the unit by pressing the Power button located on the Control
Panel, shown in Fig. 6, or on the Remote Control.
Once the unit is powered, the motor will start with the Fan Speed set to
the Mid-Speed.
6.3 Source Capture System Controls
Each of the respective control elements shown on the Control Panel Display in
Fig. 6 work as follows:
SPEED button, on Control Panel and Remote control, adjusts the
volume of airflow being taken in through the hood. Airflow speed can be
adjusted to one of three settings, as follows:
Low –Mid –High Speed.
TIMER button, on Control Panel and Remote control, is for operation of
the timing clock. When this feature is in use the unit will automatically
shut-off after the set time expires. The system’s default timing is
4-hours of operation.

15
VI. Operation Guidelines
6.3 Source Capture System Controls
TIMER
To set the timer manually, press the TIMER button once for every hour
you wish to run the machine (i.e. press TIMER once for 1-hour of run
time, press TIMER twice for 2-hours of run time, press TIMER three
times for 3-hours of run time, and press TIMER four times for 4-hours of
run time).
If the TIMER button is pressed five (5) times, such that it passes
through the complete timing schedule, it will run continuously until the
unit is manually turned off.
LIGHT button, on Control Panel and Remote control, turns the LED
Light on and off. When the LED Light is on the symbol above the button
turns green. Pressing the LIGHT button once more will turn off the LED
Light as well as the indicator light.
FILTER CHANGE indicator light, on Control Panel, begins to flash after
400-hours of operation to indicate that it is time to replace the filter.
Fig. (6) - Control Panel Display

16
VII. Filter Replacement
7.1 Replacement Filter
The HealthyAir®Source Capture Fan-Filter Exhauster (Model HA-SCE-G1)
utilizes the HealthyAir® Series 1111 Pocket Filter (Model HA-PF7-1111).
Note that, only manufacturer supplied HealthyAir® Replacement Filters are
compatible with HealthyAir® Source Capture Systems. No other replacement
filters are to be used with this unit. The improper use of non-manufacturer
supplied filters will void any potential warranty claim.
7.2 Filter Change
When the unit has been in operation for 400-hours, the Filter Change indicator
light, on the Control Panel, will begin to flash indicating that the filters must be
replaced as follows:
Note: Depending on usage and contaminates in the environment, the filter
may need to be replaced before the 400-hour default cycle expires. Contact a
representative to determine if you need to replace the filter more frequently.
7.2.1 Turn the Power Off and unplug the Power Cord from the Power Socket.
7.2.2 Remove the Access Door, as shown in shown in Fig. 7.

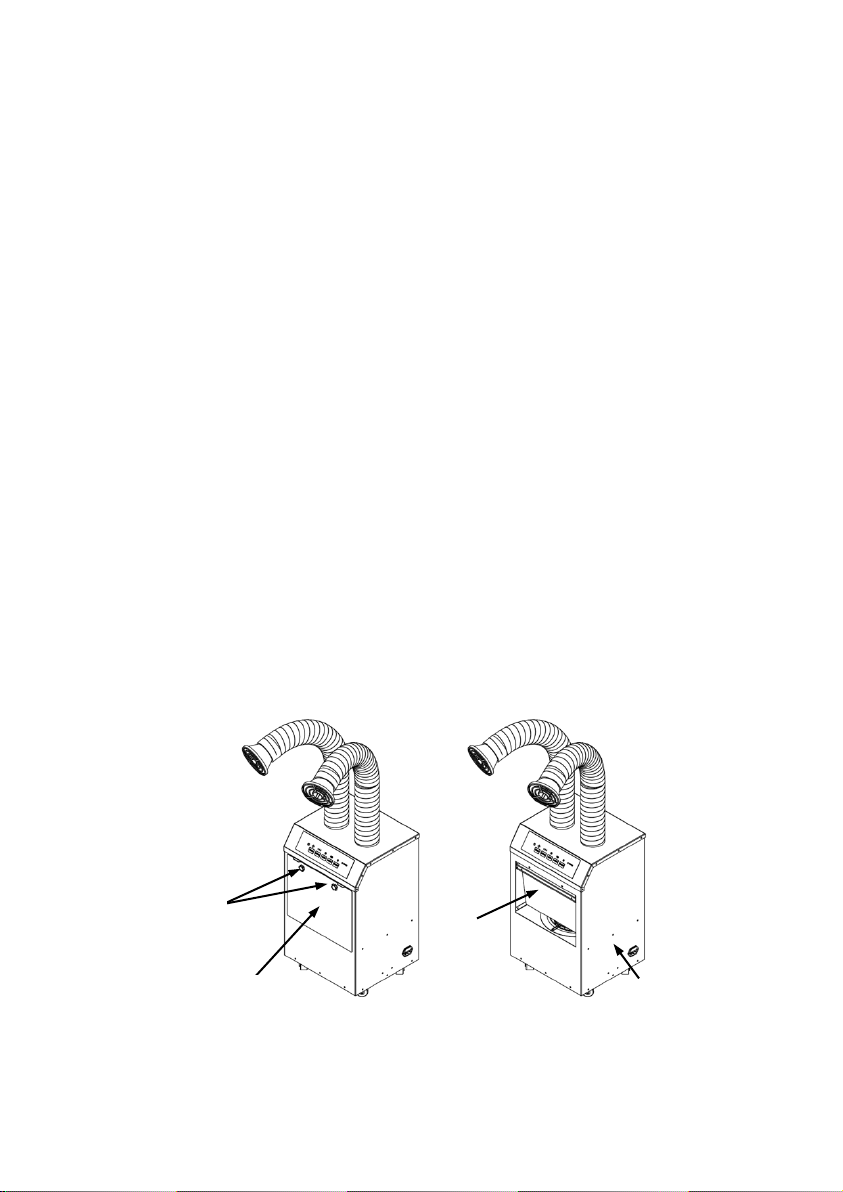

Fig. (7) –Access Door Removal
Thumb Screw
Access Door
Filter
Power Socket

17
VII. Filter Replacement
7.2 Filter Change
7.2.3 Remove the used Pocket Filter.
7.2.4 Install a new HA-PF7-1111 Pocket Filter into the Filter Compartment,
as shown in Fig. 8.
7.2.5 Reinstall the Access Door, ensuring that the Access Door is properly
inserted back into its track. Once the Access Door is properly aligned
and set in place, secure it by screwing in the Thumb Screws.
7.2.6 Plug the Power Cord back into the Power Socket and wall socket.

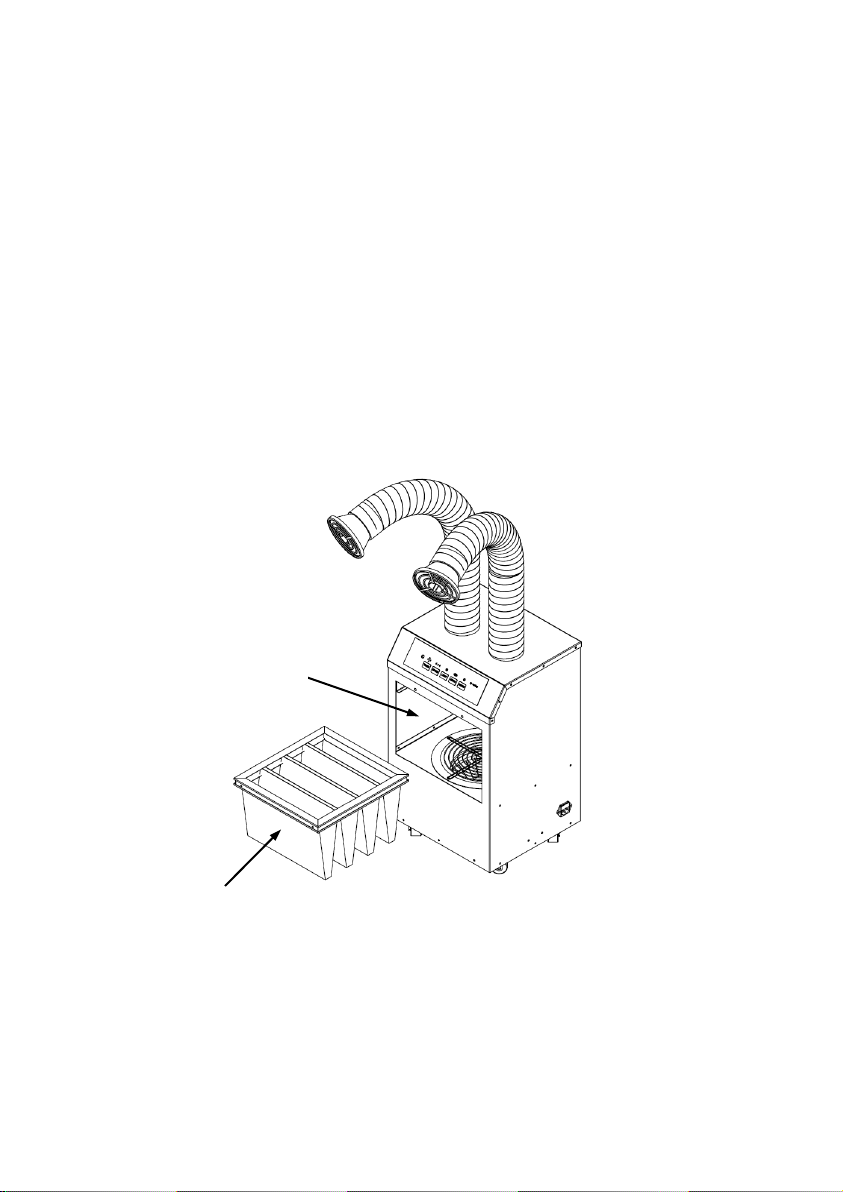

Fig. (8) –Replacement Filter Installation
Pocket Filter
HA-PF7-1111
Filter Compartment

18
VII. Filter Replacement
7.3 Filter Change Indicator Light Reset
Once the filter has been replaced and the unit is powered on, the Filter Change
indicator light may continue to flash. To reset the filter change timer and
deactivate the flashing light, go through the following reset procedure:
7.3.1 Unplug the Power Cord from the Power Socket, wait a couple seconds
and plug the Power Cord back into the Power Socket.
7.3.2 Press and hold down the Power Button [ ] on the Control Panel (not
the Remote Control) for five (5) seconds.
7.3.3 After five (5) seconds has passed, release the Power Button. The filter
change timer will have reset to 400-hours and the Filter Change
indicator light will have stopped flashing now.
Fig. (11) Filter Change Indicator Light Reset
Filter Change
indicator light
flashing
Press and Hold
Power button for
5 seconds

19
VIII. Maintenance
8.1 Cleaning Filter
To extend the effective life of the Pocket Filter, remove the filter from the unit
from time to time and use a standard vacuum to remove particulate that has
collected in the filter.
8.2 Cleaning Filter Compartment
Visually inspect the interior of the Filter Compartment when the filter is removed
from the unit during the filter replacement process. If debris has accumulated in
the Filter Compartment, clean the interior of the unit as follows:
8.2.1 Turn the Power Off, unplug the Power Cord from the Power Socket,
remove the Access Door, and remove the filter from the unit.
8.2.2 Vacuum and remove any debris that has accumulated in the filter
compartment and adjacent accessible areas of the interior of the unit.
8.2.3 Properly replace the Access Door, as previously described herein.
Fig. (9) –Cleaning Filter Compartment
Access
Door
Power
Socket
Filter
Compartment
Filter
