Hear Technologies switch back M8RX User manual

22 23 242120191817161514
13 12

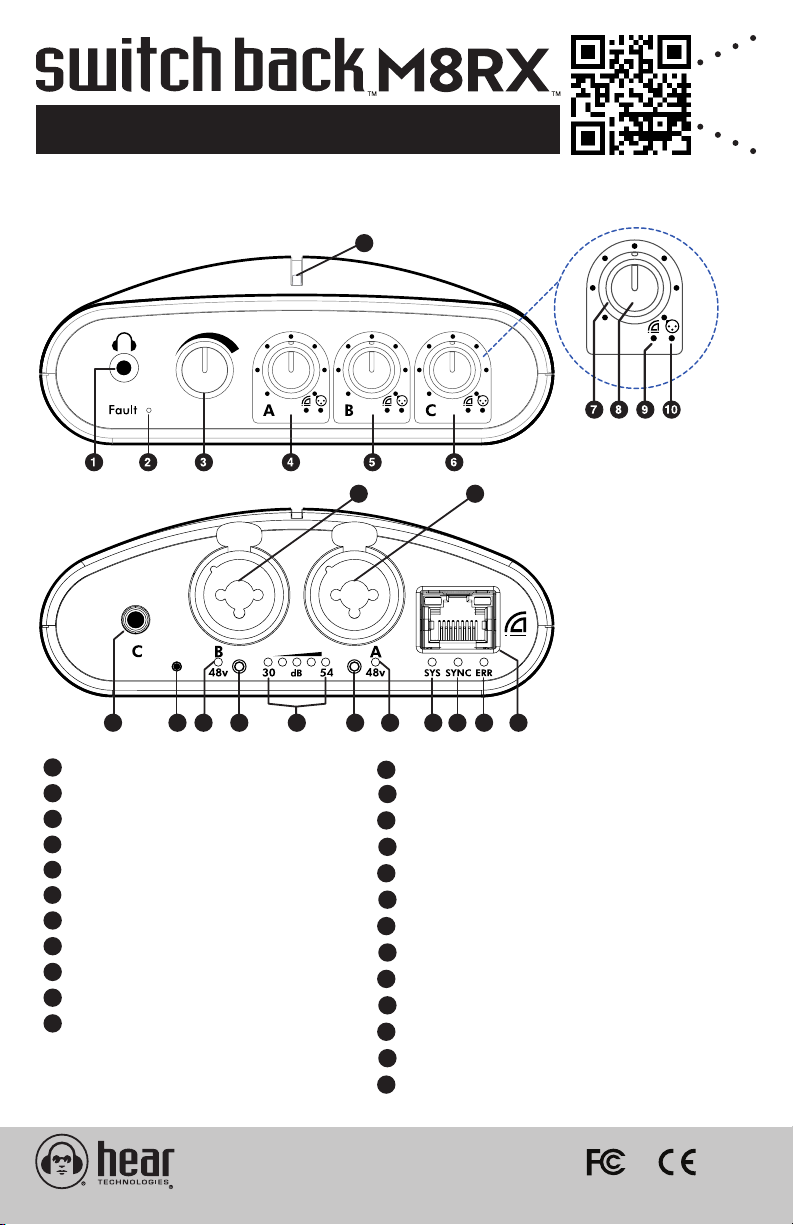

TOP PANEL
BOTTOM PANEL
1/8” Stereo Headphone Output
Headphone Fault LED
Master Volume
“A” Input
“B” Input
“C” Input (Stereo)
Dante Input Level
Analog Input Level
Dante Signal & Clip Status LED
Analog Input Signal & Clip Status LED
User-changeable Multi-color LED
(for identifying multiple M8RXs)
1
2
3
4
5
6
7
8
9
10
11
12
17
18
19
20
21
22
23
24
13
14
15
16
QUICK START GUIDE
SCAN
CODE
FOR USER
GUIDE
Thank you for purchasing the Switch Back M8RX! Use this Quick Start Guide to setup
quickly and easily. Refer to the User Guide for complete instructions, available online at
www.hearback.com/support or scan the QR code above.
Switch Back M8RX is proudly designed & assembled
in the U.S.A. by musicians and audio engineers.
Input “A” Balanced XLR or 1/4” Input
Input “B” Balanced XLR or 1/4” Input
Input “C” Unbalanced 1/8” Stereo Line Input
Reset Switch
Input “B” Phantom Power Indicator
Input “B” Gain & Phantom Power Button
Gain Indicator LEDs for Input “A” or “B”
Input “A” Gain & Phantom Power Button
Input “A” Phantom Power Indicator
“SYS” Dante Status Indicator
“SYNC” Dante Communication Indicator
“ERR” Error Indicator
Dante & PoE+ Power RJ45 for 100 BaseT
Ethernet Connector (only use unshielded cables)
11

Connect the appropriate input(s) as shown in the hook-up diagram.
Set all volume controls to “Off” (full counter-clock-wise position), connect the
headphones or in-ear monitors.
Connect the M8RX to PoE+ power such as an in-line PoE+ power injector or PoE+
network switch using unshielded Cat6 cabling.
Adjust the level at the input source (microphone gain, Dante source, etc.) until the
red clip LEDs just come on and then reduce the input(s) until you have a bright blue
LED.
Mixer Adjustment: Once you have the signals optimized, turn the master volume to
about 12 o’clock and then raise the desired input volumes. For pest performance,
avoid adjusting the master volume too high and running the inputs too low.
WARNING
ALWAYS turn down the “Master Volume” down before putting on in-ear headsets or
headphones because Switch Back M8RX is capable of driving most headphones to
extreme levels that can damage your HEARING!
!
CONNECTING THE SYSTEM
1
2
3
4
5
EXAMPLE HOOK-UP DIAGRAM
Digital Audio Workstation (DAW)
Dante Virtual SoundCard
OPTIONAL FOR RECORDING
Dante Soundboard
OPTIONAL FOR LIVE
Headphones or
In-Ear Monitors
Balanced
XLR or
1/4” Inputs
Nework Switch with PoE+
Unbalanced
1/8” Stereo
Line Input
RJ45 Dante
& PoE Power
Hear Technologies®
991 Discovery Drive
Huntsville, AL 35806
www.HearTechnologies.com
Phone: [phone]
Fax: [phone]
Printed in U.S.A. ©2021
JUL 2021
Unshielded Cat6 Cable
