Hearth & Home BE-41B Assembly instructions

1
-Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
thefiredepartment.
-Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
381-900I 1/03
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1. This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
PleasecontactyourHearth & HomeTechnologies dealerwith
anyquestionsorconcerns.ForthenumberofyournearestHearth
&Home Technologiesdealer,pleasecall1-888-427-3973.
Printedin U.S.A. Copyright 2003
Hearth&Home Technologies Inc.
20802KensingtonBlvd.,Lakeville,MN55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Model:
BE-41B

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Approval Listings and Codes ....................................................... 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Hearth & Home Technologies Gas Fireplaces ..... 7
Pre-installation Preparation .......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Constructing the Chase............................................................... 9
Step 1Locating the Fireplace .................................................. 9
Step 2Framing the Fireplace................................................. 10
Step 3Installing the Vent System ........................................... 12
A. Vent System Approvals .......................................... 12
B. Installing Vent Components ................................... 19
C. VentTermination.................................................... 22
Step 4Positioning,Leveling, and
Securing the Fireplace................................................ 25
Step 5The Gas Control Systems .......................................... 25
Step 6The Gas Supply Line .................................................. 26
Step 7Gas Pressure Requirements...................................... 26
Step 8Wiring the Fireplace.................................................... 27
Step 9Finishing ..................................................................... 29
Step 10 Installing Trim, Logs, and Ember Material ................... 29
InstallingtheTrim........................................................ 29
Positioning the Logs ................................................... 30
ShutterSettings ........................................................... 31
Placing the Ember Material ......................................... 32
Step 11 Before Lighting the Fireplace ...................................... 32
Step 12 Lighting the Fireplace.................................................. 33
Afterthe Installation.................................................................... 33
Section 4: Maintaining and Servicing Your Fireplace......... 33
u= Contains updated information.
u
u
u

4
*Part number list on following page.
*La liste des numéros de pièce se
trouve à la page suivante.
2
3
1
8
9
10
5
7
6 Log Set Assembly
4

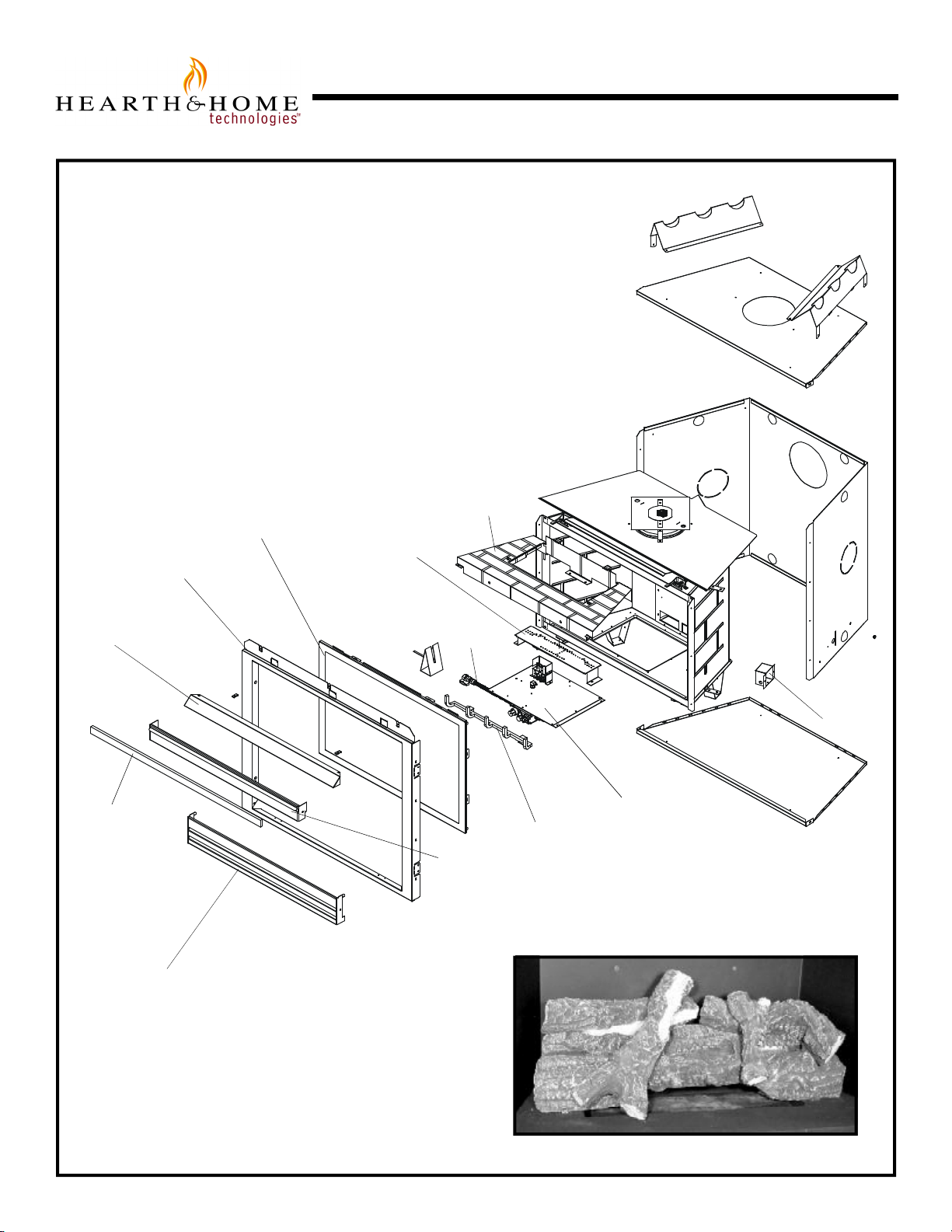

(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts BE-41B
Beginning Manufacturing Date: 5-02
Ending Manufacturing Date: ______
13
11
12
u

5
Service Parts List / Liste des pièces de rechange
ITEM /
PIÈCE STANDING PILOT AND DSI IGNITION COMMON PARTS / UNE VEILLEUSE ET ALLUMAGE DSI PIÉCES COMMUNES SERIAL # / N° DE SÉRIE PART NUMBER / N° DE PIÈCE
Piezo Ignitor / Allumage Piézo 418-513
Burner Orifice NG (#38) / Orifice de brûleur GN (#38) 582-838
Burner Orifice LP (#51) / Orifice de brûleur PL (#51) 582-851
1Surround / Entourent 385-130
2Hood / Hotte SRV60-143-BK
3Glass Door Assembly / Module de Porte en verre GLA-750TR
4Burner NG / Brûleur GN 381-376A
4Burner LP / Brûleur PL 381-375A
5Log Grate / Grille de Bûche 060-361A
6Log Set Assembly (Only sold as a set) / Module de Jeu de Bûches LOGS-BE41
7Junction Box / Boîtier de raccordement 100-250A
8Louver, Bottom / Louvre, inférieure 394-114
9Louver, Top / Louvre, supérieure 394-249
11 Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-230A
12 Base Refractory / Base réfractaire 381-124
13 Insulation Board / Conseil d'Isolation 385-401
Tube Assembly / Module de Tube 477-301A
STANDING PILOT IGNITION ONLY / ALLUMAGE UNE VEILLEUSE SEULEMENT
10 Valve Plate Assembly NG / NG d'Assemblée de Plaque de soupape 381-005A
10 Valve Plate Assembly LP / LP d'Assemblée de Plaque de soupape 381-006A
Valve NG / Valve GN 060-522
Valve LP / Valve PL 060-523
Pilot Assembly NG / Module de veilleuse GN 485-510A
Pilot Assembly LP / Module de veilleuse PL 485-511A
Thermocouple / Thermocouple 446-511
Thermopile / Thermopile 060-512
Intermittent Pilot Ignition / Parties d'Ignition Pilotes Intermittentes
7Junction Box / Boîtier de dérivation 383-250A
10 Valve Assembly NG / Module de Valve GN 381-007A
Valve NG / Valve GN 750-500
Valve LP / Valve PL 750-501
Ignitor Assembly NG / Module de allumeur GN 385-510A
Ignitor Assembly LP / Module de allumeur PL 385-511A
Wire Harness / Harnais de fil 593-590A
3V Transformer / 3V Transformateur 593-593A
Module / Module 593-592
ON/OFF Rocker Switch / Interrupteur à bascule MARCHE/ARRÊT 060-511
Battery Backup / Sauvegarde de pile 593-594A
ACCESSORIES / ACCESSOIRES
Conversion Kit NG / Module de conversion GN NGK-BE41B
Conversion Kit LP / Module de conversion PL LPK-BE41B
Conversion Kit IPI LP / Module de conversion IPI PL LPK-BE41B-IPI
Brass Trim Kit / Laiton Coupe Kit PBK-BE41
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When ordering,
supply serial and model numbers to ensure correct service parts. / IMPORTANT : L'information fournie dans cette brochure n'est
valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents. Lors d'une
commande, veuillez fournir les numéros de série et de modèles pour un remplacement adéquat des pièces.
BE-41B
u
u
u
u
u

6
Appliance Certification
The Hearth & Home Technologies fireplace models
discussed in this Installers Guide have been tested to
certification standards and listed by the applicable
laboratories.
Certification
MODEL: BE-41B
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD:ANSIZ21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas CodeANSI Z223.1 (in
theUnitedStates) or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L.Listedgasappliances are testedandapprovedwithout
requiringchanges for elevations from 0 to 2,000feet in the
U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burnerorifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada. Ifthe heatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
u

7
Getting Started
Introducing the Hearth & Home Technologies
Gas Fireplaces
Hearth&Home Technologiesdirect ventgas fireplaces are
designed to operate with all combustion air siphoned from
outside of the building and all exhaust gases expelled to
the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Hearth & Home Technologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Hearth & Home
Technologies.
•Improper positioning of the gas logs or the glass door.
•Installationand/or useof any component part notmanu-
facturedand approvedby Hearth & Home Technologies,
not withstanding any independent testing laboratory or
other party approval of such component part or acces-
sory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8

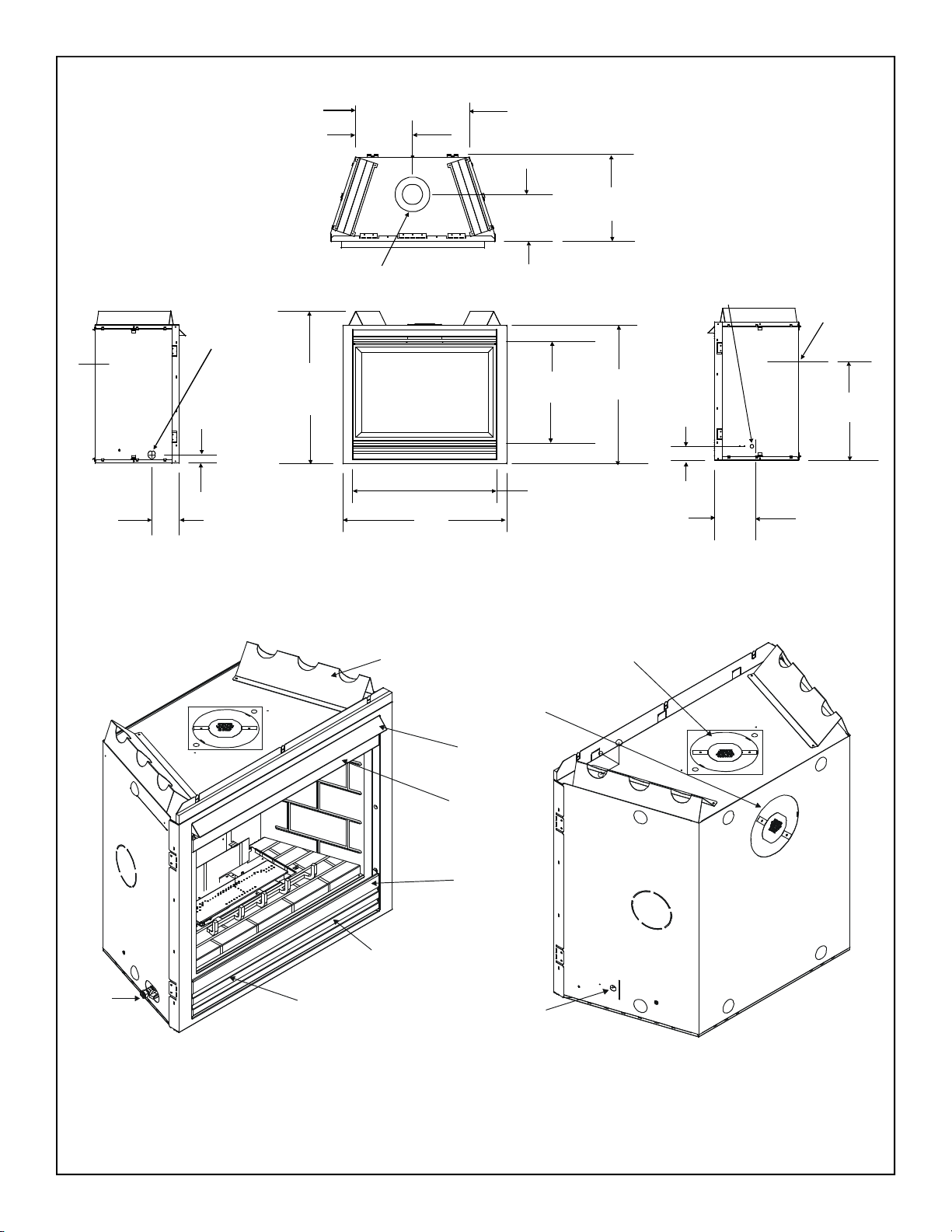

Figure 1. Diagram of BE-41B
TOP VENT COLLARS
REAR VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
LOWER
LOUVER
HOOD
TOP STANDOFFS
TOP
LOUVER
41
[1043mm]
38
[965mm]
36 1/8
[916mm]
25 ¼
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[683mm]
10 ¼
[259mm]
3 ½
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 ¼
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]

9
Installing the Fireplace
Step 1. Locating the Fireplace
Thediagram(Figure2) shows spaceandclearancerequire-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36 ......................914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
Top ....................................3 1/2.................... 89
Ceiling* ...............................31 ......................787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. .............1................. 25
Horizontal Sections
Top ......................................3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
*Theclearancetotheceilingismeasuredfrom the top
of the unit, excluding the standoffs (see Figure 37).
Thedistance fromthe unit tocombustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOT fromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 22 and 23 in this manual.
Constructing the Chase
A chase is a vertical boxlike structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTIONOFTHE CHASEMAYVARYWITH THE
TYPE OF BUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES. THEREFORE,YOUR LOCALBUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-builtfireplace chasesshould be constructed inthe
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
buildingenvelope inany manner.
Thismeans that thewalls, ceiling,base plateandcantilever
floorof the chaseshould beinsulated.Vapor andair infiltra-
tionbarriers shouldbeinstalled inthe chaseas per regional
codesfortherestof the home.Additionally,Heat-N-Glo rec-
ommendsthattheinsidesurfacesbesheetrockedandtaped
for maximum air tightness.
Tofurther preventdrafts, thefirestops shouldbe caulkedto
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburningunits ifthey arerequired.
THECHASE SHOULD BECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extendingpast the faceof thefireplace is oneinch (25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A

10
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ...............42”
B. .........38 1/2”
C. ...............22”
D. ...............42”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFORE FRAMING.
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
Shows center of 12” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.
A
B
C
D
E

11

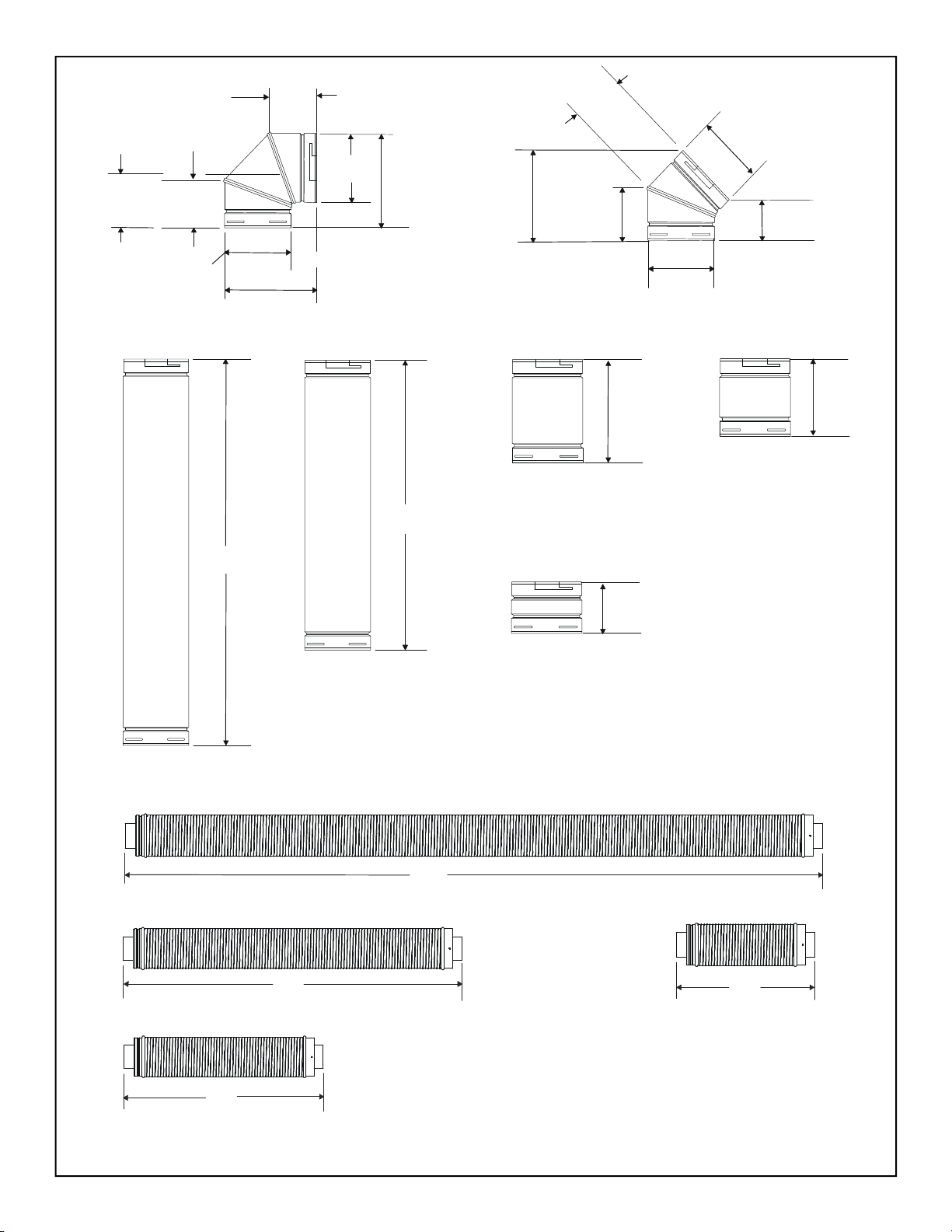

Figure 4. D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) ATEACHJOINT.
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)
DV-12D
DV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
DV-FLEX-10
DV-FLEX-5
DV-FLEX-3
DV-FLEX-2

12

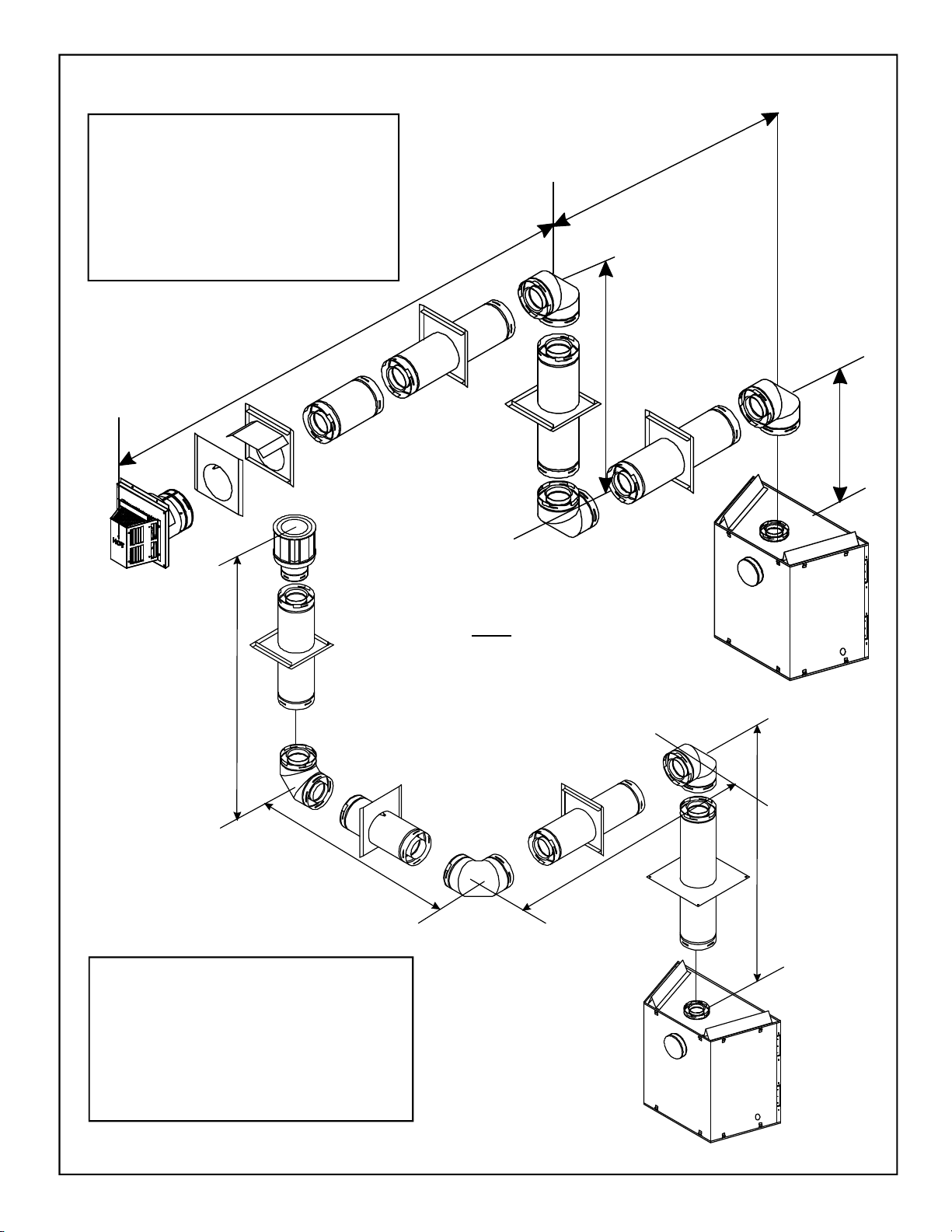

Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodelsareapproved touseD-seriesdirect ventpipe
components and terminations (see Figures 4 and 5). Ap-
provedvent system componentsare labeledfor identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall.There isnorequirement for inspectionopen-
ingsat each jointwithin the wall.There is no required pitch
for horizontal ventruns. NO OTHERVENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions are includedwitheach vent
termination kit and should be used in conjunction with this
Installers Guide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Terminations Kits
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
DVK-FLEX2-01TRF
DVK-SNKD
DVK-01TRF*
* For use with flex vent only.
** For use on IPI units only.
PVK-80**

13
Figure 7.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removingthe four screws securing itin place(see
Figure 8).
Figure 9. Flue Restrictor
BREAK
HERE
Figure 8
EXHAUST
SHIELD
FLUE
RESTRICTOR
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 9).
NOTE: Onverticalventing
configurations you may
want to install the vertical
baffle (385-128). See flue
restrictor installation in-
structions.
Figure 6.
Flex Vent
The flex vent must be supported with the spacing between
supportintervals notexceeding 4feet, with no more than½
inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessaryclearancetocombustibles.Asimple“up andout”
installation(Figure6)requires only enoughsupporttomain-
tainthenecessary clearancetocombustibles. However, the
vent attachment point and the firestop location are consid-
ered to be supports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE

14
HORIZONTALVENTING
KitNo. H Max. Run
DVK-01TRD 24" (610 mm)
Figure 11. Corner Installation
NOTE: BE-41B model is tested and approved to
use 45° elbows in corner installations. Howev-
er, 90° elbows will result in better performance.
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 10
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1-1 No
Restrictor No Restrictor No Restrictor
8' 2-2 1-2 1-1 No
Restrictor
15' 3-3 3-2 2-2 1-2
20' 3-4 3-3 3-3 2-3
25' 3-4 3-3 3-3 2-3
30' 4-4 3-4 3-4 3-3
35' 4-4 3-4 3-4 3-3
40' 5-4 4-4 4-4 3-4
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 10).
5. Reinstall the Exhaust Shield.

15
VH
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: Onverticalventingconfigurationswhere
thevertical componentis over 10feet, youmay
want to install the vertical baffle (VERT-BAF)
improveflameappearance.
Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontal runis 3-feet (914mm).
NOTE: Forcorner installations:A6-inch(152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).
NOTE: There MUST be a 25% reduction
in total H when using flex vent except
when using the simple up and out
installation (see Figure 6).

16
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4 m) H= 8´MAX. (2.48m) H+H
1
=20´MAX.(6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT.H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX.(4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
=20´ MAX. (6.2m)
V+V1+H=40' MAX.(12.4m)
H
V
V
1
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

17
Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V HH + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

18
VENTINGWITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX.(3.1m)
3' MIN. (914mm) 15' MAX.(4.65m)
4' MIN. (1.22m) 20' MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX.(6.2m)
H +H1= 20'MAX. (6.2m)
NOTE:V+V1+H+H1=40'MAX.(12.4m)
Figure 17. Venting with three 90° elbows
H 1
V 1
H
V
V 1
H
1
H
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

19
!
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (See Figure 18).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAINATTACHED IF
THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 18.
Venting Out the Top Vent
Remove the two screws in the top vent collar seal cap and
remove the top vent collar seal cap and two pieces of in-
sulationinside the toptwo starting collars (See Figure18).
Remove the heat shield from inside the TOPfive inch flue
fromoutside of the firebox.
The glass must be taken off again for positioning the logs
whenthe unitis finallyinstalled in placeand finishedaround
it. Reinstall the glass door. Attach vent system to the top
starting collars.
Figure 20. Attaching the First Vent Component
to the Starting Collars
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
thefireplace:
•Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
•Makesurethat thefiberglassgasketsupplied intheman-
ualbag seals between thefirst 8-5/8 inch (219mm) vent
component and the outer fireplace wrap. Using 2 self-
tappingscrews fromthe manualbag, securethat gasket
to the outer wrap (see Figure 19).
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAINATTACHEDTO THE REAR
VENT COLLARS IF THE VENT SYSTEM ISAT-
TACHED TO THE TOPSTARTING COLLARS.
WARNING:FAILURETO REMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING:YOUMUSTLEAVETHEINSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.
If your vertical vent component is over 10 feet, you may
wanttoinstalltheverticalbaffle(locatedinthebagcontaining
the install manual) to improve flame appearance. Center
the vertical baffle on the 5” flue being used, and with self
tappingscrewssecure thebaffleto theinsideof thefirebox.
Figure 18
CUT
HERE
Venting Out Rear Venting Out Top
!
!
!
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasketmaterial.
•Lock the vent components into place by sliding the con-
centricpipe sectionswith four (4)equally spacedinterior
beads into the fireplace collar or previously installed com-
ponentendwithfour(4)equallyspacedindentedsections.
•When the internal beads of each 8-5/8 inch (219mm)
outerpipelineup, rotatethepipesection clockwiseabout
one-quarter(1/4)turn.Theventpipeisnowlockedtogether.
•The first 90° elbow installed in the vent system of a rear
venting fireplace MUST BE ina vertical position.
Figure 19. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP

20
2. Continue Adding Vent Components
•Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
•Ensurethat eachsucceeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
•90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s vertical axis. If anel-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
3. Install Support Brackets
For Horizontal Runs - Theventsystem must besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.

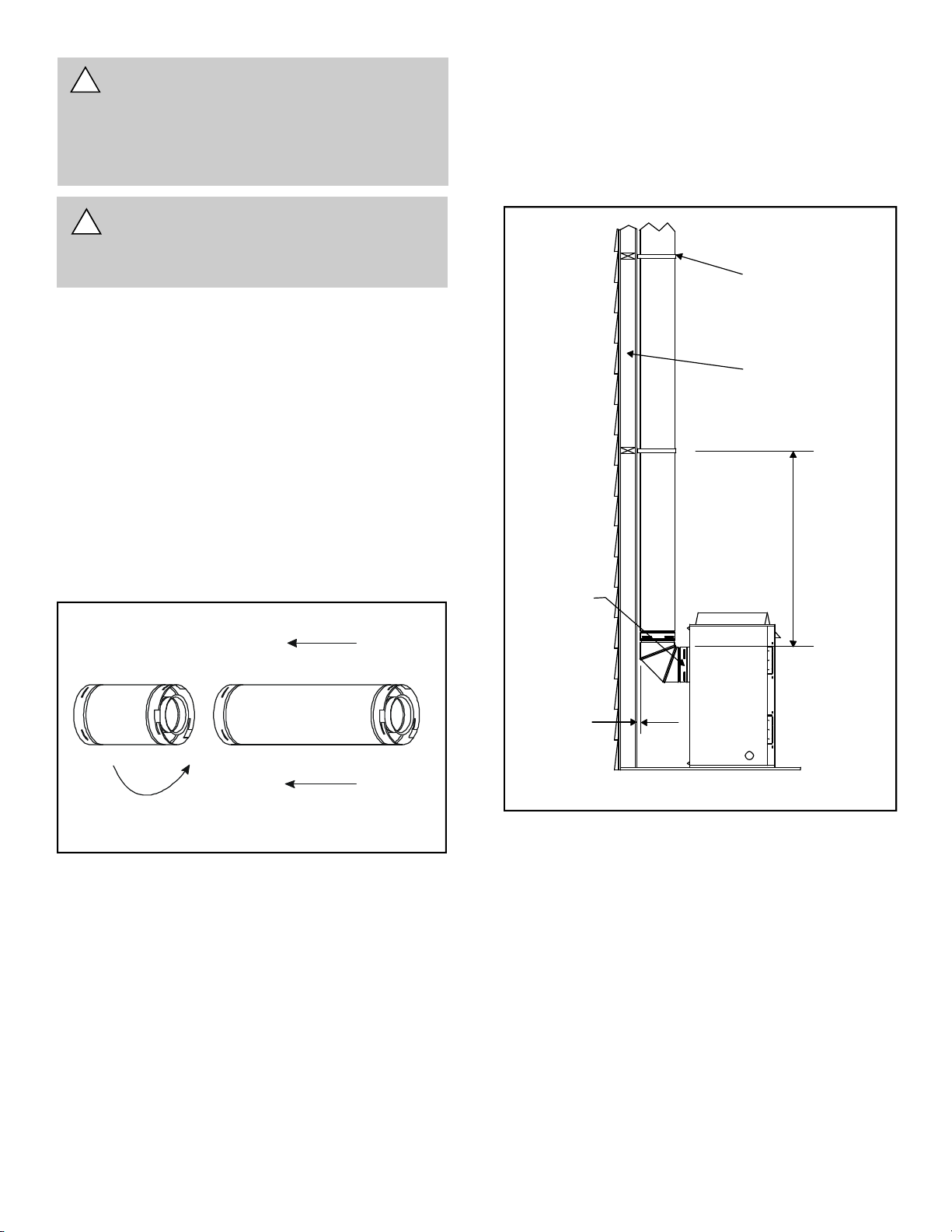

Figure 21. Adding Venting Components
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above the fireplace flue outletby
wall brackets.
To install support brackets for vertical runs:
•Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 22. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
•Cuta12-inchby 12-inch(305mmX305mm) holethrough
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
WALL BRACKET
WALL STUD
1 INCH MIN.
(25.4mm)
8 FT. (2.4m)
FLUE
OUTLET
!
!
WARNING: ENSURETHAT THE FIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALSBETWEEN THE FIRST VENT COMPONENT
AND THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skipto the sections, Install Firestops and
Vent Termination.
WARNING: A3/8 INCH (9.5 MM) BEAD OF
STOVECEMENT MUST BE PLACED AROUND
THE5 INCH (127 MM)FIREPLACE STARTINGCOL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHEFIREPLACETOOPERATEIMPROPERLY.
