Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
Owner’s Manual
Care and Operation
Models:
TWILIGHT-MD-IFT
NOTICE: DO NOT discard this manual!
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/212

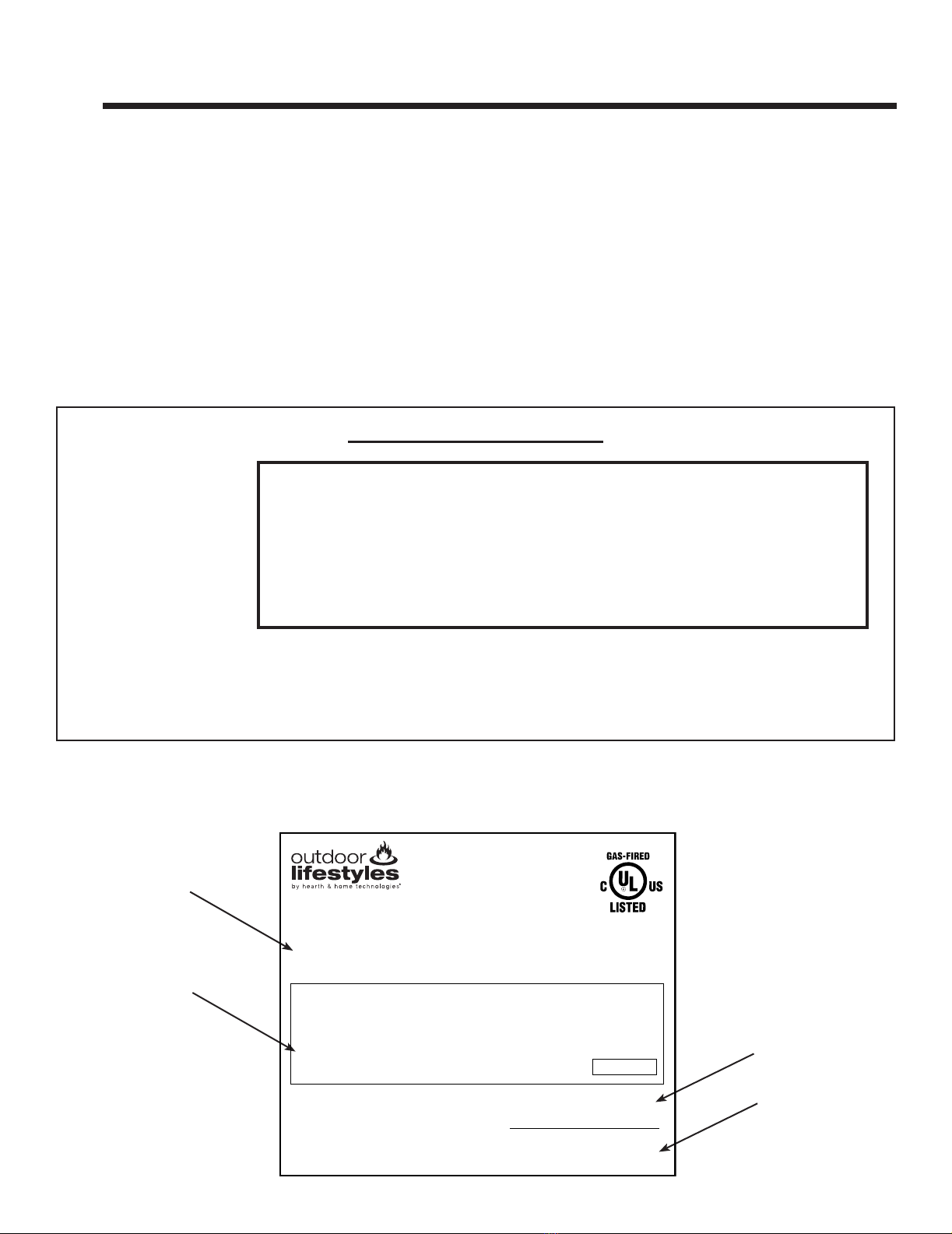

Listing Label Information/Location The model information regarding your specic replace can be found on
the rating plate usually located in the control area of the replace.
Read this manual before operating this appliance.
Please retain this Owner’s Manual for future reference.
Read the Installation Manual before making any installation or nishing changes.
11 Welcome
Brand: ________________________________________________ Model Name: ___________________________
Serial Number:__________________________________________ Date Installed: __________________________
Appliance Information:
Local Dealer Information
DEALER: Fill in
your name, address,
phone and email
information here and
appliance information
below.
Dealer Name: ________________________________________________________
Address: ____________________________________________________________
____________________________________________________________
Phone: _____________________________________________________________
Email: _____________________________________________________________
Gas and Electric
Information
Serial Number
Type of Gas
Model Number
doit
NotNot forfor useuse withwith solidsolid fuel.fuel.
((NeNe doit paspas entreentre utiliseutilise avecavec unun combustiblecombustible solide).solide).
ThisThis applianceappliance mustmust bebe installedinstalled inin accordanceaccordance withwith locallocal codes,codes, ifif any;any; ifif not,not, followfollow ANSIANSI Z223.1Z223.1
inin thethe USAUSA oror CAN/CGACAN/CGA B149B149 installationinstallation codes.codes. (Installer(Installer l’appareill’appareil selonselon lesles codescodes ouou reglementsreglements
locauxlocaux ou,ou, enen l’absencel’absence dede telstels reglements,reglements, selonselon lesles codescodes d’installationd’installation CAN/CGA-B149.)CAN/CGA-B149.)
TypeType ofof GasGas (Sorte(Sorte DeDe Gaz)Gaz)::
NNAATURALTURAL GASGAS
MADEMADE ININ USAUSA
MinimumMinimum PermissiblePermissible GasGas SupplySupply forfor PurposesPurposes ofof InputInput Adjustment.Adjustment.
ApprovedApproved MinimumMinimum (De(De Gaz)Gaz) AcceptableAcceptable0.00.0 inin w.c.w.c. (Po.(Po. Col.Col. d’eau)d’eau)
MaximumMaximum PressurePressure (Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po. Col.Col. d’eau)d’eau)
MaximumMaximum ManifoldManifold PressurePressure (Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po. Col.Col. d’eau)d’eau)
MinimumMinimum ManifoldManifold PressurePressure (Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po. Col.Col. d’eau)d’eau)
Model:Model:
(Modele):(Modele):
SerialSerial
(Serie):(Serie):
ANSIANSI Z21XX-XXXXZ21XX-XXXX ·· CSACSA 2.XX-MXX2.XX-MXX
XXXXXXXXXXXXXXXX
ININ CANADACANADA
ALTITUDE:ALTITUDE:0-00000-0000 FT.FT.0000-0000FT.0000-0000FT.
MAX.MAX. INPUTINPUT BTUH:BTUH: 00,00000,000 00,00000,000
MIN.MIN. INPUTINPUT BTUH:BTUH: 00,00000,000 00,00000,000
ORIFICEORIFICE SIZE:SIZE: #XXXXX#XXXXX #XXXXX#XXXXX XXXXXXXXXXXXXXXX
TotalTotal ElectricalElectrical Requirements:Requirements: 000Vac,000Vac, 00Hz.,00Hz., lessless thanthan 0000 AmperesAmperes
Outdoor Lifestyles, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
A. Congratulations
Congratulations on selecting an Outdoor LifeStyles gas
replace, an elegant and clean alternative to wood burning
replaces. The Outdoor LifeStyles gas replace you have
selected is designed to provide the utmost in safety,
reliability, and e󰀩ciency.
As the owner of a new replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Outdoor LifeStyles gas replace will give you
years of durable use and trouble-free enjoyment. Welcome
to the Hearth & Home Technologies family of replace
products!

3
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
Table of Contents
1 Welcome
A. Congratulations .................................2
B. Limited Warranty ................................4
2 Product Specic Information
A. Appliance Certication ............................6
B. Glass Specications..............................6
C. Thermal Performance Data ........................6
D. Air Inltration, Water Resistance and Structural Tests ... 6
E. BTU Specications...............................6
3 Important Safety and Operating Information
A. Appliance Safety ................................7
B. General Operating Parts ..........................8
C. Fuel Specications............................... 8
D. Wall and Mantel Temperatures .....................8
E. Good Faith Wall Surface/TV Guidelines ..............8
F. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . 8

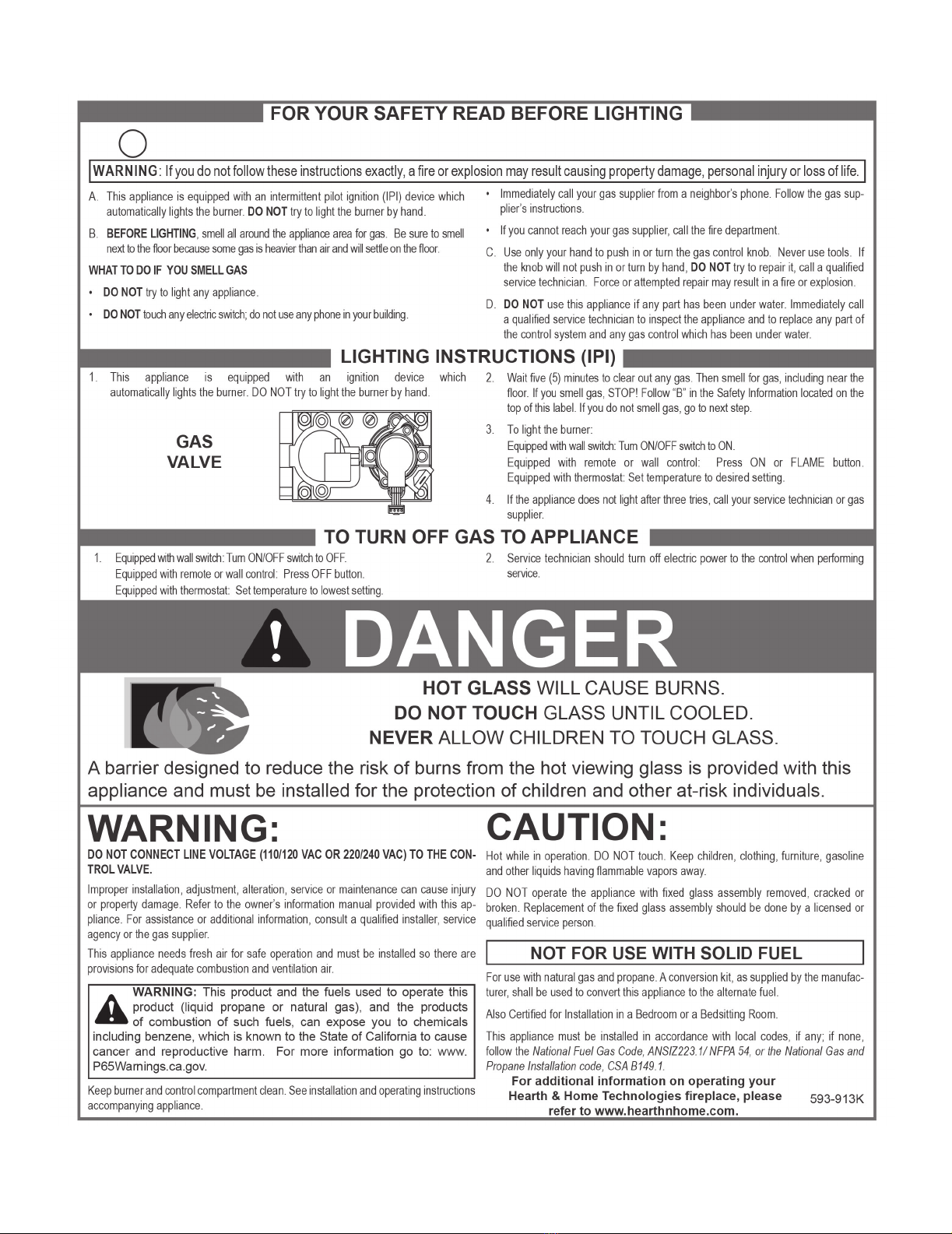

G. Lighting Instructions (IPI) ..........................9
H. Appliance Break-In ..............................10
I. Heat Management ..............................10
J. Operation During A Power Outage ................. 11
K. Detailed Component Operating Instructions - IntelliFire
Touch ........................................12
4 Maintenance and Service
A. Maintenance: Frequency and Tasks ................ 14
B. Maintenance Tasks: Homeowner ..................14
C. Maintenance Tasks: Qualied Service Technician .....17
5 Frequently Asked Questions and Troubleshooting
A. Frequently Asked Questions ......................18
B. Troubleshooting ................................19
6 Reference Materials
A. Accessories ...................................21
B. Service Parts ..................................22
C. Contact Information .............................25
= Contains updated information.
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by
Hearth & Home Technologies®.


Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/214
B. Limited Warranty
Outdoor Lifestyles Warranty - 2108-975C –6/5/2019 - 1
Outdoor Lifestyles by Hearth & Home Technologies™
Limited Lifetime Warranty
Hearth & Home Technologies (“HHT”) extends the following warranty for all Outdoor Lifestyles by HHT™
brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period begins on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
•The Limited Lifetime Warranty covers Products that are purchased through a HHT authorized
dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites.
•This warranty is only valid while the Product remains at the site of original installation.
•Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer. Additional service fees may apply if
you are seeking warranty service from a dealer other than the dealer from whom you originally
purchased the Product.
•Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
•The Product body, metal firebox and heat exchanger carry the Limited Lifetime Warranty from the
date of installation.
•The following components do not carry the Limited Lifetime Warranty but are warranted as follows:
oOne Year from Date of Installation:
▪Gas and Electrical Components or Gaskets
▪Nickel Plated Materials
•Excludes tarnishing
▪Glass Breakage, Logs/Refractory/Glass Panels due to thermal breakage
•Surface, hairline cracks, scratches and slight color changes are not covered
▪Venting, optional accessories, optional glass doors
▪Labor Associated with Warranty Service Work
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
•Changes in surface finishes as a result of normal use. As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
•Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
•Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
•Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.

5
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
B. Limited Warranty (continued)
Outdoor Lifestyles Warranty - 2108-975C –6/5/2019 - 2
•Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad-
equate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
•Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
•Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
•The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
•The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine,
or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or
tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and
cracking or spalling of refractory or cementitious materials.
•The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
•There is any damage to the Product or other components due to water or weather damage
which is the result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive
remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty
(express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide
repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations
by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized
to give any warranty on behalf of HHT. TO THE EXTENT ALLOWED BY LAW, HHT MAKES NO OTHER
WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some
states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary
from state to state. The duration of any implied warranty is limited to the duration of the warranty period
specified herein.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/216
22 Product Specic Information
B. Glass Specications
Tempered Glass (Interior Glass)
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as dened by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certied to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certication and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certicate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
Ceramic Glass (Exterior Glass)
This appliance is equipped with ceramic glass. Replace
glass only with ceramic glass. Please contact your dealer
for replacement glass.
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and applicable sections of “Gas Burning
Heating Appliances for Manufactured Homes and Recre-
ational Vehicles”, and “Gas Fired Appliances for Use at
High Altitudes”.
A. Appliance Certication
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
E. BTU Specications
D. Air Inltration, Water Resistance and
Structural Tests
The Hearth & Home Technologies TWILIGHT-MD-IFT
Indoor/Outdoor Appliance unit was tested to the following
ASTM standards at the Stork Twin City Testing labora-
tory.
Air inltration test ASTM:E283-(04). The sample was test-
ed at 1.57 psf (equivalent to a 25-mph windload). Water
resistance test ASTM:E331-00. The test specimen was
tested at the requested test pressures of 8.0 & 25.0 psf.
Structural test ASTM:E330-02. The unit was tested to a
design pressure of 50-psf, a test pressure of 75-psf.
Test Results
C. Thermal Performance Data
Model: TWILIGHT-MD-IFT
Sound Transmission
Class (STC)
Thermal Resistance
(R Value)
Thermal Conductivity
(K Value)
27 0.8hr-sq ft-ºF/BTU 1.25 BTU-in/hr-sq ft-ºF
Model Air Inltration
(ASTM E283)
Water Resistance
(ASTM E331)
Structural Load
(ASTM E330)
TWILIGHT-
MD-IFT
Indoor/Outdoor
0.07CFM/ft2 No leakage
@ 8psf & 25psf
No Blowout
@ 75psf
NOT INTENDED FOR USE AS A HEAT SOURCE.
This appliance is decorative in nature and not intended to be
a source of heat.
NOT FOR USE WITH SOLID FUEL.
This appliance is not intended to burn solid fuel.
MODEL: TWILIGHT-MD-IFT
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance
STANDARD: ANSI Z21.50-2019 CSA2.22-2019
Model Input
BTU/h
Orice Size
(DMS)
TWILIGHT-MD-IFT
(NG)
U.S. or Canada
(0-2000 ft) 38,000 32
Canada
(2000-4500 ft) 34,200 33
TWILIGHT-MD-IFT
(Propane)
U.S. or Canada
(0-2000 ft) 36,000 50
Canada
(2000-4500 ft) 33,300 51

7
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
33 Important Safety and Operating Information
Clear Space
WARNING! DO NOT place combustible objects in front
of the replace or block louvers. High temperatures may
start a re. See Figure 3.1.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.
Figure 3.1 Clear Space
CLEAR SPACE
3 FT. IN
FRONT OF
FIREPLACE
• Young children should be carefully supervised when they
are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns.
A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a replace
or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out
of the room and away from hot surfaces.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
A. Appliance Safety • Never leave children alone near a hot replace, whether
operating or cooling down.
• Teach children to NEVER touch the replace.
• Consider not using the replace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/Product-Info/Fireplace-Stove-Heater/Glass-
Fronts-Safety.
To prevent unintended operation when not using your re-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn o󰀨 wall controls.
• Unplug 6 volt transformer plug.
• Set the selector switch on the control module to the OFF
position and remove batteries.
• Turn o󰀨 gas to appliance.
WARNING! DO NOT operate replace before reading
and understanding operating instructions. Failure
to operate replace according to operating instructions
could cause re or injury.
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
must be installed for the protection of children and other
at-risk individuals. DO NOT operate the appliance with
the barrier removed. If the barrier becomes damaged,
the barrier must be replaced with the manufacturer’s
barrier for this appliance.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
• Keep children away.
• CAREFULLY SUPERVISE children in same room
as replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Clothing, furniture, draperies, and other ammable
materials must not be placed on or near the
appliance.
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/218

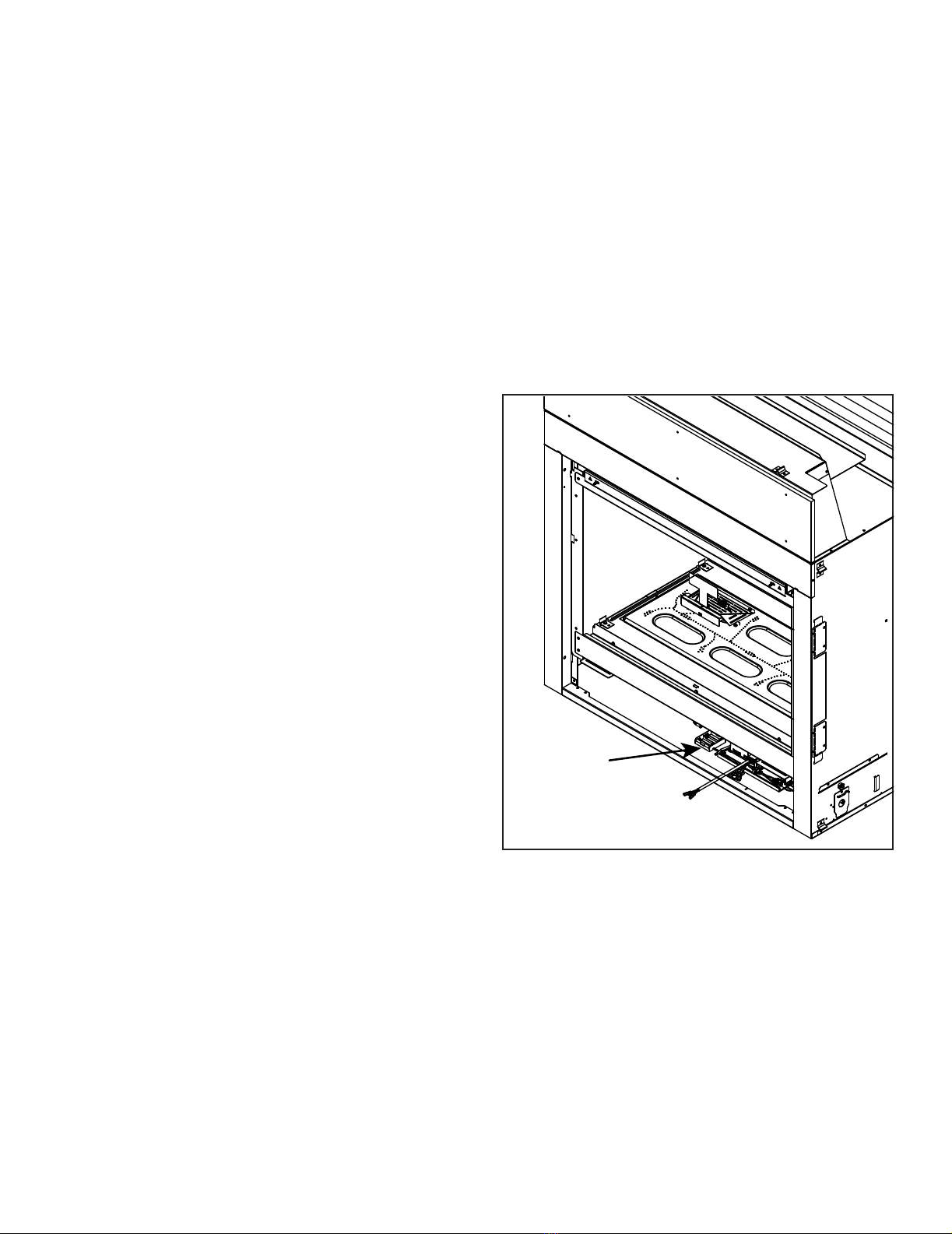

Figure 3.2 General Operating Parts
B. General Operating Parts
C. Fuel Specications
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
DECORATIVE BARRIER FRONT
(NOT SHOWN)
SECTION 4.B.
FIXED GLASS ASSEMBLY
AND BARRIER
(NOT SHOWN)
SECTION 4.B.
MANTEL
HEARTH
CLEAR SPACE
SECTION 3.A.
CONTROL CAVITY
SECTION 3.J
Figure 3.2 references the general operating parts of the
appliance and the section of this manual in which they are
discussed.
D. Wall and Mantel Temperatures
ANSI/CSA Standards
The American National Standards Institute (ANSI) and
Canadian Standards Association (CSA) write the safety
and performance standards to which all gas replaces
are tested. The following are the allowable temperatures
around and on a gas replace per the ANSI/CSA
standards:
Combustible Mantel and Surfaces around a Fireplace
The allowable temperature rise above ambient is
117°F for all exposed combustible surfaces around the
replace, including the mantel, when installed according
to the installation instructions. Non-combustible surfaces
and mantels do not have a maximum temperature limit;
however the installation instructions must still be followed
for any restrictions on placement of non-combustible
materials on or around the replace.
Example: The mantel above a replace in a room
that is 70°F is allowed to reach but not exceed
187°F (70°F+117°F = 187°F).
E. Good Faith Wall Surface/TV Guidelines
If installing a television (TV) above the appliance, see
appliance Installation Manual Section 2.B.
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions.
For additional nishing guidelines, see Section 8 in the
appliance installation manual.
F. Before Lighting Appliance
Before operating this replace for the rst time, it is rec-
ommended that a qualied service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the rebox.
• Review proper placement of logs, ember material and/
or other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the glass is sealed and in the proper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate replace with xed glass assembly removed.

9
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
Figure 3.4 Good Faith TV Guidelines - Interior Side of Appliance
G. Lighting Instructions (IPI)

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2110
H. Appliance Break-In
NOTICE! Open windows for air circulation during re-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
Follow the initial break-in procedure below to cure the
materials used to manufacture the replace and the
nishing materials around it.
• The fireplace should be run three to four hours
continuously on high.
• Turn the replace o󰀨 and allow it to cool completely.
• Remove xed glass assembly. See Section 4.B.
• Clean xed glass assembly. See Section 4.B.
• Replace the xed glass assembly.
Note: Some installations may require additional run time
to cure. If odors persist after the initial break-in period,
run the replace for an additional three to four hours
continuously on high.
Note: Some IPI systems have a safety feature that
automatically shuts down the replace after 9 hours of
continuous operation without receiving a command from
the remote control. If this occurs, restart the appliance.
I. Heat Management
Burn Rate
The TWILIGHT-MD-IFT has a constant burn rate which is
controlled by the gas valve. Therefore the ame height is
not adjustable.

11
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21

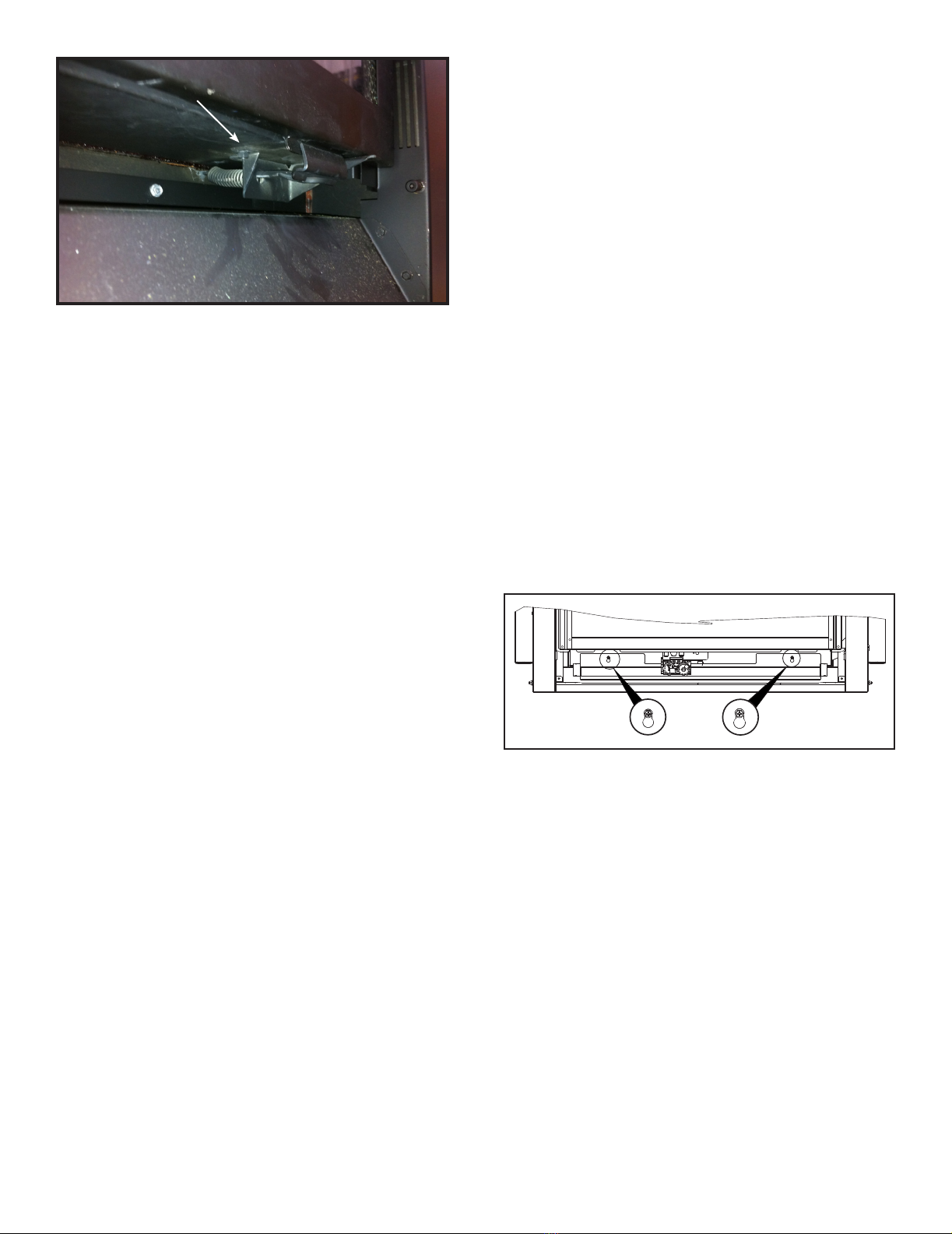

3.3 Battery Pack Location
NOTICE: Some functionality will be lost when using
battery backup including fan, lights, or any other auxiliary
functions that require household 110-120 VAC power.
J. Operation During A Power Outage
The IntelliFire Touch intermittent pilot ignition system
comes with a battery backup system that enables the
system to operate in a power outage. The system o󰀨ers
seamless transition from household AC power to battery
backup. A factory-installed battery pack is located in the
control cavity of the appliance. See Figure 3.3. Battery
longevity and performance will be a󰀨ected by long term
exposure to the service temperatures of this appliance.
NOTICE: Batteries should only be used as a power source
in the event of an emergency power outage. Batteries
should not be used as a primary long-term power source.
Batteries tend to corrode over time.
To Operate Fireplace Using Battery Power (DC):
1. Access the control cavity of the appliance. See Figure
3.3 for location. The decorative barrier front and front
refractory may need to be removed.
2. Locate the battery tray and insert four AA cell batteries.
Battery polarity must be correct or module damage
will occur. See Figure 3.3. A complete wiring diagram
is included in the Electrical section of the appliance
Installation Manual.
3. Turn the appliance on according to the instructions
below for the appropriate type of control:
Standard Wall Switch or Factory-Installed ON/OFF
Switch:
• Toggle the switch as you would under normal
circumstances.
Wireless Remote:
• Remote receiver is integrated into the ignition module
• Use the remote to turn the appliance on.
• To preserve battery life, do not use the HI/LO ame or
THERMOSTAT options.
Ignition Module:
• Locate the ignition module in the control cavity.
• Slide the ON/REMOTE/OFF switch to the ON position.
To Return to Operation Using Electrical (AC) Power
Standard Wall Switch or Factory-Installed ON/OFF
Switch:
• Toggle the switch to OFF and remove the batteries
from the battery tray. Replace door or decorative
barrier front on appliance.
Wireless Remote:
• Slide the ON/REMOTE/OFF switch to the REMOTE
position. Remove the batteries from the battery tray.
Replace door or decorative barrier front on appliance.
Ignition Module:
• Slide the ON/REMOTE/OFF switch to the ON position.
BATTERY
PACK

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2112
K. Detailed Component Operating
Instructions - IntelliFire Touch
IFT-ECM Detailed Operating Instruction
Figure 3.4. IFT-ECM
3 POSITION SWITCH
TOP VIEW
LED INDICATOR
DANGER
Risk of Explosion
DO NOT cycle the ON/OFF/REM selector
switch more than one time within a ve minute
period. Gas may accumulate in rebox. Call
a qualied service technician.
DANGER
Risk of Explosion
DO NOT cycle the ON/OFF/REM selector
switch more than one time within a ve minute
period. Gas may accumulate in rebox. Call
a qualied service technician.
4. An IFT-ECM reset is required if the module is in a
lock-out condition. When this occurs, the appliance
is shut down and the IFT-ECM status indicator LED
will be blinking a RED/GREEN error code along with a
one-time audible double- beep. If the IFT-ECM is in a
lock-out condition, refer to the troubleshooting chart to
interpret the error code and take corrective action as
required. To reset the IFT-ECM after a lock-out error:
CAUTION! Risk of burns! Appliance surfaces are hot
when operating and during cool down. Use care and
wear gloves when opening the front and accessing com-
ponents inside the appliance.
- Be aware the appliance may be HOT, use
care in accessing the IFT-ECM.
- Set the IFT-ECM 3-position selector switch to
OFF position.
The IFT-RC400 and IFT-RC150 remotes are an option
for this model. The IntelliFire Wi-Fi module (IFT-WFM) is
also an option.
1. The Electronic Control Module (IFT-ECM) has a
three-position ON/OFF/REMOTE selector switch
that must be set for proper operation. See Figure
3.4. When changing switch positions, it is important
to pause in each position for 1-2 seconds.
OFF Position:
The appliance will not respond to any commands
from a wired wall switch, IFT-RC150 or IFT-RC400
remote controls. The unit should be in the OFF
position during service, fuel conversion, and to
reset the IFT-ECM in the event the system goes
into a LOCK-OUT mode as the result of a system
error. When switched to the OFF position while the
appliance is operating, the system will shut down.
ON Position:
The appliance will ignite and run continuously at
the HI ame setting. No adjustment in ame height
is possible.
Remote Position:
The remote position allows operation of the
appliance from a wired wall switch, IFT-RC400 or
IFT-RC150 remote controls. The IFT-ECM switch
must be in this position to pair the IFT-ECM with the
IFT-ACM (if installed), and/or IFT-RC400 and IFT-
RC150 remote controls. See the IFT-RC400 or IFT-
RC150 installation manual for detailed instructions
on pairing the IFT-ECM with the remote controls.
After successfully pairing a IFT-RC400, all installed
accessories can be controlled by the IFT-RC400
(see IFT-RC400 user manual). The RC150 allows
the user to turn ON/OFF the ame in the appliance
and activate the Cold Climate mode if desired. The
IFT-ECM has a safety feature that will automatically
shut down the replace after 9 hours of continuous
operation without receiving a command from the
IFT-RC400 or IFT-RC150.
2. If multiple control options are installed, the IFT-ECM
will respond to the last command from the wired
wall switch, IFT-RC400 or IFT-RC150. The Pilot
button on the IFT-ECM activates the Cold Climate
The IFT-ECM has a safety feature that will
automatically shut down the replace after
9 hours of continuous operation in the ON
position, except when operated in active
thermostat mode.
function of the fireplace. This function lights the
pilot flame ONLY to provide enough heat in the
rebox to reduce condensation in cool, high humidity
ambient conditions. To activate the Cold Climate
press and hold the Pilot button for one second and
release. The IFT-ECM will ash two green LED blinks,
beep twice and light and rectify the pilot ame when
pressed to activate. To turn o󰀨 Cold Climate, press
and hold the Pilot button for one second and release.
The IFT-ECM will ash one green LED blink, beep once
and shut down the pilot ame. If remote controls are
paired with the IFT-ECM, this feature can also be
activated with the IFT-RC400 and/or IFT-RC150.

13
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
DANGERDANGER
- Wait ve (5) minutes to allow possible
accumulated gas to clear.
- Set the IFT-ECM 3-position selector switch to ON
or REMOTE position. Module will beep once and
ash a three GREEN LED code on successful
startup.
- If placed in ON position, the appliance will ignite
normally if the error condition was corrected.
- If placed in REMOTE position, use the paired
IFT-RC400, IFT-RC150 or wired wall switch to
start the appliance; appliance will ignite normally
if the error condition was corrected.
- If the IFT-ECM re-enters the lock-out condition
after these steps, call your dealer for service.
Appliance ON/OFF:
If an optional remote control or wall control is installed,
it should be used to control the ON/OFF function of the
appliance. Follow instructions included with the installed
control.
To operate the appliance without a wall control or remote
control, use the wired wall switch.
CAUTION! Risk of Electric Shock! Avoid touching wires
and electrical components in appliance control cavity.
CAUTION! Risk of Electric Shock! Avoid touching wires
and electrical components in appliance control cavity.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2114
44 Maintenance and Service
Task Frequency To be completed by
Glass Cleaning Seasonally
Homeowner
Surrounds,
Decorative Barrier
Fronts
Annually
Remote Control Seasonally
Exhaust Termination Seasonally
Drip Tray As Needed
Gasket Seal and
Glass Inspection Annually
Qualied Service
Technician
Log Inspection Annually
Firebox Inspection Annually
Control Compartment
& rebox Top Annually
Electrical Service and
Repair As needed
Burner Ignition &
Operation Annually
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, gas replace glass
cleaner, drop cloth and a stable work surface.
CAUTION! Handle xed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Prepare a work area large enough to accommodate xed
glass assembly and decorative barrier front by placing
a drop cloth on a at, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or oor surfaces.
•Remove decorative barrier front from replace and set
aside on work surface.
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
• Remove xed glass assembly from appliance. See
instructions below for removing and replacing interior
and exterior glass assemblies.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Replace xed glass assembly.
• Inspect and operate all glass latches to ensure they
move freely and no obstructions are present.
• Reinstall door or decorative front.
B. Maintenance Tasks: Homeowner
Installation and repair should be done by a qualied service
technician only. The replace should be inspected before
use and at least annually by a professional service person.
A. Maintenance: Frequency and Tasks
The matrix below is an overview of maintenance tasks to
be performed on the appliance. Sections B and C give
details and instructions needed to assist the appropriate
person in performing the tasks.
Removing Fixed Glass Assembly- Interior
• Loosen and remove two wing nuts on top glass retainer
bracket. Remove glass retainer bracket. See Figure 4.1
• Lift glass assembly o󰀨 of lower glass retainer bracket.
Replacing Fixed Glass Assembly - Interior
• Position glass assembly’s bottom tabs in the slots of the
lower glass retainers.
• Position top of glass assembly, position top glass retainer
bracket and secure with two wing nuts.
When properly maintained, your replace will give you
many years of trouble-free service. Contact your dealer
to answer questions regarding proper operation, trou-
bleshooting and service for your appliance. Visit www.
hearthnhome.com to locate a dealer. We recommend an-
nual service by a qualied service technician.
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the replace must be
kept clean.
CAUTION! Risk of Burns! The replace should be
turned o and cooled before servicing.
Note: If the appliance is installed on a screened porch,
ensure the screen is kept clean to maintain proper airow.
IMPORTANT! Any safety screen, decorative barrier front
or guard removed for servicing must be replaced prior to
operating the replace.

15
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
GLASS RETAINER BRACKETGLASS RETAINER BRACKET
WING NUT ON THREADED STUDWING NUT ON THREADED STUD
Removing Fixed Glass Assembly- Interior
• Loosen and remove two wing nuts on top glass retainer
bracket. Remove glass retainer bracket. See Figure
4.1.
• Lift glass assembly tabs up and out of the slots in the
bottom glass frame mounting brackets.
Replacing Fixed Glass Assembly - Interior
• Position glass assembly with the bottom tabs positioned
inside the slots of the bottom glass frame mounting
brackets. See Figures 4.2 and 4.4.
• Position top of glass assembly, position top glass retainer
bracket with the arrows pointing downward, and secure
with two wing nuts. See Figures 4.1 - 4.3.
4.1 Glass Assembly - Wing Nut Location
4.3 Glass Retainer Bracket & Wing Nut Detail
WING NUTS (2)
SLOTTED BOTTOM GLASS
FRAME MOUNTING
BRACKETS (2)
WING NUT LOCATIONS
WING NUT
GLASS RETAINER
ARROWS POINT
DOWNWARD
4.2 Glass Assembly - Removed
BOTTOM GLASS FRAMEBOTTOM GLASS FRAME
TABS SEATED IN SLOTTEDTABS SEATED IN SLOTTED
GLASS FRAME MOUNTINGGLASS FRAME MOUNTING
BRACKETBRACKET
4.4 Botton Glass Frame Detail
Removing Fixed Glass Assembly- Exterior
• Remove vanity panel from appliance to expose glass
latches.
• Pull glass latches out to release. Grasp glass assembly
on sides and pull bottom toward you. Slide glass
assembly down and out from under glass retainer.
GLASS LATCHES
GLASS RETAINER
4.5 Glass Latch Locations - Exterior Side

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2116
Remote Control (Optional)
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote con-
trol instructions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your replace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls
• Unplug 6 volt adapter plug.
Surrounds, Decorative Barrier Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that air intake and discharge areas are not
blocked.
•Vacuum and dust surfaces.
Drip Tray
Frequency: As Needed
By: Homeowner
Tools needed: Protective gloves
Under certain weather conditions, some water may
accumulate inside the appliance. This is normal and
expected. The control compartment contains a removable
drip pans that may be cleaned as necessary.
• Note orientation of drip pan on shoulder screws before
removing. Replace drip trays in same orientation as
shown in Figure 4.7.
• Excess moisture can be eliminated by burning the
appliance for a few hours.
Figure 4.7 Drip Tray
Replacing Fixed Glass Assembly - Exterior
• Slide top of glass assembly into position under glass
retainer. Position bottom of glass assembly and secure
latches.
• Replace vanity panel.
Exhaust Termination
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect exhaust termination for blockage or obstruction
such as plants, bird nests, leaves, snow, debris, etc.
• Verify exhaust termination clearance to subsequent con-
struction (building additions, decks, fences, or sheds).
See Installation Manual.
GLASS LATCHGLASS LATCH
4.6 Glass Latch Detail - Exterior Side

17
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
C. Maintenance Tasks: Qualied Service
Technician
The following tasks must be performed by a qualied ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspect xed glass assembly for scratches and nicks that
can lead to breakage when exposed to heat.
• Conrm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that xed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Log Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves.
• Inspect for damaged or missing logs. Replace as necessary.
Refer to Installation Manual for log placement instructions.
• Verify correct log placement and no ame impingement
causing sooting. Correct as necessary.
Firebox Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace replace if rebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Figure 4.8 IPI Pilot Flame Patterns
• Inspect orice for soot, dirt and corrosion. Verify orice
size is correct. See Service Parts List for proper orice
sizing.
• Verify air shutter setting is correct. See Installation
Manual for required air shutter setting. Verify air shutter
is clear of dust and debris.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Clean o󰀨 burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.
• Inspect IPI ame sensing rod for soot, corrosion and
deterioration. Polish with 320 grit Emery cloth and/or
3M™ Scotch-Brite Abrasive Hand Pad.
• Verify that there is not a short in ame sense circuit
by checking continuity between pilot hood and ame
sensing rod. Replace pilot as necessary.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Check all accessible gas-carrying tubes, connections,
pipes and other components for leaks.
• Inspect pilot ame pattern and strength. See Figure 4.8
for proper pilot ame pattern. Clean or replace orice
spud as necessary.
• Replace Glowing embers with new dime-size pieces.
DO NOT block ports or obstruct lighting paths. Refer
to appliance installation manual for proper ember
placement.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay. Inspect and
ensure the lighting of the main burner occurs within four
seconds of the main gas valve opening.
• Inspect for lifting or other ame problems.
• Verify batteries have been removed from battery back-up
IPI systems to prevent premature battery failure or
leaking.
Pilot and Burner Ignition and Operation
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, ashlight, voltmeter, indexed drill bit set, and a
manometer.
NOTE: Appearance of rock jig, pilot shield and media tray
may vary between appliance models.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2118
55 Frequently Asked Questions and Troubleshooting
A. Frequently Asked Questions
Contact your dealer for additional information regarding operation and troubleshooting. Visit www.hearthnhome.com to
locate a dealer.
ISSUE SOLUTIONS
Condensation on the glass
This is a result of gas combustion and temperature variations. Prior to appliance being turned
on, the inside of the glass has cooled below the dew point producing a byproduct of combus-
tion: water in the form of condensation. As the replace glass warms, the condensation will
disappear.
In the summer, the inside of your replace contains hot humid air from outdoors. When the air
from outdoors contacts glass cooled below the dew point by your air conditioning, moisture in
that air will condense.
Blue ames This is a result of normal operation and the ames will begin to yellow as the replace is
allowed to burn for 20 to 40 minutes.
Erratic ames
Verify that the glass assembly is correctly installed and that all glass latches are engaged over
the tabs on the glass frame.
Vent ba󰀪e/ue restrictor may be needed when long vertical vent runs are used. Refer to
Installation Manual Replace with Section 4 Vent Diagrams.
Odor from replace
When rst operated, this replace may release an odor for the rst several hours. This is caused
by the curing of the paint and the burning o󰀨 of any oils remaining from manufacturing. Odor
may also be released from nishing materials and adhesives used around the replace. These
circumstances may require additional curing related to the installation environment.
Film on the glass
This is a normal result of the curing process of the paint and logs. Glass should be cleaned
within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing pro-
cess. A non-abrasive cleaner such as gas replace glass cleaner may be necessary. Contact
your dealer.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to
the sound produced by a furnace or heating duct. This noise does not a󰀨ect the operation or
longevity of the replace.
Is it normal to see the pilot ame burn
continually?
In an intermittent pilot ignition system (IPI), the pilot ame should turn o󰀨 when appliance is
turned o󰀨. Some optional control systems available with IPI models may allow pilot ame to
remain lit.
Power Outages
(battery backup)
This appliance can be operated on battery power in the event of a power outage. To access
the battery pack, the decorative barrier front, mesh and glass assembly must be removed.
Refer to Section 3 for more details.
Wall above appliance feels hot to
the touch.
No action necessary. This appliance ships with a non-combustible material attached. Speci-
cations of the attached non-combustible material are listed in the Installer’s Manual for this
appliance.

19
Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/21
B. Troubleshooting
With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualied service technician in the diagnosis of a problem and
the corrective action to be taken. This troubleshooting guide can only be used by a qualied service technician. Contact
your dealer to arrange a service call by a qualied service technician.
Note to Qualied Service Technician: Additional resources including troubleshooting guides and service videos are
available through Hearth & Home Technologies. Contact your dealer or access resources through your myhht.com account.
IntelliFire Touch
Symptom Possible Cause Corrective Action
Pilot won’t light, module clicks but
no spark 90 sec, 3 Red/1 Green
Lock out.
Incorrect wiring. Verify ‘S’ (White) sense wire and ‘I’ (orange) ignitor wire are
connected to correct terminals on IFT-ECM.
Loose connections or electrical
shorts in wiring.
Verify no loose connections or electrical shorts in wiring from
module to pilot assembly. Verify wire insulation is not dam-
aged. Verify wires are not grounding out to chassis, pilot burn-
er, or any other metal object. Replace any damaged wires.
Ignitor gap is too large. Verify spark gap is approximately 0.095” (2.41 mm) to 0.135”
(3.43 mm).
Pilot won’t light, there is no noise
or spark.
No AC power, AC/DC adaptor
faulty, backup batteries (if
being used) depleted, IFT-
ECM slider switch in OFF
position.
Verify IFT-ECM slider switch is in ON or REM position. Verify
AC power available to junction box. Verify AC/DC adaptor is
plugged into junction box and ECM. Verify AC/DC adaptor out-
put voltage is between 5.7-6.3 Vdc. If battery pack is used,
check battery pack voltage is >4.2 V (if not, replace batteries).
Shorted or loose connection
in system wiring or wiring
harness.
Verify system wiring conguration. Remove and reinstall wir-
ing harness that plugs into module. Check continuity of wires
in valve wiring harness. Replace any damaged components.
Poor or no system ground. Verify black ground wire in valve harness is connected to metal
chassis of replace.
Pilot won’t light, there is no noise
or spark, 2 Red/1 Green Lockout. Pilot solenoid not detected.
Check if valve harness orange wire is connected to pilot so-
lenoid valve. Check pilot solenoid resistance, nominal is 40
ohms. If open or shorted, replace valve. Check valve harness
wire continuity, if open replace 6-pin harness.
Pilot won’t light, there is no noise
or spark, 2 Red/2 Green Lockout. Spark coil failure. Replace ECM.
ECM LED Error
Codes Description
3 Red: 1 Green ‘Appliance Safely Disabled’, pilot sparks for 90 sec, no ame rectication.
2 Red: 1 Green ‘Error Pilot Flame’, pilot valve solenoid not detected.
2 Red: 2 Green Sparking feedback signal error, spark coil failure.
5 Red: 1 Green ‘Error Power Vent’ (if installed).
Error Codes:
Troubleshooting:
See Troubleshooting matrix for more detail on Lock-out Error Codes, Possible Causes and Corrective Actions.

Outdoor Lifestyles by Hearth & Home Technologies • TWILIGHT-MD-IFT Owner’s Manual • 2669-971 Rev. C • 4/2120
IntelliFire Touch - (continued)
Symptom Possible Cause Corrective Action
Pilot sparks but does not light, after
90 sec, 3 Red/1 Green Lockout
No gas supply.
Verify incoming gas line ball valve is ‘Open’. Verify inlet pres-
sure is within requirement for gas type used. Contact gas sup-
plier.
ECM has poor ground. Verify wiring, check valve harness black wire is securely
grounded to metal chassis.
Gas valve defective.
Check pilot valve solenoid kick and hold voltages during igni-
tion cycle. Kick V should be >1 V, hold V minimum 0.26 V. If
voltages are OK, replace gas valve.
Pilot lights but main burner does
not light. Pilot continues to spark
for 90 sec then goes into 3 Red/1
Green Lockout.
No ame detected. Flame
rectication issue.
Check if white sense lead is securely connected to ‘S’ terminal
of IFT-ECM. Check resistance of sense lead between sense
rod tip and connector to IFT-ECM, should be less than 1 ohm
- if not, replace pilot assembly. Check system ground, ensure
black valve harness wire is securely attached to metal chassis.
Check wiring for damage. With system OFF, check resistance
between tip of sense rod and pilot hood, should be resistance
(>1 M-ohm).
No ame detected or sense
rod contamination.
With glass assembly installed, verify pilot ame is engulng
ame sense rod on pilot assembly. Verify inlet gas pressure
is correct for gas type. Polish ame sense rod with ne steel
wool to remove any contaminants that may have accumulated.
Pilot lights and recties, but main
burner does not light. Main valve solenoid.
Check if green wire in valve harness is connected to green
main valve solenoid. Check main valve solenoid resistance,
nominal is 60 ohms. If open or shorted, replace valve. Verify
valve inlet pressure is correct for gas type.
Pilot and main do not light, ECM
goes into 5 Red/1 Green Lockout. Power Vent (PV) Failure.
Power Vent blower defective - check wiring to IFT-ACM, check
if blower is working. Check if PV pressure switch is connected
to brown and black wire in 6-pin valve wire harness. Check if
pressure switch is closed (shorted) when PV blower is running.
Refer to PV troubleshooting instructions.
Appliance lights and runs for a few
minutes then shuts down and/or
appliance cycle ON and OFF with
less than 90 sec of ON time.
Shorted or loose connection in
ame detection circuit.
Check if white sense lead is securely connected to ‘S’ terminal
of IFT-ECM. Check resistance of sense lead between sense
rod tip and connector to IFT-ECM, should be less than 1 ohm
- if not, replace pilot assembly. Check system ground, ensure
black valve harness wire is securely attached to metal chassis.
Check wiring for damage. With system OFF, check resistance
between tip of sense rod and pilot hood, should be resistance
(>1 M-ohm).
Poor ame rectication or
contaminated sense rod.
With glass assembly installed, verify pilot ame is engulng
ame sense rod on pilot assembly. Verify inlet gas pressure
is correct for gas type. Polish ame sense rod with ne steel
wool to remove any contaminants that may have accumulated.
Verify no soot deposits are in sense rod to pilot hood gap.
Logs are set up wrong. Remove and re-install logs per the log placement instructions.
Damaged pilot assembly.
Verify the pilot assembly ceramic insulator around the ame
sensing rod is not cracked, damaged or loose. Check resis-
tance between tip of sense rod and IFT-ECM connector, should
be less than 1 ohm. Replace pilot assembly if damage is de-
tected.
