Hearth & Home GO24MTCH User manual

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 1
TM
Models:
GO24MTCH,GO30MTCH
GO318MTCH,GO324MTCH,
GO330MTCH
Grand Oak Match Light
Gas Log Sets
Installation
Instructions
Check with your local building code agency before you begin installation to ensure compliance with local codes, including
the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need
clarification of any of the instructions contained here, contact the Technical Services Dept., Hearth & Home Technologies
Inc., www.hearthnhome.com.
Note: An arrow (¨) found in the text signifies change
in content.
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructions included.
• Leave this manual with
party responsible for
use and operation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
-Do
not try to light any appliance.
- Donottouchanyelectricalswitch.Donot
use any phone in your building.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
- Ifyoucannotreachyourgassupplier,call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
Installation and service of this
appliance should be performed by
qualifiedpersonnel.Hearth&Home
TechnologiessuggestsNFIcertified
or factory-trained professionals,
or technicians
supervised by
an NFI certified
professional.
In the Commonwealth of Massachusetts:
• This appliance must be installed by a licensed plumber
or gas fitter.
• The chimney flue damper, when used with gas logs, will
be welded open or completely removed.
• A CO detector shall be installed in the room where the
appliance is installed.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
2
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Congratulationson selectinga Hearth& HomeTechnologies
gas log set—an elegant and clean alternative to burning
wood. The Hearth & Home Technologies gas log set you
have selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of this new gas log set, you’ll want to read and
carefullyfollow all ofthe instructionscontained inthis owner’s
manual. Pay special attention to all cautions and warnings.
This owner’s manual should be retained for future reference.
We suggest you keep it with your other important documents
and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new gas log set will give you years of durable use and
trouble-free enjoyment. Welcome to the Hearth & Home
Technologies family of appliance products!
Listing Label Information/Location
The model information regarding your specific gas log set can be found on the rating plate.
Congratulations
Homeowner Reference Information
Model Name: Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information about your gas log set:
Model #
Serial #
Gas Type
Hearth & Home Technologies
Angier, NC 27501
2012

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 3
A. Design and Installation Considerations
The Gas Log Hearth Kit consists of the following:

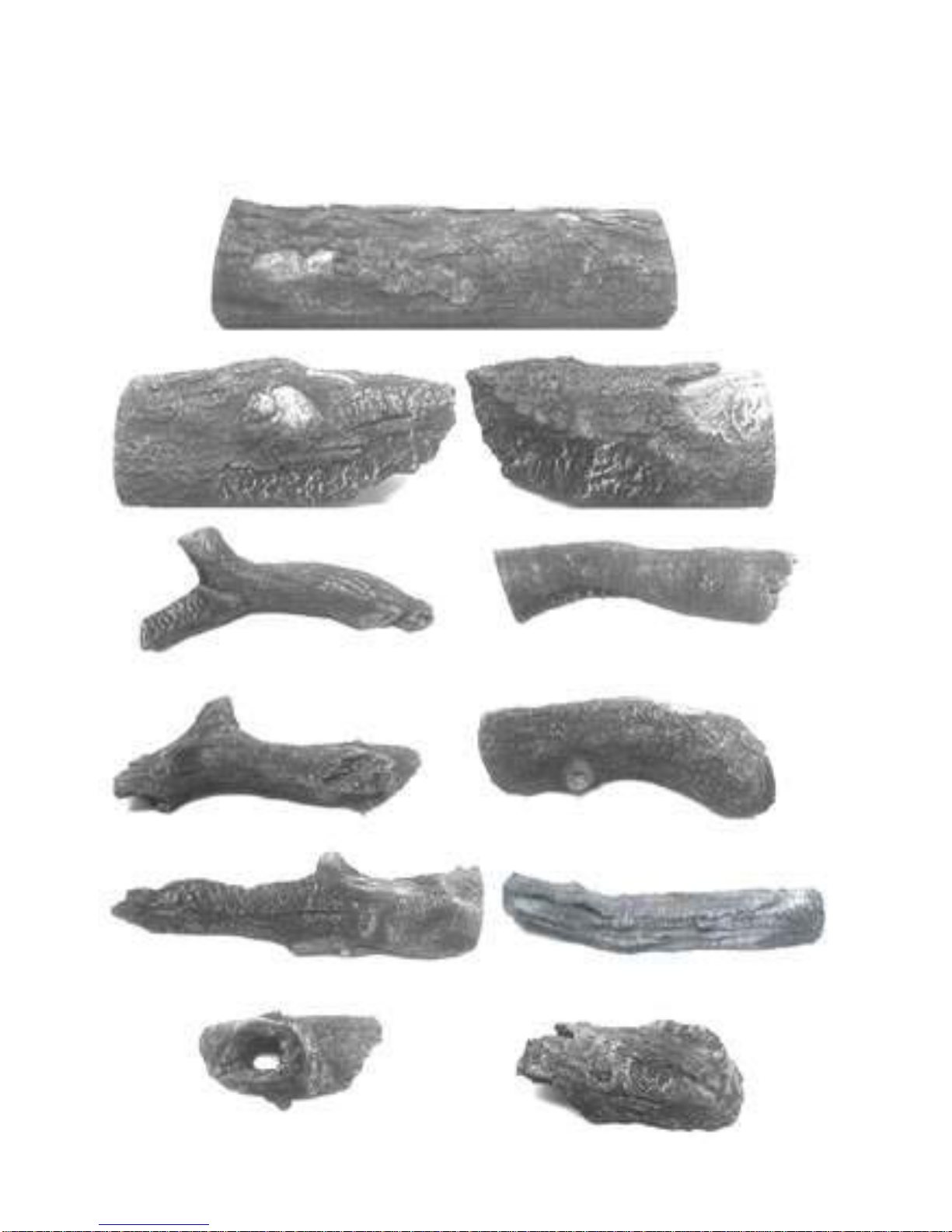

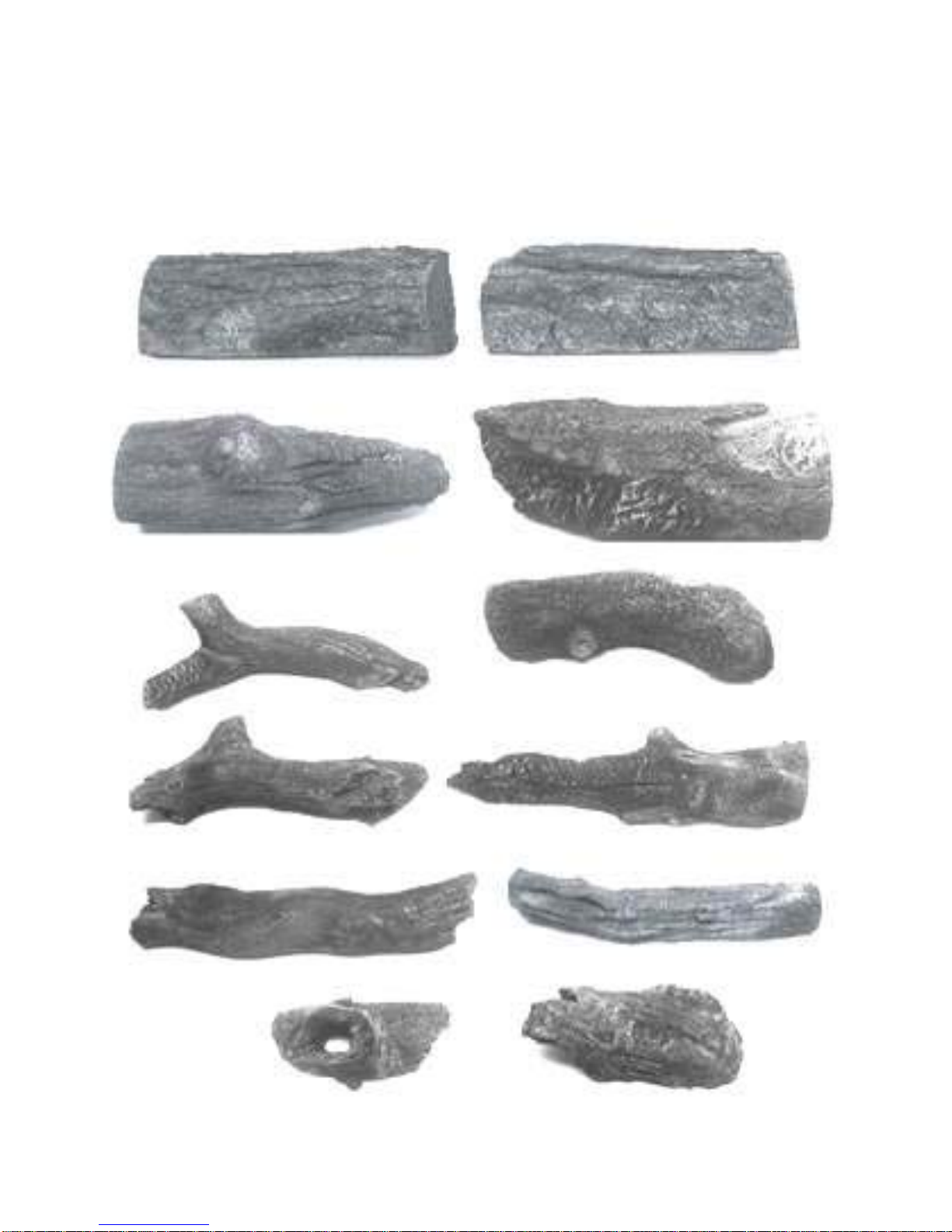

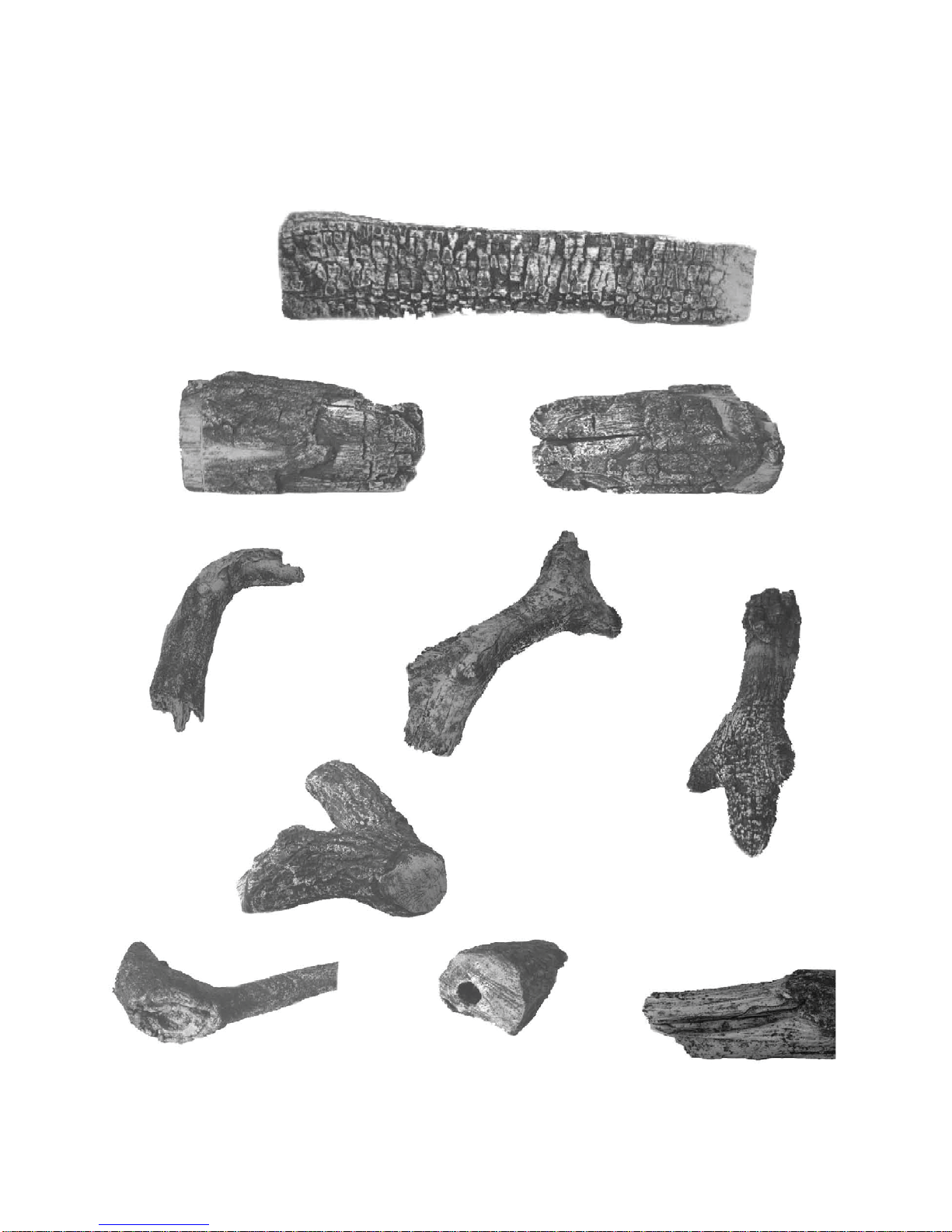

• Log Set
• Burner/Pan Assembly
• Grate Assembly
• Rock Wool
• Sand
• Lava Rock
• Damper Stop
• Vermiculite
• Platinum Embers
B. Tools and Supplies Needed
Tools and supplies normally required for installation:
Pliers
Phillips screwdriver
Tape measure
Crescent wrenches
Gas shutoff valve
Non-corrosive leak check solution
3/4 in. wrench, 7/16 in. wrench
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency or the gas
supplier.
WARNING
Sharp Edges
• Wear protective gloves
and safety glasses during
installation.
CAUTION
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
C. Important!
• Do not remove any of the attached metal plates, which
contain important safety and operating information.
• Keep the appliance area clear and free of all combustible
materials, gasoline and other flammable vapors and
liquids.
• Anysafetyscreen or guard removedduringservicing must
be replaced before operation.
• Aqualifiedservicetechnicianmustperforminstallation
andrepair.Theapplianceshouldbeinspectedandcleaned
annually by a qualified service technician. More frequent
cleaning may be required due to excessive lint, dust, pet
hair, etc. It is imperative that the control compartments,
burners and air passageways are unobstructed during
operation.

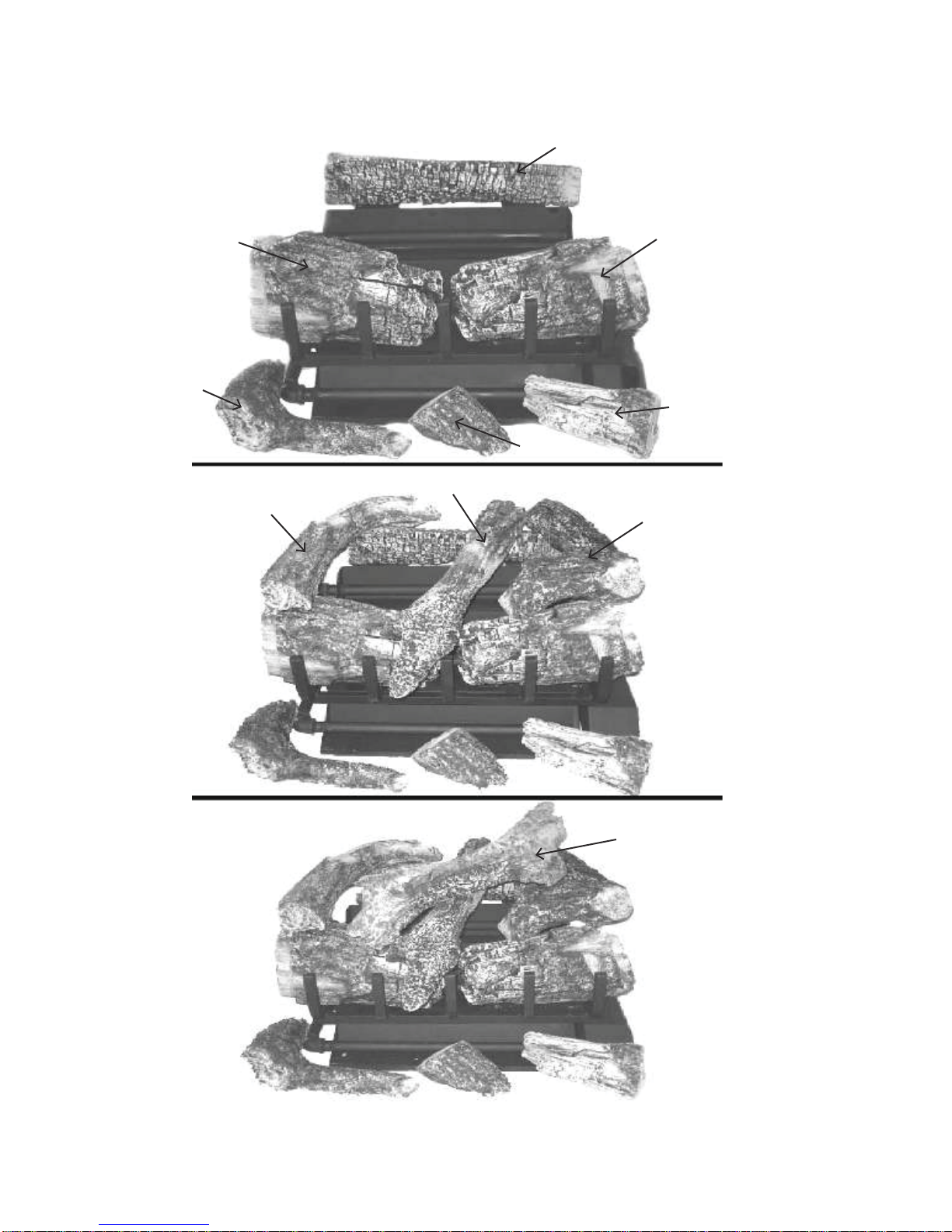

- Review proper placement of logs, rockwool, lava rock
and vermiculite.
- Check the wiring.
- Ensure there are no gas leaks.
- Ensurethe flow ofcombustion andventilation air is not
obstructed (front grilles and vent caps).
• Before installing into a solid fuel burning fireplace, the
chimney and firebox should be inspected and cleaned to
remove soot, creosote, ashes, paint, bird nests etc.
• Annual examination of the chimney must be performed
by a qualified agency to ensure proper ventilation of flue
gases created by this appliance.
Fire Risk
Exhaust Fumes Risk
• DoNOTusethisapplianceasa“vent-free
heater.
Thefluemustbepermanentlyopenaccording
to Tables 1 and 2.
WARNING
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals,ortechniciansunderthedirectionofcertified
professionals,conductaminimumofan NFPA 211 Level 2
inspection of the chimney.
• Replacecomponent parts of the chimney and fireplaceas
specified by the professionals.
• Ensure all joints are properly engaged and the chimmney
is properly secured.
• Do not allow fans to blow directly into the fireplace. Avoid
any drafts that alter burner flame pattern.
• Do not use a blower insert, heat exchanger insert or other
accessories not approved for use with this appliance.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
4
D. Appliance Certification
This appliance has been evaluated by PFS in accordance
with the requirements of Ansi Z21.84-2012 Standard for
Decorative Log Sets for Installation in Wood Burning Fire-
places. Installation and the provisions for combustion and
ventilation air must conform to the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the CSA B149.1, Natural Gas
and Propane Installation Code.
• This appliance must have a screen in place while the
appliance is in operation and, unless other provisions for
combustion air are provided, the screen shall have an
opening for introduction of combustion air.
• Solid fuels shall not be burned in a fireplace where a
decorative appliance is installed.
• Ifglass doorsare present,the glass doors must be fully
opened while appliance is in operation.
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
WARNING
E. Gas Supply Connection
A 3/8 in. flared fitting has been installed on the gas valve
inlet at the factory. Ensure fittings are of the appropriate size
and type on the gas line connection. If the tubing has to be
cut to length be sure to use the proper cutting and flaring
tool. Also, be careful not to crimp the tubing while bending. If
the tubing becomes crimped, do not use for installation.
Gas resistant pipe compound must be used on all threaded
male connections to ensure a tight seal.
F. Gas Pressure
Proper input pressures are required for optimum appliance
performance. Gas line sizing requirements need to be made
following NFPA51.
Fire Risk
Explosion Risk
Verify inlet pressures.
• High pressure may cause overfire
condition.
• Low pressure may cause explosion.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
WARNING
Fire Risk
Explosion Risk
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressuretestinggaslineat test pressures
above 1/2 psig.
• Closethe manual shutoff valve BEFORE
pressuretestinggaslineat test pressures
equal to or less than 1/2 psig.
WARNING
• GasSupply Pressure:Minimum inletgas supply pressure
must be 7.0 in. W.C. for natural gas. The gas line
supplying the appliance must be sufficient size to furnish
the appropriate supply pressure to the appliance while
operating in the “High” setting.
• Pressure tap screws must be closed before turning gas
on to the appliance.
• Gas Line Pressure Test: Perform pressure test according
tostate and localcode (if pressureexceeds 1/2in. psi (3.5
kPa)) before appliance is connected. Be sure to release
air pressure from the gas line before connection is made
tothe appliance. Excessive pressure will damage the gas
control and may cause a gas leak.
• Gas Leak Test: Make sure the gas connections are tight.
Turn on the gas and coat each joint with a non-corrosive
gas leak check solution. Air bubbles will form indicating
any leaks. DO NOT USE A FLAME OR ANY TYPE OF
IGNITION SOURCE TO CHECK FOR LEAKS. All leaks
must be corrected before proceeding with installation.
• Theappliancemust only be installedina solid-fuel burning
fireplace with the flue damper clamped open according
to Tables 1 and 2. The fireplace must be constructed of
non-combustible material.
• The minimum permanent free opening (in square inches)
thatmust beprovided bythe fireplacechimney or damper
to vent the flue gases is provided in Tables 1 and 2. If the
freeopening is smaller than the specified area,do notuse
this appliance.
• The damper must be removed or fixed in a manner in
which will secure it open. Some jurisdictions require the
damper to be removed or permanently welded fully open.
Check with state and local codes.
• Be sure that the chimney is completely unobstructed to
ensure proper ventilation of flue gases including carbon
monoxide (CO). CO (a poisonous gas) is tasteless,
odorless, colorless and undetectable without proper
equipment.
• Refer to Table 3 to determine minimum fireplace opening
requirements before proceeding.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 5
Asphyxiation Risk
This appliance produces carbon monoxide
(CO).
• Thefreeopeningareas(insquareinches)
of the chimney damper as shown in the
following tables must be met.
• User must make sure damper is locked
open.
• The installer is responsible to ensure
proper ventilation of flue gases before
appliance is used.
Fire needs to draft properly for safe
operation.
WARNING
G.Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the fireplace to operate properly. Causes for this
imbalance include:
• Exhaust fans (kitchen, bath, etc.).
• Range hoods.
• Combustion air requirements for furnaces, water heaters
and other combustion appliances.
• Clothes dryers.
• Location of return-air vents to furnace or air
conditioning.
• Imbalances of the HVAC air handling system.
• Upper level air leaks: recessed lighting, attic hatch
opening, duct leaks.
Table 1 for Factory Built Fireplaces
Free OpeningArea (in square inches) of Chimney Damper for Venting combustion
Products from DecorativeAppliances for Installation in Solid Fuel Burning Fireplaces.
Chimney Ht.
(Feet)* GO318 GO 24 & 324 GO 30 & 330
10 not approved not approved not approved
15 38.5 38.5 45.4
20 31.2 31.2 37.4
25 27.3 27.3 31.2
30 24.6 24.6 28.3
35 22.1 22.1 25.5
40 20.4 20.4 23.8
Table 2 for Masonary Built Fireplaces
Free OpeningArea (in square inches) of Chimney Damper for Venting combustion Products
from DecorativeAppliances for Installation in Solid Fuel Burning Fireplaces.
Chimney Ht.
(Feet)* GO318 GO 24 & 324 GO 30 & 330
6646471.4
8 59.7 59.7 66.9
10 54.3 54.3 60.2
15 48.8 48.8 54.1
20 44.4 44.4 49.1
30 40.3 40.3 44.5
* Height is measured from the hearth to the top of the chimney.
Minimum height is 6 ft.
Table 3 for Minimum Fireplace Dimensions
Log Set Front Opening Depth Height Rear Width Natural BTU
GO24 32 in. 20 in. 18 in. 21 in. 73,000
GO30 38 in. 20 in. 18 in. 27 in. 80,000
GO318 32 in. 23 in. 22 in. 21 in. 77,000
GO324 34 in. 23 in. 22 in. 22 in. 86,000
GO330 40 in. 23 in 22 in. 29 in. 86,000

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
6
H. Inspect the Appliance and Components
• Remove the contents from the carton labeled “Burner”.
Attachedtotheburneraretagsidentifyingthemanufacturer
name, serial number, model number (including gas log
size), BTU ratings, gas type, etc.
• Review the attached tags before proceeding. Ensure
that all minimum fireplace dimension requirements are
achieved using Table 3. See Figure 1. Ensure the gas
type provided in the fireplace coincide with the gas type
marked on the tag. Figure 4 Placing Vermiculite
Figure 3 Sand
Figure 5 Placing Rock Wool
• The burner is assembled with the controls installed at the
factory and is designed to connect one end of the 3/8 in.
supply line before placing inside the fireplace. Ensure the
connection is tightened using a 3/4 in. wrench.
• Place the burner towards the rear and center of the
fireplace and connect to the gas line. Follow instructions
in “F. Gas Pressure” to check for gas leaks.
• Removethe Platinum Bright Embers™ from the package.
For optimum performance peel each piece apart in layers
and lightly place on top of the vermiculite and rock wool
where the flame is blue. This will achieve the desired
realism.
• The gas burns at the point of the least resistance. In
case of an uneven flame pattern it may be necessary to
adjust the materials in the pans (using an object such as
a screwdriver) to achieve the desired effect.
• Place desired amount of lava granules on the floor of the
fireplace. DO NOT ALLOW THE GRANULES TO COME
IN CONTACT WITH THE FLAMES. (Lava granules may
containmoisturewhich, when heating,maycause it topop
out during installation and set-up.) Ensure the controls
and switches are unobstructed after the granules are
installed.
• Place logs. See Sections L Thru S.
• Place accent logs around burner on floor of fireplace.
I. For Natural Gas Installation
• Pour sand into the burner pans to the point where the
burner pipe is covered. See Figure 3. Level the sand from
right to left to ensure an even flame pattern. At this point
the pan should be half full.
.Pour vermiculite over the sand in the pans until they are
full. See Figure 4.
• Lightly place dime-size pieces of rock wool evenly on top
of the sand and vermiculite to achieve a glowing ember
effect. See Figure 5.
Figure 1 Measure Firebox
Note: For best results, do not pack down the rock wool.
The placement of rock wool can have an effect on flame
pattern and may need to be adjusted to achieve a desired
appearance.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 7
Fire Risk
Explosion Risk
Personal Injury Risk
Failure to position the parts in accordance
with the diagrams provided with the log
packages or failure to use only parts
approved with this appliance may result in
J. Damper Stop Installation Instructions
Included in the burner assembly box is a damper stop clamp
which attaches to the damper as shown (Figure 6). Install
the clamp to the damper ensuring that the minimum require-
ments (Tables 1 and 2) are achieved. Use a 7/16 in. wrench
to secure the clamp to the damper. If the damper clamp pro-
vided does not fit your application, other means of securing
the proper opening must be provided by the installer.
Figure 6 Damper Stop Clamp
Note: The state of Massachusetts requires that the
chimney flue damper, when used with gas logs, be welded
open or completely removed. In the Commonwealth of
Massachusetts this appliance must be installed by a
licensed plumber or gasfitter.
K. Inspect the Venting System
The fireplace venting system is designed and constructed to
develop a positive flow adequate to remove flue gases to the
outside atmosphere. See fireplace installation instructions.
A spillage test must be made before the installed
appliance is left with the consumer.
• Close all doors and windows in the home.
• Light the log set (see Lighting Instructions).
• After three minutes, test with a smoke match, smoke
candle, stick incense or cigarette 1 in. below the top of
theopening (lintel)moving acrossthe full width. If spillage
(smoke down into the room) occurs, it will most likely be
near the top, outside corners.
Possible cures if spilling occurs:
• The damper needs to be opened further.
• The fireplace opening needs to be reduced by adding a
drop panel across the top under the lintel.
• Theairsupply from outdoorsneeds to beincreased. Open
the outside air kit if the appliance is so equipped, or crack
open a door or window.
• If necessary, seek expert advice. Do not operate this
appliance.
Cleaning
• Periodic examination and cleaning of the venting system
of the fireplace should be done before initial use and at
least annually by a qualified agency.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
8
L. GO24 Grand Oak Series Logs
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.
SRV736 SRV738
SRV737
SRV722
SRV723
SRV724
SRV728
SRV742
SRV743
SRV729
SRV727

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 9
M. GO24 Grand Oak Series Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
Fire Risk
Explosion Risk
Personal Injury Risk
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
WARNING
SRV737
SRV723
SRV736 SRV738
SRV722
SRV728
SRV729
SRV743 SRV742
SRV724

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
10
N. GO30 Grand Oak Series Logs
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.
SRV726 SRV720
SRV721B
SRV722
SRV723
SRV724 SRV728
SRV740
SRV742 SRV743
SRV721A
SRV727

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 11
O. GO30 Grand Oak Series Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
SRV742
SRV727
SRV743
SRV740
SRV724
SRV728
SRV722
SRV723
SRV720
SRV726
SRV721A SRV721B

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
12
P. GO318 Grand Oak Series Logs
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.
SRV637
SRV628A
SRV816 SRV454
SRV75
SRV707 SRV702
SRV724
SRV706
SRV629A
SRV637

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 13
SRV75
SRV724
SRV629A
SRV628A
SRV454
SRV816
SRV707 SRV702
SRV706
Q. GO318 Grand Oak Series Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
SRV637

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
14
R. GO324 Grand Oak Series Logs
• Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.
SRV708
SRV709
SRV737
SRV728 SRV716
SRV816
SRV724
SRV808
SRV707
SRV702
SRV706

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 15
S. GO324 Grand Oak Series Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
SRV709
SRV728
SRV737
SRV808
SRV706
SRV702
SRV724
SRV716
SRV816
SRV707
SRV708

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
16
T. GO330 Grand Oak Series Logs
Open the log box and remove the paper packaging and logs.
• Inspect each log for breakage that may have occurred during shipping and handling.
SRV728
SRV816
SRV724
SRV808
SRV707
SRV702
SRV721A SRV721B
SRV701
SRV700
SRV706
SRV703

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 17
U. GO330 Grand Oak Series Log Placement Instructions
• Place logs EXACTLY as the following photos depict.
SRV721A SRV721B
SRV701
SRV700
SRV703
SRV816
SRV728
SRV724
SRV808
SRV707 SRV706 SRV702

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
18
V. Lighting Instructions- Match Light
Asphyxiation Risk
Gas-burningappliances produce smokeand
carbon monoxide gas during operation.
• The damper must be open
• The chimney must draw properly
These fumes can be harmful if not vented
properly.
WARNING
 &'%".*-<1.;*/.<A26/7:5*<2768:.>27=;4A42;<.-*+7>.
 $=:60*;,76<:745*6=*4>*4>.<7<1./=44C D87;2<276
 '*2<526=<.;<7,4.*:7=<*6A0*;$1.6;5.44/7:0*;26,4=-2606.*:<1./477:/A7=;5.440*;#$ !7447?CD
26<1.;*/.<A26/7:5*<276*+7>.76<12;4*+.4/A7=-76E<;5.440*;07<7<1.6.@<;<.8
 !4*,.*42<5*<,176<1.;=:/*,.7/<1.+=:6260.5+.:;767<174-5*<,1261*6-
 $=:60*;,76<:745*6=*4>*4>.<7<1./=44C D87;2<276
 /*8842*6,.?24467<78.:*<./7447?<1.26;<:=,<276;C$ $%" #$ !!D*6-,*44A7=:;.:>2,.
<.,162,2*67:0*;;=8842.:
'%'(%##&'% "
$'&'( '%&
 $12;*8842*6,.1*;*5*6=*44A4201<.-+=:6.:*6-5=;<+.42<+A1*6-'1.64201<260<1.+=:6.:/7447?<1.;.
26;<:=,<276;.@*,<4A
 "#%"$';5.44*44*:7=6-<1.*8842*6,.*:.*/7:0*;.;=:.<7;5.446.@<<7<1./477:+.,*=;.;75.
0*;2;1.*>2.:<1*6*2:*6-?244;.<<4.76<1./477:
 $''%!%#)%(&"&
 B 767<<:A<74201<*6A*8842*6,.
 B 767<<7=,1*6A.4.,<:2,*4;?2<,1-767<=;.*6A8176.26A7=:+=24-260
 B 55.-2*<.4A,*44A7=:0*;;=8842.:/:75*6.201+7:E;8176.7447?<1.0*;;=8842.:E;26;<:=,<276;
 B /A7=,*667<:.*,1A7=:0*;;=8842.:,*44<1./2:.-.8*:<5.6<
 767<=;.<12;*8842*6,.2/*6A8*:<1*;+..6=6-.:?*<.:55.-2*<.4A,*44*9=*42/2.-;.:>2,.<.,162,2*6<726;8.,<
<1.*8842*6,.*6-<7:.84*,.*6A8*:<7/<1.,76<:74;A;<.5*6-*6A0*;,76<:74<1*<1*;+..6=6-.:?*<.:
 %;.764AA7=:1*6-<78=;1267:<=:6<1.0*;,76<:741*6-4..>.:=;.<774;/<1.1*6-4.?24467<8=;1267:<=:6
+A1*6--767<<:A<7:.8*2:2<*44*9=*42/2.-;.:>2,.<.,162,2*67:,.7:*<<.58<.-:.8*2:5*A:.;=4<26/2:.7:
.@847;276
$=:65*6=*40*;,76<:741*6-4.<7C D87;2<276767</7:,.
#%)%(&#"')"!"#%"$'
#%)%(&#"')"!"#%"$'
$##$"%$ #" $  '($)" "(! # )"#%$
%#!" !"$)!"# %") " ## 
!4*,.42<5*<,126.5+.:+.-+./7:.<=:626076>*4>.
7,*<.-26?*447:/477:
6.*:/2:.84*,.
&*4>..A
&*4>.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013 19
W.Cleaning and Maintenance Instructions
Always remember:
• Do not place any combustible material near the
appliance.
• Do not place any paper, trash or other material on the log
set or in the heater.
• Do not touch any part of the appliance when it is in
operation.
• Donot operatethis appliancewithout the fireplace screen
closed.
Before cleaning the appliance, be sure it is turned
completely off. The appliance must be completely
cooled.
CAUTION
• Logs can get very hot. Handle only when they are
cool.
CAUTION
After burning, the logs become fragile. Take care in
handling.
CAUTION
Your appliance is designed to be virtually maintenance free,
although periodic visual inspection and cleaning is required.
Follow the instructions below for the correct procedures. An
annual examination and cleaning the venting system by a
qualified person is also recommended.
If at any time the flames on your log set look abnormal or an
odor is noticed coming from the appliance, contact a quali-
fied service technician or the gas company.
Inspect the main burner.
Do not allow soot to build up on the logs
Your logs require little care. Keep the burner assembly, logs
and burner area surrounding the logs clean by brushing with
a dry paint brush at least twice a year.

Hearth & Home Technologies • Grand Oak Match Light Gas Log Sets • 4004-300 Rev G • 5/2013
20
X. Fequently Asked Questions
Can I close the glass doors on my fireplace when using my gas logs?
No. The gas log sets are designed for use in fireplaces with all fireplace doors fully opened. Operating your log set with the doors
closed will cause overheating, premature failure of valve systems, and will void the warranty of your log set.
What sort of maintenance do gas logs require?
Vented gas logs do not require regular maintenance. However, it is a good idea to have valves, pilots and gas connections on your
set periodically inspected by a hearth professional. Although it is not required maintenance, annually refurbishing the ember material
and periodic cleaning of the logs will help maintain your set’s beauty and realism.
Does the ember material burn-up, and do I need to replace it periodically?
The ember material is a fireproof, organic mineral material called rock wool, and does not burn or require periodic replacement;
however, annual refurbishment of the embers will help maintain the beauty and realism of your log set.
Can I burn real wood along with my gas logs?
No. The intense heat of a wood fire will damage your logs, burners, grates and valves, and will void your warranty.
Will gas logs help my chimney that drafts poorly?
No. Improper or poor draft will not be helped by gas logs. Please have your chimney inspected by a hearth professional or chimney
sweep in order to determine how to correct the problem.
Can I close my fireplace damper to get more heat from my vented gas log set?
No. Vented gas logs are designed to be operated with the damper in the fully opened position. This gas log set produces carbon
monoxide gas. The damper must be removed or clamped fully open using the “C” clamp provided with the set.
My gas logs make a whistling noise when I burn them. What causes this?
This behavior is normally caused by using a corrugated flex connector to hook up the gas log set. We recommend the installer use
the supplied aluminum connector rather than the corrugated flexible type.
Can I move or change the position of the logs on my gas log set?
Certified log sets should not be altered - log placement must be exactly as indicated in the set’s installation instructions.
Can I install my gas log set myself?
No. We recommend installation be performed by an NFI certified hearth professional, HVAC professional, gas fitter, or plumber
experienced in gas log installation. Most localities require installation of any gas appliance to be performed by a professional.
Please check with your local inspection agency/department.
What are the gas logs made of?
The gas logs are made of a mixture of pre-fired, expanded clay and a special high-temperature cement, with a wire mesh
reinforcement. This combination creates a strong, ceramic material capable of withstanding extreme temperatures, yet also allows
molding of the intricate detail found in these gas log sets.
I have a vented log set, and the logs have black soot on them. Is this normal?
Soot build-up on vented gas logs is a normal part of the combustion process. Natural gas log sets generally produce less soot
than liquid propane log sets. We recommend any soot build up be removed periodically using a product designed for gas log soot
removal.
Can I add a remote control to my log set after it has been installed?
No.
Is the gas log set approved by a testing agency?
Yes. The GO series has been design certified by PFS under the Ansi Z21.84-2012 Decorative Appliances for Installation in
Solid Fuel Burning Fireplaces. The installation and the provisions for combustion and ventilation air must conform to the National
Fuel Gas Code, ANSI Z223.1/NFPA 54. Check with your local inspections department for further information.
