Hearth & Home Simplifyre SFE-26 Mounting instructions

1 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
US
C
TM
TM
Model: SFE-26
BUILDER BOX
INSTALLER/CONSUMER SAFETY
INFORMATION
PLEASE READ THIS MANUAL BEFORE
INSTALLING AND USING APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT, CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
SERVICE MUST BE PERFORMED BY A
QUALIFIED SERVICE AGENCY.
Homeowner’s Installation & Operating Manual
Note: The device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
ANSI / UL 2021. Fixed or location dedicated electric room heater.
Installer: do not discard this manual -- leave for home owner
TUV Listed as SFE-26

2 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
Congratulations!
Congratulations on selecting a Simplifyre electric fireplace.
The unit you have selected is designed to provide the
utmost in safety, reliability and efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future refer-
ence. We suggest you keep it with your other important
documents and product manuals.
TABLE OF CONTENTS
1Important Instructions 3
A Unpacking the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Locating Your Electric Fireplace . . . . . . . . . . . . . . . . . 4
C. Clearance to Combustibles . . . . . . . . . . . . . . . . . . . . . 4
D. Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
E. Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . 4
F. Hardwire Electrical Connections . . . . . . . . . . . . . . . . . 4
G. Wall Switch and Thermostat Connections. . . . . . . . . . 4
H. Finishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Fireplace Dimensions 5
3 Operating Instructions 6
A. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
B. Remote Control Initialization . . . . . . . . . . . . . . . . . . . . 6
C. Control Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Electrical Wiring 7
5 Service Instructions 7
A. Replacing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . 7
B. Screen Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
C. Maintenance of Motors . . . . . . . . . . . . . . . . . . . . . . . . 7
D. Resetting the Temperature Cutout Switch . . . . . . . . . . 7
6 Replacement Parts List 8
7 Warranty 9
Please read the installation & operation instructions before
using this appliance.
The information contained in this owner’s manual unless
noted otherwise, applies to all models.
Your new Simplifyre electric fireplace will give you years of
durable use and trouble-free enjoyment.
Welcome to the Hearth & Home Technologies family of
fireplace products!

3 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock and
injury to persons, including the following:
• To prevent a possible fire, do not block air intakes or
exhaust in any manner.
• A heater has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or flammable
liquids are used or stored.
• Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
• Always use properly grounded, fused and polarized
outlets.
• Always use ground fault protection where required by
electrical code.
• Always disconnect power before performing any cleaning,
maintenance or relocation of the heater.
• To prevent a possible fire, do not burn wood or other
materials in this heater.
• To prevent electric shock or fire, always use a certified
electrician should new circuits or outlets be required.
• When transporting or storing the heater, keep in a dry
place free from excessive vibration and store to avoid
damage.
• SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns do not let
bare skin touch hot surfaces. If provided, use handles
when moving this heater. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes and
curtains away from sides and rear of heater, and at least
12 in. (305 mm) from the front.
• Extreme caution is necessary when any heater is used
by or near children or invalids and whenever the heater
is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug
or after the heater malfunctions, has been dropped or
damaged in any manner. Return heater to authorized
service facility for examination, electrical or mechanical
adjustment, or repair.
• Do not use outdoors.
• This heater is intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater
where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or the like. Arrange cord away from
traffic areas and where it will not be tripped over. Do not
coil cord.
• To disconnect heater, turn controls to “OFF” then remove
plug from outlet.
• Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
1
Important Instructions
WARNING! Risk of Fire!
DO NOT:
• install or operate damaged heater
• modify heater
• operate the heater without fully assembling all
components
The following actions are strictly prohibited:
• Installation other than as instructed by Hearth & Home
Technologies Inc.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies Inc.
Hearth & Home Technologies Inc. disclaims any responsibility
for, and the warranty and agency listing will be voided by the
above actions.
WARNING! Improper installation, adjustment, altera-
tion, service or maintenance can cause injury or prop-
erty damage. Refer to the owner’s information manual
provided with this heater. For assistance or additional
information consult a qualified installer, service agency or
your dealer.
NOTICE! This fireplace is not intended for use as a primary
heat source and should not be factored as such in residential
heating calculations.
WARNING! Risk of Electric Shock! This product should
never be installed near water.

4 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
A Unpacking the Unit
Carefully remove packaging from the unit. The front screen
is held in place with four Phillips head screws. To remove
the screen, extract the screws. Grasp the screen frame
and pull out.
B. Locating Your Electric Fireplace
Your new electric fireplace may be installed virtually any-
where in your home. However, when choosing a location
ensure that the general instructions are followed. For best
results, install out of direct sunlight.
Power supply service must be either completed or placed
within the heater prior to finishing to avoid reconstruction.
Protective cover may stay on during framing, but must be
removed before final finishing. Once final finishing has
been completed, the protective cover can be used to pro-
tect the heater until final installation is complete.
C. Clearance to Combustibles
Sides . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 in. (0 mm)
Floor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 in. (0 mm)
Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 in. (0 mm)
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 in. (0 mm)
D. Framing
• Choose a fireplace location and frame as shown in
Figure 2.1.
• Frame in the fireplace with a header across the top.
• It is important to allow for finished face when setting the
depth of the frame.
• If a hearth system or raised hearth is to be installed, the
unit MUST be raised to provide service access and use
of optional fronts.
• The fireplace can now be positioned in the opening.
• Level it with shims if necessary, and attach the unit to the
frame using the nailing flanges provided.
E. Electrical Specifications
Voltage . . . . . . . . . . . . . . . . . . . . . . 120 V AC, 60 Hz
Total Amps . . . . . . . . . . . . . . . . . . . . . . . .11.25 AMP
Total Watts . . . . . . . . . . . . . . . . . . . . . . . 1350 Watts
Heater Rating: . . . . . . . . . . . .1300 Watts/4415 BTU
F. Hardwire Electrical Connections
Note: All wiring must be completed prior to finishing the
unit.
For supply connections use No. 14 AWG or larger wires.
Use copper wire only. Connect only to a 15 AMP branch
circuit. A dedicated circuit is recommended as other appli-
ances on the circuit may cause the breaker to trip or fuse
to blow when the heater is operating.
• Remove the screws securing the junction block cover.
• Wire to a properly grounded, 120 volt, 60 Hz, 15 AMP
circuit
• Ensure all junction block connections are tight.
• Replace the cover and retaining screws.
• Plug in the IEC-320-C14 power plug to the IEC-320-C13
power inlet located on the upper right side of the unit.
• All components and wiring may be inspected by removing
the top inter-panel through the fireplace front opening.
G. Wall Switch and Thermostat Connections
The Optional Wall Switch 4050-309 contains two single
pole switches. (LEVITON 5634 Series or equal)
The Optional Wall Thermostat is a low voltage mechanical
type. (Columbus Electric RK120EAA or equal)
Maximum run distance is 30 ft. (9.14 m) with 20 gauge
solid copper low voltage thermostat wire. Connect per the

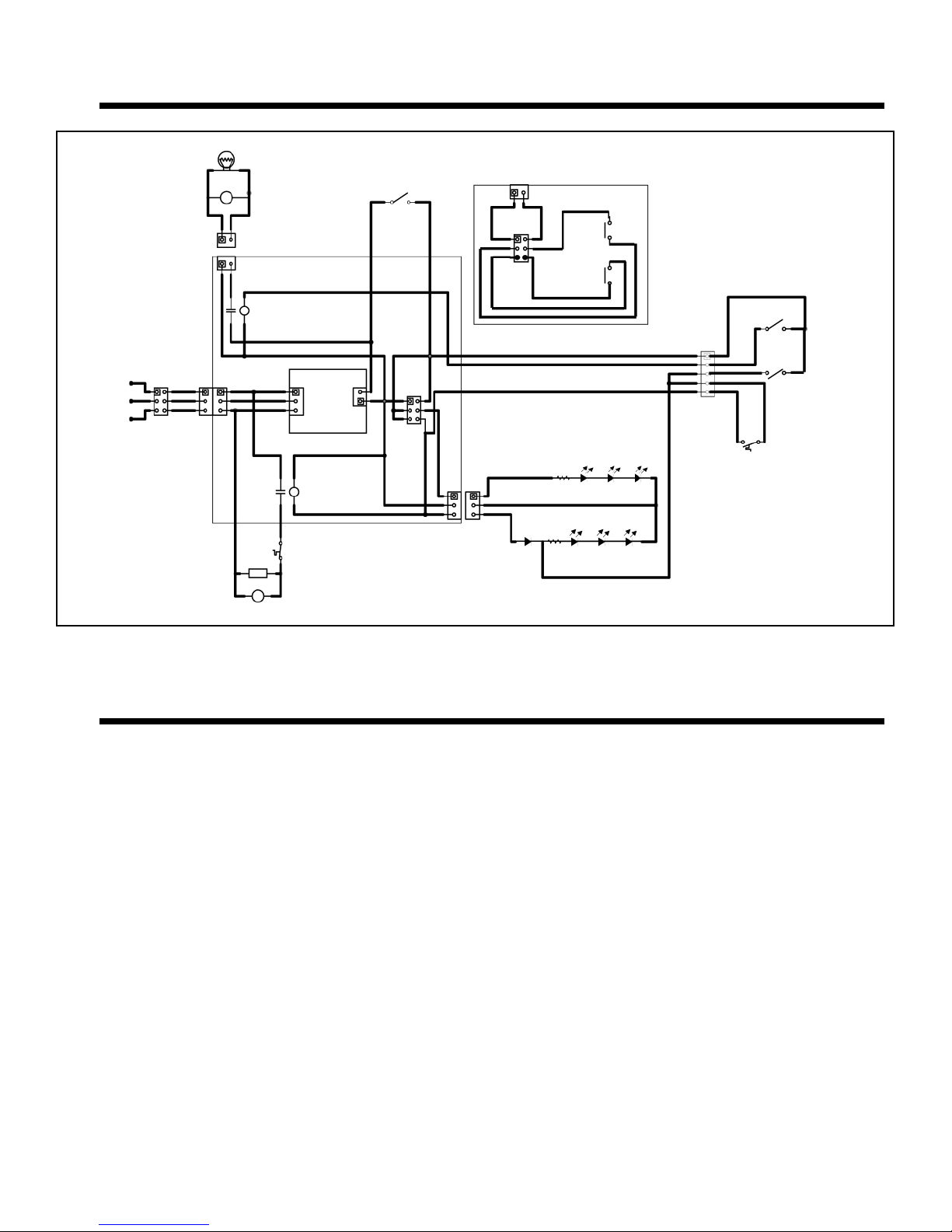

electrical wiring diagram on page 7.
H. Finishing
Combustible or non-combustible materials may be used to
finish up to the top of the fireplace screen.
Note: Ensure that you leave adequate room to remove and
replace the front screen. Refer to decorative front installation
manual for other finishing requirements.
WARNING! Do NOT use this fireplace if any part of
it has been under water. Immediately call a qualified
service technician to inspect and replace any part of the
electrical system if necessary.
WARNING! Electrical wiring must comply with local
building codes and other applicable regulations to
reduce the risk of fire, electrical shock and injury.
WARNING! Do NOT connect the optional low voltage
switch and/or thermostat to 120 volt branch circuit.

5 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
2
2 Fireplace Dimensions
28-1/4 in.
71.8 mm
1/2 in. (1.3 cm)
20 in.
50.8 cm
40 in.
101.6 cm
23-1/4 in.
59.1 cm
Rough
Opening
Height
10-1/2 in.
26.7 cm
Rough
Opening
Depth
18-3/8 in.
46.7 cm
27-1/2 in.
69.9 cm
Rough Opening Width
18-1/8 in.
46.0 cm
22-3/4 in.
57.8 cm
26-3/4 in.
67.9 cm
Flush
Nailing Flange
Note:
The bottom surface
of this fireplace
must be elevated to
the level of the
finished surface in
front of the fireplace
to allow access for
service and the use
of optional fronts.
10 in.
25.4 cm
Unit Front
Unit Top
Note: Nailing flanges may be
hand-bent to accommodate framing
for different styles of optional
decorative fronts. Refer to decora-
tive front installation manuals for
details. If the fireplace will be inset,
add .5 in. (13 mm) to the framing
depth.
Figure 2.1 Fireplace Specifications and Framing Dimensions

6 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
Ensure the appliance is connected to a properly grounded electrical outlet on a minimum 15 AMP circuit. If a new outlet is
required, it should be installed by a qualified electrician according to applicable building codes.
A. Remote Control
Note: If the fireplace does not respond to the hand held control see “Remote Control Initialization” below.
This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installa-
tion. This equipment generates and uses, and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
B. Remote Control Initialization
This procedure is required only when the unit is installed or
the transmitter is replaced and is not affected by the loss
of power.
• Ensure that power is supplied through main service
panel.
• Place fresh batteries in the transmitter.
• Access the LEARN button by removing the front
screen.
• Press and hold down the LEARN button. You will hear a
beep.
• Press a button on the hand-held transmitter.
• Release the LEARN button when you hear the long
beep.
• This completes the remote control receiver/transmitter
initialization.
C. Control Usage
The controls operate the fireplace modes.
• The flame effect and backlog/embers are turned ON/OFF
by alternate action of the FLAME button on the remote
transmitter.
• The heater/blower and front embers are turned ON/OFF
by alternate action of the HEATER button on the remote
transmitter.
• The optional wall FLAME switch provides manual
operation (ON/OFF) of the flame effect.
• The optional wall HEAT switch controls the front embers
and activates the optional remote wall thermostat.
• Set the thermostat to the desired room temperature.
The optional wall switches/thermostat are in parallel with
the remote control relays. The wall switches MUST be
OFF for the Remote Transmitter to control the fireplace.
Note: While the heater is ON the embers in front will glow.
Ensure the heater is OFF when unattended.
Learn Button
FLAMES
HEATER
3
3 OPERATING INSTRUCTIONS
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.

7 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
4
4 Electrical Wiring
Projector
Lamp
S7
X1
Motor
Interlock on
Media Cabinet only
Power Supply Module
Hot Line
Ground
Neutral
Branch Circuit
12 VOC
Power
Supply
Heater
Motor
Hi Limit
Heater-Blower Heat Indicator
LED LED LED
LED LED LED
Ember Bed & Back Log
4050-310
Wall Thermostat
4050-309
Wall Switch
Flame
Heat
Terminal Strip ON
RD
WH
WH
RD
Remote Receiver
Flame
Heat
NEMA-5 IEC 320 C13/C14
M
M
P1
1
5
R2
R1
D1
J1
5
5 Service Instructions
A. Replacing the Light Bulb
This appliance uses a single 12 Volt, 35 Watt, MR-16 bulb.
The bulb is located behind the smoke shield.
A spare is provided with the unit. Replacement bulbs
(Part No. 4050-123) are available through your Simplifyre
dealer.
• Turn off power to the unit at the main service panel.
• Let the fireplace cool if it has been operating.
• Release the spring pins and remove the upper shield.
• Remove the two screws on the projector basket.
• Rotate the housing down to access the bulb.
• Remove the screws holding the bulb and socket.
• Unplug the bulb from the socket.
• Replace the bulb.
• Re-assemble in the reverse order.
B. Screen Cleaning
During shipment, installation, handling, etc., the screen
surface may collect dust particles; these can be removed
by lightly wiping with a clean, dry cloth.
C. Maintenance of Motors
The motors used on the fan and flame projector assembly
are pre-lubricated for extended bearing life and require no
further lubrication. However, periodic cleaning/vacuuming
of the fan/heater unit is recommended.
D. Resetting the Temperature Cutout Switch
The heater on this fireplace is protected with a safety
device to prevent overheating. Should the heater overheat,
an automatic cutout will turn OFF the heater/blower. The
switch is reset by turning the unit OFF, waiting 10-15 min-
utes and switching the unit back ON.
WARNING! Disconnect power at circuit breaker before at-
tempting any maintenance or cleaning to reduce the risk of
fire, electrical shock or personal injury.

8 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
E. Optional Wall Switch / Thermostat Wiring
Connections instructions
The optional wall switch and thermostat wiring is low volt-
age and must be separated from power wiring. Do not
connect the switches or thermostat to house power.
To control flames/ember bed with a switch, and
control the heater with a thermostat:
• Switch 1 - turns flames/ember bed ON/OFF
• Switch 2 - turns front embers ON/OFF indicating the
heater/fan is being controlled by the thermostat (UL
requirement)
• Thermostat turns heater/fan ON/OFF as room temperature
requires it
• Switch 1 between terminal 1 and 2
• Switch 2 between terminal 1 and 3
• Thermostat between terminal 4 and 5
To control flames/ember bed with one switch and
heater/front embers with another switch:
• Switch 1 - turns flames/ember bed ON/OFF
• Switch 2 - turns heater/front embers ON/OFF
• Switch 1 between terminal 1 and 2
• Switch 2 between terminal 1 and 3
• Jumper wire between terminal 4 and 5
To control the fireplace with a single switch:
(flames/ember bed and heater/front embers all on or all off)
• Switch between terminal 1 and 2
• Jumper wire between terminal 2 and 3
• Jumper wire between terminal 4 and 5

9 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
6
6 Replacement Parts List
1
2
3
4
56
78
9
10
11
12
13
14
15
16
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION SN # Cutoff PART NUMBER
1 Smoke Shield 4050-301 Y
2 Back Log 4050-302 Y
3 120V Heater Assembly 4050-304 Y
4SFE-26 Installation Manual 4050-308 Y
SFE-26C Installation Manual 4050-311 Y
5 Remote Transmitter 4050-105 Y
6 Front Log Set/ Embedded Assembly 4050-300 Y
7 Optional Wall switch 4050-309 Y
8 Optional Wall Thermostat 4050-310 Y
9 Power Assembly 4050-305 Y
10 Remote Receiver 4050-108 Y
11 Power Cord 4050-148 Y
12 LED Assembly 4050-306 Y
13 Projector Assembly 4050-312 Y
14 Bulb 4050-123 Y
15 Front Screen Assembly 4050-307 Y
16 Viewing Screen 4050-303 Y
Hardwire Power Assembly (SFE-26 only) 4050-005 Y

10 Hearth & Home Technologies Inc. • SFE-26 • 4050-308 Rev D • 03/08
7
7 Warranty
Warranty
Hearth & Home Technologies Inc. (HHT) Electric Fireplaces are tested and inspected prior to shipment and are
guaranteed from defect to the purchaser of each new product. Any part which proves to be defective in material or
workmanship under normal use within one year will be repaired or replaced without charge.* The Company will not
be responsible for any expense incurred for installation, removal from service, or transportation costs. Any such
defect should be brought to the attention of the Dealer where the product was purchased and is authorized to repair
or replace within the terms of this warranty.
The Company’s only obligation under this warranty will be at its sole option to repair or replace any part proving
defective or to refund the purchase price thereof.
The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or dam-
age arising out of the use of or inability to use the product.
The warranty will not apply if, in the sole judgement of the Company, damage or failure has resulted from accident,
alteration, misuse, abuse, incorrect installation, or operation on an incorrect power source.
The foregoing is in lieu of all other warranties expressed, implied, or statutory, and the Company neither assumes,
nor authorizes any person to assume for it any other obligation, or liability in connection with said product.
*Light bulbs are not covered in the warranty.
How to Obtain Service.
To obtain service under this warranty you must:
1. Send written notice of the claimed condition to Heatilator Technical Service Department, Hearth & Home Technologies
Inc., 1915 W. Saunders St., Mt. Pleasant, IA 52641.
2. Provide proof of purchase, model number, serial number, and manufacturing date code to HHT.
3. Provide HHT reasonable opportunity to investigate the claim, including reasonable opportunity to inspect the
appliance prior to any repair or replacement work and before the Appliance or any component of the Appliance has
been removed from the place of original installation.
4. Obtain HHT’s consent to any warranty work before the work is done.
ADDITIONAL INFORMATION. If you would like information on current HHT products or want to locate a dealer in
your area, call 1-800-927-6841
©2003 Heatilator® is a Registered Trademark of Hearth & Home Technologies Inc
TM
TM
