HearthStone Bristol DX User manual

HearthstoneQuality Home Heating Products, Inc. ®
Bristol 8763
Manual: 6400-40473
R: 11-28-18
Bristol DX
(Model 8763)
GAS-FIRED DIRECT-VENT HEATER
Owner's Manual
Installation& Operating
Instructions
ReadThisManual in Its Entirety
Operate And Maintain This Gas Heater
According To This Instruction Manual.
SAVE THESE INSTRUCTIONS!
Report # 0261GF005S
-Ne pas entresposer ni utiliser d’essence ni d’autre
vaperurs ou liquides inflammables dans le voisinage
de cet apprareilou de tout autre appareil.
-QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
•Ne pas tenter d’allumer d’appareil.
•Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
•Quittez le bâtiment immédiatement.
•Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
•Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies
-L’installation et l’entretien doivent être assurés par
un installateur ou un service d’entretien qualifié ou
par le fournisseur de gaz.
Ce manual est disponible en Francais a
www.hearthstonetech.com
WARNING: This product can expose you to
chemicals including glasswool fiber and carbon
monoxide which are knownto the State of Californiato
cause cancer,birthdefectsorotherreproductiveharm.
For moreinformation go to www.P65Warnings.ca.gov
California Prop 65

Notes………….……………………………………………………………………………………..2
Specifications………………………………………………………………………………………4
Introduction………………………………………………………………………………………...5
Safety Information…………………………………………………………………………………5
Installation Preparation…………………………………………………………………………..8
Codes……………………………………………………………………………………………………………..... 8
Items Required for Installation………………………………………………………………………………… 8
Packing List/Unpackaging and Inspection……………………………………………………………………. 8

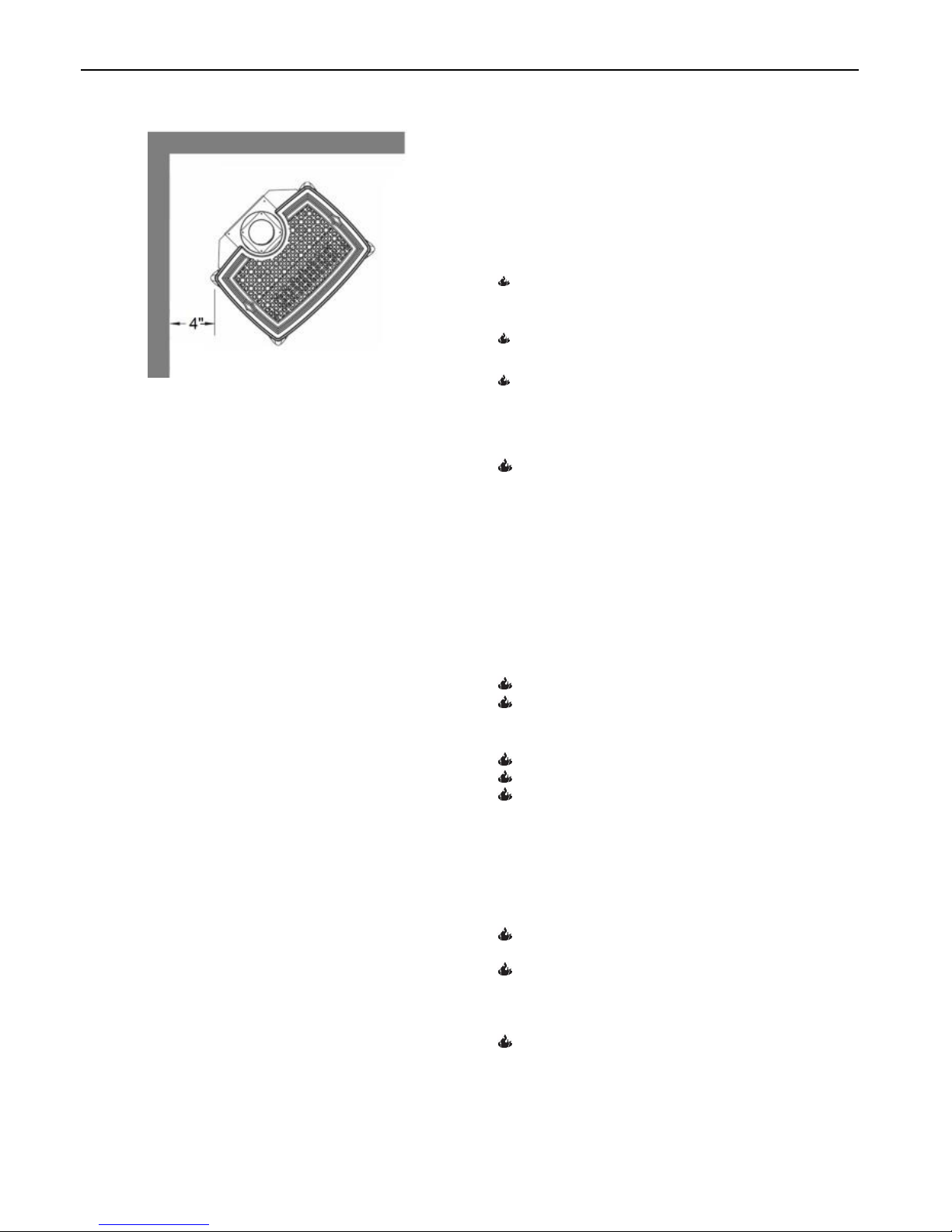

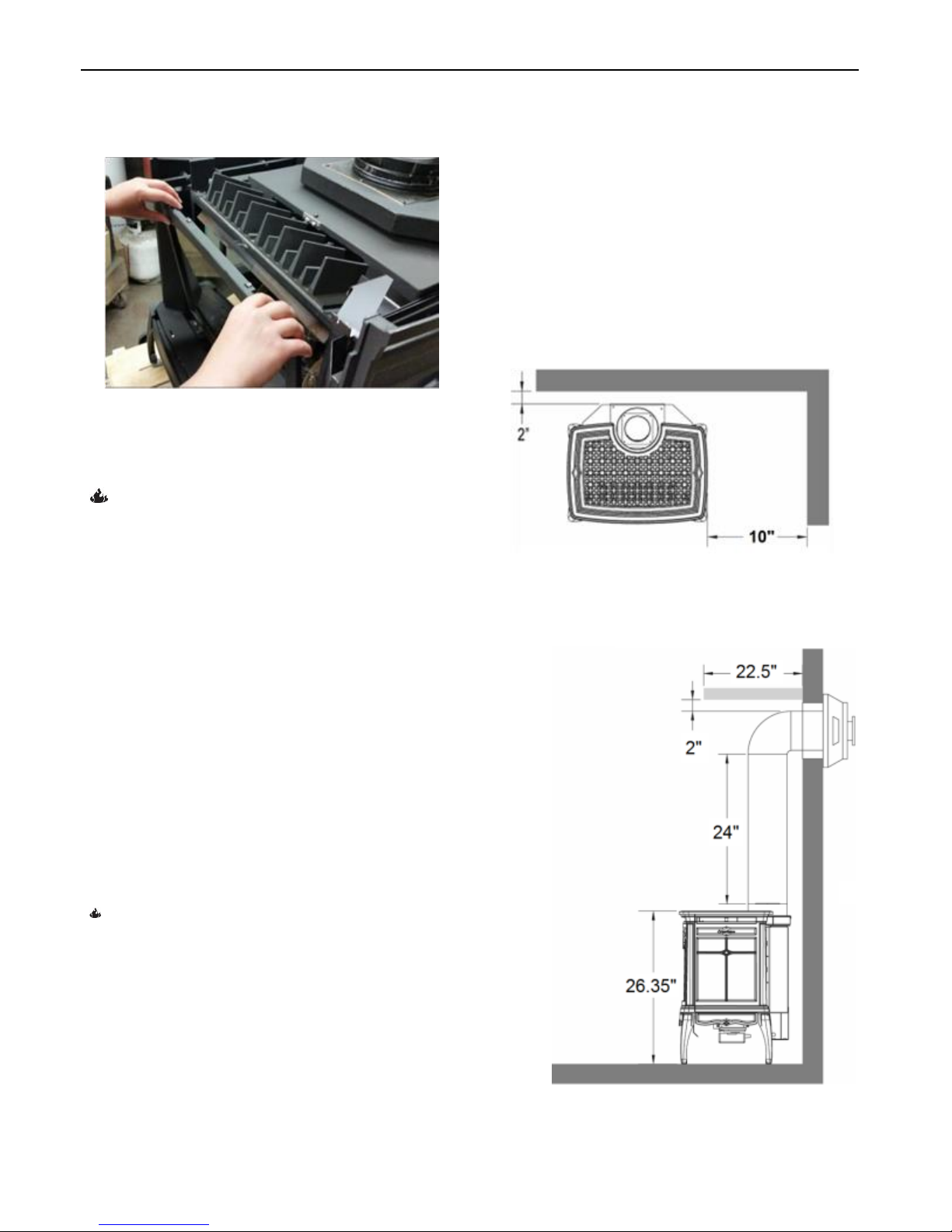

Clearances to Combustibles…………………………………………………………………….9
Hearth Requirement/Floor Protection………………………………………………………………………….. 10
Venting Information……………………………………………………………………………... 11

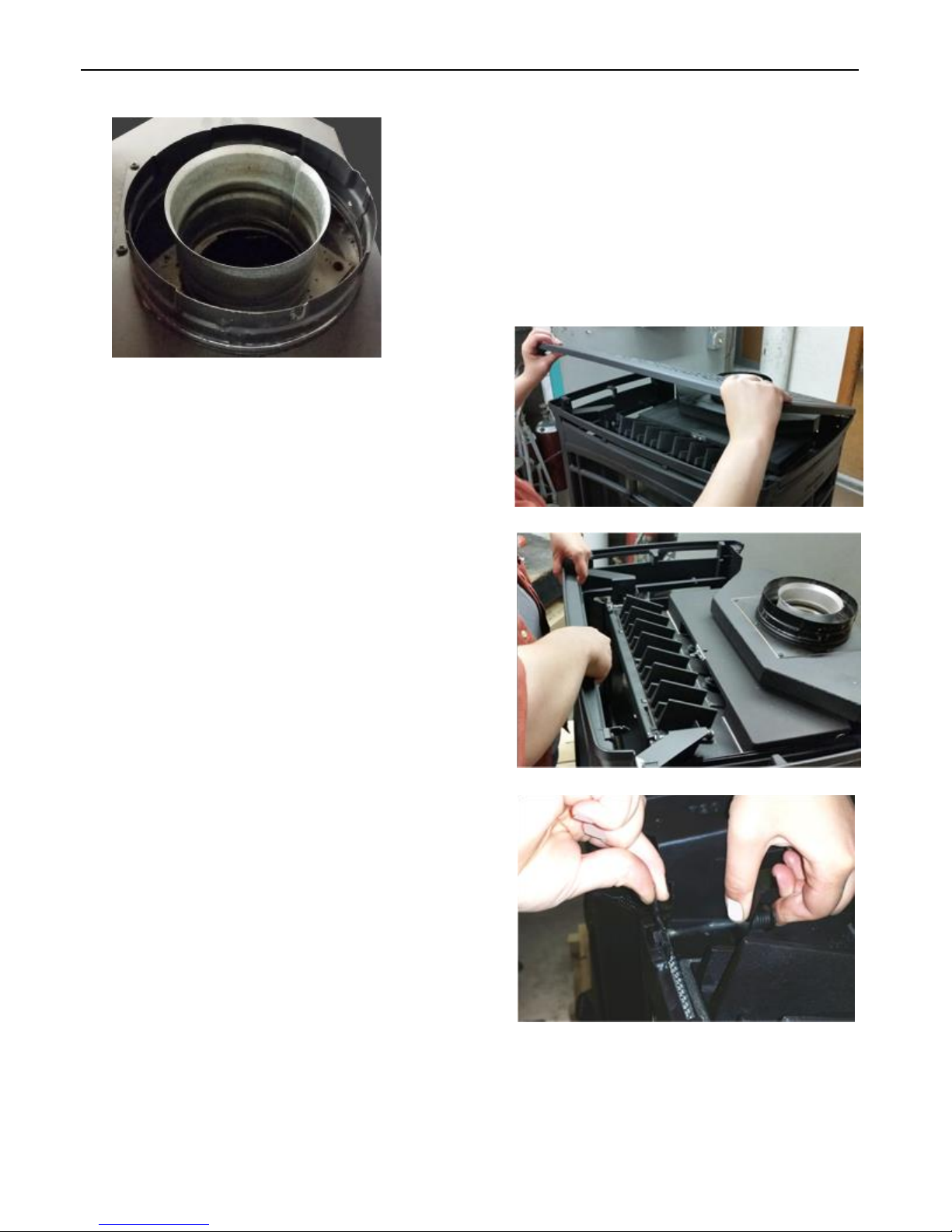

Venting Connection…………………………………………………………………………………………….... 11
Approved Systems……………………………………………………………………………………………..... 11

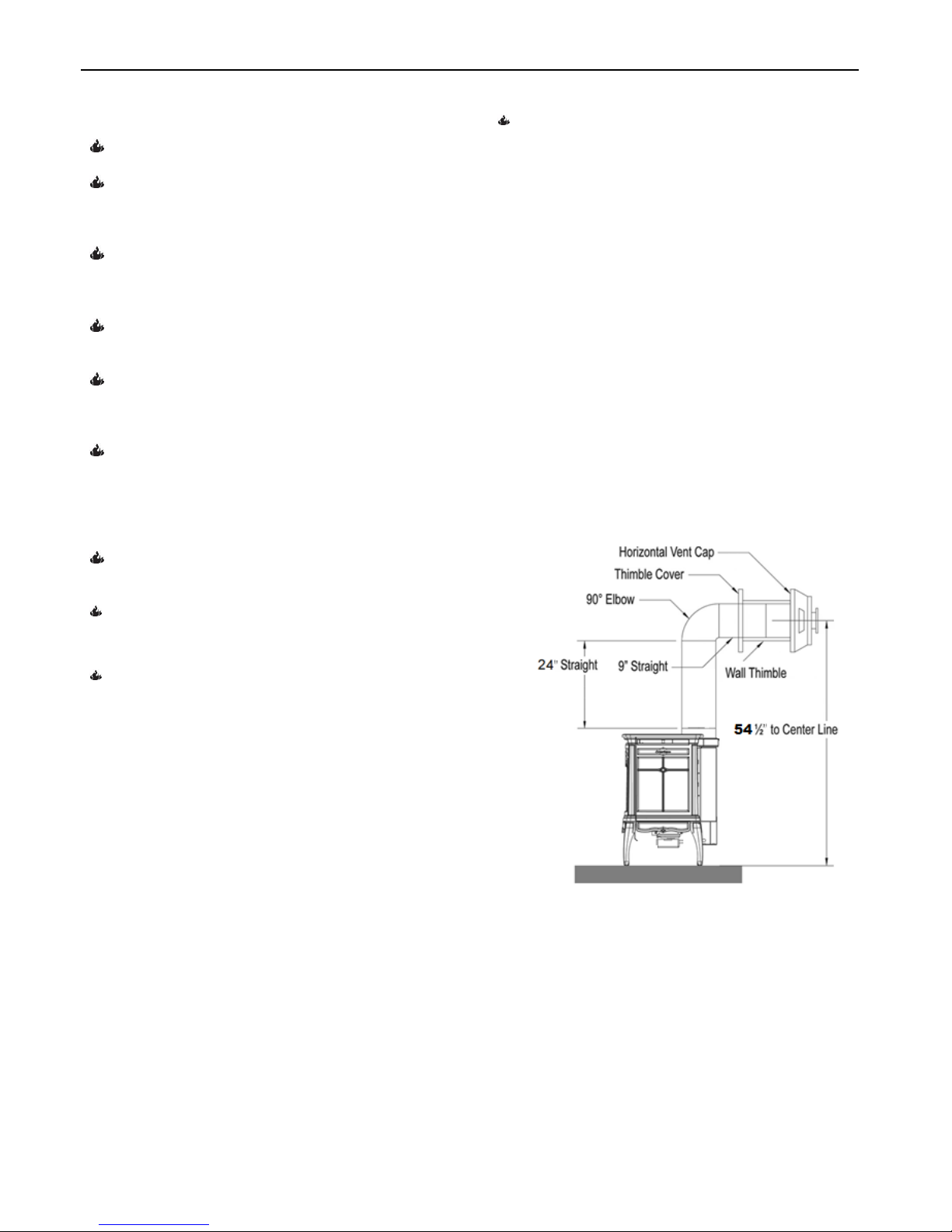

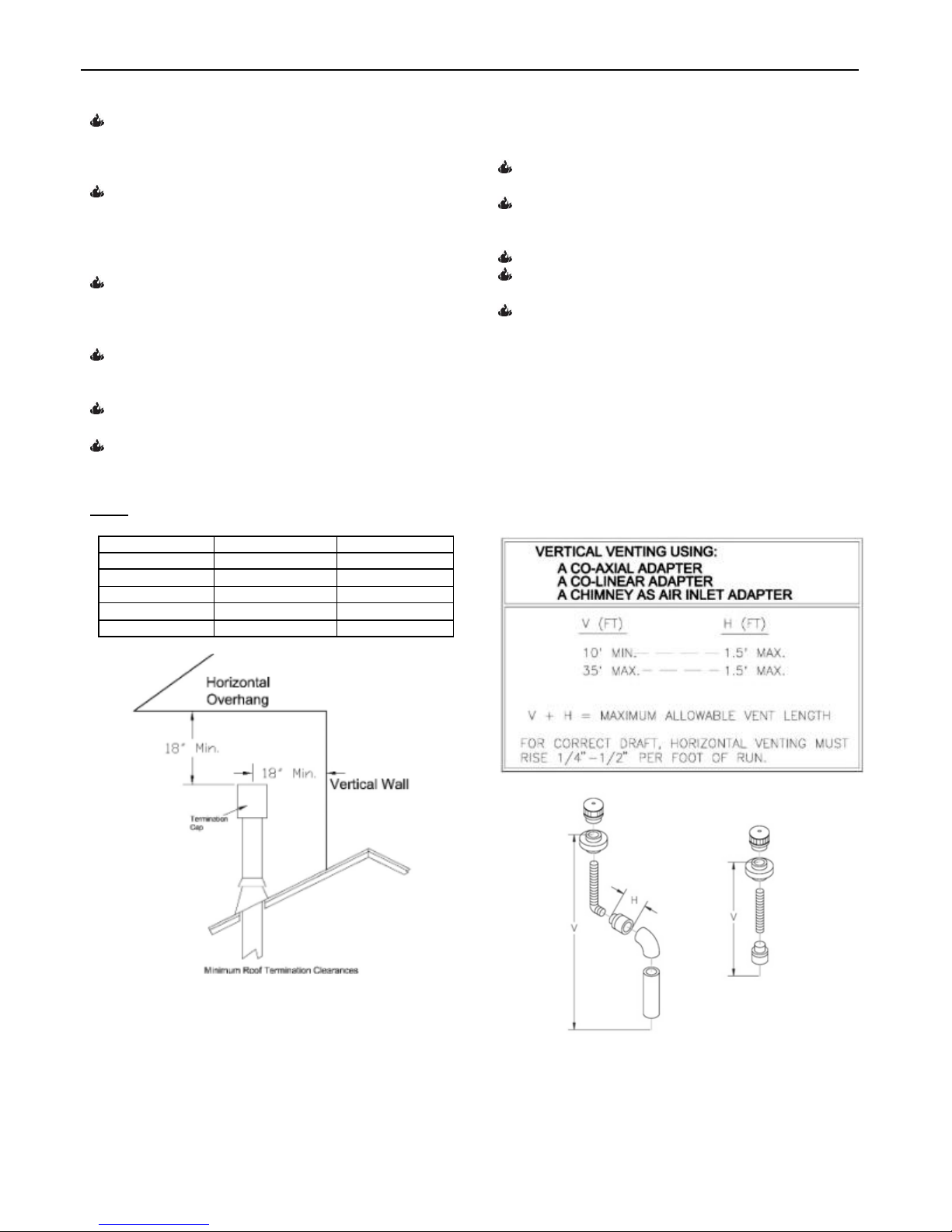

Minimum Venting……………………………………………………………………………………………….... 13
Vertical Vent Kit Installation.....................................................................................................................14
Electrical System Information………………………………………………………………….18
Gas Supply & Connections……………………………………………………………………..19
Gas Connections…………………………………………………………………………………………………. 19
Initial Leak Check………………………………………………………………………………………………... 20
Pre-Ignition Checks ….………………………………………………………................................................20
Initial Lighting Instructions……………………………………………………………………. 22
Pilot Adjustment………………………………………………………………………………………………..... 23
Outlet Pressure Adjustment…………………………………………………………………………………..... 23
Minimum Flow Adjustment……………………………………………………………………………………… 23
LP Conversion…………………………………………………………………………………………………… 24
Firebox/Log Set Placement……………………………………………………………………. 27
Installation………………………………………………………………………………………………………… 27
Removal………………………………………………………………………………………………….............. 29
Air Shutter………………………………………………………………………………………………………… 30
Restrictor………………………………………………………………………………………………………….. 30

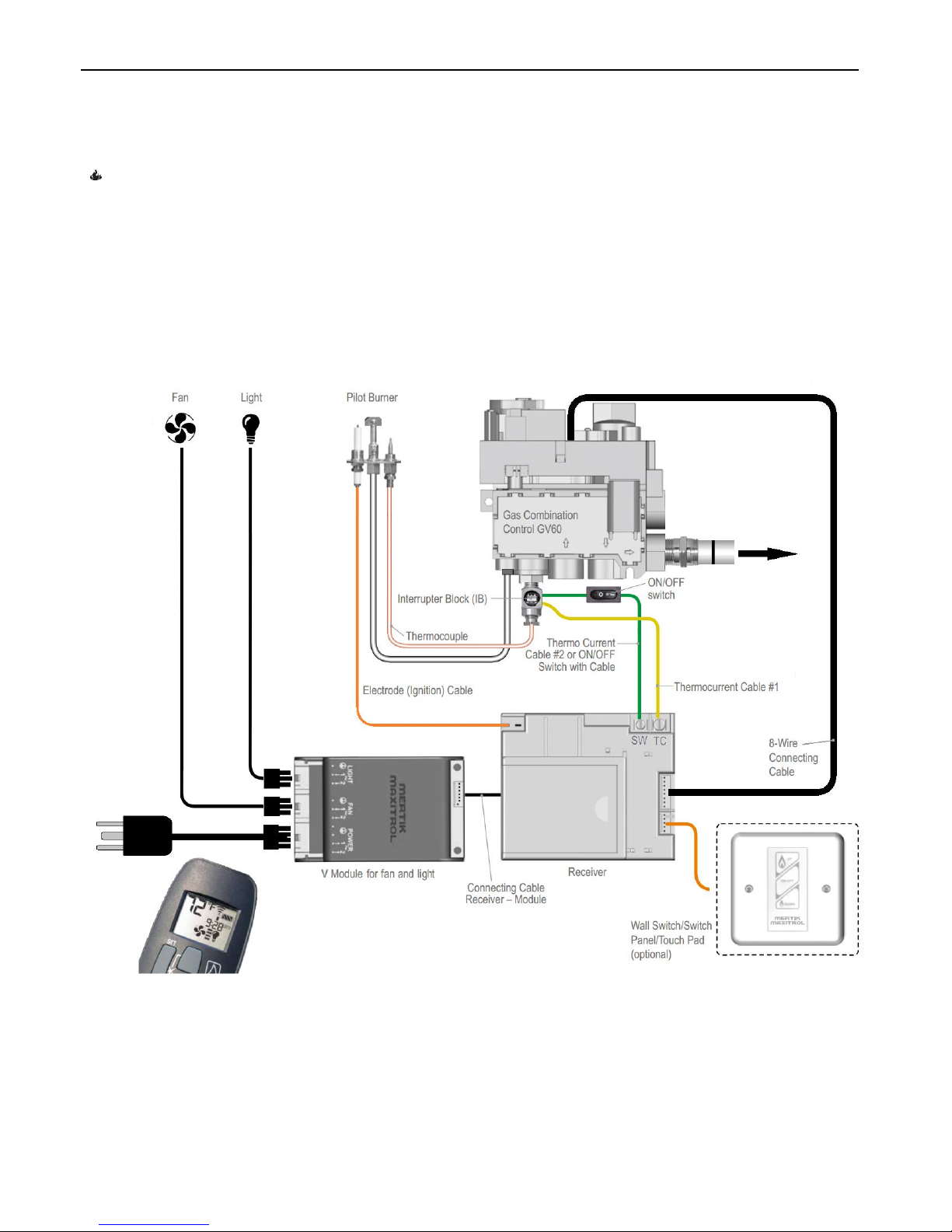

Maxitrol GV60 Control System Features……………………………………………………..31
Sync Receiver to Remote/Starting the Appliance…………………………………………………………… 32
Daily Operation………………………………………………………………………………………………… .. 33
Routine Maintenance and Care……………………………………………………………….. 38
Parts List………………………………………………………………………………………….. 42
Troubleshooting…………………………………………………………………………………. 43
Rating Label……………………………………………………………………………………….45
Warranty…………………………………………………………………………………………... 46
INDEX

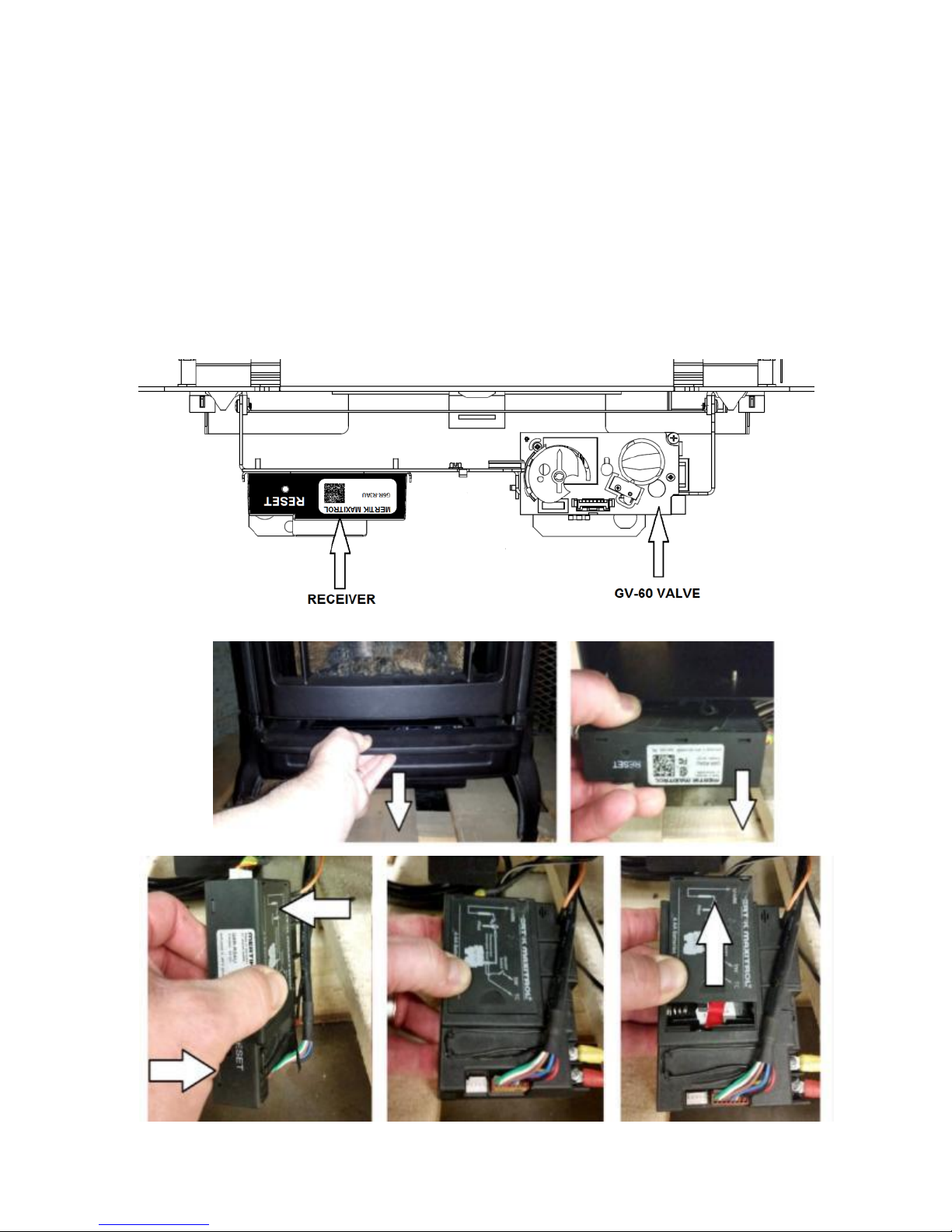

NOTE ON BATTERY INSTALLATION IN RECEIVER
Please refer to pages 31-38 of this manual for operation of Maxitrol GV-60 gas control system. The following
illustration is intended only to identify component location and receiver removal for installation of the 4 AA
batteries included in your stove. To install batteries in the receiver: Remove control cover panel by firmly
grasping front lip, lifting slightly and pulling forward free of the stove. Set panel aside on a soft surface. Locate
and grasp receiver body. Pull receiver straight forward from the mounting bracket firmly but slowly. As soon as
the receiver can be rotated free of the mounting clip, turn over counter-clockwise until battery cover can be
accessed. Remove battery access cover, lay red ribbon across the battery tray and install supplied batteries as
indicated in the receiver. Center the receiver in the mounting clip, reverse procedure to re-install receiver and
follow receiver/remote sync procedure on page 32.

Information Sheet
Use this page to record all relevant information concerning the purchase, installation, and maintenance of your
Bristol Model 8763 Direct -Vent heater. This information will facilitate servicing, purchase of replacement parts,
and warranty claims (if necessary). Keep your original receipt in a safe place as proof of purchase.
Serial Number:
Fuel type:
Natural Gas
Liquid Propane
Sold by:
Date of Purchase:
Address:
Phone:
E-mail
Website:
Installed by:
Date of Installation:
Address:
Phone:
E-mail
Website:
Gas Supplier:
Address:
Phone:
E-mail
Website:
Read this Owner’s Manual before installing or operating your Bristol. Retain this manual for future reference.
SERVICE RECORD
Date
Who Performed Work
Work Performed
Notes:
WHAT WHEN
Firebox Cleaning............. annually
Glass Cleaning................ as needed
Gaskets.................... Replacement as needed

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
4
Specifications
Testing Agency: OMNI- Test Laboratories, Inc.
PO Box 301367
Portland, OR 97294
Listed: Direct Vent Gas Heater
Model: Bristol Model 8763
Tested to: ANSI Z21.88 / CSA 2.33-2016
Certified for Canada, CSA P.4.1
Approved for Mobile Home Installation
Certified for use by:
Board of State Examiners of Plumbers and Gasfitters
100 Cambridge Street, Room 1511
Boston, Massachusetts 02202
Manufactured and Warranted by:
Hearthstone Quality Home Heating Products, Inc.
317 Stafford Ave.
Morrisville, VT 05661-8695, USA
www.hearthstonestoves.com
Bristol DX Dimensions
Specification
NG
LP
Maximum input rating (Btu/hr) 0-2000 ft
26,000
26,000
Minimum inputrating (Btu/hr) 0-2000ft
18,000
16,000
Orifice size DMS 0-2000ft
41
53
Orifice size DMS 2000-4500ft
41
53
Man. press.-LOsetting(in.w.c./kPa)
1.7/0.42
5.2/1.3
Man. press.-HIsetting(in.w.c./kPa)
3.4/0.87
10.4/2.59
Minimum Inletpress.(in.w.c./kPa)
5.0/1.25
12.0/2.99
Maximum Inlet press.(in.w.c./kPa)
10.0/2.5
13.0/3.3

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
5
Introduction
Congratulations on your purchase of the Bristol
Model 8763, Gas-Fired Direct-Vent heater. The
Bristol, by Hearthstone, incorporates the latest in
direct vent gas technology, which will provide you
with clean, efficient heat for years to come. The
enameled or painted cast iron gives the Bristol a
pleasing look that is maintained with minimum care.
The Bristol will provide you with years of practical and
convenient service. However, as with any gas
appliance, the unit must be properly and safely
installed and maintained by qualified service
personnel to ensure safe and trouble-free operation.
BristolModel8763 Features:
1. Maxitrol GV-60 Remote Control System
2. 4-piece log set
3. Safety Barrier Screen
4. Platinum Bright Embers
5. Battery backup for functionality during power
outages.
6. Integrated blower
ControlSystemFeatures:
1. Maxitrol GV-60 Control System:
Manual Mode:
a. Manual igniter
b. Adjustable flame height
c. Manual operation:
i. Flame level control knob
ii. Integrated piezoelectric igniter
2. Remote Control Mode:
a. Flame level control.
b. Manual, thermostatic, and two (2)
programmable control modes.
c. The option to select on-demand or
continuous pilot mode, based on control
mode selected:
i. On-demand mode allows the
most efficient use of gas, burning
the pilot only when the control
system calls for the burner to
ignite.
ii. Programmable constant mode
runs the pilot continuously
keeping the firebox warmer thus
promoting better draft in colder
climates.
d. Battery level indicator for Transmitter on
remote control
Part #
Description
8763-0010
Matte Black
8763-0020
Brown Enamel
8763-0030
Basil Enamel
Read this Owner’s Manual
Operate and maintain this gas heater according to the
instructions in this manual. For your safety, and years
of trouble free operation, read this manual in its
entirety.
Heater Must Be Installed and Maintained By
Qualified Service Personnel
Verify the gas connections and venting systems meet
the requirements of local, regional or national
installation codes. Qualified service personnel must
inspect the gas heater before use, and at least
annually.
Manufactured & warranted by:
Hearthstone Quality Home heating Products, Inc.
317 Stafford Ave.
Morrisville, VT 05661
www.hearthstonestoves.com
[e-mail]
Safety Information
Your Bristol is an attractive and extremelyefficient
heater, utilizing today’s best technologies. By following
a few simple safetyprecautions and by performing
minimal maintenance, the unit will remain appealing
while providing years of quality performance.
The installation must conform to local codes or, in the
absences of local codes, the current National Fuel Gas
Code, ANSI Z223.1 (NFPA 54) or CAN/CGA B149
Installation Code. (Installer l’appareil selon les codes
ou réglements locaux, ou, en l’absence de tells
réglements, selon les Codes d’installation CAN/CGA
B149.)
CAUTION: DO NOT USE THIS APPLIANCE IF ANY
PART WAS UNDER WATER. IMMEDIATELY CALL A
QUALIFIED SERVICE TECHNICIAN TO INSPECT
THE HEATER AND TOREPLACE ANY PART OF THE
CONTROL SYSTEM AND GAS CONTROL THAT HAS
BEEN UNDER WATER. (NEPAS SE SERVIRDECET
APPAREIL S’IL A ÉTÉ PLONGÉ DANS L’EAU,
COMPLÉTEMENT OU EN PARTIE. APPELER UN
TECHNICIEN QUALIFIÉ POUR INSPECTOR
L’APPAREIL ET REMPLACER TOUTE PARTIE DU
SYSTÉME DE CONTRÔLE ET TOUTE COMMANDE
QUI ONT ÉTÉ PLUNGES DANS L’LAU.)

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
6
During the first few hours of operation the appliance
may produce smoke and/or odor. This is normal during
thefirst several burns and also after long periods when
the stove is not burned. During these initial burns,
open a window(s) to assist in the removal of the
smoke/odor.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of ½ psig. (3.5k Pa). The
appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than ½ psig
(3.5k Pa).
Fire Hazard
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this appliance. Locate
the Bristol out of traffic areas and away from furniture,
draperies, clothing, and flammable material.
Vent Only to the Outside
Never vent the gas heater to other rooms or buildings.
Service Caution
If you believe your Bristol is not, in any way,
performing properly, immediately discontinue
operation until the unit is inspected and approved by
qualified service personnel. Prior to servicing the unit,
turn the gas to the valve off, and disconnect any
electrical source. Ensure the unit is cool prior to
servicing and cleaning. Replace any safety screen,
guard, or component removed during servicing prior to
operation. Use of any components not supplied by
Hearthstone on the stove voids all warranties. Do not
substitute components.
Proper Fuel
This gas heater is designed to burn natural gas (NG)
or with conversion, liquid propane (LP). Never burn
any fuel gas not intended for use with this unit. Never
burn paper, wood, or other materials in this appliance.
This heater is factory equipped to burn natural gas
(NG). To burn propane (LP), you must install the
included LP conversion kit #97-56631.
This appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used. Cet appareil doit être atilisé uniquement
avec les types de gas indiqués sur la plaque
signalétique. Ne pas l’utiliser avec d’autres gas sauf si
un kited conversion certifié est installé. )
WARNING: THIS GAS APPLIANCE MUST NOT BE
CONNECTED TO A CHIMNEY FLUE SERVING A
SEPARATE GAS OR SOLID-FUEL BURNING
APPLIANCE
WARNING: DO NOT OPERATE THE APPLIANCE
WITH THE FRONT GLASS REMOVED, CRACKED,
OR BROKEN. REPLACEMENT OF GLASS SHOULD
BE DONE BY ALICENSED OR QUALIFIED SERVICE
PERSON. ONLY OPEN FRONT FOR ROUTINE
SERVICE. DO NOT SLAM FRONT OR STRIKE
GLASS. USE MANUFACTURER-APPROVED FRONT
GLASS ONLY.
WARNING: HEARTHSTONE RECOMMENDS THAT
ONLY AN NFI CERTIFIED SERVICE TECHNICIAN
INSTALLS, AND REPAIRS THIS APPLIANCE. A
QUALIFIED SERVICE TECHNICIAN MUST INSPECT
THE APPLIANCE BEFORE USE, AND AT LEAST
ANNUALLY. MORE FREQUENT CLEANING MAY BE
REQUIRED DUE TO EXCESSIVE LINT FROM
CARPETING, BEDDING MATERIAL, PETS, ETC. IT
IS IMPERATIVE THAT THE CONTROL
COMPARTMENTS, BURNERS, AND CIRCULATING
AIR PASSAGES OF THE APPLIANCE ARE KEPT
CLEAN AND FREE OF OBSTRUCTIONS.
(S’ASSURER QUE LE BRÛLEUR ET LE
COMPARTIMENT DES COMMANDES SONT
PROPRES. VOIR LES INSTRUCTIONS
D’INSTALLATION ET D’UTILISATION QUI
ACCOMPAGNENT L’APPAREIL.)
Hot Surfaces
Certain exposed surfaces of the Bristol will reach high
temperatures during normal operation. Clearances to
combustibles must be maintained, as specified in the
“Clearances To Combustibles” section of this manual.
DUE TO HIGH TEMPERATURES THE APPLIANCE
SHOULD BE LOCATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE, DRAPERIES, CLOTHING
AND FLAMMABLE MATERIALS. EN RAISON DES
TEMPÉRATURES ÉLEVÉES, L’APPAREIL DEVRAIT
ÊTRE INSTALLÉ DANSUNENDROIT OÙ IL Y APEU
DE CIRCULATION ET LOIN DU MOBILIER ET DES
TENTURES
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE
TEMPERATURES AND SHOULD STAY AWAY TO
AVOID BURNS TO SKIN OR CLOTHING IGNITION.
LES ENFANTSET LES ADULTES DEVRAIENTÊTRE
INFORMÉS DES DANGERS QUE POSENT LES
TEMPÉRATURES DE SURFACE ÉLEVÉES ET SE
TENIR À DISTANCE AFIN D’ÉVITER DES
BRÛLURES OU QUE LEURS VÊTEMENTS NE
S’ENFLAMMENT.
CAREFULLY SUPERVISE YOUNG CHILDREN
WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE. TODDLERS, YOUNG CHILDREN, AND
OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL
CONTACT BURNS. BARRIERS DESIGNED TO

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
7
REDUCE THE RISK OF BURNS FROM THE HOT
VIEWING GLASS ARE PROVIDED WITH THIS
APPLIANCE AND SHALL BE INSTALLED FOR THE
PROTECTION OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS. THESE BARRIERS ARE FRAMED
SCREENS MECHANICALLY AFFIXED TO THE
INSIDE SURFACE OF THE FRONT AND SIDE
CASTINGS, AND WHEN UNDAMMAGED WILL
PREVENT CASUAL PHYSICAL CONTACT OF THE
STOVE GLASS. IF THE BARRIER BECOMES
DAMAGED, THE BARRIER SHALL BE REPLACED
WITH THE MANUFACTURER’S BARRIER FOR THIS
APPLIANCE.
LES JEUNES ENFANTS DEVRAIENT ÊTRE
SURVEILLÉS ÉTROITEMENT LORSQU’ILS SE
TROUVENT DANS LA MÊME PIÈCE QUE
L’APPAREIL. LES TOUT PETITS, LES JEUNES
ENFANTS OU LES ADULTES PEUVENTSUBIR DES
BRÛLURES S’ILS VIENNENT EN CONTACT AVEC
LA SURFACE CHAUDE. UN ÉCRAN PROTECTEUR
POUR RÉDUIRE LES RISQUES DE BRÛLURE EST
INCLUT ET DOIT ÊTRE INSTALLÉ DEVANT LA
VITRE DE L’APPAREIL POUR PROTÉGER LES
ENFANTS ET TOUS AUTRES PERSONNES À
RISQUE. SI L’ÉCRAN EST ENDOMMAGÉ, IL DOIT
ÊTRE REMPLACÉPARUN ÉCRAN APPROUVÉPAR
LE MANUFACTURIER POUR CETTE
APPAREIL.CES ÉCRANS SONT DES FILETS
MÉTALLIQUES ENCADRÉS, LES CADRES SONT
FIXÉS SUR LES SURFACES INTÉRIEURES DE LA
FAÇADE ET DES CÔTÉS. EN BONNE CONDITION
LES ÉCRANSPRÉVIENNENTUNCONTACTDIRECT
AVEC LES VITRES DE L’APPAREIL.
CLOTHING OR OTHER FLAMMABLE MATERIAL
SHOULD NOT BE PLACED ON OR NEAR THE
APPLIANCE. ON NE DEVRAIT PAS PLACER DE
VÊTEMENTS NI D’AUTRES MATIÈRES
INFLAMMABLES SUR L’APPAREIL NI À
PROXIMITÉ.
CLEAN THE AREA AROUND, UNDER, AND
BEHIND THE UNIT ON A REGULAR BASIS TO
PREVENT THE ACCUMULATION OF DUST AND
LINT.
Ceramic Logs,Burner, & Baffle
If the decorative ceramic log or burner material
supplied with the Bristol is damaged or parts are
missing, they must be replaced with the same, or
approved Hearthstone replacement parts. These
components affect the combustion quality and safety
of theheater. Do not replace ceramic logs, the burner,
or baffle with unapproved ceramic
components or any other material. We recommend
you always wear gloves and safety goggles while
handling the ceramic log set and burner materials.
Electrical Hazard
For your protection against shock hazard, any three-
prong grounding plug, if present, must be plugged
directly into a properly grounded three-prong
receptacle. Do not cut or remove the grounding prong
from any plug or otherwise attempt to circumvent the
grounding protection provided with the unit. The Bristol
must be electrically grounded in accordance with local
codes, or in the absence of local codes, with the
National Electrical Code, ANSI.NFPA 70 in the U.S. or
CSA C22.1 Canadian Electrical Code in Canada.
Do Not Light Pilot or Burner by Hand
The pilot light on this gas heater is lit by using the
remote control as described elsewhere in this manual.
Never attempt to light the pilot or main burner by hand
with a match or lighter.
Mobile Home Installations
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only), where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gasses, unless a
certified kit is used.

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
8
Installation Preparation
Codes
Adhere to all local codes or, in their absence, the
latest edition of THE NATIONAL FUEL GAS CODE
ANSI Z223.1 (NFPA 54) or CAN/CGA B149 (Installer
l’appareil selon les codes ou règlements locaux, ou,
en l’absence de tels règlements, selon les Codes
d’installation CAN/CGA-B149.)
Installation Codes can be obtained from:
AMERICAN NATIONAL STANDARDS
INSTITUTE, INC.
1430BROADWAY
NEW YORK, NY 10018
www.ansi.org
NATIONAL FIRE PROTECTION
ASSOCIATION, INC.
BATTERY MARCH PARK
QUINCY, MA 02269
www.nfpa.org
The appliance when installed must be electrically
connected and grounded in accordance with local
codes or, in the absence of local codes, with the
current NFPA 70-National Electrical Code or CSA
C22.1-Canadian Electric Code.
A manufactured home (mobile) OEM installation must
conform tothe Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280 (U.S.) or
Standard for Manufactured Home Installation,
ANSI/NCBCS A225.1 or Standard for Gas Equipped
Recreational Vehicles and mobile Housing, CSA
Z240.4.CAN/SCA Z240 MH (Canada). This appliance
is only for use with the type(s) of gas indicated on the
rating plate. Cet appareil peut être installé comme du
matériel d’origine dans une maison préfabriquée (É.-
U. seulement) ou mobile et doit être installé selon les
instructions du fabricant et conformément à la norme
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 aux États-Unis ou
à la norme CAN/CSA-Z240 Série MM, Maisons
mobiles au Canada. Cet appareil doit être utilisé
uniquement avec les types de gaz indiqué s sur la
plaque signalétique.
This appliance is equipped for use at 0 to 2000 feet
(0-610 meters) altitude. (Cet appareil est equipè pour
des altitudes compries entre 0 et 2000 pieds (0-610
m) seulement.)
Items Required for Installation
External regulator (for propane (LP) only)
LP conversion kit (for propane only))
Piping which complies with local codes
Pipe sealant approved for use with
propane (LP) (resistant to sulfur compounds).
Manual shutoff valve
Sediment trap (see page 20)
Pipe wrench
Phillips head screwdriver
7/16-inch wrench
5/23” (4mm) allen wrench
Other parts as required by local code
Safety Glasses
Gloves
Packing List
1- Bristol 8763 Gas-Fired Heater
1- Burner
1- Owner’s Packet (manual)
1- LP Conversion Kit
1- Decorative Ceramic Log set (in separate box)
1- Bag of Platinum Bright Embers
2- Black metal valve train side privacy panels
1-Vertical vent restrictor kit
Note: Vent kits and components are supplied
separately. Failure to use the venting
components approved by Hearthstone for this
appliance will void your warranty.
Unpacking and Inspection
Hearthstone packages your Bristol to withstand
normal shipment without damage. However, damage
can still occur during transit. Take care to inspect for
damage when unpacking and installing the unit.
DO NOT INSTALL, OR PUT INTO SERVICE, A
DAMAGED OR INCOMPLETE HEATER.
Remove the shrink-wrap and other packaging
materials taking care not to damage the stove’s finish.
Inspect the Bristol for visible or concealed damage.
The unit should be square and true. The sheet metal
parts should be smooth and free of bends and dents.
Any enameled cast iron should be free of chips or
cracks. If visible or concealed damage is found or
suspected, contact your dealer for instructions.

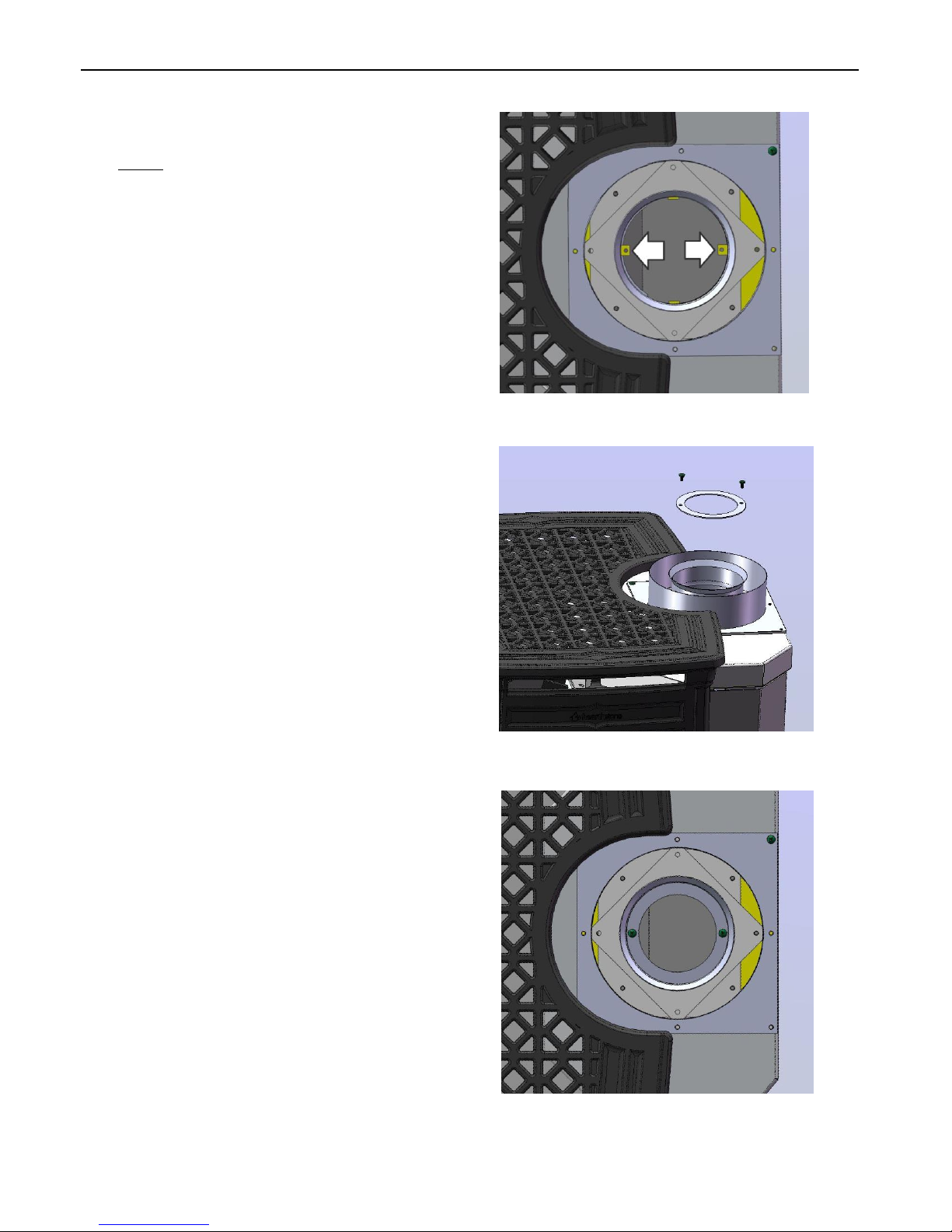

Inspect the vent connection on the topof the stove for
damage. The inner and outer vent jackets rings
should be circular and undamaged. See the Vent
Attachment Inspection image on the following page.

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
9
Always use gloves and eye protection when handling
the decorative ceramic fire logs and burner. Use care
when handling these parts as they are fragile and
subject to damage and breakage if handled roughly.
See the firebox access instructions on page 9.
Unpack and inspect the logs for damage. Inspect the
metal burner as well. Open the other boxes and
inspect the components. If log, burner or any other
component damage is encountered, contact your
dealer for a replacement. Otherwise, set the logs and
other components aside until called for during the
installation.
Dismounting from Pallet
With the accessory boxes removed and set aside,
remove the four lag screws that fasten the unit to the
pallet. Take care not to mar or chip the stove’s finish.
Have someone help lift the stove off the pallet, taking
care to avoid damaging components mounted under
the stove.
INSTALLER: Leave this manual withthe appliance.
INSTALLATEUR : Laissez cette notice avec l’appareil.
CONSUMER: Retain this manual forfuture reference.
CONSOMMATEUR : Conservez cette notice pour
consultationultérieure
Firebox Access
1. Remove top of the stove (lift off). Set carefully
aside on a soft surface (Figure 1).
2. Release the front panel by lifting up and off of the
stove body and set aside (Figure 2).
3. Remove glass and frame by holding the glass
retainer tab with one hand while compressing the
glass retention spring forward with the other and
lifting the bolt heads slightly clear of the stove
glass frame one at a time (Figure 3).
4. Gently release pressure on the glass/frame and
allow to tilt outward and lift up and off of the stove
(Figure 4).
While glass and retention frame are removed from
the stove, perform log set installation as descirbed
on pages 27-28. Reverse procedure outlined above
to reinstall.
Vent Attachment Inspection –unbentand attached rings
Figure1
Figure2
Figure3

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
10
Clearances to Combustibles
Note: Ensure clearances are in accordance with
local installation codes and the requirements of
the gas supplier. Dégagement conforme aux
codes d’installation locaux et aux exigences du
foumisseunde gaz.
Due to high surface temperatures, locate the unit
out of traffic areas and away from furniture and
draperies. Do not place clothing and other
flammable material on or near the heater. When
positioning the unit always maintain adequate
ventilation. Minimum clearances to combustibles
must be maintained as shown in Figures 5 - 8.
Note: The rear clearance to combustibles is
determined by either the unit’s or the vent pipe’s
minimum clearance, depending on whether the
installation calls for vertical rise within the room or a
rear exit, through-the-wall vent pipe. Ensure you
consider the need for access to the gas control valve
access door on the front of the unit as well as full
access for periodic cleaning and servicing. Also
consider clearance for the blower assembly if
present, or planned in the future
CAUTION: THESE CLEARANCES REPRESENT
MINIMUM DISTANCES IN ALL CASES, WHICH,
THROUGH TESTING IN AN INDEPENDENT
LABORATORY TO ANSI AND CSA STANDARDS, WILL
PREVENT FIRE OR SPONTANEOUS COMBUSTION.
WE DO NOT CONTROL THE COMBUSTIBLE
MATERIALS EXPOSED TO HEAT BY THIS PRODUCT;
THEREFORE, AN ASSESSMENT MUST BE MADE BY
THE INSTALLER TO PREVENT CONSEQUENTIAL
DAMAGE OF WALLS AND FLOORING.
HearthRequirement/Floor
Protection
You can place the Bristol directly on any non-
combustible surface or on a wood floor. When
placing the Bristol on any other type of combustible
surface you must install a panel made of metal, wood,
stone, or glass under the appliance. The panel must
extending the full width and depth of the appliance.
Installations must meet all local codes.
The corner clearance for the Bristol 8763 is 4”,
measured from the edge of the top castings, to the
adjacent wall (see Figure 7).
Figure 5 - Minimum Wall Clearances
Figure 6 –Minimum Clearances cont.
Figure4

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
11
Venting Information
Starter collar is installed by Hearthstone.
Use the following instructions along with the pipe
manufacturer’s instructions to complete the
installation. Do not mix vent components from
different manufacturers within the same venting
system.
Approved Venting Manufacturers
The Bristol 8763 is approved for installation only with
the venting components provided by manufactures
listed on this page.
Simpson Dura-Vent,Inc.
P.O. Box 1510
Vacaville, CA 95696-1510 800-835-4429
AmericanMetal Products (AmeriVent)
8601Hacks Cross Rd.
Olive Branch,MS 38654 800-423-4270
SelkirkCorporation
1301 W. PresidentGeorge Bush Hwy, Suite 330
Richardson,TX75080-1139 800-992-8368
Security Chimneys International Ltd (Secure Vent)
2125 Monterey, Laval, Quebec
Canada,H7L3T6 450-973-9999
ICC, Inc.
400 J-F Kennedy, St. Jerome,Quebec
Canada,J7Y 4B7 450-565-6336
Metal-Fab, Inc.
P.O. Box 1138
Wichita, Kansas 67201 316-943-2351
Venting Terminations
The Bristol cannot be vented jointly with any other
solid fuel or gas appliance. It must be vented directly
to the outside of the building using a proper
termination as listed in this manual. After determining
the venting configuration for your stove, select the
vent system that will best accommodate your
installation.
CAUTION: ENSURE ALL STOVE AND
TERMINATION CAP CLEARANCES ARE
OBSERVED PER THIS OWNER’S MANUAL.
CAUTION: ENSURE THERE IS NO WIRING OR
PLUMBING IN THE CHOSEN LOCATION.
CAUTION: DO NOT RECESS VENTING TERMINALS
INTO A WALL OR SIDING.
Approved Venting Configurations
WARNING: IN HIGH WIND AREAS AND
PARTICULARLY COLD CLIMATES IT MAY BE
NECESSARY TO HEAT YOUR VENT SYSTEM WITH
THE PILOT PRIOR TO IGNITION OF THE MAIN
BURNER. IN THESE INSTANCES IT IS
RECOMMENDED THAT YOU LEAVE THE PILOT
RUNNING FOR 5 MINUTES PRIOR TO IGNITING
THE MAIN BURNER. THIS WILL ALLOW FOR
PROPER START UP AND IGNITION OF ALL PORTS
ON THE BURNER.
There are two types of venting configurations
approved for use with this appliance:
Vertical Venting/Vertical Termination
Vertical Venting/Horizontal Termination
Pipe Clearances to combustibles:
1" to vertical runs
1" below and to the side of horizontal runs
2" from the top of horizontal runs
Vertical Venting and Termination
The Bristol 8763 is approved for venting vertically
through a roof or ceiling. When installing a vertical
vent and/or vertical terminations you must adhere to
the following requirements:
When terminating vertically you must have at
least 10’ of vertical pipe.
The Vent Restrictor Kit must be installed and the
vent restrictor setting in Figure 12 must be
followed. See page 14 for installation
instructions.
Always maintain a minimum of 1” clearance from
all sides of the vent system to any combustible
material.
Figure 7 –Minimum Corner Clearance

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
12
A listed fire stop is required at any floor
penetration. The opening must be framed in
according to the venting manufacturer’s
instructions.
Steep roofs, nearby trees, or predominantly
strong windy conditions can promote poor draft or
down draft conditions. In this event, an increase
to the height of the vent may improve
performance.
A maximum of two 90⁰or four 45⁰elbows may be
used in vertical terminations. Whenever possible
use 45⁰elbows instead of 90⁰elbows as they
offer less restriction to the flue gases.
All termination caps must be no less than 18”
(457mm) horizontally from any roof or vertical
surface. See Figure 8.
The termination mustfall within the chart in Figure
11.
The maximum vertical run is 35’
The minimum vent/air intake termination clearances
above the high side of an angled roof are as follows:
Roof Pitch
Feet
Meters
Flat to 6/12
1
0.3
7/12 to 9/12
2
0.6
10/12to 12/12
4
1.2
13/12to 16/12
6
1.8
17/12to 21/12
8
2.4
Figure 8 - Termination Cap clearances
Prefabricated & Fireplace Chimney
Installations
The Bristol 8763 is approved for use with direct vent
chimney conversion kits in masonry or prefabricated
solid fuel listed chimneys. The following installation
requirements must be followed:
The termination must fall within the chart shown
in Figure 12.
In a masonry chimney, a fireclay liner or listed
steel liner, must be present the entire length of
the chimney.
The maximum vertical length of vent is 35’.
The liner must have an inside dimension or
diameter 6” or greater.
Prefabricated chimneys must be UL103 or ULC
S-629 listed and have a minimum INSIDE
diameter of 6”. Prefabricated chimneys must be
listed for the specific manufacturer’s conversion
kit.
The use of an existing chimney as an air intake is not
listed under the ANSI Z21.88 / CSA 2.33-2016 test
methods; this installation has been tested and
approved by OMNI-Test Laboratories with an
appropriate test. The code authority having
jurisdiction must be consulted prior to proceeding with
this installation method. See examples below.
Figure 9 –Existing Chimney Venting Options

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
13
Horizontal Termination
The termination must fall within thearea shown in
Figures 11 & 12.
A minimum of 24" vertical rise is required directly
off the heater unless a minimum 14” snorkel is
used. In this case, a 12” vertical rise is required
directly off the heater.
Minimum horizontal run at the above conditions is
9”, the maximum horizontal run is 5’ providing a
1/4” rise is provided for every 12” of horizontal
run.
With 3’ of vertical rise from the stove top,
maximum horizontal run is 10’ providing a 1/4”
rise is provided for every 12” of horizontal run.
Use a vinyl siding Stand-Off when installing
against vinyl siding. The termination cap must not
be recessed into the wall or siding. Do not fill air
spaces with any type of insulation material.
A minimum 10” x10” square hole is necessary for
proper pipe clearance through a wall, provided
the vent is positioned to maintain 2” minimum
clearance at the top. A 1” minimum clearance
must be maintained to combustible materials
around the other sides.
All horizontal terminations must also comply with
the clearance specifications to adjacent
structures outlined in Figures 8 &11.
NOTE: For each 90 0 elbow after 2, remove 5' from
the allowable horizontal run. For Canadian
installations: remove 4' from the allowable
horizontal run.
WARNING: FAILURE TO USE ONLY PARTS
SPECIFICALLY APPROVED FOR USE WITH THIS
APPLIANCE MAY RESULT IN PROPERTY DAMAGE
OR PERSONAL INJURY.
Minimum Vent Installation Instructions
1. Install the 24” pipe section onto the starter collar
by fully inserting it and turning approximately ¼
turn clockwise, until the 2 sections are fully
locked. Install the 90º elbow in similar fashion.
2. Move the stove and pipe assembly back until the
90º elbow is flush to the wall. The 24” vertical pipe
should be parallel to the wall. Draw a circle
around the pipe. Use the center of this circle as
the center point of the 10” x 10” square wall pass
through. Cut and frame the wall pass through.
3. Place the interior wall thimble into the 10” x 10”
wall pass through. Secure it with 4 screws (not
provided). Install the exterior portion of the
thimble in similar fashion, overlapping the 2
sections.
CAUTION: FOR BUILDINGS WITH VINYL SIDING,
INSTALL A VINYL SIDING STANDOFF BETWEEN
THE VENT CAP AND THE EXTERIOR WALL.
4. Install the horizontal vent termination on the
outside of the wall. Ensure both of the retaining
straps extend through interior wall thimble. Before
attaching the vent termination to the outside of
the house, run a bead of non-hardening mastic
around its’ outside edges, so as to make a seal
between it and the wall. The arrow on the end cap
should point up. Secure the cap to the wall with
the appropriate screws.
Place the thimble cover onto the 90º elbow. Put
the 9” pipe into the horizontal vent cap, (the vent
pipe must extend into the horizontal vent cap a
minimum of 1-1/4”). Move the stove and vent pipe
into position, insert the 9” pipe into the 90º elbow
and twist to lock it. Secure the straps from the
horizontal vent termination to the interior pipe with
2 sheet metal screws, keeping the screws as
close to wall thimble as possible. Bend or cut the
excess strapping so that the thimble cover will fit
properly. Screw the thimble cover to the wall.
Figure 10 - Typical Minimum Horizontal Venting
Installation Components
Centerlines shown are approximate. Ensure you dry
fit your venting and take a measurement. Pipe
dimensions will vary by manufacturer and supplier.
These dimensions are using typical Simpson Dura-
Vent GS components. See installation instructions on
this page and Figure 10.

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
14
Installing the Vertical Vent Kit
The two identical flat, rectangular steel pieces
are designed to be installed inside the firebox
over the bottom edge of the fresh air intake
openings located at the back of the firebox. Use
the following method:
1) Access the firebox by following the
instructions on pages 9 and 10 of this
manual.
2) Remove the burner and carefully set
aside.
3) Remove the bottom center fresh air duct
screw from both the left and right side inlets.
4) Position the restrictor plates over the intake
openings by resting them on the firebox
bottom and sliding them left or right until the
screw hole in the restrictor plate aligns with
the screw hole in the firebox exposed by
removing the screw in step 3 above.
5) While holding the restrictor plate in position,
re-install the fresh air duct screws removed
in step 3 and tighten snugly.
6) Reverse steps 4-1 to reassemble stove.
When the total vertical vent run in
a particular Bristol installation
meets or exceeds 8’, the Vertical
Vent Kit must be installed in the
stove. This kit is shipped with
every stove and consists of the
three steel components shown
below (not shown to scale).

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
15
The ring shaped metal piece installs in the starter
collar on the top of the stove, from the outside
before venting is attached by the following
method:
1) Note the two tabs extending into the inner flue
collar from the upper manifold housing.
2) Place the restrictor ring into the inner collar
and align the screw holes with the holes in
the tabs.
3) Secure restrictor ring with the two included
screws.

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
16
Figure 11 - Acceptable Direct Vent Terminal Vent Cap Locations
A = Clearance above grade, veranda, porch, deck,
or balcony: 12 inches (30cm) minimum.
B = Clearance to window or door that may be
opened: **Min. 9 inches U.S./*12 inches (30cm)
CAN. We recommend 12 in, minimum to prevent
condensation on the window.
C = Clearance to permanently closed window:
**Min. 9 inches, U.S./*12 inches (30cm) CAN.
We recommend 12 in. minimum to prevent
condensation on the window.
D = Vertical clearance to ventilated soffit located
above the termination within a horizontal distance of
2 feet (60cm) from the center line of the termination:
18 inches (46cm) minimum.
E = Clearances to unventilated soffit: 12 inches
(30cm) minimum.
F = Clearance to outside corner: **Min. 9 inches,
U.S./12 inches (30cm) CAN. We strongly
recommend 12 inches, particularly where windy
conditions prevail.
G = Clearance to inside corner: **Min. 6 inches,
U.S./12 inches (30cm) CAN. We strongly
recommend 12 inches, particularly where strong
winds prevail.
H = *Not to be installed within 15 feet (4.5m) above
a meter/regulator assembly within 3 feet (91cm)
horizontally from the center line of the regulator.
I = Clearance to service regulator vent: 3 feet
(91cm)
J = Clearance to non-mechanical air supply inlet to
building or the combustion air inlet to any other
appliance: 12inches (30cm) minimum.
K = Clearance to a mechanical air supply inlet:
**Min. 3 feet (91cm) above if within 10 feet
horizontally, U.S./*6 feet (1.83m) CAN minimum.
L = ¹Clearance above paved sidewalk or a paved
driveway located on public property: 7 feet (2.1m)
minimum.
M = ²Clearance under veranda, porch, deck, or
balcony: 12 inches (30cm) minimum.
*Inaccordance with CSA B149 Installationcodes.
**Inaccordance with the current ANSI Z223.1/NFPA 54,
NationalFuel Gas Code. Note: Local Codesand
Regulationsmayrequiredifferentclearances.
¹Avent shall not terminatedirectlyabovea sidewalk or
driveway which is locatedbetween two singlefamily
dwellingsand serves bothdwellings
²Only permittedif veranda,porch, deck orbalcony,isfully
openon a minimum oftwo sides beneaththefloor.

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
17
Figure 12 - Venting Termination

Hearthstone Quality Home Heating Products, Inc Bristol Model 8763
18
Electrical System Information
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS
CAN CAUSE IMPROPER AND DANGEROUS OPERATION. VERIFY PROPER OPERATION AFTER SERVICING.
(ATTENTION: AU MOMENT DE L’ENTRETIEN DES COMMANDES, ÉTIQUETEZ TOUS LES FILS AVANT LE
DÉBRANCHEMENT. DES ERREURS DE CÂBLAGE PEUVENT ENTRAÎUN FONCTIONNEMENT INADEQUATE ET
DANGEREUX.)
The proper location of wire connections are shown in the followingfigure.
Figure 13 –Bristol 8763 Wiring Diagram

Hearthstone Quality Home Heating Products, Inc. Bristol DX Model 8763
19
Gas Supply & Connections
Connection Location
The gas supply connection is made to the Bristol’s
gas control valve under the bottom right center of the
unit using a 3/8” male NPT fitting. The supply line
should be ½” diameter, or appropriately sized to
provide a sufficient gas supply to meet the maximum
demand of the unit without undue loss of pressure.
We recommend a flexible line to avoid undue
mechanical load on the valve and to ease thread
alignment, but refer to local codes.
The Bristol is factory equipped to use natural gas
(NG) and requires conversion for use with propane
(LP). A propane (LP) fuel conversion kit is included
with your stove purchase.
Gas Supply
This appliance and its individual shutoff valve must be
disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of ½ psig. The Bristol must be
isolated from the gas supply piping system by closing
its individual manual shutoff valve during any
pressure testing of the gas supply piping system at
test pressures equal to or greater than ½ psig. Over
pressurizing can damage the control resulting in
leakage or control malfunction.
NOTICE: A QUALIFIED TECHNICIAN MUST
CONNECT THE HEATER TO THE GAS SUPPLY
AND LEAK TEST THE UNIT BEFORE IT IS
APPROVED FOR USE. CONSULT ALL CODES.
WARNING: THE UNIT MUST BE INSTALLED AND
CONNECTED IN ACCORDANCE WITH LOCAL
CODES, OR IN THE ABSENCE OF LOCAL CODES,
WITH THE MOST CURRENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1 (NFPA
54) OR CAN/CGA B149 INSTALLATION CODE.
INSTALLER L'APPAREIL SELON LES CODES OU
RÈGLEMENTS LOCAUX, OU, EN L'ABSENCE DE
TELS RÈGLEMENTS, SELON LES CODES
D'INSTALLATION CAN/CGA-B149
NFPA Code and Hearthstone require the use of a
dedicated sediment trap just upstream of the unit.
Damage to the valve, or other components due to
the lack of a sediment trap are not covered by
warranty (see figure 14).
High Altitude Installations
For high altitude installations consult the local gas
distributer or the authority having jurisdiction for
proper rating methods.
The decreased atmospheric pressure at higher
altitudes affects the heat value of fuel gases. Gas
suppliers typically de-rate the gas intended for use at
elevations above 2000 feet (610 meters). This is not
necessary with the Bristol. If necessary, increase
valve outlet pressure to compensate.
WARNINGS
•Fire or Explosion Hazard. Can cause property
damage, severe injury, or death. Do NOT bend
tubing at gas valve connection point after
compression fitting has been tightened. This
can result in gas leakage at the connection.
•Use new properly prepared pipe free from metal
or material chips. When tubing is used, assure
that ends are square, de-burred and clean. All
tubing bends must be smooth and free of
distortion.
•Do NOT over tighten connections.
Over tightening can damage the control body
resulting in leakage or control malfunction.
•Do NOT remove screws from the gas valve. Do
NOT adjust and/or alter any components
marked with tamper indicating paint. Motor
knob is not to be removed.
•Turn off gas supply at the appliance service
valve before starting installation, and perform a
Gas Leak Test after the installation is complete.
•Install the sediment trap (where required) in the
gas supply line to prevent contamination of the
gas valve (see figure 14).
•Use only your hand to push in or turn, the
gas Control knobs. Never use tools. If a
knob will not push in or turn by hand, do
NOT try to repair it. Call a qualified service
technician. Force or attempted repair will
void warranty and can result in a fire or
explosion.
