HearthStone FS-16N-TV User manual

Hearthstone Quality Home Heating Products, Inc. ®
Europa Series 8970
Manual: 6400-40430
R: 05/13/16
EUROPA
Series 8970
GAS-FIRED DIRECT-VENT HEATER
OEM Models# FS-16N-TV, FS-16P-TV,
FS-16N-RV & FS-16P-RV
Owner's Manual
Installation & Operating
Instructions
Read This Manual in Its Entirety
Operate and Maintain This Gas Heater
According to This Instruction Manual.
SAVE THESE INSTRUCTION
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Leave the building immediately.
Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire
department or 911.
A qualified installer, service agency, or gas supplier must
perform installation and service of this appliance. In the
Commonwealth of Massachusetts, all installation of gas
lines and gas fittings must be performed by a licensed
gas fitter or licensed plumber.
Ce manual est disponible en Francais a
www.hearthstonetech.com
Report #0361GS002S

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8970
2

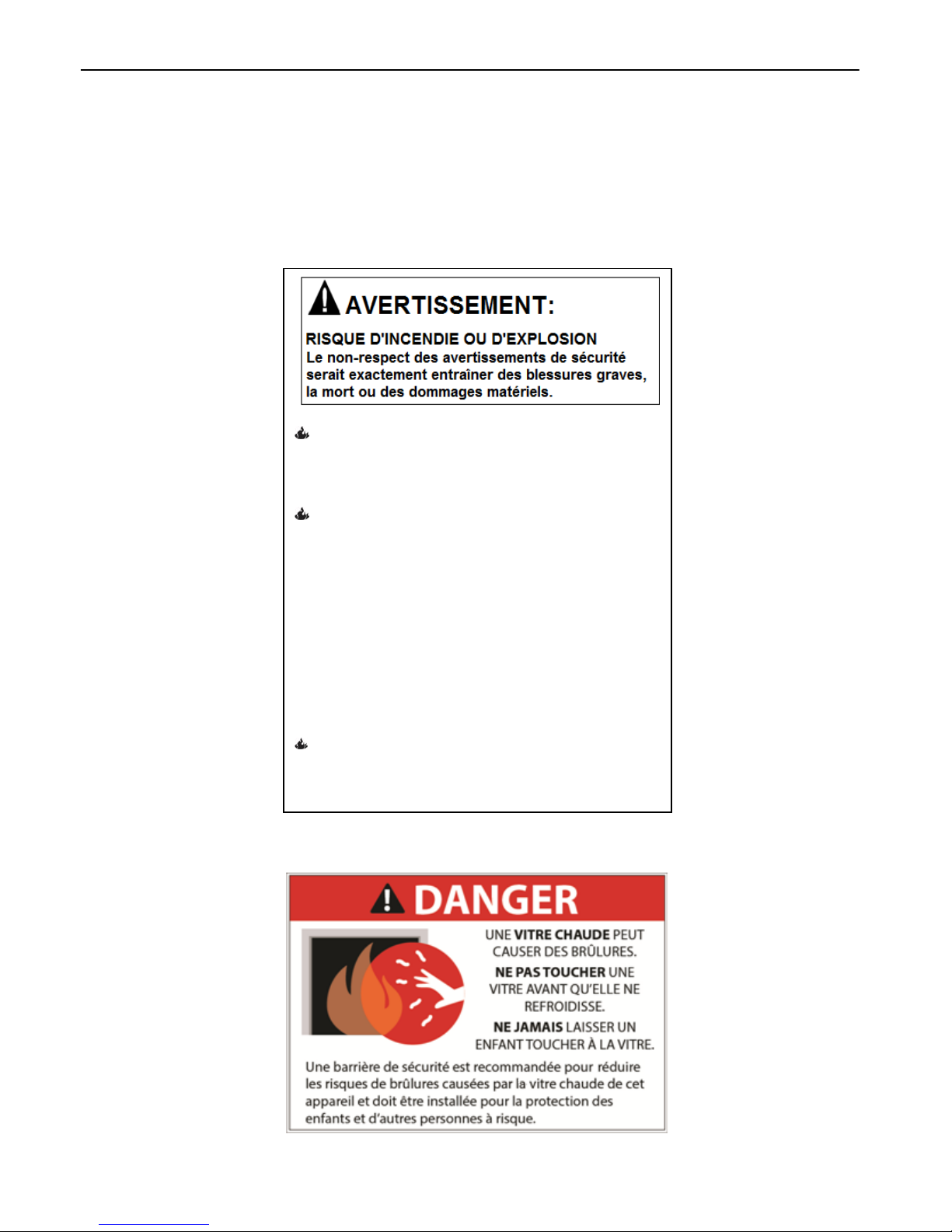

POÊLE AU GAZ À VENTILATION DIRECTE
Manuel de l'Utilisateur
Lire ce Manuel en Entier
Utiliser et Entretenir ce Poêle au Gaz
selon ce Manuel d'Instructions
CONSERVER CES INSTRUCTIONS!
Ne pas entresposer ni utiliser d’essence ni
d’autre vaperurs ou liquides inflammables dans
le voisinage de cet apprareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d’allumer d’appareil.
Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le batiment où vous vous trouvez.
Quittez le bâtiment immédiatement.
Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service dos incendies
L’installation et l’entretien doivent être assurés
par un installateur ou un service d’entretien
qualifié ou par le fournisseur de gaz.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8970
3
INDEX
IMPORTANT SAFETY INFORMATION.................................................................... 4
SPECIFICATIONS..................................................................................................... 5
INSTALLATION REQUIREMENTS............................................................................6
MASSACHUSETTS REQUIREMENTS...................................................................... 7
VENTING.................................................................................................................... 8
ASSEMBLY & INSTALLATION................................................................................. 15
GAS CONNECTION...................................................................................................21
LIGHTING AND OPERATION....................................................................................22
MAXITROL CONTROL SYSTEM...............................................................................25
MAINTENANCE..........................................................................................................31
MAINTENANCE LOG FORMS...................................................................................34
INSTALLATION RECORD......................................................................................... 35
REPLACEMENT PARTS LIST................................................................................... 36
CONTROL SCHEMATIC............................................................................................37
TROUBLESHOOTING................................................................................................38
WARRANTY INFORMATION.....................................................................................40
WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE
BEGININNG THE INSTALLATION OF THE EUROPA DIRECT VENT GAS FIREPLACE.
ALTHOUGH THE BASIC REQUIREMENTS FOR THE INSTALLATION OF ALL DIRECT VENT
GAS FIREPLACES ARE SIMILAR, EACH SPECIFIC PRODUCT HAS ITS OWN UNIQUE SET-UP
AND INSTALLATION REQUIREMENTS THAT MUST BE FOLLOWED EXACTLY. PLAN YOUR
INSTALLATION IN ADVANCE BY CAREFULLY REVIEWING ALL THE INFORMATION
CONTAINED IN THIS MANUAL.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8970
4
Important Safety Information
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/BCSBCS A225.1, or Standard for Gas Equipped
Recreational Vehicles and Mobile Housing, CSA Z240.4.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
The installation must provide for adequate ventilation air to the appliance.
This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
The appliance, when installed, must be electrically grounded in accordance with local codes, or, in the absence
of local codes, with the National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22. 1.
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
The flow of combustion and ventilation air must not be obstructed.
Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
Installation of a TV or, any other electrical appliance, above this fireplace is not allowed.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if
there are at-risk individuals in the house. To restrict access to a fireplace or a stove, install an adjustable safety
gate to keep toddlers, young children and other at-risk individuals out of the room and away from hot surfaces.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that the control compartments, burners and
circulating air passageways of the appliance be kept clean.
WARNING: Do not operate the appliance with the glass front removed, cracked or broken. Replacement
of the glass should be done by a licensed or qualified service person.
WARNING: Use only glass assembly, P/N 99-58005 which includes the glass panel, frame and gasket.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8970
5
Specifications
Testing Agency: OMNI- Test Laboratories, Inc.
PO Box 301367
Portland, OR 97294
Listed: Direct Vent Gas Heater
Model: EUROPA - 8970
Tested to: ANSI Z21.88b –2014/CSA 2.33b - 2014
Certified for Canada, CSA P.4.1
Approved for Mobile Home Installation

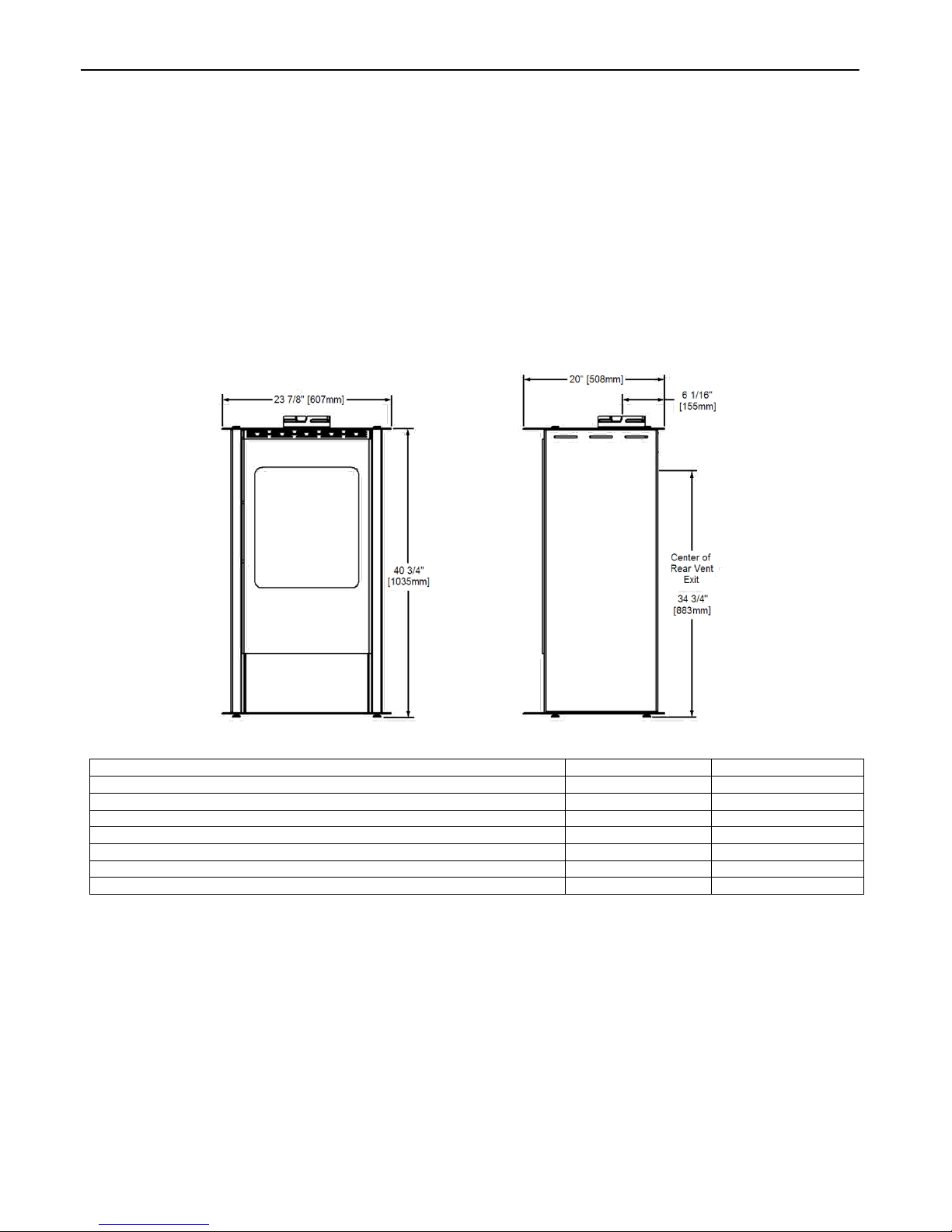

EUROPA Dimensions
Specification
NG
LP
Input rating (Btu/hr)
13,500
13,500
Orifice size DMS 0-2000 ft
53
58
Manifold pressure (in.w.c./kPa)
4.8/1.2
10.0/2.5
Minimum Supply Pressure (in.w.c./kPa)
5.5/1.4
11.0/2.8
Maximum Supply Pressure (in.w.c./kPa)
10.0/2.5
13.0/3.3
Minimum Inlet press.(in.w.c./kPa)
5.0/1.25
12.0/2.99
Minimum input rating (Btu/hr)
7,500
7,500
It is recommended that the pilot flame be turned off if the appliance will not be in use for an extended period of
time.
This appliance is equipped for use with the fuel type indicated on the rating plate.
This appliance has been certified by OMNI-Test Laboratories, Inc. to ANSI Z21.88-2014/CSA 2.33-2014. Vented
Gas Fireplace Heaters and CAN/CGA-2.17-M91, Gas-Fired Appliances for Use At High Altitudes.
The EUROPA is approved for installation at elevations up to 2000 feet in the U.S. and 1370 meters (4500 feet)
in Canada without change. If your installation is at an elevation greater than these, consult with the local
authority having jurisdiction for gas product installations to determine their specific requirements for high altitude
installations.
Certified for use by:
Board of State Examiners of Plumbers and Gasfitters
100 Cambridge Street, Room 1511
Boston, Massachusetts 02202
Manufactured and Warranted by:
Hearthstone Quality Home Heating Products, Inc.
317 Stafford Ave.
Morrisville, VT 05661-8695, USA
www.hearthstonestoves.com

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
6
Installation Requirements
Several issues must be addressed when selecting a suitable location for your EUROPA fireplace. The minimum
clearances to combustible construction are listed below. In addition, access to the gas supply must be
considered. The location of the fireplace will also affect the venting requirements and you must be certain the
location will allow compliance with the venting requirements shown on page 8. You must also insure that your
installation provides adequate accessibility clearance for servicing and proper operation.
Installation and repair should be done by a qualified service person. The appliance should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that the control compartment, burners and
circulating air passageways of the appliance be kept clean.

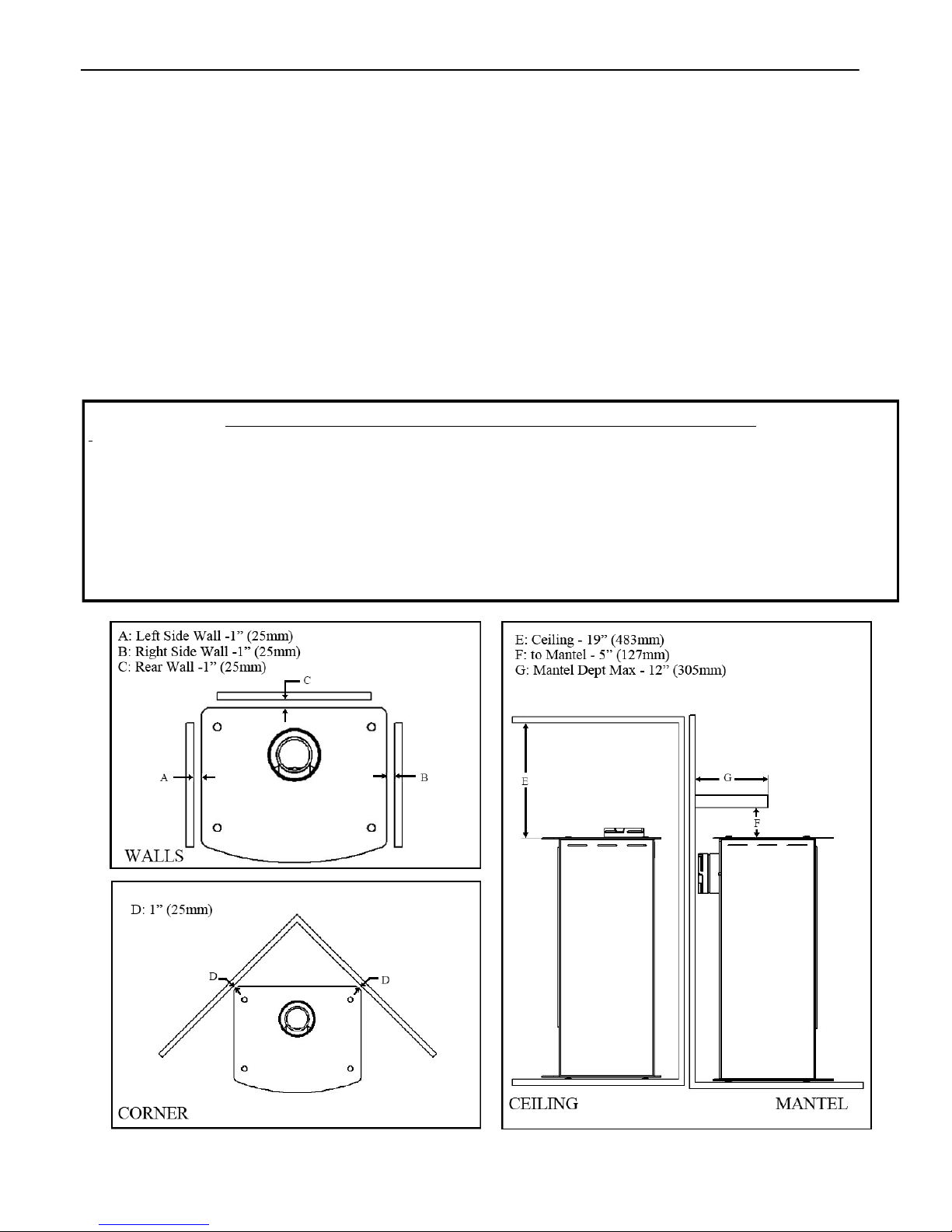

MINIMUM CLEARANCES TO COMBUSTIBLE CONSTRUCTION
Stove to L. Side Wall (A) 1” (152mm) Stove Top to Ceiling 19” (483mm)
Stove to R. Side Wall (B) 1” (152mm) Stove Top to 12” Mantle 7” (178mm)
Stove to Corner Wall (C) 1” (152mm) Vent Pipe to Adjacent Materials 1.5” (38mm)**
When the appliance is installed directly on carpeting or non-ceramic tile or other combustible material
other than wood flooring, the appliance shall be installed on a metal or wood panel extending the full width
and depth of the appliance. A commercially available hearth pad meets this requirement.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
7
The gas fireplace is shipped with a 3/8” tube OD (male) connection. The gas supply piping should have a
separate gas shutoff valve and a 1/8” NPT plugged tapping upstream of the valve. The stove and its main
control valve must be disconnected from the gas supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psi (3.5 kPa). The stove must be isolated from the gas supply piping
system by closing the main control valve during any pressure testing of the gas supply system at test pressures
equal to or greater than 1/2 psi (3.5 kPa). After the gas supply has been connected, use a commercial gas leak
detector or apply a soapy water solution to all the fittings to check for gas leaks. Never use a flame to test for
leaks.
REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS
This product must be installed by a licensed plumber or gas fitter when installed within the
Commonwealth of Massachusetts. If this appliance is installed in a dwelling, building or structure
used in whole or in part for residential purposes and the installation includes a horizontal vent
termination that is less than seven (7) feet above the finished grade in the area of the venting,
including but not limited to decks and porches, a hard-wired carbon monoxide detector with an alarm
and battery back-up must be installed on the floor level of the dwelling, building or structure where
the appliance is to be installed.
Additionally, a hard-wired or battery operated carbon monoxide detector with an alarm must be
installed on each additional level of the dwelling, building or structure served by the appliance. It
shall be the responsibility of the property owner to secure the services of qualified licensed
professionals for the installation of hard-wired carbon monoxide detectors.
In the event that the horizontally vented appliance is installed in a crawl space or attic, the hardwired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor
level.
In the event that this requirement cannot be met at the time of completion of the installation of the
appliance, the owner shall have a period of thirty (30) days to comply with the requirement. However,
during said thirty (30) day period, a battery operated carbon monoxide detector with alarm must be
installed.
Each carbon monoxide detector as required in accordance with the above provisions must comply
with NFPA 720 and be ANSI/UL 2034 and IAS certified.
In addition when the vent termination is less than seven (7) feet above finished grade a metal or
plastic identification plate must be permanently mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the exhaust vent terminal. The sign shall read,
in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF
ALL OBSTRUCTIONS”.
A COPY OF THESE INSTRUCTIONS PLUS ALL VENTING INSTRUCTIONS WHICH INCLUDE PARTS
LISTS, AND/OR ALL VENTING DESIGN INSTRUCTIONS MUST REMAIN WITH THE STOVE AT THE
COMPLETION OF THE INSTALLATION.
ATTENTION INSTALLERS: Mark below which venting system was used in the installation. These
instructions must remain with the Orion Installation & Operation Manual.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
8
Venting
The EUROPA Direct Vent Gas Fireplace has been tested and listed for installation with 4” X 6 5/8” Simpson
DuraVent GS/Pro®, Selkirk Direct-Temp®, Security Secure Vent™, AmeriVent Direct™, Metal Fab Direct Vent
and ICC EXCELDirect venting components. Although you may use the pipe components (straight pipe, elbows,
etc.) from any of the listed manufacturers, you may only use the vent terminations (caps) listed in the chart on
page 9. For installations where a snorkel is needed, please note that only three snorkels are approved for use.
Please plan your installation accordingly.
For all specific venting installation requirements, follow the installation instructions included by the venting
manufacturer with the venting system components you have chosen.
Please note:
•For venting configurations that include no vertical rise, a total horizontal vent run of up to 30 inches
(and including one 45° elbow) is allowed. However, if your installation has room to add a vertical pipe
section, we suggest adding at least one foot of vertical rise to the system.
•For venting configurations that include vertical rise, it is assumed that the installation will include at least
one 90° elbow. Up to three additional 90° elbows (or equivalent 45° elbows) may also be used. The
total venting may not exceed 20 feet of vertical rise and/or 10 feet horizontal run. Refer to the venting
charts starting on pages 10 & 11 for specific details while you plan your installation. Note: The number
of elbows impacts the maximum allowable horizontal vent run.
•f the stove is top vented, the venting may be terminated with either a vertical or horizontal vent cap de-
pending on the specifics of the installation. Refer to the venting charts starting on pages 9&10 for spe-
cific venting requirements and see the chart on page 9 for a list of approved vent caps before you plan
your installation.
•There should be a 1 1/2” overlap of the vent and combustion air tubes, when telescopic joints are used.
The EUROPA Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that is
specifically designed for the EUROPA. Regardless of the venting brand you chose, you must use the starter
section provided . All of the venting brands listed for use with the EUROPA Freestanding are compatible with
the provided starter section. For venting system installation details, refer to the instructions provided with the
venting system you have chosen. Each brand has specific installation requirements that must be followed to
insure a safe and functional venting system for your stove.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
9

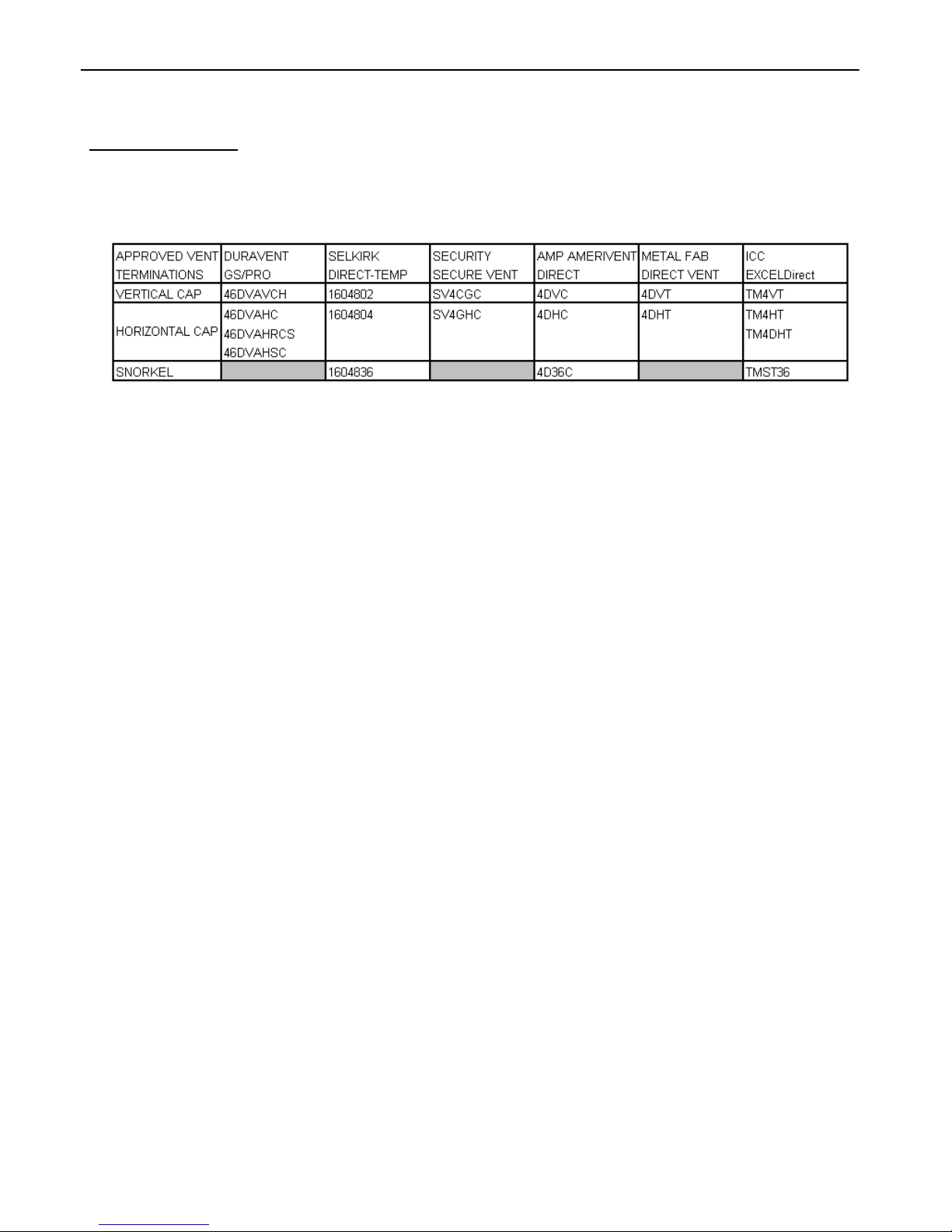

Using Vent Charts
The location of the vent termination must meet the requirements of the current edition of ANSI Z223.1/NFPA
54, National Fuel Gas Code or CAN B419.1, Natural Gas and Propane Installation Code and the
requirements shown on page 14 of this manual.
Just as with any other vented device, vertical vent rise creates draft (negative pressure) in the firebox as the
exhaust gases heat up. If this draft becomes excessive, it can affect the performance or appearance of the fire.
The EUROPA fireplace includes air and exhaust restrictors that are used to balance the draft in the fireplace to
the optimal level for installations where excessive draft might occur. The venting charts on pages 10 and 11
provide an easy means for determining whether your specific installation requires inlet air or exhaust restrictors
or both. To make the determination about whether air or exhaust restrictors are needed, a venting chart
worksheet is provided on page 12. Follow the instructions and fill in the worksheet for your particular
installation. This will allow you to determine the recommended restrictor settings for your exact installation.
Although this might appear to be a complicated process at first glance, it is really quite straight-forward and the
result will be a fire that looks and performs as intended. Several examples of worksheet calculations are shown
on page 13 to help guide you.
Please be sure to note that:
1. There are separate venting charts for Natural Gas and LP Gas. Refer to the appropriate chart for your fuel
type to determine your specific restrictor requirements. The settings in the charts have been determined
based on extensive testing.
2. Determine the total vertical vent rise and total horizontal vent run for your installation. All measurements are
made from the center of the vent opening in the back of the fireplace.
3. If your fireplace will not be venting directly though an outside wall to a horizontal termination or if more than
30” of horizontal vent run is required, some vertical vent rise will be required for the fireplace to function and
vent properly. Elbows will also be required for those installations. However, installations are limited to a
maximum of four 90° elbows (or 45° elbow equivalents).
4. Note: Two 45° elbows equal one 90° elbow.
5. The recommended restrictor settings in the venting charts allow up to two 90° elbows (or 45° elbow
equivalents) to be used without affecting the restrictor settings. Additional elbows will require that you
calculate a new equivalent horizontal run for your installation to account for the additional flow resistance
caused by the extra elbows. For the purposes of calculating the equivalent horizontal vent run, each
additional 90° elbow is equivalent to three feet of horizontal vent run. The total horizontal vent run including
elbow equivalents cannot exceed 10 feet.
6. The maximum vertical vent rise cannot exceed 20 feet.
7. There are two exhaust restrictors that are provided with your EUROPA fireplace. They are labeled “A” and
“B”. The A restrictor provides less exhaust restriction than B.

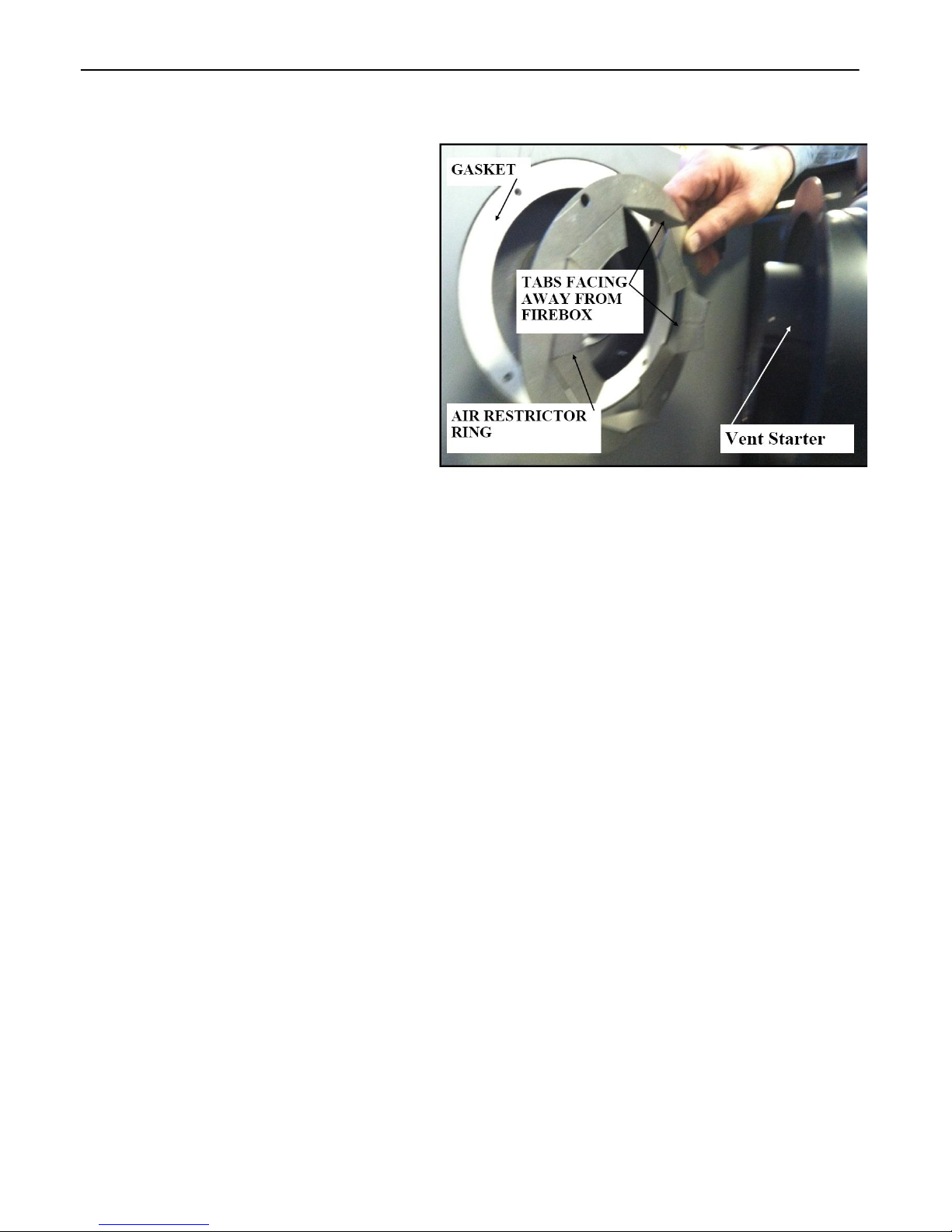

8. An air restrictor plate is also provided with your fireplace. It is a ring with bendable tabs that can be set to
adjust the amount of restriction in the air supply system. Once the appropriate number tabs are bent open
(in accordance with the requirements for your installation), the plate is inserted between the fireplace and
the vent starter pipe.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
10
Natural Gas Venting Chart

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
11
LP Gas Venting Chart

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
12
Venting Chart Worksheet
A. FUEL TYPE: NATURAL GAS LP GAS (PROPANE)
B. TOTAL VERTICAL VENT RISE (MEASURED FROM HORIZONTAL CENTERLINE OF VENT OPENING ON
THE BACK OF THE FIREPLACE TO THE HORIZONTAL CENTERLINE OF THE VENT CAP (FOR HORIZONTAL
VENT CAPS) OR TO THE FLANGE ON THE CAP (FOR VERTICAL CAPS)): _____________ FEET
C. TOTAL HORIZONTAL VENT RUN (MEASURED FROM THE VERTICAL CENTERLINE OF THE VENT
OPENING ON THE BACK OF THE FIREPLACE TO THE FLANGE ON THE CAP (FOR HORIZONTAL CAPS) OR
TO THE VERTICAL CENTERLINE OF THE CAP (FOR VERTICAL CAPS)): _____________ FEET
NOTE: THE VERTICAL VENT RISE AND HORIZONTAL VENT RUN ARE THE OFFSETS IN THE LOCATIONS
OF VENT CAP RELATIVE TO THE VENT OPENING ON THE FIREPLACE. VENT PIPE THAT RUNS AT 45°
HAS BOTH A VERTICAL RISE AND HORIZONTAL RUN. SNORKEL CAPS HAVE BUILT-IN VERTICAL RISE
THAT MUST BE COUNTED.
D. TOTAL NUMBER OF 90° ELBOWS: _______ NOTE: SNORKELS COUNT AS 2- 90° ELBOWS
E. TOTAL NUMBER OF 45° ELBOWS: _______
TERMINATION (CAP) TYPE: HORIZONTAL VERTICAL SNORKEL
VENT BRAND:
Simpson DuraVent GS/Pro®Selkirk Direct-Temp®Security Secure AmeriVent Direct™
Metal Fab Direct Vent ICC EXCEL Direct
VENT CAP MODEL NO: _______________ NOTE: SEE APPROVED VENT CAPS ON PAGE 8
EXHAUST AND AIR INLET RESTRICTORS CALCULATOR
A. Fuel Type ________
B. Total Vertical Vent Rise: ________ feet
C. Total Horizontal Vent Run (Actual): ________ feet
D. 90° Elbows Needed: ________
E. 45° Elbows Needed: ________
F. Total 90° Elbows Equivalent: D +(E x ½) = ________
G. 90° Elbows in Excess of 2: F - 2 = ________
H. Additional Horiz. Feet Equivalent: G x 3 = ________ feet
I. Horizontal Vent Run (Equivalent): C + H = ________ feet
Find _____ Chart Settings for:
B._________ feet Vertical Rise and I.________ feet Horizontal Run (Equivalent).
Exhaust Restrictor Required: N Y IF YES: A or B
Air Restrictor Required: N Y IF YES: Number of Tabs Open: _______

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
13
Venting Chart Worksheet Examples
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 0feet
C. Total Horiz. Vent Run (Actual): 0 feet
D. 90° Elbows Needed: 0
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent : 0
G. 90° Elbows in Excess of 2: 0
H. Additional Horiz. Feet Equivalent 0
I. Total Horizontal Vent Run (Equivalent): 0
Use Natural Gas Chart Settings for:
0feet Vertical Rise, 0feet Horizontal Run.
Exhaust Restrictor Used: Restrictor Not Used
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 1feet
C. Total Horizontal Vent Run (Actual): 3 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 0
F. F. Total 90° Elbows Equivalent: 2+(0 x ½) = 2
G. 90° Elbows in Excess of 2: 2 - 2 = 0
H. Additional Horiz. Feet Equivalent: 0 x 3 = 0
I. Total Horiz. Vent Run (Equivalent): 3 + 0 = 3
Use LP Gas Chart Settings for:
1 feet Vertical Rise, 3feet Horizontal Run.
Exhaust Restrictor Used: Restrictor Not Used
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 12 feet
C. Total Horiz. Vent Run (Actual): 0 feet
D. 90° Elbows Needed: 1
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent : 0
G. 90° Elbows in Excess of 2: 0
H. Additional Horiz. Feet Equivalent 0
I. Total Horizontal Vent Run (Equivalent): 0
Use Natural Gas Chart Settings for:
12 feet Vertical Rise, 0feet Horizontal Run.
Exhaust Restrictor Used: B
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 10 feet
C. Total Horizontal Vent Run (Actual): 7 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 2
F. F. Total 90° Elbows Equivalent: 2+(2 x ½) = 3
G. 90° Elbows in Excess of 2: 3 - 2 = 1
H. Additional Horiz. Feet Equivalent: 1 x 3 = 3
I. Total Horiz. Vent Run (Equivalent): 7 + 3 = 10
Use LP Gas Chart Settings for:
10 feet Vertical Rise, 10 feet Horizontal Run.
Exhaust Restrictor Required: B
Air Restrictor Tabs Open: 3
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 6feet
C. Total Horizontal Vent Run (Actual): 6 feet
D. 90° Elbows Needed: 3
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent: 3+(0 x ½) = 3
G. 90° Elbows in Excess of 2: 3 - 2 = 1
H. Additional Horiz. Feet Equivalent: 1 X 3 = 3
I. Total Horiz. Vent Run (Equivalent) 6 + 3 = 9
Use Natural Gas Chart Settings for:
6feet Vertical Rise, 9 feet Horizontal Run.
Exhaust Restrictor Required: B
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 2feet
C. Total Horizontal Vent Run (Actual): 10 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent: 2+(0 x ½) = 2
G. 90° Elbows in Excess of 2: 2 - 2 = 0
H. Additional Horiz. Feet Equivalent: 0 x 3 = 0
I. Total Horiz.Vent Run (Equivalent): 10 + 0 = 10
Use LP Gas Chart Settings for:
2 feet Vertical Rise, 10 feet Horizontal Run.
Exhaust Restrictor Used: A
Air Restrictor Tabs Open: Restrictor Not Used

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
14
Vent Terminal Clearances
Assembly and Installation

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
15
Assembly and Installation

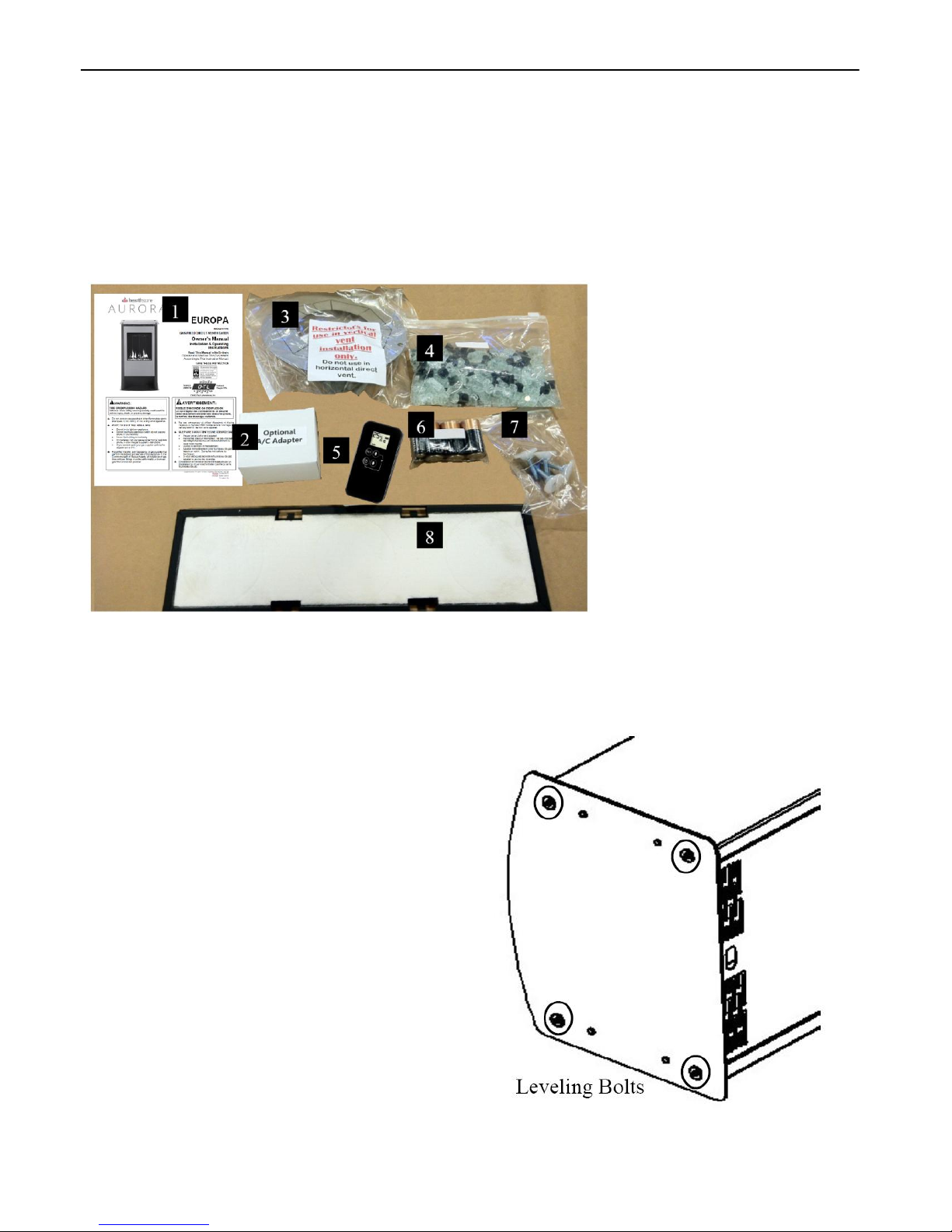

UNPACKING AND INSTALLING THE EUROPA FREESTANDING STOVE
By now, you will have removed the packaging from around the Stove. Locate the box containing the mis-
cellaneous components required to complete the unit. This box will contain the following items:
The stove has been bolted to the pallet from underneath the pallet using 4 hex head bolts. These bolts should
be removed, and the stove carefully lifted from the pallet.
Tilt the stove and fit the 4 leveling bolts as shown.
1) Installation and operation manual
2) A/C adaptor
3) Vent Restrictor Kit
4) Glass Media (for burner)
5) Remote Control
6) Battery Pack
7) Leveling bolts (4)
8) Blow-off Relief Door

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
16
Venting Installation:
The EUROPA Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that is
specifically designed for the EUROPA. Regardless of the venting brand you chose, you must use the starter
section provided . All of the venting brands listed for use with the EUROPA Freestanding are compatible with
the starter section provided . For venting system installation details, refer to the instructions provided with the
venting system you have chosen. Each brand has specific installation requirements that must be followed to
insure a safe and functional venting system for your stove.
The EUROPA Freestanding is shipped from the factory configured for either Rear Venting or Top Venting as
requested.
Prior to connecting your vent system to the stove, please refer to the venting section (pages 8-14) of this manual
to determine whether your installation will require the addition of flow restrictors to the combustion air inlet
system or the exhaust outlet or both. Refer to the venting section that starts on page 8 to make that
determination.
If your installation does require an air restrictor or exhaust restrictor or both, these must be installed be-fore you
connect your vent system to the stove. Again, refer to the venting information starting on page 10-11 to
determine the specific restrictor requirements for your specific installation. To install the Air Intake and Exhaust
Restrictors please proceed as follows:
1. Remove the top panel of the stove by unscrewing the 4 decorative fasteners.
2. Remove the rear panel of the stove.
3. Remove the Vent adapter attached to the unit by 4 #10 Sheet metal screws, taking care not to damage
the ceramic fiber gasket.
4. The exhaust restrictor is installed by placing it through the exhaust outlet pipe and resting it on the
internal baffle in the firebox. It is held in place with a movable retainer clip. Simply hold the restrictor
down against the baffle and push the retainer up and tighten screw to secure the restrictor. Note: Please
take care to insure that the exhaust restrictor is centered in the exhaust outlet. Improper alignment
could adversely affect the appearance of the flames. Refer to the adjacent photographs for placement of
the exhaust restrictor and clip.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
17
5. If the air restrictor ring is required, first
determine the number of tabs that
must be bent open. Before bending
any tabs, align the mounting holes in
the ring over the four mounting holes
on the back of the stove. When
selecting the tabs to bend, it is
important to maintain the most
symmetrical pat-tern possible. The
first tabs bent must be opposite each
other and oriented horizontally. If
only one tab is specified, orient the
ring over the pilot holes so the split
tabs are oriented horizontally and
bend up two opposing half-tabs.
Additional tabs should be evenly
spaced relative to the first two. With
the appropriate tabs bent, re-align the mounting holes in over the pilot holes keeping the proper
orientation AND with the bent tabs facing away from the stove body.
6. Place the vent starter pipe gasket on the back of the stove aligning the holes in the gasket with the pilot
holes on the rear of the fireplace.
7. Align the inner pipe of the vent starter pipe with the exhaust outlet pipe on the fireplace. The vent pipe
will fit tightly over the fireplace pipe. Gently push the starter pipe on to the fireplace pipe until the outer
pipe flange makes contact with the vent pipe gasket. Be sure that the holes in the starter pipe flange
align with the gasket and pilot holes. When the flange contacts the gasket, install the four #10 sheet
metal screws to secure in place.
If the optional convection blower kit, # 99-57700, was purchased for this installation, it should be
installed at this time. Please refer to the installation instructions supplied with the blower kit for
detailed installation instructions.
8. Refit the stoves rear panel.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
18
Fuel Conversion
This appliance ships from the factory configures for use with Natural Gas. If use with
Propane is desired, the unit is field convertible to Propane by using a fuel conversion kit.
WARNING: Gas connections must be performed by a qualified service technician.
PART #
DESCRIPTION
CONVERSION KIT CONTENTS
99-56001
Orion 16 LP Fuel Conversion
Kit
#27 Pilot Orifice -
1ea.
#58 LP Burner Orifice -
1ea.
#8 Screw - 1ea.
99-56000
Orion 16 NG Fuel Conversion
Kit
#35 Pilot Orifice -
1ea.
#53 LP Burner Orifice -
1ea.
NG Collar –1ea.
#8 Screw - 1ea.
WARNING: Before servicing the appliance, shut off gas and electrical power to the unit.

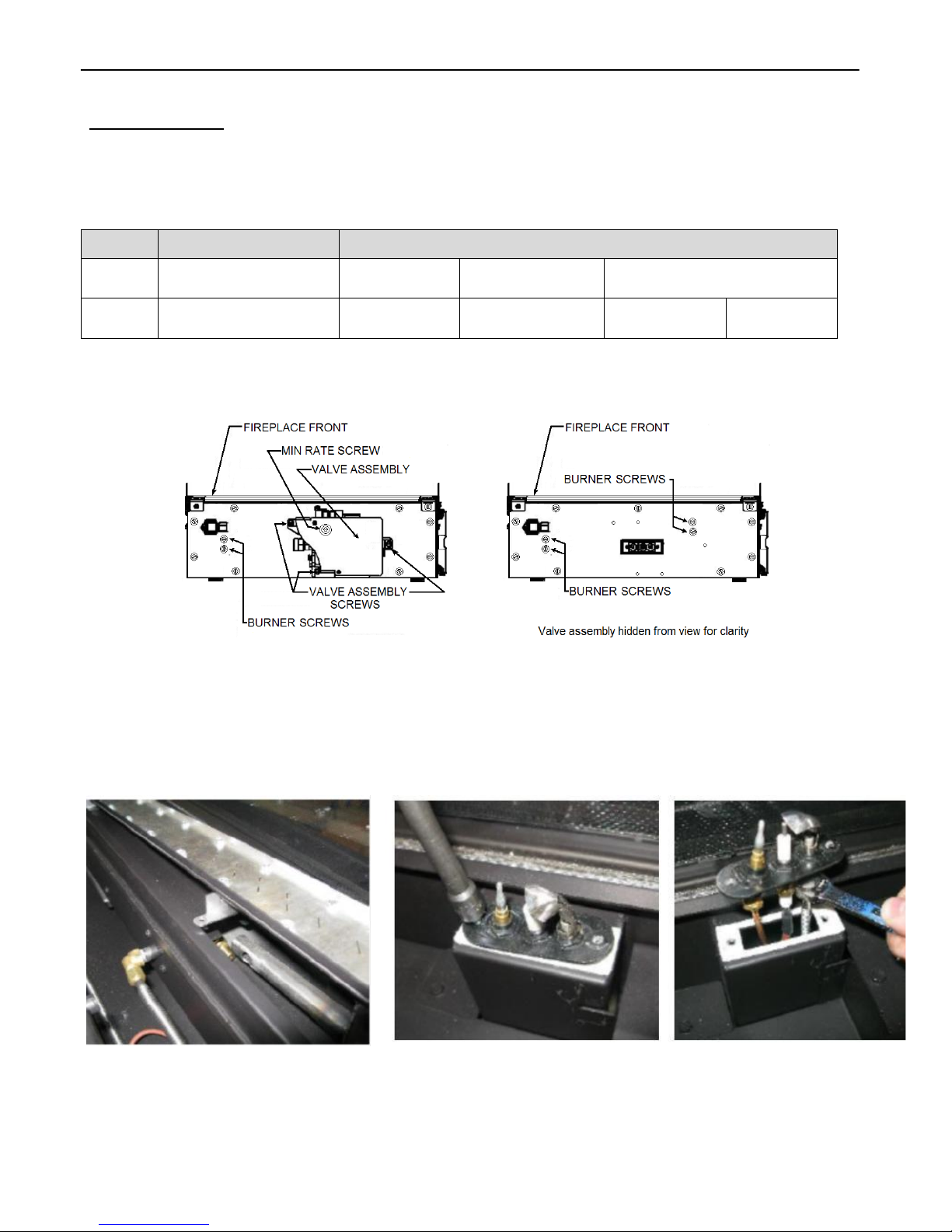

1. To access the burner, follow the screen and glass removal procedure shown on pages 23 and 24
2. To access the burner screws, you will need to remove the three (3) #10 sheet metal screws retaining the
valve assembly and carefully move the valve to expose two (2) of the screws. The image above shows the
location of all 4 screws including the two that are hidden by the valve.
3. Using a 5/16” nut driver, remove the four (4) #10 sheet metal burner mounting screws shown above.
4. Slide the burner to the right and lift up to remove.
5. Remove the two (2) #10 sheet metal screws holding the pilot assembly in place an carefully lift the assembly
into the firebox.
Location of the burner mounting screws looking up at the underside of the fireplace.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
19

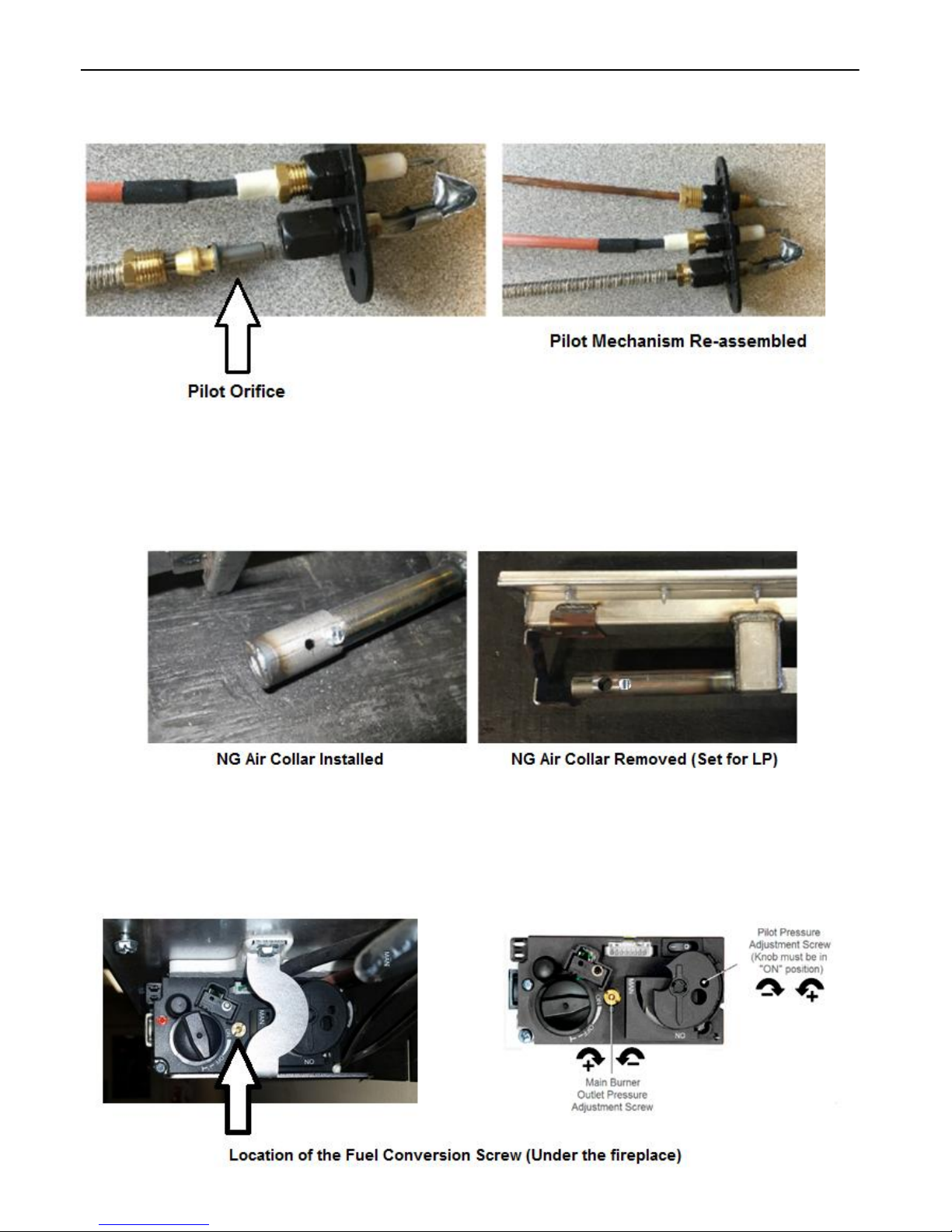

6. Using a 10mm wrench, remove the pilot gas line to access the orifice.
7. Remove the existing pilot orifice and replace with the #27 provided in this kit.
8. Reinstall making sure to align the notch appropriately and tighten the pilot gas line then reinstall the pilot
assembly making sure the gasket is intact.
9. Remove the #8 screw holding the NG air collar to the burner tube and remove the collar. Reinstall the #8
screw in the burner tube (a replacement screw is included in this kit).
10. Using a 9/16” deep socket, replace the burner orifice in the firebox with the #58 orifice included in this kit.
11. Reinstall the burner in the fireplace and tighten four (4) screws removed in step #3 above.
12. Reinstall the valve assembly and tighten the three (3) screws removed in step #2 above.

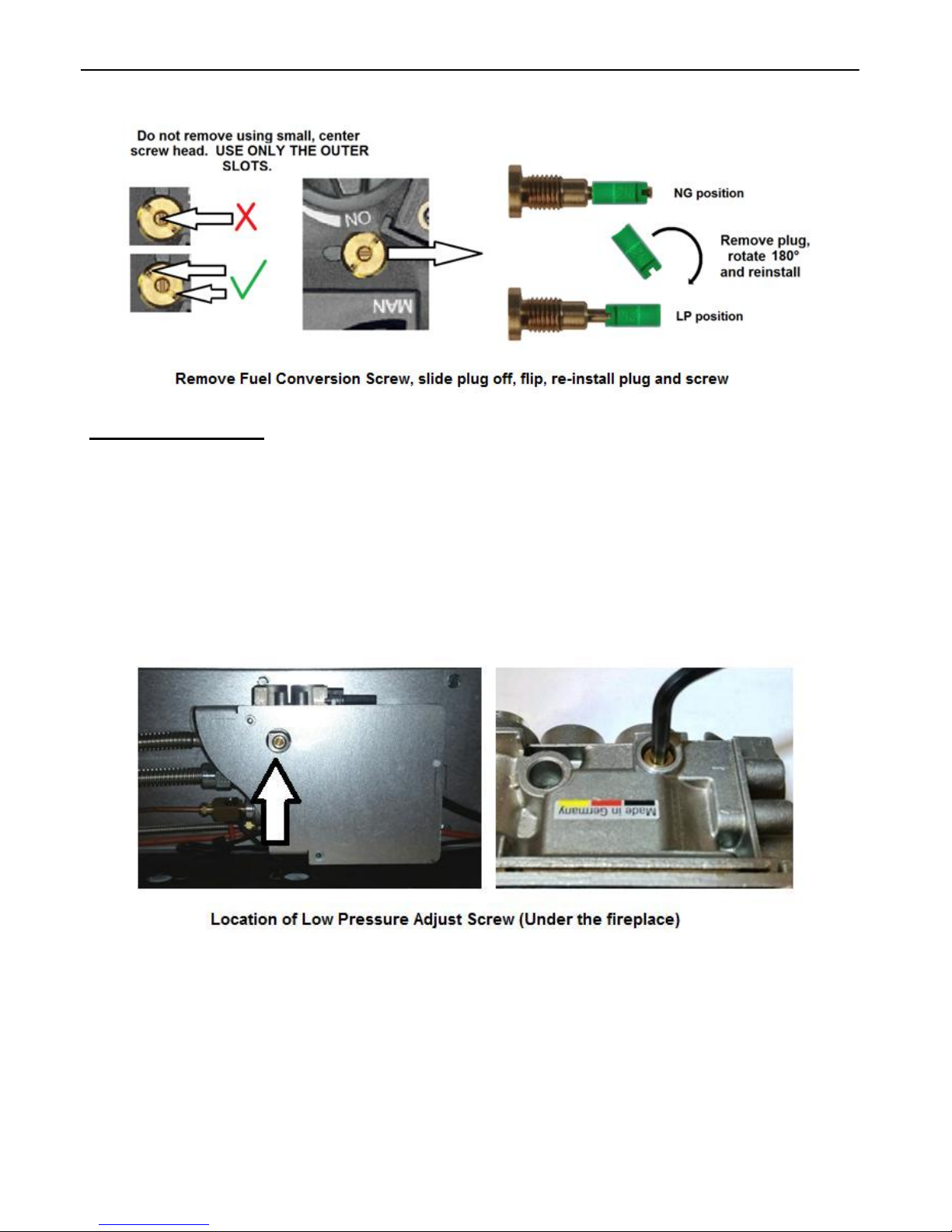

13. Using a flat tip screw driver, remove the fuel conversion screw from the valve, switch the plug to LP and
reinstall as shown below.

Hearthstone Quality Home Heating Products, Inc EUROPA Series 8900
20
Gas Flow Adjustment
After completion of the fuel conversion, it is necessary to check the HI and LO pressures at the valve and may
be necessary to adjust one or both.
1. Install a gas gauge (Manometer) on the outlet pressure tap on the valve.
2. Light the fireplace using the remote handset.
3. With the fireplace on HI, set the maximum pressure to 10.0” w.c. (2.5kPa) for LP by adjusting the small
flat head screw in the center of the fuel conversion screw. Use only an appropriately sized jeweler’s
screwdriver. NG pressure is 4.8”w.c (1.2kPa).
4. Quickly press the small flame button on the remote to set the fireplace to LO.
Adjust the minimum rate to 3.1” w.c. (0.77kPa) by turning the low pressure adjustment screw with a
4mm allen key as shown above. NG pressure is 2.2”w.c (0.55kPa).
5. When Hi and Lo pressure adjustments are complete, close the pressure tap(s) on the valve by turning
the screws clockwise. Check all connections/pressure taps for leaks.
