Heartland Pax S300 User manual

Heartland School Solutions
Pax S300 Credit Card Reader
MCS®
Technical Support and Service
MCS Soware Product Support
Telephone: [phone] Opon 2
Hours: Mon-Fri 7am to 6pm EST
Email: [email protected]
February 2020
S300-000-364-02NA
Conguring the PAX S300 in MCS Newton
1. Login to Newton, then locate and click on the Admin & Maintenance tab.
2. Locate the Serving Line opon in the Point-of-Sale Setup ribbon.
3. Select either Serving Lines or Serving Line Congs. Then select Edit.
4. Select the tab labeled Override Sengs and scroll down to Devices.
5. Locate the opon for Credit Card Terminal and select into each eld to
show the ellipsis.
6. Select PAX S300 or compable from the drop-down menu. Then,
congure the Capture Signature and Port opons. When nished, click
Ok.
7. When nished, select Save & Close.
Note: For assistance with “TAMPERED “Errors, please contact the
Heartland Service Center by email (P[email protected] ) or phone
(888-909-8498).

What’s in the Box?
Connecons
This unit requires:
• Designated Network Connecon
• Power
• Connecon to the Point-of-Sale Terminal
Refer to the following images when connecng the device to the Point-of-Sale
Terminal.

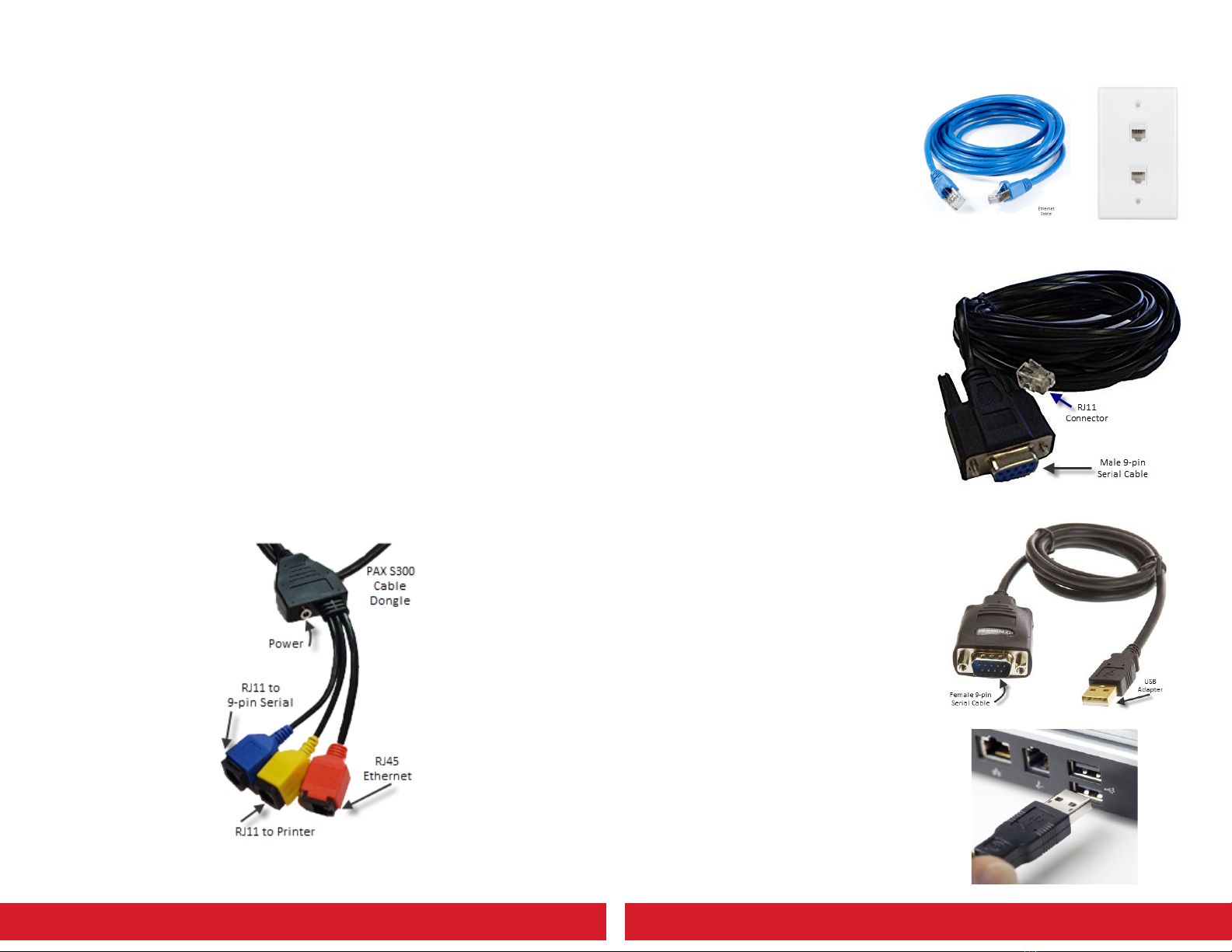

The PAX S300 9-Pin Serial Cable Dongle
Step 1
Connect one end of your Ethernet
cable to the RJ45 Ethernet plug (red
connector) of the 9-pin Serial Cable
Dongle. Connect the other end of your
Ethernet cable to your wall jack.
Note: If your dongle is not color-coded,
ensure you connect the cable furthest
from the power input.
Step 2
Connect the male RJ11 connector
(common “phone jack” connector) of
the 9-pin Serial cable to the RJ11 to
9-pin Serial (blue connector) of the PAX
S300 Serial Cable Dongle.
Note: If your dongle is not color-coded,
ensure you connect the cable closest to
the power input.
Step 3
Connect the Male 9-pin Serial cable to
the Female 9-pin Serial to USB adapter
(shown in the image in Step 3).
Step 4
Connect the USB adapter to the Point-
of-Sale Terminal.
Note: A soware driver is required
for the USB adapter cable. The drivers
are included on the CD-ROM which
may have been shipped with the
unit. The updated drivers may also be
downloaded from the website.
(1) S300 PIN Pad
(1) Adapter Cable
(1) Product Manual
(1) AC Power Adapter
