BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
•BUILDINGRESTRICTIONSANDAPPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
.•ENGINEEREDDRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
•SURFACEPREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
•CHECKALLPARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
•ADDITIONALMATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
05/18/2015
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 144" x 90" (365,8 x 228,6 cm)
16826
METROPOLITAN 12' x 7'-6" (365,8 x 228,6 cm)
ASSEMBLY MANUAL
A Backyard Products Company

2

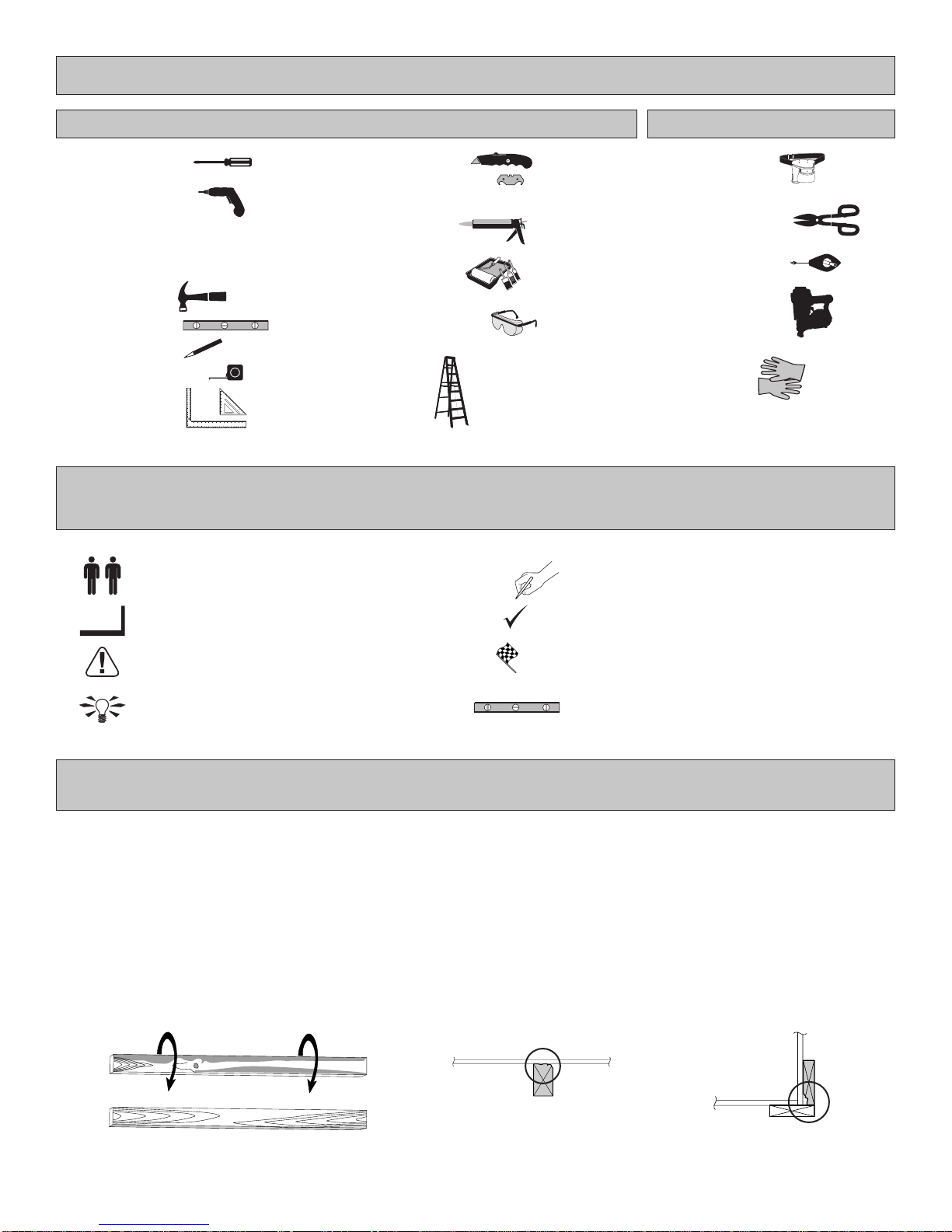

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑ Drill / Driver
❑ 1/4" Drill Bit
❑ 3/8" Drill Bit
❑ 1/2" Drill Bit
❑ #2 Philips Drive Bit
❑ Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C

3
COMPLETING YOUR SHED
You will need these additional materials:
TO VALIDATE YOUR WARRANTY YOU MUST USE THE FOLLOWING:
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIPEDGE.....................50Feet #15ROOFINGFELT
To cover 106 Sq. Ft. of roof area.
1"GALVANIZEDROOFINGNAILS.........1/4Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TABSHINGLES.............................6Bundles
PAINTFORSIDING..........................2Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK.................................................3Tubes
Use acrylic latex exterior caulk that is paintable.
1"GALVANIZEDROOFINGNAILS....3Lbs
For shingles.
PAINTFORTRIM.............................1Quart
Use 100% acrylic latex exterior paint.
WOODGLUE.......................ExteriorRated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below). Below is a list of additional materials (not included):
x3
x6
2 x 4 x 87" (5 x 10 x 221 cm) Treated Lumber
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
• This shed kit includes a complete wood oor system.
• This shed kit does not include ANY leveling materials.
•SeetheFLOORLEVELINGsectiononpage7forrecommendedmethodsandsuggestedmaterialstoproperlylevelyour
oor,asthiswillvarydependingonyourspecicsite.
Optional 12" (30,1 cm) spacing.
• Standard spacing is 16" (40,7 cm).

WOODSIZECONVERSIONCHART
NominalBoardSize ActualSize
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)

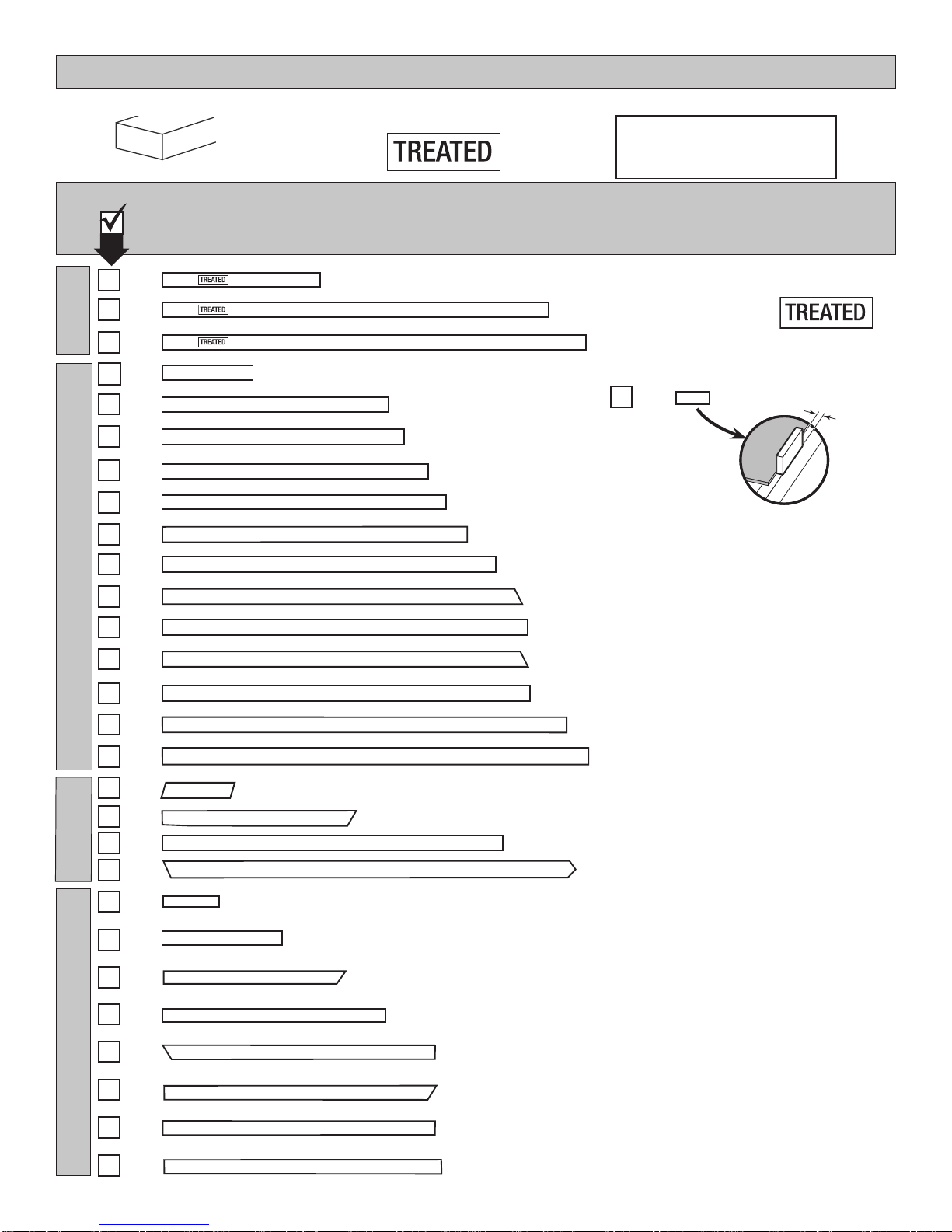

PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
All treated lumber
is stamped:
WALLS
x4 2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)
BLA
x2 2 x 4 x 80-11/16" (5,1 x 10,2 x 204,9 cm)
JDA
x2 2 x 4 x 75-3/8" (5,1 x 10,2 x 191,5 cm)
JCA
x2 2 x 4 x 86-1/4" (5,1 x 10,2 x 219,1 cm)
FHA
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM

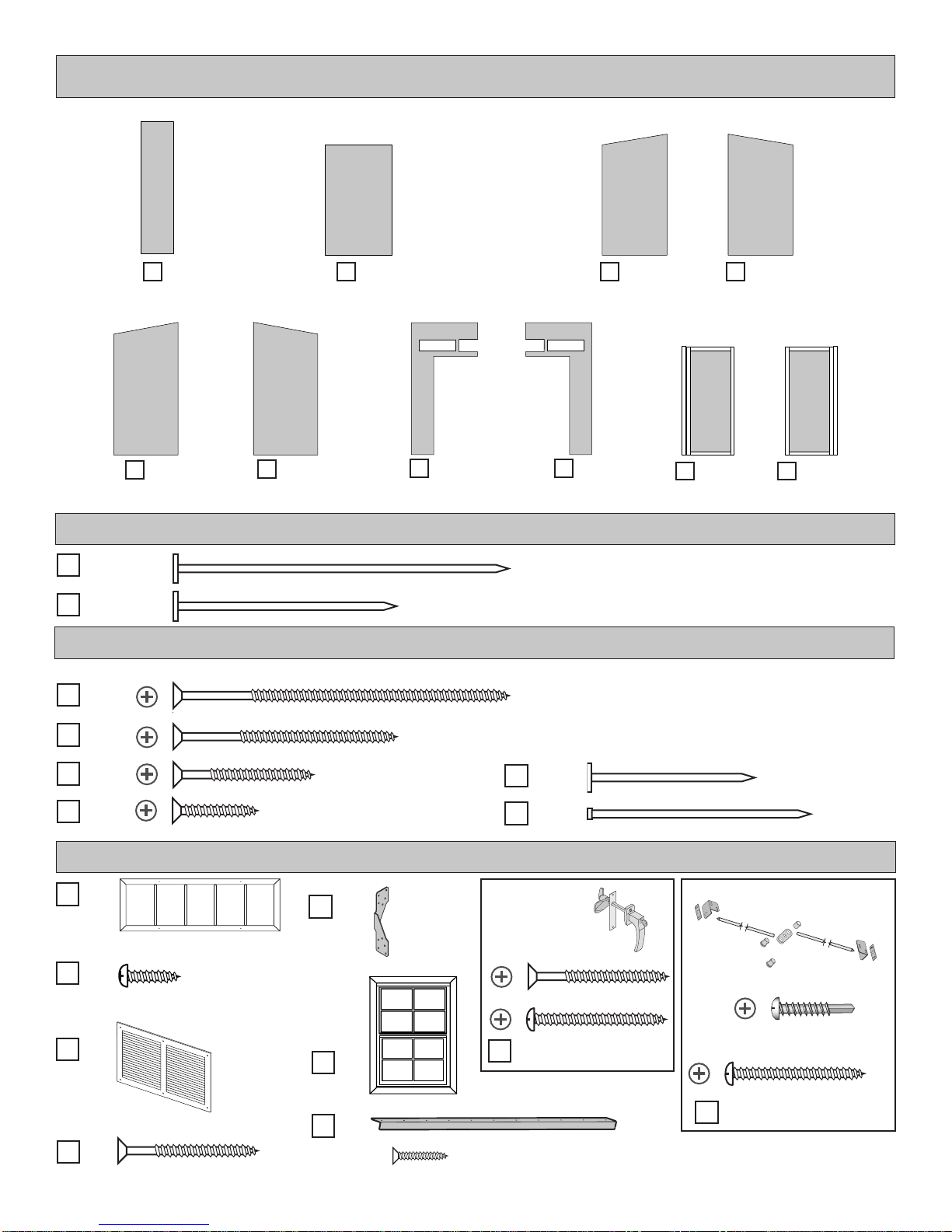

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
x2 1 x 3 x 33 - 1/8" (2,5 x 7,6 x 84,1 cm)
BPA
x7 2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)
UX
x3 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x2 2 x 4 x 40" (5,1 x 10,2 x 101,6 cm)
SKA
x2 2 x 3 x 33-1/8" (5,1 x 7,6 x 84,1 cm)
BQA
x4 19/32 x 2-1/2 x 9" (1,5 x 6,3 x 22,9 cm)
EY
x2 2 x 4 x 86-1/8" (5,1 x 10,2 x 203,5 cm)
JEA
3/4"
(1,9 cm)
2 x 4 x 16-1/2" (5,1 x 10,2 x 41,9 cm)
x8 RD
x2 2 x 4 x 57-5/8" (5,1 x 10,2 x 146,4 cm)
FGA
x1 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
GAA
x11 2 x 3 x 10-1/2" (5,1 x 7,6 x 26,7 cm)
BRA
x2 1 x 3 x 72" (2,5 x 7,6 x 182,8 cm)
HJ
x11 2 x 4 x 93-3/16" (1,5 x 10,2 x 236,7 cm)
BOA
x2 19/32 x 3-1/2 x 48" (1,5 x 8,8 x 121,9 cm)
ZT
x1 19/32 x 3-1/2 x 59-1/4" (1,5 x 8,8 x 150,4 cm)
BXR
x1 19/32 x 3-1/2 x 59-1/4" (1,5 x 8,8 x 150,4 cm)
HBA
x1 19/32 x 3-1/2 x 59-1/4" (1,5 x 8,8 x 150,4 cm)
BXL
x1 19/32 x 3-1/2 x 60-3/8" (1,5 x 8,8 x 153,4 cm)
HHA
x1 UN 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)
x3 TP 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x1 19/32 x 3-1/2 x 24-3/8" (1,5 x 8,8 x 61,9 cm) ZZ
4
FLOOR
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
2 x 4 x 87" (5,1 x 10,2 x 220,9 cm)
x10
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)

SOFFIT
DOOR

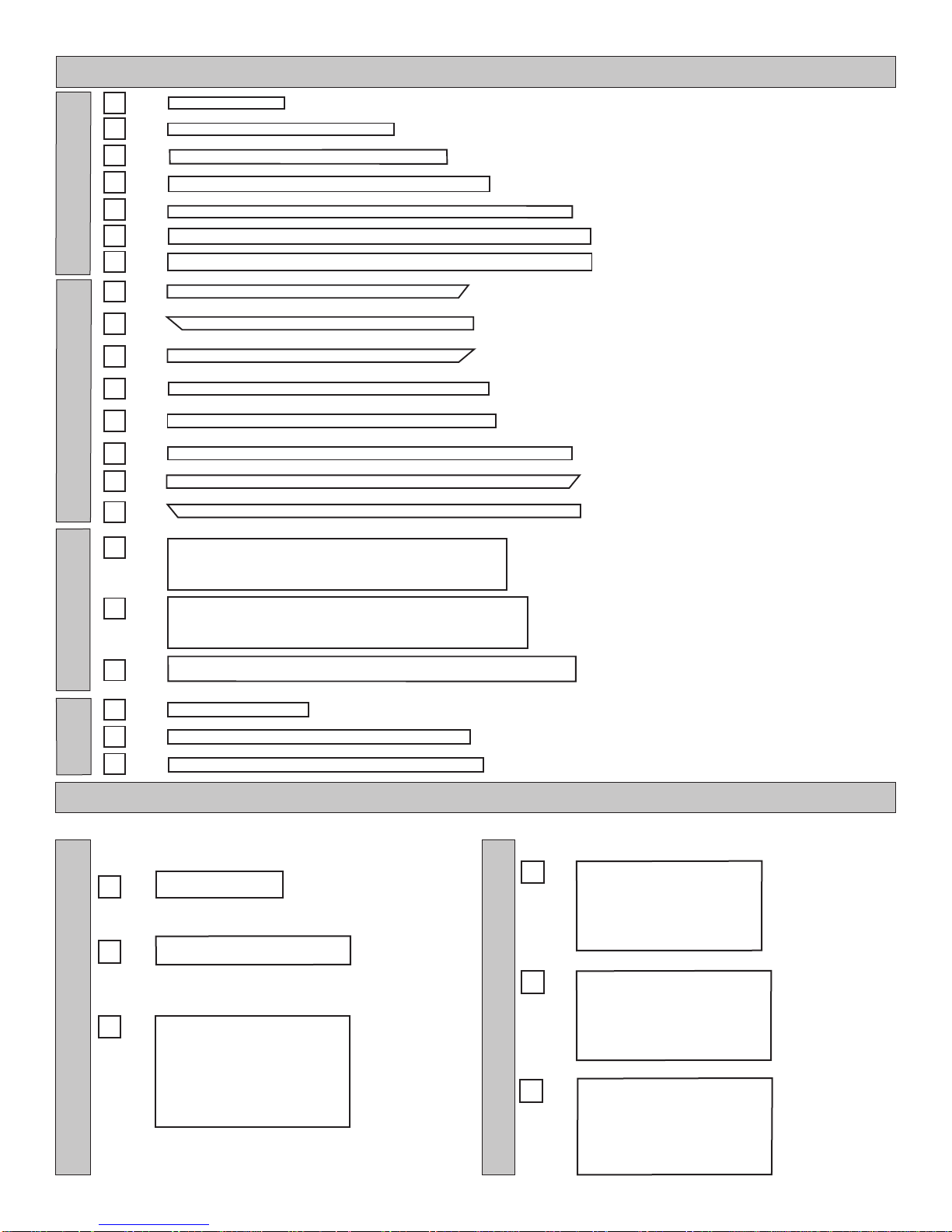

PARTS LIST continued...
TRIM
CORNER/FREIZE TRIM
19/32 x 2-1/2 x 91" (1,5 x 6,3 x 231,1 cm)
x2 BSA
19/32 x 3-1/2 x 96" (1,5 x 8,8 x 243,8 cm)
x2 ZX
3/8 x 10-3/8 x 75-1/2" (1 x 26,3 x 191,8 cm)
x1
x2 OO 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,2 cm)
19/32 x 2-1/2 x 26-5/8" (1,5 x 6,3 x 67,6 cm)
x2 AH
19/32 x 2-1/2 x 55-1/8" (1,5 x 6,3 x 140 cm)
x2 FDA
x1 3/8 x 2 x 72" (0,9 x 5,1 x 182,8 cm)
x1 3/8 x 2 x 73-3/8" (0,9 x 5,1 x 186,4 cm)
x1 3/8 x 2 x 69-1/4" (0,9 x 5,1 x 175,8 cm)
x1 3/8 x 2 x 69-1/4" (0,9 x 5,1 x 175,8 cm)
x2 3/8 x 2 x 91-1/4" (0,9 x 5,1 x 231,7 cm)
x1 3/8 x 2 x 93-1/4" (0,9 x 5,1 x 236,8 cm)
x1 3/8 x 2 x 93-1/4" (0,9 x 5,1 x 236,8 cm)
x2 3/8 x 2 x 68-3/4" (0,9 x 5,1 x 174,6 cm)
x2 19/32 x 2-1/2 x 41-1/4" (1,5 x 6,3 x 104,8 cm)
JFA
x2 19/32 x 2-1/2 x 24-3/8" (1,5 x 6,3 x 61,9 cm)
CY
x1 2 x 3 x 59-1/4" (5,1 x 7,6 x 150,5 cm)
GKA
x1 PT 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
x2 OY 2 x 3 x 72" (5,1 x 7,6 x 182,8 cm)
x1 3/8 x 10-3/8 x 79-5/8" (1 x 26,3 x 202,2 cm)
x2 3/8 x 5-1/4 x 95-1/2" (1 x 13,3 x 242,5 cm)
5
PANEL PARTS LIST
ROOF PANELS
FLOOR
NOTE:Panelpartsarenotstamped.
Floorpanelsare5/8"(1,6cm)thick.Roofpanelsare7/16"(1,1cm)thick.
7/16 x 11-7/8 x 96"
(1,1 x 30,2 x 243,8 cm)
x2
7/16 x 11-7/8 x 60-1/8"
(1,1 x 30,2 x 152,7 cm)
x1
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x3
5/8 x 42 x 96"
(1,5 x 106,6 x 243,8 cm)
5/8 x 48 x 90"
(1,5 x 106,6 x 228,6 cm)
x1
x1
5/8 x 48 x 96"
(1,5 x 121,9 x 243,8 cm)
x1

WALL PANEL & DOORS PARTS LIST
x1
LEFTDOOR
x1
RIGHTDOOR
x2 BOXES
x4 BOXES
NAIL BOXES (not included)
VENTS / DOOR HARDWARE / WINDOWS
FASTENER/HARDWARE BAG
x1
3/8 x 42 x 96"
(1 x 106,7 x 243,8 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
x1
3/8 x 48 x 96"
(1 x 121,9x 243,8 cm)
x3
3/8 x 48 x 72"
(1 x 113,3 x 121,9 cm)
x1
3/8 x 48 x 84-3/4"
(1 x 122 x 215,3 cm)
x1
3/8 x 48 x 84"
(1 x 122 x 215,3 cm)
x1
3/8 x 42 x 96"
(1 x 106,7 x 243,8 cm)
x2
3/8 x 23-7/8 x 96"
(1 x 60,6 x 243,8 cm)
6
x255 2" (5,1 cm)
3" (7,6 cm)
x85
x76
x123
x4 1-1/4" (3,2 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
x180 1-1/2" (3,8 cm)
x2
8 x 16"
(20,3 x 35,6 cm)
x2
1-1/2" (3,8 cm)
1/2" (1,2 cm)
x12
x1 64" Metal Threshold
3/4" (1,9 cm) x11
Bagged separately / special coating
x2
Window
16-1/4" x 22-1/4"
(41,3 x 56,5 cm)
x3
9 X 27" (22,8 x 68,5 cm)
x1
x4
3/4”TechScrewwithdrillpoint
1-1/4” x8
3-PointDoorLockingMechanism
x1
1-1/4” x2
1-1/4” x2
Handle(locking)
with Screws
x11 H2.5
Tie Plate

7
DOOR
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
centerof4x4's.
• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELINGMETHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIALREQUIRED
x2 4" x 4" x 12' (10 x 10 x 365,8 cm)Treated Lumber
FastenersforFrameto4"x4".
(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.
Useonlywoodtreatedforgroundcontactandfastenersapprovedforusewithtreatedwood.
Alwayssupportframeseams.
Levelinghigherthan16"notrecommended.
LEVELINGMATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
12"
(30,5 cm)
12"
(30,5 cm)

8
CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint:Usetreatedlumberinyourkitor
purchasefulllengthtreatedlumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fastenersnotincluded).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2" x 4" x 12'-0" (5,1 x 10,2 x 365,8 cm)
2" x 4" x 7'-6" (5,1 x 10,2 x 229,6 cm)
Caulk
Requires:
x2
x2
x1
MUSTbetreatedlumber.
MUSTbetreatedlumber.
144"(365,8cm)
144"x90"(365,8x228,6cm) 83"(210,9cm)
12'x7'-6"(365,8x228,6cm) 90"(228,6cm)
AActualSize B CBuildingSize
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
DOOR
Treated Sill Plate
Caulkbetweensill
plateandconcrete.

9
x10
x2
3" (7,6 cm)
x44
2 x 4 x 87" (5,1 x 10,2 x 221 cm)
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
PARTSREQUIRED:
Center
onmarks
DOOR

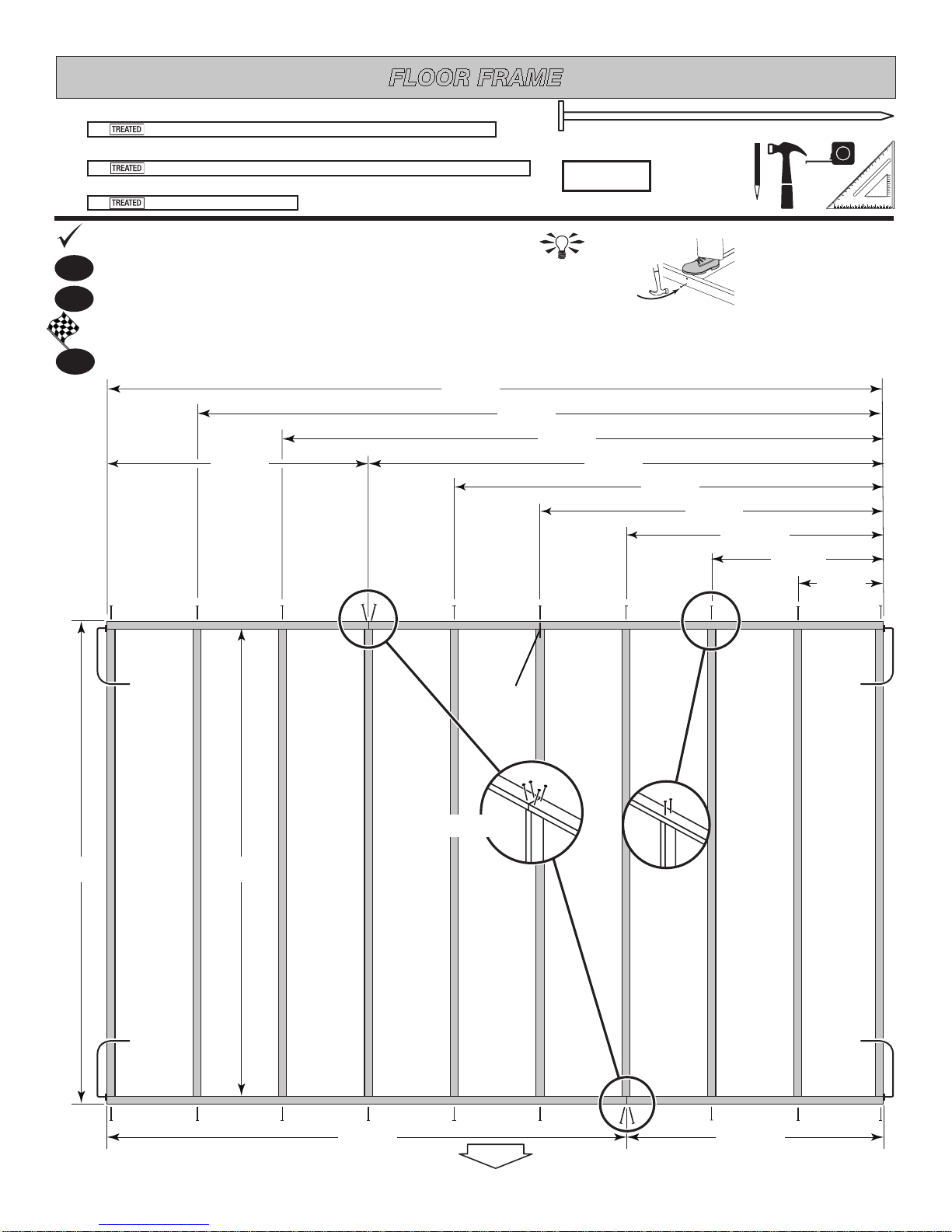

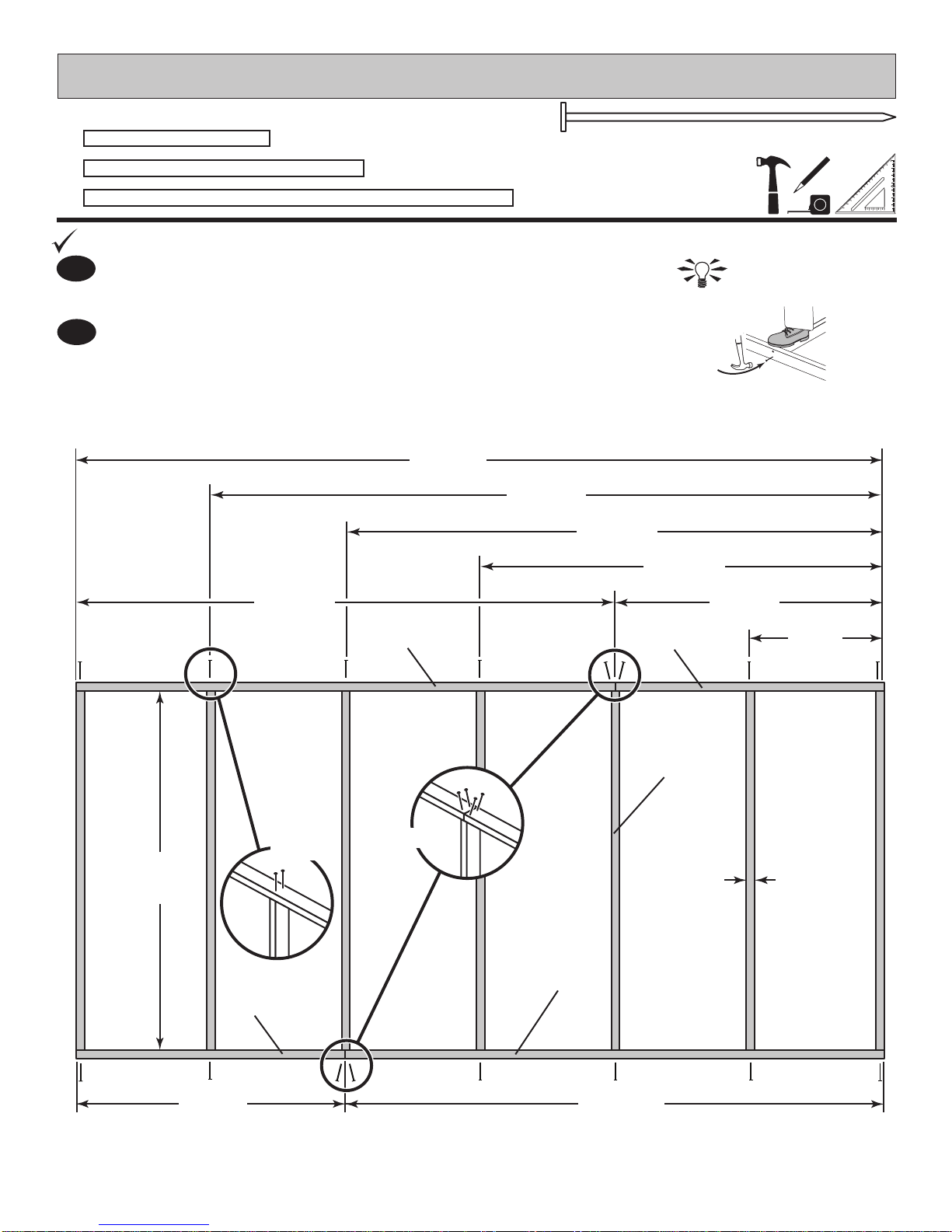

FLOOR FRAME
Look for
Stamp
TREATED
HINT:
For easier nailing
standonframe.
2
1
Use two 3" nails at each mark.
Orient parts as shown on at surface. Measure and mark.
BEGIN
You have nished your oor frame. Proceed to level and square frame.
FINISH
3
FlushFlush
FlushFlush
TOENAILING
48"
(121,9 cm)
48"
(121,9 cm)
32"
(81,3 cm)
16"
(40,6 cm)
48"
(121,9 cm)
64"
(162,6 cm)
80"
(203,2 cm)
90"
(228,6 cm)
87"
(221 cm)
96"
(243,8 cm)
112"
(284,5 cm)
128"
(325,1 cm)
144"
(365,8 cm)
96"
(243,8 cm)

10
FINISH
5
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 169-13/16" (431,3 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig.A).
Once the oor frame is level and square fasten the frame to the 4x4 runners at each point the frame
contacts the 4x4 runners.
See page 7 for the preferred oor leveling method.
DOOR
First,secure
at ends with
onefastener.
Second,secure
at ends with
onefastener.
169-13/16"
(431,3 cm)
169-13/16"
(431,3 cm)
Fig.A

11
48"
(121,9 cm)
144"
(365,8 cm)
6"
(15,2 cm)
12"
(30,5 cm)

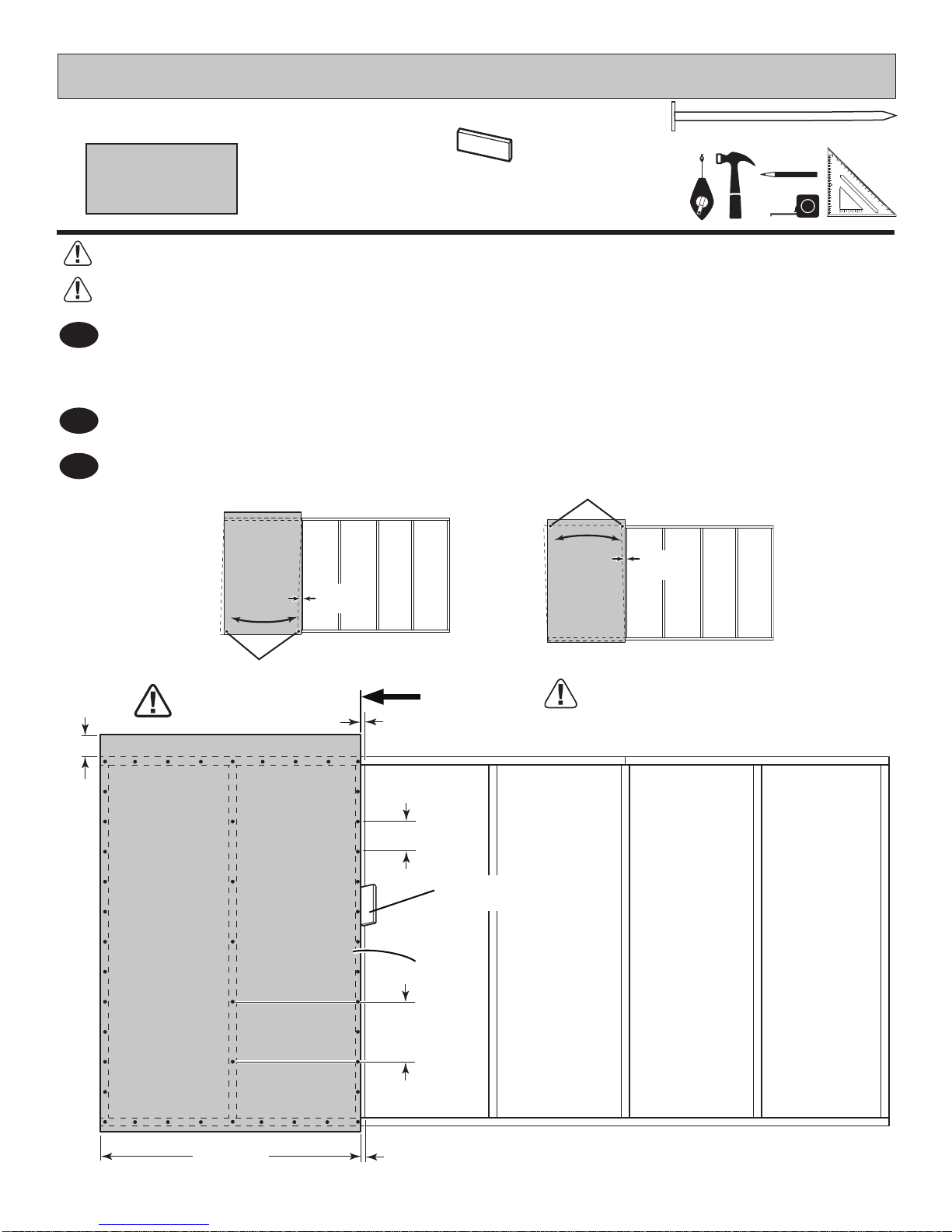

Move to the opposite side. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame (Fig.B).
Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on
edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail
into joists under panel.
Ensureyouroorframeissquarebyinstallingonepanel
andsquaringframe.
Fig.A
Check the oor frame is square by measuring diagonally
across the frame corners. If the measurements are the
same your oor frame is square. The measurement will
be approximately 169-13/16" (431,3 cm) (Fig.C).
PARTSREQUIRED:
x1
x50
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
Gridlinesup
Seam
Seam
2" (5,1 cm)
Flush
Flush
(2)Nails
FLOOR PANELS
3/4"
(1,9 cm)
Fig.B Flush
(2)Nails
3/4"
(1,9 cm)

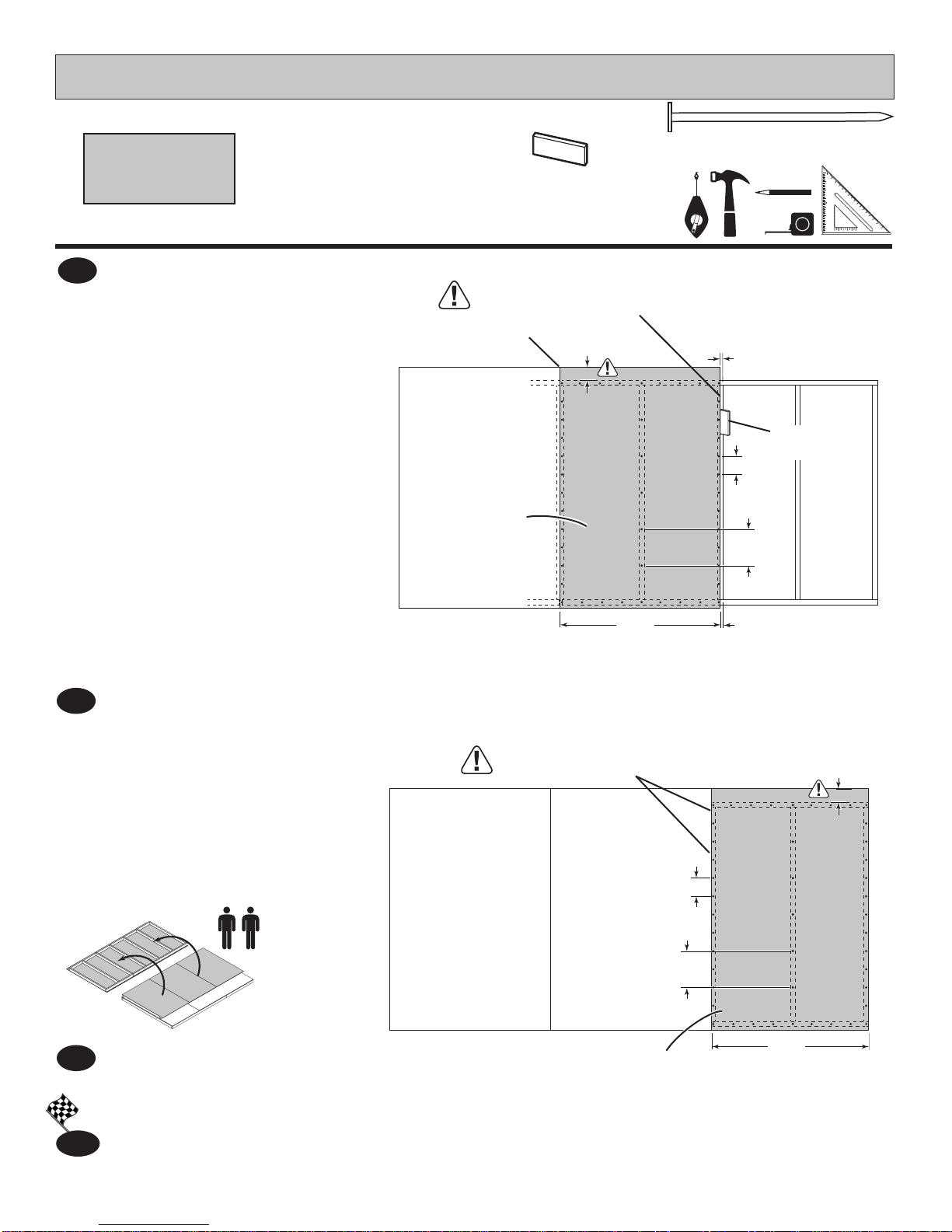

Attach the 48 x 96" panel with the rough side up (painted-grid lines side) with the 48"
edge and corner ush to the oor frame (FigA). Secure panel with two 2" nails in the
corners.
DOOR Fig.C
DOOR
169-13/16"
(431,3 cm)
169-13/16"
(431,3 cm)
DOOR

12
42"
(106,7cm)
90"
(228,6cm)
144"
(365,8 cm)
6"
(15,2 cm)
48"
(122 cm)
12"
(30,5 cm)
PARTSREQUIRED:
FINISH
7You have nished attaching your oor panels.
Continue installing panels with rough side up (painted grid lines).
Use grid lines on panel for 2" nails 6" apart on edges, and 12" apart inside panels.
5
7
6
x1 x1
x91
5/8 x 48 x 90"
(1,6 x 60,6 x 122 cm)
5/8 x 42 x 96"
(1,6 x 106,7 x 243,8 cm)
Gridlinesup
2" (5,1 cm)
FLOOR PANELS
Flush
Flush
DOOR
Flush
Flush

13
DOOR
Backwall
Front wall

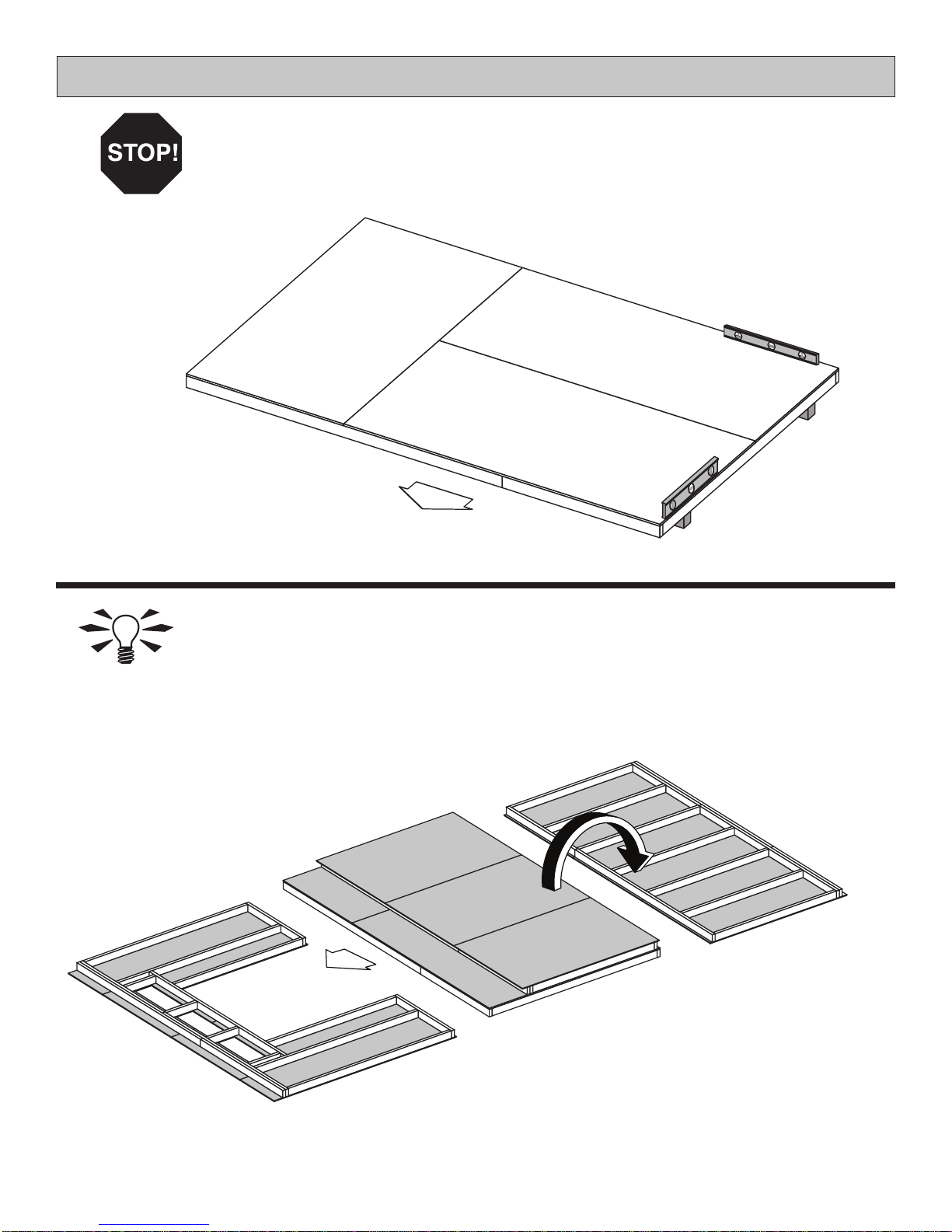

Checktheoorframeislevelafterinstallingoorpanels.
Re-levelifneeded.
HINT:
IMPORTANT!
•Theoorshouldbeusedasastableworksurfaceforwallconstruction.
• Organizeyourassemblyprocedureduringthebuildprocess
 toavoidover-handlingofthewalls.
DOOR

BACK WALL FRAME
PARTSREQUIRED:
HINT:
For easier nailing
standonframe.
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x7 2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)
UX
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP x32
14
3" (7,6 cm)
BEGIN
1
Use two 3" nails at each mark and four 3" nails at seams
Orient parts on edge on oor. Measure and mark.
2
UXx7
TP
SP
SP
TP
144"
(365,8 cm) 120"
(304,8 cm)
64"
(162,5 cm) 1-1/2"
(3,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
48"
(122 cm)
72"
(182,9 cm)
48"
(122 cm)
24"
(61 cm)
96"
(243,8 cm)
TOENAILING
3"(7,6cm)
Nails

15
BACK WALL PANELS
48 x 72"
(121,9 x 213,4 cm)
PARTSREQUIRED:
x1
x45 2" (5,1 cm)
Fig.B
Fig.A
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
2 Nails
Place 48x72" panel onto wall frame with primed side up as shown.
Use the gauge block to mark the 3/4" measurement on the wall stud. Secure panel with
two 2" nails in the corners (Fig.A).
Nail the panel using 2" nails 6" apart on edges and 12" apart inside panel.
•Ensureyourwallframeissquarebyinstallingonepanelandsquaringframe.
Move to the opposite end. Using the long edge of the panel as a lever move the panel side-to-side until you have
a 3/4" measurement on the wall stud. Secure corner with two 2" nails (Fig.B).
4
5
3
3/4"GAUGE
BLOCK
GAA
Primed
side up
Forsquarenessmaintain3/4"
measurementalongpaneledges.
BEGINHERE
3/4"GAUGE
BLOCK
•Ensuretopofpanelisoverhangingthetopofframeby4".
6"
(15,2 cm)
4"
(10,2cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
48"
(121,9 cm)
12"
(30,5 cm)

16
48"
(121,9 cm)
3/4"
(1,9 cm)
4"
(10,2 cm) 3/4"
(1,9 cm)
12"
(30,5 cm)
6"
(15,2 cm)
48"
(121,9 cm)
4"
(10,2 cm)
12"
(30,5 cm)
6"
(15,2 cm)
Place center 48"x72" panel on frame
as shown with primed side facing up.
Nail using 2" nails 6" apart on edges
and 12" apart inside panel.
6
Place end 48"x72"panel on frame as
shown with primed side facing up.
Nail using 2" nails 6" apart on edges
and 12" apart inside panel.
7
You have nished building your back wall.
FINISH
9
48 x 72"
(121,9 x 213,4 cm)
x2
x90
BACK WALL PANELS
PARTSREQUIRED: 2" (5,1 cm)
8Carefully ip the BACK wall over.
3/4"GAUGE
BLOCK
GAA
3/4"GAUGE
BLOCK
Flush
Primed
side up
Primed
side up
Forsquarenessmaintain3/4"
measurementalongpaneledges.
Forsquarenessmaintainush
alongpaneledges.

17

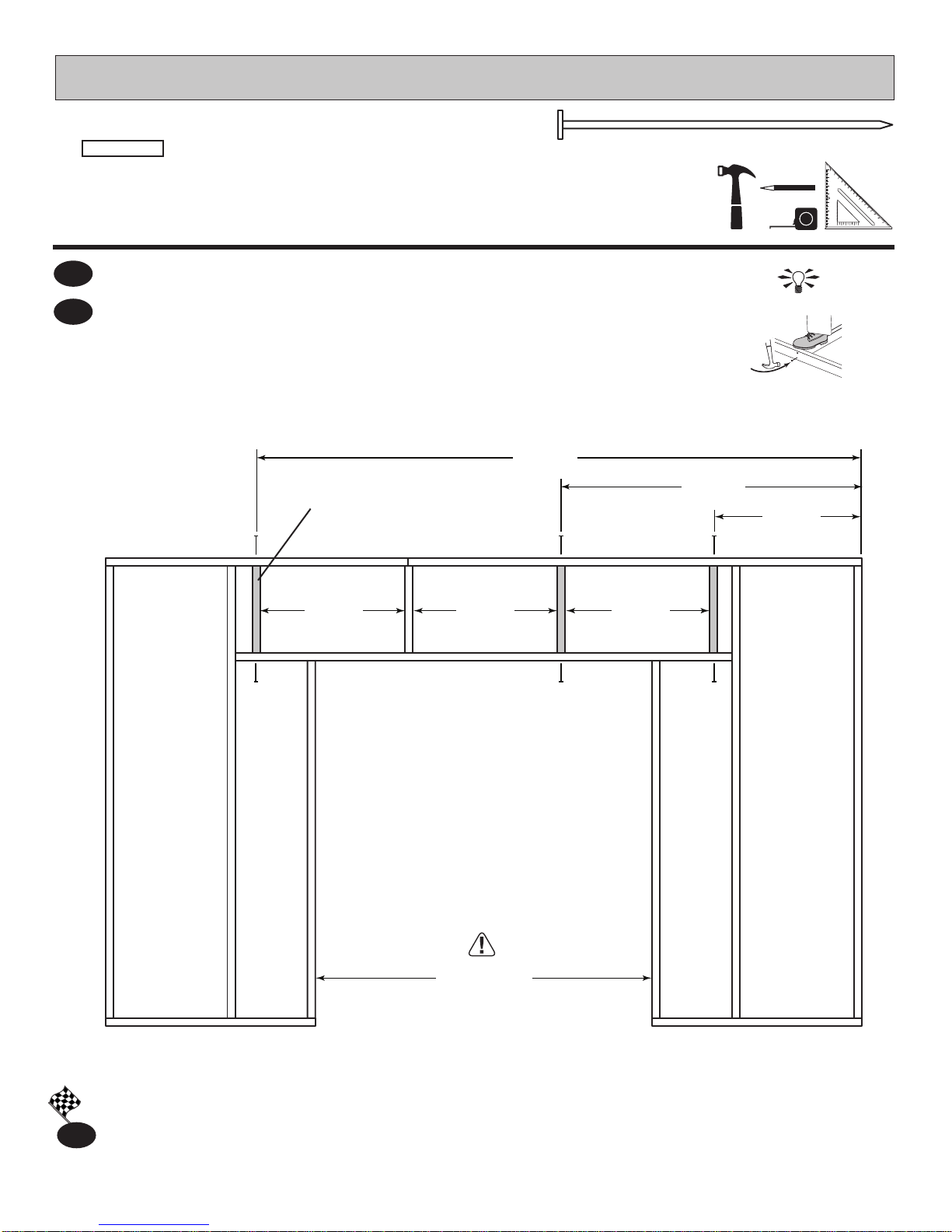

FRONT WALL FRAME
PARTSREQUIRED:
HINT:
For easier nailing
standonframe.
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x1 2 x 4 x 57-5/8" (5,1 x 10,2 x 146,4 cm)
FGA
x4 2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)
BLA
x1 2 x 4 x 86-1/4" (5,1 x 10,2 x 219,1 cm)
FHA
x1 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)
UN
2 x 4 x 40" (5,1 x 10,2 x 101,6 cm)
x2 SKA
2 x 4 x 16-1/2" (5,1 x 10,2 x 42 cm)
x1 RD
x34 3" (7,6 cm)
BEGIN
1
Use two 3" nails at each mark and four 3" nails at seams.
For front wall, orient parts on edge on oor. Measure and mark.
2
Flush
Flush
Flush
Flush
39"
(99,1 cm)
24"
(61 cm)
16-1/2"
(42 cm)
40"
(101,6 cm)
40"
(101,6 cm)
24"
(61 cm)
24"
(61 cm)
16"
(40,6 cm) 16" (40,6 cm)
57-5/8"
(146,4 cm)
84-7/8"
(215,6 cm)
94-1/2"
(240,1 cm)
89"
(226,1 cm)
69-1/2"
(176,5 cm)
86-1/4"
(219,1 cm)
144"
(365,8 cm)
120"
(304,8 cm)
104-1/2"
(265,4 cm)
BLA
x4
UM
x2
UN
RD
FHAFGA
SKASKA 64"
(162,6cm)

18
FRONT WALL FRAME
PARTSREQUIRED:
HINT:
For easier nailing
standonframe.
2 x 4 x 16-1/2" (5,1 x 10,2 x 41,9 cm)
x3 RD
x12 3" (7,6 cm)
Use two 3" nails at each mark.
Orient parts on edge as shown. Measure and mark.
3
4
64"
(162,6cm)
You have nished building your front wall frame.
FINISH
5
27-1/2"
(69,9 cm)
115-3/8"
(293,1 cm)
57-3/8"
(145,7 cm)
28-3/8"
(72,1 cm)
27-1/2"
(69,9 cm)
27-1/2"
(69,9 cm)
RDx3
