Base Building +1 Extender
12' x 16' Base Building 12' x 12'
CLASSIC 12' x 12' (365,8 x 365,8 cm)
ASSEMBLY MANUAL
VALUE SERIES
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 10.
• CHECK ALL PARTS
Inventory all parts listed on pages 5-8.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See pages 3-4 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-877-743-3400 email: [e-mail]
KEEP THIS MANUAL FOR FUTURE REFERENCE
BUILDING SIZE ACTUAL FLOOR SIZE
12' x 12' (365,8 x 365,8 cm)
BASE MODEL 12' x 16' (365,8 x 487,7 cm)+1: 12' x 4' Extender 12' x 12' (365,8 x 365,8 cm)
12' x 20' (365,8 x 609,6 cm)
12' x 16' (365,8 x 487,7 cm)
12' x 24' (365,8 x 731,5 cm)
12' x 20' (365,8 x 609,6 cm)
12' x 24' (365,8 x 731,5 cm)
+1: 12' x 8' Extender
+1: 12' x 8' and +1: 12' x 4' Extender
01/18/202216917

2
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑ Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Sawsall
TOOLS

3
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 10 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x3
x4
x5
x6
x12
x16
x20
x24
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
3" (7,6 cm) hot-dipped galvanized nails
3" (7,6 cm) hot-dipped galvanized nails
12x16'
12x20'
12x24'
12x12'
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing

NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
12x12'
12x20'
12x16'
12x24'
4
ADDITIONAL MATERIALS
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles).........
PAINT FOR SIDING (Gallons).......
Use 100% acrylic latex exterior paint.

For shingles.
Paint for trim/Quart
Use 100% acrylic latex
exterior paint.
Caulk Tubes ...........
Use acrylic paintable
latex exterior caulk.
7
3
4
12x12'
2
4
12x12'
(2) coats recommended.
Drip Edge (Feet).................................


For roong felt.
2" (5,1 cm)
2" (5,1 cm)
2" (5,1 cm)
2" (5,1 cm)
x2
x2
x2
x3
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x5
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x8
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x6
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
x9
FLOOR PANELS (Not Included)


9
3
5
12x16'
2
5
12x16'
11
4
6
12x20'
3
6
12x20'
13
4
7
12x24'
3
7
12x24'
60
1
199
12x12'
70
264
12x16'
1.5
80
329
12x20'
2
90
399
12x24'
2.5

5
RAFTERSDOORS TRIM WALL
3/4"
(1,9 cm)
x5 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16" x 3-1/4" x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x4 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x23 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x4 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x6 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x1 2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
2 x 4 x 44-3/8" (5,1 x 10,2 x 112,7 cm)
HVC
x4
2 x 4 x 18-1/8" (5,1 x 10,2 x 46 cm)
x4 AF
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
Used as a gauge block for
3/4" (1,9 cm) measurement.
x1 GAA
PARTS IDENTIFICATION AND SIZES
Double letter part identication
is stamped on some parts.
• Check these locations for part stamp.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
RS

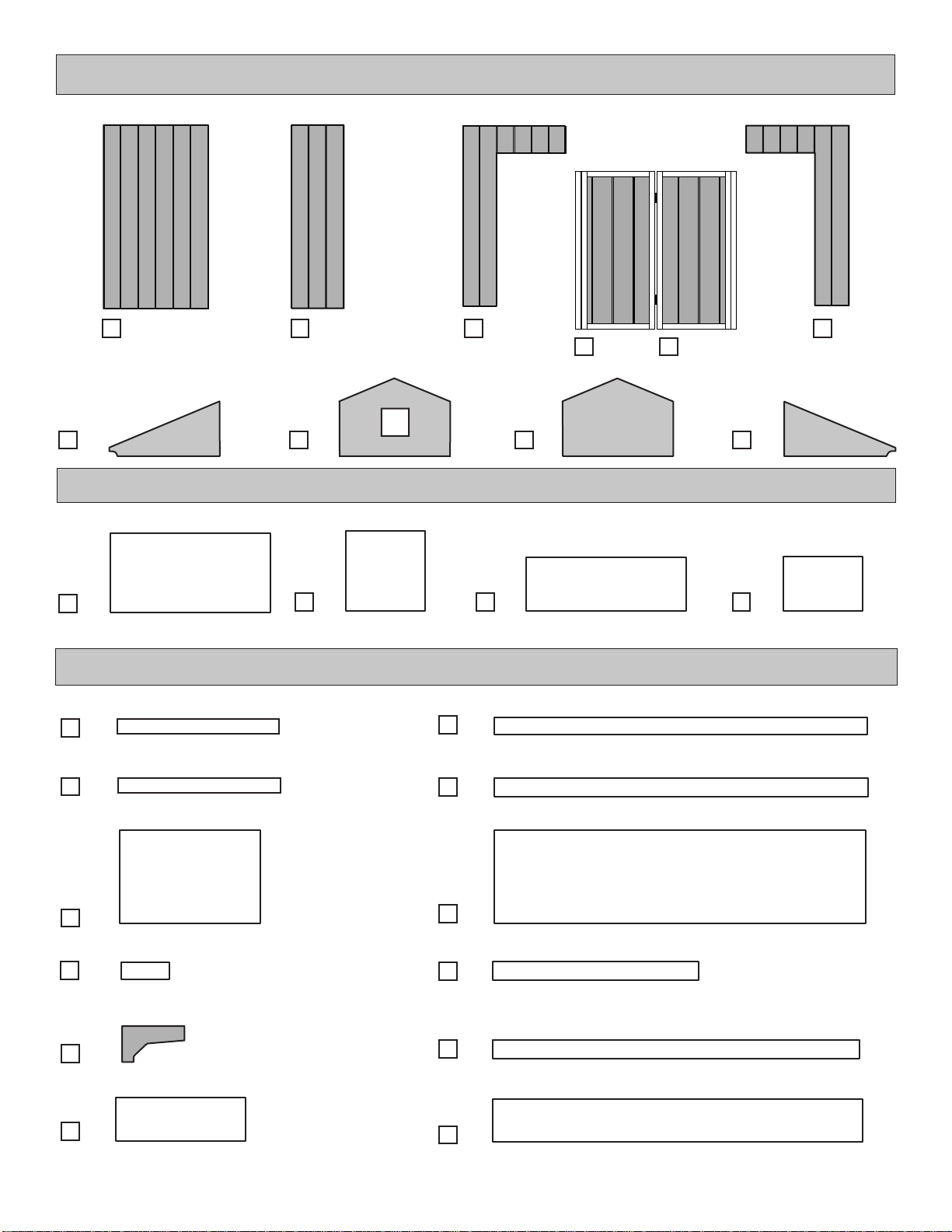

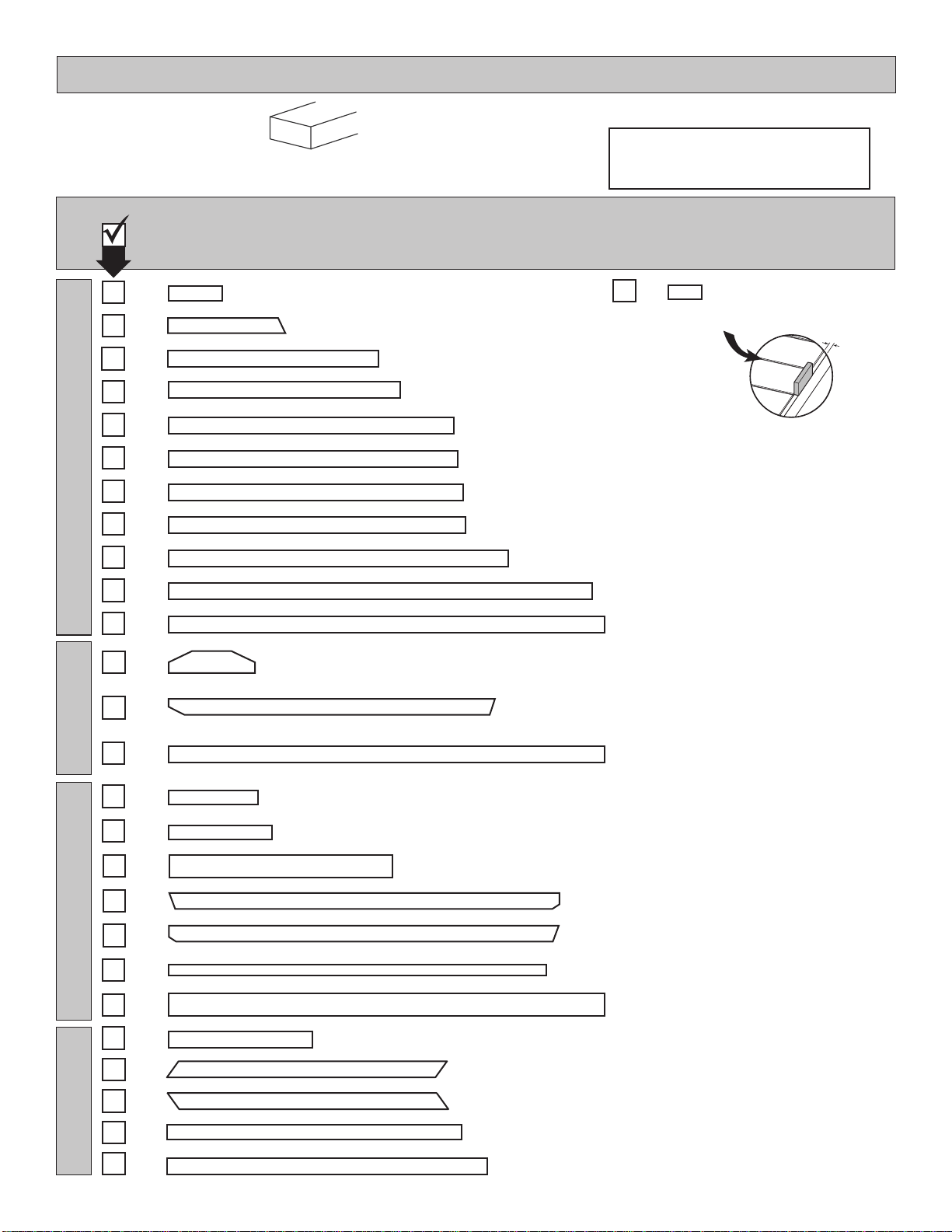

GABLE 12' x 12' PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
12x12'
AHR
x1 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm)
ZJ
x1 19/32" x 2-1/2" x 72" (1,5 x 6,3 x 182,9 cm)
OO
x2 69" (175,3 cm) Door Stiffener
AHL
x1 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm)
6 x 24" (15,2 x 61 cm)
x12
AH
x2 19/32" x 2-1/2" x 26-5/8" (1,5 x 6,3 x 67,7 cm)
DI
x2 19/32" x 2-1/2" x 12" (1,6 x 7,6 x 30,5 cm)
EU
x2 19/32" x 2-1/2" x 17" (1,6 x 7,6 x 43,2 cm)
3/8" x 1-3/4" x 83-1/2" (1 x 4,5 x 212,1 cm)
x8
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x6 SP
x14 2 x 4 x 77-15/16" (5,1 x 10,2 x 198 cm)
ADA
x2 2 x 6 x 49-3/4" (5,1 x 15,2 x 126,4 cm)
WTC
x2 2 x 6 x 96" (5,1 x 15,3 x 243,9 cm)
VX
19/32" x 3-1/2" x 84-15/16" (1,5 x 8,9 x 215,7 cm)
x2 CQR
x2 CQL 19/32" x 3-1/2" x 84-15/16" (1,5 x 8,9 x 215,7 cm)

6

x2x9 x1 x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm) 3/8 x 23-7/8 x 84" (1 x 60,6 x 213,4 cm)
Roof panels are 7/16" (1,1 cm) thick.
PANEL & DOORS PARTS LIST
x1 x1
ROOF PANELS
x2 x1 x1 x2
x2 48" x 96"
(121,9 x 243,8 cm)
x2 36-1/2" x 96"
(92,7 x 243,8 cm)
x2 47-7/8" x 48"
(121,6 x 121,9 cm)
x2 36-1/2" x 47-7/8"
(92,7 x 121,6 cm)
Loft and shalf panels are 7/16" (1,1 cm) thick.
x1 23-7/8" x 40-7/8" (60,6 x 103,8 cm)
LOFT & SHELF PARTS LIST
x1 23-7/8" x 96" (60,6 x 243,8 cm)
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
x1 PT
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 TP
2 x 3 x 48"
(5,1 x 7,6 x 121,9 cm)
x1 NK
2 x 4 x 48"
(5,1 x 10,2 x 121,9 cm)
x2 SP
3/8 x 8 x 12-1/2"
(1 x 20,3 x 32 cm)
x14
7/16 x 11-7/8 x 48"
(1,1 x 30,2 x 121,9 cm)
x2 7/16 x 11-7/8 x 96"
(1,1 x 30,2 x 243,9 cm)
x2
2 x 3 x 10"
(5,1 x 7,6 x 25,4 cm)
x14 AC 1 x 4 x 48"
(2,5 x 10,2 x 121,9 cm)
x2 WJ
1 x 4 x 96"
(2,5 x 10,2 x 243,9 cm)
x2 KP

7
1-1/4" (3,2 cm)
x155
x90
x25
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
x70
x85
2" (5,1 cm)
1/2" (1,3 cm)
x12
3/4" (1,9 cm)
x12

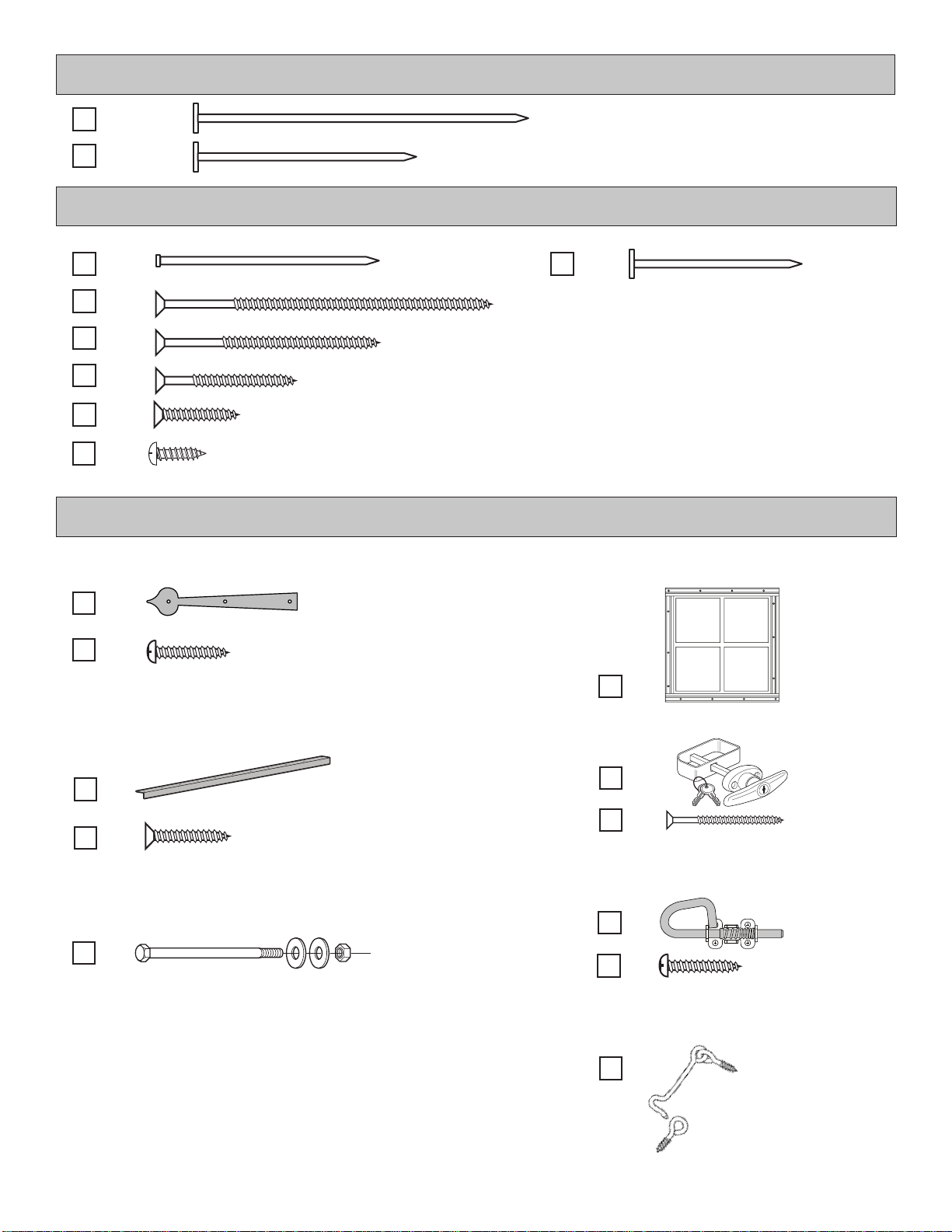

FASTENER/HARDWARE BAG (Shown Actual Size)
NAIL BOXES (Shown Actual Size)
3" (7,6 cm)
2" (5,1 cm)
x6 BOXES
x6 BOXES
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
1-1/2" (3,8 cm)
x85
x4
3/8" LOFT HDW. SET:
5-1/2" Hex bolt,
2 at washers, lock nut
x2
Other HARDWARE (Not Actual Size)
3/4" (1,9 cm)
x8
x1
1-1/2" (3,8 cm)
x2
x1
x2
x2
64"Metal Threshold
x1
Window
3/4" (1,9 cm)
x11 Bagged separately/
special coating

8
12' x 4' EXTENDER
12' x 8' EXTENDER
GABLE EXTENDER KIT PARTS LIST
Inventory your parts before you begin.
We suggest sorting parts by the category they are listed in.

is stamped on some parts.
• Check these locations for part stamp.
RS RS
Roof panels are 7/16" (1,1 cm) thick.
Roof panels are 7/16" (1,1 cm) thick.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
WALLWALL RAFTERSRAFTERS ROOF PANELSROOF PANELS
HARDWARE HARDWARE
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x6
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x4
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x8
x4
x8
2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x2
2 x 4 x 96" (5,1 x 10,2 x 243,9 cm)
TP
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x4
7/16" x 47-7/8" x 48"
(1,1 x 6 x 121,9 cm)
x2
7/16" x 48" x 96"
(1,1 x 121,9 x 243,9 cm)
x2
7/16" x 36-1/2" x 96"
(1,1 x 92,7 x 243,9 cm)
x2
7/16" x 36-1/2" x 47-7/8"
(1,1 x 92,7 x 121,6 cm)
x2
x4 2 x 4 x 77-15/16" (5,1 x 10,2 x 198 cm)
ADA
x8 2 x 4 x 77-15/16" (5,1 x 10,2 x 198 cm)
ADA
x2 2 x 6 x 48" (5,1 x 15,2 x 121,9 cm)
VF
x2 2 x 6 x 96" (5,1 x 15,3 x 243,9 cm)
VX
x24 1-1/4" (3,2 cm)
x12 1-1/4" (3,2 cm)
3" (7,6 cm)
x20
3" (7,6 cm)
x12

9
CONCRETE FOUNDATION

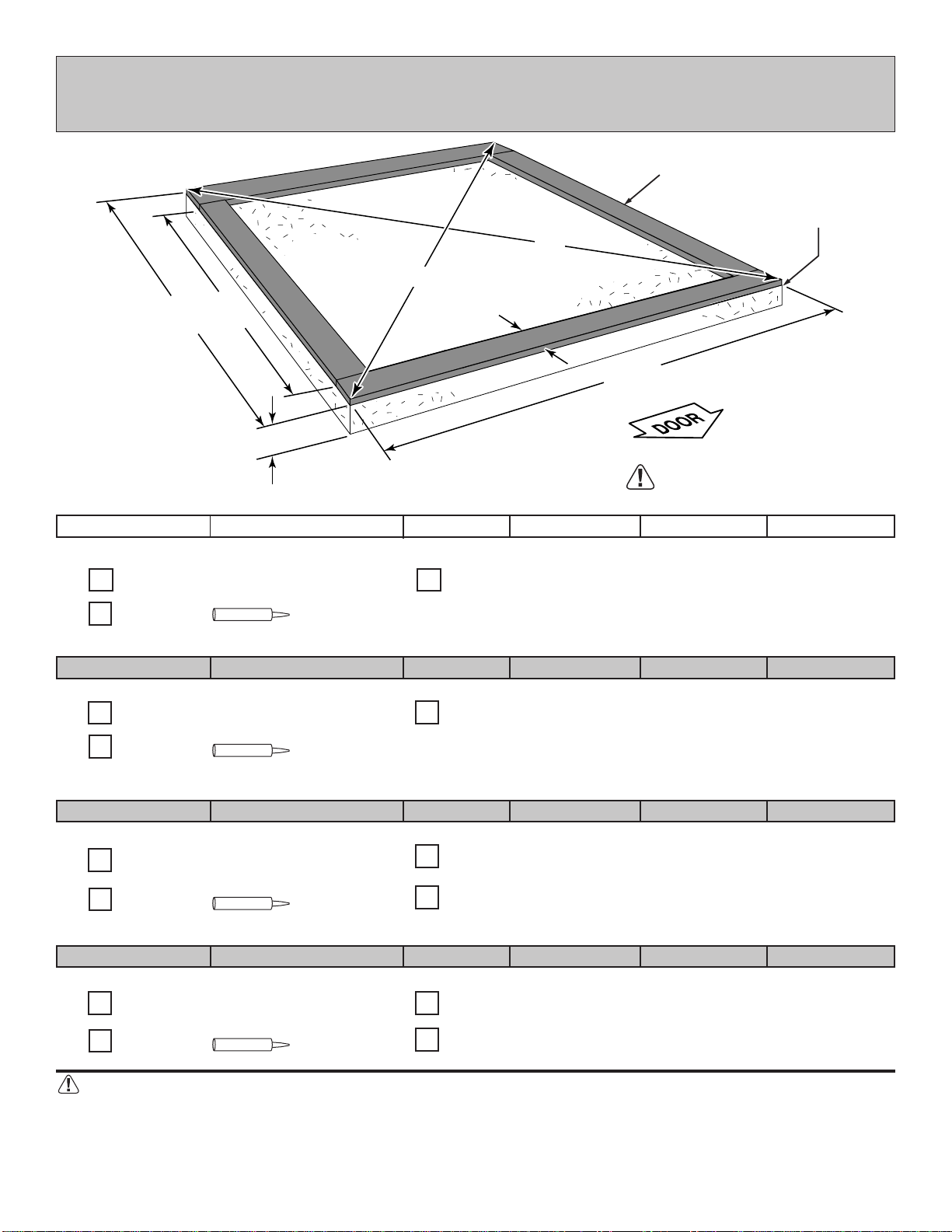

If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 14.
ABC D
Actual Floor SizeBuilding Size
 
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.

• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).

144" (365,8 cm)
144" (365,8 cm)
144" (365,8 cm)
144" (365,8 cm)
137" (348 cm)
185" (469,9 cm)
233" (591,8 cm)
281" (713,7 cm)
12'x12' (365,8 x 365,8 cm)
12'x16' (304,8 x 487,7 cm)
12'x20' (304,8 x 609,6 cm)
12'x24' (304,8 x 731,5 cm)
12'x12' (365,8 x 365,8 cm)
12'x16' (304,8 x 487,7 cm)
12'x20' (304,8 x 609,6 cm)
12'x24' (304,8 x 731,5 cm)
144" (365,8 cm) 203-5/8" (612,3 cm)
192" (487,7 cm)
240" (609,6 cm)
288" (619,8 cm)
240" (609,6 cm)
279-7/8" (710,6 cm)
322" (817,9 cm)




2 x 4 x 12' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) x2
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm)
x2
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm)
x2
2 x 4 x 12' (5,1 x 10,2 x 304,8 cm)
x2
2 x 4 x 16' (5,1 x 10,2 x 426,7 cm)
x2
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
x1
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
x2
2 x 4 x 16' (5,1 x 10,2 x 426,7 cm)
x2
2 x 4 x 16' (5,1 x 10,2 x 426,7 cm)
x2
Caulk
Caulk
Caulk
Caulk
x1
x1
x1
x2
Allow new concrete slabs to cure for at least seven (7) days.
A
A
A
B
B
B
C
C
C
D
D
D
Actual Floor Size
Actual Floor Size
Actual Floor Size
Building Size
Building Size
Building Size
Cut down to: 137" (348 cm)
Cut down to: 185" (469,9 cm)
Cut (2): 48" (121,9 cm)
Cut (2): 89" (226,1 cm)
A
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D
CB
D
D
Treated Sill Plate
Caulk between
sill plate and
concrete.
Sill plates must be treated lumber.
A

10
• 3" Screws angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Runners are generally 12" (30,5 cm) from

FLOOR FRAME NOT INCLUDED
OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 12' x 12' Kit)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
MATERIAL REQUIRED: [TREATED LUMBER]
4 x 4 x 12' (10,2 x 10,2 x 304,8 cm)
.................................................................................................
.................................................................................................
.................................................................................................
.................................................................................................
(3) 4 x 4 x 16' (10,2 x 10,2 x 487,7 cm) and:
(3) 4 x 4 x 16' (10,2 x 10,2 x 487,7 cm) and:
(1) 4 x 4 x 12' (10,2 x 10,2 x 144 cm) cut to (3) 48" (121,9 cm)
(3) 4 x 4 x 8' (10,2 x 10,2 x 243,8 cm)
4 x 4 x 16' (10,2 x 10,2 x 487,7 cm)
x3
x3
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
12' x 12'
12' x 20'
12' x 16'
12' x 24'
Fasteners for Frame to 4x4:
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
Measurements to
centers of 4x4's.
8" Block
4" Block
Gravel
Gravel Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
12"
(30,5 cm)
12"
(30,5 cm)
3" (7,6 cm)
3" (7,6 cm)
3" (7,6 cm)
3" (7,6 cm)
x60
x78
x96
x114

11
SHED SIZE
Measurements to
centers of 4x4's.
4x4 runners are generally installed 12" (30,5 cm) from ends of oor frame and under any seams.
FINISH
Your oor frame is now level.
Second, secure at ends with
one fastener.
First, secure at ends with
one fastener.
Fig. A
203-5/8"
(612,3 cm)
203-5/8"
(612,3 cm)
203-5/8"
(612,3 cm)
240"
(609,6 cm)
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
After the frame is level and square, secure one side of frame to 4x4 runners using
one fastener at ends of each runner.
At the opposite end of the frame, secure the frame to 4x4 runners with one
fastener at the ends of each runner, ensuring that the frame remains square.
Fasten the frame to the 4x4 runners with (2) 3" screws at each connection (Fig. A).
2
BEGIN
1
Use a level and ensure the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across the corners (diagonal measurement D).
If the measurements are the same, the frame is square. Use the chart below to determine measurement D.

LEVELING & SQUARING THE FLOOR FRAME (Not Included)
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
12"
(30,5 cm)
12"
(30,5 cm)
12' x 12'
12' x 16'
12' x 20'
12' x 24'
279-7/8"
(710,9 cm)
322"
(817,9 cm)
NOTE:
12' x 12' oor shown as an example.
D
D
D

12
IMPORTANT!
IMPORTANT!


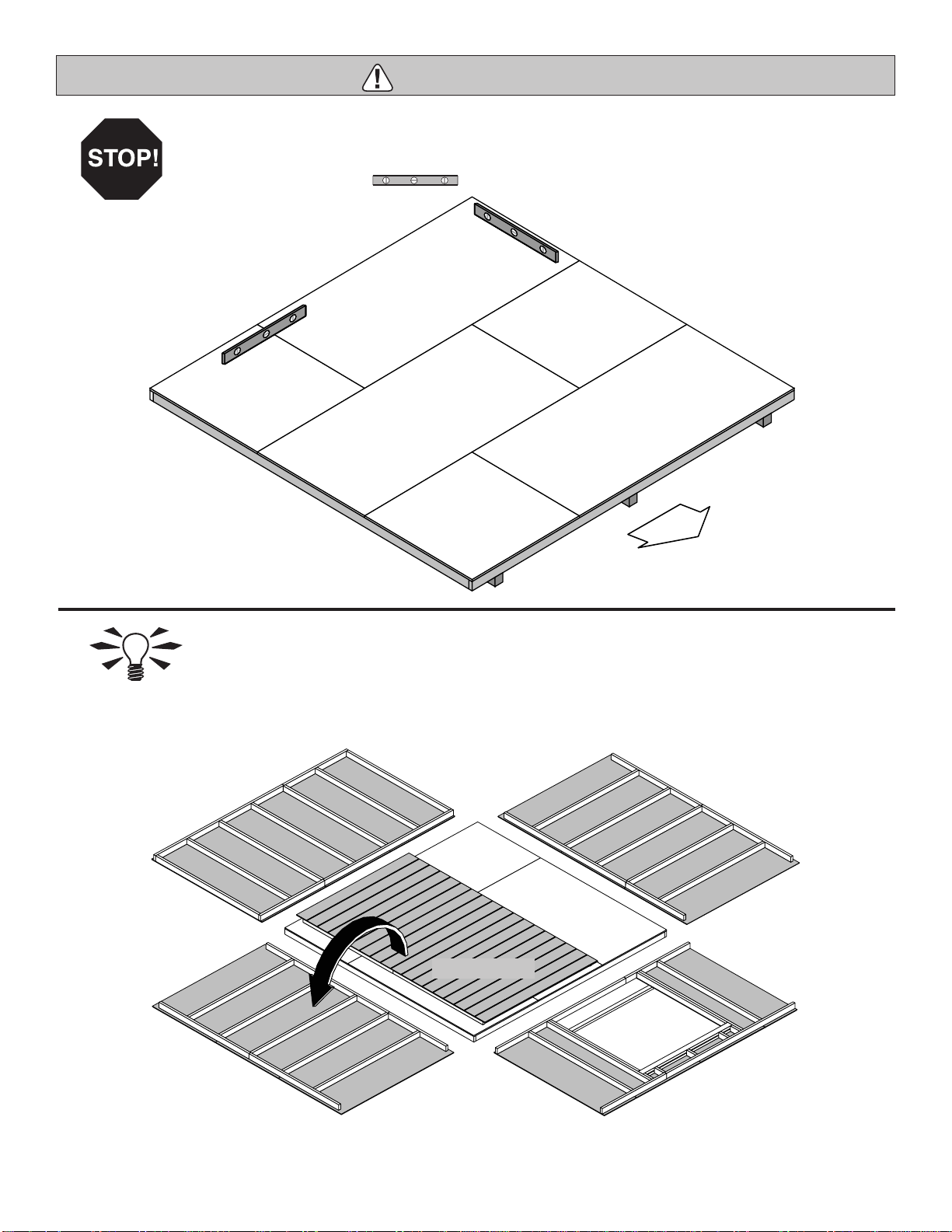

• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
DOOR
EAVE WALL
EAVE WALL
EAVE WALL
GABLE WALL
GABLE WALL
NOTE: 12' x 12' Gable shown standard throughout manual


13

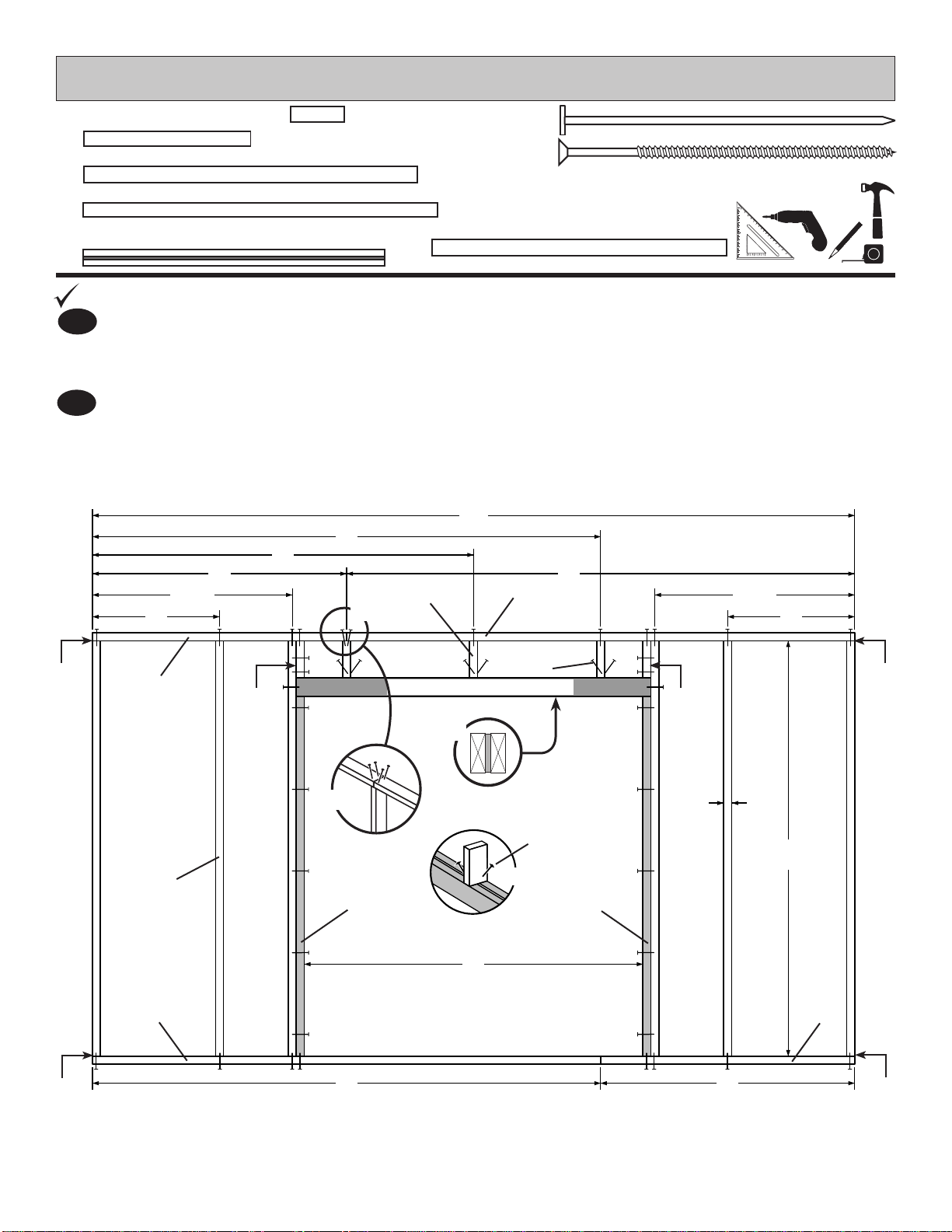

IMPORTANT! Build door header before building any walls (see page 14).
12' x 12'
After assembling the walls for your 12' x 12' shed,
go to page 28 for wall installation.
12' x 20'
After assembling the walls for your 12' x 20' shed,
go to page 39 for wall installation.
12' x 16'
After assembling the walls for your 12' x 16' shed,
go to page 33 for wall installation.
12' x 24'
After assembling the walls for your 12' x 24' shed,
go to page 45 for wall installation.
12' x 12'
Wall 01: Page 16
Wall 02: Page 18
Wall 03: Page 20 (Build 2 eave walls)
12' x 20'
Wall 01: Page 16
Wall 02: Page 18
Wall 05: Page 24 (Build 2 eave walls)
12' x 16'
Wall 01: Page 16
Wall 02: Page 18
Wall 04: Page 22 (Build 2 eave walls)
12' x 24'
Wall 01: Page 16
Wall 02: Page 18
Wall 06: Page 26 (Build 2 eave walls)

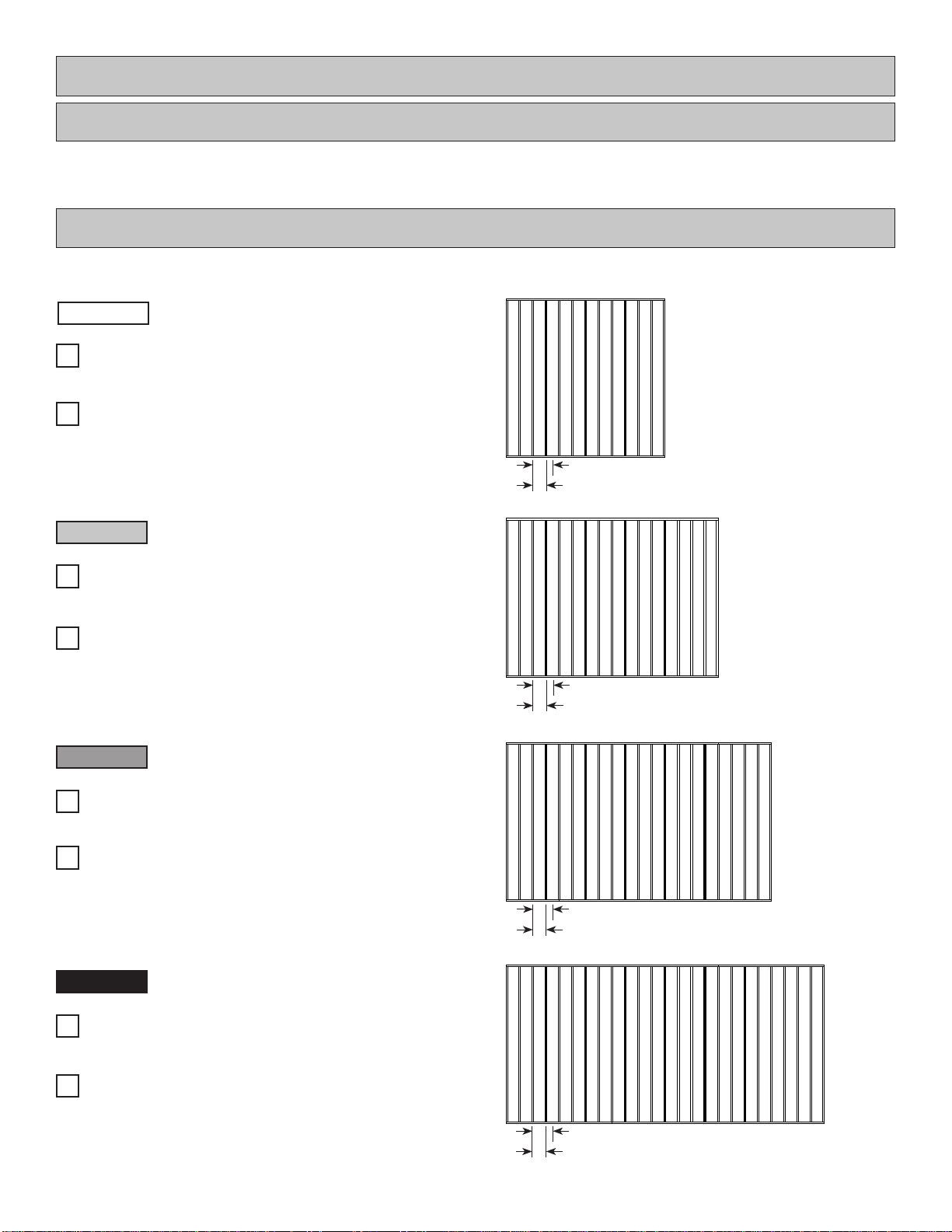

WALL INDEX
01
01
01
01
02
02
02
03
05
04
06
03
05
04
06
02

14
PARTS REQUIRED: 3" (7,6 cm)

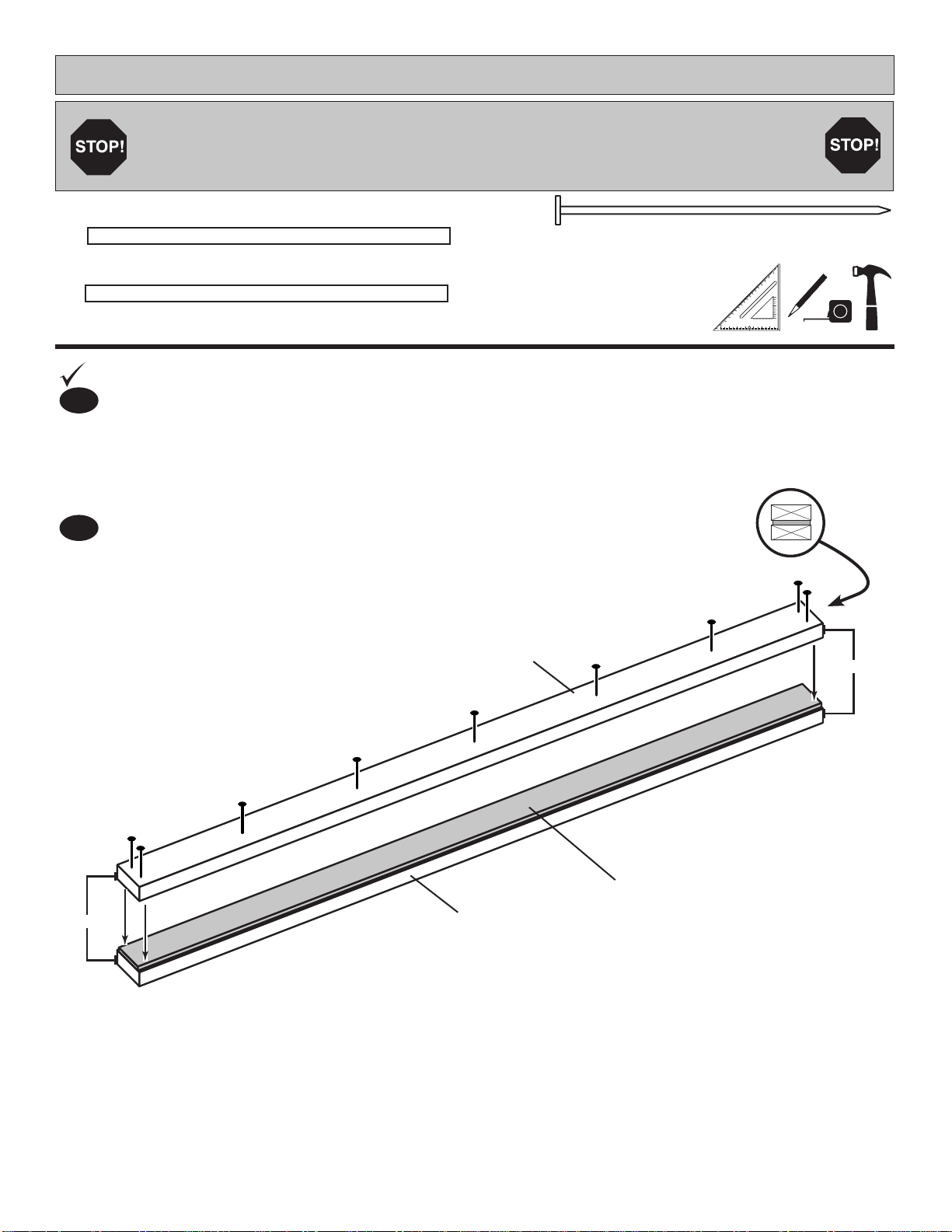

DOOR HEADER
x18
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1 7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
Place (1) AM and OSB end-to-end on at surface, ush in middle.
Center OSB on top of AM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED
END VIEW
BEGIN
1
AM
AM
2Flip header assembly over and nail as shown on the other side.
Flush
Flush
Assemble this door header before building any walls!

15
x40 2" (5,1 cm)
PARTS REQUIRED:
Place a 48" X 84" panel on the wall frame, as shown.
Locate the panel 1-1/2" above the top plate.
Use a 2 x 3 as a gauge block for the 1-1/2" top overhang measurement.
Use the gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Note the panel lip-edge/square edge orientation.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )

measurement along panel edge.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
2x3"
TEMP. SPACER
3/4" GAUGE
BLOCK
GAA
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Angle nail to draw panels
tight at seams.
Install all wall panels with the primed side facing up.
2x3
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
LIP EDGE

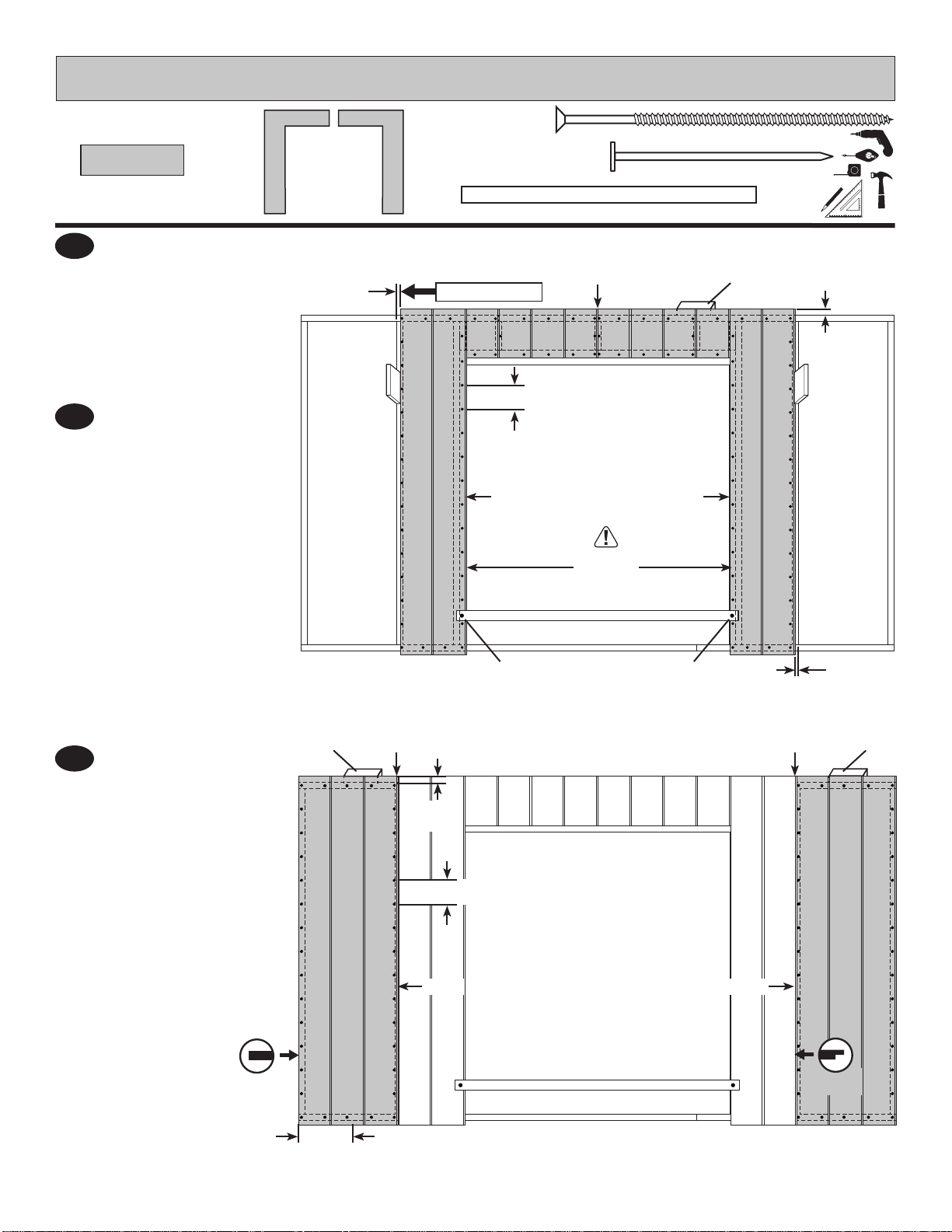

SQUARE
EDGE
Do not nail
in groove.
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails1-1/2" (3,8 cm)
Overlap
Fig. B 3/4"
(1,9 cm)
1-1/2" (3,8 cm)
Overlap
2 Nails
Install 2nd panel

installed panel.
HINTS

16
24" 37-3/4"
48"
48"
72" 96"
96"
24"
37-3/4"
144"
64"
(61 cm)(95,9 cm)
(121,9 cm)
(121,9 cm)
(182,9 cm) (243,8 cm)
(243,8 cm)
(61 cm)
(95,9 cm)
(365,8 cm)
(162,6 cm)
78-1/2"
(199,4 cm)
96"
(243,8 cm)
1-1/2"
(3,8 cm)
Fig. B
3" (7,6 cm)
Screws
Pre-Assembled Header
Install Header in
this position
Fig. A
PARTS REQUIRED: 3" (7,6 cm)

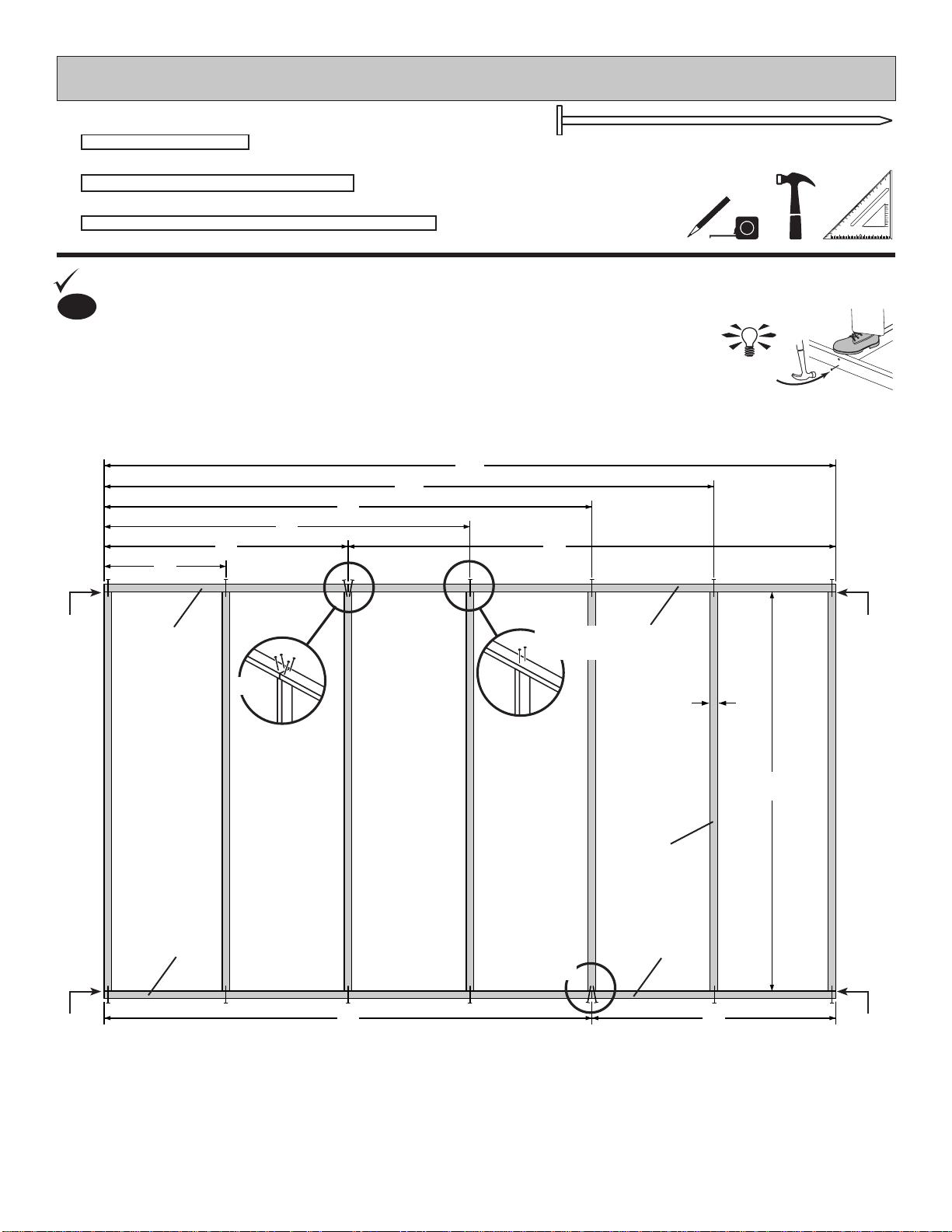

GABLE WALL 01 WITH DOOR
x72
2
1
BEGIN
3" (7,6 cm)
x6
x1 Pre Assembled Header
x5 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
AL
x6 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
TP
UM UM
TP
SP
SP
AI x6
AL x5
Flush
Flush
Flush
Flush Flush
Seam
3" (7,6 cm)
Screws
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Orient Pre Assembled Header as shown (Fig. A).
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
Fasten (3) middle parts AL to Pre Assembled Header with (2) 3" screws (Fig. B).
Fasten (2) end AL to studs AI with (4) 3" nails at each side.
Secure parts AL to top plates with (2) 3" nails at each connection and (4) 3" nails at seam.
Flush
Seam
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM

17
SQUARE
EDGE
Install the left panel 1-1/2"
from the top plate.
Use a 2x3 spacer for
consistent measurement.
Secure panel with 2" nails
spaced 6" apart
on edges.
Install the right panel
ush to installed panel,
as shown.
Ensure 64" (162,8 cm)
door measurement.
Use part OO as a
temporary brace.
Secure with (2) 3"
screws.
Secure panels with 2"
nails spaced 6" apart
on edges.
2x3
2x32x3
PARTS REQUIRED:
GABLE WALL 01 WITH DOOR
2" (5,1 cm)
x166
x1 x1
6" (15,2 cm)
1-1/2"
(3,8 cm)
BEGIN HERE
3/4"
(1,9 cm)
Flush Flush
OO Temporary Brace
3" (7,6 cm)
x2
4
3
64"
(162,6 cm)
3" (7,6 cm)
Screw 3" (7,6 cm) Screw 3/4"
(1,9 cm)
x1 69" (75,3 cm) Door Stiffener
OO Temporary Brace
Install (2) 11-7/8" x 84"
panels ush to installed
panels and 1-1/2" from
the top plate.
Secure panels with 2"
nails spaced 6" apart
on edges.
Note the panel
lip-edge/square edge
orientation. Flush Flush
FlushFlush
5
Your 12' gable wall with
door is now assembled.
Carefully ip the wall over.
FINISH
23-7/8"
(60,6 cm)
SQUARE
EDGE
23-7/8 x 84"
(60,6 x 213,4 cm)
x2
1-1/2"
(3,8 cm)
6" (15,2 cm)
3/4" Gauge
Block 3/4" Gauge
Block
Flush

18
96" 48"
24" 48" 96"
72" 96" 120" 144"
78-1/2"
(243,8 cm) (121,9 cm)
(61 cm) (121,9 cm) (243,8 cm)
(182,9 cm) (243,8 cm) (304,8 cm) (365,8 cm)
(199,4 cm)
1-1/2"
(3,8 cm)
12' GABLE WALL 02
3" (7,6 cm)
PARTS REQUIRED: x32
x7 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
AI x7
SP TP
SP
TP
1
BEGIN
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
HINT:
Flush
Flush
Flush
Flush
Seam
Seam
3" (7,6 cm)
Nails
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
