Heartland VALUE Series User manual

STOP!
STOP!
16806
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-577-9663
or email:
[email protected]
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST

(This page intentionally left blank.)

12/01/2015
KEEP THIS MANUAL FOR FUTURE REFERENCE
ASSEMBLY MANUAL
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
ACTUAL FLOOR SIZE: 8' x 9'- 8-1/2" (243,8 x 295,9 cm)
BELMONT 8' x 10' (244 x 304,8 cm)
VALUE SERIES
16806
A Backyard Products Company
•BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners e building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
•ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 4 for required and optional materials and quantities.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [e-mail]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
Safety Glasses
Tape Measure
Paint Tools
Ladder
Wood Glue
Caulk Gun
Hammer
Level
FINISH
BEGIN
Pencil
Phillips
Screwdriver
Drill / Driver
5/16" Drill Bit
1/8" Drill Bit
#2 Philips Drive Bit
Tool Belt/
Nail Pouch
Chalk Line
Nail Gun
• gun nails
Tin Snips
(for drip edge)
 Square or
Utility Knife
Shingle Blades
B C

3
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
A
BC
4" (10,2 cm)
3-1/2"
(8,9 cm)
DOOR
ABC
Actual Floor SizeBuilding Size
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit
or purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
109-1/2" (278,1 cm)
8' x 9'-8-1/2" (243,8 x 295,9 cm)
8' x 10' (243,8 x 304,8 cm) 96" (243,8 cm) 116-1/2" (295,9 cm)
Treated Sill Plate
Caulk between sill plate
and concrete.
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
2 x 4 x 10' (5,1 x 10,2 x 305 cm)
Requires:
x2
x2
MUST be treated lumber.
MUST be treated lumber.
Caulk
x2
Allow new concrete slabs to cure for at least seven (7) days.
NOTES

OPTIONAL MATERIALS
DRIP EDGE ..................... 50 Feet #15 ROOFING FELT
To cover 93 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
3-TAB SHINGLES ............................. 5 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK .............................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM ...........................2 Quarts
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! (The included oor is designed for general use.) Depending on your specic use you may want to construct a heavy
duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x5
x20
2 x 4 x 8' (5 x 10 x 244 cm) Treated Lumber
Cut to (3) 2 x 4 x 93" (5 x 10 x 236 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing Standard 16" (40,7 cm) spacing
4
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed includes a complete wood oor frame system. It does not include oor panels.
• This shed does not contain any leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x2
5/8" x 20-1/2" x 96"
(1,6 x 52,1 x 243,8 cm)
x1
FLOOR PANELS
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.
2" (5,1 cm)
x1
1 lb. of 2" (5,1 cm) Hot Dipped Galvanized
Box-Type Nails.
ACTUAL FLOOR SIZE: 96"' x 116-1/2" (243,8 x 295,9 cm)

WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)

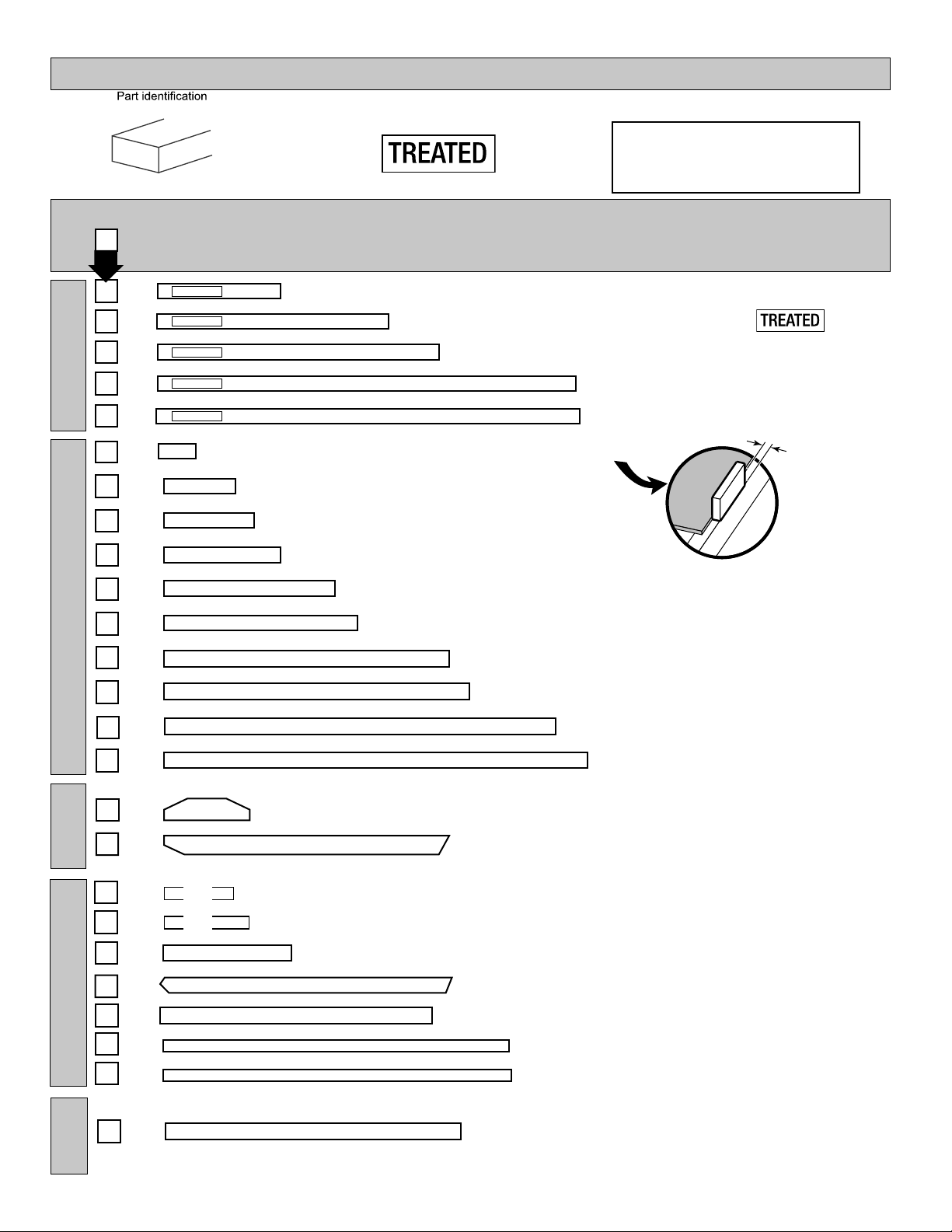

PARTS IDENTIFICATION AND SIZES
RS RS
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
WALLS
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
TRUSS FLOOR
TRIM
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOOR
3/4"
(1,9 cm)
x2 2 x 3 x 17-1/2" (2,5 x 7,6 x 30,2 cm)
BV
x2 2 x 3 x 11-7/8" (2,5 x 7,6 x 30,2 cm)
DQ
x1 2 x 3 x 23-7/8" (2,5 x 7,6 x 60,6 cm)
LW
x2 2 x 3 x 34" (2,5 x 7,6 x 86,4 cm)
CI
2 x 3 x 46-1/4" (2,5 x 7,6 x 117,5 cm)
NH
x4
FZ
x13 2 x 3 x 66-1/2" (2,5 x 7,6 x 168,9 cm)
OZ
x4 2 x 3 x 70-1/4" (2,5 x 7,6 x 178,4 cm)
x1 PS 2 x 3 x 91" (2,5 x 7,6 x 231,1 cm)
x2 PT 2 x 3 x 96" (2,5 x 7,6 x 243,8 cm)
WI 2 x 3 x 54-1/16" (2,5 x 10,2 x 129,8 cm)
x8
3/8 x 1-3/4 x 71-3/4" (1 x 4,4 x 182,2 cm)
x4
TREATED
x1 2 x 4 x 92-1/2" (2,5 x 10,2 x 235 cm)
5
TREATED
x1 2 x 4 x 24" (2,5 x 10,2 x 61 cm)
TREATED
x1 2 x 4 x 48" (2,5 x 10,2 x 122 cm)
TREATED
x1 2 x 4 x 68-1/2" (2,5 x 10,2 x 174 cm)
TREATED
x6 2 x 4 x 93" (2,5 x 10,2 x 236,2 cm)
Treated lumber is stamped:
OO
x2 1-1/4 x 2-1/2 x 69" (3,2 x 7,6 x 175,3 cm)
19/32 x 2-1/2 x 23" (1,5 x 6,3 x 58,4 cm)
x2 GI
WX 2 x 3 x 55-3/4" (2,5 x 10,2 x 141,6 cm)
x4
3/8 x 1-3/4 x 71-1/4" (1 x 4,4 x 181 cm)
x4
WR
x1 19/32 x 3 x 63" (1,5 x 7,6 x 160 cm)
x8 6 x 24" (15,2 x 61 cm)
x2 1 x 2 x 11" (2,5 x 5,1 x 27,9 cm)
WQ
x2 1 x 2 x 14" (2,5 x 5,1 x 35,6 cm)
WO

x1 BOXES x3 BOXES
x64
x70
x12
x70
x51
x42
x8
x12
NAIL BOXES
FASTENER/HARDWARE BAG
DOOR HARDWARE / WINDOW / VENT
ROOF PANELS
NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
Roof panels are 7/16" (1,1 cm) thick.
7/16 x 23-7/8 x 55-7/8"
(1,1 x 60,6 x 141,9 cm)
x2
7/16 x 7-7/8 x 96"
(1,1 x 20 x 243,8 cm)
x2
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
1-1/4" (3,2 cm)
1" (2,5 cm)
1/2" (1,3 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm) 2" (5,1 cm)
1-1/2" (3,8 cm)
x8
Bagged seperately / For Window
NOTE POINT
1-5/8" (4,1 cm)
6
x1 56" Metal Threshold
3/4" (1,9 cm) x18
Bagged seperately / special coating
x1 x1
3/4" (1,9 cm)
x7

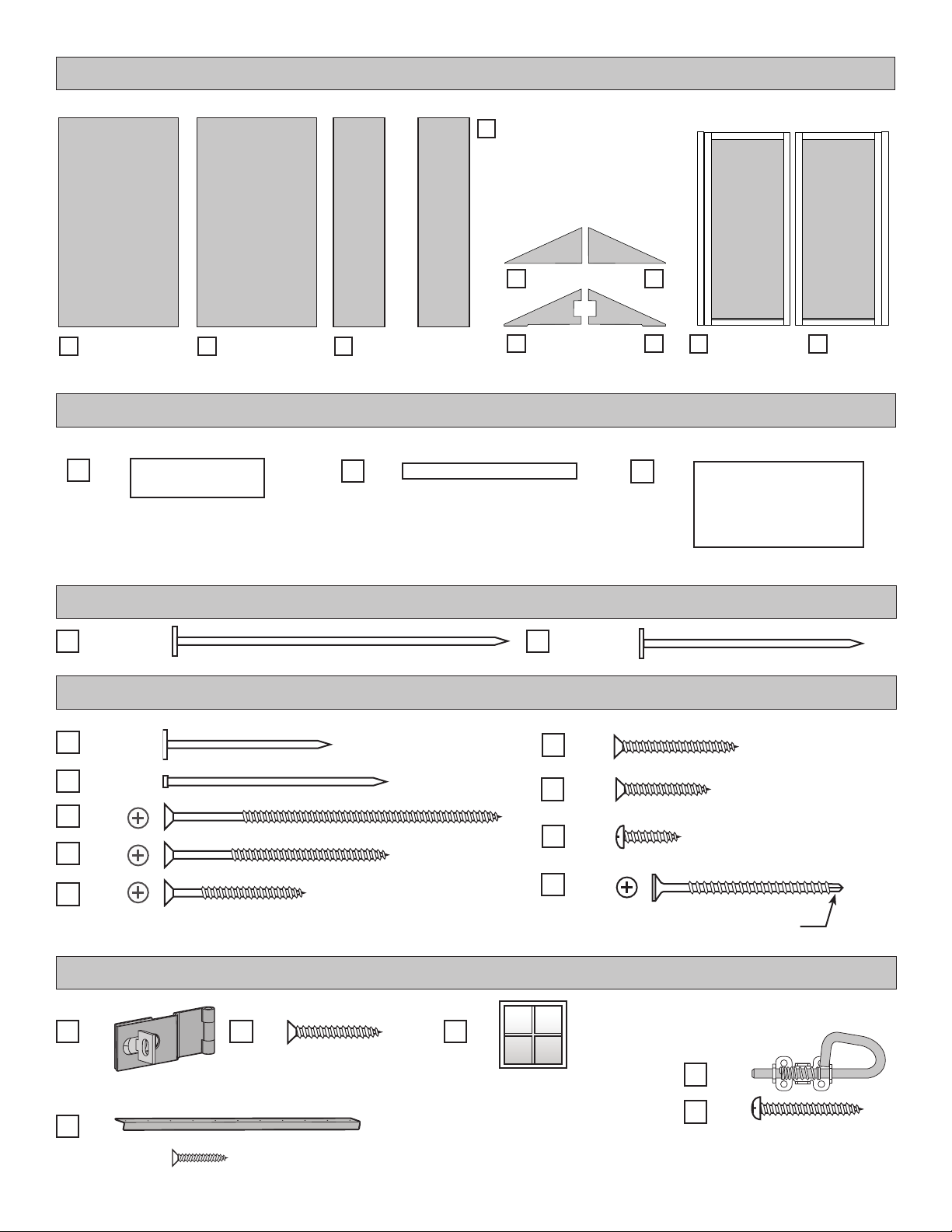

WALL PANELS & DOORS
x2
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x4
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 20 x 72"
(1 x 50,8 x 182,9 cm)
x2
3/8 x 23-7/8 x 72"
(1 x 60,6 x 182,9 cm)
x1 x1
x1 x1 x1
LEFT DOOR
x2
RIGHT DOOR
D-Bolt
x2
1" (2,5 cm)
x8
(4 screws in each package)

7

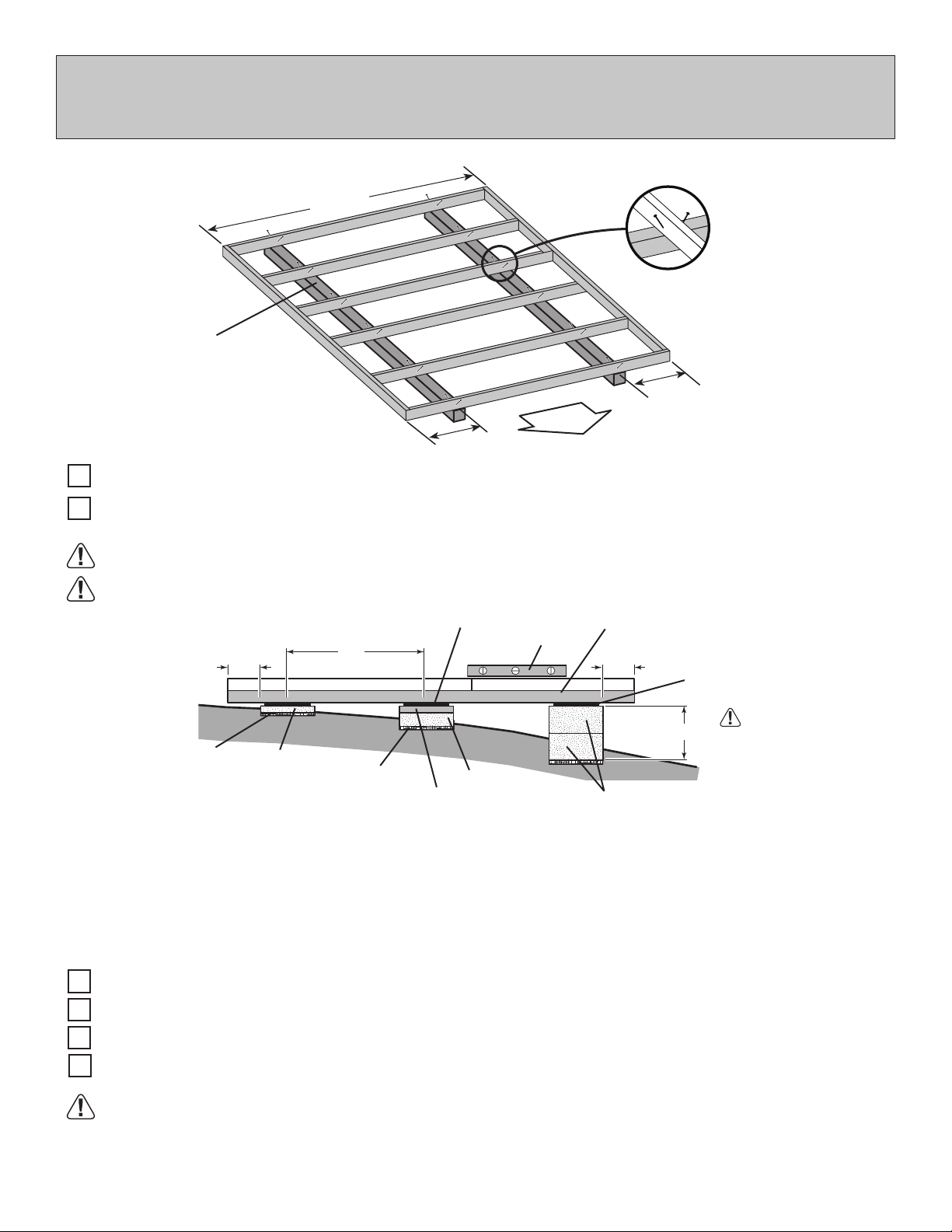

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame
and 4x4 touch.
4x4 Runners
(not included).
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4" x 4" x 10' (10,2 x 10,2 x 304,8 cm) Treated Lumber
Fasteners for Frame to 4"x 4".
(3" Screws shown as one option.) Minimum (24) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
4" Block
8" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
DOOR
12"
(30,5 cm)
12"
(30,5 cm)
96"
(243,8 cm)

PARTS REQUIRED:
NOTE:
Look for Stamp.
STANDARD FLOOR FRAME
3" (7,6 cm)
x6 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
TREATED
x1 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
TREATED
x1 2 x 4 x 48" (5,1 x 10,2 x 122 cm)
TREATED
x1 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
TREATED
x1 2 x 4 x 24" (5,1 x 10,2 x 61 cm)
TREATED
96"
(243,8 cm)
92-1/2"
(235 cm)
20-1/2"
(52,1 cm)
93"
(236,2 cm)
44-1/2"
(122 cm)
24"
(61 cm)
68-1/2"
(174 cm) 48"
(121,9 cm)
92-1/2"
(182,9 cm)
116-1/2"
(295,9 cm)
Flush
at ends.
x60
HINT:
For easier nailing
stand on frame.
• FOR 10' x 12', SKIP TO PAGE 16
Center
on marks.
Center
on marks.
You have  nished your  oor frame. Proceed to level and square frame.
BEGIN
1Orient parts as shown on  at surface. Measure and mark each
dimension from end of boards
2Use two 3" nails at each mark
FINISH
3
TOENAILING
1-1/2"
(3,8 cm)
Two nails at each
location.
8
DOOR

First, secure at ends
with one fastener.
Second, secure at ends
with one fastener.
150-15/16"
(383,4 cm)
150-15/16"
(383,4 cm)
Fig. A
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
FINISH
5
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 150-15/16" (383,4 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener
at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners.
See page 7 for the preferred  oor leveling method.
9

Move to the opposite side. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame (Fig. B).
Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Ensure your oor frame is square by installing one panel
and squaring frame.
Fig. A
Fig. B
Fig. C
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 150-15/16" (383,4 cm) (Fig. C).
PARTS REQUIRED:
x1 5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
12"
(30,2 cm)
6"
(15,2 cm)
x55 2" (5,1 cm)
Grid lines up
Flush
Flush
Flush
(2) Nails
(2) Nails
FLOOR PANELS (NOT INCLUDED)
3/4"
(1,9 cm)
150-15/16"
(383,4 cm)
150-15/16"
(383,4 cm)

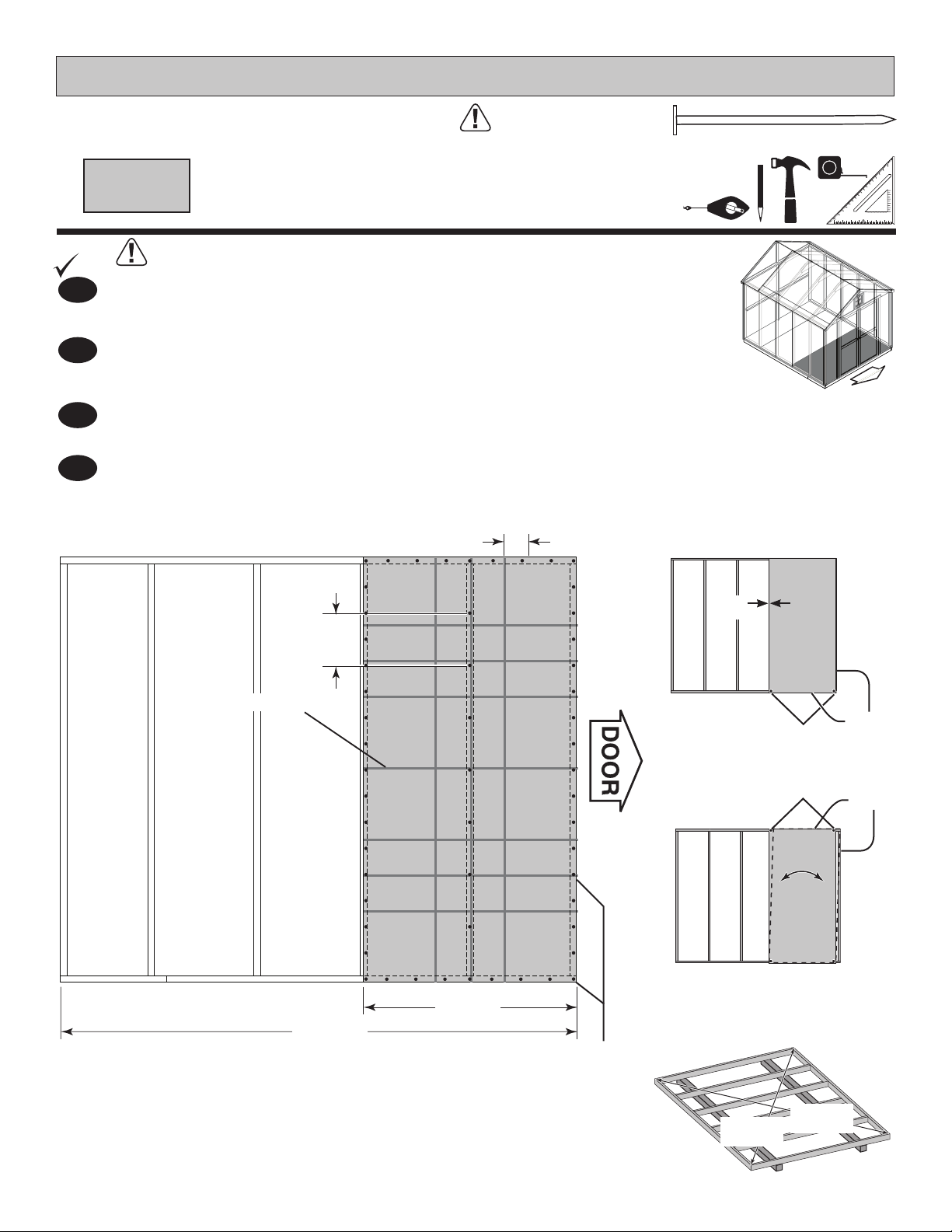

Attach the 48 x 96" panel with the rough side up (painted-grid lines side) with the 48"
edge and corner ush to the oor frame (Fig A). Secure panel with two 2" nails in the
corners.
48"
(122 cm)
116 -1/ 2 "
(295,9 cm)
Floor Panels are not included.
See Page 4 for panel sizes
and quantities.
10
DOOR

FLOOR PANELS (NOT INCLUDED)
PARTS REQUIRED:
FINISH
7You have  nished attaching your  oor panels.
Continue installing panels with rough side up (painted grid lines).
Use grid lines on panel for 2" nails 6" apart on edges, and 12" apart inside panels.
5
7
6
x1 x1
5/8 x 48 x 96"
(1,6 x 129,1 x 243,8 cm)
5/8 x 20-1/2 x 96"
(1,6 x 52,11 x 243,8 cm)
Grid lines up
x93 2" (5,1 cm)
Flush
FlushFlush
Flush
11
12"
(30,2 cm)
6"
(15,2 cm)
48"
(122 cm)
20 -1/2"
(52,1 c m)
DOOR

12
IMPORTANT!
Check the oor frame is level after installing oor panels. Re-level if needed.
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
IMPORTANT!
DOOR
SIDE WALL
SIDE WALL
FRONT WALL
BACK WALL
DOOR

PARTS REQUIRED:
HINT:
Center on
marks.
OZ NH
OZ
NH
FZ x5
46-1/4"
(117, 5 c m)
46-1/4"
(117, 5 c m)
22-1/4"
(56,5 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
94-1/4"
(239,4 cm)
70-1/4"
(178,4 cm)
70-1/4"
(178,4 cm)
70-1/4"
(178,4 cm)
116 -1/ 2 "
(295,9 cm)
66-1/2"
(168,9 cm)
1
BEGIN
2
Orient parts on edge on  oor. Measure and mark from end of boards.
IMPORTANT! You will build two walls the same.
Use two 3" nails at each mark.
You have  nished building one side wall frame. Proceed to attach wall panels.
EAVE WALL FRAMING
3" (7,6 cm)
FINISH
3
3" (7,6 cm)
Nails
x56
TOENAILING
13
x12 FZ 2 x 3 x 66-1/2" (5,1 x 7,6 x 168,9 cm
2 x 3 x 70-1/4" (5,1 x 7,6 x 178,4 cm)
x4 OZ
2 x 3 x 46-1/4" (5,1 x 7,6 x 117,5 cm)
NH
x4
DOOR

2" (5,1 cm)
PARTS REQUIRED:
3/4"
GAUGE BLOCK
GAA

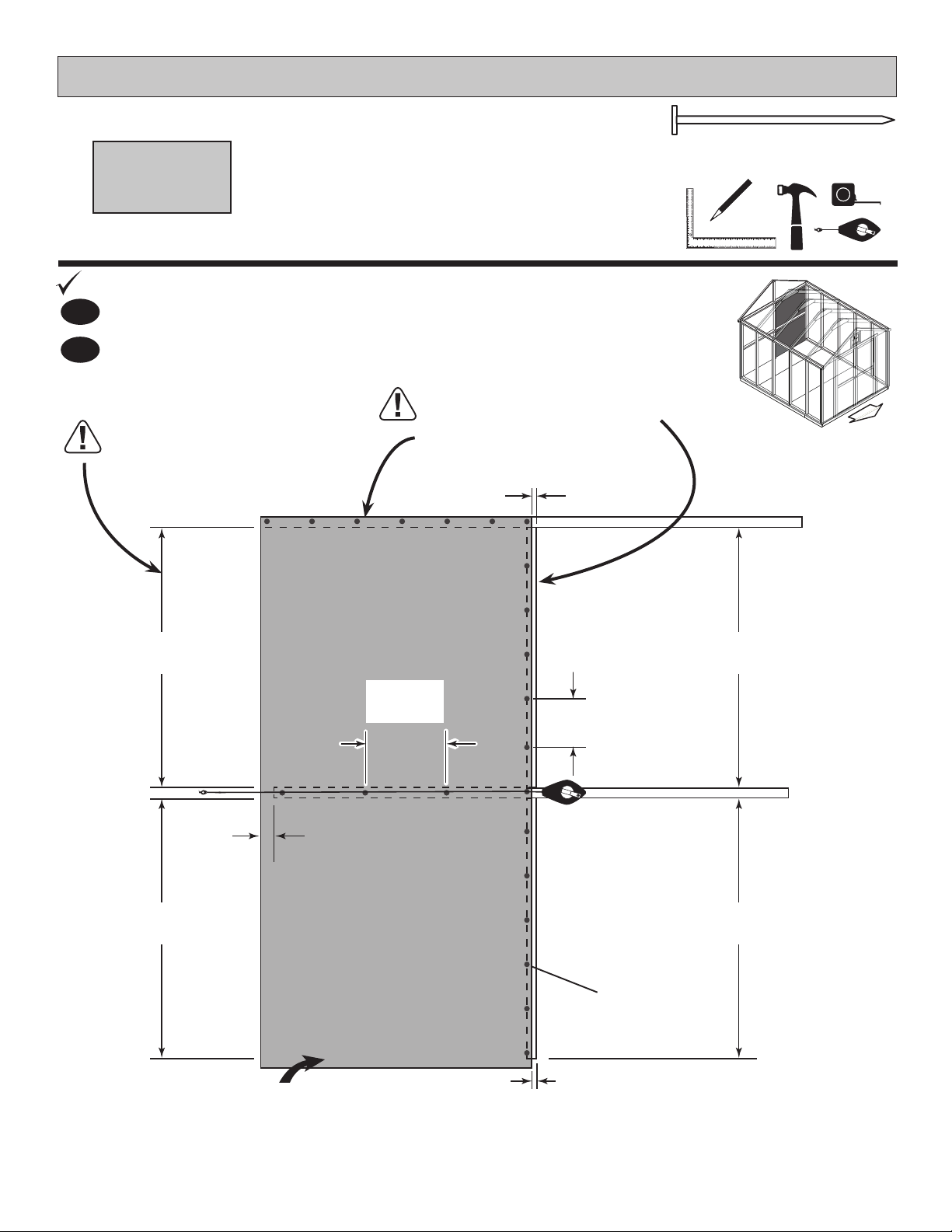

EAVE WALL PANELS
3/8 x 46-1/8 x 72" (1 x 117,2 x 182,8 cm)
x2
x45
Place a 46-1/8 x 72" panel onto wall frame with primed side up as shown.
Locate the panel 1-1/2" above the top plate. Use a DQ as a gauge block for
the 1-1/2" top overhang measurement. Use the GAA gauge block to mark
the 3/4" side measurement on the wall stud. Secure panel with two 2" nails
in the corners (Fig. A).
3
2
Nail the panel using 2" nails 6" apart on edges
and 12" apart inside panel.
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge
of the panel as a lever, move the panel side-
to-side until you have a 3/4" measurement on
the wall stud. Secure corner with two 2" nails
(Fig. B).
For squareness maintain 3/4" and
1-1/2" measurement along panel edge.
BEGIN HERE
6"
(15,2 cm)
Panel
will be back
from frame
about 1/8"
3/4"
(1,9 cm)
3/4"
(1,9 cm)
46 -1/8 "
(117, 2 c m)
12"
(30,5 cm)
Primed side UP
3/4" Gauge
Block
2 x 3"
Gauge Block
1
BEGIN
2x3"
GAUGE BLOCK
DQ
1-1/2"
(3,8 cm)
14
Fig. A Fig. B
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
1-1/2"
(3,8 cm)
Overlap
1-1/2"
(3,8 cm)
Overlap
2 Nails
DOOR

6"
(15,2 cm)
46-1/8 "
(117, 2 c m)
23 -7/8 "
(60,6 cm)
12"
(30,5 cm)
Primed side UP
2 x 3"
Gauge Block
2x3"
GAUGE BLOCK
DQ
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
15
2" (5,1 cm)
PARTS REQUIRED:
EAVE WALL PANELS
x2 x2
x77

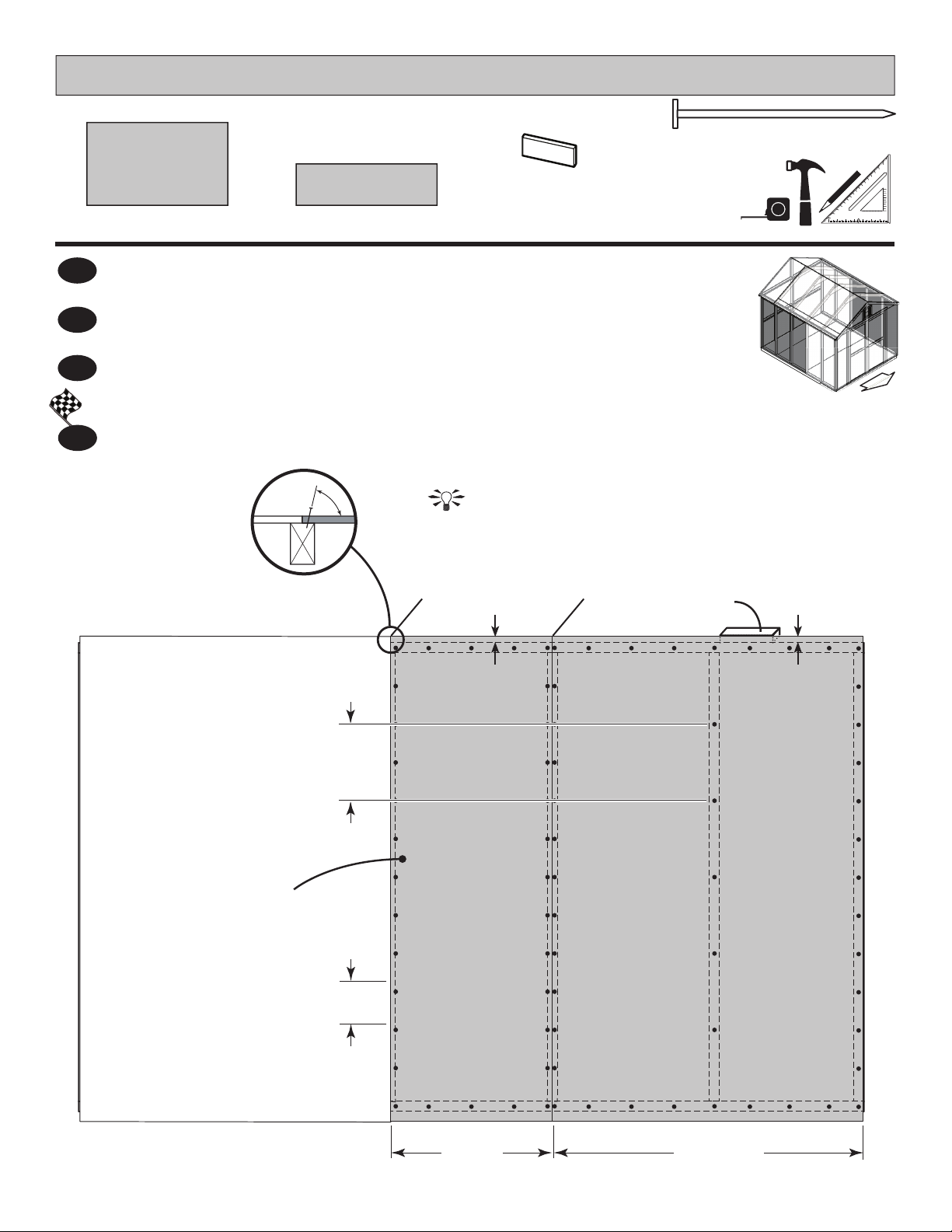

Place 23-7/8" panel on frame as shown with primed side facing up  ush with  rst
panel. Nail using 2" nails 6" apart on edges and 12" apart inside panel.
Place 46-1/8" panel on frame as shown with primed side facing up  ush with  rst
panel. Nail using 2" nails 6" apart on edges and 12" apart inside panel.
4
5
6
You have  nished building both of your side walls.
FINISH
7
Carefully  ip your sidewall over.
Repeat STEPS 1-5 to assemble your second side wall.
To draw panels tight
at seams angle nail.
Flush Flush
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,8 cm)
3/8 x 23-7/8 x 72"
(1 x 60,6 x 182,8 cm)
DOOR

2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1
2 x 3 x 91 " (5,1 x 7,6 x 231,1 cm)
PS
Flush
16
BACK WALL FRAME
1-1/2"
(3,8 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
45-1/2"
(115,6 cm)
45-1/2"
(115,6 cm)
91"
(231,1 cm)
1-1/2"
(3,8 cm)
Nail using two 3" nails at each connection.
2
1
BEGIN
3" (7,6 cm)
CI
PS
PARTS REQUIRED:
(2) 3" (7,6 cm)
Nails
x2
Center PS ush on CI on edge on oor as shown (Fig. A).
Fig. A
DOOR

2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
PT
Flush
Flush
17
(2) 3" (7,6 cm)
Nails
48"
(121,9 cm)
48"
(121,9 cm)
96"
(243,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
34"
(86,4 cm)
2-1/2"
(6,4 cm)
Fig. B
Fig. A

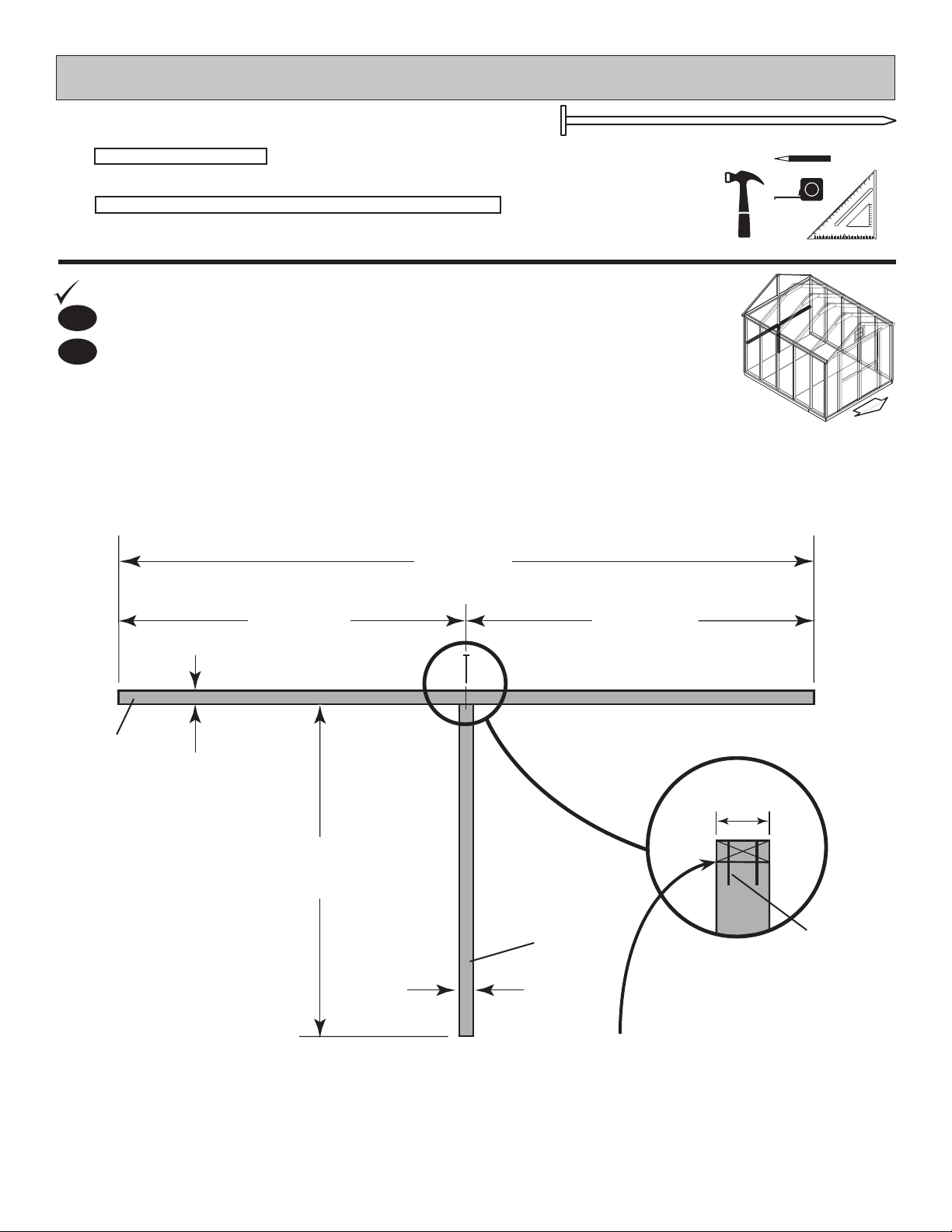

Center PT on CI on edge on  oor as shown.
Center CI  ush on PS on  at using a gusset as a temporary spacer.
Nail PT to CI using two 3" Nails (Fig. A).
3" (7,6 cm)
BACK WALL FRAME
Use two 3" screws at middle connection (Fig. B).
3
4
5
6
FINISH
7You have  nished building your back wall frame.
PARTS REQUIRED: 3" (7,6 cm)
x2
PS
PT
CI
(2) 3" (7,6 cm)
Screws
(2) 3" (7,6 cm)
Nails
x2
DOOR

3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
18
34"
(86,4 cm)
6"
(15,2 cm)
34"
(86,4 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
34"
(86,4 cm)
12"
(30,5 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2" Nails
x1
Place LEFT panel on back frame as shown with primed side facing up.
BEGIN
2
1
BACK WALL PANELS
PARTS REQUIRED:
Primed side UP
For squareness maintain ush
and 3/4" measurement along
panel edges.
Ensure 34" spacing before
nailing panel.
2" (5,1 cm)
x22
Secure Using 2" nails 6" apart on edges and 12" apart inside panel.
DOOR
