ACTUAL FLOOR SIZE IS 120 x 116-5/8" (305 x 296,2 cm)
RAINIER 10' x 10' (305 x 305 cm)
ASSEMBLY MANUAL
BEFORE YOU BEGIN
VALUE SERIES
16657-NG
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [email protected]
A Backyard Products Company
· ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
•BUILDINGRESTRICTIONSANDAPPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
•ENGINEEREDDRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
•SURFACEPREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 8.
•CHECKALLPARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.

2

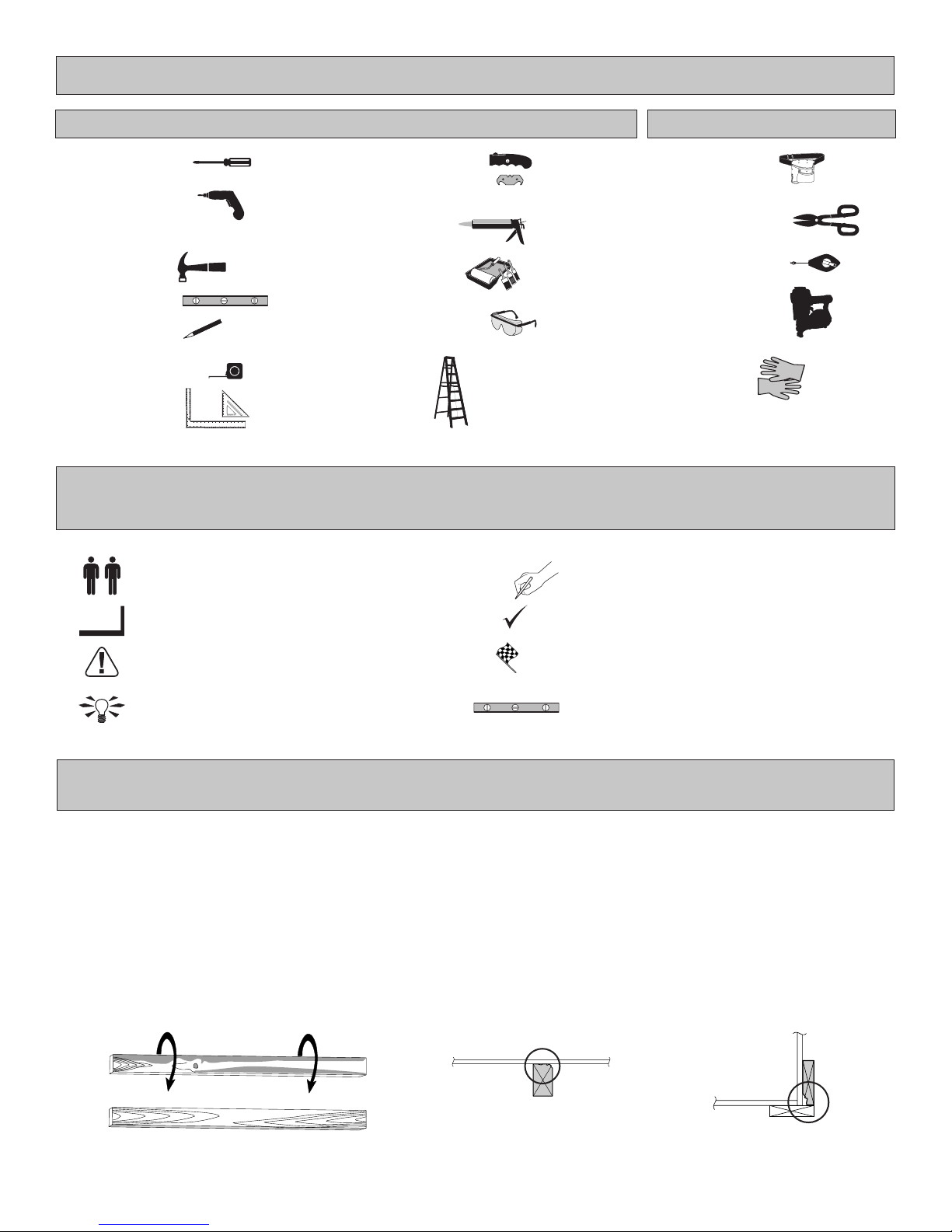

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
qGloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
qSafety Glasses
qTape Measure
qPaint Tools
qLadder
qCaulk Gun
qHammer
qLevel
FINISH
BEGIN
qPencil
qPhillips
Screwdriver
qDrill Driver
q3/8" Drill Bit
q#2 Philips Drive Bit
qTool Belt/
Nail Pouch
qChalk Line
qNail Gun
• gun nails
qTin Snips
(for drip edge)
qSquare
qUtility Knife
qShingle Blades
B C

3
ADDITIONAL MATERIALS FOR BUILDING YOUR SHED
OPTIONAL MATERIALS
FOUNDATION OR FLOOR MATERIALS
DRIP EDGE ..................... 30 Feet #15 ROOFING FELT
To cover 145 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roofing felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
• This shed kit does not include a wood floor frame or floor panels. See pages 10 through 14 for suggested floor construction.
• It does not include ANY leveling materials.
•
•
See the FLOOR LEVELING section on page 8 for recommended methods
See the CONCRETE FOUNDATION section on page 9 for recommended methods to build your shed on a poured concrete slab.
and suggested materials to properly level your
floor, as this will vary depending on your specific site.
3-TAB SHINGLES ............................ 6 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
WOOD FLOOR FRAME (NOT INCLUDED)
IMPORTANT!
x2
x8
2 x 4 x 10' (5 x 10 x 305 cm) Treated Lumber
x11
2 x 4 x 10' (5 x 10 x 305 cm) Treated Lumber
x9
Cut to: 2 x 4 x 117" (5 x 10 x 297,1 cm)
2 x 4 x 117" (5 x 10 x 297,1 cm)
x2
2 x 4 x 116-5/8" (5 x 10 x 296,2 cm)
ea. 10D 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
FLOOR PANELS (NOT INCLUDED)
x178
x4
MATERIAL LIST: CUT LIST:
MATERIAL LIST: CUT LIST:
5/8 x 23-7/8 x 96" (1,6 x 60,4 x 244 cm)
x1
5/8 x 20-5/8 x 96" (1,6 x 52,4 x 244 cm)
x1
5/8 x 20-5/8 x 23-7/8" (1,6 x 52,4 x 60,4 cm)
x1
Depending on your specific use, you may want to construct a heavy
duty floor frame by adding additional floor joists. Below is a list in
addition to the framing materials above (not included):
x36
5/8 x 48 x 96” (1,6 x 122 x 243,8 cm) OSB Panels
10D 3” (7,6 cm) Hot Dipped Galvanized Nails
(Recommend 5/8” (1,6 cm) (minimum) thick OSB panels)
Use Treated Lumber For
Floor Framing
6D 2” (5,0 cm) Hot Dipped Galvanized Nails

4

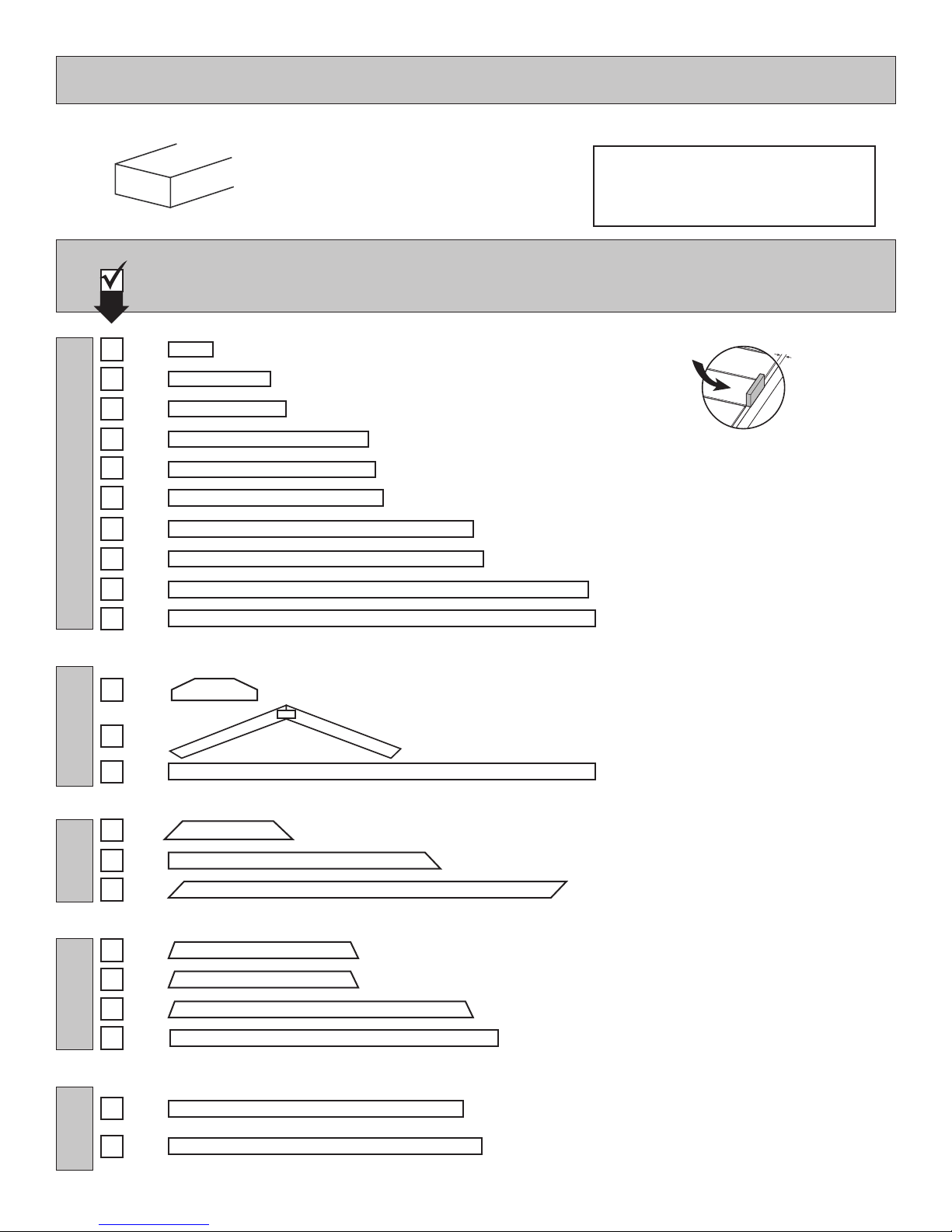

PARTS IDENTIFICATION AND SIZES
DOOR RAFTERSTRIM WALLSLOFT
Part identication
is stamped on some parts.
• Check these locations for part stamp.
x1
x1
x2
x1
x8
x4
x4
x8
x4
x2
x4
2 x 3 x 68-3/4 " (5 x 7,6 x 174,6 cm)
2 x 3 x 70-1/4" (5 x 7,6 x 178 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
2 x 3 x 96" (5 x 7,6 x 244 cm)
2 x 3 x 48" (5 x 7,6 x 122 cm)
2 x 3 x 46-1/4" (5 x 7,6 x 117 cm)
3/4" (1,9 cm)
2 x 3 x 22-1/2" (5 x 7,6 x 57 cm)
2 x 3 x 45" (5 x 7,6 x 114,3 cm)
LV
CO
NH
NC
NK
OU
ZJ
OO
PT
KP
Pre-assembled
x1 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) GAUGE BLOCK FOR 3/4" (1,9 CM) MEASUREMENT.
2 x 3 x 25" (5 x 7,6 x 63,5 cm)
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
x2
x1
1 x 4 x 96" (2,5 x 10 x 244 cm)
HHP
x4 2 x 4 x 28-3/4" (5 x 10 x 70 cm)
SU
x2 2 x 4 x 59-3/4" (5 x 10 x 152 cm)
JRA
x4 2 x 4 x 92-5/16" (5 x 10 x 234 cm)
HQ
x2 1 x 3 x 94-1/2" (2,5 x 7,6 x 240 cm)
PF
x4 2 x 3 x 41" (5 x 7,6 x 104 cm)
PD
x4 2 x 3 x 45-1/8" (5 x 7,6 x 115 cm)
5/8 x 3 x 72" (1,6 x 7,6 x 183 cm)
2 x 3 x 69" (5 x 7,6 x 175,3 cm)
x4 2 x 3 x 72-5/8" (5 x 7,6 x 184,5 cm)
OB
x8 6 x 24" (15 x 61 cm)
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm
)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
GAA

5

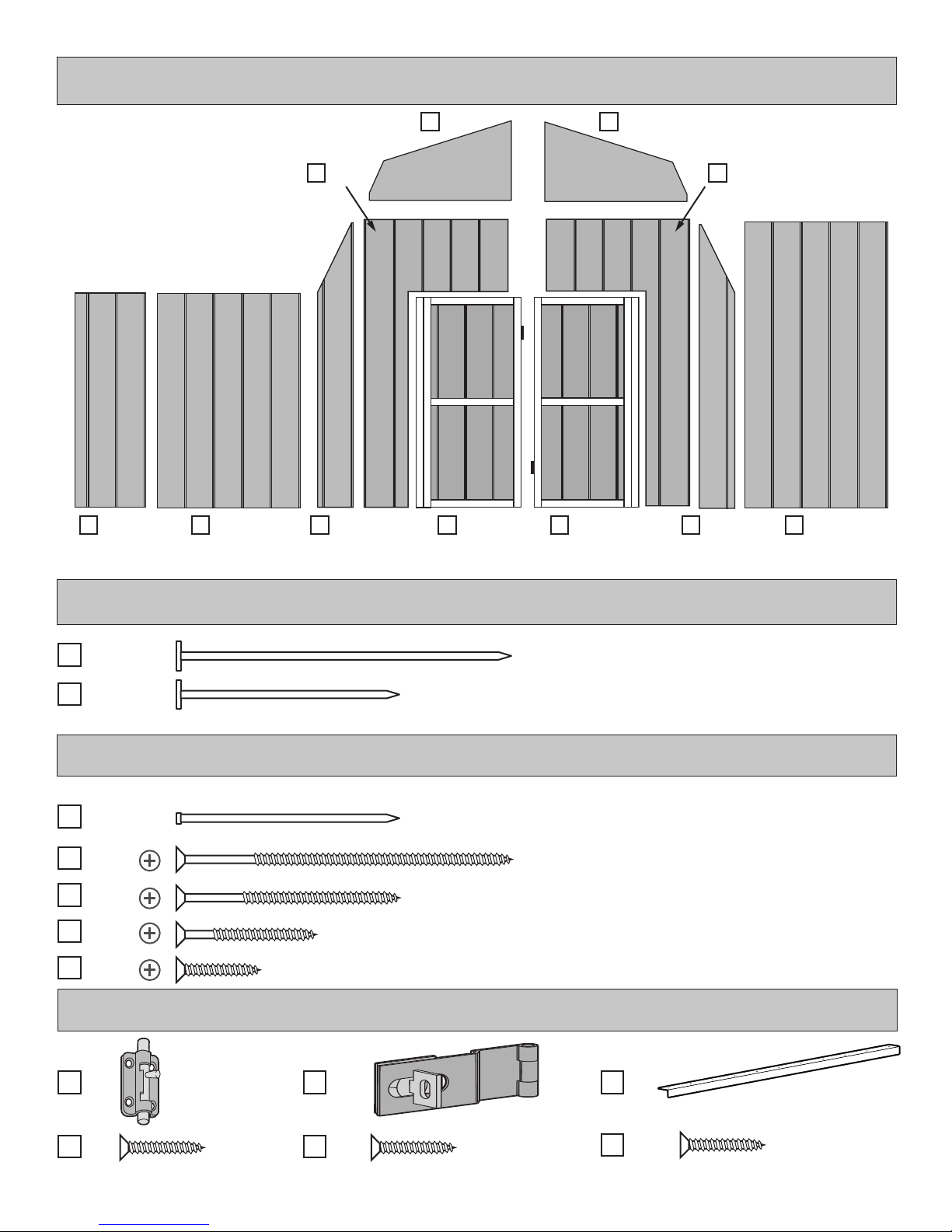

PANEL PARTS LIST
NOTES
ROOF PANELS LOFT
NOTE: Panel parts are not stamped with part identification.
Loft panel is
7/16" (1,1 cm) thick.
Roof panels are
7/16" (1,1 cm) thick.
7/16 x 45-1/8 x 96"
(1,1 x 115 x 244 cm)
7/16 x 41-7/8 x 96"
(1,1 x 106 x 244 cm)
7/16 x 23-7/8 x 45-1/8"
(1,1 x 61 x 115 cm)
7/16 x 48 x 96"
(1,1 x 122 x 244 cm)
7/16 x 23-7/8 x 41-7/8"
(1,1 x 61 x 106 cm)
x2
x2
x2
x2
x1

6
x1
RIGHT DOOR
x1
LEFT DOOR
x2
3/8 x 48 x 96"
(1 x 122 x 244 cm)
x2
3/8 x 23-7/8 x 72"
(1 x 61 x 183 cm)
x4
3/8 x 48 x 72"
(1 x 122 x 183 cm)
WALL PANEL & DOORS PARTS LIST
NAIL BOXES (Shown Actual Size)
FASTENER/HARDWARE BAG (Shown Actual Size)
DOOR HARDWARE (Not Actual Size)
3/4" (1,9 cm) 3/4" (1,9 cm) 3/4" (1,9 cm)
Bagged seperately / special coating
64" Metal Threshold
x1 x1 x1
x4 x7 x11
x2 x2
3" (7,6 cm)
2" (5,0 cm)
x2
x5
BOXES
BOXES
2" (5,0 cm)
3" (7,6 cm)
2" (5,0 cm)
1-1/4" (3,2)
3/4" (1,9 cm)
x18
x57
x84
x50
x28
x1 x1
x2x2

7
1Sub-assembled doors.
2. 2x3 wall studs have been engineered to support roof load and to meet demanding wind loads.
3. Sidewall top and bottom plates tie wall studs together and provide nailing support for top and bottom edge of siding.
4. Rafters line up over wall studs to effectively transfer roof load to the oor and eliminate need for double top plate.
Oversized wood gussets at peak provide a strong connection for rafter halves.
5. Treated siding overhangs the wall framing and oor to keep the elements out.
6. Collar ties and storage loft tie sidewalls together to prevent spreading under heavy roof loads.
7. Corner studs & end rafters are positioned to the outside of the siding where they serve the dual purpose of framing and trim.
8 The EZ Frame design transfers the roof load to the side walls allowing for reduced framing at the front and back wall.
9. Treated oor frame and Oriented Strand Board (OSB) oor (not included).
All of our buildings have been engineered to withstand demanding wind and snow loads.
If you live in an area with extreme wind/snow load requirement, contact
us and we can assist with engineering to meet your local codes.
1
9
4
5
6
7
8
4
3
2
2
3
4
5
6
7
9

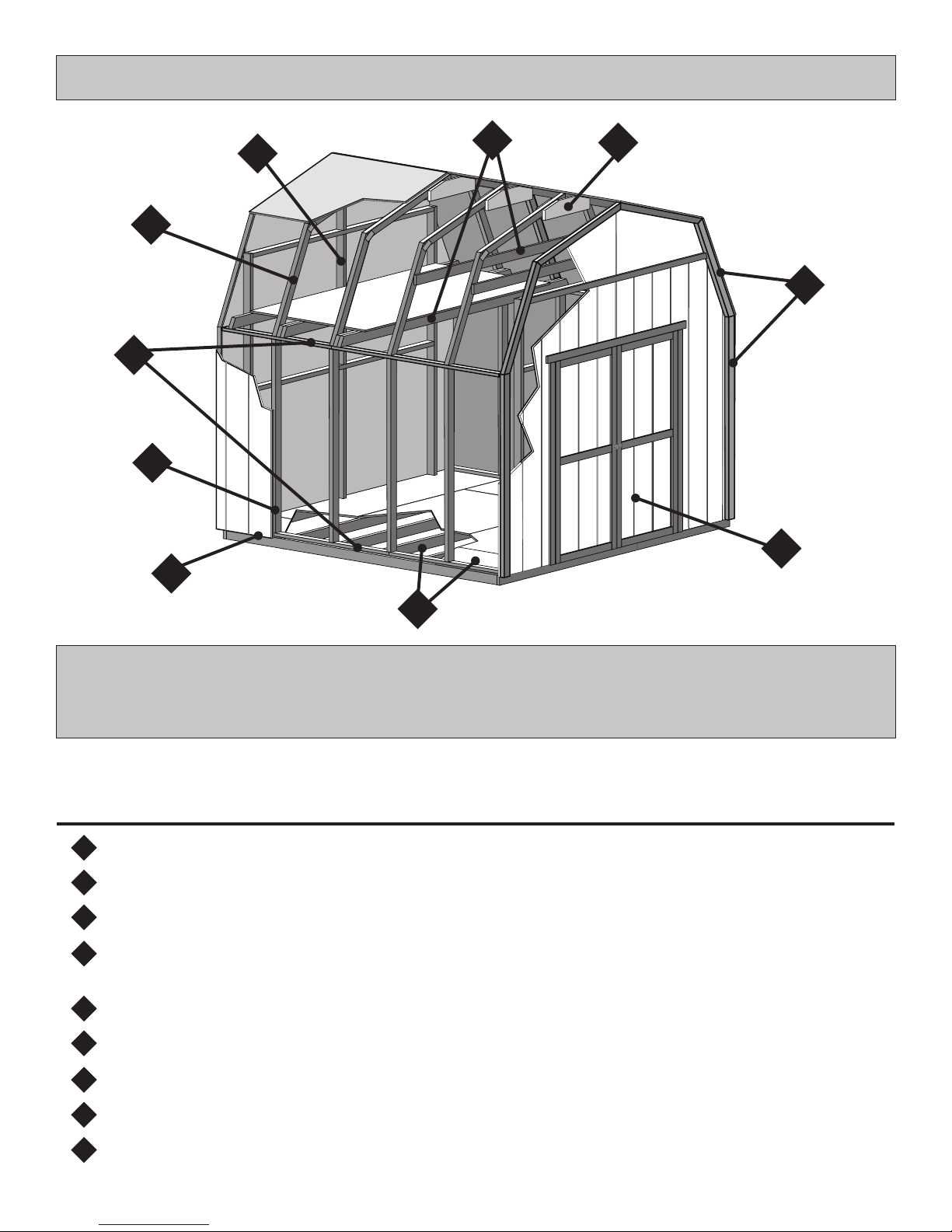

BUILDING ANATOMY
This building has been designed using our patented EZ Frame construction method.
EZ Frame is a unique construction method which has been engineered to use fewer
framing members. This reduces assembly time and cost by as much as 30% compared to
conventional construction methods. EZ Frame patent no. 5,666,766

8

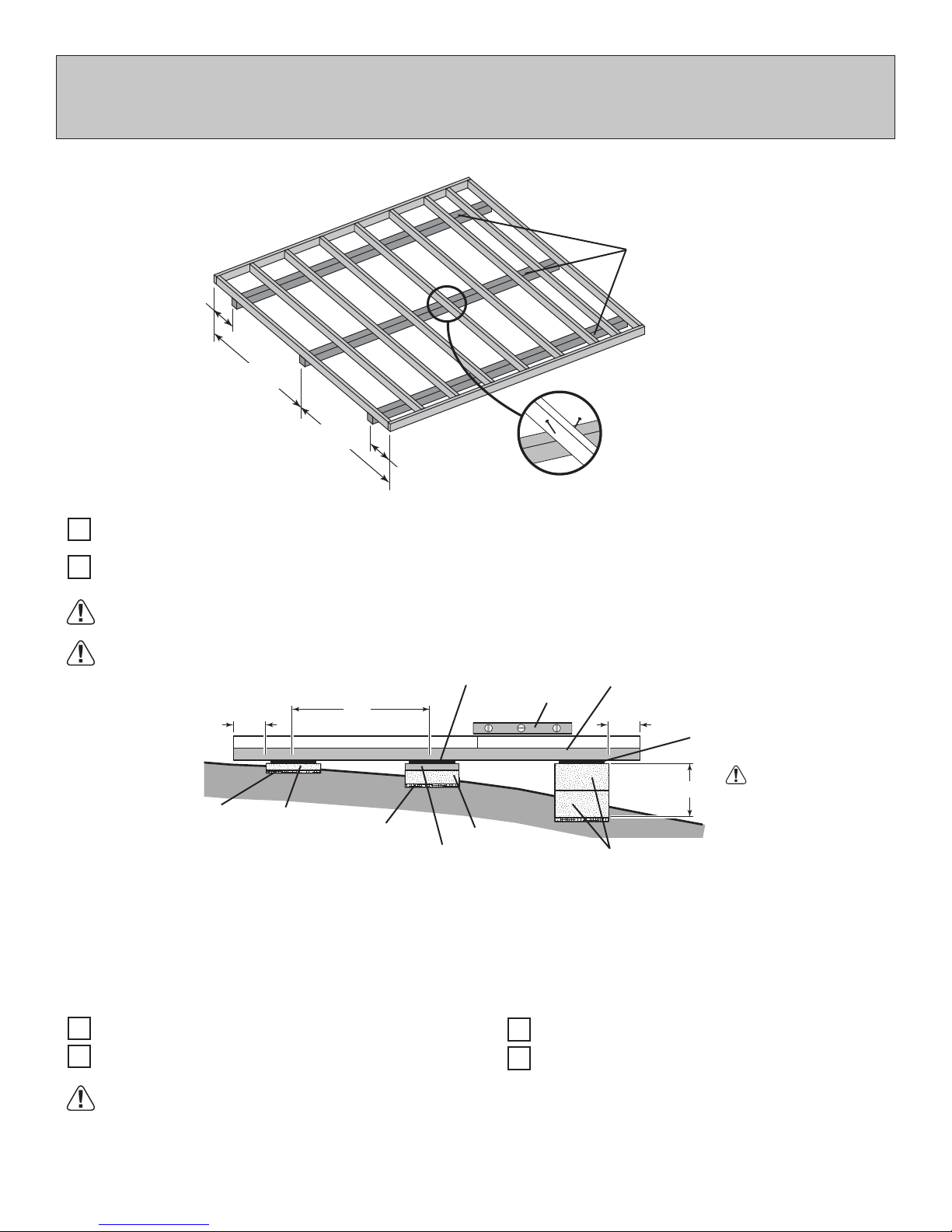

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
12"
(30,4 cm)
60"
(152,4 cm)
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
4x4 Runners
(not included).
12"
(30,4 cm)
60"
(152,4 cm)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x3 4" x 4" x 116-5/8" (10 x 10 x 296,2 cm) Treated Lumber
Fasteners for Frame to 4"x 4"
(3" Screws shown as one option.) Minimum (48) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel 2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"

9
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
A
B C
4"
(10 cm)
3-1/2"
(8,9 cm)
DOOR
NOTES
Treated Sill Plate
Caulk between sill plate
and concrete.
A B CActual Floor SizeBuilding Size
120" (305 cm) 109-5/8" (278,4 cm)
10'x 9'-8-5/8" (305 x 296,2 cm)
10'x 10' (305 x 305 cm) 116-5/8" (296,2 cm)
2 x 4 x10' (5 x 10 x 305 cm)
Requires:
x4 MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
• A treated 2 x 4" (5 x 10 cm) sill plate is required when installing your shed on concrete. Hint: Purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5 x 10 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.

10

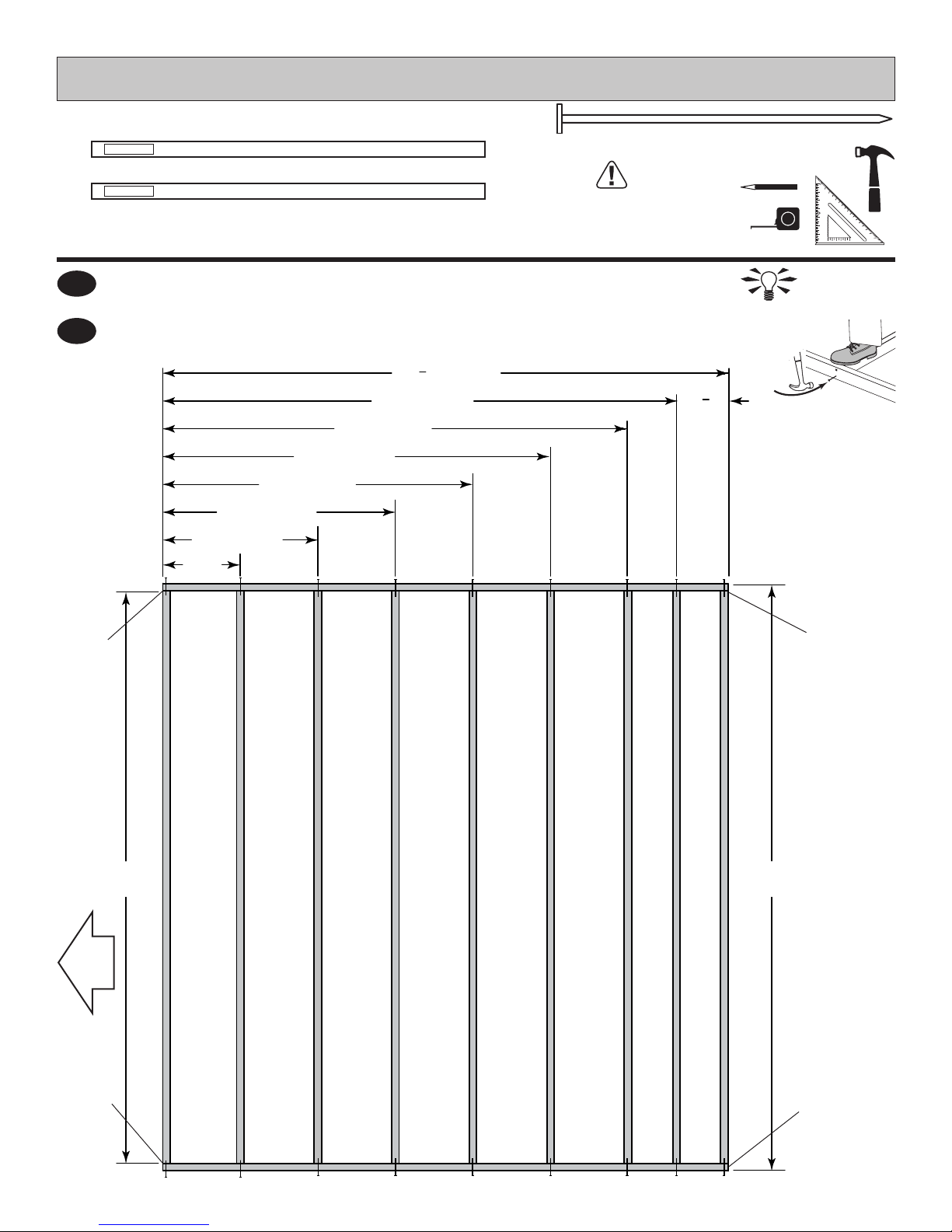

1
Use two 3" nails at each mark.
2
PARTS REQUIRED (Not Included In Kit):
x2
x9
[40,6 cm]
32”
16”
[81,2 cm]
48” [121,9 cm]
64” [162,5 cm]
80” [203,2 cm]
96” [243,8 cm]
106” [269,2 cm]
1165
8" [296,2 cm]
10 "
5
8
[27 cm]
117"
[297.18 cm]
120"
[3048 cm]
Cut treated 2 x 4 x 120" lumber down to lengths and quantities as shown.
Orient parts as shown on at surface. Measure and mark from end of boards.
NOTE:
Use Treated Lumber For Floor Framing
FLOOR FRAME (NOT INCLUDED)
3" (7,6 cm) x36
2 x 4 x 116-5/8" (5 x 10 x 296,2 cm) Treated Wood
2 x 4 x 117" (5 x 10 x 297,2 cm) Treated Wood
TREATED
TREATED
Flush
at ends.
Flush
at ends.
Flush
at ends
Flush
at ends
Floor framing materials
not included. See page 3
for sizes and quantities.
DOOR
HINT:
For easier nailing
stand on frame.

11
FLOOR FRAME (NOT INCLUDED)
3" (7,6 cm) x6
DOOR
120"
(305 cm)
116-5/8"
(296 cm)
FINISH
7

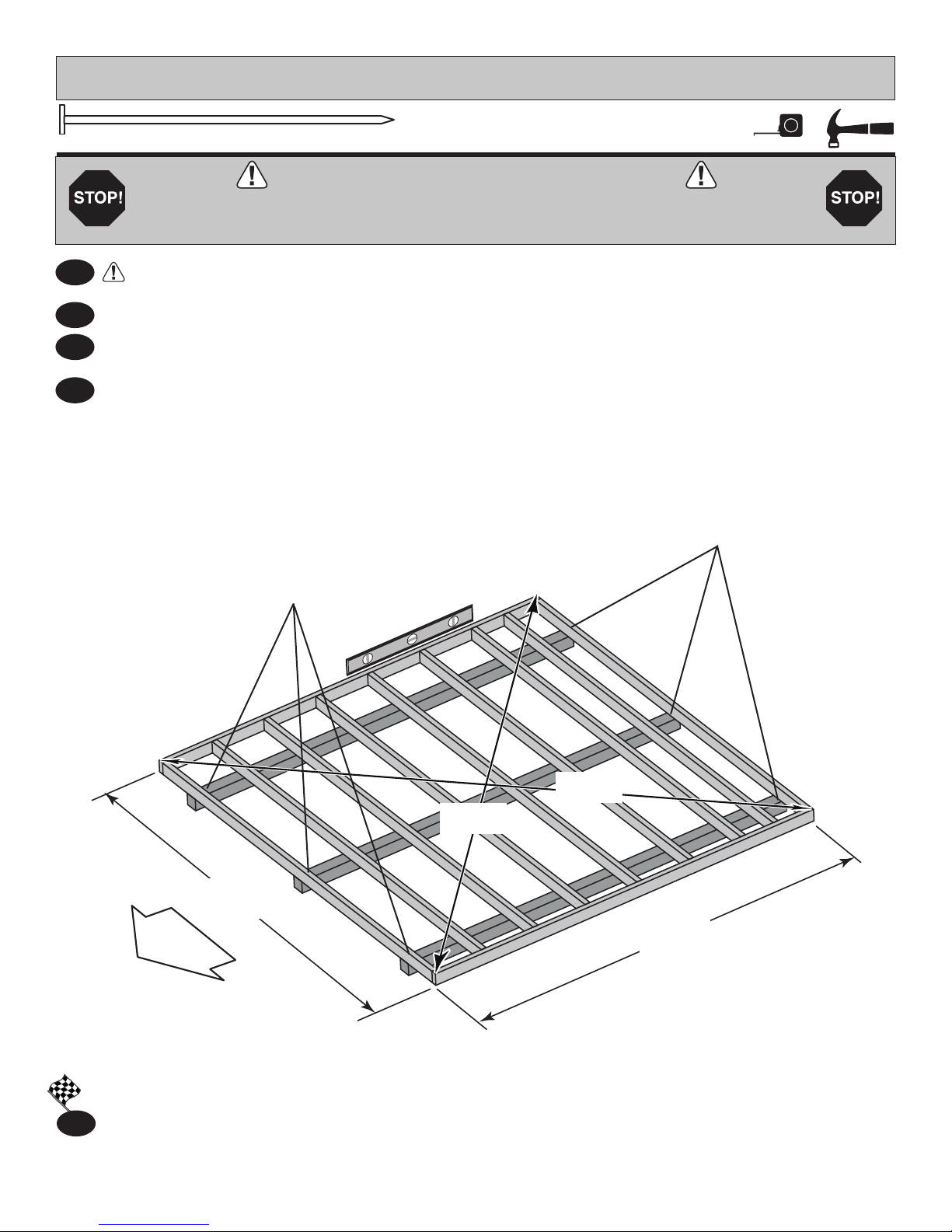

LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
4
5
6
3
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 167-3/8" (425 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener
at ends of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square, fasten the frame at each point the frame contacts the 4x4
runners.
See page 8 for the preferred oor leveling method.
First, secure at ends with
one fastener.
Second, secure
at ends with
one fastener.
167-3/8"
(425 cm)
167-3/8"
(425 cm)
Fig. A

12
2
BEGIN
1
3
4

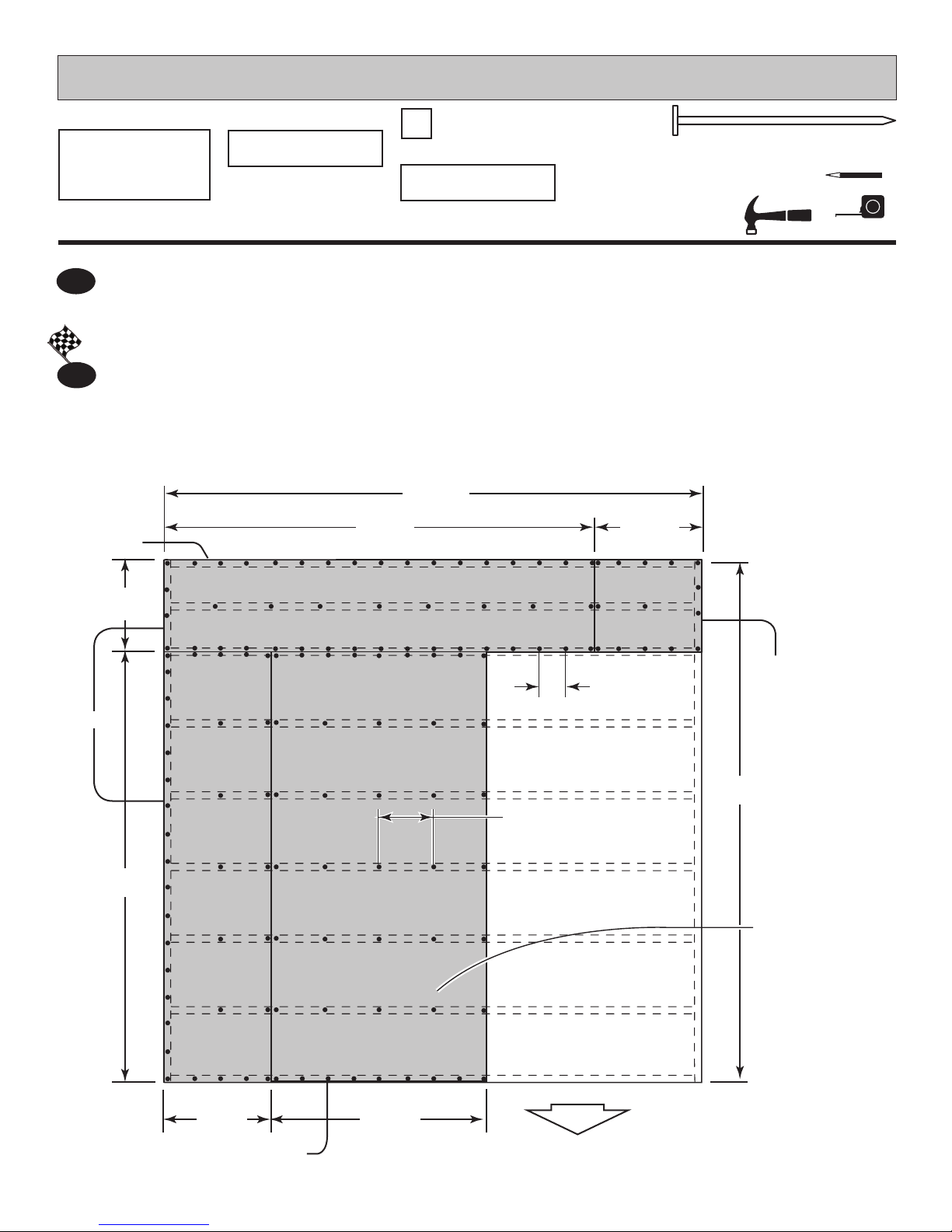

5/8 x 48 x 96"
(1,6 x 122 x 243,8 cm)
PARTS REQUIRED:
Ensure your floor frame is square by installing one panel and squaring frame.
Floor Panels not included
See page 3 for panel sizes
and quantities.
120"
(305 cm)
96"
(243,8 cm)
6" (15 cm) edges of panel.
48"
(122 cm)
FLOOR PANELS (NOT INCLUDED)
x1
Flush
Flush
2" (5 cm) x45
Fig. C
(2) Nails
Flush
Fig. A
Flush
at top
corner
edge.
Fig. B
(2) Nails
3/4" (1,9 cm)
Grid lines UP
Attach the 5/8 x 48 x 96” panel with the rough side up (painted grid lines side) with the 48”
edge and corner flush to the floor frame (Fig A). Secure panel with two 2” nails in the corners
Move to the opposite end. Using the long edge of the panel as a lever, move the panel side-to-side until the
top corner is flush to the floor frame (Fig. B). Secure panel with two 2" nails in the corners.
Check the floor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your floor frame is square. The measurement will be approximately 167-3/8" (425 cm) (Fig. C).
Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel. Use a chalk line or use
pre-painted grid lines to nail into joists under panel.
10 "
5
8
[27 cm]
12" (30,5 cm) inside panel
167-3/8"
(425 cm)
167-3/8"
(425 cm)
DOOR

13
5/8 x 48 x 96"
(1,6 x 122 x 243,8 cm)
4
PARTS REQUIRED: x1
x1
x1
x1
5/8 x 20-5/8 x 23-7/8"
(1,6 x 52,4 x 60,4 cm)
5/8 x 20-5/8 x 96"
(1,6 x 52,4 x 243,8 cm)
5/8 x 23-7/8 x 96"
(1,6 x 60,4 x 243,8 cm)
FLOOR PANELS (NOT INCLUDED)
FINISH
5
2" (5 cm) x137
96"
(243,8 cm)
116-5/8"
(296 cm)
120"
(305 cm)
96"
(244 cm) 23-7/8"
(60,6 cm)
20-5/8"
(61 cm)
23-7/8"
(61 cm)
48"
(122 cm)
Flush
Grid lines UP
.
12" (30,5 cm)
6" (15 cm)
Flush
Flush
Flush
Continue installing panels with rough side up (painted grid lines).
Use a chalk line or grid lines on panels for 2" nails 6" apart on edges and 12" apart inside panel.
You have finished Installing your floor panels.
DOOR

14

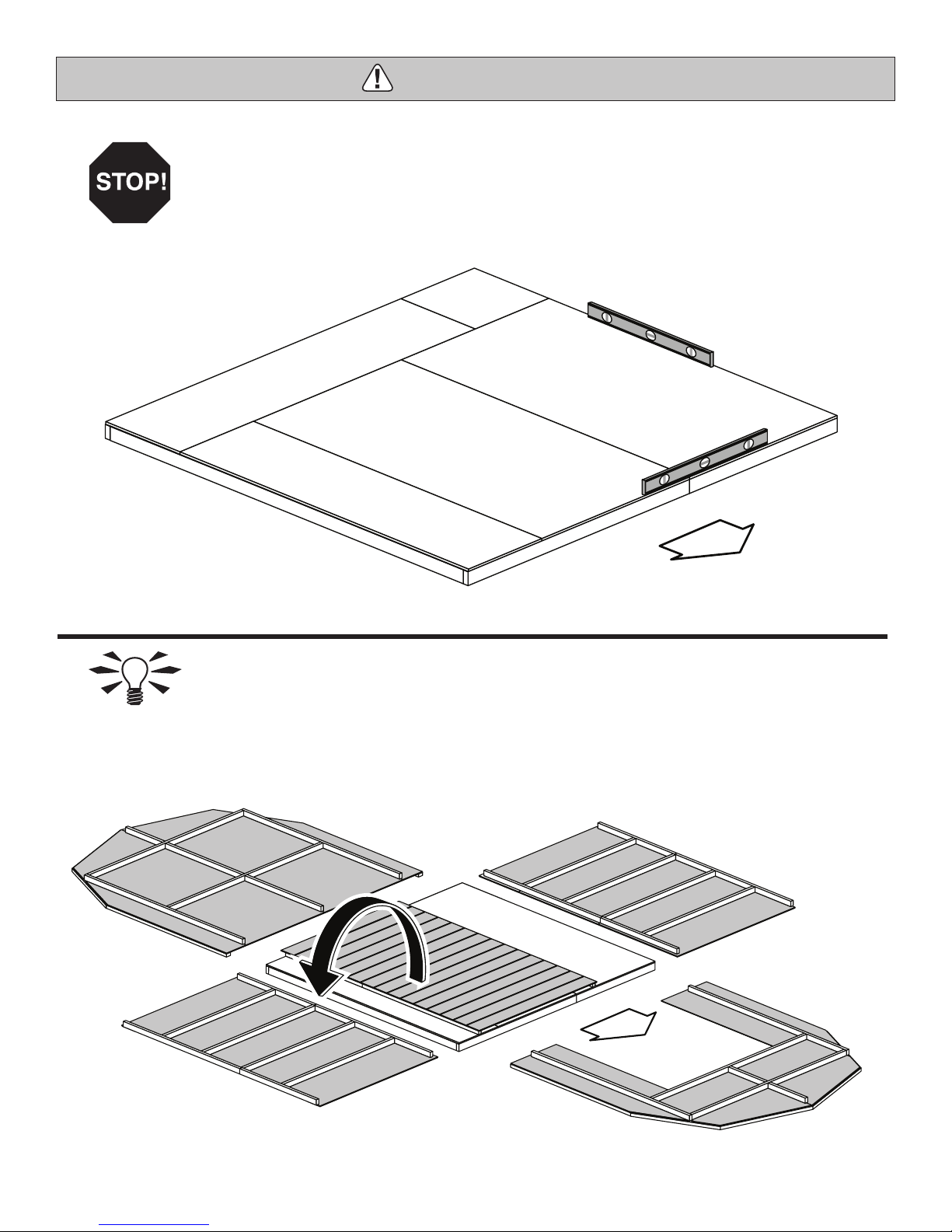

IMPORTANT!
Check the oor frame is level after installing oor panels. Re-level if needed.
• The oor should be used as a level work surface for wall construction.
• Organize your wall sections during subassembly
to avoid over-handling of the walls.
HINT:
IMPORTANT!
DOOR
SIDEWALL
SIDEWALL
FRONTWALL
BACKWALL
DOOR

15

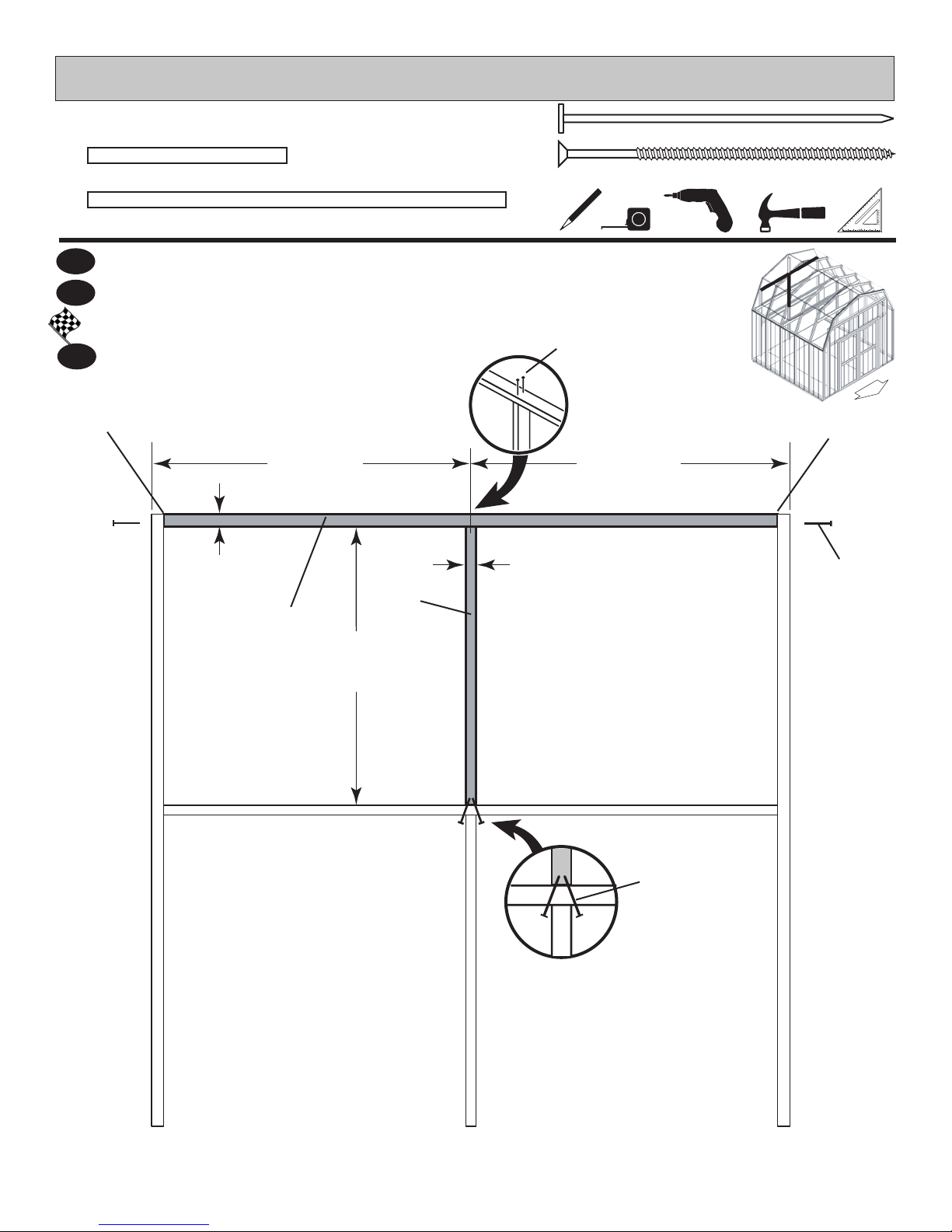

BEGIN
1
Use NK as a guide to locate PR. (Do not nail.)
1-1/2"
(3,8 cm)
96"
(244 cm)
48"
(122 cm)
48"
(122 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
94-1/2"
(240 cm)
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection.2
3" (7,6 cm) x6
2 x 3 x 48" (5 x 7,6 x 122 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
2 x 3 x 96" (5 x 7,6 x 244 cm)
PT PT
NK
PR
PARTS REQUIRED:
x1
x1
x2
BACK WALL FRAME
(2) 3" (7,6 cm) Nails
NK
PR
PT
DOOR
HINT:
For easier nailing
stand on frame.

16
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
48-3/4"
(124 cm)
45"
(114 cm)
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection and two 3" screws at middle connection.
3
4
FINISH
5You have nished building your back wall frame.
Flush
(2) 3"
(7,6 cm)
Nails
PARTS REQUIRED:
2 x 3 x 45" (5 x 7,6 x 114,3 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
x1
x1
PR
3" (7,6 cm) x6
BACK WALL FRAME
NC
PR
3" (7,6 cm) x2
DOOR
(2) 3" (7,6 cm)
Screws
(2) 3" (7,6 cm) Nails

17
3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm
)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2" (5 cm) x44
Place panel on back frame as shown with primed side facing up.
Note: Orient square and lip edges as shown.
BEGIN
PARTS REQUIRED:
3/8 x 48 x 96"
(1 x 122 x 244 cm)
Use a 2x3" for support.
Use a 3/4" gauge block at edges of panel.
3
2
1
x1
Install with primed
side facing up.
LIP EDGE
SQUARE
EDGE
3/4"
GAUGE
BLOCK
BACK WALL PANELS
For squareness maintain
3/4" measurement along
panel edges.
Nail using 2" nails 6" apart on edges and 12" apart inside panel. .
12" (30,5 cm)
6" (15 cm)
DOOR
Do not nail
in groove.
3/4" Gauge Block

18
3/4"
GAUGE
BLOCK
2" (5 cm) x44
Place panel on back frame as shown with primed side facing up.
Note: Orient square and lip edges as shown.
PARTS REQUIRED:
3/8 x 48 x 96"
(1 x 122 x 244 cm)
5
6
7
4
x1
BACK WALL PANELS
3/4"
(1,9 cm)
3/4"
(1,9 cm)
97-1/2"
(247,6 cm)
3/4"
(1,9 cm)
Install with primed
side facing up.
Flush
Flush
Use a 3/4" gauge block at edges of panel.
Nail using 2" nails 6" apart on edges and 12" apart inside panel. .
Proceed to building your wing wall panels.
For squareness maintain
3/4" measurement along
panel edges.
Use a 2x3" for support.
12" (30,5 cm)
6" (15 cm)
Do not nail
in groove.
DOOR
LIP EDGE
SQUARE
EDGE
3/4" Gauge Block
3/4" Gauge Block
To draw panels tight at
seams angle nail.
