Heartland Ovation 5400 User manual

5400 / 6400
www.heartlandtan.com Part# 54066

Table of Contents
1 WARNINGS AND CAUTIONS
2 MANDATORY READING
3 SKIN GUIDE
4 - 5 5400 SPECIFICATIONS AND REQUIREMENTS
6 - 7 5400 EXPOSURE SCHEDULE
8 - 9 6400 SPECIFICATIONS AND REQUIREMENTS
10 -11 6400 EXPOSURE SCHEDULE
12 REPAIRS, SERVICE, REPLACEMENT PARTS, LAMPS, AND EYE PROTECTION
13 CARE AND CLEANING
14 LAMP GUIDE
15 RELAMPING INSTRUCTIONS
15 REPLACING LOW-PRESSURE LAMPS
16 REPLACING HIGH-PRESSURE FACIAL LAMPS
17 REPLACING HIGH-PRESSURE SHOULDER TANNER LAMPS
18 – 26 5400/6400 TIMER GUIDE
27 5400/6400 AUDIO SYSTEM
28 – 34 5400 INSTALLATION INSTRUCTIONS
35 – 42 6400 INSTALLATION INSTRUCTIONS
43 – 50 5400/6400 WIRING
51 LIMITED WARRANTY

WELCOME
Dear Valued Customer:
Congratulations! You have just purchased one of the finest pieces of tanning
equipment available to the indoor tanning industry. We at Heartland Tanning,
Inc. sincerely appreciate your business.
The OVATION™ line is manufactured right here in the heart of our country.
Our tanning equipment is constructed and designed to hold up under heavy
use. We have confidence in our manufactured products and that is why our
equipment is backed by Heartland’s unprecedented 5 year limited warranty.
Designed to be user friendly, the OVATION™ line tanning beds are easy to
assemble and maintain.
Please read your owner & assembly manual thoroughly prior to the first use of
your new tanning unit.
Heartland Tanning, Inc.
4251 N.E. Port Drive
Lee’s Summit, MO 64064
1-800-554-8268
NOTICE: Any misuse, abuse, modifications, alteration, improper installation, etc. of this product or its intended
use will subject said party to direct responsibility for any and all consequences resulting from such action.
Furthermore, such actions will void all warranties and may relieve Heartland Tanning, Inc. of any liabilities
relating to said product.

WARNINGS
AND CAUTIONS
Certain drugs, particularly those designed to produce photosensitivity, may
cause individuals under the influence of these types of drugs to experience
adverse effects and those people should avoid exposure to UV sources of all
types. Doctors will advise persons taking these drugs of possible adverse effects.
It is recommended that only one (1) person at a time use this tanning system,
and we advise wearing protective eyewear while using the tanning unit. Two (2)
pair of protective eyewear are provided with each bed sold.
WARNING
If you have been diagnosed by a physician as being allergic to the sun or are
currently taking photosensitive medications, consult your physician before using
the tanning unit.
CAUTION
While there is no immediate clinical evidence regarding UVA exposure and its
effects upon expectant mothers, it is strongly advised that expectant mothers be
discouraged from using the tanning unit.
www.heartlandtan.com 112/06

MANDATORY
READING
ALWAYS FOLLOW INSTRUCTIONS FOR PROPER USAGE PRIOR TO USING ANY
TANNING SYSTEM.
REMEMBER
1. Follow the exposure schedule in accordance with your skin type. Failure to
do so may result in overexposure.
2. Replacement lamps must comply with CFR 21 1040.20. When ordering
lamps, include model number and serial number. See Lamp Guide for the
appropriate lamp replacements for your Tanning Bed.
Should you have any questions regarding the proper use of your tanning system,
please contact:
Heartland Tanning, Inc.
1-800-554-8268
8:00AM to 5:00PM (CST)
www.heartlandtan.com 212/06

SKIN GUIDE
MELANIN - The brownish pigment produced by special cells in the base layer of
the skin determines the individual’s tan. As the skin is exposed to the ultraviolet light,
the melanin is activated and combines with protein cells that rise to the skin’s
surface, thus producing a tan. The amount of melanin in your body determines how
quickly and dark you tan. The more melanin produced and exposure time an
individual has, the faster and deeper the individual will tan.
NOTE
The tan produced by the OVATION™ line is a deep, rich "COSMETIC" tan. However,
regardless of how dark an individual may tan on this system, it will not provide
adequate protection against overexposure to natural sunlight or UVB tanning
systems.
SKIN TYPE II-Fair
This is the individual that usually burns easily and severely, tans minimally or lightly
and peels.
SKIN TYPE III-Average
This individual burns moderately and tans about average.
SKIN TYPE IV-Brown
This individual burns minimally, tans easily and above average with each exposure.
SKIN TYPE V-Dark Brown
This individual rarely burns, tans easily and substantially.
IMPORTANT NOTE
Customers that wear contact lenses should be made aware that the heat and
ventilation wind may dry out their contacts and should be removed prior to the
session. Use only creams, oils or lotions (particularly suntan lotions) that are
recommended by Heartland Tanning, Inc. Equally important - many facial
Make-ups have oil bases and sun block which should be removed prior to a session.
It is recommended that following a tanning session, a skin moisturizer be applied. This
promotes a smoother, more even looking tan.
www.heartlandtan.com 312/06

SPECIFICATIONS
AND
EXPOSURE
SCHEDULE
www.heartlandtan.com 412/06

5400
SPECIFICATIONS
40 Lamp Heartland Rave System - 15 minute session
•(24) Heartland Rave APR 160 watt lamps in canopy
•(16) Heartland Rave 12071 120 watt lamps in bench
•(3) 400 watt facial lamps
•T-Max™ timer on board (T-Max™ wireless compatible)
•Integrated FM stereo system with connections for an MP3/iPod and headphones
•(3) 500 cfm exhaust fans
•(2) 500 cfm integrated body fan cooling system
•26 AMPS initial start up, 23 AMPS running @ 230 VAC (three phase)
•30 AMP rated three phase, 220 – 240 volt with ground required (three phase)
(For optimum performance, running voltage should be 230 – 240 VAC.)
•(2) .75 KVA Buck/Booster transformer required if outside 220 – 240 VAC (three phase)
•44 AMPS initial start up, 38 AMPS running @ 230 VAC (single phase)
•50 AMP rated single phase, 220 – 240 volt with ground required (single phase)
(For optimum performance, running voltage should be 230 – 240 VAC.)
•(1) 1.0 KVA Buck/Booster transformer required if outside 220 – 240 VAC (single phase)
•8’ X 9’ minimum room size required
•1 Ton (12,000 BTU) minimum A/C dedicated into room
Type B seal tight connector supplied located lower back in center of bed. Type B flexible conduit required. *Actual amp
reading will vary depending on voltage – electrician must calculate load/line side amps when using Buck/Booster
transformer to insure proper wire gauge and breaker size. Minimum 8 gauge wire size is recommended for this 30 amp (3
phase) or minimum 6 gauge for 50 amp (single phase) circuit to allow less than 2% voltage drop up to 100 feet. Licensed
electrician must refer to National Electric Codes when determining proper wire gauge and breaker size for each
application. All specifications are subject to change.
www.heartlandtan.com 512/06

5400
EXPOSURE SCHEDULE
DANGER - ULTRAVIOLET RADIATION: Follow instructions. Avoid overexposure. As with natural
sunlight, overexposure can cause eye and skin injury and allergic reactions. Repeated
exposure may cause premature aging of the skin and skin cancer. Wear protective eyewear;
Failure to do so may result in severe burns or long-term injury to eyes.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult
physician before using sunlamps if you are taking medications or have a history of skin
problems or believe yourself to be especially sensitive to sunlight. If you do not tan in the sun,
you are unlikely to tan from the use of this product.
This system is intended to be used only with Rave 160 APR 1841, Rave 12071 R 1989, and
HERAEUS E-400 HPT lamps for facials.
Sales or Service Questions
Heartland Tanning, Inc. • Lee’s Summit, MO • 1-800-554-8268
Follow recommended exposure schedule for skin type.
NOTE: See Skin Guide (pg. 3) for help choosing the proper skin type.
RECOMMENDED EXPOSURE SCHEDULE
MAXIMUM EXPOSURE TIME IS 15 MINUTES
SKIN TYPE WEEK1 1st-3rd
TREATMENT
WEEK2
4th-6th
TREATMENT
WEEK3
7th-10th
TREATMENT
WEEK4
11th-15th
TREATMENT
WEEKLY
SUBSEQUENT
TREATMENT
II-FAIR 3 MINUTES 6 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES
III-AVERAGE 3 MINUTES 6 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES
IV-BROWN 3 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES 15 MINUTES
V-D. BROWN 3 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES 15 MINUTES
This product is in conformity with performance standards for sunlamp products under
CFR 21 Part 1040
This unit utilizes UVA lamps. Replace only with Rave 160 APR 1841, Rave 12071 R 1989, and
HERAEUS E-400 HPT lamps for facials. The minimum exposure position is .5” (1.27 cm) from the
lamps surface (preset by the mfg.). Read the instruction booklet before using this device. To
use, lie down under canopy and pull down as far as adjustment will allow. CAUTION: ANY
OTHER POSITION MAY RESULT IN OVEREXPOSURE.
Tanning can begin on a regular basis. An appearance of a tan normally appears after a few
exposures and maximizes after four (4) weeks of exposure. Use protective eyewear whenever
equipment is energized. Read the instruction booklet before using.
www.heartlandtan.com 612/06

5400
Caractéristiques-15 MINUTES
Longueur : 87,5 pouces par 51 pouces
Hauteur : 41 pouces (avec le couvercle fermé)
Poids d’expédition : 865 livres
Nombre de lampes : 47
Voltage Recommande : 230 - 240
Aspiration électrique : 23 ampères à 230 volts
Circuit requis : 220 volts, double poteau, briseur
De 50 ampères, avec disjoncteur
Différentiel, briseur de 30 ampères
DANGER – RAYONNEMENT ULTRAVIOLET. Suivez les instructions. Évitez la surexposition. Comme avec les
rayons naturels du soleil, la surexposition peut causer dommage aux yeux et à la peau et des réactions
allergiques. L’exposition répétée peut causer le vieillissement prématuré de la peau et du cancer de la
peau. Portez des lunettes protectrices; le non-respect de cette consigne peut entraîné de graves brûlures
ou des lésions oculaires à long terme.
Les médicaments ou les produits de beauté peuvent augmenter votre sensibilité au rayonnement
ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous utilisez des médicaments ou avez
une histoire des problèmes de peau ou croyez-vous particulièrement sensibles aux rayons du soleil. Si vous
ne bronzez pas au soleil, il est peu probable que vous bronzerez avec l’utilisation de ce produit.
Questions au sujet des ventes ou de service :
Heartland Tanning, Inc. • Lee’s Summit, MO – 1-800-554-8268
Suivez le programme recommandé d’exposition pour le type de peau.
Cette appareil utilise des lampes de l’ultraviolet A. Remplacez seulement avec les lampes de marque Rave
160 APR 1841, Rave 12071 R 1989, et HERAEUS E-400 HPT (ampoule faciale de bronzage, là où applicable)].
La position minimum d’exposition est à 0,5 pouces 1,27 cm) de la surface de la lampe (instituez par le
manufacturier). Lisez le livret d’instruction avant d’utiliser ce dispositif. Pour utiliser, couchez-vous sous
l’écran et abaissez dans la mesure où le réglage laissera. ATTENTION : L’UTILISATION DE N’IMPORTE QUELLE
AUTRE POSITION PEUT AVOIR COMME CONSÉQUENCE LA SUREXPOSITION.
Le bronzage peut commencer de façon régulière. Un aspect de bronzage normalement apparaît après
quelques expositions et atteint son niveau maximal après quatre (4) semaines d’exposition. Utilisez des
lunettes protectrices à chaque fois que l’appareil est actif. Lisez le livret d’instructions avant l’utilisation.
Horaire d’exposition recommandé
Type de peau Semaine 1 1er – 3e
Traitements
Semaine 2
4e – 6e
Traitements
Semaine 3
7e – 10e
Traitements
Semaine 4
11e – 15e
Traitements
Bihebdomadaire
Traitements
subséquents
II-Claire 3 MINUTES 6 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES
III-Moyen 3 MINUTES 6 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES
IV-Foncè 3 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES 15 MINUTES
V-Très Foncè 3 MINUTES 8 MINUTES 10 MINUTES 15 MINUTES 15 MINUTES
LE TEMPS MAXIMUM D’EXPOSITION EST DE 20 MINUTES
Ce produit est conforme aux normes de rendement pour des produits de lampe de soleil tel que stipule la
partie 1040 du document CFR 21.
www.heartlandtan.com 712/06

SPECIFICATIONS
AND
EXPOSURE
SCHEDULE
www.heartlandtan.com 812/06

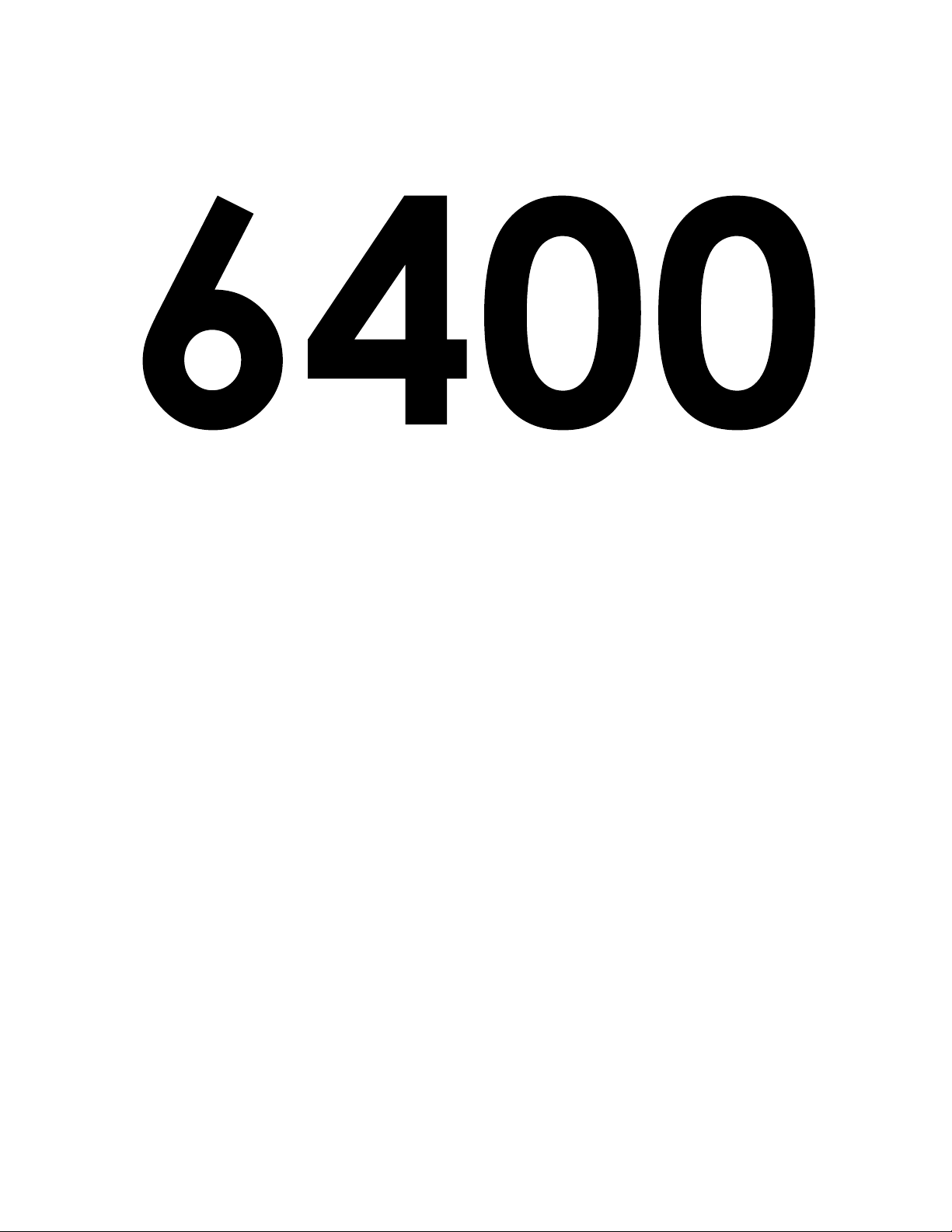

6400
SPECIFICATIONS
44 Lamp Heartland Rave System - 12 minute session
•(26) Heartland Rave Preferred 160 watt lamps in canopy
•(18) Heartland Rave Preferred 160 watt lamps in bench
•TST 250 shoulder tanners
•(4) 500 watt facial lamps
•T-Max™ timer on board (T-Max™ wireless compatible)
•Integrated FM stereo system with connections for an MP3/iPod and headphones.
•(3) 500 cfm exhaust fans
•(2) 500 cfm integrated body fan cooling system.
•35 AMPS initial start up, 31 AMPS running @ 230 VAC (three phase)
•40 AMP rated three phase, 220 – 240 volt with ground required (three phase)
(For optimum performance, running voltage should be 230 – 240 VAC.)
•(2) 1.0 KVA Buck/Booster transformer required if outside 220 – 240 VAC (three phase)
•63 AMPS initial start up, 56 AMPS running @ 230 VAC (single phase)
•70 AMP rated single phase, 220 – 240 volt with ground required (single phase)
(For optimum performance, running voltage should be 230 – 240 VAC.)
•(1) 1.5 KVA Buck/Booster transformer required if outside 220 – 240 VAC (single phase)
•8’ X 9’ minimum room size required
•1 1/2 Ton (18,000 BTU) minimum A/C dedicated into room
Type B seal tight connector supplied located lower back in center of bed. Type B flexible conduit required. *Actual amp
reading will vary depending on voltage – electrician must calculate load/line side amps when using Buck/Booster
transformer to insure proper wire gauge and breaker size. Minimum 8 gauge wire size is recommended for this 40 amp (3
phase) or minimum 6 gauge for 70 amp (single phase) circuit to allow less than 2% voltage drop up to 120 feet. Licensed
electrician must refer to National Electric Codes when determining proper wire gauge and breaker size for each
application. All specifications are subject to change.
www.heartlandtan.com 912/06

6400
EXPOSURE SCHEDULE
DANGER - ULTRAVIOLET RADIATION: Follow instructions. Avoid overexposure. As with natural
sunlight, overexposure can cause eye and skin injury and allergic reactions. Repeated exposure
may cause premature aging of the skin and skin cancer. Wear protective eyewear; Failure to do
so may result in severe burns or long-term injury to eyes.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult
physician before using sunlamps if you are taking medications or have a history of skin problems
or believe yourself to be especially sensitive to sunlight. If you do not tan in the sun, you are
unlikely to tan from the use of this product.
This system is intended to be used only with Rave PREFFERED 1885, HERAEUS OHC 560 500W for
facials and SYSTEM VARIUS 80010522 for shoulder tanners.
Sales or Service Questions
Heartland Tanning, Inc. • Lee’s Summit, MO • 1-800-554-8268
Follow recommended exposure schedule for skin type.
NOTE: See Skin Guide (pg. 3) for help choosing the proper skin type.
RECOMMENDED EXPOSURE SCHEDULE
MAXIMUM EXPOSURE TIME IS 12 MINUTES
SKIN TYPE WEEK 1 1st-3rd
TREATMENT
WEEK 2
4th-6th
TREATMENT
WEEK 3
7th-10th
TREATMENT
WEEK 4
11th-15th
TREATMENT
WEEKLY
SUBSEQUENT
TREATMENT
II-FAIR 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 12 MINUTES
III-AVERAGE 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 12 MINUTES
IV-BROWN 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 12 MINUTES
V-D. BROWN 2 MINUTES 5 MINUTES 7 MINUTES 12 MINUTES 12 MINUTES
This product is in conformity with performance standards for sunlamp products under CFR 21
Part 1040
This unit utilizes UVA lamps. Replace only with Rave PREFFERED 1885, HERAEUS OHC 560 500W for
facials and SYSTEM VARIUS 80010522 for shoulder tanners. The minimum exposure position is .5”
(1.27 cm) from the lamps surface (preset by the mfg.). Read the instruction booklet before using
this device. To use, lie down under canopy and pull down as far as adjustment will allow.
CAUTION: ANY OTHER POSITION MAY RESULT IN OVEREXPOSURE.
Tanning can begin on a regular basis. An appearance of a tan normally appears after a few
exposures and maximizes after four (4) weeks of exposure. Use protective eyewear whenever
equipment is energized. Read the instruction booklet before using.
www.heartlandtan.com 10 12/06

6400
Caractéristiques-12 MINUTES
Longueur : 87,5 pouces par 55 pouces
Hauteur : 41 pouces (avec le couvercle fermé)
Poids d’expédition : 1635 livres
Nombre de lampes : 48
Voltage recommande : 230 - 240
Aspiration électrique : 31 ampères à 230 volts
Circuit requis : 220 volts, double poteau, briseur de
De 60 ampères, avec disjoncteur
Différentiel, briseur de 40 ampères
DANGER – RAYONNEMENT ULTRAVIOLET. Suivez les instructions. Évitez la surexposition. Comme avec les rayons
naturels du soleil, la surexposition peut causer dommage aux yeux et à la peau et des réactions allergiques.
L’exposition répétée peut causer le vieillissement prématuré de la peau et du cancer de la peau. Portez des
lunettes protectrices; le non-respect de cette consigne peut entraîné de graves brûlures ou des lésions
oculaires à long terme.
Les médicaments ou les produits de beauté peuvent augmenter votre sensibilité au rayonnement ultraviolet.
Consultez un médecin avant d’utiliser la lampe solaire si vous utilisez des médicaments ou avez une histoire des
problèmes de peau ou croyez-vous particulièrement sensibles aux rayons du soleil. Si vous ne bronzez pas au
soleil, il est peu probable que vous bronzerez avec l’utilisation de ce produit.
Questions au sujet des ventes ou de service :
Heartland Tanning, Inc. • Lee’s Summit, MO – 1-800-554-8268
Suivez le programme recommandé d’exposition pour le type de peau.
Cette appareil utilise des lampes de l’ultraviolet A. Remplacez seulement avec les lampes de marque RAVE
PREFFERED 1885 AND SYSTEM VARIUS 80010522 for épaule tanneurs. HERAEUS OHC 560 500W (ampoule faciale
de bronzage, là où applicable)]. La position minimum d’exposition est à 0,5 pouces 1,27 cm) de la surface de
la lampe (instituez par le manufacturier). Lisez le livret d’instruction avant d’utiliser ce dispositif. Pour utiliser,
couchez-vous sous l’écran et abaissez dans la mesure où le réglage laissera. ATTENTION : L’UTILISATION DE
N’IMPORTE QUELLE AUTRE POSITION PEUT AVOIR COMME CONSÉQUENCE LA SUREXPOSITION.
Le bronzage peut commencer de façon régulière. Un aspect de bronzage normalement apparaît après
quelques expositions et atteint son niveau maximal après quatre (4) semaines d’exposition. Utilisez des lunettes
protectrices à chaque fois que l’appareil est actif. Lisez le livret d’instructions avant l’utilisation.
Horaire d’exposition recommandé
Type de peau Semaine 1 1er – 3e
Traitements
Semaine 2
4e – 6e
Traitements
Semaine 3
7e – 10e
Traitements
Semaine 4
11e – 15e
Traitements
Bihebdomadaire
Traitements
subséquents
II-Claire 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 12 MINUTES
III-Moyen 2 MINUTES 3 MINUTES 5 MINUTES 9 MINUTES 12 MINUTES
IV-Foncè 2 MINUTES 5 MINUTES 7 MINUTES 11 MINUTES 12 MINUTES
V-Très Foncè 2 MINUTES 5 MINUTES 7 MINUTES 12 MINUTES 12 MINUTES
LE TEMPS MAXIMUM D’EXPOSITION EST DE 20 MINUTES
Ce produit est conforme aux normes de rendement pour des produits de lampe de soleil
tel que stipule la partie 1040 du document CFR 21.
www.heartlandtan.com 11 12/06

REPAIRS - SERVICE
REPLACEMENT PARTS
LAMPS
EYE PROTECTION
If you are in need of any of the above mentioned products or services, you
should contact the dealer/distributor through whom you purchased your unit. In
the event that you are unable to do so, please call our Service Department for
assistance: 1-800-554-8268
NOTE:
All repairs and replacement components including, but not limited to, protective
eyewear, lamps, timers and acrylic must comply with CFR21 1040.20.
NOTE:
Electrical connection to the power supply must comply with NECA regulations
and be performed by a qualified electrician.
WARNING
Wear protective eyewear; failure to may result in severe burns or long-term injury
to eyes.
www.heartlandtan.com 12 12/06

CARE AND
CLEANING
After each session is completed, spray acrylic with a specially formulated UVT
(ultra-violet transmitting) acrylic cleaner. Wipe the acrylic with a clean cloth. The
acrylic should never be wiped with a dry cloth because this will generate a slight
static charge which will attract dust. A mild liquid detergent and water solution
can be used temporarily in place of acrylic cleaner.
ELECTRICAL SAFETY
The tanning unit should be disconnected from the power supply before cleaning
or any repairs are made! Avoid water or solution entering the lamp
compartment.
CAUTION
Do not use excessive amounts of water, any abrasive cleaners, or any spray
cleaner that carry label warnings regarding reactions to contact with skin!
WARNING
DO NOT USE ALCOHOL TO CLEAN THIS UNIT!
For maximum efficiency of your tanning unit, periodic cleaning of lamps is
required. Refer to relamping instructions for acrylic removal.
www.heartlandtan.com 13 12/06

OVATION
LAMP
GUIDE
www.heartlandtan.com 14 12/06

RELAMPING
INSTRUCTIONS
CAUTION
Replacement lamps must comply with CFR 21 1040.20 When ordering lamps, include
model number and serial number.
5400
Replace only with Rave 160 APR 1841, Rave 12071 R 1989 & Hereaus E-400 HPT lamps for
facial.
6400
Replace only with Rave PREFFERED 1885, System Varius 80010522 & Hereaus OHC 560
500W lamps for facial.
REPLACING LOW-PRESSURE TANNING LAMPS
5400 and 6400
BENCH
1. Disconnect power from unit.
2. Unlock the front bench acrylic locks (use 5/32 allen wrench)
3. Hinge the acrylic open by lifting up on the front edge.
Note: The acrylic should stay in the open position.
4. Remove the inner acrylic and set aside. (6400 only)
5. Turn the bi-pin lamp 90 degrees and remove from lamp holder.
6. Align the bi-pin lamp, slide the top and bottom into the lamp holder turn 90
degrees.
7. Reinstall inner acrylic (6400 only)
8. Clean and close the acrylic.
9. Use 5/32 allen wrench to lock bench acrylic.
10. Reconnect power to unit.
CANOPY
1. Disconnect power from unit.
2. Remove the screws from the canopy handle/acrylic retainer.
3. Holding the acrylic, hinge the handle/acrylic retainer open and remove
acrylic.
4. Turn the bi-pin lamp 90 degrees and remove from lamp holder.
5. Align the bi-pin lamp, slide the top and bottom into the lamp holder turn 90
degrees.
6. Clean acrylic and reinstall.
7. Hinge the handle/acrylic retainer closed and reinstall the screws.
8. Reconnect power to unit.
IMPORTANT NOTE – 2 people are required when removing and installing
canopy acrylics on these units, 1 person at each end of bed.
www.heartlandtan.com 15 12/06

REPLACING HIGH-PRESSURE FACIAL LAMPS
5400 and 6400
1. Disconnect power from unit.
2. Remove two (2) quarter-turn fasteners at the front edge of the acrylic using a
#2 Phillips screwdriver.
3. Hinge the front handle/acrylic retainer down from the canopy allowing the
acrylic to hinge down from the back of the canopy.
4. Remove acrylic from the hinge rail exposing the facial assembly.
5. While holding the facial glass, press the two (2) retaining tabs back using your
thumb and set the facial glass aside.
6. Grasp the facial lamp from one end pressing towards the opposite end to
release the facial lamp from the lamp holder.
7. Replace the facial lamp.
NOTE
ONLY GRASP FACIAL LAMP FROM EITHER END; ALWAYS USE ALCOHOL TOWEL
PROVIDED WITH LAMP TO WIPE OFF LAMP AFTER INSTALLATION.
8. Reverse the procedures above to reassemble.
CAUTION
DO NOT CHECK FACIAL LAMP OPERATION WITH FACIAL GLASS CASSETTE
REMOVED. ALWAYS WEAR UV PROTECTIVE EYEWEAR WHEN REPLACING LAMPS AND
CHECKING OPERATION.
www.heartlandtan.com 16 12/06

REPLACING HIGH-PRESSURE SHOULDER
TANNER LAMPS
6400
1. Disconnect power from unit.
2. Hinge acrylic bench open.
3. Remove the glass reflector by pushing in and turning 90 degrees counter
clockwise and set aside.
4. Remove the aluminum reflector by removing two (2) #10-24 screws and lifting
straight up on the reflector.
5. Disconnect the shoulder tanners from the power source.
6. Remove the base from the mounting bracket by pressing down on the
retainer clips tabs and pulling outward on the base.
Note: The base and lamp are one unit.
7. Discard the base and lamp assembly and install the new base to the
mounting bracket.
Note
DO NOT GRASP BY THE LAMP; ALWAYS USE ALCOHOL TO WIPE OFF LAMP AFTER
INSTALLATION.
8. Reverse steps 1-6 to complete lamp change.
CAUTION
ALWAYS WEAR UV PROTECTIVE EYEWEAR WHEN REPLACING LAMPS AND
CHECKING OPERATION.
www.heartlandtan.com 17 12/06
