Heartway Medical Products S12 User manual

1
USERS MANUAL
S12
HEARTWAY MEDICAL PRODUCTS CO., LTD.
NO. 6, ROAD 25, TAICHUNG INDUSTRIAL PARK,
TAICHUNG. TAIWAN R.O.C.408
PUBLISHED: AUG. 3, 2009
VERSION: 1 Part no:70030175

2
CONTENTS
1. Technical Specification……………...........................................…………….3
2. Safety Instruction…………………………………………….………………….. 4 ~ 7
3. Environment Condition…………………………………………….……………….... 8
4. Warranty……………………………………………………………..…………….. 9
5. Assembly Instruction………………………………………….…………….. 1 0 - 1 2
6. Operation of Control Panel………………………………………………………………13
7. Control Panel Layout……………………………….…………………………….…..14-15
8. Operating Instructions…..………………………….……………………………………..…16-24
9. Charger…..………………………….……….………………………………..… 2 5 - 2 7
10. Maintenance and Repair………………..………..……….……………………………………………28
11. Checks ……………....……………….……..……………….…..………………………29-30
12. Circuit Diagram……………..………………….………………………………………………….…….31
13. Heartway’s Patent - Front Suspension System………………………………...………………………………31
14. BOM List Drawing………………………………….....……………………………………………………32

3
TECHNICAL SPECIFICATIONS
MODEL S12
WEIGHT CAPACITY 160kgs(350 lbs)
SEAT: TYPE/SIZE 20" A2
DRIVE WHEEL 330mmx120mm(13" x 5")
FRONT CASTER (WHEEL) 330mmx100mm(13" x 3.5")
REAR CASTER (ANTI-TIPPER) None
MAX SPEED 15KPH (9.3MPH); Opt: 20KPH (12.4MPH)
BATTERY SPECIFICATIONS 12V 62Ah x 2pcs; Opt:80Ah
BATTERY RANGE 45km
CHARGER TYPE 8 Amp,Off Board120/240 Volt,50/60Hz
CONTROLLER TYPE Dynamic Rhino 110Amp
MOTOR TYPE 4400rpm 700W
WEIGHT: W/ BATTERY 100kgs(220 lbs)
WEIGHT: W/O BATTERY 72kgs(158 lbs)
TURNING RADIUS 1280mm
SUSPENSION FULL
LENGTH 1400mm
WIDE 700mm
HEIGHT 1360mm
SEAT WIDTH 510mm
SEAT HEIGHT 460mm
SEAT DEPTH 480mm
BACK HEIGHT 750mm
WHEEL BASE 1025mm
GROUND CLEARANCE 80mm
LEG ROOM 320mm

4
SAFETY INSTRUCTION

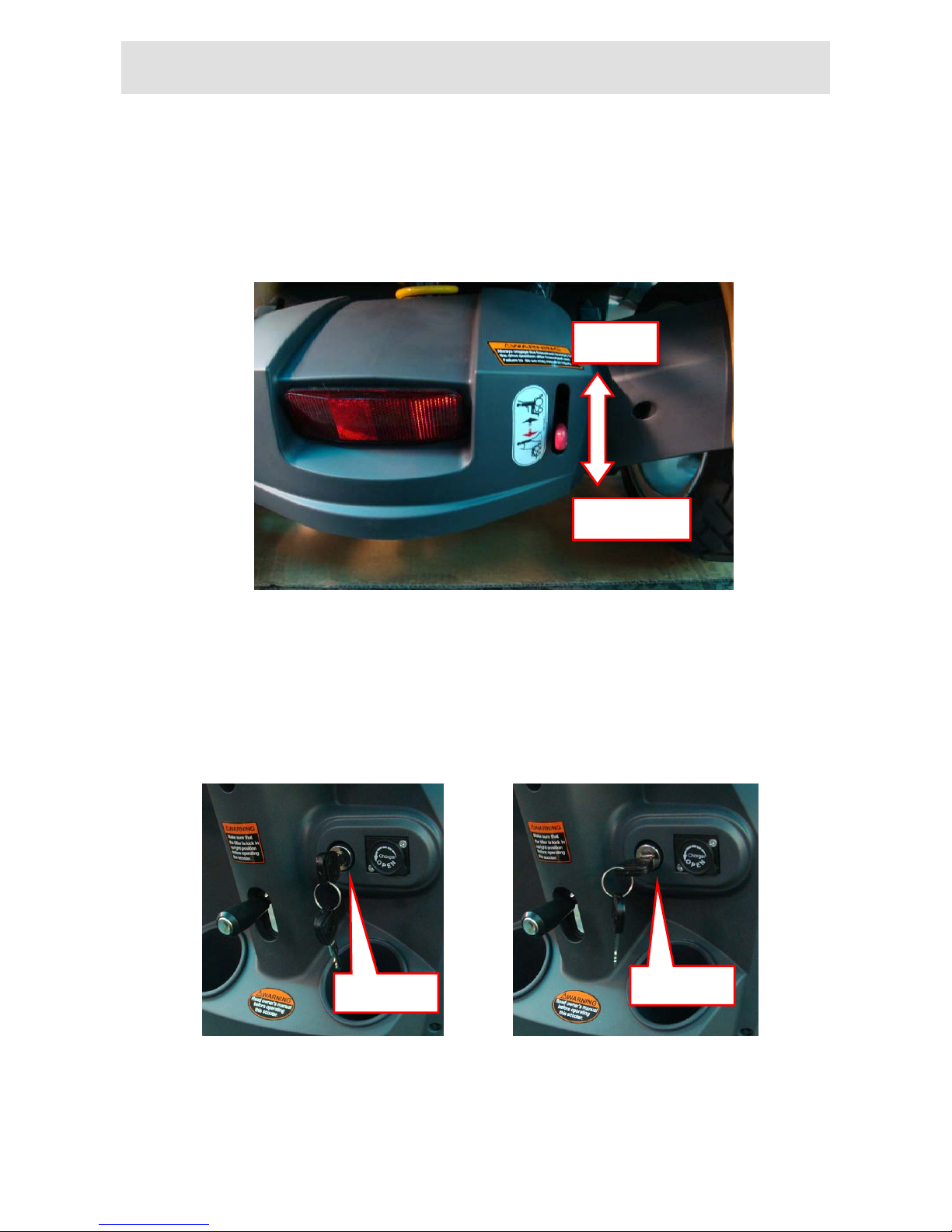

OPERATION OF SCOOTER
1. To prevent injury to yourself or others, always ensure that the power is switched off
when getting on or off of the scooter.
2. Always check that the drive wheels are engaged (drive mode) before driving.
(Fig.1)
3. Do not switch off the power when the scooter is still moving forward. This will bring the
chair to an extremely abrupt stop.
(Fig.2) (Fig.3)
Free Wheel
Engaged
Power On
Power Off

5
General
1. Always use a seat belt, and keep your feet on the scooter all the time.
2. Do not over load the scooter with it’s maximum weight capacity of 160 kg (350 lbs)
3. Do not attempt to lift or move a power scooter by any of its removable parts. Personal
injury and damage to the power chair may result.
4. Never try to use your scooter beyond its limitations as described in this manual.
5. Do not operate your vehicle if it is not functioning properly.
6. Do not connect any electrical or mechanical device to the scooter. Failure to obey this
instruction may result in injury and will void the warranty.
7. Never use electronic radio transmitters such as CB, walkie-talkies, portable computers
or cellular phones while using the vehicle without first turning the scooter off.
8. Any transportation on a slope maybe dangerous if the automatic brakes are
disengaged.
Usage While Under The Influence Of Medication Or Alcohol
1. Check with your physician if you are taking any medication that may affect your ability to
operate your power scooter safely.
2. Do not operate your scooter while you are under the influence of alcohol, as this may
impair your ability to operate your power scooter in a safe manner.

6
Electromagnetic interference (EMI) from Radio Wave Sources
The rapid development of electronics, especially in the area of communications, has
saturated our environment with electromagnetic (EM) radio waves that are emitted by
television, radio and communication signals. These EM wave are invisible and their
strength increases as one approach the source. All electrical conductors act as antennas to
the EM signals and, to varying degrees, all power wheelchairs and scooters are susceptible
to electromagnetic interference (EMI). The interference could result in abnormal,
unintentional movement and/or erratic control of the vehicle. The United States Food and
drug Administration (FDA) suggests that the following statement be incorporated to the
user’s manual for all power scooter like the S12. Power wheelchairs and motorized
scooters (in this section, both will be referred to as powered wheelchairs) may as
susceptible to electromagnetic interference (EMI), which is interfering electromagnetic
energy emitted from sources such as radio stations, TV stations, amateur radio (HAN)
transmitter, two-way radios, cellular phones and alarm systems of shops. The interference
(from radio wave sources) can cause the powered wheelchair to release its brakes, move
by itself or move in unintended directions. It can also permanently damage the powered
scooter’s control system. The intensity of the EM energy can be measured in volts per
meter (V/m).Each powered scooter can resist EMI up to a certain intensity. This is called
“immunity level”. The higher the immunity level the greater the protection. At this time,
current technology is capable of providing at least 20 V/m of immunity level, which would
provide useful protection against common sources of radiated EMI.
Following the warnings listed below should reduce the chance of unintended brake release
or powered scooter movement that could result in serious injury:
1. Do not turn on hand-held personal communication devices such as citizens band (CB)
radios and cellular phones while the powered scooter is turned on.
2. Be aware of nearby transmitters such as radio or TV stations and try to avoid coming
close to them.
3. If unintended movement or brake release occurs, turn the powered scooter off as soon
as it is safe.
4. Be aware that adding accessories or components, or modifying the powered scooter,
may make it more susceptible to interference from radio wave sources
(Note: It is difficult to evaluate the effect on the overall immunity of the powered
scooter).
5. Report all incidents of unintended movement or brake release to the powered scooter
manufacturer, and note whether there is a radio wave source nearby.

7
TURN OFF YOUR POWERED SCOOTER AS SOON AS POSSIBLE WHEN
EXPERIENCING THE FOLLOWING:
‧Unintentional scooter movements
‧Unintended or uncontrollable direction.
‧Unexpected brake release
The FDA has written to the manufacturers of power scooters asking them to test new
products to be sure they provide a reasonable degree of immunity against EMI. The FDA
requires that a powered wheelchair should have an immunity level at least 20 V/m, which
provides a reasonable degree of protection against more common sources of EMI. The
higher the immunity level the greater the protection. Your powered scooter has an immunity
level of 20 V/m which should protect against common sources of EMI.
Warning: The scooter itself can disturb the performance of the electromagnetic fields such
as emitted by alarm systems of shops.

8
ENVIRONMENTAL CONDITIONS
Environmental conditions may affect the safety and performance of your power scooter.
Water and extreme temperatures are the main elements that can cause damage and affect
performance.
A) Rain, Sleet and Snow
If exposed to water, your power scooter is susceptible to damage to electronic or
mechanical components. Water can cause electronic malfunction or promote premature
corrosion of electrical components and frame.
B) Temperature
Some of the parts of the power scooter are susceptible to change in temperature. The
controller can only operate in temperature that ranges between -25℃~ 50℃.
At extreme low temperatures, the batteries may freeze, and your power scooter may not be
able to operate. In extreme high temperatures, it may operate at slower speeds due to a
safety feature of the controller that prevents damage to the motors and other electrical
components.

9
WARRANTY
Quality/ Warranty Declaration
Products are to be fit for purpose and of excellent quality and performance. For valid
warranty claims Heartway will, at their discretion, replace/ repair/ refund items mutually
agreed to be defective.
Heartway’s warranty as following:
(1) Frame: two year limited warranty
(2) Electronic Components and Charger: one year limited warranty.
(3) Controllers: one and half year limited warranty
(4) Batteries: not warranted.
(5) Consumables (wheel tires, arm pads, and seat cushions): not warranted.
Any damage or defect of any nature occurring from the misuse of the product is not to be
covered. The warranty is to start from the date of arrival of our products.

10
ASSEMBLY INSTRUCTION
It is very easy to assemble your S12 scooter. Please follow the procedure below.

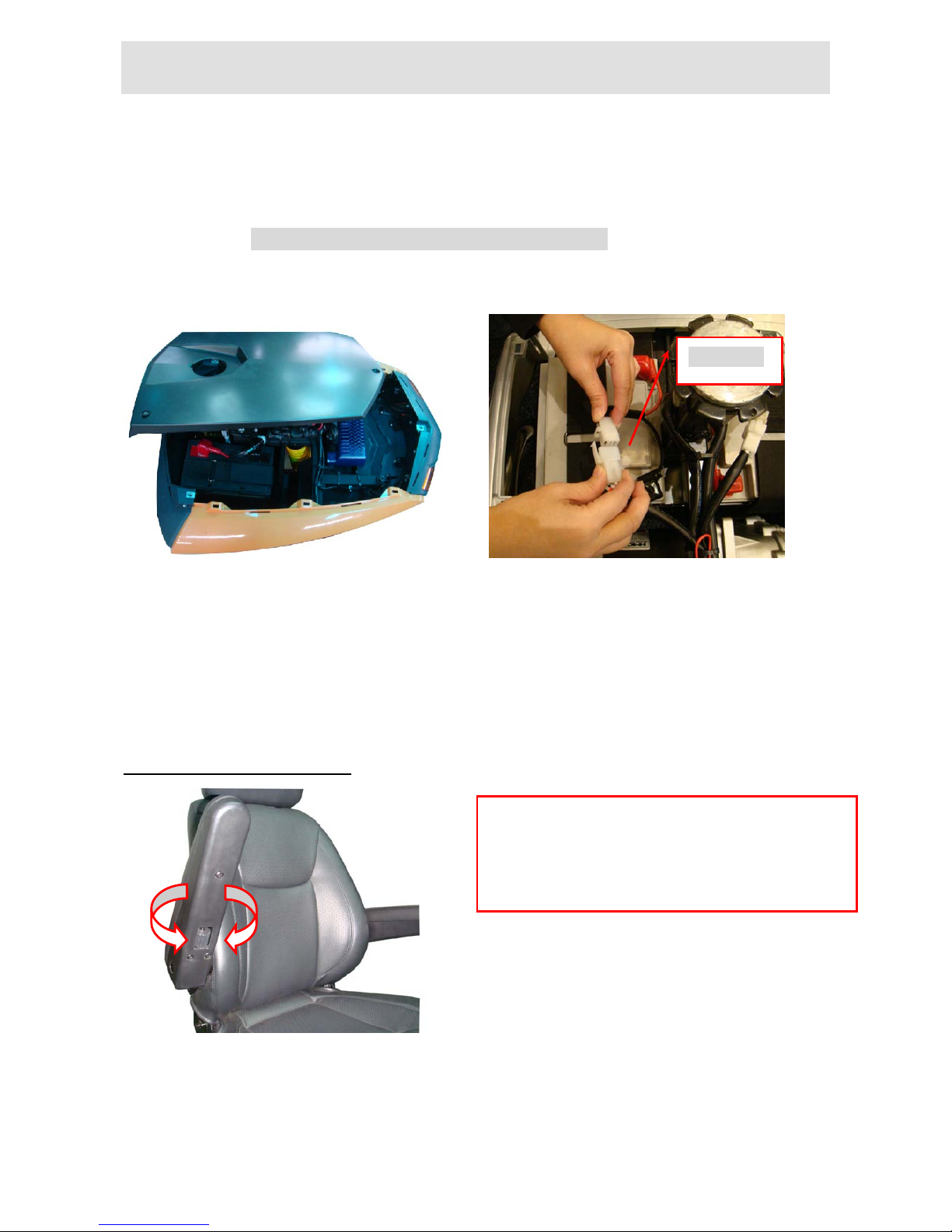

Installing the Batteries:
Remove three screws as shown on (Fig.4) and take off the cover. Connect both battery
cables probably (﹢/ ﹣pole ,Red is positive, black is negative)
(Fig.4) (Fig.5)
Adjustments for Seating Comfort:
1. Armrest Height Adjustment
(Fig.6)
Connected
Turn the round plate below the armrest to
adjust the height of the armrest. Turn
Anticlockwise to adjust the armrest upward
and clockwise for downward

11
2.1 Seat Rotation
→ Press the seat swivel lever downward.
→ Rotate your seat by clockwise or counter-clockwise direction.
(Fig.7) (Fig.8)
2.2 Seat Position Adjustment
→ Push the seat adjust lever upwards.
→ Move the seat to your desired position
→ let the lever lock into your preferred position.
Note: The distance adjusting arrange is 150mm.
(Fig 9)
2.3 Driving and braking
→For Driving please pull the right throttle lever (forward) or the left throttle lever (rearward).
→For stopping the scooter please release the throttle lever. In the center position the
magnetic motor brake system works also as a parking brake. Optional there is a hand
brake system available.
→For safety, when rolling at free-wheel mode down slope, the automatic brake will take
action if the transferring speed is more than 30% of the scooter’s maximum speed.
Forward Reverse
Optional hand brake lever
Disengaged
(Free Wheel)
Engaged Please be noted that the scooter will be at free-wheel
mode, when the motor is disengaged.
To use the parking brake, you must move the lever
into the engaged position!

12
2.4Tiller Positioning
Press down the lever and move it to your preferred position. (See Fig 10 & 11)
(Fig.10) (Fig.11)
2.6 The adjustment of the suspension system:
The softness of the rear suspension system can be
adjustable. There are altogether 5 stages of adjustment.
Tooling bar

13
OPERATION AND CONTROL PANEL
SCOOTER CONTROL PANEL
(LCD)
SPECIFICATION
FOR
：
S12
PREPD
BY CHK TEST DESN APPR
NAME
：
SCOOTER CONTROL PANEL
DWG NO
：
REVISION RECORD DATE PREP CHK S12

14
Control Panel Layout
LCD（Liquid Crystal Display）Power Scooter Control Panel, TN Type
Model LCD(Liquid Crystal Display)

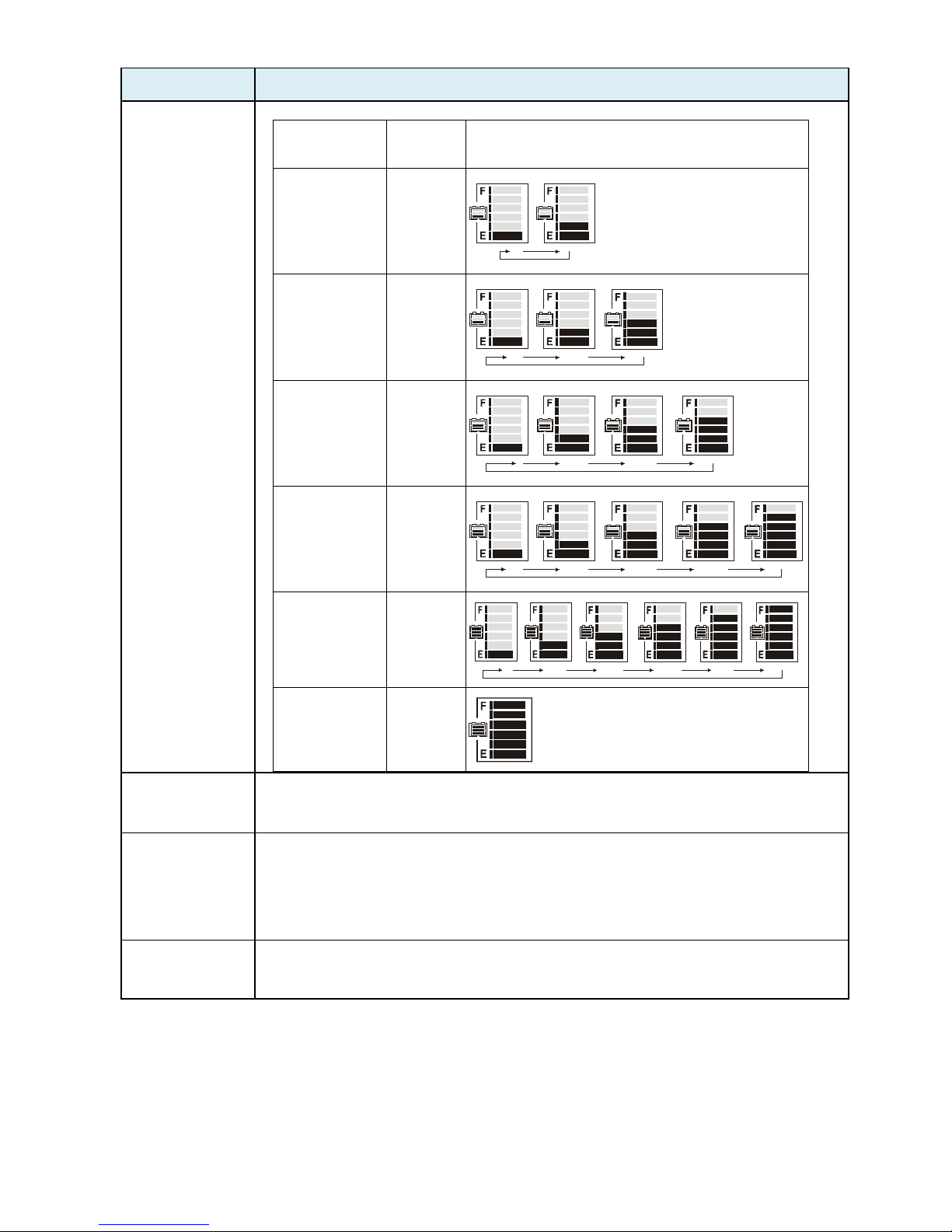

Functions 1. Power Indicator：Battery remaining capacity and charging indicator (6 squares +
Battery Icon)

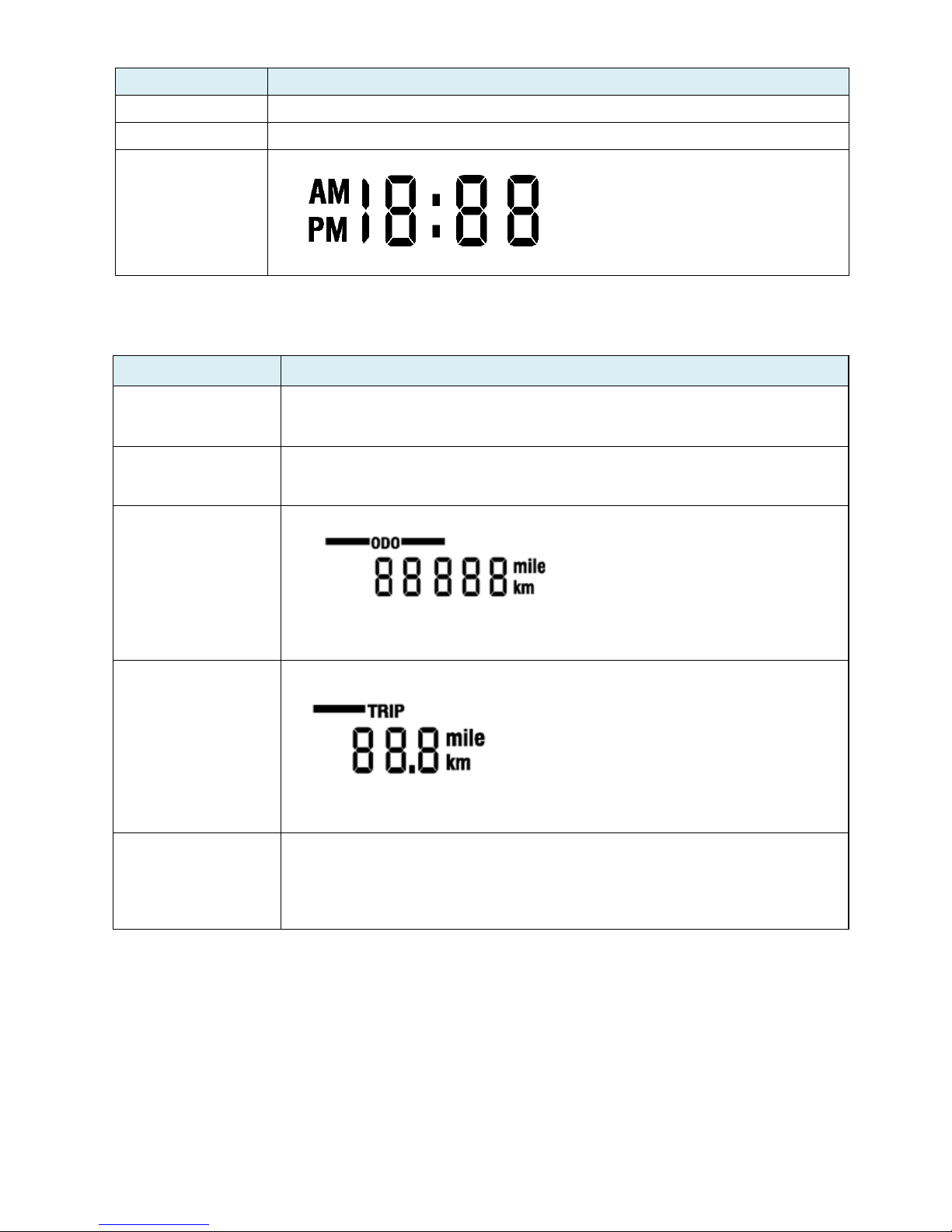

2. Clock：Hour / Minute / Second display and setting.
3. Speed Sensor：7 Segment display (2.5 digits +1 decimal) + “km/h / mph” symbol
4. High/Low/ Turn Speed：Indicated as “H” and “L” symbols
5. Odometer：ODO(99999km max)、TRIP(99.9 max)
6. Headlight：“Power-saving” mode, Blue LED
7. Back-up Lamps：“Brake / Reverse” modes, Orange LED
8. Right-Indicator：Flash mode, Green LED
9. Left-Indicator：Flash mode, Green LED
10. Parking Lamp：Including “Reverse Mode”, left- indicator and right-indicator flashing
simultaneously, Red LED
11. Malfunction Code：7 Segment display (1digit ) + Warning symbol + Red LED
12. Power-on Scan：All LED turn on
13. TEMP Gauge：ºC and ºF modes
14. Reverse Light：”Reverse” symbol flashing
Buttons ：Left-Indicator control ：Right-Indicator control
：High/low speed switch ：Parking

15
Buttons ：Horn ：Horn
：Headlight :MODE ：SET ：Back-up Light
LED Indicators Right & Left indicator (Green) ，Parking light (Red)，Warning light (Red)，Back-up lamps
(Yellow)，Headlight(Blue))
LCD Backlight LED(White)
Connector CON1: 20PIN AMP
Usage Condition
ITEM SPECIFICATION
Voltage DC24 V
Operation Voltage DC 16 ~32 V
Storage TEMP. -40℃~ 65℃
Operation TEMP. -25℃~ 50℃
Meter Angle at
Handle Cover
30°of elevation while scooter assembly (LCD orientate to six o’clock)
2、General Characteristic Performance Test (20 ±5℃)
2.1、Headware Circuit:
ITEM SPECIFICATION RESULT
Lowest Operation VOLT 16 V max
V
Consuming Current
(VB = 24.0V)
Dynamic: 200 mA max
-- Backlight and LED light status
Static: 5 mA max
-- Key OFF status
mA
mA

16
Operating Instruction
１、Speed Sensor and Display
ITEM SPECIFICATION
Operation Features Speed detection by speed sensor from transaxle with conversion at 1800rpm equal
to 60km/h.
Tolerance 5~15% (±2%)
Digital Range 0.0 ~ 99
Display Switch Button Initial setting at km/h, switch to MPH by MODE and SET buttons
２、High / Low / Turn Speed
ITEM SPECIFICATION
Operation Features
(1) Switch High / Low speed by pressing button once. (TRN as control signals)
Press one time: High-speed <<--->> Low-speed (with memory storage).
(2) Take exterior turn-switch as determinant signal (TRN as control signals).
Symbols on LCD ＂H＂symbol means “High Speed”
＂L＂symbol means “Low Speed”：
＂L＂symbol flashing means “Turn Speed”:
Flicker Frequency 1 sec

17
３、Power Indication
ITEM SPECIFICATION
Battery Remaining
Capacity
Remaining
Capacity (%) Voltage (V) Scale Bar
100
(6) ＞25.42
85
(5) ≦25.42
70
(4) ≦25.12
55
(3) ≦24.78
40
(2) ≦24.42
30
(1) ≦23.88
and Flashing
20 Low-power
Warning Warning LED Flashing
Flicker
Frequency 2 sec.
Operation
Characters
(1) Scale status only decrease, won’t increase.
(2) When the remaining capacity was less than 30%, warning sound (“Be-Be” two short
sounds) act at 5 seconds intervals.
While (a) Key Off (b) Charging Mode (c) Sleep Mode, warning sound released.

18
ITEM SPECIFICATION
Charge Indication
Remaining
Capacity (%) Voltage (V) Scale Bar
40
(2)
＜25.44
55
(3) ＞25.44
70
(4) ＞26.18
80
(5) ＞26.92
90
(6) ＞28.5
100
(7)
Increase
Frequency 0.5 sec.
Operation
Character
(1) Scale status only decrease, won’t increase.
(2) Take the PIN3(CH3) of charger as determinant signal, enter「Charging Mode」when
CH3 grounding (L), not only “KEY ON” or “KEY OFF”.
Remarks Above scale bar status only for reference, must take the indicator of charger as the
precise diagnosis.

19
４、Clock Meter
ITEM SPECIFICATION
Tolerance (per day) ± 2 sec
Initial Setting Value
『
Hour
：
Min
』
mode :
『
AM 12:00
』
『Hour : Min』
Setting
(12-Hour format)
Display range : AM12:00 ~ PM11:59
When
『
Hour
』
is between 1 and 9 o’clock, displayed at 1~9.
５、Odometer
ITEM SPECIFICATION
Operation Features Odometer detected by the signal of Opto Coupler then converts into distance.
Display Switch Button 「km/h」means the odometer displayed as kilometer.
「mph」means the odometer displayed as mile.
Accumulative Display
[ODO]
(1) Display Range:00000~99999
(2) Once the total mileage up to 99999km or 62149mile (99999÷1.609mile), the
counter will restart from “00000”.
TRIP Counter
(1) Display Range：00.0~99.9
(2) When over 99.9km, display stop counting
(won’t restart from “00.0”).
Operation status (1) Odometer indication display on ODO mode when Power On, then switch to TRIP mode after 5 seconds.
(2) TRIP can be reset to “00.0”.

20
６、Headlight Control
ITEM SPECIFICATION
Operation Feature
Take exterior headlight switch as determinant signal.
(1) Switch on/off the head light by pressing button once, then LED will
turn on/off simultaneously.
(2) LCD backlights turn on / turn off with head light.
Power Saving Mode When motor stop, the modulation down to 30% (Headlight)
When motor act, 100% output power (Headlight)
Usage Condition While (a) KEY OFF (b) Power-Saving mode (c) Sleep mode , all functions closed.
Determinant
Condition
(1) 2.2V＞WIP＞2.8V ( 100% Full-power )
(2) 2.2V＜WIP＞2.8V ( 100% Full-power )
(3) Full / Half power switch at real time.
(4) The determination of “Reversing Mode” need to consider the motor direction and
panel setting.
Remarks (1) Loop Load: 24V/50W max
(2) With “short circuit” and “overload” protection
７、Back-up Lamp control
ITEM SPECIFICATION
Operation Feature
Take exterior back-up lamp switch as determinant signal.
(1) Switch on/off the head light by pressing button once, then LED
will turn on/off simultaneously.
(2) LCD backlights turn on / turn off with head light.
(Control Mode)
Brake-lamp Mode
Reversing-lamp Mode
When motor changes from act (go forward) to stop, the lamp reinstated after
flashing for 3 sec.
Determine as “Reversing Mode”, back-up lamp keep flashing.
Reverse warning sound can be set by panel ( Turn on / Turn off)
Usage Condition While (a) KEY OFF (b) Charging Mode (c) Sleep Mode, all functions closed. * Brake-lamp & Reversing-lamp Mode won’t be limited by Back-up lamp switch
on or off.
Flicker Frequency 1 sec.
