Heat & Glo 6000GBV User manual

1Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
Models:
6000GBV
6000GBV-IPI
6000GBV-LP
6000GBV-IPILP
Owner’s Manual
Installation and Operation
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller, serviceagency,or the
gas supplier.
WARNING: Iftheinformationinthese
instructionsisnot followed exactly,afire
or explosionmayresultcausingproperty
damage, personal injury, or death.
DO NOT DISCARD THIS MANUAL
CAUTION
Important operating
and maintenance
instructions included.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory-trained
professionals, or technicians supervised by an NFI certi-
fied professional.
•••
DO NOT
DISCARD
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
Read, understand and follow
these instructions for safe
installation and operation.
Leave this manual with
party responsible for use
and operation.
Thisapplianceisonlyforusewiththetype(s)ofgasindicated
on the rating plate.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesare hotduring
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

2 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
Congratulations
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
—an elegant and clean alternative to wood burning
appliances. The Heat & Glo gas appliance you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions
and Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Gas and Electric
Information
Model Number
Serial Number
Type of Gas
The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Heat & Glo, a of Hearth & Home Technologies, Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
brand
Not for use with solid fuel.
(Ne doit pas entre utilise avec un combustible solide).
This appliance must beinstalled in accordance with local codes, if any;if not, follow ANSI Z223.1
intheUSAorCAN/CGA B149installation codes.(Installerl’appareil selonlescodesoureglements
locaux ou,en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)
Type of Gas (Sorte De Gaz):
NATURAL GAS
MADE IN USA
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
ApprovedMinimum(De Gaz)Acceptable0.0in w.c. (Po.Col.d’eau)
MaximumPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MaximumManifoldPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MinimumManifoldPressure(Pression) 0.0in w.c. (Po.Col.d’eau)
Model:
(Modele):
Serial
(Serie):
ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B
XXXXXXXX
INCANADA
ALTITUDE:0-0000 FT.0000-0000FT.
MAX.INPUTBTUH: 00,000 00,000
MIN.INPUT BTUH: 00,000 00,000
ORIFICESIZE: #XXXXX #XXXXX XXXXXXXX
Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes
This product may be covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevets suivants): (United States)
4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708,5542407, 5601073, 5613487, 5647340,5688568,5762062, 5775408, 5890485,5931661, 5941237,5947112,5996575, 6006743, 6019099, 6048195,
6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2,
6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign patents pending (ou
autresbrevetsamericains etetrangers enattente).

3Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
- Table of Contents -
Section 1: Listing and Code Approvals
A. Appliance Certification................................... 4
B. Glass Specifications...................................... 4
C. BTU Specifications........................................ 4
D. High Altitude Installations .............................. 5
E. Non-combustible Materials Specification....... 5
F. Combustible Materials Specification.............. 5
G. Electrical Codes............................................. 5
Section 2: Getting Started
A. Design and Installation Considerations......... 6
B. Negative Pressure......................................... 7
C. Tools and Supplies Needed........................... 8
D. Inspect Appliance and Components.............. 8
Section 3: Framing and Clearances
A. Selecting Appliance Location......................... 9
B. Constructing the Appliance Chase .............. 10
C. Clearances .................................................. 10
D. Mantel Projections........................................11
Section 4: Termination Locations
A.Vent Termination Minimum Clearances....... 12
Section 5: Vent Information and Diagrams
A. Vent Guidelines ........................................... 13
B. Vent System Configuration.......................... 13
Section 6: Vent Clearances and Framing
A. Pipe Clearances to Combustibles............... 15
B. Vertical Penetration Framing....................... 15
Section 7: Appliance Preparation
A. Installing Outside Air Kit Damper Assembly..16
B. Gas/Electrical Connections ......................... 16
C. Installing the Non-Combustible Board.........17
D. Securing and Leveling Appliance ................ 17
Section 8: Installing Vent Pipe
A. Assembly of Vent Sections.......................... 18
B. Attaching Vent to Firebox ............................ 18
C. Securing Vent Sections............................... 18
Section 9: Gas Information
A. Fuel Conversions ........................................ 19
B. Gas Pressures............................................. 19
C. Gas Connection........................................... 19
Section 10: Electrical Information
A. Recommendation for Wire........................ 21
B. Connecting to the Appliance..................... 21
C. Intellifire Ignition System Wiring................21
D. Standing Pilot Ignition System Wiring....... 22
E. Junction Box Installation........................... 23
F. Wall Switch Installation for Fan................. 23
Section 11: Finishing
A. Mantel Projections .................................... 24
B.Facing Material......................................... 24
Section 12: Appliance Setup
A. Remove Shipping Materials...................... 25
B. Clean the appliance.................................. 25
C. Accessories .............................................. 25
D. Lava Rock, Vermiculite, Rockwool
and Ember Placement.............................. 25
E. Positioning the Logs ................................. 26
F. Glass Assembly ........................................ 28
G. Screen Mesh............................................. 28
H. Grilles and Trim......................................... 28
I. Shutter Settings ........................................ 28
Section 13: Operating Instructions
A. Before Lighting Appliance......................... 29
B. Check Appliance Draft.............................. 29
C. Lighting Appliance..................................... 30
D. After Appliance is Lit................................. 32
E. Frequently Asked Questions..................... 32
Section 14: Troubleshooting
A. Standing Pilot Ignition System.................. 33
B. Intellifire Ignition System........................... 35
Section 15: Maintaining and Servicing Appliance........... 37
Section 16: Reference Materials
A. Appliance Dimension Diagram ................. 39
B. Service Parts ............................................ 40
C. Warranty ................................................... 44
D. Contact Information .................................. 46
= Contains updated information.

4 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
B. Glass Specifications
Hearth&HomeTechnologiesappliancesmanufacturedwith
tempered glass may be installed in hazardous locations
such as bathtub enclosures as defined by the Consumer
Product Safety Commission (CPSC). The tempered glass
has been tested and certified to the requirements of ANSI
Z97.1andCPSC 16 CFR1202(SafetyGlazingCertification
Council SGCC# 1595 and 1597.Architectural Testing, Inc.
Reports 02-31919.01 and 02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
A. Appliance Certification
NOTE: Thisinstallationmust conform withlocalcodes.In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
NOTINTENDED FORUSE ASA PRIMARYHEAT SOURCE.
Thisapplianceis tested andapprovedas either supplemental
room heat or as a decorative appliance. It should not be fac-
tored as primary heat in residential heating calculations.
Listing and Code Approvals
C. BTU Specifications
1
MODELS: 6000GBV, 6000GBV-IPI,
6000GBV-LP, 6000GBV-IPILP
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: B-Vent Decorative
STANDARD: ANSI Z21.50-2002•CGA2.2
Models
U.S. (0-2000 ft.) or Canada (2000-4500 ft.) Maximum
Input BTUH Minimum Input BTUH
Orifice
Size
(DMS)
6000GBV
6000GBV-IPI
US 27,000 18,000 #40
CAN 24,300 16,200 #41
6000GBV-LP
6000GBV-IPILP
US 27,000 18,000 #53
CAN 24,300 16,200 #54
This product is listed to ANSI standards for “Vented Gas
Fireplaces” and “Gas Fired Appliances for Use at High
Altitudes”.
This model (natural gas and propane) can be installed in a
bedroom(in theUnited States)which has a total volumeof
unconfinedspace appropriate to the particularinstallation.
Refer to the National Fuel Gas Code ANSI Z223.1/
NFPA54 (current edition), The Uniform Mechanical
Code - (current edition),andlocal BuildingOfficialsforthe
options allowed in obtaining an effective bedroom volume
of unconfined space.
This model (natural gas and propane) can be installed in
a bedroom (in Canada) if a thermostat (Model WH-STAT)
is installed with the unit. Consult local code authorities.
Detailed installation instructions for Model WH-STAT are
included with the kit.

5Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
D. High Altitude Installations
U.L.Listedgas appliancesaretested andapprovedwithout
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above
a 2000 foot elevation in the U.S.A., or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
WARNING
DoNOTusethis applianceifany parthas beenunderwater.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
thoseconsisting entirely of steel, iron,brick, tile,concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750oC, shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per,plantfibers,plastics,orothermaterialthatcanigniteand
burn,whetherflameproofed ornot,or whetherplasteredor
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordance withlocal codes or, intheabsence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.

6 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
A. Design and Installation Considerations
Heat & Glo B-type vent gas appliances are designed to
operate with all exhaust gases expelled to the outside of
the building, and combustion air pulled from the room.
Getting Started
2
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed. See Sections 3
and 4.
• Theventsystem configurationtobeused. See Sections
5 and 6.
• Gas supply piping. See Sections 7 and 9.
• Electrical wiring. See Sections 7 and 10.
• Framing and finishing details. See Sections 3, 6 and 11.
• Whetheroptionalaccessories—devicessuchasafan,wall
switch, or remote control—are desired. See Section 10.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Fire Risk
Explosion Risk
Keep appliance dry.
• Water may damage controls.
• Mold or rust may cause odors.
WARNING

7Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Figure 2.1
B. Negative Pressure
Draft is the pressure difference needed to vent fireplaces
successfully. Considerations for successful draft include:
• Preventing negative pressure
• Location of fireplace and chimney
Negative pressure results from the imbalanceof air avail-
able for the fireplace to operate properly. Causes for this
imbalance include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustionairrequirementsfor furnaces,waterheaters
and other combustion appliances
• Clothes dryers
• Location of return-air to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks (recessed lighting, attic hatch
opening, duct leaks)
To minimize the effects ofnegative air pressure, the follow-
ing must be considered:
• Install the fresh air kit. Install the intake on the side of
the house towards prevailing winds during the heating
season.
• Ensureadequate outdoorair issupplied forcombustion
appliances and exhaust equipment.
• Ensurefurnace andairconditioning returnvents arenot
located in the immediate vicinity of the fireplace.
• Avoid installing the fireplace near doors, walkways or
small isolated spaces.
• Recessedlightingshould be of“sealedcan”design; attic
hatches weather stripped or sealed; and attic mounted
ductwork and air handler joints and seams taped or
sealed.
• Basement installations should be avoided due to stack
effect. Stack effect creates negative pressure in lower
levels. Hearth & Home Technologies recommends the
use of direct vent fireplaces in basements.

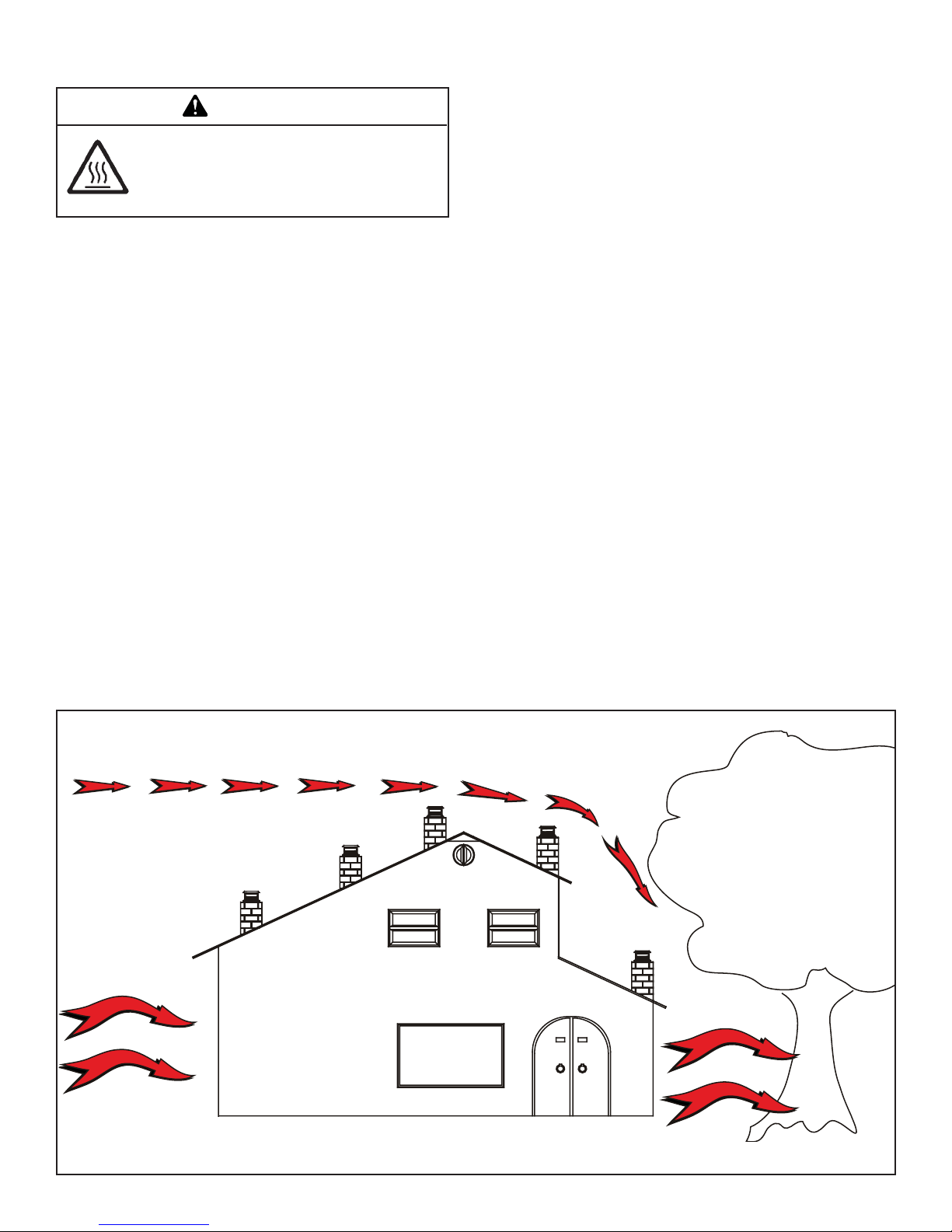

Location of the fireplace and chimney will affect perfor-
mance. As shown in Figure 2.1, the chimney should:
• Be installed through the warm space enclosed by the
building envelope. This helps to produce more draft,
especially during lighting and die-down of the fire.
• Penetrate the highest part of the roof. This minimizes
the effects of wind turbulence.
• Belocatedawayfrom trees,adjacentstructures,uneven
roof lines and other obstructions.
Offsets can restrict draft so their use should be minimized.
Consider the fireplace location relative to floor and ceiling
and attic joists.
Asphyxiation Risk.
• Negative pressure can cause spillage of
combustion fumes and soot.
• Fireplace needs to draft properly for safety.
WARNING

8 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
D. Inspect Appliance and Components
C. Tools and Supplies Needed
Before beginning the installation be sure that the follow-
ing
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Tape measure
Manometer Voltmeter
Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
One 1/4 inch female connection (for optional fan).
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report suspected damaged parts to dealer.
• Carefully remove the appliance and components from
the packaging.
• Theventsystemcomponentsand trimdoorsareshipped
in separate packages.
• The gas logs may be packaged separately and must
be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
WARNING
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.
Figure 2.2 Typical Vertical Installation

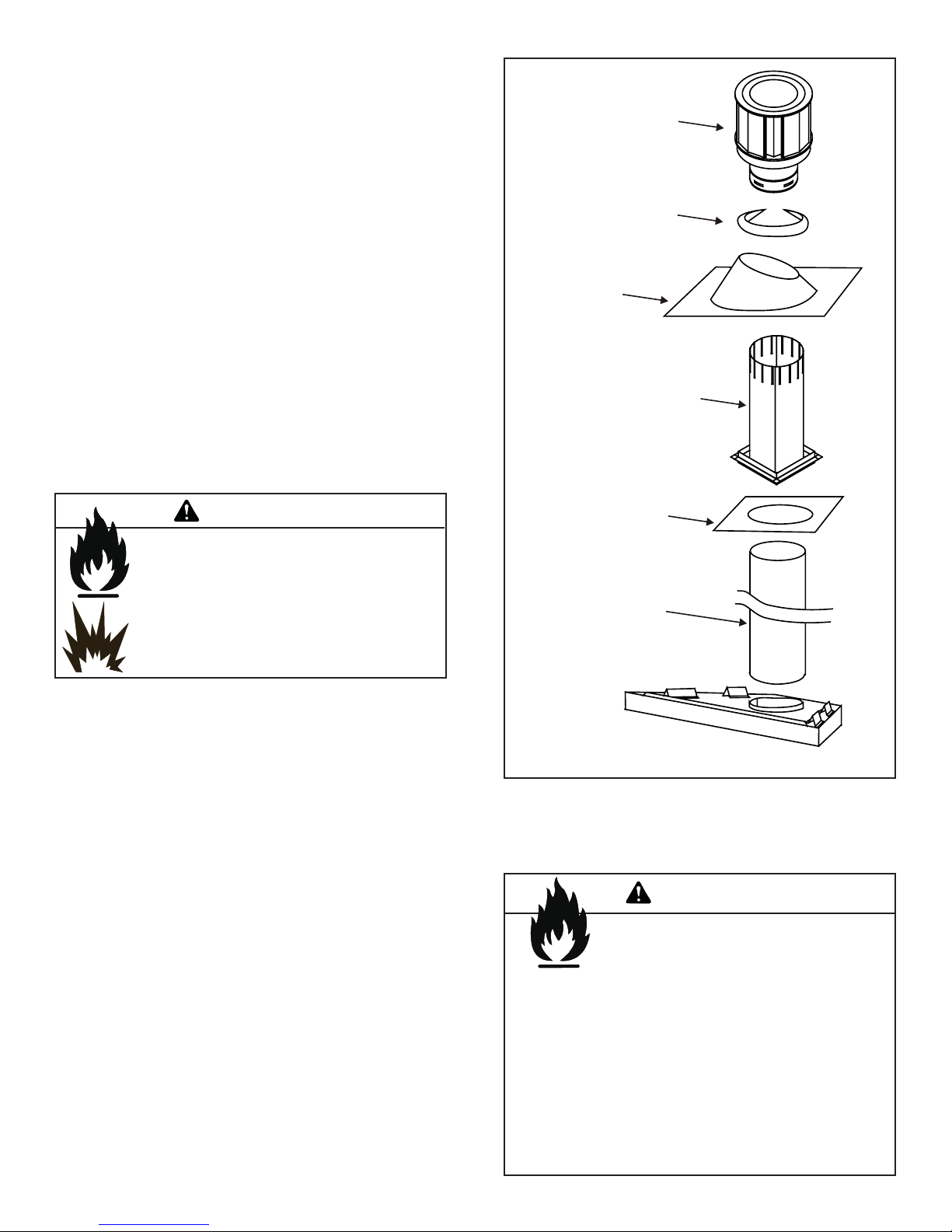

The following B-vent components are needed for instal-
lation (see Figure 2.2).
• Fireplace Box
• Pipe Components
• Firestops
• Attic Insulation Shield
• Elbows
• Strapping
• Roof Flashing or Chase Top
• Termination Cap
• Storm Collar
• Read all of the instructions before starting the in-
stallation. Follow these instructions carefully dur-
ing the installation to ensure maximum safety and
benefit.
VERTICAL TERMINATION CAP
STORM COLLAR
ATTIC INSULATION SHIELD
GAS B-VENT
PIPE SECTION (S)
FIRESTOP SPACER
ROOF FLASHING
OR CHASE TOP

9Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
3Framing and Clearances
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
WARNING
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselecting a locationfor yourappliance it isimportant to
consider the required clearances to walls (see Figure 3.1).

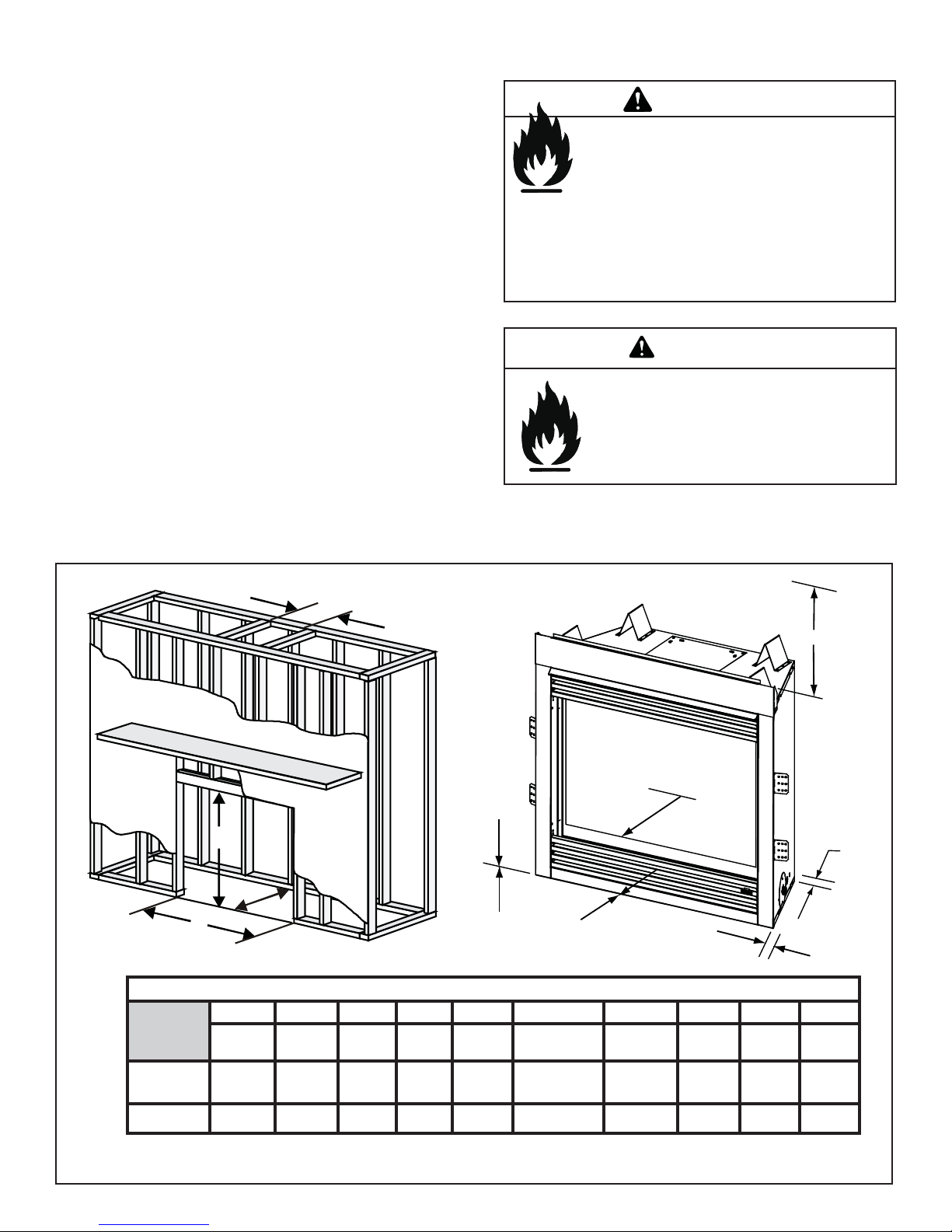

Figure 3.1 Appliance Locations
NOTE: For actual appliance dimensions refer to
Section 16.
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
ALCOVE
INSTALLATION
TOP VENT
TOP VENT
TOP VENT
ABC D E F
Inches 51 42 72 See Mantel
Projections 22 1/2
Millimeters 1295 1067 1829 559 13

10 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
C. Clearances
Figure 3.2
Fire Risk.
•Construct chase to all clearance
specifications in manual.
•Locate and install appliance to all
clearance specifications in manual
WARNING
Fire Risk.
Odor Risk.
•Install appliance on hard metal or wood
surfaces extending full width and depth of
appliance.
WARNING
•Do NOT install appliance directly on carpeting, vinyl,
tile or any combustible material other than wood.
• Do NOT place furniture or any other combustible
household objects within 36 inches of the appliance
front.
Clearances to Combustibles
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gasappliance and/or itsvent system. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
Construction of the chase may vary with the type of building.
These instructions are not substitutes for the requirements
of local building codes. Local building codes MUST be
checked.
Chasesshould be constructed in the mannerof alloutside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
shouldbeinsulated.Vapor andairinfiltrationbarriersshould
beinstalledin thechaseasper regionalcodesforthe restof
the home.Additionally, in regions where cold air infiltration
may be an issue, the inside surfaces may be sheetrocked
and taped for maximum air tightness.
To further prevent drafts in cold climates, the firestops
shouldbecaulked with hightemperaturecaulk to sealgaps.
Gas line holes and other openings should be caulked with
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
C
B
D
A
G
I
H
E
FJ
Clearance to Combustibles
ABCDE F G HIJ
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width) Clearance
to Ceiling Non-Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
Inches 10 38-1/2 22 42 26-5/8 0 0 1/2 1/2 36
Millimeters 254 978 559 1067 676 0 0 13 13 915

11Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
D. Mantel Projections
Figure 3.3 Clearances to Mantels or other
Combustibles above Appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
510 11 12
2-1/2
13 14
15 16 17 18 19
32
TO CEILING
91011 12
8
7
6
5
4
3
25
18
A
Top View
INTERIORW ALL
FIREPLACE
OPENING
B
MANTEL LEG ORW ALL PROJECTIONS
Note: All measurements in inches.
If Aminimum is ____, then Bmaximum is_____.
AInches 2-7/16 3-7/16 4-7/16 5-7/16 6-7/16 7-7/16
Millimeters 62 87 113 138 164 189
BInches 12345
∞
Millimeters 25 51 76 102 127 ∞
NOTE: Measurement is taken from top of the
opening, NOT the top of the fireplace.

12 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0

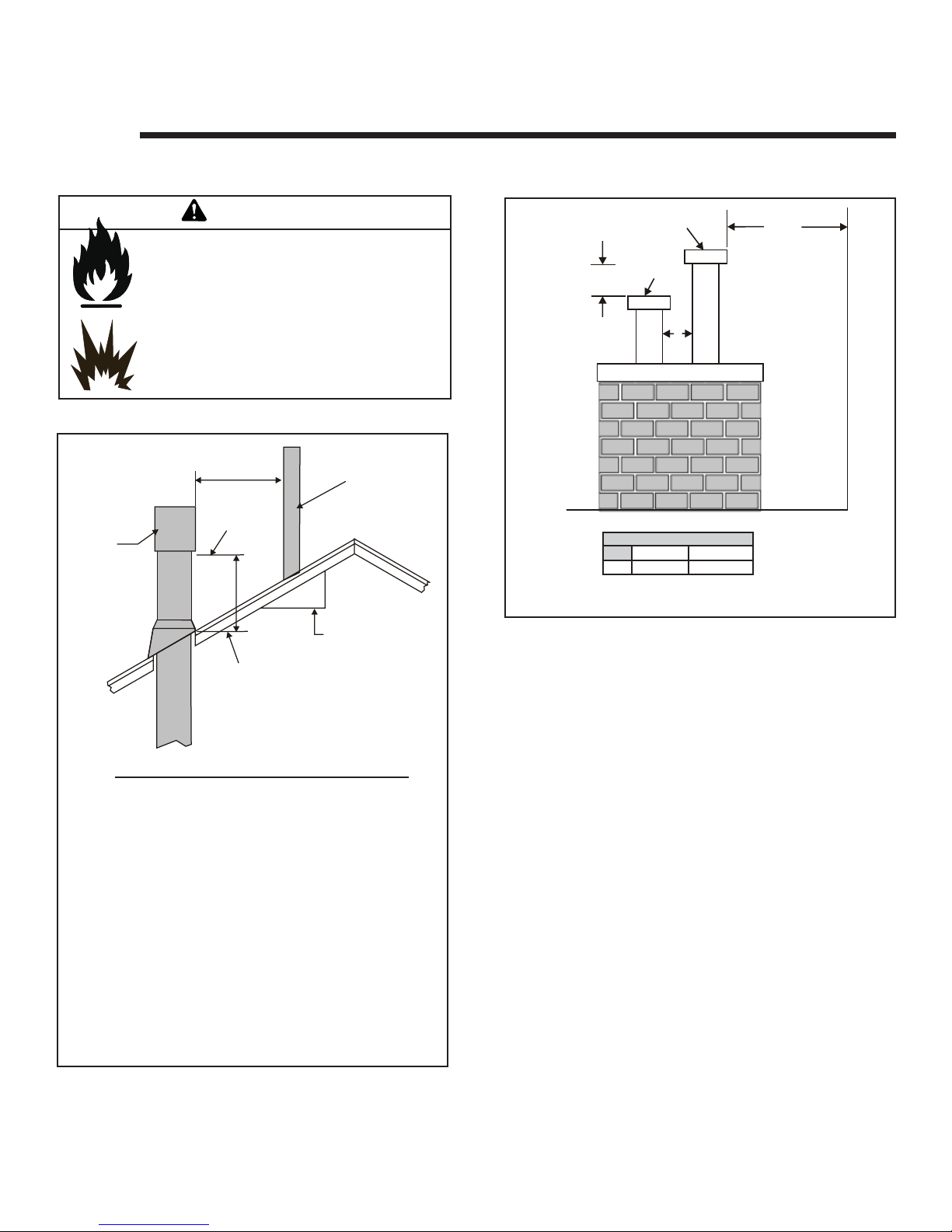

Figure 4.1 Minimum Height from Roof to
Lowest Discharge Opening
Termination Locations
4
Figure 4.2 Multiple Vertical Termination
Figure 4.1 specifies minimum vent heights for various
pitched roofs.
* 3 foot minimum in snow regions
GAS OR WOOD
TERMINATION 8 FEET
(MINIMUM) TO
PERPENDICULAR
WALL (GAS ONLY)
18 IN.
A
GAS
TERMINATION
VERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
8 FEET
Termination Clearances
Gas Wood
A6 inches 20 inches

13Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
5Vent Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid-fuel or
gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
WARNING
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to appliance and vent
manufacturer’s specifications.
• Appliance performance will suffer if specifications are
not followed.
B. Vent System Configuration
Figure 5.1
A. Vent Guidelines
Figure 5.2
Rise to Run Ratio = 2:1
Maximum Total Horizontal Run = 15 Feet
Minimum Total Vertical Rise = 9 Feet
Maximum Total Vertical Rise = 30 Feet
Maximum Number of Elbows: Two 900or Four 450
These models require the following size B-vent double
wall, or single wall rigid or flex vent pipe.
Fire Risk.
Asphyxiation Risk.
This appliance requires the specified pipe for
operation.
• Incorrect pipe may cause spillage,
condensation and overheating.
WARNING
METAL
PLUMBERS'STRAP
MAXIMUM HORIZONTAL RUN IS 50%
OF VERTICAL.HORIZONTAL RUN
CANNOT BE MORE THAN 15 FT.
VENT SUPPORTS
ARE PER VENT
MANUFACTURER'S
SPECIFICATIONS.
9 FEET
MINIMUM
VENT SUPPORTS ARE PER
VENT MANUFACTURER’S
SPECIFICATIONS
MINIMUM CLEARANCES
ARE PER VENT
MANUFACTURER’S
SPECIFICATIONS
• B-vent pipe MUST be used when the vent system is
within combustible construction.
• Single wall rigid or flexible vent may be used ONLY
if the vent system is installed within non-combustible
construction such as a masonry chimney.
• Followpipemanufacturer’sinstallationguidelineswhen
installing the appliance.
Model Pipe Size
6000GBV 6 inch
6000GBV-IPI 6 inch
HORIZONTAL RUNS MUST HAVE
MINIMUM RISE IN ACCORDANCE
WITH MECHANICAL CODES.

14 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
Fire Risk.
Explosion Risk.
Insulation and other combustibles must not
infringe on clearances.
• ALWAYS maintain specified clearances
around venting and firestop systems.
• Install firestops as specified.
Failure to keep insulation or other material
away from vent pipe may cause fire.
WARNING
Figure 5.3
45 DEGREES
ELBOW
90 DEGREES
ELBOW
OFFSETS EXCEEDING
45 DEGREES ADAPT
HORIZONTAL LIMITATIONS
MAXIMUM
HORIZONTAL
15 FEET
MINIMUM
VERTICAL
9 FEET
Note: Maximum
horizontal distance
is 50% vertical vent
height.

15Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
A. Pipe Clearances to Combustibles
Vent Clearances and Framing
6
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles as
specified.
WARNING
• Do not pack air space with insulation or
other materials.
• National building codes recommend
using attic shield to keep loose materials/
insulation from contacting vent.
Failure to keep insulation or other materials away from
vent pipe may cause fire.
Figure 6.1 Pipe Clearances
CLEARANCE
AROUND VERTICAL
SECTIONS
TOP
CLEARANCE
SIDE AND
BOTTOM CLEARANCE
Follow vent pipe manufacturer’s instructions for all clear-
ances around pipe.
B. Vertical Penetration Framing
WARNING
Fire Hazard
Keep loose materials or blown insulation from
touching the vent pipe.
Use B-vent manufacturer’s firestops to provide adequate
clearances.
• National building codes recommend using attic shield to
keep loose materials/ blown insulation from contacting
vent.
• Hearth&Home Technologies requires the useofanattic
shield.

16 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
A. Installing Outside Air Kit Damper
Assembly
Appliance Preparation
7CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses dur-
ing installation.
Asphyxiation Risk.
Fire Risk.
Do NOT draw outside combustion air from:
WARNING
• Wall, floor or ceiling cavity.
• Enclosed space such as an attic or garage.
• Close proximity to exhaust vents or chimneys.
Fumes or odor may result.
• Remove and discard cover plate or knockout from side
of appliance.
• Open air kit damper slightly.
• Locatedoor hingetowardback ofappliance (seeFigure
7.1).
• Attach damper assembly to appliance using screws
provided (see Figure 7.2).
• Insert narrow end of handle through tab and into upper
slot of door.
• Check handle operation. Pull handle out to open, and
in to close.
Figure 7.2 Outside Air Kit Installation

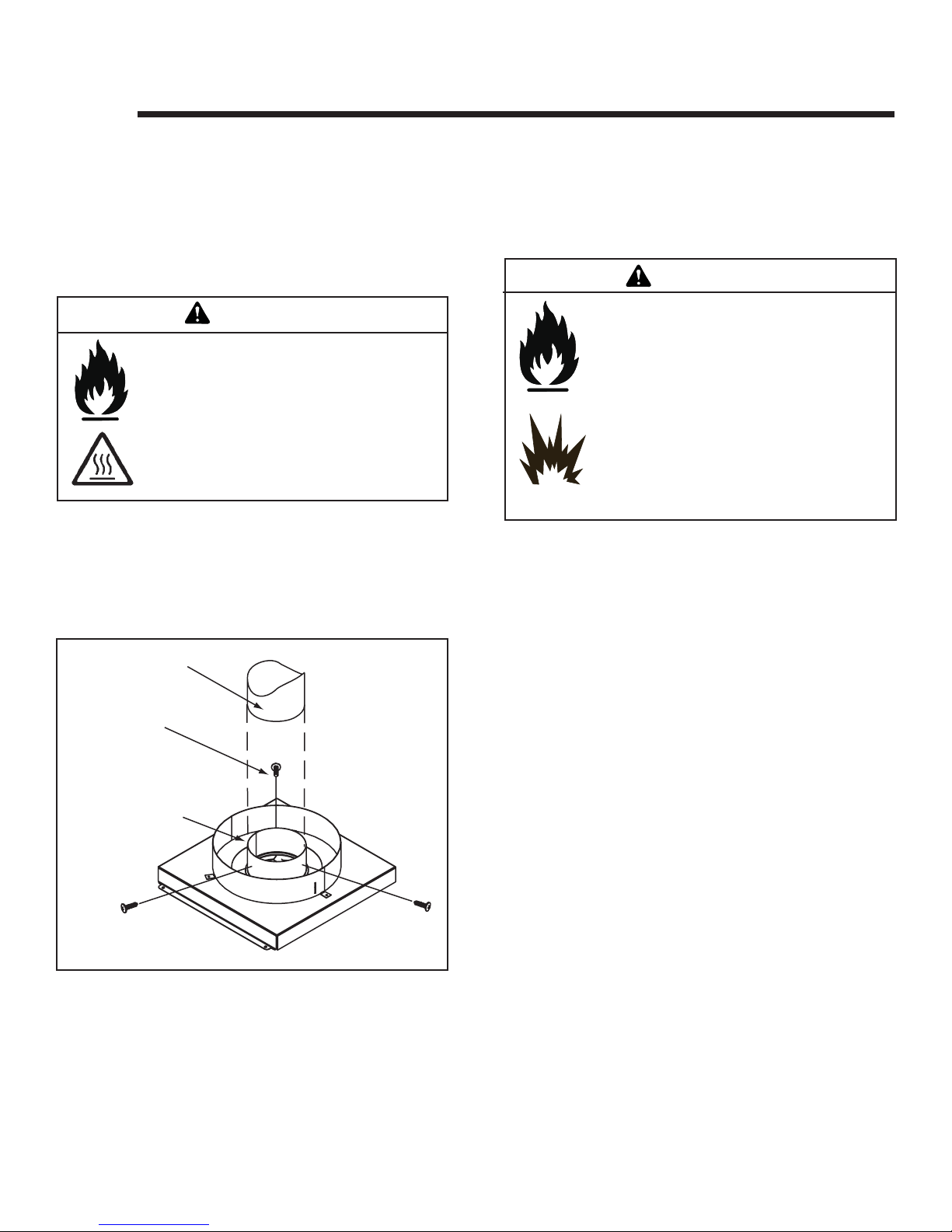

Figure 7.1 Damper Assembly and Handle
HANDLE
HINGE
D
OO
R
B. Gas and Electrical Connections
Ifapplicable,ensure thatgasand electricalconnectionsare
installedat this time. Refer toSections 9(Gas Information)
and 10 (Electrical Information).

17Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
D. Securing and Leveling Appliance
The diagram shows how to properly position, level, and
securetheappliance(see Figure7.4).Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to
back.
• Shim the appliance, as necessary. It is acceptable to
use wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.

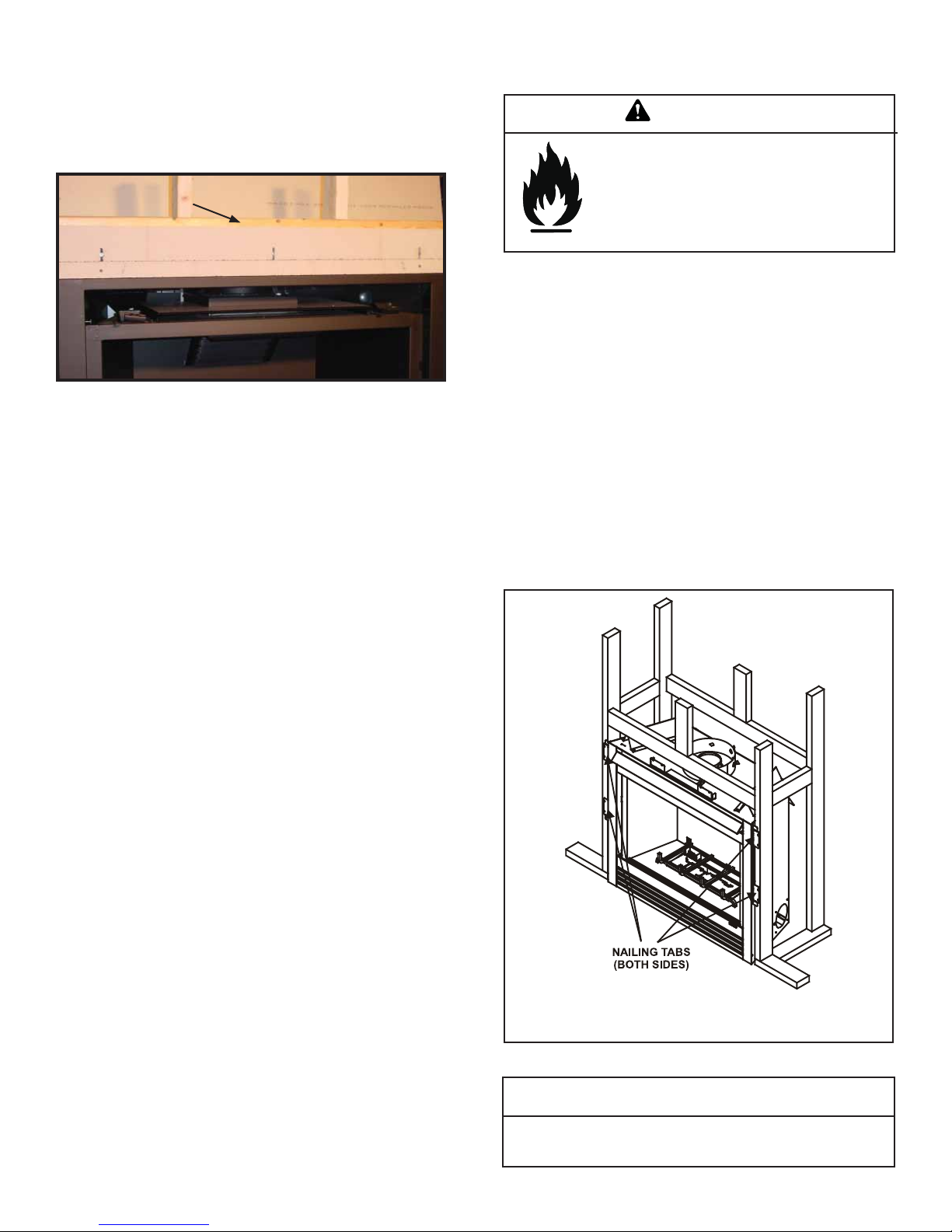

Figure 7.4 Proper Positioning, Leveling and
Securing of a Appliance
Fire Risk.
•Prevent contact with sagging, loose
insulation.
•Do NOT install against combustible
materials such as exposed insulation,
plastic and insulation backer.
WARNING
Do NOT notch into the framing around the appliance
spacers.
CAUTION
Figure 7.3 Non-combustible Board
C. Installing the Non-combustible Board
HEADER
HEADER
Thefactory supplied non-combustibleboard spansthedis-
tancefrom thetop ofthe fireplacetothe centerof thefram-
ing header. This board must be used. See figure 7.3.

18 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
A. Assembly of Vent Sections
Installing Vent Pipe
8
This B-Vent appliance requires 6 inch B-vent double-wall
pipe.Follow thepipemanufacturer’sinstallationguidelines
when installing the unit. This will ensure proper operation
and prevent safety hazards.
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Assemble pipe sections per B-vent
manufacturer’s instructions.
• Use support tabs for screws.
• Screwsmustnot exceed one inch longand
must not penetrate inner lining.
• Pipe may separate if not properly joined.
WARNING
B. Attaching Vent to Firebox
Figure 8.1
Fire Risk.
Explosion Risk.
Combustion Fume Risk.
Use vent run supports per vent manufactur-
er’s installation instructions.
Connect vent sections per vent manufactur-
er’s installation instructions.
• Maintain all clearances to combustibles.
• Maintain specified slope (if required).
Improper support may allow vent to sag or
separate.
WARNING
Secure vent sections with vent supports following B-vent
manufacturer’s instructions.
B-VENT
SECURING
SCREWS
FLUE OUTLET
COLLAR
Attach the first B-Vent component to the flue outlet collar
using 3 self-tapping screws. See Figure 8.1.
C. Securing Vent Sections

19Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
NOTE: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.)
A. Fuel Conversions
WARNING
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressuretestinggas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressuretestinggas line at test pressures
equal to or less than 1/2 psig.
B. Gas Pressures
C. Gas Connection
WARNING
Verify inlet pressures.
• High pressure may cause overfire condition.
• Low pressure may cause explosion.
• Verify minimum pressures when other
household gas appliances are operating.
Install regulator upstream of valve if line pressure
is greater than 1/2 psig.
Properinput pressuresare requiredfor optimum appliance
performance. Gas line sizing requirements need to be
made following NFPA54.
Gas Information
9
NOTE: Gaslinemay be runfromeither side oftheappliance
provided the hole in the outer wrap does NOT exceed 2-1/2
inches in diameter and does not penetrate the firebox.
NOTE: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 inch (13mm) T-handle manual shut-off valve and
flexible gas connector are connected to the 1/2 inch (13mm)
control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
NOTE: The gap between the supply piping and gas access
hole may be caulked with high temperature caulk or stuffed
with non-combustible, un-faced insulation to prevent cold
air infiltration.
Pressure Natural Gas Propane
Minimum 5.0 inches 11.0 inches
Inlet Pressure w.c. w.c.
Maximum Inlet 14.0 inches 14.0 inches
Gas Pressure w.c. w.c.
Manifold 3.5 inches 10.0 inches
Pressure w.c. w.c.
Before making gas connections ensure that appliance be-
ing installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to
meet the appliance and locality needs must be made by
a qualified technician using Hearth & Home Technologies
specified and approved parts.
Refer to Reference Section 16 for location of gas line ac-
cess in appliance.
WARNING
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Pressure requirements for appliance are shown in the
table below. Minimum pressure must be met when other
household gas appliances are operating.


20 Heat & Glo • 6000GBV, 6000GBV-IPI • 2104-900 Rev. G • 9/08
WARNING
Fire or Explosion Hazard
• Gas build-up during line purge may ignite.
• Purge should be performed by qualified technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
WARNING
Fire hazard.
Explosion Risk.
Do NOT change the valve settings.
• This valve has been preset at the factory.
• Changing valve settings may result in fire
hazard or bodily injury.
HIGH ALTITUDE INSTALLATIONS
U.L. Listed gas appliances are tested and approved
without requiring changes for elevations from 0 to
2000 feet in the U.S.A. and Canada.
When installing this appliance at an elevation above
2000 feet, it may be necessary to decrease the
input rating by changing the existing burner orifice
to a smaller size. Input rate should be reduced by
4% for each 1000 feet above a 2000 foot elevation
in the U.S.A., or 10% for elevations between 2000
and 4500 feet in Canada. If the heating value of the
gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local
gas utility.
Ifinstalling thisappliance atan elevation above 4500
feet (in Canada), check with local authorities.
• Ensurethat gaslinedoes notcome in contactwith outer
wrap of appliance. Follow local codes.
• Incoming gas line should be piped into the valve com-
partment and connected to the 1/2 inch connection on
the manual shutoff valve.
CHECK FOR GAS LEAKS
Explosion Risk
Fire Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• After the gas line installation is complete,
all connections must be tightened and
checked for leaks with a commercially-
available, non-corrosive leak check
solution. Be sure to rinse off all leak check
solution following testing.
WARNING
• A small amount of air will be in the gas supply lines.
When first lighting appliance it will take a short time for
air to purge from lines. When purging is complete the
appliance will light and operate normally.
Fittings and connections may have loosened during
shipping and handling.
