Heat & Glo Escape-42DV User manual

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05
Model:
Escape-42DV
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
byaqualified installer,serviceagency,orthe
gas supplier.
WARNING: Iftheinformationinthese
instructionsisnotfollowedexactly,afire
or explosion may result causing proper-
ty damage, personal injury, or death.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. Do
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers open or
removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot during
operation and cool down.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
CAUTION
Important operating and
maintenance instructions
included.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must
be installed in accordance with the manufacturer’s instruc-
tions and the manufactured home construction and safety
standard, Title 24 CFR, Part 3280 or Standard for Installa-
tion in Mobile Homes, CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indi-
cated on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
TechnologiessuggestsNFIcertifiedor factory-trained
professionals, or technicians super-
vised by an NFI certified professional.
Read,understandand follow
these instructions for safe
installation and operation.
Leave this manual with
party responsible for
use and operation.
•• •
DO NODO NO
DO NODO NO
DO NOTT
TT
T
DISCARDDISCARD
DISCARDDISCARD
DISCARD

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/052
Congratulations
Listing Label Information/Location
Model Name:___________________________________________ Datepurchased/installed: _________________
Serial Number: _________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ DealerPhone: __________________________
Notes: _______________________________________________________________________________________
____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
—an elegant and clean alternative to wood burning
appliances.TheHeat & Glo gas applianceyouhave
selected is designed to provide the utmost in safety,
reliability, andefficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions
and Warnings.
ThisOwner’s Manual shouldberetainedforfuturereference.
We suggest that you keep it with your other important
documentsandproductmanuals.
TheinformationcontainedinthisOwner’sManual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durableuseandtrouble-freeenjoyment.WelcometotheHeat
&Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Gas and Electric
Information
Model Number
Serial Number
Type of Gas
The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Heat & Glo, a of Hearth & HomeTechnologies, Inc. brand
20802 Kensington Boulevard, Lakeville, MN 55044
Not for use with solid fuel.
(Ne doit pas entre utilise avec un combustible solide).
This appliance must be installed in accordance with local codes, ifany; if not, follow ANSI Z223.1
intheUSAorCAN/CGA B149installation codes. (Installer l’appareil selon lescodesoureglements
locaux ou, en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)
Type of Gas (Sorte De Gaz):
NATURAL GAS
MADE IN USA
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
Approved Minimum (De Gaz)Acceptable 0.0 in w.c. (Po.Col.d’eau)
Maximum Pressure (Pression) 0.0 in w.c. (Po.Col.d’eau)
Maximum Manifold Pressure (Pression) 0.0 in w.c. (Po.Col.d’eau)
Minimum Manifold Pressure (Pression) 0.0 in w.c. (Po.Col.d’eau)
Model:
(Modele):
Serial
(Serie):
ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B
XXXXXXXX
INCANADA
ALTITUDE: 0-0000 FT. 0000-0000FT.
MAX.INPUTBTUH: 00,000 00,000
MIN. INPUT BTUH: 00,000 00,000
ORIFICESIZE: #XXXXX #XXXXX
XXXXXXXX
Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes
This product ma
y
be covered b
y
one or more of the followin
g
patents:
(
Nos produits sont couvertspar un ou plusieurs des brevets suivants
)
:
(
United States
)
4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254,5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237,5947112, 5996575,6006743, 6019099, 6048195,
6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687,6601579, 6672860, 6688302B2, 6715724B2,
6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign patents pending (ou
autres brevets americains et etrangers en attente).
Where everything comes together

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 3
- Table of Contents -
Section 1: Listing and Code Approvals
A. Appliance Certification .................................. 4
B. Glass Specifications...................................... 4
C. BTU Specifications ........................................ 4
D. High Altitude Installations.............................. 4
Section 2: Getting Started
A. Design and Installation Considerations ........ 5
B. Tools and Supplies Needed .......................... 5
C. Inspect Appliance and Components .............5
Section 3: Framing and Clearances
A. Selecting Appliance Location........................ 6
B. Constructing the Appliance Chase ............... 7
C. Clearances.................................................... 7
D. Mantel Projections........................................8
E. Hearth Extensions........................................8
Section 4: Termination Locations
A.Vent Termination Minimum Clearances ......9
Section 5: Vent Information and Diagrams
A. Vent Table Key ............................................ 11
B. Use of Elbows ............................................ 11
C. Measuring Standards ................................. 11
D. Vent Diagrams............................................12
Section 6: Vent Clearances and Framing
A. Pipe Clearances to Combustibles ............16
B. Wall Penetration Framing ..........................16
C. Vertical Penetration Framing ......................17
Section 7: Appliance Preparation
A. Securing and Leveling the Appliance.........18
Section 8: Installing Vent Pipe
A. Assembly of Vent Sections .........................19
B. Disassembly of Vent Sections ...................21
C. Installing Heat Shield & Termination Cap .22
D. Installing Roof Flashing and Vertical
Termination Cap.........................................23
Section 9: Gas Information
A. Fuel Conversions ....................................25
B. Gas Pressures ........................................25
C. Gas Connection.......................................25
Section 10: Electrical Information
A. Recommendation for Wire ......................27
B. Connecting to the Appliance ....................27
C. Intellifire Ignition System Wiring ..............27
Section 11: Finishing
A. Mantel Projections ...................................29
B.Facing Material ........................................29
C. Facing Finishing Options ........................30
Section 12: Appliance Setup
A. Remove Shipping Materials ....................31
B. Clean the Appliance.................................31
C. Accessories .............................................31
D. Ember Placement....................................31
E. Positioning the Logs ...............................32
F. Glass Assembly.......................................36
G. Screen Mesh............................................36
H. Air Shutter Setting ....................................36
Section 13: Operating Instructions
A. Before Lighting Appliance........................37
B. Lighting Appliance ...................................38
C. After Appliance is Lit.................................39
D. Frequently Asked Questions ...................39
Section 14: Troubleshooting
A. Intellifire Ignition System .........................40
Section 15: Maintainingand Servicing Appliance. ...........42
Section 16: Reference Materials
A. Appliance Dimension Diagram...............44
B. Vent Components Diagrams...................45
C. Service Parts............................................48
D. Warranty ...................................................51
E. Contact Information..................................52
Í
Í

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/054
B. Glass Specifications
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous
locations such as bathtub enclosures as defined by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certified to the
requirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certification Council SGCC# 1595 and
1597.Architectural Testing, Inc.Reports02-31919.01 and
02-31917.01).
This statement is in compliance with CPSC 16 CFR
Section 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
A. Appliance Certification
NOTE: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A.
and the CAN/CGA B149 Installation Codes in Canada.
NOTINTENDED FOR USEASAPRIMARYHEATSOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
Listing and Code Approvals
D. High Altitude Installations
U.L.Listedgasappliances are tested and approved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changingthe existing burner orificeto a smaller size.Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A., or 10% for elevations
between2000and 4500 feet in Canada.Iftheheatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
C. BTU Specifications
1
MODEL: ESCAPE-42DV
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance Heater
STANDARD: ANSI Z21.88-2002•CSA2.33-M2002•UL307B
Model
(U.S. or Canada)
Maximum
Input BTUH Minimum Input BTUH
Orifice
Size
(DMS)
Escape-42DV (NG)
US
0-2000 ft. 52,000 35,000 26
CAN
2000-4500 ft. 46,800 31,500 27
Escape-42DV (LP)
US
0-2000 ft. 50,000 33,000 45
CAN
2000-4500 ft. 45,000 29,700 46
WARNING
Do NOT use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspectthe appliance andto replace any partof thecontrol
system and any gas control which has been under water.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ingHeatingAppliances forManufacturedHomes and Rec-
reational Vehicles”, and “Gas Fired Appliances for Use at
HighAltitudes”.
Heat & Glo Quality Systems
registeredby SGS ICS

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 5
A. Design and Installation Considerations
Heat& Glo direct ventgas appliances are designedto op-
erate with all combustion air siphoned from outside of the
buildingand all exhaustgasesexpelled to theoutside. No
additionaloutside air sourceis required.
Getting Started
C. Inspect Appliance and Components
2
When planning an appliance installation, it’s necessary to
determine the following information before installing:
•Where the appliance is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Manometer Voltmeter
Tapemeasure Noncorrosive leakchecksolution
One 1/4 inch female connection (for optional fan).
• Carefully remove the appliance and components from
the packaging.
• Thevent system componentsand trim doorsareshipped
in separate packages.
• Thegas logs maybe packagedseparatelyandmust be
field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the in-
stallation. Follow these instructions carefully dur-
ing the installation to ensure maximum safety and
benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
WARNING
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims
any responsibility for, and the warranty will
be voided by, the following actions:
WARNING
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
Any such action may cause a fire hazard.

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/056
3Framing and Clearances
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
WARNING
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
When selecting a location for your appliance it is important
toconsidertherequiredclearancestowalls(seeFigure 3.1).

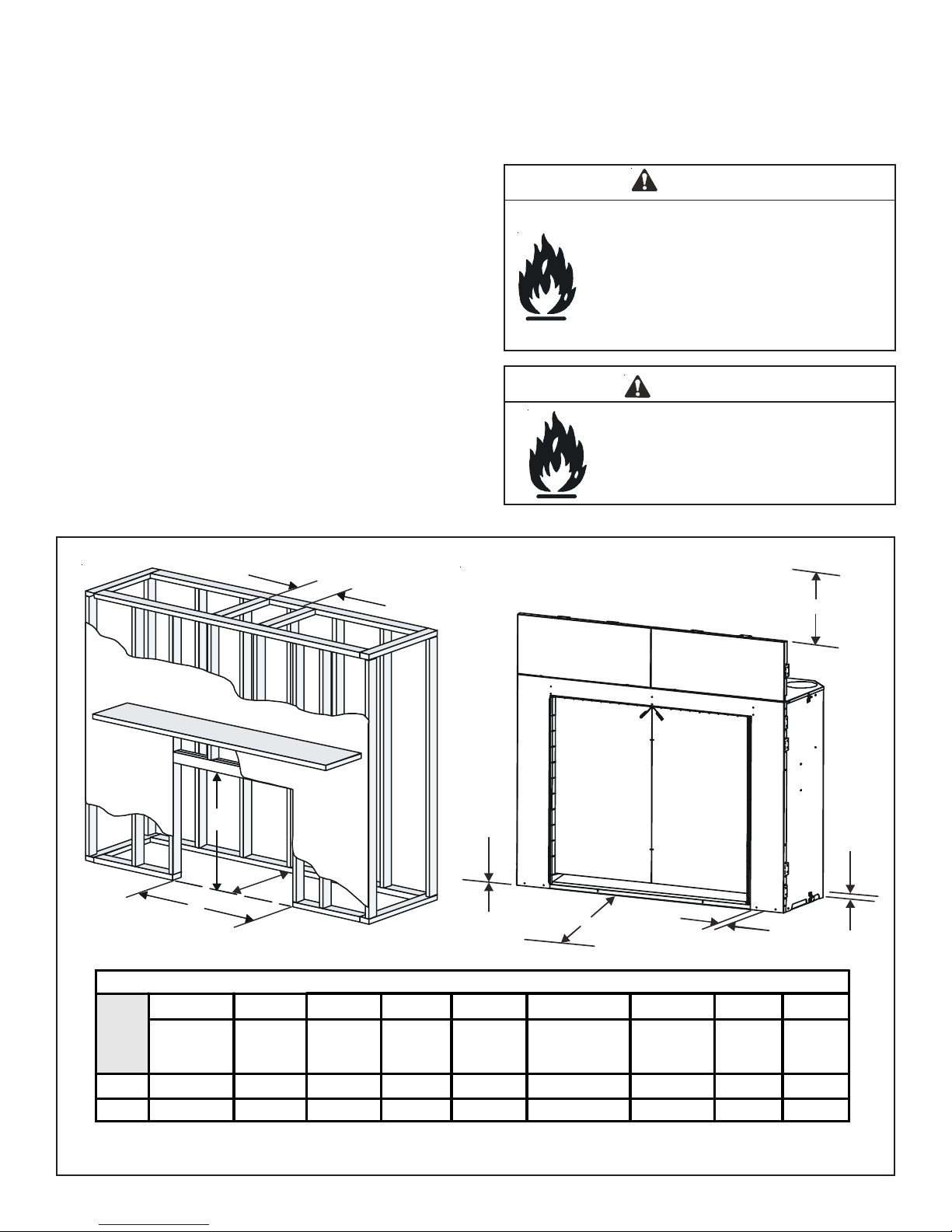

Figure 3.1 Framing Dimensions
ABCDE
Inches 57-1/2 22 91-1/2 64-3/4 45-3/4
Millimeters 1461 559 2325 1644 1162
NOTE: For actual appliance dimensions refer to Sec-
tion 16.
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Section 3.C and 3.D)
• Vent Clearances and Framing (Section 6).
PERPENDICULAR SIDEWALL
CAN OVERLAP TO 4 INCHES
FROM OPENING ON BOTH SIDES
A
B
C
E
D

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 7
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gas appliance and/or its vent system. Vertical vents that
run on the outside of a building may be, but are not re-
quired to be, installed inside a chase.
Construction of the chase may vary with the type of building.
Theseinstructions are notsubstitutes for the requirements of
localbuildingcodes.Localbuildingcodes MUSTbechecked.
Chasesshould be constructed in themannerof all outside
walls of the home to prevent cold air drafting problems.
The chase should not break the outside building envelope
in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
shouldbeinsulated. Vaporandairinfiltrationbarriersshould
be installed in the chase as per regional codes for the rest
ofthehome.Additionally, Hearth & HomeTechnologiesrec-
ommends that the inside surfaces be sheetrocked and
taped for maximum air tightness.
To further prevent drafts, the firestops should be caulked
with high temperature caulk to seal gaps. Gas line holes
andotheropeningsshouldbecaulkedwithhightempcaulk

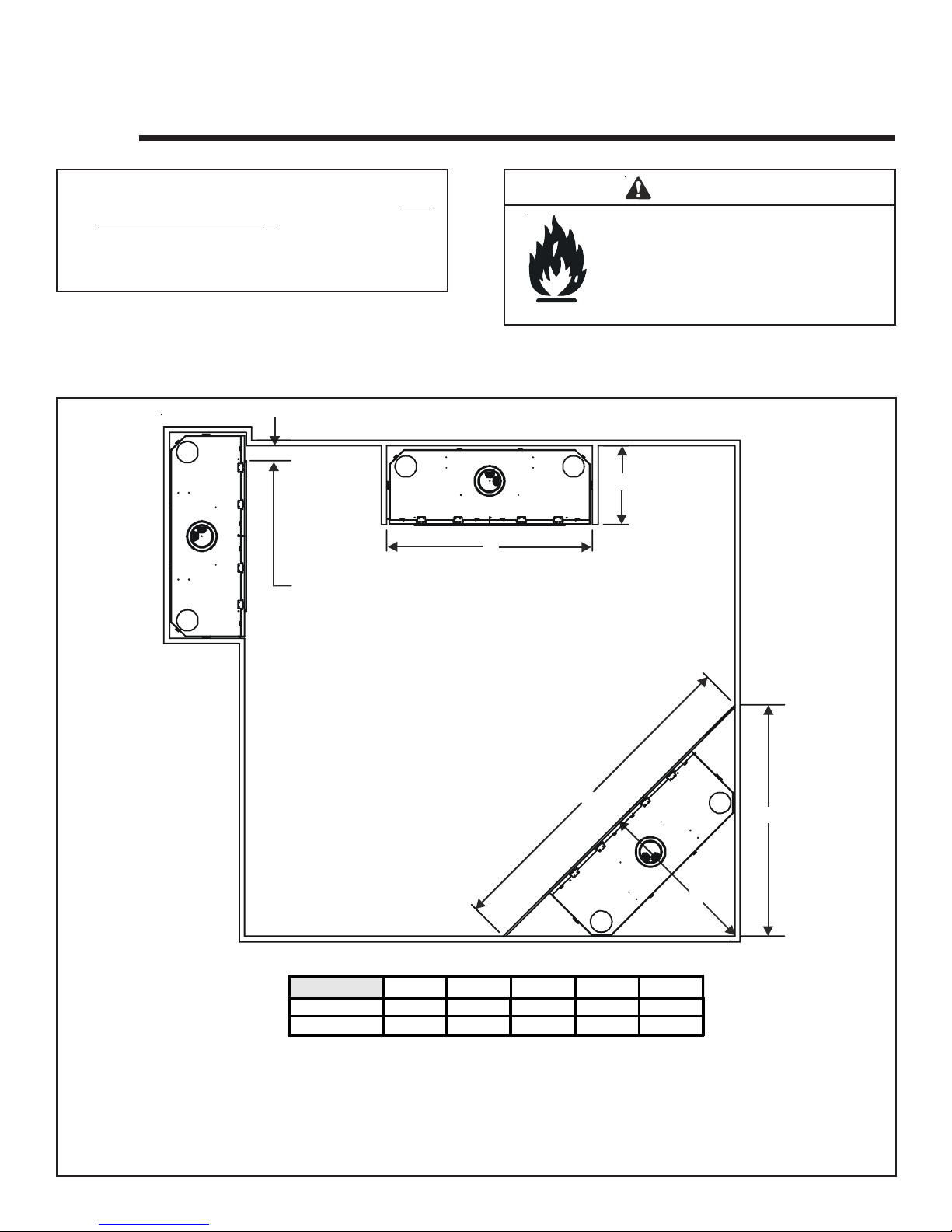

C. Clearances
Figure 3.2 Clearances to Combustibles
Fire Risk.
Odor Risk.
•Install appliance on hard metal or wood
surfaces extending full width and depth of
appliance.
•Do NOT install appliance directly on
carpeting, vinyl, tile or any combustible
material other than wood.
WARNING
CLEARANCES TO COMBUSTIBLES:
ABCDE F GHI
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling Non-Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance
Inches 10 52-1/2 22 57-1/2 28 0 12 1/2 4
mm 254 1334 559 1461 711 0 305 13 102
Fire Risk.
•Construct chase to all clearance
specifications in manual.
•Locate and install appliance to all
clearance specifications in manual
WARNING
or stuffed with unfaced insulation. If the appliance is being
installed on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room.
C
B
D
A
E
H
I
G
F
FROM THE TOP OF
NON-COMBUSTIBLE
PANELS TO CEILING.

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/058

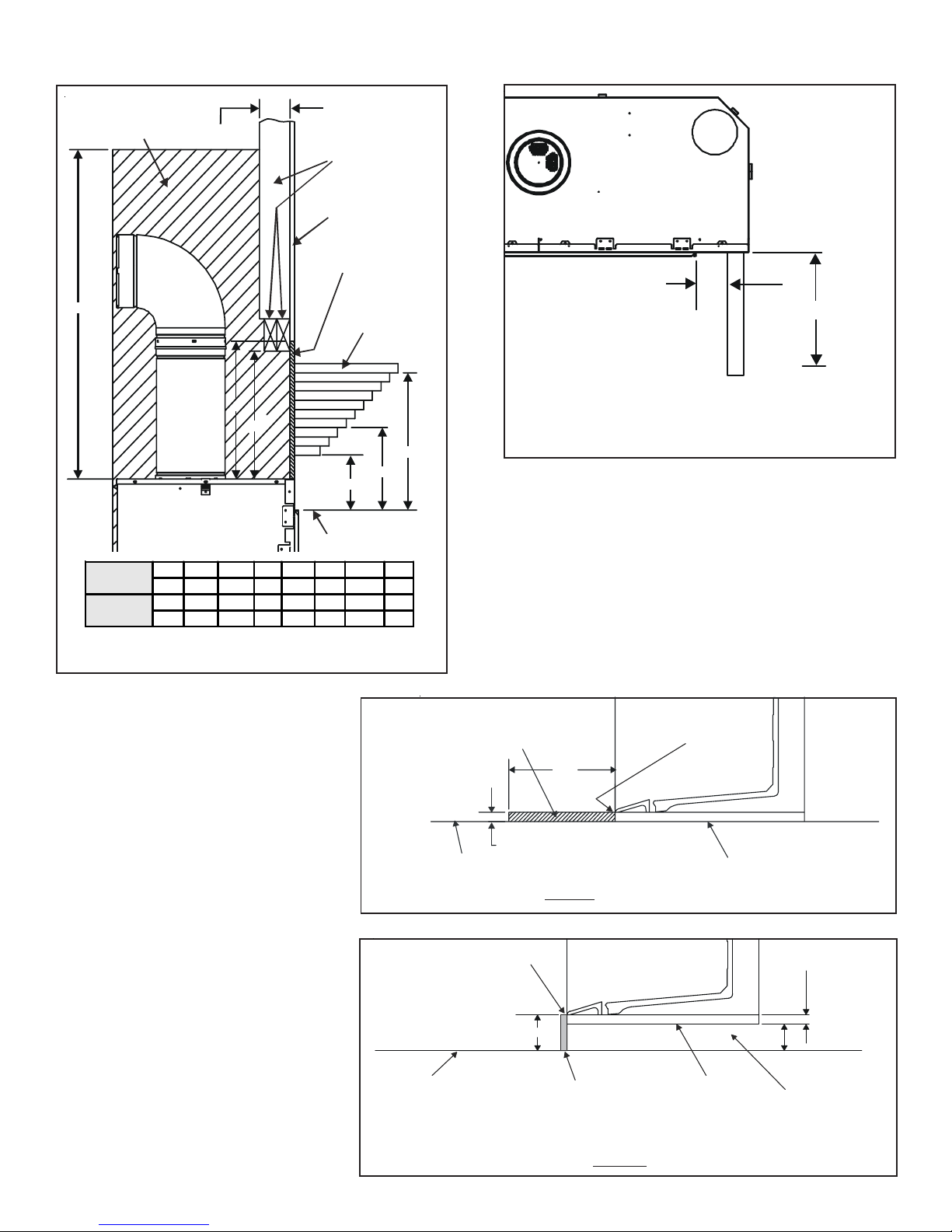

D. Mantel Projections
Figure 3.3 Clearances to Mantels or other
Combustibles above Appliance
Figure 3.4 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of opening.)
3-1/2”
39”
11-1/2”
12”
8”
6”
12”
11”
10”
9”
8”
7”
6”
5”
4”
3”
12”
NON-COMBUSTIBLE
FINISH WALL OR
METAL PANELS
(12”)
COMBUSTIBLE
PROJECTIONS
FINISH WALL
COMBUSTIBLE
FRAMING
O.K.
NON-COMBUSTIBLE
(ENTIRE WIDTH AND
DEPTH OF FIREPLACE)
TOP EDGE OF OPENING
Height
above
opening
in. 6 7 8 9 10 11 12
mm 152 178 203 228 254 279 205
Horizontal
Mantel
distance
in. 3 4-3/4 6 7-1/2 9 10-1/2 12
mm 76 121 152 191 228 267 305
E. Hearth Extensions
Clearancetoanon-combustiblehearthex-
tension is 1 inch (25mm). See Figure 3.5.
Clearances to an exposed combustible
hearthextension is 4inch (102mm) mini-
mum. See Figure 3.6.
Figure 3.5 Clearance to covered combustible hearth extension
Figure 3.6 Clearance to an exposed combustible hearth extension
12”
1”
MARBLE, GRANITE, TILE OR
OTHER NON-COMBUSTIBLE
HEARTH EXTENSION
WOOD OR OTHER COMBUSTIBLE
FLOOR OR PLATFORM BOTTOM OF FIREPLACE
FRONT EDGE
OF ASH LIP
FRONT EDGE
OF ASH LIP
COMBUSTIBLES UP TO
1 INCH THICK ALLOWED
UNDER THE OPENING
4 INCH
BOTTOM
OF FIREPLACE
1 INCH
(BUILT INTO UNIT)
3 INCH MIN.
WOOD OR OTHER
COMBUSTIBLE
FLOOR OR PLATFORM
MAY BE
COMBUSTIBLE
MATERIAL
(4 inch Minimum to top surface of combustible floor or floor covering).
4 inch
Unlimited
MANTEL
LEG

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 9

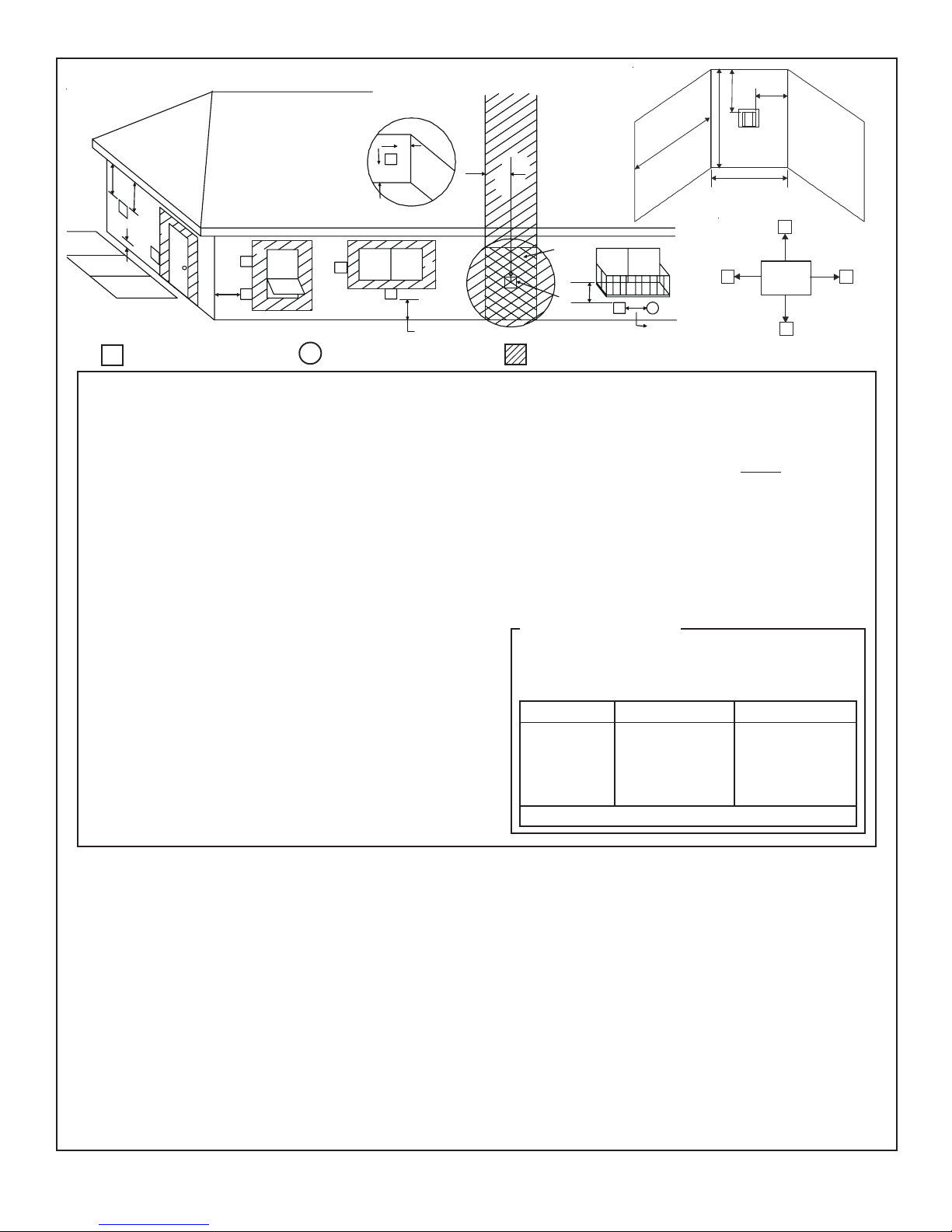

A. Vent Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles
as specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
Roof Pitch H (Min.) Ft.
Flat to 6/12 .........................................................1.0*
6/12 to 7/12 ........................................................1.25*
Over 7/12 to 8/12 ...............................................1.5*
Over 8/12 to 9/12 ...............................................2.0*
Over 9/12 to 10/12 ............................................. 2.5
Over 10/12 to 11/12 ........................................... 3.25
Over 11/12 to 12/12 ........................................... 4.0
Over 12/12 to 14/12 ........................................... 5.0
Over 14/12 to 16/12 ........................................... 6.0
Over 16/12 to 18/12 ........................................... 7.0
Over 18/12 to 20/12 ........................................... 7.5
Over 20/12 to 21/12 ........................................... 8.0

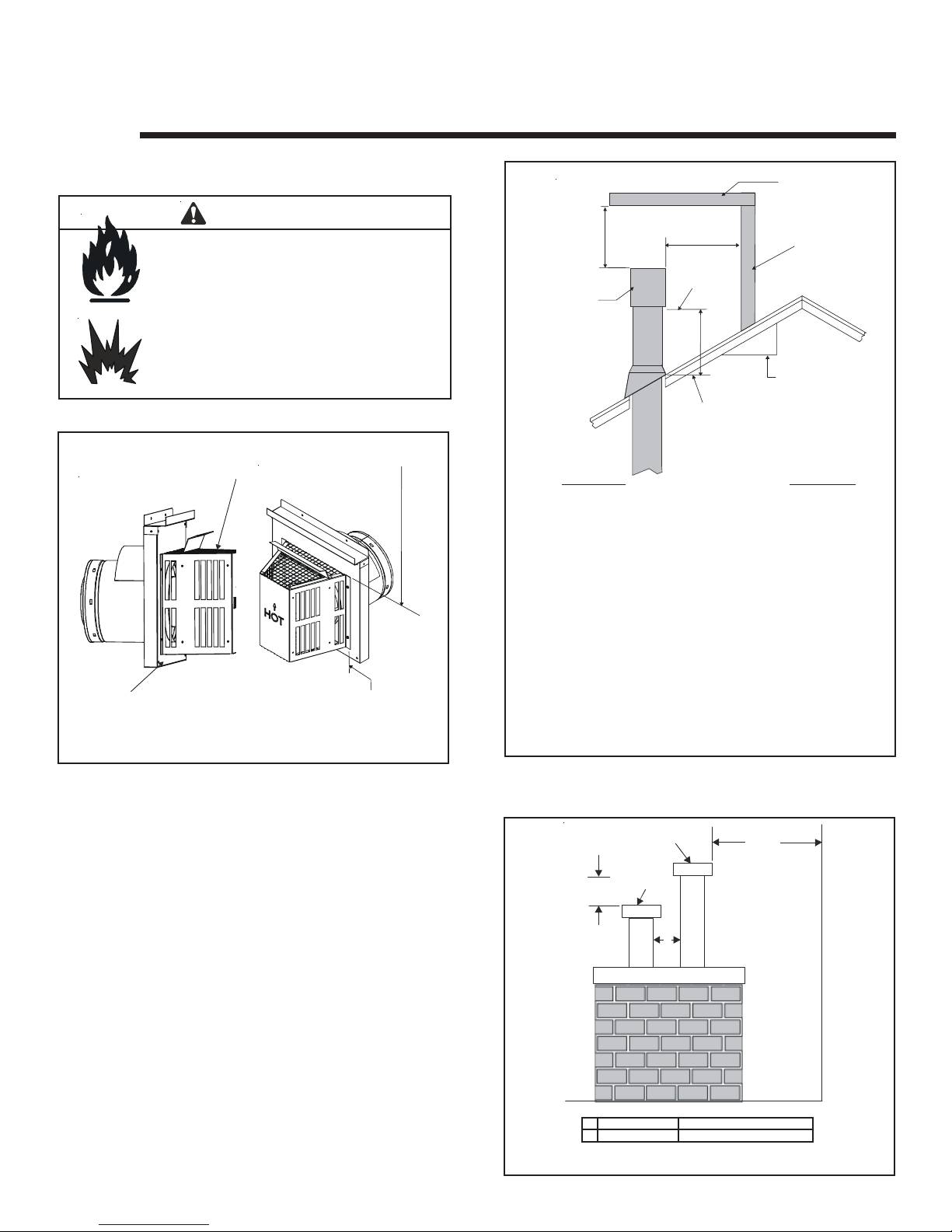

Figure 4.1
Figure 4.2 Minimum Height from Roof to
Lowest Discharge Opening
Termination Locations
4
Measure horizontal clearances from this surface.
Measure vertical clearances from this surface.
Figure 4.3 Multiple Vertical Termination
Figure 4.2 specifies minimum vent heights for various
pitched roofs.
(See Figure 4.4 for specific clearances)
* 3 foot minimum in snow regions
GAS, WOOD or FUEL
OIL TERMINATION 20 IN.
(MINIMUM) TO
PERPENDICULAR
WALL (GAS ONLY)
18 IN.
A
GAS
TERMINATION
Gas Termination Wood & Fuel Oil Termination
A 6 in. 20 in.
HORIZONTAL
OVERHANG
V
ERTICAL
WALL
TERMINATION
CAP
12 X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 20 INCHES

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0510
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 4.4 Vent Termination Minimum Clearances
A = 12 inches ............ clearances above grade, veran-
da, porch, deck or balcony
B = 12 inches ............ clearances to window or door
that may be opened, or to per-
manentlyclosed window. (Glass)
D* = 24 inches ............ vertical clearance to unventilat-
ed soffit or to ventilated soffit lo-
cated above the terminal
*42 inches............ for vinyl clad soffits and below
electrical service
F = 9 inches .............. clearance to outside corner
G = 6 inches ............... clearance to inside corner
H = 3 ft. (Canada) ...... not to be installed above a gas
meter/regulatorassembly within 3
feet (90cm) horizontally from the
center-line of the regulator
I = 3 ft. (U.S.A.)
6 ft. (Canada)....... clearance to gas service regula-
tor vent outlet
J = 9 inches (U.S.A.)
12 inches (Canada)clearance to non-mechanical air
supply inlet to building or the
combustion air inlet to any other
appliance
K = 3ft. (U.S.A.)
6 ft. (Canada) ......... clearance to a mechanical
(powered) air supply inlet
L** = 7ft.......................... clearance above paved side-
walk or a paved driveway lo-
cated on public property
M*** = 18 inches .............. clearance under veranda, porch,
deck, balcony or overhang
42 inches .............. vinyl
CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THATAVINYL PROTECTOR KIT BE INSTALLED.
** a vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings and
serves both dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on
a minimum of 2 sides beneath the floor, or meets Note 2.
NOTE 1: On private property where termination is less than 7 feet
above a sidewalk, driveway, deck, porch, veranda or balcony, use of
a listed cap shield is suggested. (See vents components page)
NOTE 2: Termination in an alcove space (spaces open only on one side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be
a minimum of 1 foot below the termination cap.
MN
P
R
Q
(See Note 1)
(See Note 1)
(See Note 2)
Electrical
Service
V
S
VS
V
T
D*
V
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity
to doors or other traffic areas.
NOTE 5: Location of the vent termination must not interfere with
access to the electrical service.
WARNING: In the U.S: Vent system termination is NOT permit-
ted in screened porches. You must follow side wall, overhang
and ground clearances as stated in the instructions.
In Canada: Vent system termination is NOT permitted in screened
porches. Vent system termination is permitted in porch areas with
two or more sides open. You must follow all side walls, overhang
and ground clearances as stated in the instructions.
Heat & Glo assumes no responsibility for the improper perfor-
mance of the appliance when the venting system does not meet
these requirements.
DE
B
L
v
v
v
v
v
v
v
v
BB
AH
M
X
J or K
I
A
G
F
U.S.
(3 FT)
B
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
N = 6 inches................. non-vinyl sidewalls
12 inches .............. vinyl sidewalls
P = 8ft.
Alcove Applications
S = 6 inches ................. clearance from sides of
electrical service
T = 12 inches................ clearance above electrical
service
(See Note 5)
(See Note 5)

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 11
5Vent Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid-fuel or
gas burning appliance.
• Vent this appliance directly outside.
• Use separate vent system for this
appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
WARNING
CAUTION
ALL vent configuration specifications MUST be followed.
• This product is tested and listed to these
specifications.
• Appliance performance will suffer if specifications are
not followed.
B. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pectswhen calculatingthe effects.Use the riseforthe ver-
tical aspect and the run for the horizontal aspect (see Fig-
ure 5.1).
Two450elbows maybeusedin place of one 900elbow. On
450runs, one foot of diagonal is equal to 8.5 inches hori-
zontal run and 8.5 inches vertical run. A length of straight
pipe is allowed between two 450elbows (see Figure 5.1).
Figure 5.1
A. Vent Table Key
The abbreviations listed in this vent table key are used in
the vent diagrams.
Symbol Description
V1First section (closest to appliance) of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Second section of horizontal length
C. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards.
1. Pipemeasurementsareshownusing theeffectivelength
ofpipe (see Figure5.2).
2. Measurementsaremade fromtheapplianceouterwrap,
notfrom the standoffs.
3. Horizontal terminations are measured to the outside
mounting surface (flange of exterior firestop) (see Fig-
ure4.1).
4. Vertical terminations are measured to bottom of termi-
nation cap.
V
ERTICAL
HORIZONTAL
Figure 5.2 DVP Pipe Effective Length
DVP Pipe Effective
Height/Length
DVP4 4
DVP6 6
DVP12 12
DVP24 24
DVP36 36
DVP48 48
DVP6A 3 to 6
DVP12A 3 to12
DVP12MI 3 to12
DVP24MI 3 to24
Length/
Inches
Pipe

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0512
Figure 5.3
Figure 5.4
D. Vent Diagrams
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between firestops.
• ALWAYS maintain specified clearances around venting and firestop systems.
• Install firestops as specified.
Failure to keep insulation or other material away from vent pipe may cause fire.
WARNING

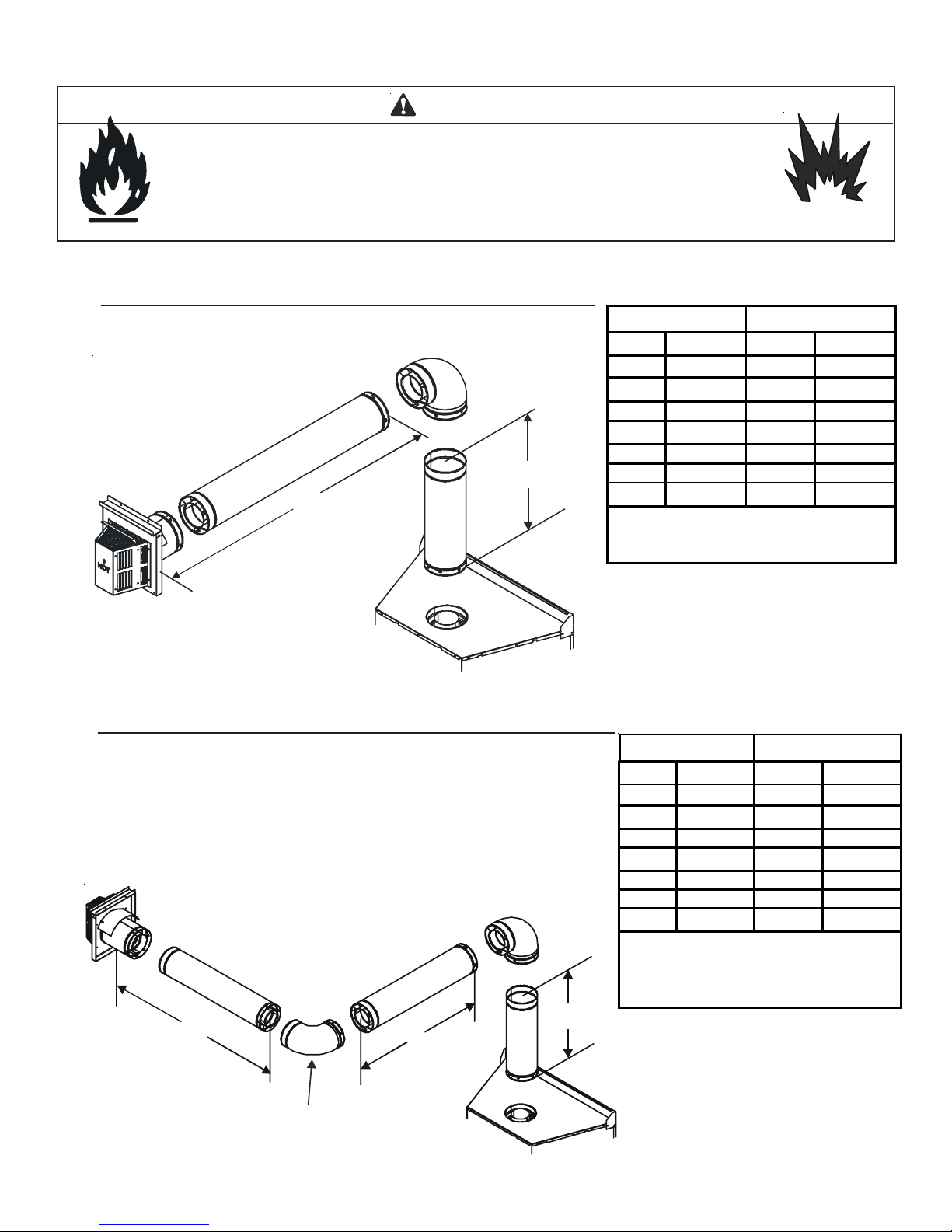

1. Top Vent - Horizontal Termination
One Elbow
Two Elbows
V1Minimum H1Maximum
2 ft 610 mm 7 in 178 mm
3 ft 914 mm 2 ft 610 mm
4 ft 1.2 m 4 ft 1.2 m
5 ft 1.5 m 9 ft 2.7 m
6 ft 1.8 m 12 ft 3.7 m
7 ft 2.1 m 14 ft 4.3 m
10 ft 3.0 m 20 ft 6.1 m
20 ft 6.1 m 40 ft 12.2 m
After V1=6 ft
then H1= 2 x V ft Maximum
V
1
+ H
1
= 60 ft Maximum
V
1
H 1
H 2
H 1
V
1
INSTALLED
HORIZONTALLY
V1H1+ H2
2 ft 610 mm 7 in 178 mm
3 ft 914 mm 18 in 457 mm
4 ft 1.2 m 3 ft 914 mm
5 ft 1.5 m 7 ft 2.1 m
6 ft 1.8 m 10 ft 3.0 m
7 ft 2.1 m 12 ft 3.7 m
10 ft 3.0 m 18 ft 5.5 m
20 ft 6.1 m 20 ft 6.1 m
After V1= 6 ft, then H1= (2 x V1) - 2 ft
V1+ H1+ H2= 60 ft Maximum
H1+ H2= 20 ft Maximum

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 13
Figure 5.5

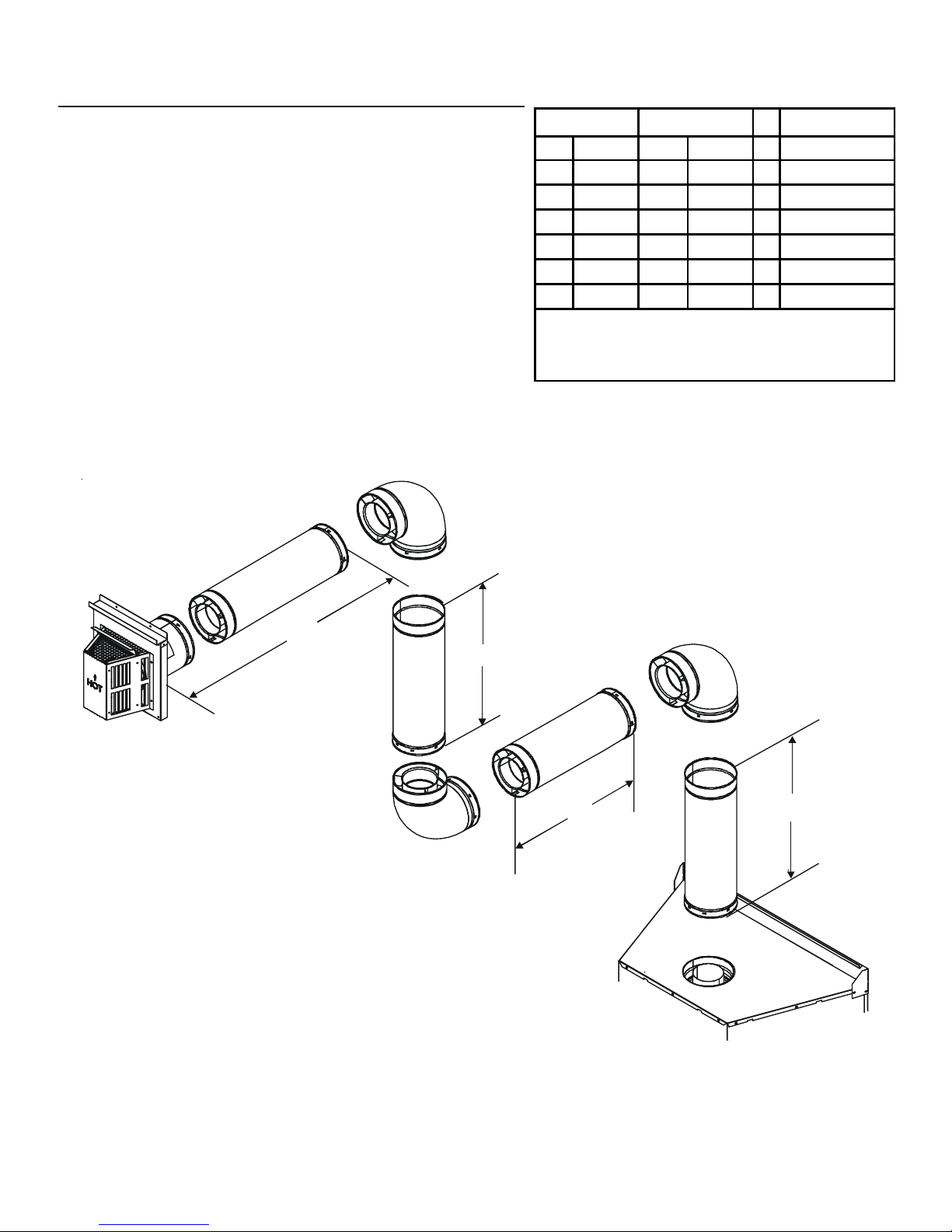

1. Top Vent - Horizontal Termination - (continued)
Three Elbows V1H1V2H2
2 ft 610 mm 7 in 178 mm * H2Max = 2 xV2
3 ft 914 mm 2 ft 610 mm * H2Max = 2 xV2
4 ft 1.2 m 4 ft 1.2 m * H2Max = 2 xV2
5 ft 1.5 m 9 ft 2.7 m * H2Max = 2 xV2
6 ft 1.8 m 12 ft 3.7 m * H2Max = 2 xV2
7 ft 2.1 m 14 ft 4.3 m * H2Max = 2 xV2
10 ft 3.0 m 20 ft 6.1 m * H2Max = 2 xV2
V1+ H1must be adhered to.
* V2has no specific restrictions EXCEPT,
Ht max = 2 x Vtand Vtotal + Htotal cannot exceed 60 ftMaximum
H 1
V 2
H 2
V
1

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0514

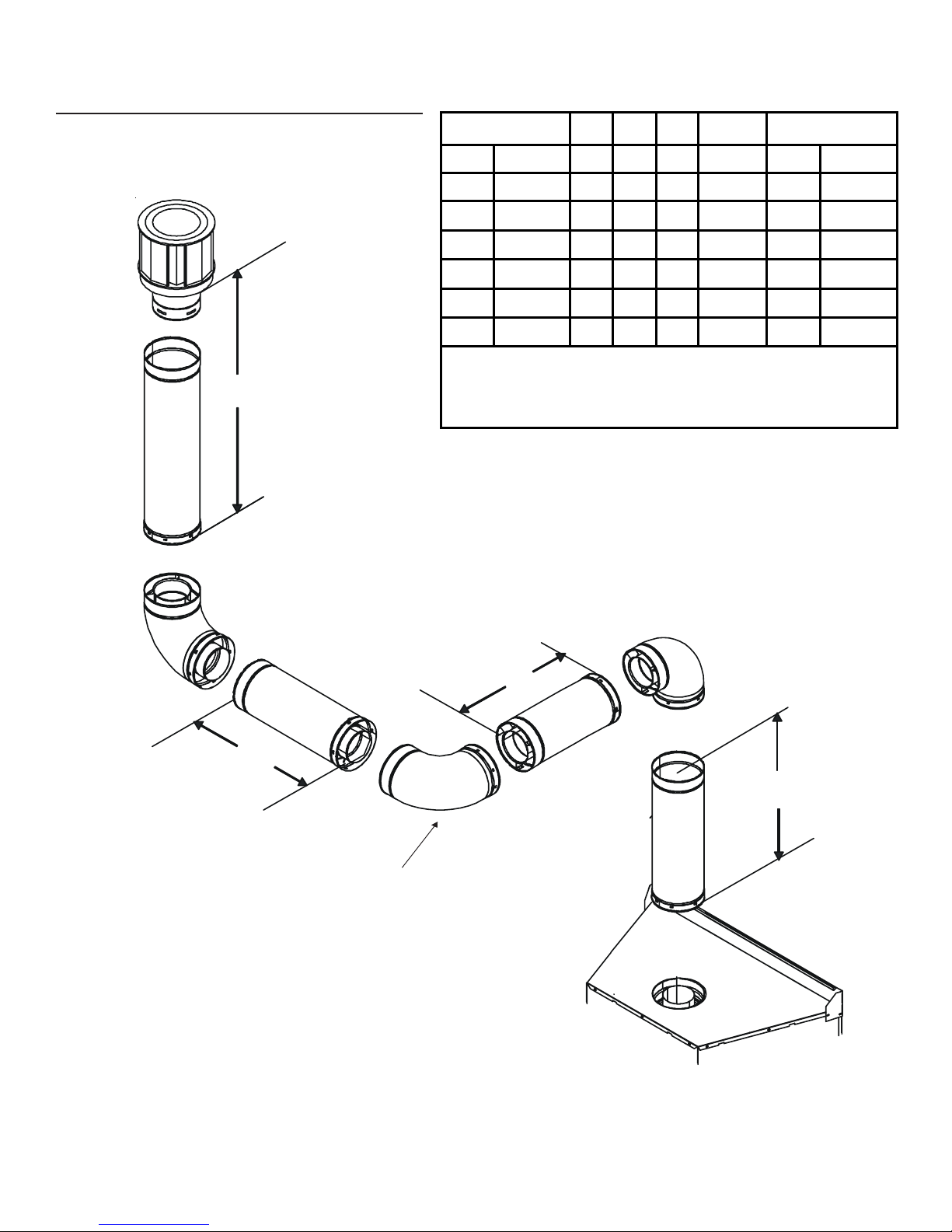

2. Top Vent - Vertical Termination
No Elbow
Figure 5.6
Figure 5.7
Two Elbows
V1= 50 ft Max. (15.2 m)
V1= 3 ft Min. (914 mm)
NOTE: If installing a vertical
vent/termination off the top of
theappliance, the optional ver-
tical termination baffle should
be used (over 30 feet of verti-
cal with no elbows only).
V
1
V1H1V2
2 ft 610 mm 1 ft 305 mm *
3 ft 914 mm 3 ft 914 mm *
4 ft 1.2 m 4 ft ** *
5 ft 1.5 m 5 ft ** *
6 ft 1.8 m 6 ft ** *
V1+ V2 + H1= 50 ft (15.2m) Max.
*No specific restrictions on this value EXCEPT
V1+ V2+ H1cannot exceed 60 ft (18.3m).
** H1 Max. = (V1x 2)
V
1
H 1
V 2
FLUE
RESTRICTOR
FLUE RESTRICTOR

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 15
Figure 5.8
2. Top Vent - Vertical Termination - (continued)
Three Elbows V1H1H2V2VtMin. Ht Max.
2 ft 610 mm * * ** 7 in 178 mm
3 ft 914 mm * * ** 2 ft 610 mm
4 ft 1.2 m * * ** 4 ft 1.2 m
5 ft 1.5 m * * ** 8 ft 2.4 m
6 ft 1.8 m * * ** 12 ft 3.7 m
7 ft 2.1 m * * ** 14 ft 4.3 m
10 ft 3.0 m * * ** 20 ft 6.1 m
*H1and H2 has no specific restrictions EXCEPT,
after V1= 6 ft, then HtMax = 2 x V1
**V2 has no specific restrictions EXCEPT, after Vt= 60 ft Max.
H 1
V
2
H 2
V
1
INSTALLED
HORIZONTALLY

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0516
A. Pipe Clearances to Combustibles
Vent Clearances and Framing
6
Combustible Wall Penetration
Framea hole inacombustiblewallfor aninteriorwallshield,
(Figure6.2) whenever a wallis penetrated. Use samesize
framing materials as those used in the wall construction.
The wall shield maintains minimum clearances and pre-
vents cold air infiltration.
Non-Combustible Wall Penetration
Ifthe hole beingpenetrated is surrounded bynoncombus-
tible materials such as concrete, a hole with diameter one
inch greater than the pipe is acceptable.
Fire Risk.
Explosion Risk.
Maintain vent clearance to combustibles
as specified.
WARNING
• Do not pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
B. Wall Penetration Framing
Figure 6.1 Pipe Clearances
1 in. CLEARANCE
AROUND VERTICAL
SECTIONS
3 in. TOP
CLEARANCE
1 in. SIDE AND
BOTTOM CLEARANCE
Figure 6.2 Exterior Wall Hole
A
B
A* B
73-1/8 in. 72-1/8 in.
* Shows center of vent framing hole for top venting. The
center of the hole is one (1) inch (25.4mm) above the
center of the horizontal vent pipe.
Note: Slope not
required.

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 17
C. Vertical Penetration Framing
Installing the Firestop Spacer
• Framean opening10inchesby10inch-
es whenever the vent system pene-
trates a ceiling/floor (see Figure 6.3).
• Frametheareawiththesamesizedlum-
ber as used in ceiling/floor joist.
• Wheninstallinga top vent vertical appli-
ance the hole should be directly above
the appliance, unless the flue is offset.
• Donotpack insulation around the vent.
Insulation must be kept away from the
pipe.
Figure 6.3
ATTIC
ABOVE
A
B
WARNING
Fire Hazard
Keep loose materials or
blown insulation from touch-
ing the vent pipe.
InstallingAttic Shield
Note: Thefirestop spacer is not requiredif
attic shield is used.
• Frame opening for attic shield.
• Attic shield may be installed above or
belowceiling(see Figure 6.4).
• Secure with three fasteners on each
side.
• Fold tabs at top of attic shield in toward
vent pipe. Tabs must keep vent pipe
centered within shield.
• Field construct additional shield height
if insulation is deeper than height of at-
tic shield.
Figure 6.4 Installing the Attic Shield
•Nationalbuilding codes recommend us-
ing attic shield to keep loose materials/
blown insulation from contacting vent.
•Hearth & Home Technologies requires
the use of an attic shield.
A B
10 in. 10 in.
DVP
PIPE
3 FASTENERS
PER SIDE
BEND TABS IN
AROUND PIPE
ATTIC SHIELD INSTALLED
BELOW CEILIN
G
ATTIC SHIELD INSTALLED
ABOVE CEILING

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0518
A. Securing and Leveling the Appliance
The diagram shows how to properly position, level, and
securetheappliance(seeFigure7.1). Nailing tabs are pro-
videdto secure theappliance to the framingmembers.
You must decide on the face finish method and use the
appropriatenailingtabsto securethefireplace.SeeSection
11 - Finishing.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shimthe appliance with noncombustible material,such
as sheet metal, as necessary.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Figure 7.1 Proper Positioning, Leveling and
Securing of a Appliance
Fire Risk.
•Prevent contact with sagging, loose
insulation.
•Do NOT install against vapor barriers or
exposed insulation.
WARNING
WARNING
Fire Risk.
• ALWAYS maintain specified
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failure to keep insulation, framing or other material away
from the appliance may cause fire.
Appliance Preparation
7
CAUTION
Sharp Edges
• Wear protective gloves
and safety glasses
during installation.
NAILING TABS
(BOTH SIDES)

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/05 19
A. Assembly of Vent Sections
Installing Vent Pipe
8
Assembling Pipe Sections
InserttheinnerflueofsectionAintotheflaredinnerflueofsectionB.
Start the outer flue of sectionAover the outer flue of section B (see
Figure 8.2).Note: Theend of the pipe sections with thelances/tabs
on it will face towards the appliance.
Onceboth inner andouter flues
arestarted,press sectionAonto
section B firmly until all lances
havesnappedintoplace.Check
to make sure they have
snapped together (see Figure
8.3) and the seams are not
aligned (see Figure 8.4). Tug
slightly on section A to confirm
it has completely locked into
place.
For90° and 45°elbows that are
changingtheventdirectionfrom
horizontalto vertical, one screw
minimum should be put in the
outerflueat the horizontalelbow
joint to prevent the elbow from
rotating.
Attaching Vent to the Firebox Assembly
To attach the first pipe section to the collars, slide the male end of
theinner vent of the pipesection over the inner collaron the firebox
assembly. At the same time, slide the outer flue over the outer
collar on the appliance. Push the pipe section into the appliance
collar until all the lances (see Figure 8.1) have snapped in place.
Tug slightly on the section to confirm it has completely locked into
place.
Figure 8.1 Lances
Figure 8.2
A
B
Figure 8.3
Figure 8.4 Seams
Note: Make sure that the seams are not aligned to prevent unintentional disconnection.
CORRECT INCORRECT
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at least 1-1/2 inches.
• Use pilot holes for screws.
• Screws must not exceed one inch long.
• Pipe may separate if not properly joined.
WARNING

Heat & Glo • Escape-42DV • 2052-900 Rev. B • 5/0520
Assembling DVP-12A Slip Sections
Theouterflue of the slip sectionshouldslide over the outer
flue of the pipe section and into (inner flue) the last pipe
section (see Figure 8.6) .
Slide together to the desired length, making sure that a
1-1/2 inch outer flue overlap is maintained between the
pipe section and slip section.
The pipe and slip section need to be secured by driving
two screws through the overlapping portions of the outer
flues using the pilot holes (see Figure 8.7).
This will secure the slip section to the desired length and
prevent it from separating. The slip section can then be
attached to the next pipe section.
If the slip section is too long, the inner and outer flues of
the slip section can be cut to the desired length.

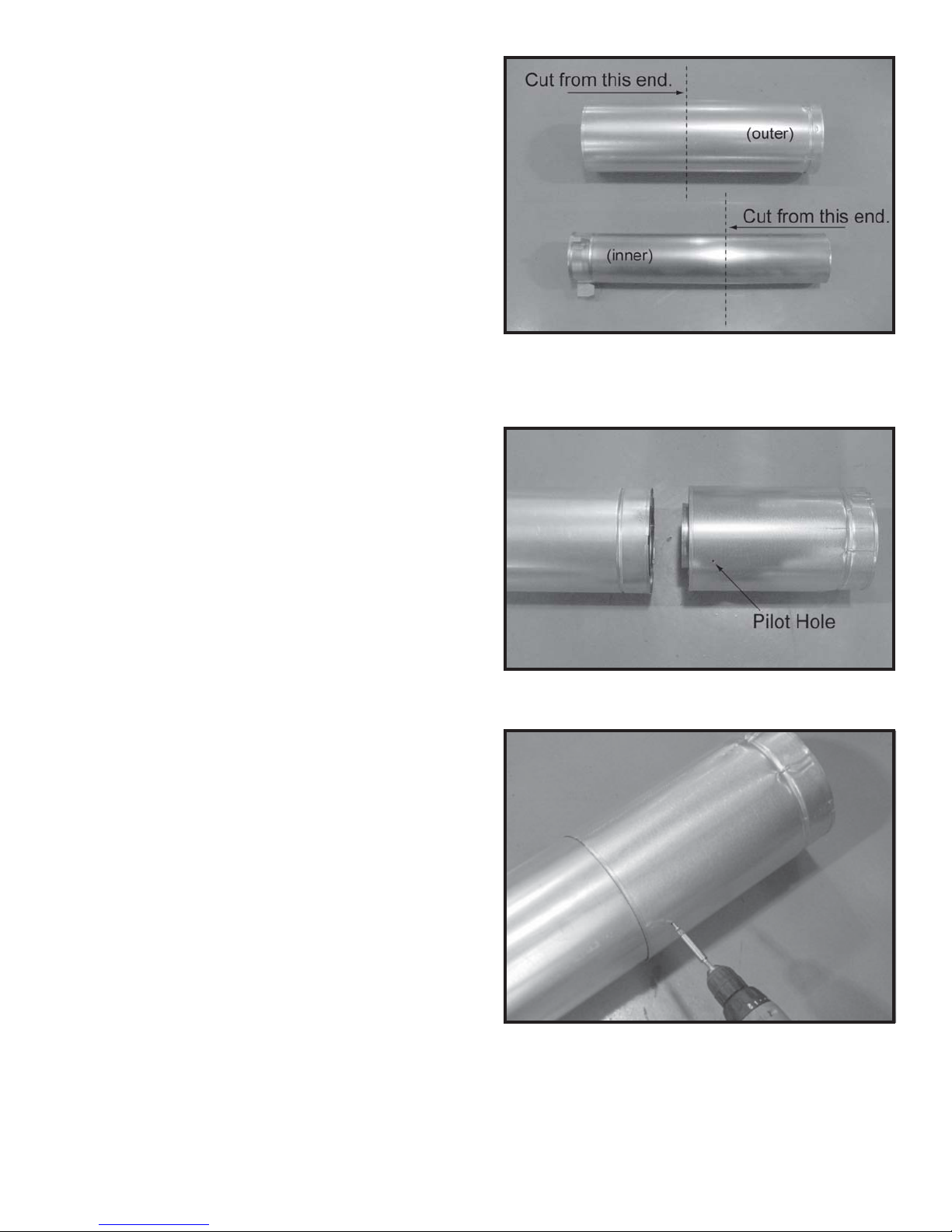

Assembling Minimum Installations (MI) Sections
MI sections are non-unitized so that they can be cut to a
certain length. Cut these sections to length from the non-
expanded end (see Figure 8.5).
Theycanthen be attachedbyfirstconnectingtheexpanded
endofthe MI inner flue withtheinnerpipefromtheadjacent
pipesectionandsecuring with three screws.Theexpanded
portion of the MI inner flue must overlap completely with
the unexpanded end of the adjacent pipe section.
Theouter flue canthen be insertedinto the adjacentouter
flue expanded end and attached to the next pipe section
with three screws. The other end of the MI pipe section
can then be attached by fitting another pipe section to it
and snapping it together, as normal.
Figure 8.6 Slip Section Pilot Holes
Figure 8.7 Screws into Slip Section
Figure 8.5
