Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
— Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
 • Donottrytolightanyappliance.
 • Donottouchanyelectricalswitch;donotuseanyphoneinyourbuilding.
 • Immediatelycallyourgassupplierfromaneighbor’sphone.Followthegassupplier’sinstructions.
 • Ifyoucannotreachyourgassupplier,calltheredepartment.
— Installationandservicemustbeperformedbyaqualiedinstaller,serviceagencyorthegassupplier.
WARNING:Iftheinformationintheseinstructionsarenotfollowedexactly,areorexplosionmayresult
causingpropertydamage,personalinjuryorlossoflife.
FOUNDATION SERIES - PIER
Co-linear Direct Vent Gas Fireplaces
InstallationandOperatingManual
Natural Gas
FDN-4-PIER
FDN-5-PIER
FDN-6-PIER
FDN-7-PIER
Please contact your Heat & Glo dealer with any questions or concerns.
For the location of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
Heat & Glo, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.heatnglo.com

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
2
TABLE OF CONTENTS
1 Safety Information 3
A. Safety Icon Designations 3
B. Important Safety Considerations 3
2Fireplace Specications 4-6
A. Pier Dimensions 4
B. Clearances 5
C. Installation Overview 6
D. Placement Clearance Requirements 6
3Prepare The Fireplace 7-8
A. Standoff Installation 7
B. Nailing Tab Installation 8
4 Framing 9-11
A. Pier Framing Dimensions 10
B. Support Bracket 11
5 Mantel Requirements 12-13
A. Non-Combustible Zone - Using the Provided 1/2"
Standoffs
12
B. Non-Combustible Zone - Not Using the Provided
1/2" Standoffs
13
6Glass Frame Assembly 14-15
A. Glass Frame Assembly Identication 14
B. Install Glass Frame Assembly 15
C. Remove Glass Frame Assembly 15
7Gas Line Specications & Access 16-17
A. Gas Line Connection 16
B. Gas and Electrical Access Panels 17
8 Venting 18-25
A. Approved Venting 18
B. Horizontal Vent System Clearances 19
C. Wall Pass-through 19
D. Vertical Terminations 20
E. Horizontal Termination Vent Cap Location &
Clearances
20-21
F. Vertical Termination Vent Cap Location & Clearances 22
G. Roof Termination Cap Installation With and Without
Optional Mechanical Damper
23
H. Wall Termination Cap Installation With and Without
Optional Mechanical Damper
24
I. Intake Air 25
J. Changing From Side Intake Air to Bottom Intake Air 25
9 Electrical 26-32
A. Field Wiring (At Install) 26
B. Field Wiring - Service and Troubleshooting 27
C.1 Terminals 1 & 2 - LED Lights 28
C.2 Terminals 3 & 4 - Main Flame 28
C.3 Terminals 5 & 6 - Fireplace Power 29
C.4 Terminals 7 & 8 - Powervent Connection 29
C.5 Terminals 9 & 10 - Flue Damper Connection 30
C.6 Terminals 11 & 12 - Flue Damper Prove 31
C.7 Terminals 13 & 14 - Vacuum Switch 32
10 Finishing The Wall 33-34
A. Finishing the Wall - Using the Provided 1/2"
Standoffs
33
B. Finishing the Wall -Not Using the Provided 1/2"
Standoffs
34
11 Lighting & Shutdown 35-36
A. Lighting The Fireplace 35
B. If The Fireplace Does Not Light 36
12 Pressure Testing 37
Inlet Pressure Test 37
13 Finalizing The Installation 37
A. Installing The Media 37
B. Flame Appearance 37
14 Maintenance 38
A. Vent System 38
B. Glass Cleaning and Replacement 38
C. Replacement Parts List 38
HHT Limited Lifetime Warranty 39-40

3
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
1 - SAFETY INFORMATION
• Installation and repair should be done only by a qualied
service person. The appliance should be inspected by a
qualied service person before use. Annual inspection by a
qualied service person is required to maintain warranty. More
frequent cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative that control
compartments, burners and circulation air passageways of the
appliance be kept clean.
• Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition.
• Young children should be carefully supervised when they are
in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a replace, install an
adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot
surfaces.
• Clothing or other ammable material should not be placed on
or near the appliance.
• Adequate accessibility clearances for servicing and proper
operation must be maintained.
• This appliance must not share or be connected to a chimney
ue serving any other appliance.
• Keep area around the appliance clear of combustible materials,
gasoline and other ammable vapor and liquids.
• The ow of combustion and ventilation air must not be
obstructed.
DO NOT
RISK OF FIRE
IMPORTANT NOTE
STOP!
HOT GLASS WARNING
A. SAFETY ICON DESIGNATIONS
B. IMPORTANT SAFETY CONSIDERATIONS
• Due to high temperatures the appliance should be located out
of trafc and away from furniture and draperies.
• The glass front or any part removed for servicing the appliance
must be replaced prior to operating the appliance. Work should
be done by a qualied service technician.
• Clean glass only when cool and only with non-abrasive
commercially available cleaner.
• Do not operate this appliance with the glass/frame assembly
removed, cracked or broken. Replacement of the glass
assembly must only be performed by a licensed or qualied
service person. DO NOT SUBSTITUTE MATERIALS.
• Do not strike or slam glass assembly.
• Keep burner and control compartment clean.
• Do not use this replace if any part has been under water.
Immediately call a qualied service technician to inspect this
appliance and to replace any part of the control system and any
gas control which has been under water.
• DANGER: Under no circumstances should any solid fuel
(wood, coal, paper or cardboard etc.) be used in this appliance.
• STATE OF CA WARNING: This product and the fuels used
to operate this product (liquid propane or natural gas), and
the combustion of such fuels, can expose you to chemicals
including benzene, which is known to the State of California to
cause cancer and reproductive harm.
For more information go to: www.P65Warnings.ca.gov.
Various safety icons appear throughout this installation manual. Please familiarize yourself with the icons making sure you understand the serious
consequences that may occur if ignored or if the products are handled inappropriately.
This indicates additional instructions that you should consider
during the installation.
This indicates something that you must never do.
This designates a danger of risk of re or damage to property.
This indicates danger of serious bodily injury or property
damage if glass is handled while still hot.
CAUTION
This indicates danger of serious bodily injury or property
damage.
This indicates notes that may include reviewing warnings on
other pages throughout the manual.
ThisreplacecomplieswithANSIZ21.50-2016·CSA2.22-2016“VENTEDDECORATIVEGASAPPLIANCES”.
Installationmustconformwithlocalbuildingcodesorintheabsenceoflocalbuildingcodes,
withtheNationalFuelGasCode,ANSIZ223.1/NFPA54-CurrentEdition,ortheNaturalorPropaneInstallationCode,CSAB149.1

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
4
2-FIREPLACESPECIFICATIONS
A. PIER DIMENSIONS
Figure2A
SPECIFICATIONS DIMENSIONS
Model# B-VENT
FLUE
OUTSIDE
AIR INTAKE A* B* C D E F G
Diameter Diameter Finishing
Width
Finishing
Height
Height
FireboxTop
Height
Overall
Edgeto
Center Flue Depth Width Overall
FDN-4-PIER 8” 10” 51-31/32
[1320]
24
[610]
42
[1067]
50
[1270]
26-7/8
[683]
24
[610]
53-3/4
[1365]
FDN-5-PIER 8” 10” 63-31/32
[1625]
24
[610]
42
[1067]
50
[1270]
32-7/8
[835]
24
[610]
65-3/4
[1670]
FDN-6-PIER 10” 10” 75-31/32
[1920]
24
[610]
42
[1067]
50
[1270]
38-7/8
[987]
24
[610]
77-3/4
[1975]
FDN-7-PIER 10” 10” 87-31/32
[2235]
24
[610]
42
[1067]
50
[1270]
44-7/8
[1140]
24
[610]
89-3/4
[2280]
A* & B* This is the allowable nishing width and height required to t the glass panels into the replace.
Finishing materials shall not overlap dimensions.
A
2X 1/2
[13]
B
1 25/32
[45]
3
[76]
15
[381]
ACCESS PANEL
FRONT AND REAR
5/8
[16]
6 21/32
[169]
3
[76]
D
C
INTAKE
6 1/8
[156]
12
[305]
COLLAR
2X 1/2
[13]
2X 5/8
[16]
ACCESS
PANEL
FLUE B-VENT
12
[305]
F
E
G

5
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
2-FIREPLACESPECIFICATIONS
NO COMBUSTIBLE MATERIAL
WITHIN 6” [152] OF THE TOP
OF THE FIREPLACE
NO COMBUSTIBLE
MATERIAL WITHIN 1” [25]
OF B-VENT FLUE
COMBUSTIBLE
FRAMING AND
FINISHING MATERIAL
ALLOWED ON THE FACE
OF THE FIREPLACE
BELOW THE BOTTOM
VIEWING EDGE ONLY.
NO COMBUSTIBLE
MATERIAL WITHIN 1” [25]
OF THE BACK END OF
FIREPLACE
1” [25]
6” [152]
NO COMBUSTIBLE
MATERIAL WITHIN
1” [25] OF SIDE OF
FIREPLACE
OTHER CLEARANCES:
DO NOT PLACE ON CARPET, VINYL OR SOFT SURFACES.
A COMBUSTIBLE MANTEL MAY BE PLACED AT THE TOP OF THE GLASS VIEWING AREA. DO NOT OVERLAP GLASS.
A COMBUSTIBLE HEARTH EXTENSION MAY BE USED AT THE BOTTOM OF GLASS VIEWING. DO NOT OVERLAP GLASS.
* MINIMUM DISTANCE RECOMMENDED FROM ALL VIEWABLE SIDES OF APPLIANCE FOR SERVICE ACCESS = 24 IN.
[610 mm].
Figure2B
SPECIFICATIONS
MODEL # DESCRIPTION B-VENT OA REG PV IN-LINE PV BTU'S NG ORIFICE LP ORIFICE
FDN-4-PIER 4X2 PIER 8” 10” PVK-45 PVI-45 60,000 (3X) #43 (3X) #55
FDN-5-PIER 5X2 PIER 8” 10” PVK-45 PVI-45 80,000 (4X) #43 (4X) #55
FDN-6-PIER 6X2 PIER 10” 10” PVK-67 PVI-67 100,000 (5X) #43 (5X) #55
FDN-7-PIER 7X2 PIER 10” 10” PVK-67 PVI-67 120,000 (6X) #43 (6X) #55
CLEARANCES
From unit left & right sides 1" 25mm
To ooring under replace 0 0
Unit top to ceiling 6" 152mm
Unit side to adjacent sidewall 1" 25mm
From appliance front*
WARNING:NON-COMBUSTIBLEZONE:USEONLYNON-COMBUSTIBLEMATERIALINTHISAREAFORENTIREWIDTHOF
FIREPLACE.DONOTUSEWOOD,SHEETROCK,ETC.,INTHISZONE.SEEFIGURE2B
NOTE: OTHER CLEARANCES APPLY. ALL CLEARANCES MUST BE MAINTAINED.
RefertoSection5(Non-CombustibleZone)andSection10(Finishing)formoreinformation.
B. CLEARANCES

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
6
2-FIREPLACESPECIFICATIONS
C. INSTALLATION OVERVIEW
1. Framing should be built afer the replace is installed or extra clearance must be planned for at the intake collar. Framing must allow for vent
installation.
2. If masonry (optional) will be used, prepare foundation for the masonry load. A lintel is required to support the added weight above the replace.
3. Install hearth if desired.
4. Insert replace into framing.
5. Double check clearances to combustibles.
6. Complete gas line installation.
7. Complete electrical hook-up.
8. Complete venting installation.
9. Install facing material, mantel or cabinetry.
10. Install optional mirrored glass, optional logs, media, and required glass.
11. Verify proper operation of replace and all components.
D. PLACEMENT CLEARANCE REQUIREMENTS
NOTE:Thequaliedinstallershouldfollowtheprocedurebestsuitedfortheinstallation.
• This replace must be installed on a level surface capable of supporting the replace and venting.
• Fireplace must be placed directly on wood or non-combustible surface (not linoleum or carpet) extending entire depth and width of replace.
• Due to high surface temperatures, replace should be located out of trafc and away from furniture and draperies.
• This replace may be installed in a bedroom.
• Please be aware of the amount of heat this replace will produce when determining a location.

7
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
3-PREPARETHEFIREPLACE
CAUTION: FIREPLACE IS NOT LOAD-BEARING.
NOTE: OTHER CLEARANCES APPLY. ALL CLEARANCES MUST BE MAINTAINED.
A. STANDOFF INSTALLATION
Figure3A.3
Placement of the standoffs and nailing anges on the Pier replace.
Figure3A.1
Figure3A.2
LOOSEN SCREW
AND FOLD EACH
STANDOFF
REMOVE
SECOND SCREW
STEP1:RefertoFigure3A.1
The (4) standoffs will be shipped in a at state placed on the rebox top.
Locate the standoffs and loosen the screws holding them in place.
STEP2:RefertoFigure3A.2
Fold the center of the standoff up and both ends out at the perforated
lines. Using Figure 3A.2 for reference, locate the second pre-installed
screw on the rebox top at each standoff location. Remove the screw,
pivot the folded standoff into location and re-install the screw to secure
the standoff. Tighten up the screw that was loosened in Step 1.
Figure3A.2
PIVOT FOLDED STANDOFF
AND SECURE
LOOSENED SCREW
The Pier replace has a
quantity of four (4) standoffs
that are secured with
two (2) screws each (left and
right sides of top).
STANDOFFS
The Pier replace has a
quantity of four (4) nailing
anges that are secured with
two (2) screws each on the
back of the replace.
NAILING FLANGES

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
8
3-PREPARETHEFIREPLACE
B. NAILING TAB INSTALLATION
Figure3B.3
Figure3B.2Figure3B.1
The nailing anges will ensure the
1" minimum clearance is kept to
combustible framing.
Refer to Figure 3B.5
Depending on your installation and how you
frame it out, you may not use the provided
nailing anges.
Figure3B.4 Figure3B.5
1"

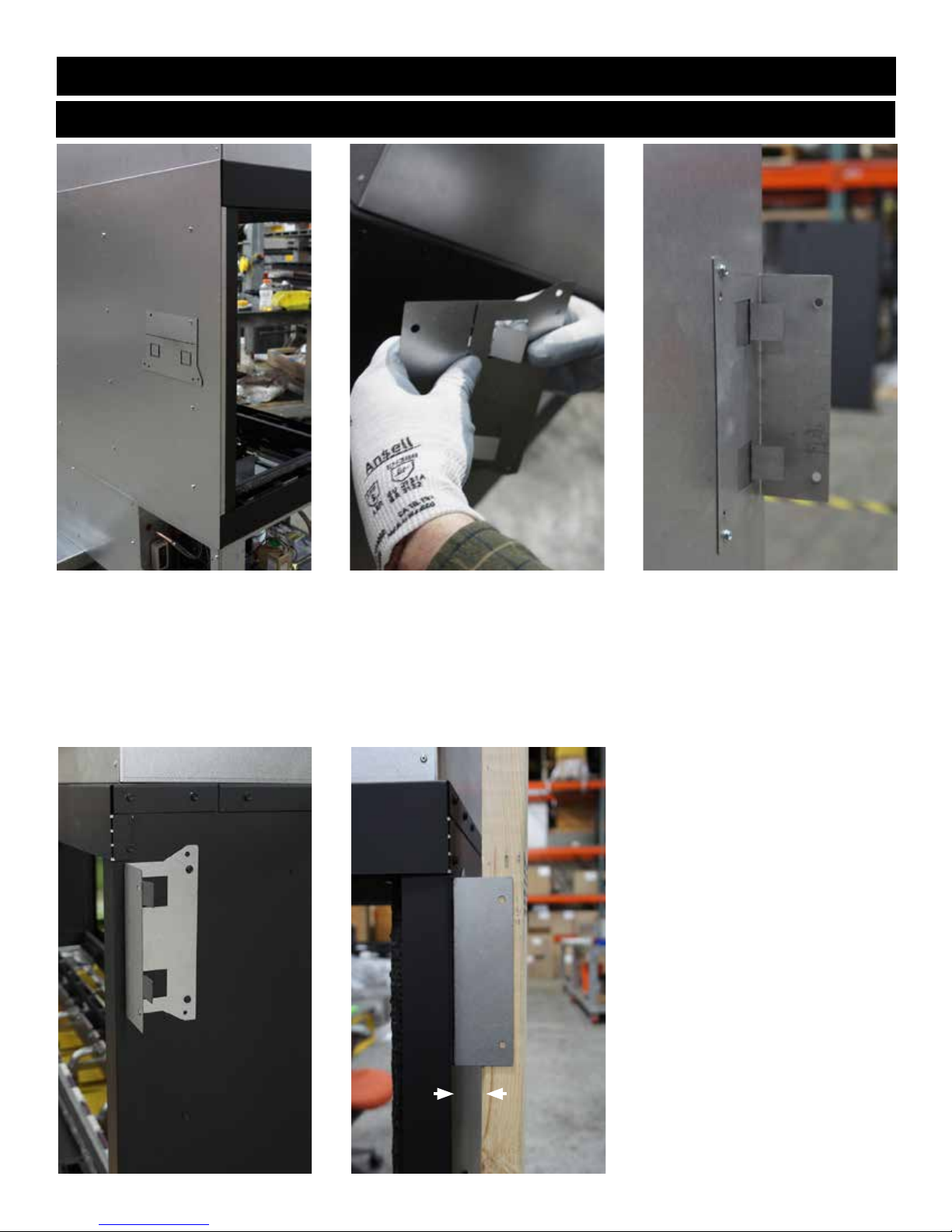

STEP1:RefertoFigure3B.1
The four (4) nailing anges will be shipped in
a at state placed on the rebox back.
Locate the nailing anges and remove the
screws holding them in place.
STEP2:RefertoFigure3B.2
Bend the two (2) small tabs out on each
nailing ange at the perforated lines.
Using Figure 3A.3 for reference, locate the
pre-drilled holes on the rebox back each
nailing ange will be placed at.
STEP3:RefertoFigure3B.3&Figure3B.4
Set each nailing ange in place and secure
using two (2) screws each. Bend the
nailing ange out from replace at the
remaining perforated line.

9
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
4 - FRAMING
NOTE:Framingdimensionsshouldallowforwallcoveringthicknessandreplacefacingmaterials.Whenusingahearth,
adjustroughopeningsizeasnecessarytomaintainatleastminimumclearancerequirements.
If masonry is to be used (optional), prepare the necessary foundation for the masonry load. When masonry construction is being used, a lintel must be
used over top of replace to support the added weight. Build hearth to desired size and height. If a hearth extension is desired, combustible material
may be used.
CAUTION:Installreplaceonmetal,concreteorhardwoodsurfaceextendingthefullwidthanddepthofreplace.
CAUTION:VentcaplocationmustbeincompliancewithguidelinesinSections8.D-8.Hofthismanual.
CAUTION: FIREPLACE IS NOT LOAD-BEARING.

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
10
A. PIER Framing Dimensions
4 - FRAMING
IMPORTANT: FIREPLACE IS NOT LOAD-BEARING.
The hood shall be supported at specic locations using .250-20 UNC
threaded rods.
More top view dimensions found on Page 5.
MODEL QTY J K
FDN-4-PIER 4 5 in. 127 mm 8 7/8 in. 225 mm
FDN-5-PIER 4 5 in. 127 mm 11 7/8 in. 302 mm
The hood shall be supported at specic locations using .250-20 UNC threaded rods.
More top view dimensions found on Page 5.
MODEL QTY J K L
FDN-6-PIER 85 in. 127 mm 6 7/8 in. 175 mm 26 7/8 in. 683 mm
FDN-7-PIER 85 in. 127 mm 6 7/8 in. 175 mm 32 7/8 in. 835 mm
Figure 4.1 PIER Framing Dimensions
IMPORTANT FRAMING NOTES:
FRAMING SHOULD BE BUILT AFTER THE FIREPLACE IS INSTALLED OR EXTRA CLEARANCE MUST
BE PLANNED FOR AT THE INTAKE COLLAR AND FOR THICKNESS OF MATERIALS USED.
FRAMING DIMENSIONS LISTED ASSUMING 1/2” [13] DRYWALL AND NON-COMBUSTIBLE BOARD USED.
THESE DIMENSIONS REPRESENT THE FRAMING DIMENSIONS FOR COMBUSTIBLE MATERIAL.
NON-COMBUSTIBLE FRAMING AND FINISHING MATERIALS MAY BE USED WITHIN THESE DIMENSIONS
RIGHT UP TO THE UNIT.
NO COMBUSTIBLE MATERIAL WITHIN 6" [152] OF THE TOP OF THE FIREPLACE.
NO COMBUSTIBLE MATERIAL WITHIN 1" [25] OF THE SIDE OF THE FIREPLACE.
COMBUSTIBLE MATERIAL SHALL NOT BE PLACED DIRECTLY ON THE FACE OF THE FIREPLACE, TOP AND SIDE.
STEEL SURFACE MAY BE COVERED WITH NON-COMBUSTIBLE FINISHING MATERIAL.
1" [25] CLEARANCE TO THE B-VENT MUST BE MAINTAINED.
PIER
Model # A
WIDTH
B
HEIGHT
C
DEPTH
FDN-4-PIER 54-3/4
[1,391]
56
[1,422]
23
[584]
FDN-5-PIER 66-3/4
[1,695]
56
[1,422]
23
[584]
FDN-6-PIER 78-3/4
[2,000]
56
[1,422]
23
[584]
FDN-7-PIER 90-3/4
[2,305]
56
[1,422]
23
[584]
J
J
K
FLUE B-VENT
L
K
J
J
6” [25]
MINIMUM
NON-COMBUSTIBLE ZONE
OPEN AIR SPACE
1/2” Standoffs
A
B
C
1/2” Standoffs
FLUE B-VENT
SEE SECTION 10 (FINISHING) FOR DETAILS REGARDING 1/2 INCH STANDOFFS.
NOTE: Fireplace MUST be square in both directions prior to finishing or the glass will not fit properly.

11
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
Figure4.2SupportBracket
SUPPORT BRACKET
B.SupportBracket
4 - FRAMING
The hood must be supported at locations J,K and L
using .250-.20 UNC threaded rods. Temporary support
brackets are provided for installation.
See Figure 4.2.
1. Install the threaded rods in locations J, K and L as
noted in Figure 4.1.
2. Level the replace.
3. Ensure replace is fully supported and leveled and
then remove support brackets.
Caution! Risk of Injury! DO NOT remove support brack-
ets until replace is fully supported and level.

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
12
5 - MANTEL REQUIREMENTS
A.NON-COMBUSTIBLEZONE-USINGTHEPROVIDED1/2"STANDOFFS
GLASS VIEWING AREA
BOTTOM 3” TRIM
COMBUSTIBLE MANTEL
COMBUSTIBLE HEARTH
COMBUSTIBLE FACING
MATERIAL
SINGLE SIDED EXAMPLE: RIGHT SIDE VIEW
APPLIES TO BOTH SIDES AND ENDS IF USING A MULTI-SIDED FIREPLACE
TOP TRIM
TOP OF FIREPLACE
TOP OF TRIM
1/2” [12.7] CLEARANCE TO COMBUSTIBLES ON SURFACE
The fireplace ships with standoffs in place to ensure a 1/2” clearance to
combustibles is maintained on the surface.
COMBUSTIBLE OR NON-COMBUSTIBLE
BACKING MATERIAL (I.E. SHEETROCK)
COMBUSTIBLE OR
NON-COMBUSTIBLE MATERIAL
1/2” [12.7 mm]
STANDOFFS
6”
3”
6” [152 mm]
MINIMUM NON-COMBUSTIBLE ZONE
OPEN AIR SPACE
8”
COMBUSTIBLE FRAMING
Figure 5.1
NOTE:RefertoPage33-34formoreinformationonnishingthewall.
1/2"[12.7mm]Standoff
The  replace has standoffs installed on the front of the  replace standard from the factory. They are located on the
upper left, center and right front of the  replace and are to ensure that the 1/2" [12.7mm] required clearance to
combustibles on the surface of the  replace is maintained.
If the standoffs are removed, only non-combustible material can be installed against the surface of the  replace such as a
non-combustible backer cement board. 1/2” [12.7mm] minimum thickness must be used the 15” [381mm] between the top
of the 3’’ trim to the combustible framing the full width of the  replace. The 15” includes a 7” [178mm] minimum above the
top of the  replace that is recommended for ease of attachment.
RefertoFigure5.1belowforastandardinstallationusingtheprovided1/2"standoffs.
RefertoFigure5.2onPage13forrequirementswhennotusingtheprovided1/2"standoffs.
WARNING! Risk of Fire! Comply with all
minimumclearancesasspecied.

13
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
5 - MANTEL REQUIREMENTS
B.NON-COMBUSTIBLEZONE-NOT USINGTHEPROVIDED1/2"STANDOFFS
GLASS VIEWING AREA
BOTTOM 3” TRIM
COMBUSTIBLE MANTEL
COMBUSTIBLE HEARTH
COMBUSTIBLE FACING
MATERIAL
7” ABOVE TOP OF FIREPLACE
COMBUSTIBLE OR NON-COMBUSTIBLE
BACKING MATERIAL (I.E. SHEETROCK)
COMBUSTIBLE OR
NON-COMBUSTIBLE MATERIAL
SINGLE SIDED EXAMPLE: RIGHT SIDE VIEW
APPLIES TO BOTH SIDES AND ENDS IF USING A MULTI-SIDED FIREPLACE
1/2” [12.7] CLEARANCE TO COMBUSTIBLES ON SURFACE
The fireplace ships with standoffs in place to ensure a 1/2” clearance to
combustibles is maintained on the surface.
If the standoffs are removed, only non-combustible material can be installed
against the surface. 1/2” [12.7mm] minimum thickness must be used
between the top of the 3” trim extending 15” [381mm] high the full width of
the fireplace. The 15” includes a 7” [178mm] minimum above above the
top of the fireplace that is recommended for ease of attachment.
6” [152 mm]
MINIMUM NON-COMBUSTIBLE ZONE
OPEN AIR SPACE
TOP TRIM
8”
TOP OF TRIM
3”
15”
COMBUSTIBLE FRAMING
Figure5.2
NOTE:RefertoPage33-34formoreinformationonnishingthewall.
The  replace has standoffs installed on the front of the  replace standard from the factory. They are located on the left,
center and right front hood of the  replace and are to ensure that the 1/2" [12.7mm] required clearance to combustibles on
the surface of the  replace is maintained.
If the standoffs are removed, only non-combustible material can be installed against the surface of the  replace such as a
non-combustible backer cement board. 1/2” [12.7mm] minimum thickness must be used the 15” [381mm] between the top
of the 3’’ trim to the combustible framing the full width of the  replace. The 15” includes a 7” [178mm] minimum above the
top of the  replace that is recommended for ease of attachment.
RefertoFigure5.2belowforrequirementswhennotusingtheprovided1/2"standoffs.
RefertoFigure5.1onPage12forastandardinstallationusingtheprovided1/2"standoffs. 1/2"[12.7mm]Standoff
WARNING! Risk of Fire! Comply with all
minimumclearancesasspecied.

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
14
6 - GLASS FRAME ASSEMBLY
A. GLASS FRAME ASSEMBLY IDENTIFICATION
NOTE:Glassmustberemovedusingqualitysuctioncups.
DO NOT attempt to remove the glass without using proper suction cups.
NOTE: IN CASE OF CHIPPED OR BROKEN GLASS
HaveyourdealerassistyouwithcontactingHearth&HomeTechnologiestogettheproperglassspecications.
UPPER GROOVE
QUALITY
SUCTION CUP
LOWER GROOVE
Figure 6A
CAUTION:TOPREVENTGLASSFRAMEASSEMBLYFROMFALLINGFROMFIREPLACEANDBECOMINGDAMAGED,
FOLLOW THE INSTRUCTIONS EXACTLY WHEN REMOVING AND INSTALLING GLASS FRAME ASSEMBLY.
STOP:DONOTOPERATETHISFIREPLACEWITHTHEGLASSREMOVED,CRACKEDORBROKEN.REPLACEMENTOF
GLASS ASSEMBLY SHOULD BE DONE BY A LICENSED OR QUALIFIED SERVICE PERSON.
WARNING: DO NOT REMOVE GLASS ASSEMBLY WHEN HOT!!!!
NOTE: GLASS REMOVAL AND INSTALLATION MUST BE PERFORMED WITH TWO PEOPLE.
LOWER FILLER STRIP SITS OVER GLASS CLIPS
GLASS CLIP
GLASS
Figure 6B.1

15
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
C. REMOVE GLASS FRAME ASSEMBLY
B. INSTALL GLASS FRAME ASSEMBLY
RefertoGlassFrameAssemblyIdenticationFigures6A&6B.1wheninstallingandremovingtheglassframeassembly.
6 - GLASS FRAME ASSEMBLY
Figure6B.3-VerticalTrimPiece
Figure6B.4-HorizontalTrimPiece
Figure6B.2-OuterEdgeProtector
Top/BottomGlassPane
U-Shaped
Edge
Protector
1. Apply the suction cups to the outer glass panel following the instructions included with the suction cups.
2. Gently lift the glass until the bottom edge is clear of the groove it sits in.
3. Bring the bottom edge of the glass towards you while lowering it to disengage it from the top groove.
4. Set the glass on a padded surface to protect it. IMPORTANT: Protect the glass's edges.
5. Remove the lower trim panel that sits between the layer of glass.
6. Remove the inner trim vertical panels.
7. Using the suction cups, remove the inner panel in the same manner.
Inner Glass
1. Unwrap the panes of glass carefully making sure to protect the
edges.
2. Apply the suction cups to the inner glass assembly, following in-
structions included with the suction cups.
3. Lift the glass into place. The top edge slips into the top groove, lift
into the groove until the bottom is clear of the bottom trim. Slide
the glass down into the inner bottom groove. See Figure 6A.
4. Push inner trim vertical panels into place on each side. See Fig-
ure 6B.3.
5. Place the lower trim panel between the lower glass clips. Slide
back against the vertical trim piece. See Figure 6B.4.
OuterGlassEdgeProtectors
6. For the panes of glass that make up the outer set of glass, the top
and bottom edges must be rst clad in the provided plastic edge
protectors.
7. Line the top and bottom edges of the outer glass with the edge
protectors so that the glass edge slides completely into the chan-
nel of the edge protector from one end to the other. Press in
rmly. No adhesive required. See Figure 6B.2. Long pieces of
glass may need two or more protectors.
8. After the panes are clad in the edge protectors on the top and
bottom edges, install glass into outer channels.
Outer Glass
9. Apply the suction cups to the outer unframed glass and lift it into
place in the same manner as the inner glass.
IMPORTANT: PLASTIC EDGE PROTECTORS
The replace is shipped with plastic edge protectors that
are u-shaped channel pieces wrapped separately and
shipped on top of the glass packaging.
These will be placed on the outer panes of glass only prior
to installing onto the replace. If the edge protectors are
not installed, the glass may rattle during operation. See
Figure 6B.2.

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
16
NOTE:Forhighaltitudeinstallations,consultHearth&HomeTechnologiesdirectlyforproperratingmethods.
GAS LINE CONNECTION Propane Natural Gas
MINIMUM INLET GAS PRESSURE 11.0 inches W.C.
(recommended)
7.0 inches W.C.
(recommended)
MAXIMUM INLET GAS PRESSURE 14.0 inches W.C. 10.0 inches W.C.
MANIFOLD PRESSURE (HI) 10.0 inches W.C. 3.5 inches W.C.
ORIFICE SIZE SEE CHART ON PAGE 5 SEE CHART ON PAGE 5
INPUT BTU/HR SEE CHART ON PAGE 5 SEE CHART ON PAGE 5
Figure 7
7-GASLINESPECIFICATIONS&ACCESS
ThisreplaceismanufacturedforusewithNaturalGas.
CAUTION:Installationofthegaslinemustonlybedonebyaqualiedpersoninaccordancewithlocalbuildingcodes,ifany.
Ifnot,followANSI223.1.
NOTE:Theapplianceanditsindividualshutoffvalvemustbedisconnectedfromthegassupplypipingsystemduringany
pressuretestingofthatsystematpressuresinexcessof½psi.
NOTE:Theappliancemustbeisolatedfromthegassupplypipingsystembyclosingitsindividualmanualshut-offvalve
duringanypressuretestingofthegaslineattestpressuresequaltoorlessthan½psi(3.5kPa).
A. GAS LINE CONNECTION
1/2 INCH GAS SUPPLY GAS VALVE
BALL VALVE

17
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
7-GASLINESPECIFICATIONS&ACCESS
B. GAS AND ELECTRICAL ACCESS PANELS
Each replace will have four points of access for installation and service. There are access panels on the pilot side of the replace front, side and rear
of the replace. Plan in advance of the installation which access location will be used and accommodate for it in the nish work to allow for
easy access to service later. You also have access through the interior of the replace by removing the mesh on the burner pan in the pilot area.
There are gas and electrical gas knock-outs on the bottom if you need to come up from below the replace.
Figure8AccessPanelDimensions
6X
6X
See Valve and Electrical
Access in the Maintenance
Section for details on access
through the burner.
GLASS
BOTTOM VIEW
GAS AND ELECTRICAL KNOCK-OUTS
BACK ACCESS PANEL VIEW
GLASS
1-25/32 [45]
1-17/32 [39]
4-3/4 [121]
3 [76]
2X 1-19/32 [41]
2X 2-27/32 [72]
1-19/32 [41]
1-11/16 [43]
3-7/32 [82]
3 [76]
1-1/2 [38]
2-3/4 [70]
11-1/8 [283]
3 [76]
3-7/32 [82]
1-1/2 [38]
1-1/2 [38]
2-3/4 [70]
11-1/8 [283]
4 [102}
2X 5-13/32 [137]
2X 3-31/32 [101]
2X 7-15/32 [190]
2X 2-29/32 [74]
2X 8-23/32 [222]
7/8 [22]
1-3/32 [28]
3 [76]
SIDE ACCESS PANEL
(PILOT SIDE) FRONT ACCESS PANEL VIEW
MEASUREMENTS = INCHES [mm]

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
18
8-VENTING
A. APPROVED VENTING
CAUTION:Consultthelocalandnationalinstallationcodestoassureadequatecombustionandventilationairisavailable.
NOTE:Flameheightandappearancewillvarydependinguponventingcongurationandtypeoffuelused.Venting
requirementsapplytobothNaturalandPropanegas.
STOP: MAINTAIN ALL CLEARANCES AS STATED IN THIS INSTALLATION MANUAL.
NOTE:Allpipeandelbowjointsmustbesealedbeforeandafterthepowervent.
Thisincludesthelongitudinalseamonthepipe.
HighTempRTVSiliconeand/orfoiltapMUSTbeusedoneachjoint/seam.
Failuretodosomaycauselackofvacuumandmaynottriggerthevacuumswitch.
Model# B-VENT OUTSIDE AIR POWER VENT IN-LINE
POWER VENT VAC AMP kW
FDN-4-PIER 4X2 PIER 8" 10" PVK-45 PVI-45 120 5.8 .35
FDN-5-PIER 5X2 PIER 8” 10” PVK-45 PVI-45 120 5.8 .35
FDN-6-PIER 6X2 PIER 10” 10” PVK-67 PVI-67 120 5.8 .35
FDN-7-PIER 7X2 PIER 10” 10” PVK-67 PVI-67 120 5.8 .35
Refer to the vent systems manufacturer's installation manual for complete installation instructions.
Installation must conform with the venting requirements and restrictions as outlined in this manual.
SEE CHART ABOVE FOR SIZE diameter B-Type Venting that must be used. UL/CSA approved B-Vent only.
DO NOT decrease the vent size.
Vent runs are approved for up to 110 feet with quantity of eleven, 90 degree elbows. This is not the case with all instances.
If you have questions regarding your venting scenario, contact Hearth & Home Technologies.
AvailableIn-LinePowerVenting
An in-line power vent (PVI-45 or PVI-67) is approved for use with this appliance. The in-line powervent must be specied and approved for use by
Hearth & Home Technologies. All vent runs after the in-line powervent may use a pressure approved pipe, but it is not required. If you use B-Vent
after an in-line powervent it is crucial that all pipe and elbow joints and the longitudinal seam are sealed using a high temperature RTV Silicone and/or
foil tape.
Figure8.1In-LinePowervent(PVI-67)
INTAKE SIDE
Perform the following steps when installing the PVI-67 on
six foot and seven foot models.
1. Attach the provided 10 inch B-Vent collar to the intake
side of the powervent. The intake side is located
opposite the fan motor as shown in Figure 8.1. The
10 inch B-Vent collar is packaged separately from the
powervent. See Figure 8.2
2. Note the silhouette circle printed on the intake side
of the powervent. The pre-drilled screw holes within
the circle will be matched with the holes on the intake
collar of the base plate. See Figure 8.3
3. Place the intake collar base plate onto the silhouette,
matching up the holes as shown in Figure 8.4. Fasten
the base plate to the silhouette using ve self-tapping
screws.
IN-LINE POWERVENT PREPARATION - PVI-67
OUTLET
FAN MOTOR

19
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
B.HORIZONTALVENTSYSTEMCLEARANCES
ALL APPROVED VENTING TOP BOTTOM SIDES
HORIZONTAL 1inch(25mm) 1inch(25mm) 1inch(25mm)
4. An adapter to increase from eight inch pipe to ten
inch pipe is required on the outlet side of the in-line
powervent. The adapter is included in the PVI-67
kit. See Figure 8.5. Connect the adapter directly to
the eight inch outlet collar of the in-line powervent.
Connect the ten inch exhaust B-Vent to the collar and
continue the vent run.
Figure8.2TenInchB-VentCollar
Figure8.3SilhouetteCircleonIntake
SILHOUETTE CIRCLE
Figure8.4BasePlateFastenedtoIntake
SCREWS(5TOTAL)
Figure8.5
C.WALLPASS-THROUGH-Followalllocalcodesforrequirementofrestops.

Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 • 2/19
20
D. VERTICAL TERMINATIONS
• TheFoundationSeriesreplacemustterminatewiththeincludedapprovedpoweredterminationcap.
• NO SUBSTITUTION IS ACCEPTABLE.
• Carefullyfollowtheinstructionsincludedwiththeapprovedpoweredterminationcap.
• DONOTuseanadditionalspeedcontrolonthispowervent.
• YoumustusetheincludedCapacitor.
8-VENTING
E.HORIZONTALTERMINATIONVENTCAPLOCATION&CLEARANCES
Thisgasappliancemustnotbeconnectedtoachimneyservinganyotherappliance.
• Terminations against vinyl siding must use a vinyl siding protector. Follow instructions included.
• DO NOT RECESS TERMINATION KIT INTO OUTSIDE BUILDING MATERIALS - i.e.: brick, stone, siding, etc. If necessary, extend framing so
that termination kit will be exposed once building materials are installed.
• Vent termination must not be located where it will become plugged by snow or other material. The ow of combustion and ventilation air must not
be obstructed.
LOCATION CLEARANCES:
A. Above grade, veranda, porch, deck, balcony - 12" (305 mm).
B. Operable window or door - 30" (762 mm).
C. Permanently closed window* - 12" (305 mm) (recommended to prevent condensation on window).
D. Ventilated soft* - 24" (610 mm).
E. Unventilated soft* - 12" (305 mm).
F. Outside corner* - 12" (305 mm).
G. Inside corner* to non-combustibles - 12” (305 mm). Inside corner* to combustibles - 24” (610 mm).
H. Meter / Regulator: Not to be installed above a gas meter/regulator assembly within 3 ft. (914 mm) horizontally from the center-line of the regulator.
I. Gas Service regulator vent outlet - 3 ft. (914 mm).
J. Non-mechanical air supply inlet to building or the combustion air inlet to any other appliance.
US: 9” (229 mm) CANADA: 12" (305 mm).
K. Mechanical air supply inlet.
US: 3 ft. (914 mm) above if within 10 ft. (3.05 m) horizontal. Massachusetts installations: 10 ft. (3.05 m).
CANADA: 6 ft. (1.83 m).
L. Above paved side-walk or paved driveway located on public property - 7 ft. (2.13 m).
M. Under veranda, porch, deck, or balcony (must be fully opened on a minimum of 2 sides) - 24" (610 mm).
N. Between two horizontal terminations - 12" (305 mm). (Not shown in Figure 8E.1).
O. Between two vertical terminations - 12" (305 mm). Terminations may be same height. (Not shown in Figure 8E.1).
P. Above furnace exhaust or inlet - 12" (305 mm). (Not shown in Figure 8E.1).
*Clearance must be in accordance with local installation codes & the requirements of the gas supplier.
VENTTERMINAL
AIRSUPPLYINLET
AREA WHERE
TERMINAL
IS NOT PERMITTED
Figure8E.1
NOTE:Aventcannotbelocateddirectlyaboveaside-walkorpaveddrivewaythatislocatedbetweentwosinglefamily
dwellingsandservesbothdwellings.
