IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible
fire hazard and will void the warranty. Save this manual for future refer-
ence.
MODEL 6000TRSI-AUC
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR
PROPANE AS A BALANCED FLUE HEATER.
Refer to the appliance data plates for gas con-
sumptions and pressures.
Installation of this appliance should only be car-
ried out by an authorized person in accordance
with the manufacturers instructions. All relevant
codes and regulations laid down by the gas fitting
authorities, municipal building regulations, electri-
cal wiring regulations, and the requirements of the
AGA Gas Installation Code must be observed.
This appliance and its components are tested and
safe when installed in accordance with this Instal-
lationManual.Reporttoyourdealeranypartsdam-
aged in shipment, specifically check glass condi-
tion. The gas logs and flue system components
arein separate packages.Readall instructions be-
PLEASE READ THIS MANUAL BEFORE INSTALLINGAND
USING THISAPPLIANCE.
fore starting installation and follow these instruc-
tions carefully during installation to ensure maxi-
mum benefit and safety. Failure to follow them will
void your warranty and may present a fire hazard.
The Heat & Glo warranty will be voided by, and
Heat & Glo disclaims any responsibility for the fol-
lowing actions:
• Installationofanydamagedheaterorfluesys-
tem component
• Modification of the heater or balanced flue
system installation other than as instructed by
Heat & Glo.
• Improper positioning of the gas logs or the
glass door
• Installation and/or use of any component part
not manufactured or approved by Heat & Glo,
not withstanding any independent testing
laboratory or other party approval of such
component part or accessory.
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
20802 Kensington Blvd., Lakeville, MN 55044, USA
Copyright 2006 • Printed in U.S.A.
Heat & Glo Quality Systems
registered by SGS ICS

3
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
TABLE OF CONTENTS
1.0 INSTALLATION INSTRUCTIONS. .................................................................... 4
A. Locating the Heater .................................................................................... 5
B. Framing the Heater..................................................................................... 6
C. Flue System Approvals and Installations.................................................... 8
D. Connecting the Gas Supply........................................................................ 18
E. Ignition System Wiring................................................................................ 19
F. Mantel Clearances...................................................................................... 21
G. Log Placement ........................................................................................... 22
H. Installer Testing........................................................................................... 24
2.0 OPERATING INSTRUCTIONS.......................................................................... 24
A. Safety and Lighting Information.................................................................. 26
B. Fan Operation ............................................................................................ 27
3.0 SERVICINGAND MAINTENANCE. .................................................................. 27
A. Removal of Covers for Servicing ................................................................ 28
B. Removal of Components for Service.......................................................... 28
C. Parts Replacement..................................................................................... 28
D. Adjustments and Replacement Parts ......................................................... 28
E. Troubleshooting.......................................................................................... 29
4.0 REPLACEMENT PARTS. ................................................................................. 32
Limited Warranty ............................................................................................... 34

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
4
FIGURE 1.1 Diagram of the 6000 Series
1.0 INSTALLATION INSTRUCTIONS
When planning a heater installation, it’s
necessary to determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
If the heater is to be installed on carpeting or tile, or
onanycombustible material other than wood flooring,
the heater should be installed on a metal or wood
panel that extends the full width and depth of the
heater.
2-1/2
64
[]
5
126.9
[]
27
686
[]
6-7/8
174
[]
2-3/8
61
[]
Ø8203[]
9-7/8
250[]
28-3/8 722[]
14-1/4 362
[]
21-1/2
547[]
18-3/4
476[]
31-5/8
803[]
41 1043[]
36-1/8
917[]
38
965[]
ELECTRICAL
ACCESS
GAS LINE
ACCESS
TOP
STANDOFFS
GLASS
DOOR
DATA BADGE & LABELS
ELECTRICAL
ACCESS
GAS CONTROLS
AND SWITCHES
GAS LINE
ACCESS
(BEHIND ACCESS DOOR)

5
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
Clearance Requirements
The top, back, and sides of the heater are defined by standoffs.
The minimum clearance to a perpendicular wall extending past the face of the heater
is one inch (25 mm).
For 6000 Series Models, the back of the heater may be recessed 21-1/2 inches (546
mm) into combustible construction.
FIGURE 1.2 Heater Dimensions, Locations and Space Requirements

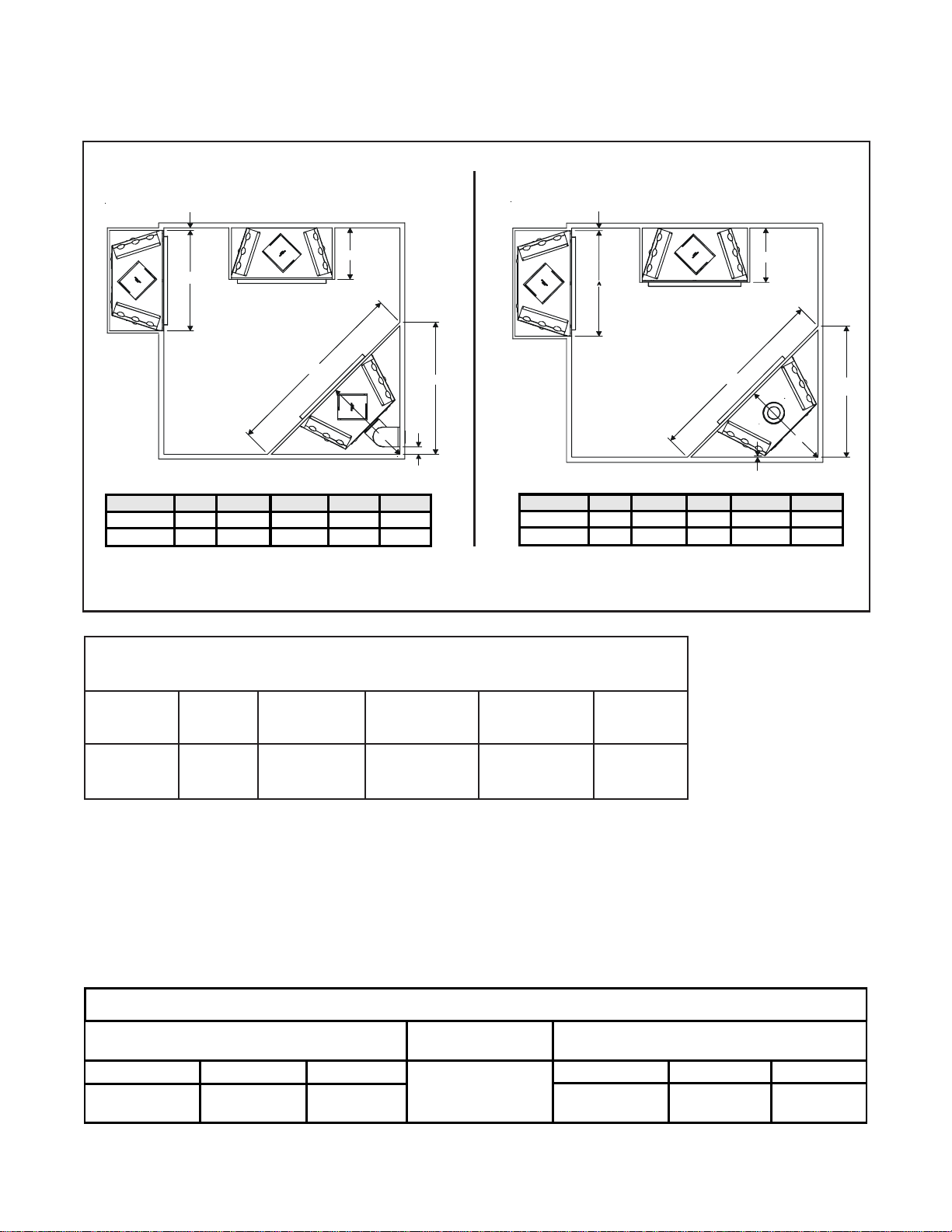

A. Locating the Heater
The diagram (see Figure 1.2) shows space and clearance requirements for locating a heater within a room.
Minimum Clearances from the Heater to
Combustible Materials
Glass Back of Sides of Top of
Front Floor Heater Heater Heater Ceiling
36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
1”MIN. (25mm)
C
A
B
D
E
3” (76.2mm)
A B C D E
Inches 42 22 38 53-3/4 76
Millimeters 1066 559 965 1365 1930
Rear Flue
A B C D E
Inches 42 22 36 50-15/16 72
Millimeters 1066 559 914 1294 1829
1” MIN. (25mm)
B
E
1/2” MIN. (12.5mm)
C
D
Top Flue
For minimum clearances, see the direct flue termination clearance diagrams on page 7.
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides 1 inch
(25mm)
Top Bottom Sides
3 inches
(75mm) 1 inch (25mm) 1 inch (25mm) 2-1/2 inches (63.7mm) 1/2 inch (13mm) 1 inch (25mm)

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
6
Framing should be constructed of
2 X 4 lumber or heavier.
AB C DE
42-1/8 in. 38-19/32 in. 22-1/16 in. 26-7/8 in. 47-3/4 in.
(1070mm) (980mm) (560mm) (684mm) (1060mm)
FIGURE 1.3 Framing Dimensions
B. Framing the Heater
Framing can be built before or after the heater is set
in place. Framing should be positioned to
accommodate wall coverings and heater facing
material.The diagram below shows framing reference
dimensions.
The framing
headers may rest
on the heater
standoffs.
CAUTION: MEASURE HEATER DIMENSIONSAND
VERIFY FRAMING METHODS AND WALL COVER-
ING DETAILS, BEFORE FRAMING CONSTRUC-
TION BEGINS.
* NOTE: Dimension Btaken from finished
hearthframe.Dimensions DandEtaken
from bottom of unit.
B*
A
C
86 mm
76 mm
NON-COMBUSTIBLE ZONE
IS DEFINED BY 76MM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
WALL
STUD
E*
D*

7
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
FIGURE 1.4
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
a - Below eaves, balconies or other projections: MIN. CLEARANCE
(mm) Appliances up to 50 MJ/h input ........................................................................................... 300
Appliances over 50 MJ/h input............................................................................................. 500
b - From the ground or above a balcony ...................................................................................... 300
c - From a return wall or external corner ...................................................................................... 500
d - From a gas meter (M) ............................................................................................................ 1000
e - From an electricity meter or fuse box (P)................................................................................ 500
f - From a drain or soil pipe.......................................................................................................... 150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal........................................................... 500
h - From any other flue terminal, cowl, or combustion air intake................................................. 500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input ......................................................................................... 500
Appliances over 150 MJ/h input ........................................................................................ 1500
k - From a mechanical air inlet, including a spa blower............................................................ 1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ...................................See table
sub-floor ventilation ..............................................................................................................below
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
8

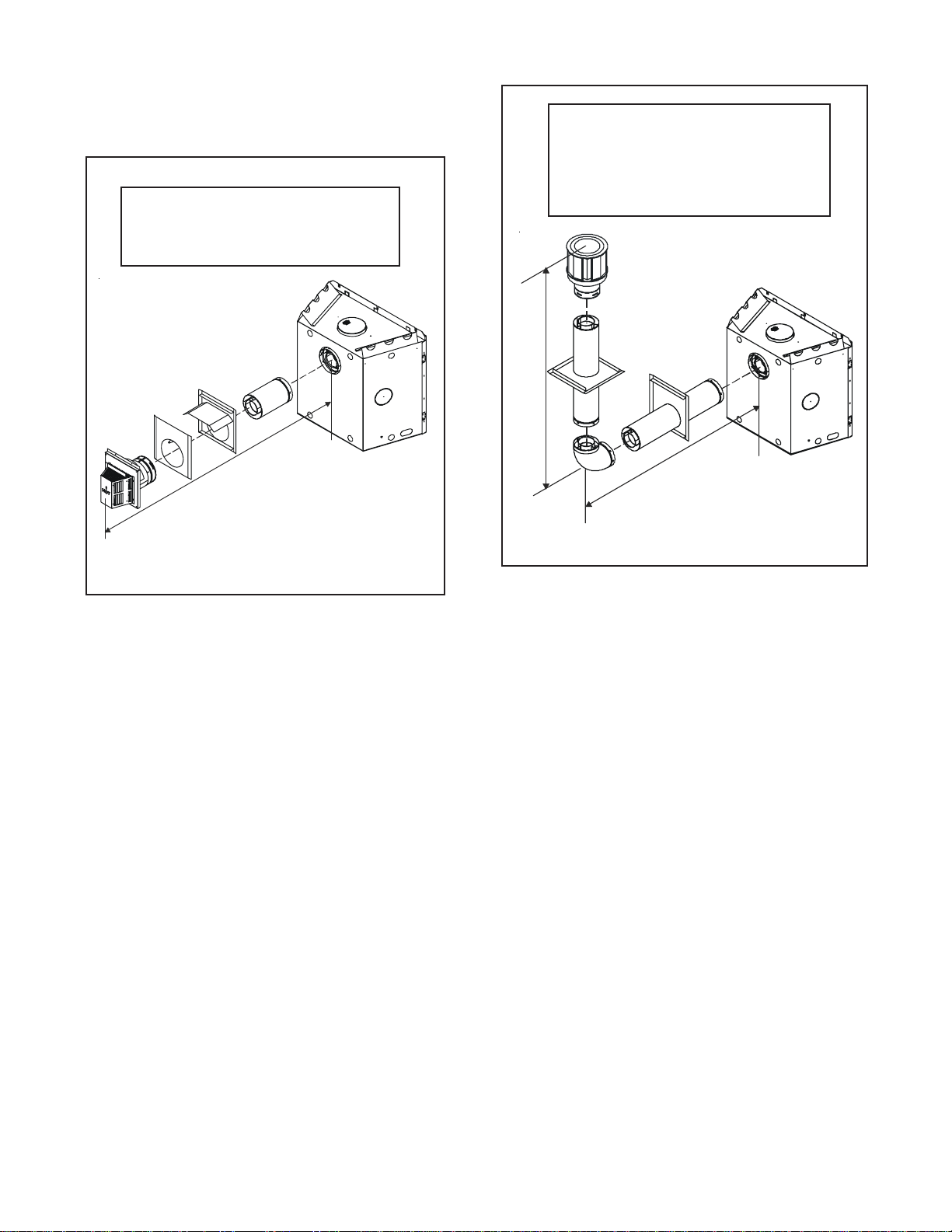

This model is approved to use DVP-Series flue pipe
components. A DVP-TRAP2 Termination Cap must
be used to terminate flue systems in a horizontal
position.ADVP-TVHW verticalTerminationCapmust
be used to terminate flue systems in a vertical posi-
tion.

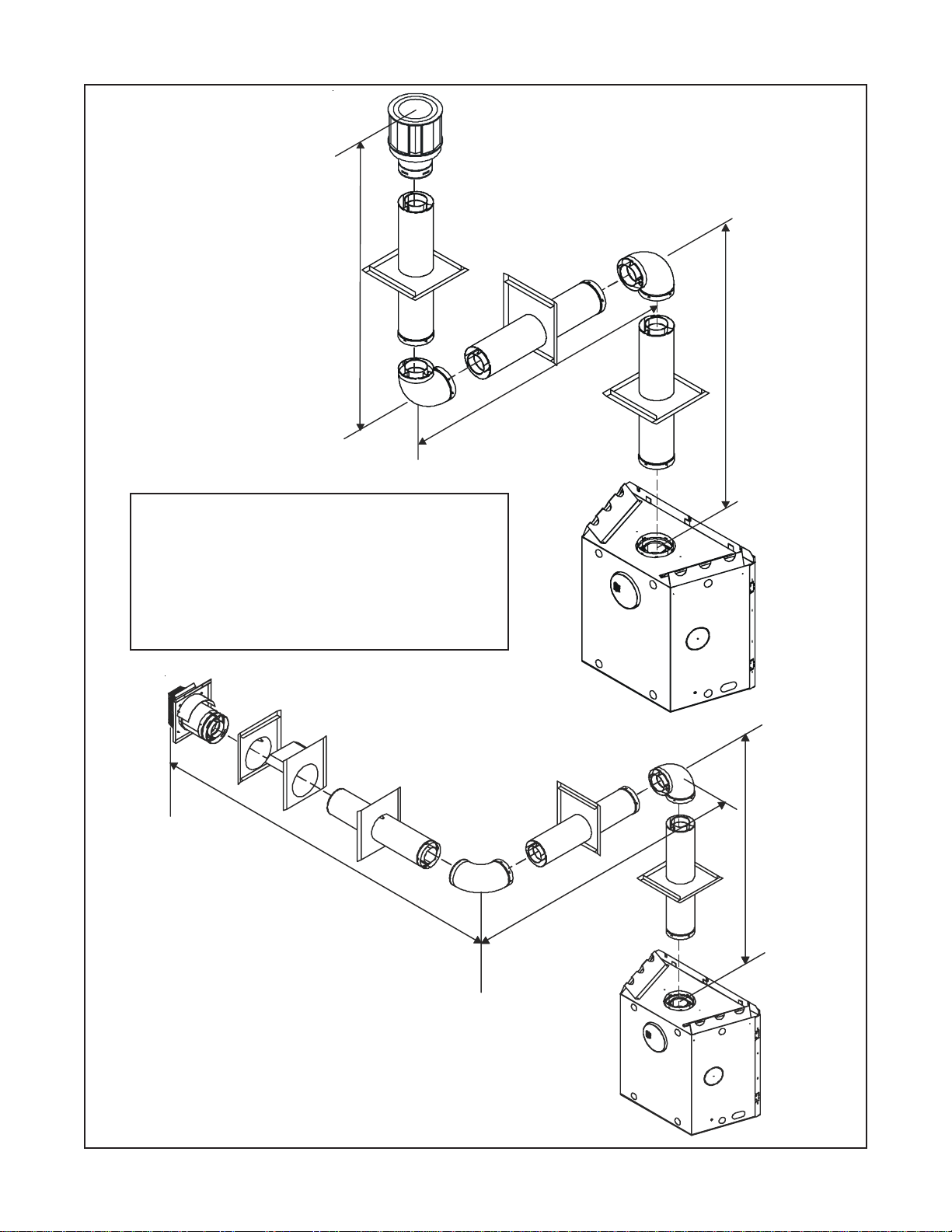

Figures 1.7 through 1.14 show the flue systems ap-
proved for these models. Approved flue system com-
ponents are labeled for identification. NO OTHER
FLUE SYSTEMS OR COMPONENTS MAY BE
USED. Detailed installation instructions are included
with each flue termination kit and should be used in
conjunction with this manual.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLY MUST BE FLUED DIRECTLY TO THE
OUTSIDE AND MUST NEVER BE ATTACHED TO A
CHIMNEY SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE. EACH GAS APPLIANCE
MUST USEA SEPARATE FLUE SYSTEM-COMMON
FLUE SYSTEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLE MATERIAL BE CLOSER THAN 3
INCHES (2 1/2 INCHES AT WALL FIRESTOPS)
FROM THE TOP OF THE 8 INCH PIPE OR 1- INCH
TO THE SIDESAND THE BOTTOM FOR HORIZON-
TAL SECTIONS OF THIS FLUE SYSTEM. VERTI-
CAL SECTIONS OF THIS SYSTEM REQUIRE A
MINIMUM OF 1 INCH CLEARANCE TO COMBUS-
TIBLE MATERIALS ALL AROUND THE 8 INCH
PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 1.4 for required clearances to flue
terminals.
MODEL FLUE TERMINATION APPROV-
ALS
6000TRSI-AUC DVP-TRAP2, DVP-TVHW
TABLE 1
FIGURE 1.5
VERTICAL FLUE RESTRICTOR
If the heater installation requires a vertical flue ex-
ceeding 4.5m above the unit with no horizontal flue
or elbows a vertical flue restrictor must be installed
(see Figure 1.5).
FIGURE 1.6
V
CAP
V
MAX. RUN
36 FT.
(10.97m)
STRAIGHT UP VERTICAL FLUE SYSTEM
Figure 1.6 shows straight up vertical flue system ap-
proved for use on this model.
C. FLUE SYSTEM APPROVALS AND
INSTALLATIONS
RESTRICTOR
PLATE

9
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
FIGURE 1.7 Straight Out Horizontal Flueing
HH
MIN. RUN MAX. RUN
13.1" (331mm) 24" (610mm)
H
FIGURE 1.8 Flueing with One 90° Elbow
V H
1´ MIN. (0.30 M) 2´ MAX. (0.61 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M)
24´ MAX. (7.32 M) 8´ MAX. (2.44 M)
V
H
STRAIGHT OUT HORIZONTAL FLUE SYSTEM
Figure 1.7 shows straight out horizontal flue systems
approved for use on this model.
ONE (1) 90-DEGREE ELBOW
Figures 1.8 and 1.9 show an installation using one
(1) 90-degree elbow. Dimension V is listed as MINI-
MUM vertical dimensions and dimension H is listed
as corresponding MAXIMUM horizontal dimensions.
TWO (2) 90-DEGREE ELBOWS
Figures 1.10 and 1.11 show examples of possible in-
stallations using two (2) 90-degree elbows. Dimen-
sion V is listed as MINIMUM vertical dimensions, di-
mension H is listed as MAXIMUM beginning horizon-
tal dimensions, and dimension H+H1is listed as cor-
responding TOTALMAXIMUM horizontaldimensions.
THREE (3) 90-DEGREE ELBOWS
Figures 1.12 through 1.14 show examples of possible
installationsusing three (3) 90-degree elbows. Dimen-
sions V are listed MINIMUM first vertical dimensions
and dimensions H are listed as beginning MAXIMUM
horizontaldimensions. Dimensions H+H1 andH+H1+H2
are listed as TOTAL MAXIMUM horizontal dimen-
sions. Dimensions V+V1 are listed as TOTAL MAXI-
MUM vertical dimensions.
ELBOWS
The flue systems installed on this gas heater may
also include one (1), two (2), or three (3) 90 - degree
elbow assemblies.
Figures 1.8 through 1.14 and their corresponding
tables show examples of flue configurations using
elbows. The relationships of vertical rise to hori-
zontal run in flue configurations using elbows MUST
be strictly adhered to.

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
10
FIGURE 1.10 Flueing with Two 90° Elbows
V FT.) H (FT.) H+H1 (FT.)
1' MIN. (0.30 M) 2' MAX. (0.61 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 2' MAX. (0.61 M) 8' MAX. (2.44
M)
3' MIN. (0.91 M) 4' MAX. (1.22 M) 12'MAX. (3.66 M)
4' MIN. (1.22 M) 6' MAX. (1.83 M) 16' MAX. (4.88
M)
20' MAX. (6.10 M) 6' MAX. (1.83 M) 16' MAX. (4.88
M)
H
1
V
H
V (FT.) H (FT.)
1' MIN. (0.30 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 16' MAX. (4.88 M)
V+H= 24’ MAX. (7.32 M)
FIGURE 1.9 Flueing with One 90° Elbow
NOTE: A 6-inch (152mm) section of straight pipe must
need to be attached to the fireplace before a 90o
elbow.
H
V

11
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
FIGURE 1.11 Flueing
with Two 90° Elbows
V FT. H + H1(FT.)
1' MIN. (0.30 M) 4' MAX. (1.22 M)
2' MIN. (0.61 M) 8' MAX. (2.44 M)
3' MIN. (0.91 M) 12' MAX. (3.66 M)
4' MIN. (1.22 M) 16' MAX. (4.88 M)
V+H+H1= 36' MAX.(10.97 M)
V+V1+H= 36' MAX.(10.97 M)
H
1
H
V
V
V
1
H

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
12
FIGURE 1.13 Flueing with three 90° elbows
FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 4´ MAX. (1.22 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 6´ MAX. (1.83 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
8´ MAX. (2.44 M) 12´ MAX. (3.66 M)
NOTE: V + V, MAX. 36´ (10.97 M)
FLUEING WITH THREE (3) 90° ELBOWS
FIGURE 1.12 Flueing with three 90° elbows
V H H + H1+ H2
1´ MIN. (0.30 M) 2´ MAX. (0.61 M) 3´ MAX. (0.91 M)
2´ MIN. (0.61 M) 2´ MAX. (0.61 M) 6´ MAX. (1.83 M)
3´ MIN. (0.91 M) 4´ MAX. (1.22 M) 9´ MAX. (2.74 M)
4´ MIN. (1.22 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
20´ MAX. (6.10 M) 6´ MAX. (1.83 M) 12´ MAX. (3.66 M)
H
V
H
1
V
1
H
H
1
H
2
V

13
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
FLUEING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 6' MAX. (1.83 M)
3' MIN. (0.91 M) 9' MAX. (2.74 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
NOTE: V + V1 + H + H1= 32' MAX. (9.75 M)
V (FT.) H + H1 (FT.)
1' MIN. (0.30 M) 3' MAX. (0.91 M)
2' MIN. (0.61 M) 6' MAX. (1.83 M)
3' MIN. (0.91 M) 9' MAX. (2.74 M)
4' MIN. (1.22 M) 12' MAX. (3.66 M)
NOTE:V+V1+H +H1= 32' MAX. (9.75 M)
FIGURE 1.14 Flueing with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
14
1. Attach the Flue Component to the Starting Collars
To attach the first flue component to the starting
collars of the fireplace:
• Make sure that the heater gasket supplied with
the heater seals between the first flue component
and the outer heater wrap (see Figure 1.16).
• Slide the male end of the inner flue of the pipe
section over the inner collar on the heater. At the
same time, slide the outer flue over the outer col-
lar on the heater. Push the flue section into the
appliance collar until all the lances (see Figure
1.17) have snapped in place. Tug slightly on the
flue to confirm that it has completely locked into
place.
• The first 90° elbow installed in the flue system of
a rear flueing heater MUST BE in a vertical posi-
tion.
FIGURE 1.17
Figure 1.16 Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
!
1. Installing Flue Components
After determining which set of starting collars will be
used (top or rear), follow flueing instructions accord-
ingly.
Flueing Out the Rear Flue
Removethe installedrear seal cap from the rear start-
ing collars by cutting the strap at each end. (See Fig-
ure 1.15). Follow the flue configuration tables accord-
ingly.
Remove the insulationfrom the REAR fiveinch
flue, pull the heat shield out from outside of
the firebox.
WARNING: THE TOP HEAT SHIELD (IN-
SIDE THE FIREBOX) MUST REMAIN AT-
TACHED IF THE FLUE SYSTEM IS ATTACHED
TO THE REAR STARTING COLLARS. SEE FIG-
URE 14.
Flueing Out the Top Flue
Remove the two screws in the top flue collar seal cap
and remove the top flue collar seal cap and two piec-
esof insulation inside the top two starting collars (See
Figure 1.15).
Remove the heat shield from inside the TOP
five inch flue from outside of the firebox.
WARNING: THE REAR FLUE COLLAR
SEAL CAP MUST REMAIN ATTACHED TO
THE REAR FLUE COLLARS IF THE FLUE SYS-
TEM IS ATTACHED TO THE TOP STARTING
COLLARS.
Figure 1.15
CUT
HERE
Flueing Out Rear Flueing Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasket material.
!

15
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
WARNING: ENSURE THAT THE HEATER GASKET
SUPPLIED WITH THE HEATER SEALS BETWEEN
THE FIRST FLUE COMPONENT AND THE OUTER
HEATER WRAP.
2. Assembling Flue Components
Fire Risk
Exhaust Fumes Risk
Impaired Performance of Appliance
• Overlap pipe slip sections at
least 1-1/2 inches (38.1mm).
•Use pilot holes for screws.
• Screws must not exceed one inch
long.
• Pipe may separate if not properly
joined.
WARNING
Insert the inner flue of section A into the flared inner
flue of section B.
Start the outer flue of section A over the outer flue of
section B (see Figure 1.18). Note: The end of the pipe
sections with the lances/tabs on it will face towards
the appliance.
Onceboth inner and outer flues are started,press sec-
tion A onto section B firmly until all lances have
snapped into place. Check to make sure they have
snapped together (see Figure 1.19) and the seams
are not aligned (see Figure 1.20). Tug slightly on sec-
tion A to confirm it has completely locked into place.
Figure 1.18 Figure 1.19
Figure 1.20 Seams
Note: Make sure that the seams are not aligned to
prevent unintentional disconnection.
A
B
CORRECT
INCORRECT
NOTE: Make sure that seams are NOT aligned to
prevent unintentional disconnection.
For elbows that are changing the flue direction, two
screws minimum should be put in the outer flue at
the joint to prevent the elbow from rotating.

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
16
10" (254mm)
12" (305mm)
INTERIOR
WALL SHIELD

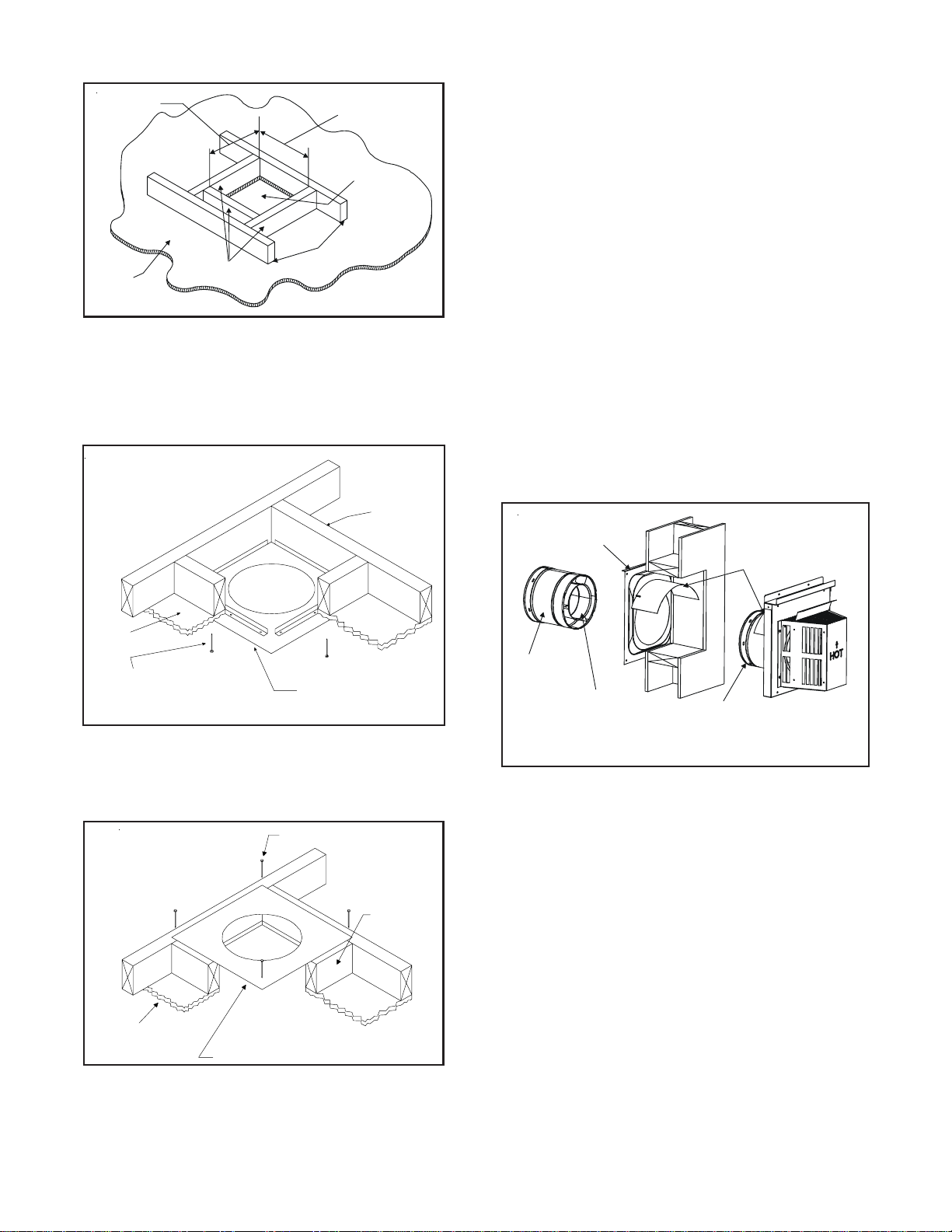

For Vertical Runs - One firestop is REQUIRED at
theholeineachceiling through which the flue passes.
To install firestops for vertical runs that pass through
ceilings:
• Position a plumb bob directly over the center of
the vertical flue component.
• Mark the ceiling to establish the centerpoint of the
flue.
• Drill a hole or drive a nail through this center point.
• Check the floor above for any obstructions, such
as wiring or plumbing runs.
• Reposition the heater and flue system, if neces-
sary, to accommodate the ceiling joists and/or ob-
structions.
• Cut a 10" x 10" (254mm X 254mm) hole through
the ceiling, using the firestop pipe opening as a
guide.
• Frame the hole with framing lumber the same size
as the ceiling joists.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible wall through which the
flue passes.
To install firestops (heat shield) for horizontal runs
that pass through either interior or exterior walls:
• Cut a 10-inch by 12-inch (254 mm X 305 mm) hole
through the wall.
• Position the firestops on both sides of the hole
previously cut and secure the firestops with nails
or screws.
• The pipe opening of thefirestops MUST BE placed
towards the bottom of the firestop.
• Continue the flue run through the firestop.

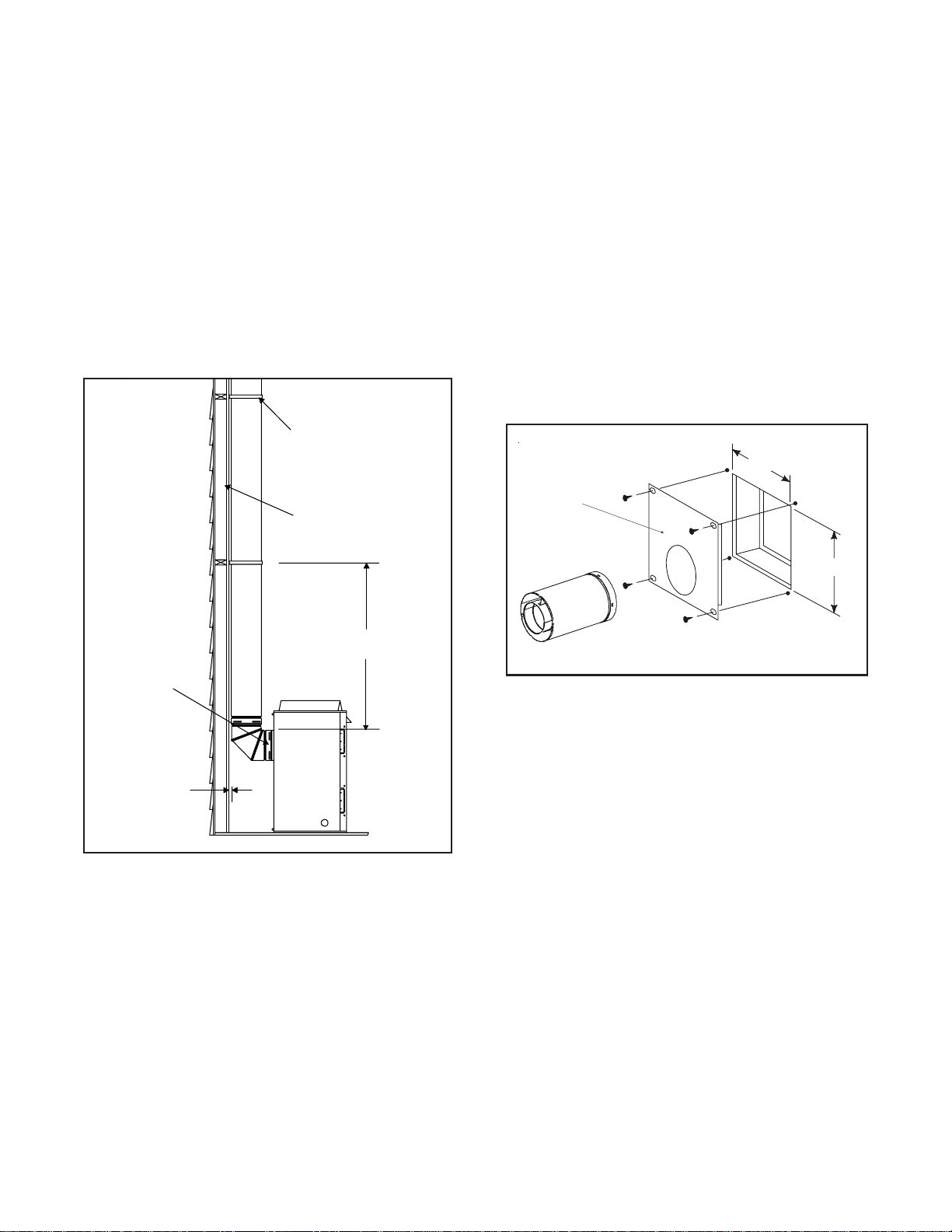

FIGURE 1.22 Flue Pipe & Firestop
FIGURE 1.21 Installing Support Brackets
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supported every five (5) feet (1.5m) of horizontal run
by a horizontal pipe support. To install support
brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The flue system must be
supported every eight feet (2.4 M) above the heater
flue outlet by wall brackets.To install support brackets
for vertical runs:
• Attach wall brackets to the flue pipe and secure
the wall bracket to the framing members with nails
or screws.

17
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
FIGURE 1.23 Hole and New Framing Members
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
the previously cut and framed hole.
FIGURE 1.24 Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
secure the firestop on top of the previously framed
hole.
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal flue:
• The rear flue heat shield MUST be placed one inch
above the top of the flue between the wall shield
and the base of the termination cap.
• One section of the heat shield is attached to the
wall shield. The other is attached to the termina-
tion cap in the same manner.
• The heat shield sections will overlap to match the
wall thickness (depth).
• If the wall thickness does not allow the required 1-
1/2 inch heat shield overlap, an extended heat
shield must be used. The extended heat shield will
need to be cut to the thickness of the wall and be
attached to the wall shield.
• The small leg in the shield rests on top of the flue
to properly space it from the pipe section (see Fig-
ure 1.26).
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10” (254mm)
FIGURE 1.26 Flueing through the Wall
EXTERIOR
INTERIOR
Interior
Wall Shield
Inner Flue
Rear Vent
Heat Shield
38mm min.
overlap
Outer Flue
38mm min.
Overlap
FIGURE 1.25 Attic Firestop
• The termination kit should pass through the wall
firestops from the exterior of the building.
C. Flue Termination

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
18
FIGURE 1.28

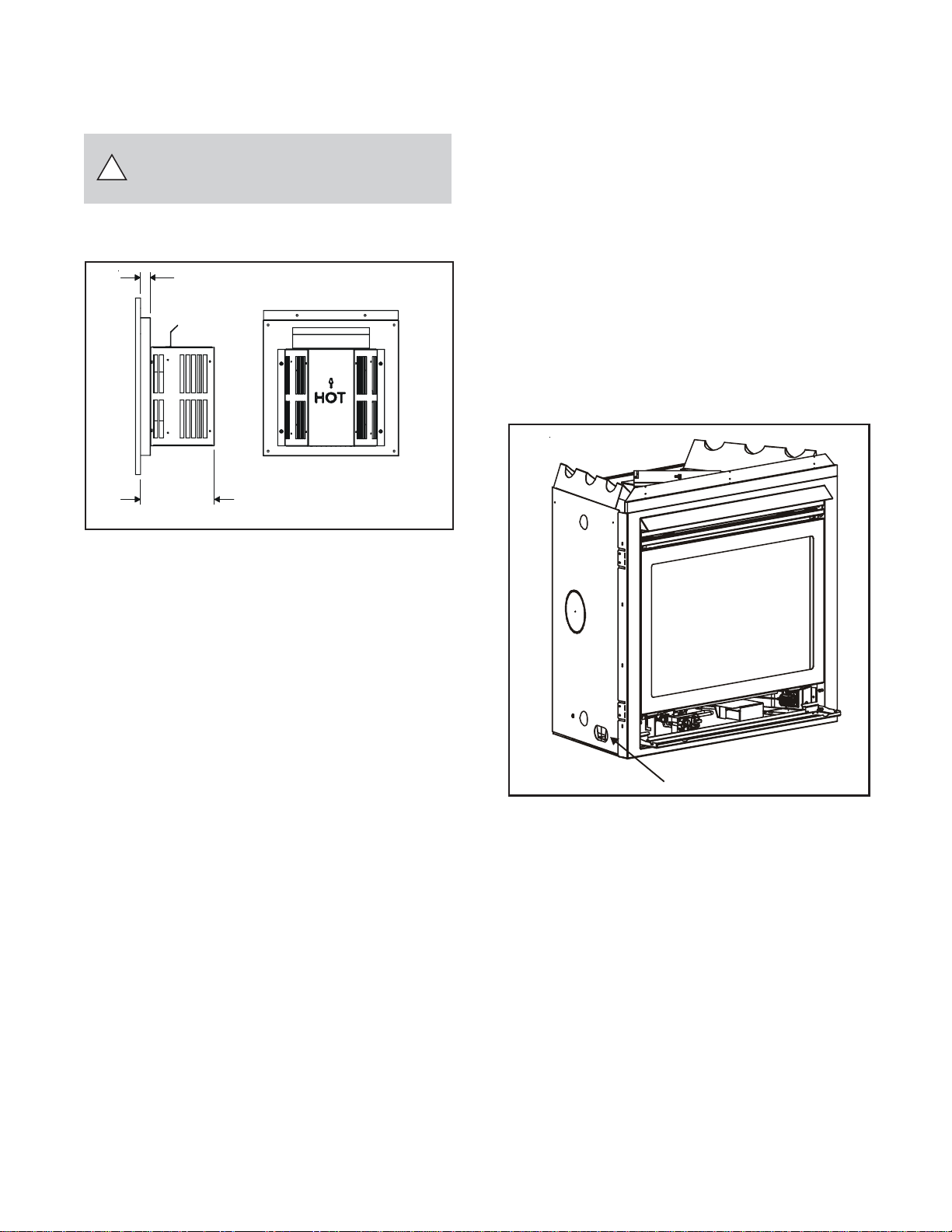

D. CONNECTING THE GAS SUPPLY
The gas is introduced to the appliance on the left
hand side. See Figure 1.28.
Afterthe gas pipe installation is complete, check care-
fully all gas connections for leaks with a commer-
cially-available, noncorrosive leak check solution. Be
sure to rinse off all leak check solution following test-
ing. DO NOT USE AN OPEN FLAME.
NOTE: THE GAS SUPPLY LINE SHOULD BE
PURGED OF ANY TRAPPED AIR PRIOR TO THE
FIRST FIRING OF THE UNIT.
FIGURE 1.27 Termination Cap
For Vertical Terminations - To locate the flue and
install the flue sections:
• Locate and mark the flue center point on the un-
derside of the roof, and drive a nail through the
center point.
• Make the outline of the roof hole around the center
point nail.
• The size of the roof hole framing dimensions de-
pend on the pitch of the roof. There MUST BE a 1-
inch (25 mm) clearance from the vertical flue pipe
to combustible materials.
• Mark the roof hole accordingly.
• Cover the opening of the installed flue pipes.
• Cut and frame the roof hole.
• Useframing lumber the samesizeasthe roof rafters
and install the frame securely. Flashing anchored
to the frame must withstand heavy winds.
• Continue to install concentric flue sections up
through the roof hole and up past the roof line until
you reach the appropriate distance above the roof.
1” (25mm)
7-1/2”
(192mm)
MINIMUM
!
• Adjust the termination cap to its final exterior posi-
tion on the building and interlock the flue sections.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
• Use a high-temperature sealant gasket to seal be-
tween the pipe and exterior firestop.
CAUTION: FOLLOW THE REQUIREMENTS OF
THE AGA GAS INSTALLATION CODE FOR
MINIMUM HEIGHT REQUIREMENTS ABOVE THE
ROOF.
To seal the roof hole, and to divert rain and snow
from the flue system:
• Attach a flashing to the roof using nails, and use
a non-hardening mastic around the edges of the
flashing base where it meets the roof.
• Attacha storm collaroverthe flashing joint to form
a water-tight seal. Place non-hardening mastic
around the joint, between the storm collar and
the vertical pipe.
• Slide the termination cap over the end of the flue
pipe and rotate the pipe clockwise 1/4 turn.
GAS LINE
ACCESS

19
Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06
WARNING
FIGURE 1.29

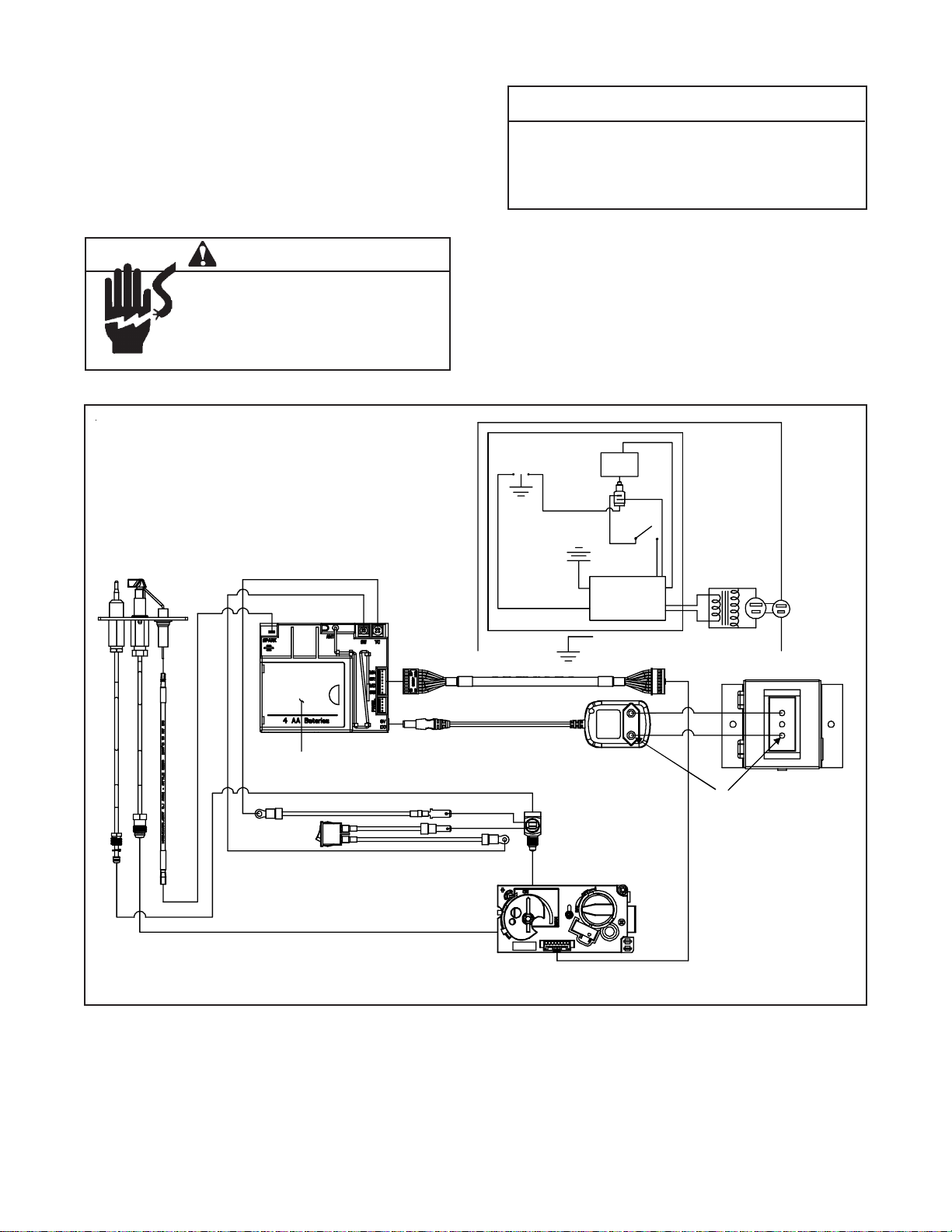

E. IGNITION SYSTEM WIRING
• This gas fireplace is equipped with an electronic
ignition system which operates on a 6 volt system.
• This appliance requires 240 VAC to be wired to the
factory installed junction box. Check factory in-
stalled power cord for damage before using.
Shock Risk
• Replace damaged wire with type
105OC rated wire.
• Wire must have high temperature
insulation.
CAUTION
Label all wires prior to disconnection when ser-
vicing controls. Wiring errors can cause im-
proper and dangerous operation. Verify proper
operation after servicing.
IGNITION
MODULE
(6V)
ON/OFF
WALL SWITCH
VALVE
FLAME SPARKER/
SENSOR
ANT.
REMOTE
CONTROL
HOTNEUTRAL
GROUND
BATTERY PORT
VALVE
PILOT
IGNITION MODULE
6VDC
ON/OFF
SWITCH
THERMOCOUPLE
BLOCK
(CONNECTED TO
BACK OF VALVE)
GAS LINE
CONNECTED TO
BACK OF VALVE
PLUG IN

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06
20
FIGURE 1.30
NOTE: IF ANY OF THE ORIGI-
NAL WIRE AS SUPPLIED WITH
THE APPLIANCE MUST BE
REPLACED, IT MUST BE
REPLACED WITH TYPE 105•C
RATED WIRE.
FIGURE 1.31
Blower Fan
Thisheater has a factory installedblower fan,
electricaljunction boxes,variablespeed rheo-
stat control switch and temperature sensor
switch for the blower fan. These components
are located behind the lower door.
The factory installed power cord is attached
on the lower front right exterior side of the
heater. Figure 1.30 shows the blower fan,

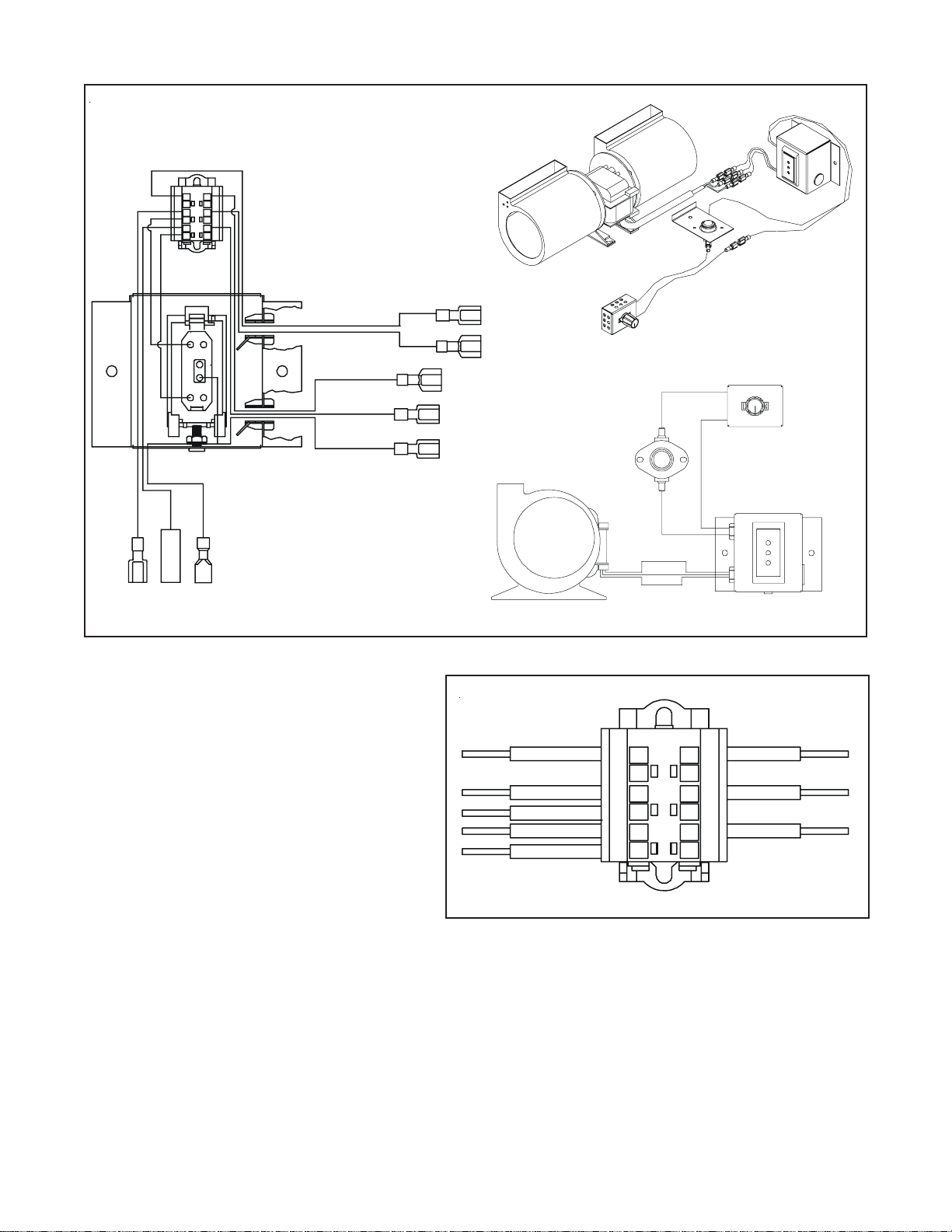

switches, and blower fan wiring diagram.
See Figure 1.31 for wire connection detail.
BROWN
BROWN
BLUE
BLACK
BLUE
BLACK
(HOT) BROWN
(NEUTRAL) BLUE
BLACK
BLACK
BLUE
BROWN
GREEN/YELLOW
BLOWER
TEMPERATURE
SENSOR SWITCH
240VAC JUNCTION BOX
VARIABLE
SPEED
CONTROL
BROWN
BLUE
BLACK
BROWN
BLUE
BROWN
BLUE
BLACK
GREEN/YELLOW
STRIPE
GREEN/YELLOWSTRIPE
