Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
Ref No GMK10489
AS/NZS 5263.1.3
Installation Manual
Installation and Appliance Setup
Models:
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
6X-AU
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
NOTE: NOT INTENDED FOR
FIREPLACE INSERT.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications..............................4
C. Gas Pressure Requirements .......................4
D. High Altitude Installations .......................... 5
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 5
F. Combustible Materials Specication .................5
G. Electrical Codes .................................5
2 Getting Started
A. Design and Installation Considerations ...............6
B. Good Faith Wall Surface/TV Guidelines ..............6
C. Tools and Supplies Needed ........................6
D. Inspect Appliance and Components..................7
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams .......8
B. Clearances to Combustibles ......................10
C. Constructing the Appliance Chase ..................12

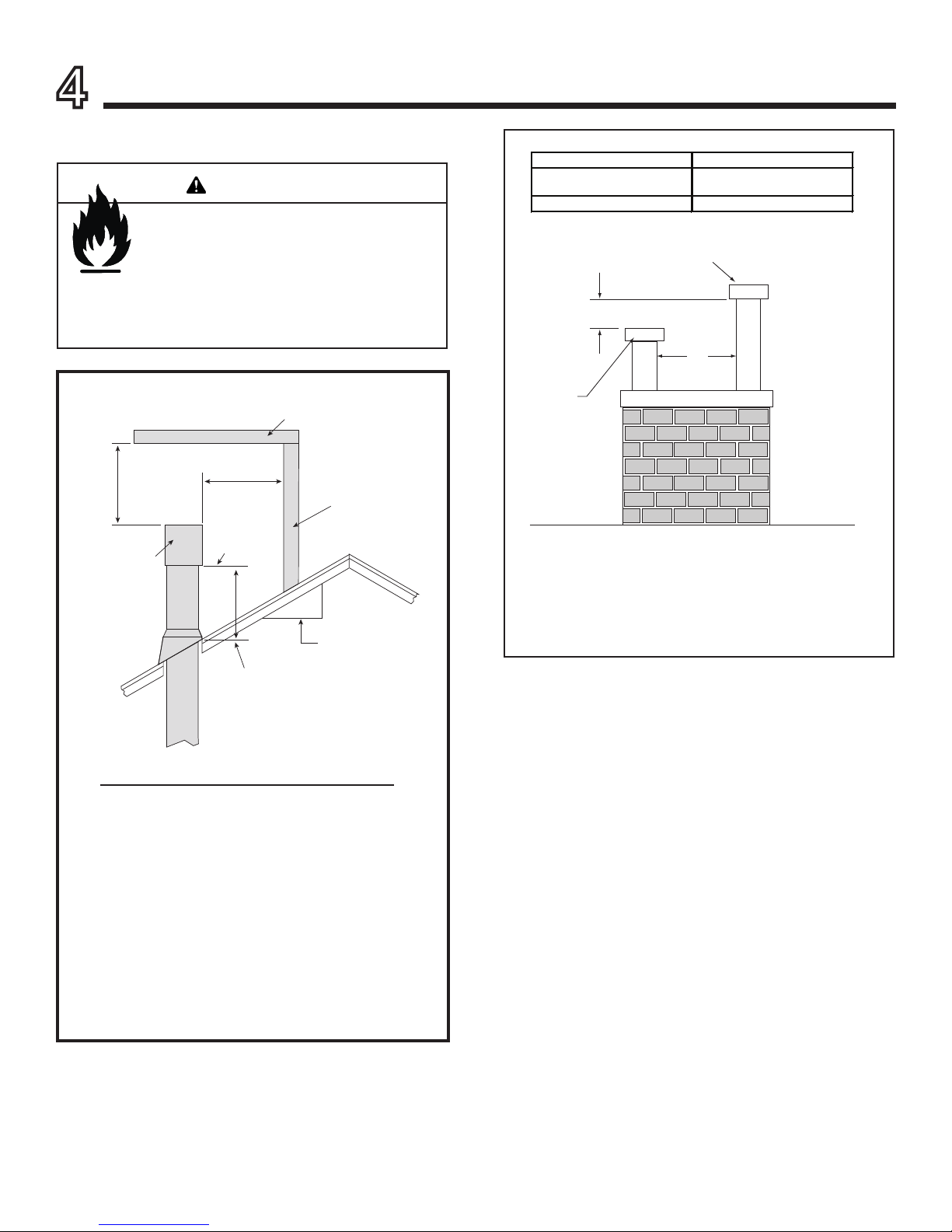

4 Termination Location and Vent Information
A. Vent Termination Minimum Clearances .............. 13
B. Chimney Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Approved Pipe .................................15
D. Use of Elbows .................................15
E. Measuring Standards ............................16
F. Vent Diagrams .................................17
5 Vent Clearances and Framing
A. Pipe Clearances to Combustibles ..................29
B. Wall Penetration Framing/Firestops .................29
C. Ceiling Firestop/Floor Penetration Framing ...........30
D. Install Attic Insulation Shield.......................30
6 Appliance Preparation
A. Vent Collar Preparation .......................... 31
B. Installing Optional Heat-Zone®-240V ...................33
C. Securing and Leveling the Appliance ................34
D. Installing the Non-combustible Board. . . . . . . . . . . . . . . . 34
7 Venting and Chimneys
A. Assemble Vent Sections .........................35
B. Secure the Vent Sections .........................36
C. Disassemble Vent Sections .......................36
D. Vertical Termination Requirements..................37
E. Horizontal Termination Requirements ...............38
8 Electrical Information
A. General Information .............................41
B. Wiring Requirements ............................42
9 Gas Information
A. Fuel Conversion ................................43
B. Gas Pressure ..................................43
C. Gas Service Access .............................43
D. High Altitude Installations ......................... 43
E. Air Shutter Setting ..............................44
10 Finishing
A. Facing Material.................................45
B. Mantel and Wall Projections.......................46
C. Decorative Fronts ...............................47
11 Appliance Setup
A. Remove Fixed Glass Assembly ....................49
B. Remove the Shipping Materials ....................49
C. Clean the Appliance ............................. 49
D. Burner Top Installation ...........................49
E. Install the Glass Refractory .......................50
F. Ember Placement...............................51
G. Install the Teco-Sil ..............................52
H. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 53
I. Install Fixed Glass Assembly ......................56
J. Install Decorative Front ..........................56
12 Reference Materials
A. Vent Components Diagrams ......................57
B. Accessories ...................................61
= Contains updated information.

3
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
Customer:
Lot/Address:
Model (circle one): 6X-AU
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Veried that the chase is insulated and sealed. (Pg. 12) ___________________________
Required non-combustible board is installed. (Pg. 34) ___________________________
Veried clearances to combustibles. (Pg. 10-11) ___________________________
Fireplace is plum, level, square and secured. (Pg. 34) ___________________________
Venting/Chimney Section 7 (Pg 35-40)
Venting conguration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance. ___________________________
Firestops installed. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof ashing installed and sealed. ___________________________
Terminations installed and sealed. ___________________________
Electrical Section 8 (Pg 41-42)
Unswitched power (220-240 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 43-44)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veried. ___________________________
Veried proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 45-48)
Combustible materials not installed in non-combustible areas. ___________________________
Veried all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 49-56)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, media and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, doors, or decorative front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veried no gas leaks exist. ___________________________
2508-982B 3/18
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a re or explosion.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
Installation Standard Work Checklist

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
4
1 Product Specic and Important Safety Information
A. Appliance Certication
MODELS: 6X-AU
LABORATORY: IAPMO OCEANA
TYPE: Direct Vent Heater
STANDARD: AS/NZS 5263.1.3
C. Gas Pressure Requirements
Pressure requirements for 6X-AU replaces are shown in
table below.
Two taps are provided on the gas control for a test gauge
connection to measure the inlet and outlet pressures.
The replace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 3.4 kPa.
If the replace must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.
B. Glass Specications
This appliance is equipped with 5 mm ceramic glass with
an anti-reective coating. Replace glass only with glass
with identical specications. Please contact your dealer
for replacement glass.
Natural Gas Propane ULPG
Inlet Gas Pressure 1.13 - 3.40 kPa 2.75 - 3.40 kPa 2.75 - 3.40 kPa
* Outlet (Manifold) Gas Pressure .87 kPa 2.49 kPa 2.49 kPa
Gas Rate .405 m3/h.134 m3/h.111 m3/h
Maximum Gas Consumption 40.60 MJ/h 40.10 MJ/h 30.60 MJ/h
Burner Injector 0.124 DMS (3.150 mm) #49 DMS (1.854 mm) #53 DMS (1.511 mm)
Pilot Injector Ø .023 (.584 mm) Ø .014 (.356 mm) Ø .010 (.254 mm)
* The allowable Outlet (Manifold) Gas Pressure ranges are: Natural Gas .80 - .95 kPa and ULPG 2.37 - 2.61 kPa.
Gas types only through eld conversions.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certication standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the AS/
NZS 5601.1 rules in force.
NOTE: An inline fuel pressure regulator is recom-
mended to limit NG inlet pressure to 2.49 kPa, and LP/
ULPG inlet pressure to 3.25 kPa, to ensure optimum
product performance. The inline fuel pressure regula-
tor may be needed if any of the following symptoms
exist: pilot jetting, a highly visible pilot ame, ame
variation, etc. The inline pressure regulator should
be installed in the gas line upstream of the appliance
gas valve either at the appliance or in the utility room.
Final main and manifold gas pressure must be tested
with inline pressure regulator installed.

5
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 ft. (610 m) elevation:
Reduce input rate 4% for each 1000 ft. (305 m) above
2000 ft. (610 m).
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC (1382 °F) shall be con-
sidered non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
All electrical safety testing has been done following the EN
60335-2-102 standard. Local codes apply.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
6
2 Getting Started
A. Design and Installation Considerations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ofcials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping requirements.
• Provisions for optional Heat-Zone®-240V(s)
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories - devices such as a wall
switch, or remote control - are desired.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Hammer
Phillips screwdriver Manometer
Gloves Framing square
Voltmeter Electric drill and bits -1/4 in. (6 mm)
Plumb line Safety glasses
Level Reciprocating saw
Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. (13 - 19 mm) length, #6 or #8 Self-drilling
screws
Caulking material (300 ºF (149 ºC) minimum continuous
exposure rating)
One 1/4 in. (6 mm) female connection (for optional fan)
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
B. Good Faith Wall Surface/TV Guidelines
NOTICE: Temperatures listed above are taken with a
temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured.
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
(152 mm)
TO CEILING
12 in.
(305 mm)
APPLIANCE FRONT
FIREPLACE
OPENING
18 in.
(457 mm)
24 in.
(610 mm)
30 in.
(762 mm)
147 °F
(64 °C)
135 °F
(57 °C)
132 °F
(56 °C)
123 °F
(51 °C)
127 °F
(53°C)
Installation and service of this appliance should be performed
by qualified personnel. Hearth & Home Technologies
recommends HHT Factory Trained or certied professionals.

7
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a re hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
8
3 Framing and Clearances
Figure 3.1 Appliance Dimensions
A. Appliance/Decorative Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Location Inches Millimeters
K 11-11/16 297
L 28-1/2 724
M 14-1/4 362
N 8-1/2 216
O 2-7/8 73
P 8-1/2 216
Q 1 25
R 40-7/8 1038
S 14-3/16 360
T 15-3/8 391
Appliance Dimensions Table
A
B
CD
E
FRONT VIEW
TOP VIEW
LEFT SIDE RIGHT SIDE
F
G
H
I
J
K
L
M
O
P
GAS LINE
ACCESS
Q
R
N
HEAT-ZONE®-240V ACCESS
(LEFT & RIGHT SIDES)
S
T
ELECTRICAL ACCESS
(C)
L
N
Location Inches Millimeters
A 41 1041
B 36-1/8 918
C 33-1/2 851
D 34-5/8 879
E 2-1/4 57
F 9-11/16 246
G 26-7/8 683
H 6 152
I 39-7/8 1013
J 21 533

9
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
FIRESCREEN DECORATIVE FRONT
Figure 3.2 Decorative Front Dimensions - Firescreen and Clean Face
CLEAN FACE DECORATIVE FRONT
A
B
FG
ED
C
A B C D E F G
6X-AU FS-7 in. 34 28-3/4 35-15/16 1-5/8 2-5/8 30-5/8 32-1/4
mm 864 730 913 41 67 778 819
G
A
B
C
D
E
F
A B C D E F G
6X-AU CF-36 in. 31-9/16 22-1/8 35-13/16 4-5/8 6-15/16 26-3/4 31-7/16
mm 802 562 910 117 176 679 799

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
10
B. Clearances to Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Figure
3.3).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trafc and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
Figure 3.3 Appliance Locations
1/2 IN.
REAR VENT,
HORIZONTAL TERMINATION
TWO ELBOWS REAR VENT
NO ELBOWS
REAR VENT
ONE ELBOW
ALCOVE
INSTALLATION
TOP VENT
ONE 90º ELBOW
A
BC
B
E
B
B
B
D
D
F
G
H
D
A
D
NOTE: THE REAR STANDOFF MAY NEED
TO BE REMOVED WHEN VENTING AT 45º
Refer to Section 10.B for mantel and wall projection information.
Consider the mantel or cabinet system to be installed and comply with the
necessary requirements for elevated hearth. Refer to instructions included
with cabinet system.
A B C D E F G H
6X-AU
in. 51 42 72 56-5/8 See Section
10.B. Mantel
Projections
22 17-3/4 8
mm 1295 1067 1829 1438 559 451 203
NOTICE: Additional clearance are required for Heat-Zone®-240V
installations. Provisions must be made in advance to ensure t within the
framing.

11
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
Figure 3.4 Minimum Framing Dimension
C
B
D
A
F
G
H
I
E
J
* Adjust framing dimensions for interior sheathing (such as sheetrock)
C** Add 12 inches for rear venting with one 90º elbow.
*MINIMUM FRAMING DIMENSIONS
Models
A B C** D E F G H I J
Rough
Opening
(Width)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance to Ceiling
(Measured from top of
appliance opening)
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
6X-AU in. 10 40-1/8 22 42 32 0 0 1/2 1/2 36
mm 254 1045 595 1070 813 0 0 13 13 914
COMBUSTIBLE FLOORING MAY BE INSTALLED
NEXT TO THE FRONT OF THE APPLIANCE.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
12
C. Constructing the Appliance Chase
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be caulked with caulk with a
minimum of 300 ºF (149 ºC) continuous exposure rating
to seal gaps. Gas line holes and other openings should
be caulked with caulk with a minimum of 300 ºF (149 ºC)
continuous exposure rating or stuffed with unfaced insula-
tion. If the appliance is being installed on a cement surface, a
layer of plywood may be placed underneath to prevent con-
ducting cold up into the room.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.

13
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
A. Vent Termination Minimum Clearances
4 Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
Figure 4.2 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A *
*If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
In a staggered installation with both gas and wood or fuel oil
terminations, the wood or fuel oil termination cap must be
higher than the gas termination cap.
Figure 4.1 Minimum Height From Roof To Lowest Discharge
Opening
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VERTICAL
WALL
TERMINATION
CAP
HORIZONTAL
OVERHANG
305 mm
X
ROOF PITCH
IS X/ 305 mm
LOWEST
DISCHARGE
OPENING
510 mm MIN.
610 mm MIN.
Angle H (Min.) mm
0°-26.6° ..........................................................500*
26.6°-30.3° ..........................................................500*
30.3°-33.7° ..........................................................500*
33.7°-36.9° ..........................................................610*
36.9°-39.8° ..........................................................760*
39.8°-42.5° ..........................................................990
42.5°-45.0° ........................................................1220
45.0°-49.4° ........................................................1520
49.4°-53.1° ........................................................1830
53.1°-56.3° ........................................................2130
56.3°-59.0° ........................................................2290
59.0°-60.3° ........................................................2440
*H minimum may vary depending on regional snowfall.
Refer to local codes.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
14
B. Chimney Diagram

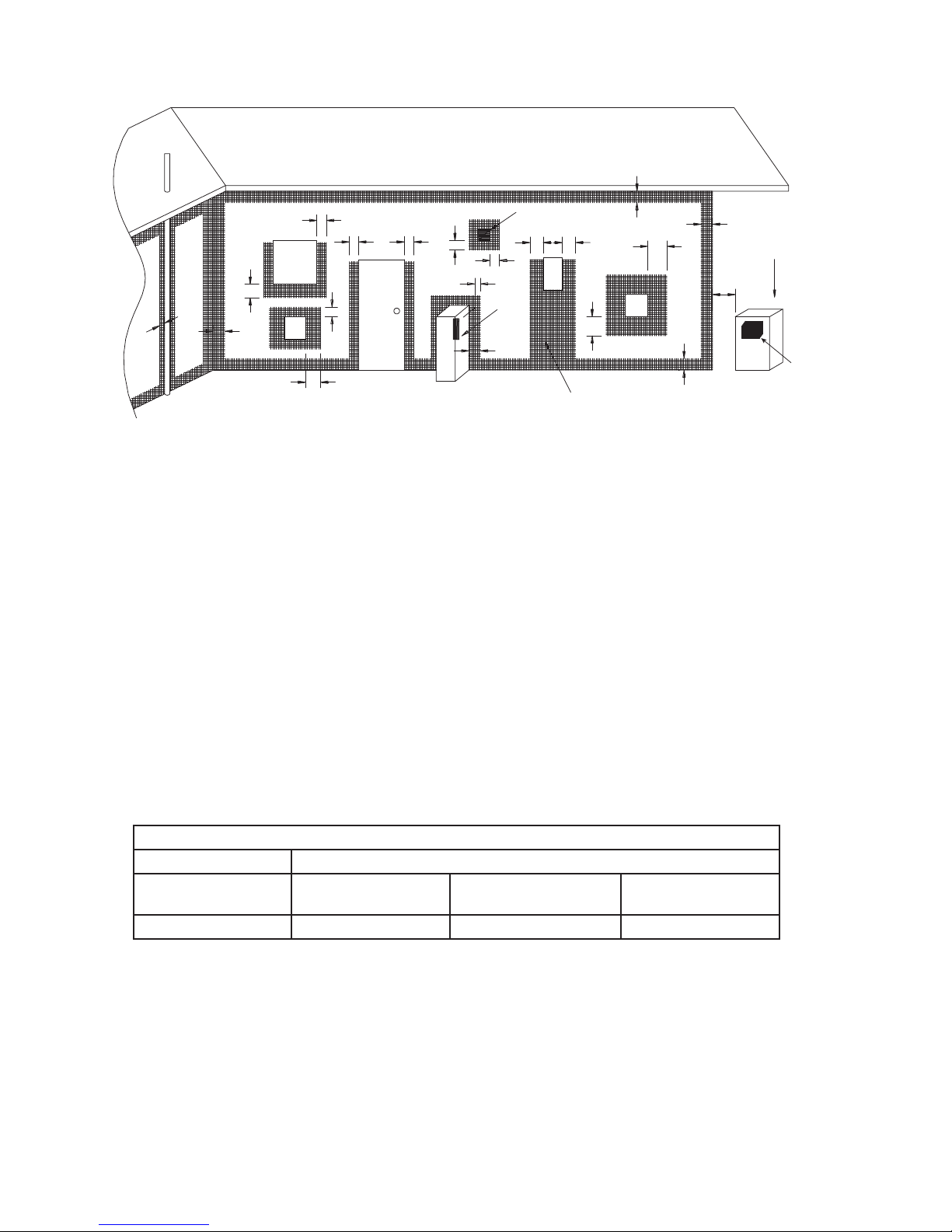

Figure 4.3 Minimum Clearances for Termination
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. Flue terminal under covered area:
a) The covered area or recess shall be open on at least two sides.
   b)Fanassistedueapplianceshallhaveatleastonesideopenandtheterminalshallbe
within 500 mm of the opening and discharging in the direction of the opening.
  4. ClearancefromaueterminaltoaLPcylindershallbeaminimumof1meter.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
T= Flue terminal M= Gas meter Shading indicates prohibited
I= Mechanical air inlet P=Electricitymeterorfusebox areasforueterminals
f
c
n
I
openable
window
j
jj
door
h
h
h
T
e e
P
T
g
k
k
db
d
M
a
c
g
See note 2
See note 3
T
a - Below eaves, balconies or other projections: MIN. CLEARANCE - in. (mm)
Appliances up to 50 MJ/h input .................................................................................... 12 (305)
Appliances over 50 MJ/h input ............................................................................... 20-1/2 (521)
b - From the ground or above a balcony............................................................................... 12 (305)
c - From a return wall or external corner......................................................................... 20-1/2 (521)
d - From a gas meter (M)........................................................................................................ 39 (991)
e - From an electricity meter or fuse box (P)................................................................... 20-1/2 (521)
f - From a drain or soil pipe .................................................................................................... 6 (152)
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal............................................... 20-1/2 (521)
h - Fromanyotherueterminal,cowl,orcombustionairintake .................................... 20-1/2 (521)
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
  sub-oorventilation:
Appliances up to 150 MJ/h input ............................................................................ 20-1/2 (521)
Appliances over 150 MJ/h input ................................................................................... 60 (1524)
k - Fromamechanicalairinlet,includingaspafan............................................................. 60 (1524)
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ...................................... See table
  sub-oorventilation................................................................................................................ below
CLEARANCE
Space Heaters All other appliances
Up to 50 MJ/h input Up to 50 MJ/h input Over 50 MJ/h input and
Up to 150 MJ/h input Over 50 MJ/h input
6 in. (152 mm) 20 in. (508 mm) 39 in. (991 mm) 59 in. (1500 mm)

15
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
C. Approved Pipe
This appliance is approved for use with Hearth & Home
Technologies DVP venting systems. Refer to Section
12.A for vent component information and dimensions.
DO NOT mix pipe, ttings or joining methods from differ-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
WARNING! Risk of Fire or Asphyxiation. This appli-
ance requires a separate vent. DO NOT vent to a pipe
serving a separate solid fuel burning appliance.
D. Use of Elbows

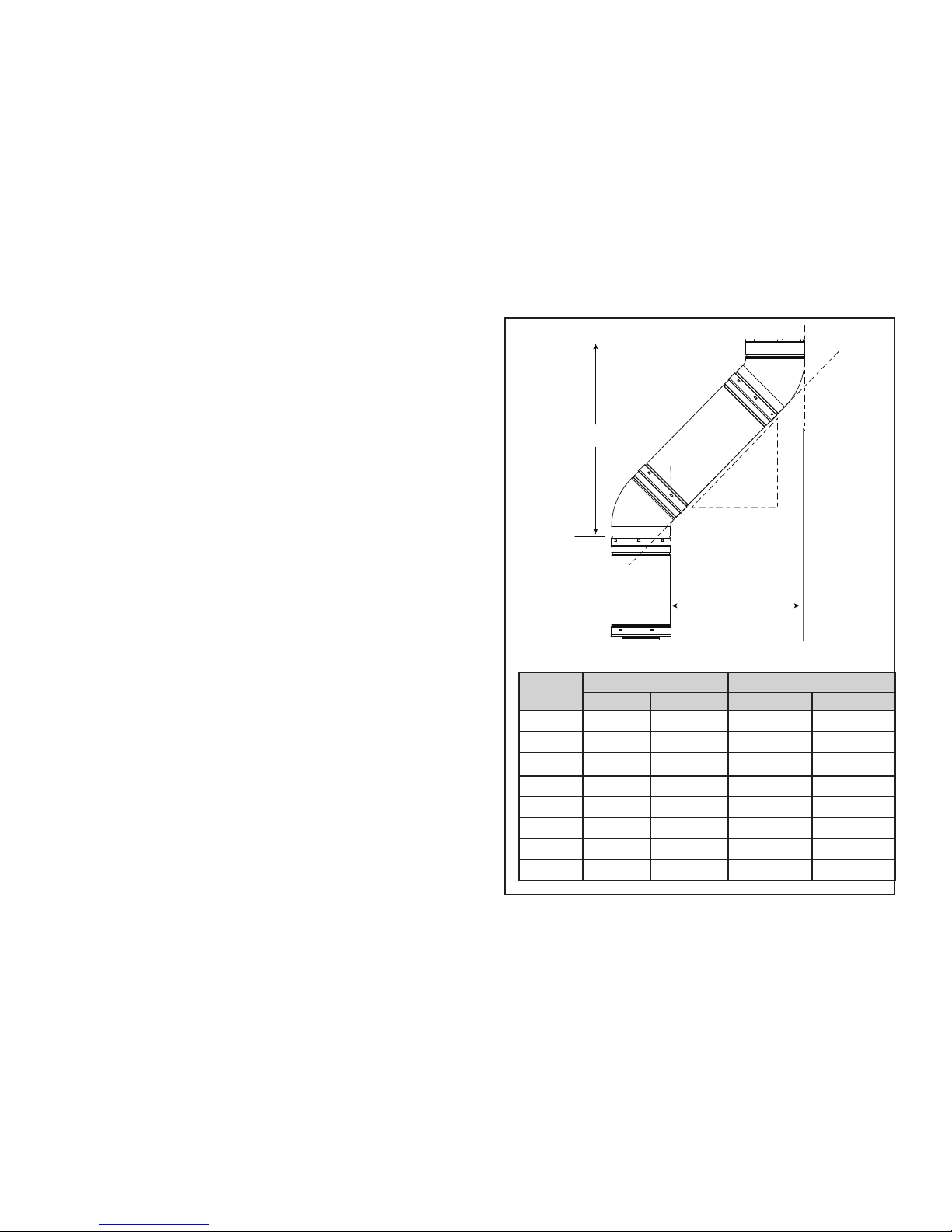

Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.4.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 in. (216
mm) horizontal run and 8-1/2 in. (216 mm) vertical run. A
length of straight pipe is allowed between two 45º elbows.
See Figure 4.4.
Figure 4.5 shows the vertical and horizontal offsets for
DVP elbows.
Figure 4.4
HORIZONTAL
VERTICAL
RUN
RISE
EFFECTIVE
LENGTH
DVP
Pipe
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108
DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
16
Y
X
X
X
Vent Type X
Inches Millimeters
DVP 16-1/4 413

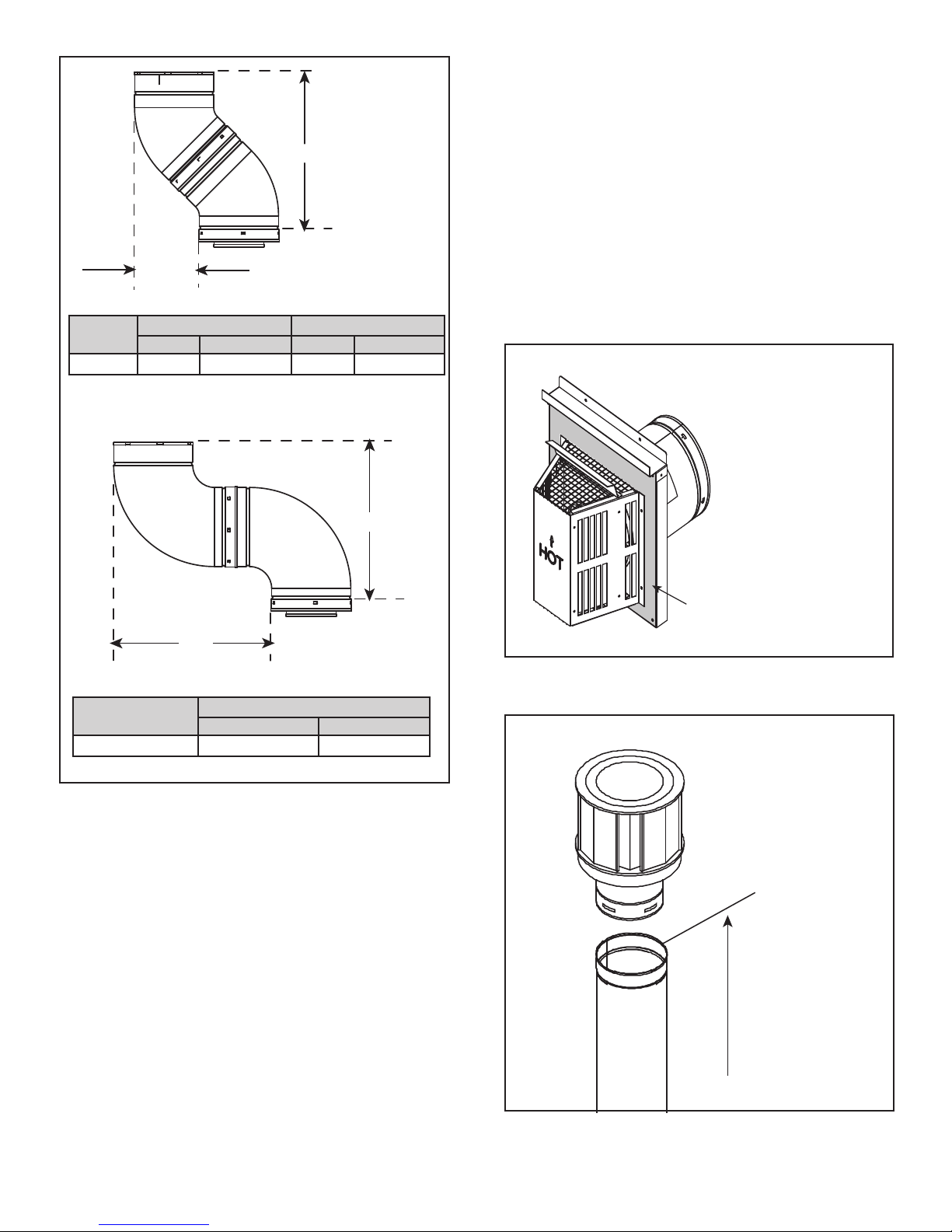

Figure 4.5 Vertical and Horizontal Offset for DVP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
DVP 4-1/2 114 17 432
E. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards:
• Pipe measurements are shown using the effective length
of pipe. See Section 12.A for information on effective
length of pipe components.
• Horizontal terminations are measured to the outside
mounting surface (ange of termination cap) (see Figure
4.6).
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.7.
• Horizontal pipe installed level with no rise.
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Figure 4.6 Measure to Outside Mounting Surface
Figure 4.7. Measure to Top of Last Section of Pipe

17
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
F. Vent Diagrams
Figure 4.8 Vent Cap - Generic Fireplace Shown
General Rules:
• SUBTRACT 3 ft. (914 mm) from the total H measurement
for each 90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft. (457 mm) from the total H
measurement for each 45º elbow installed horizontally.
• A maximum of three 90º elbows (or six 45º elbows) may
be used in any vent conguration. Some elbows may be
installed horizontally. See Figure 4.18.
• Elbows may be placed back to back anywhere in the
system.
• Any 90º elbow may be replaced with two back to back
45º elbows.
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.

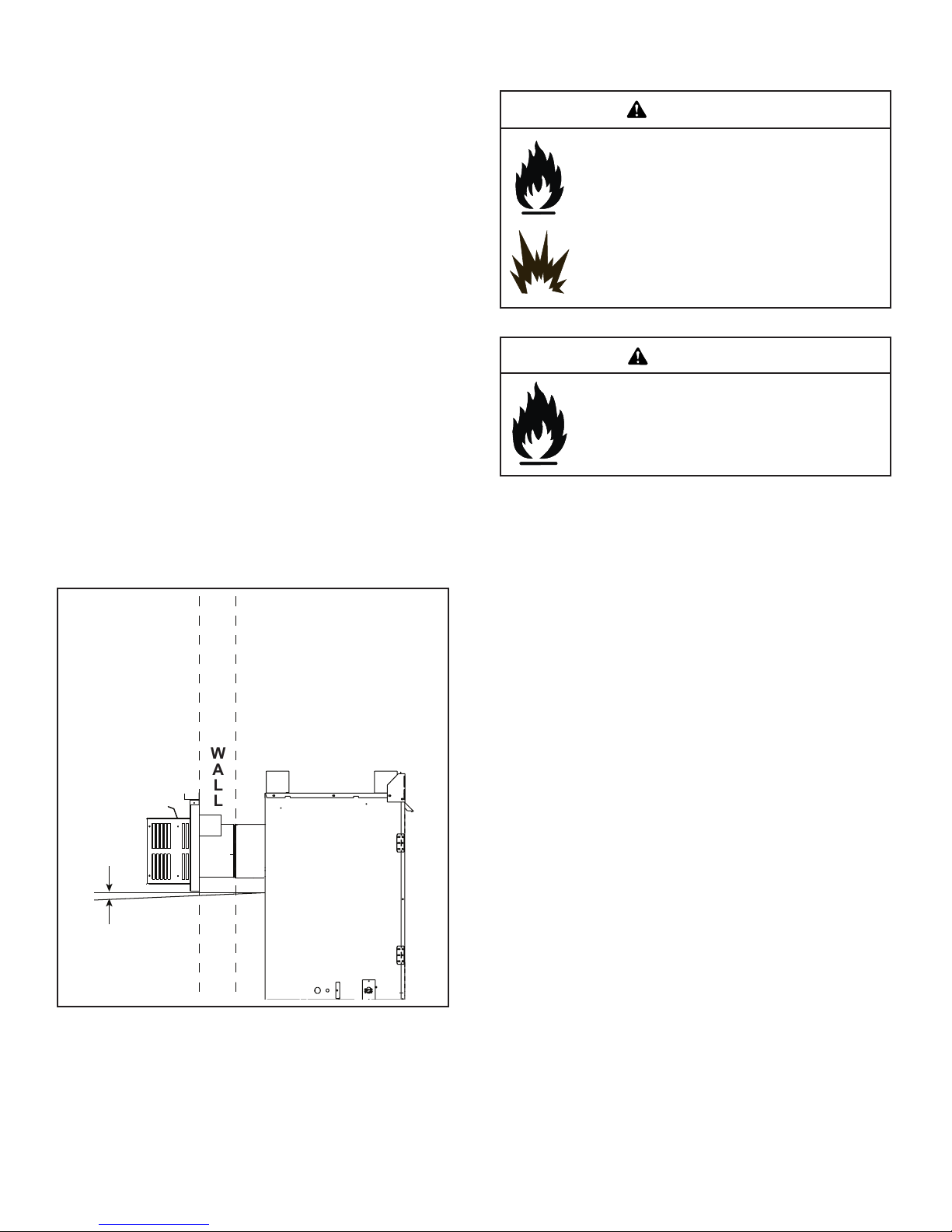

• Horizontal termination cap should have a 1/4 in. (6
mm) downward slant to allow any moisture in cap to be
released. See Figure 4.8.
WALL
1/4 in. max.
(6 mm)
WARNING
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles
between ceiling restops.
• ALWAYS maintain specied clearances around
venting and restop systems.
• Install wall shield and ceiling restops as speci-
ed.
Failure to keep insulation or other material away
from vent pipe may cause re.
WARNING
Fire Risk.
• When using DVP-HRC-SS and DVP-HRC-ZC-
SS termination caps on top vented replaces, a
6 inch minimum vertical vent section is required
before installing rst elbow.

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
18

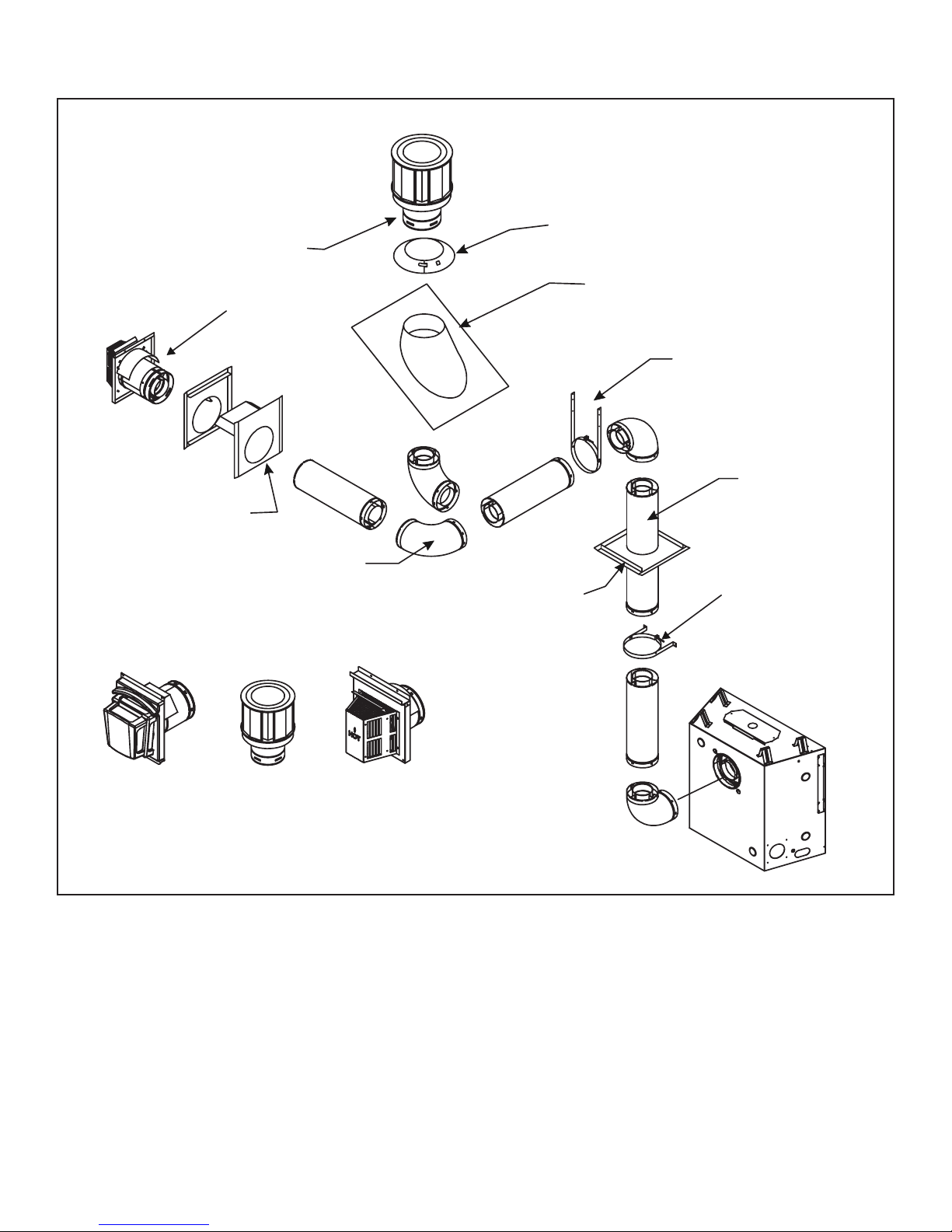

Figure 4.9 Flue Components and Terminations
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
DVP-TRAP2
DVP-TVHW
Flue system termination kits
DVP-FBHT
Flue Components and Terminations

19
Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18

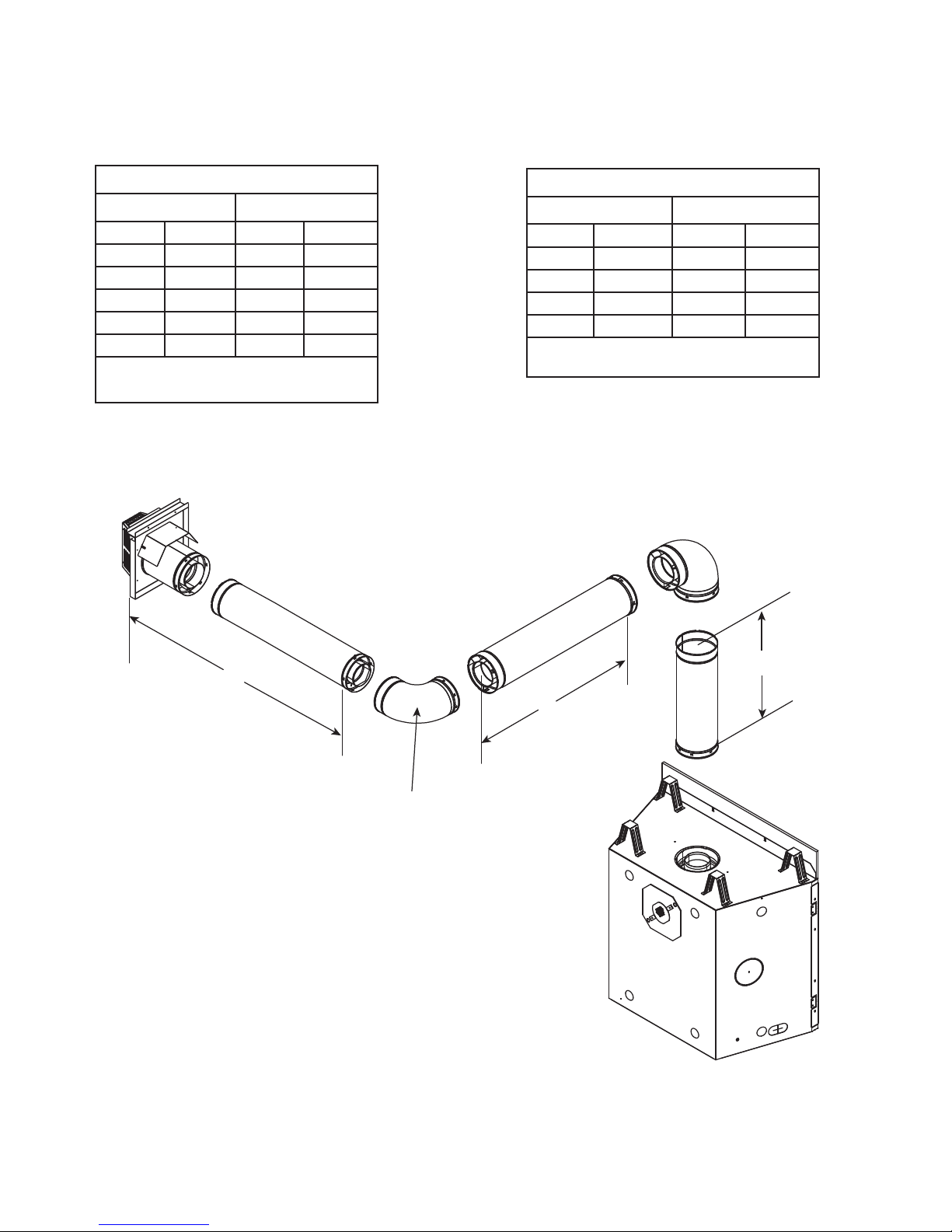

Figure 4.10
One Elbow
Top Vent - Horizontal Termination
H
1
V
1
6X-AU (NG/LP)
V1Minimum H1Maximum
6 in. 152 2 ft. 610 mm
1 ft. 305 mm 3 ft. 914 mm
2 ft. 610 mm 6 ft. 1.8 m
3 ft. 914 mm 11 ft. 3.4 m
4 ft. 1.2 m 16 ft. 4.9 m
5 ft. 1.5 m 20 ft. 6.1 m
V1+ H1= 40 ft. (12.2 m) Maximum
H1= 20 ft. (6.1 m) Maximum
6X-AU (ULPG)
V1Minimum H1Maximum
1 ft. 305 mm 1 ft. 305 mm
2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 6 ft. 1.8 m
4 ft. 1.2 m 8 ft. 2.4 m
5 ft. 1.5 m 10 ft. 3.0 m
V1+ H1= 40 ft. (12.2 m) Maximum
H1= 10 ft. (3.0 m) Maximum

Heat & Glo • 6X-AU Installation Manual • 2508-980 Rev. C • 3/18
20
Two Elbows
Top Vent - Horizontal Termination - (continued)
INSTALLED
HORIZONTALLY
H1
H2
V1
6X-AU (NG/LP)
V1Minimum H1+ H2Maximum
6 in. 152 mm 1 ft. 305 mm
1 ft. 305 mm 2 ft. 610 mm
2 ft. 610 mm 4 ft. 1.2 m
3 ft. 914 mm 8 ft. 2.4 m
4 ft. 1.2 m 12 ft. 3.7 m
6 ft. 1.8 m 20 ft. 6.1 m
V1+ H1 + H2= 40 ft. (12.2 m) Maximum
H1 + H2= 20 ft. (6.1 m) Maximum
Figure 4.11
6X-AU (ULPG)
V1Minimum H1+ H2Maximum
1 ft. 305 mm 1 ft. 305 mm
2 ft. 610 mm 3 ft. 914 mm
3 ft. 914 mm 5 ft. 1.5m
4 ft. 1.2 m 7 ft. 2.1 m
6 ft. 1.8 m 11 ft. 3.4 m
V1+ H1+ H2= 40 ft. (12.2 m) Maximum
H1+ H2= 11 ft. (3.4 m) Maximum
