Heat & Glo 8000TRC Assembly instructions

- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Heat-N-Glo Fireplace
Model:
8000TRC Installers Guide
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SER-
VICE OR MAINTENANCE CAN CAUSE
INJURY OR PROPERTY DAMAGE.
REFER TO THIS MANUAL. FORASSIS-
TANCE OR ADDITIONAL INFORMA-
TION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
582-900-A 6/99
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THISAPPLIANCE. THIS
INSTALLERS GUIDE MUST BE LEFT WITH
THE APPLIANCE FOR FUTURE REFERENCE.
1. This appliance may be installed in an
aftermarket,permanentlylocated,
manufactured (mobile) home, where
not prohibited by local codes.
2.This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
Please contact your Heat-N-Glo dealer for any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 612-985-6000.
Printed in U.S.A. Copyright 1999,
Heat-N-Glo, a division of HearthTechnologies Inc.
20802KensingtonBoulevard,Lakeville,MN55044
WARNING: IF THE
INFORMATION IN THESE
INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE
OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace,
READ the Using Your Fireplace section of the
Owners Guide .
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and venting system should be
INSPECTED before initial use and at least
annually by a professional service person. More frequent cleaning may be required due
to excessive lint from carpeting, bedding material, etc. It is
IMPERATIVE that the unit’s
control compartment, burners, and circulating air passageways
BE KEPT CLEAN to
provide for adequate combustion and ventilation air.
Always
KEEP the appliance clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and
away from furniture and draperies. Clothing or flammable material
SHOULD NOT BE
PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature and
should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units
MUST use one of the vent systems described in the Installing the Fireplace
section of the
Installers Guide . NO OTHER vent systems or components MAY BE USED .
This gas fireplace and vent assembly MUST be vented directly to the outside and MUST
NEVER
be attached to a chimney serving a separate solid fuel burning appliance. Each
gas appliance
MUST USE a separate vent system. Common vent systems are
PROHIBITED .
INSPECT the external vent cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly
MUST be in place and sealed, and the trim door assembly
MUST be in place on the fireplace before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person.
DO NOT strike or slam the glass door.
The glass door assembly
SHALL ONLY be replaced as a complete unit, as supplied by
the gas fireplace manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
i

Table of
Contents
Safety and Warning Information .......................... i
Section 1: Approvals and Codes ...................... 1
Approval Listings and Codes ................................. 1
Appliance Certification............................................ 1
Installation Codes ................................................... 1
High Altitude Installations ........................................ 1
Section 2: Getting Started ................................ 2
Introducing the Heat-N-Glo Gas Fireplaces............ 2
Pre-installation Preparation .................................... 2
Section 3: Installing the Fireplace .................... 4
Step 1 Locating the Fireplace ........................ 4
Step 2 Framing the Fireplace ........................ 5
Step 3 Installing the Vent System .................. 6
A. Vent System Approvals .................. 6
B. Installing Vent Components.......... 17
C. Vent Termination .......................... 23
Step 4 Positioning, Leveling, and
Securing the Fireplace ..................... 28
Step 5 The Gas Control Systems ................ 28
Step 6 The Gas Supply Line ........................ 29
Step 7 Gas Pressure Requirements ........... 30
Step 8 Wiring the Fireplace ......................... 31
Step 9 Finishing ........................................... 33
Step 10 Installing Trim, Logs, and
Ember Material ................................. 34
Installing the Trim ............................. 34
Positioning the Logs ......................... 35
Placing the Ember Material .............. 35
Step 11 Before Lighting the Fireplace ............ 37
Step 12 Lighting the Fireplace ....................... 37
After the Installation ....................................... 37
Section 4: Maintaining and Servicing
Your Fireplace ................................ 38
Section 5: Replacement Parts
and Accessories ............................. 40
Replacement Parts .............................................. 40
Accessories ......................................................... 45
i i

1
Approval Listings
and Codes
Appliance Certification
The Heat-N-Glo fireplace model discussed in this
Installers Guide has been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
8000TRC Underwriters Direct Vent ANSI Z21.50 CGA2.22/IR#41
Laboratories Gas Fireplace
Installation Codes
The fireplace installation must conform to local codes. Before installing the
fireplace, consult the local building code agency to ensure that you are in
compliance with all applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must conform to the
National Fuel Gas Code ANSI Z223.1 (in the United States) or the CAN/CGA-
B149 Installation Codes (in Canada). The appliance must be electrically
grounded in accordance with local codes or, in the absence of local codes with
the National Electric Code ANSI/NFPA No. 70 (in the United States), or to the
CSA C22.1Canadian Electric Code (in Canada).
This model may be installed in a bedroom or bed-sitting room in the U.S.A. and
Canada.
High Altitude Installations
U.L. Listed gas fireplaces are tested and approved for elevations from 0 to 2,000
feet in the U.S.A. and from 0 to 4,500 feet in Canada.
When installing this fireplace at an elevation above 2,000 feet (in the United
States), it may be necessary to decrease the input rating by changing the
existing burner orifice to a smaller size. Input should be reduced four percent
(4%) for each 1,000 feet above sea level, unless the heating value of the gas has
been reduced, in which case this general rule will not apply. To identify the proper
orifice size, check with the local gas utility.
When installing this fireplace at an elevation between 2,000 and 4,500 feet (in
Canada), the input rating must be reduced by ten percent (10%).
When installing this fireplace at an elevation above 4,500 feet (in Canada), check
with local authorities.
Consult your local gas utility for assistance in determining the proper orifice for
your location.
1
Approvals
and Codes

2
2
Getting
Started
Introducing the
Heat-N-Glo
Gas Fireplaces
Pre-install
Preparation
Heat-N-Glo direct vent gas fireplaces are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas fireplace diagrams, including the dimensions,
are shown in this section.
This gas fireplace and its components are tested
and safe when installed in accordance with this
Installers Guide. Report to your dealer any parts
damaged in shipment, particularly the condition of
the glass. Do not install any unit with damaged,
incomplete, or substitute parts.
The vent system components are shipped in
separate packages. The gas logs may be
packaged separately and must be field installed.
Read all of the instructions before starting
the installation. Follow these instructions
carefully during the installation to ensure
maximum safety and benefit. Failure to follow
these instructions will void the owners
warranty and may present a fire hazard.

3
Figure 1. Diagram of the 8000TRC
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo disclaims any
responsibility for, the following actions:
 Installation of any damaged fireplace or vent system component.
 Modification of the fireplace or direct vent system.
 Installation other than as instructed by Heat-N-Glo.
 Improper positioning of the gas logs or the glass door.
 Installation and/or use of any component part not manufactured and approved by
Heat-N-Glo, not withstanding any independent testing laboratory or other party
approval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE HAZARD.
When planning a fireplace installation, its necessary to determine:
Where the unit is to be installed.
The vent system configuration to be used.
Gas supply piping.
Electrical wiring.
Framing and finishing details.
Whether optional accessoriesdevices such as a fan, wall switch, or remote
controlare desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal or
wood panel that extends the full width and depth of the fireplace.

4
3
Installing the
Fireplace
Step 1
Locating the
Fireplace

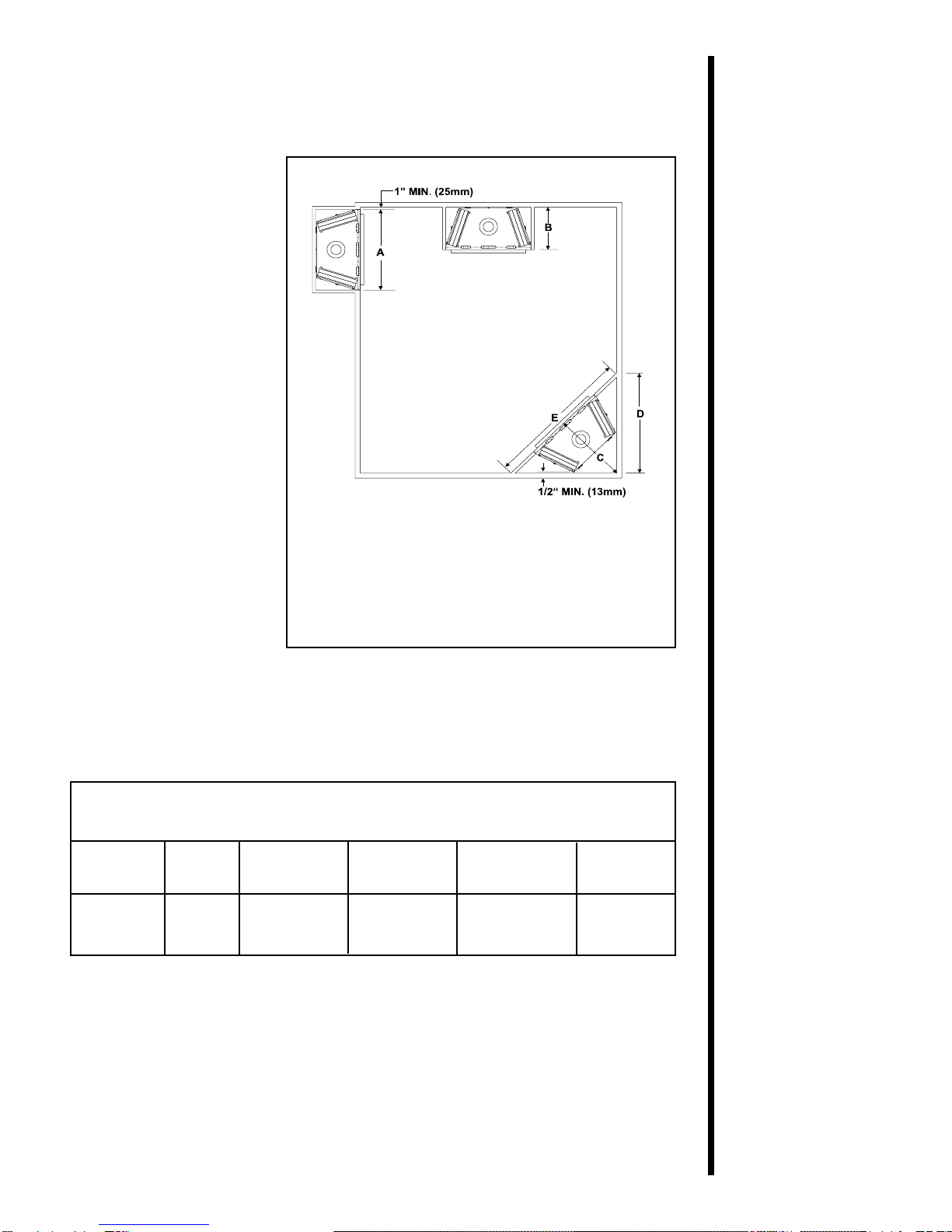

The diagram below shows space and clearance
requirements for locating a fireplace within a room.
MODEL A B C D E
8000TRC 49 22 39 1/2 56 79
NOTE: DIMENSIONS SHOWN IN INCHES.
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
Clearance Requirements
The top, back, and sides of the fireplace are defined
by stand-offs.
Minimum Clearances from the Fireplace to
Combustible Materials
Glass Rear of Sides of Top of
Front Floor Fireplace Fireplace Fireplace Ceiling
36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches
(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)
The minimum clearance to a perpendicular wall
extending
past the face of the fireplace is one inch
(25 mm).
The back of the fireplace may be recessed 21 1/2
inches (546 mm) into combustible construction.

5
Minimum Clearances from the Vent Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches 1 inch 1 inch 1 inch 2-1/2 inches 1/2 inch 1 inch
(75 mm) (25 mm) (25 mm) (25 mm) (63.7 mm) (13 mm) (25 mm)
For minimum clearances, see the direct vent
termination clearance diagrams on pages 25 and 27 in
this manual.
Step 2
Framing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate wall coverings and fireplace facing
material. The diagram below shows framing reference
dimensions.
CAUTION MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS BEFORE FRAMING
CONSTRUCTION BEGINS.
A
B
C
Framing should be
constructed of 2 X 4
lumber or heavier.
Models A B C D E
8000TRC 49 40 1/2 22 44 27 1/2
NOTE: DIMENSIONS SHOWN IN INCHES
Figure 3. Framing Dimensions

6
Vent system
termination kits
Vent system components
Figure 4. Vent Components and Terminations
Step 3
Installing the
Vent System
A. Vent System Approvals
This model is approved to use D-series direct vent
pipe components and terminations. Approved vent
system components are labeled for identification. This
pipe is tested and listed as an approved component
of the fireplace. The pipe is tested to be run inside an
enclosed wall. There is no requirement for inspec-
tion openings at each joint within the wall. There is no
required pitch for horizontal vent runs. NO OTHER
VENTING SYSTEMS OR COMPONENTS MAY BE
USED.
Detailed installation instructions are included with
each vent termination kit and should be used in con-
junction with this Installers Guide. The drawing below
shows vent system components and terminations.
The flame and ember appearance may vary based
on the type of fuel burned and the venting configura-
tion used.
Identifying Vent Components
The vent systems installed on this gas fireplace may
include one, two, or three 90°elbow assemblies. The
relationships of vertical rise to horizontal run in vent
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown
in the venting drawings and tables. Refer to the dia-
grams on the next several pages.

7
DV-90D
65/32
57/873/8
DV-45D
67/16
11 1/16 61/2
85/8
81/2
51/16
8/12 11 5/8
85/8
11 15/16
DV-36D
35 3/4
47 3/4
DV-48D
5 3/4
8 3/4
11 3/4
DV-12D DV-09D DV-06D
6-5/32"
(156 mm)
7-3/8" 5-7/8"
(187 mm) (149 mm)
8-1/2"
(216 mm)
8-5/8"
(220 mm)
11-15/16"
(303 mm)
11-5/8"
(295 mm) 11-1/16"
(281 mm) 6-1/2"
(165 mm)
8-5/8"
(220 mm)
5-1/16"
(129 mm)
8-1/2"
(216 mm)
6-7/16"
(164 mm)
35-3/4"
(908 mm)
47-3/4"
(1.2 m)
11-3/4"
(298 mm) 8-3/4"
(222 mm) 5-3/4"
(146 mm)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93 mm) AT EACH JOINT.
Figure 5. D-Series Direct Vent Component Specifications
(5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: TWO 45° ELBOWS MAY BE USED IN
PLACE OF ONE 90° ELBOW. RISE TO RUN RA-
TIOS IN THE VENT SYSTEM MUST BE FOLLOWED
IF 45° ELBOWS ARE USED.
This model has vent starting collars on both the top
and the back of the unit. Depending upon the installa-
tion, decide which ONE set of starting collars will be
used to attach the vent system. The starting collar
sealing cap must remain on the starting collar NOT
used.

8
Figure 6. Straight Up Vertical Venting
NOTE: On vertical venting configurations where the vertical
component is over 10 feet, you may want to install the vertical
baffle included in the manual bag assembly to improve flame
appearance.
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)

9
HORIZONTALVENTING
H
Kit No. Max. Run
DVK-01D
DVK-01TRD 24" (610 mm)

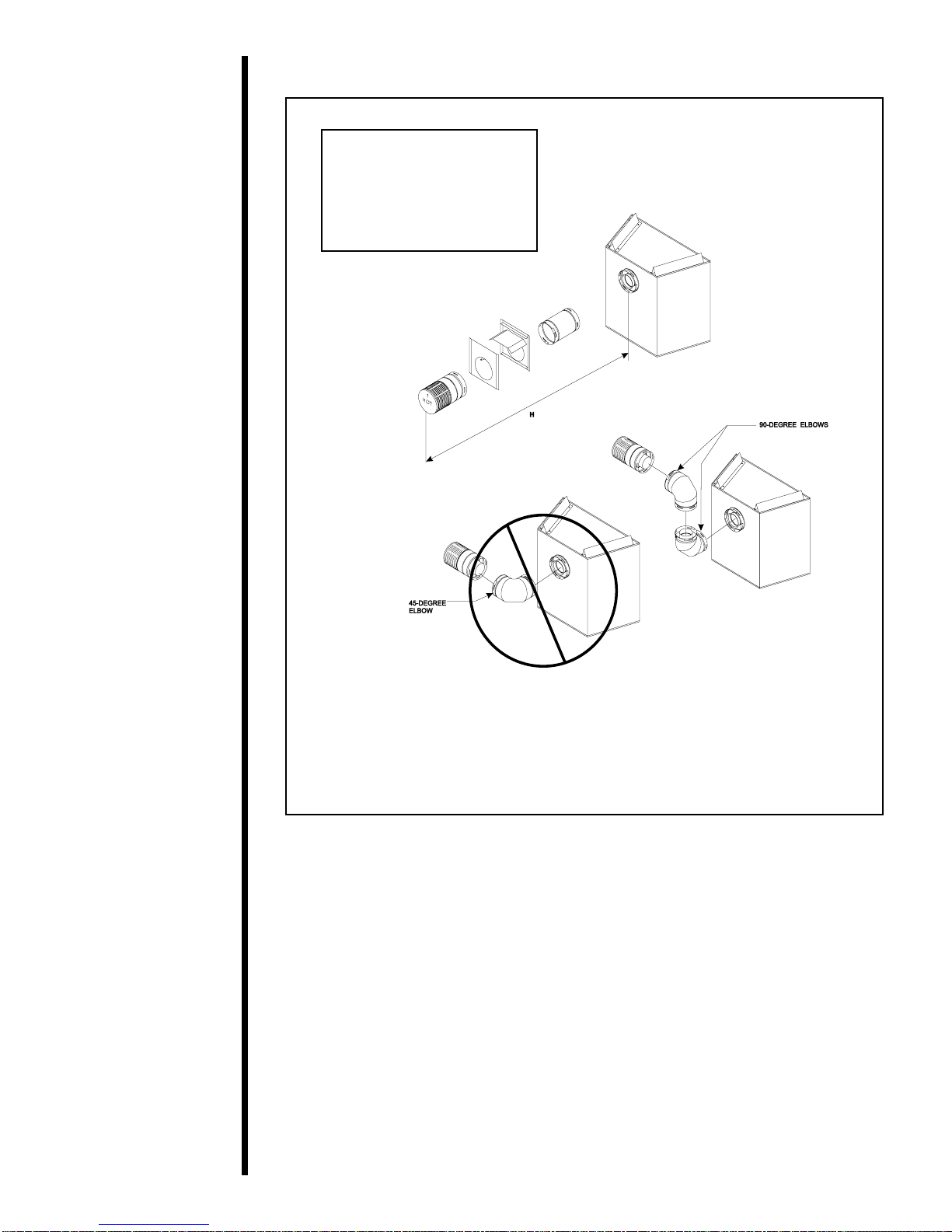

NOTE: In a corner installation, use two 90° elbows when
venting out the rear.
Figure 7. Corner Installation

10

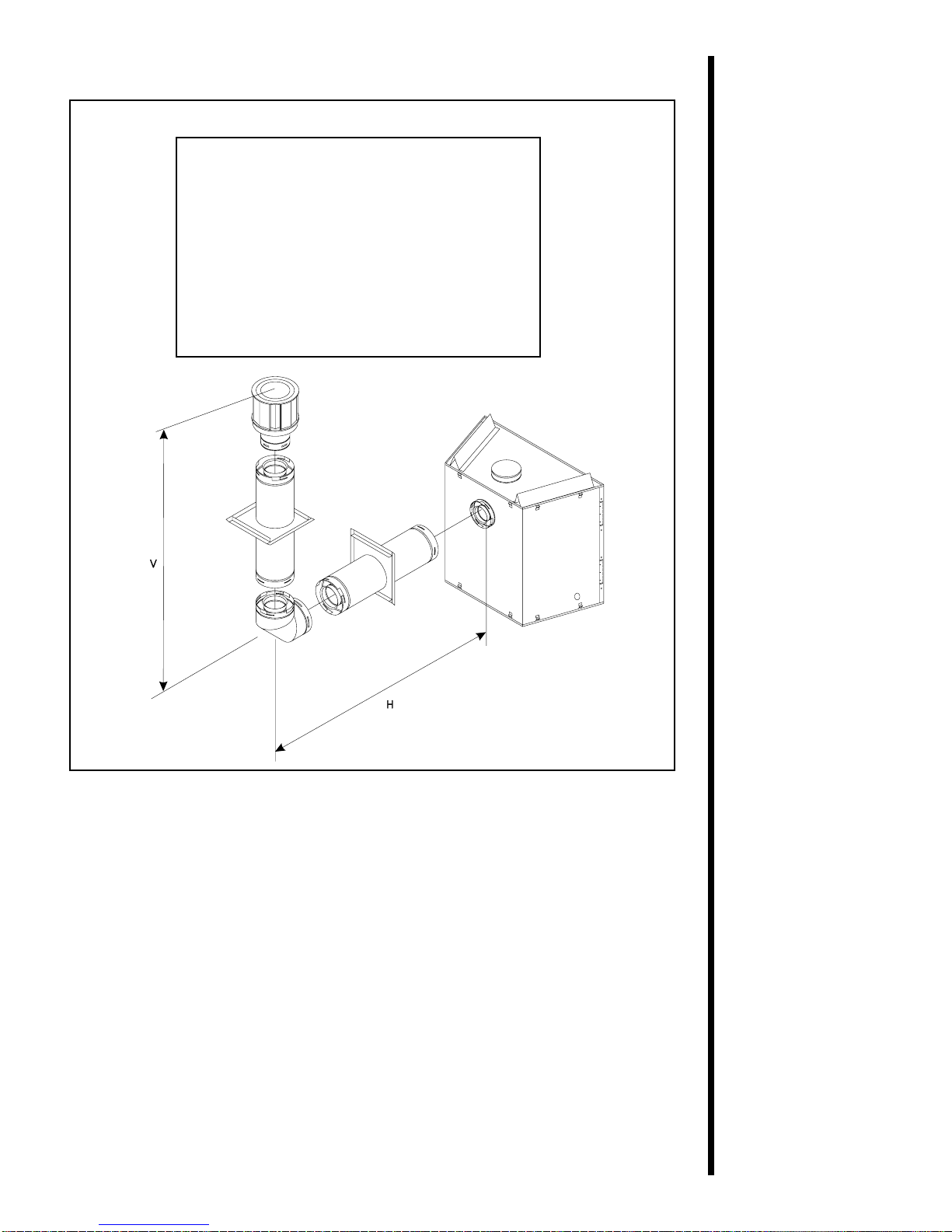

VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: On vertical venting configurations where the vertical component is over 10
feet, you may want to install the vertical baffle included in the manual bag assembly
to improve flame appearance.
Figure 8. Venting with One 90° Elbow

11
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40 MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 9. Venting with One 90° Elbow
NOTE: IF A 90oELBOW IS FIRST AT-
TACHED TO THE UNIT, THE MAXIMUM
HORIZONTAL RUN IS 3-FEET (914mm).
NOTE: For corner installations: A 6-inch (152mm) MINIMUM length of straight
pipe must be attached to the fireplace before 90o elbow. This will allow the
vent pipe to clear the top standoffs.

12

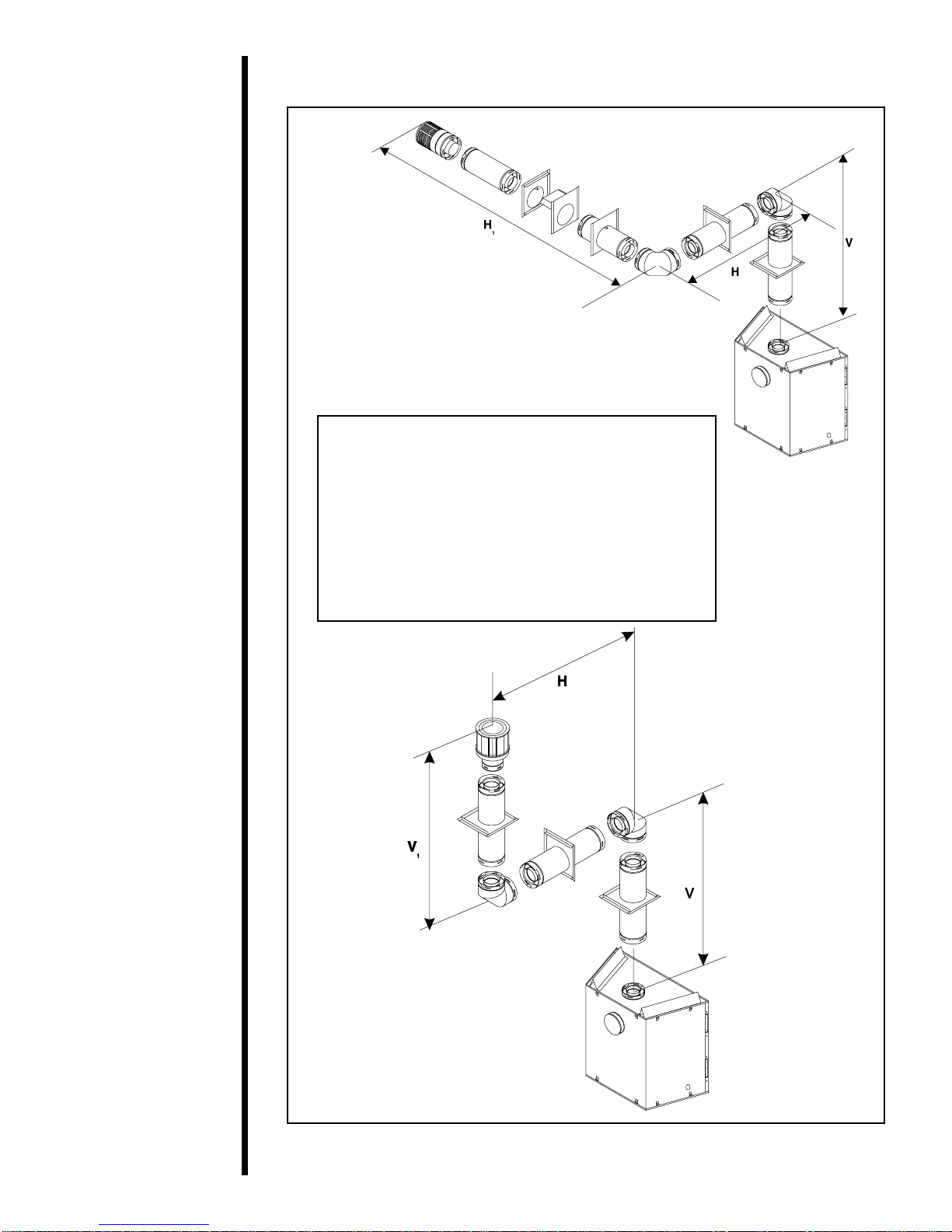

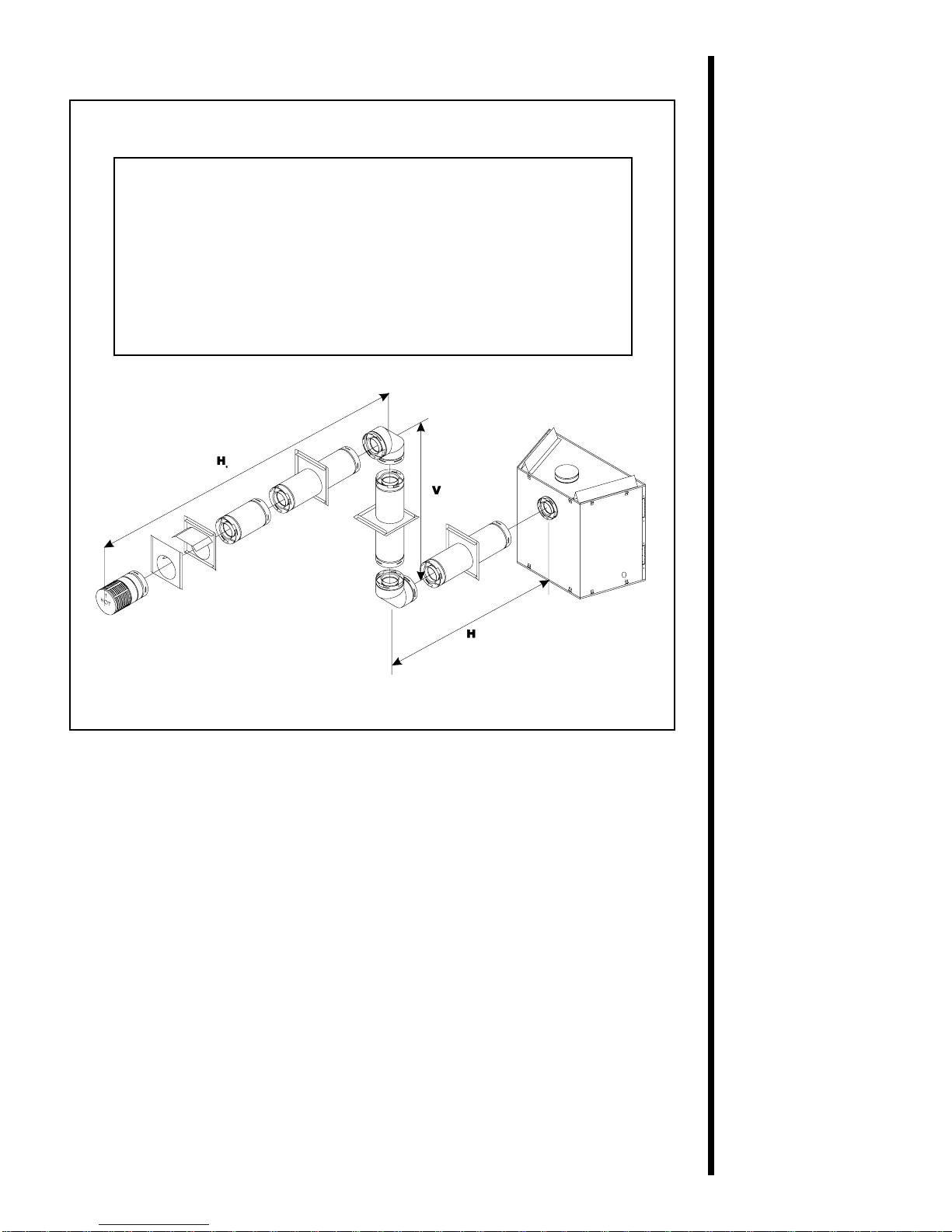

VENTING WITH TWO (2) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 = 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
= 20´ MAX. (6.2m)
Figure 10. Venting with Two 90° Elbows

13
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
= 20´ MAX. (6.2m)
V+V1+H= 40' MAX.(12.4m)
Figure 11. Venting with Two 90° Elbows

14
Figure 12. Venting with Two 90° Elbows
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
40'MAX. (12.4m) 8' MAX. (2.4m) V+H+H
1
= H+H
1
=
V FT. H + H1(FT.)
VENTING WITH TWO (2) 90oELBOWS

15
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2 m)
V+H+H
1
+H
2
= 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)

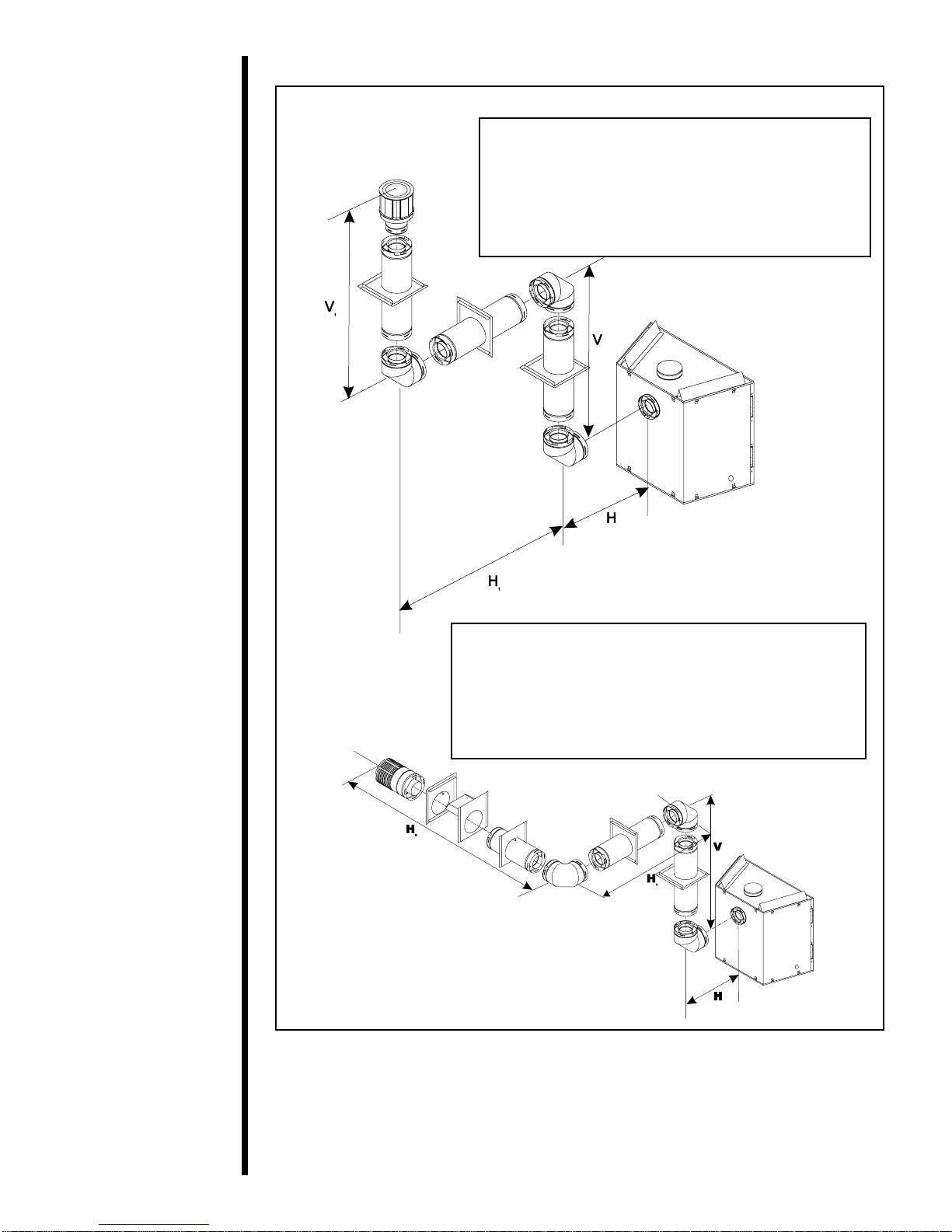

VENTING WITH THREE (3) 90° ELBOWS
V H H + H1 + H2
1´ MIN. (305 mm) 2´ MAX.(610 mm) 5´ MAX. (1.52 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2 m)
V
1
+V+H+H
1
= 40´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
VENTING WITH THREE (3) 90° ELBOWS
V H H + H1
Figure 13. Venting with three 90° elbows

16
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1 (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H +H1= 20' MAX. (6.2m)
NOTE: V+V1+H +H1= 40' MAX. (12.4m)
Figure 14. Venting with three 90° elbows

17
Figure 15
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (See Figure 15).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE THE
FIREBOX) MUST REMAIN ATTACHED IF THE VENT
SYSTEM IS ATTACHED TO THE REAR STARTING
COLLARS. SEE FIGURE 15.
Venting Out the Top Vent
Remove the two screws in the top vent collar seal cap and
remove the top vent collar seal cap and the two pieces of
insulation inside the top two starting collars (See Figure 15).
Remove the heat shield from inside the TOP five inch
flue from outside of the firebox.
WARNING: FAILURE TO REMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL CAP
MUST REMAIN ATTACHED TO THE REAR VENT
COLLARS IF THE VENT SYSTEM IS ATTACHED TO
THE TOP STARTING COLLARS. SEE FIGURE 15.
WARNING: YOU MUST LEAVE THE INSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.
If your vertical vent component is over 10 feet, you may
want to install the included vertical baffle to improve flame
appearance. Center the vertical baffle on the five inch flue
being used, and with self tapping screws secure the baffle
to the inside of the firebox.
Insert screwdriver
or similar object
here to remove cap.
CUT
HERE
Venting Out Rear VentingOut Top
1. Vertical baffle is
located in the
bag containing
the instruction
manual.
