Heat & Glo FB-ZC-S User manual

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 1
Model:
FB-ZC-S
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,serviceagency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
CAUTION
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installedinaccordancewiththemanufacturer’sinstructionsand
themanufactured home construction and safety standard,Title
24CFR,Part3280orStandardforInstallationinMobileHomes,
CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber
or gas fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
2
Congratulations

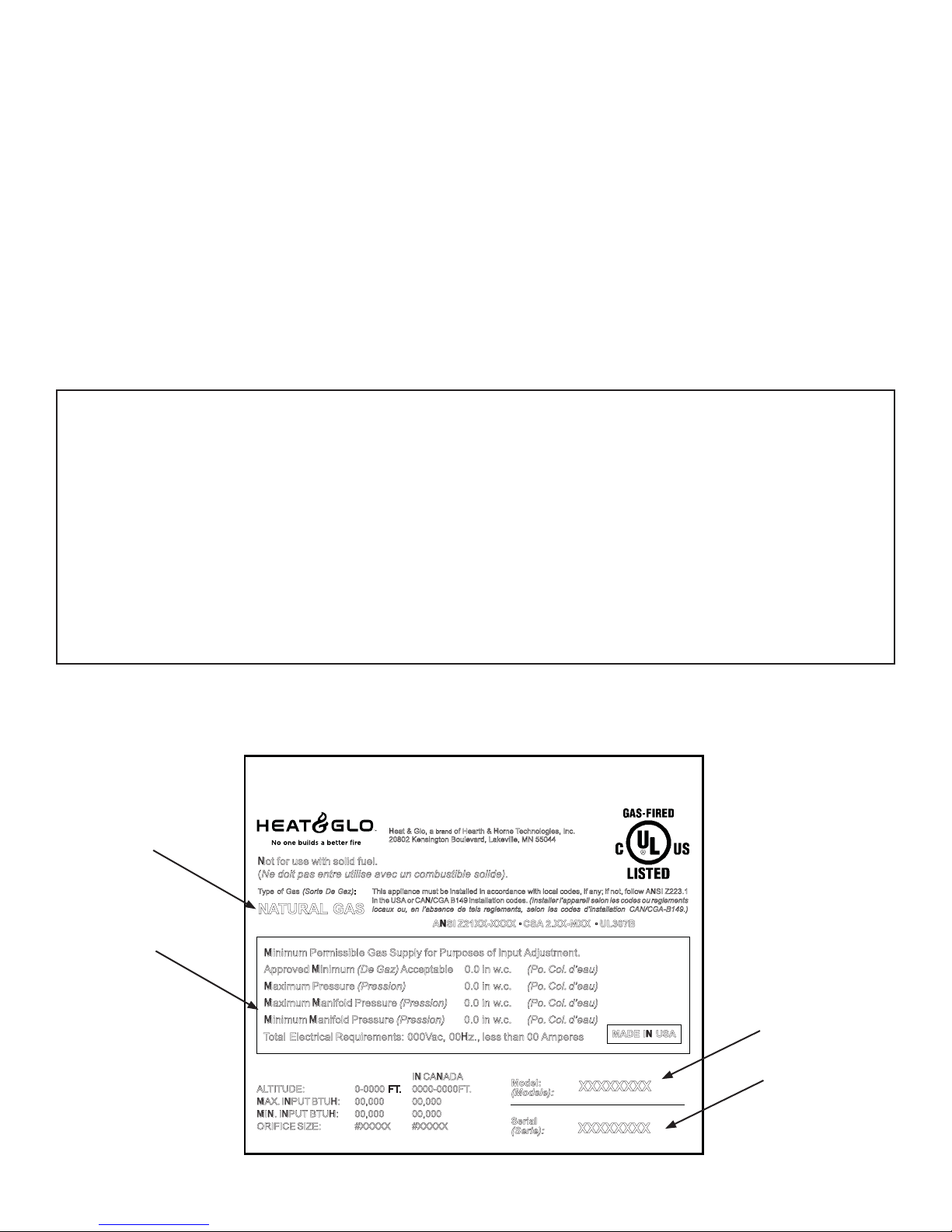

Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
—an elegant and clean alternative to wood burning
appliances. The Heat & Glo gas appliance you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all Cautions and
Warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following pertinent
information about your appliance.
Gas and Electric
Information
Serial Number
Type of Gas
The model information regarding your specific appliance can be found on
the rating plate usually located in the control area of the appliance.
Homeowner Reference Information
Heat & Glo, a of Hearth & Home Technologies, Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
brand
Not for use with solid fuel.
(Ne doit pas entre utilise avec un combustible solide).
This appliance must beinstalled in accordance with local codes, if any;if not, follow ANSI Z223.1
intheUSAorCAN/CGA B149installation codes.(Installerl’appareilselonlescodesoureglements
locaux ou,en l’absence de tels reglements, selon les codes d’installation CAN/CGA-B149.)
Type of Gas (Sorte De Gaz):
NATURAL GAS
MADE IN USA
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
ApprovedMinimum(De Gaz)Acceptable0.0in w.c. (Po.Col.d’eau)
MaximumPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MaximumManifoldPressure (Pression) 0.0in w.c. (Po.Col.d’eau)
MinimumManifoldPressure(Pression) 0.0in w.c. (Po.Col.d’eau)
Model:
(Modele):
Serial
(Serie):
ANSI Z21XX-XXXX · CSA 2.XX-MXX · UL307B
XXXXXXXX
INCANADA
ALTITUDE:0-0000 FT.0000-0000FT.
MAX.INPUTBTUH: 00,000 00,000
MIN.INPUT BTUH: 00,000 00,000
ORIFICESIZE: #XXXXX #XXXXX XXXXXXXX
Total Electrical Requirements: 000Vac, 00Hz., less than 00 Amperes
This product may be covered by one or more of the following patents: (Nos produits sont couverts par un ou plusieurs des brevets suivants): (United States)
4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843,5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,
5452708,5542407, 5601073, 5613487,5647340, 5688568,5762062,5775408, 5890485, 5931661, 5941237,5947112,5996575,6006743, 6019099, 6048195,
6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2,
6729551, 6736133, 6748940, 6748942, D320652, D445174, D462436; (Canada)1297749, 2195264, 2225408; or other U.S. and foreign patents pending (ou
autresbrevetsamericains etetrangers enattente).
Model Number

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 3
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. HighAltitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. Non-Combustible Materials Specification. . . . . . . . . . . . . . 4
E. Combustible Materials Specification . . . . . . . . . . . . . . . . . 4
F. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. InspectAppliance and Components. . . . . . . . . . . . . . . . . . 5
D. Inspect Firebox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Fireplace Size Requirements
A. Minimum Fireplace Opening . . . . . . . . . . . . . . . . . . . . . . . 7
B. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . . 9
5 Vent Information and Diagrams
A. Vent Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
B. Horizontal Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Measuring Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Installation Preparation
A. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
B. Chimney. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
C. Gas Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
D. Hearth or Hearth Extension . . . . . . . . . . . . . . . . . . . . . . . .11
E. Fireplace Conversion Notice . . . . . . . . . . . . . . . . . . . . . . .11
F. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
7 Installing Vent Pipe and Appliance
A. Venting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
B. Connecting Vent Pipe. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
C. Placing, Securing and Leveling theAppliance . . . . . . . . . 14
D. InstallingAdaptor and Termination Cap . . . . . . . . . . . . . . 15
8 Gas Information
A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
B. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Electrical Information
A. Wiring the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
B. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Installation for Fan (Optional). . . . . . . . . . . . . . . . . . . . . . 19
10 Finishing
A. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 22
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
D. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
E. Positioning the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
F. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
G. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 26
B. Lighting Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
C. Check Pilot FlameAppearance . . . . . . . . . . . . . . . . . . . . 28
D. AfterAppliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
E. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 29
13 Troubleshooting
A. Standing Pilot Ignition System . . . . . . . . . . . . . . . . . . . . . 30
14 Maintaining and Servicing Appliance
A. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
15 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 34
B. Vent Kits Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
C. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
D. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 39
E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
= Contains updated information.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
4
Note: To assure top performance, safety and efficiency,
inserts must be installed with an approved flue liner as per
CAN/CGAB-149 orNational FuelGas CodeANSI Z223 and
these instructions.
Note: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and
the CAN/CGA B149 Installation Codes in Canada.
1
1 Listing and Code Approvals
C. High Altitude Installations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2000 feet
in the U.S.A. and Canada.
When installing this appliance at an elevation above
2000 feet, it may be necessary to decrease the input rat-
ing by changing the existing burner orifice to a smaller
size. Input rate should be reduced by 4% for each 1000
feet above a 2000 foot elevation in the U.S.A., or 10% for
elevations between 2000 and 4500 feet in Canada. If the
heating value of the gas has been reduced, these rules
do not apply. To identify the proper orifice size, check
with the local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.
B. BTU Specifications
MODELS: FB-ZC-S
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Appliance Heaters
STANDARD: ANSI Z21.88-2002 • CSA2.33-M2003 • UL307B
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orifice
Size
(DMS)
FB-ZC-S (NG)
US
(0-2000 FT) 29,650 21,000 #36
CANADA
(2000-4500 FT) 26,600 18,900 #37
FB-ZC-S (LP)
US
(0-2000 FT) 27,000 16,000 #52
CANADA
(2000-4500 FT) 24,300 14,400 #53
A. Appliance Certification
D. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750º C, shall be considered
non-combustible materials.
E. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
F. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordancewith localcodes or,in theabsence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A 110-120 VAC circuit for this product must be protected
withground-faultcircuit-interrupterprotection,incompliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.
WARNING
NOT INTENDED FOR USEASAPRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 5
Heat & Glo gas inserts are designed for recessed installa-
tionsinto solidfuelmasonry orfactorybuiltnon-combustible
fireplaces that have been installed in accordance with the
National, Provincial, State and local building codes.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals,or techniciansunderthe directionof certi-
fied professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fireplace
as specified by the professionals.
• Ensure all joints are properly engaged and the chimney
is properly secured.
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Minimum fireplace size. See Section 3.A.
• Gas supply piping.
• Electrical wiring.
• Finishing details.
• Existing mantel projections. See Section 10.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Pliers Hi temp caulking material
Hammer Flat blade screwdriver
Voltmeter Framing square
Gloves Variable speed drill
1/4 Hex drive Safety glasses
Manometer Phillips screwdriver
Tape measure Non-corrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building, fire officials or
authoritieshavingjurisdictionaboutrestrictions, installation
inspection, and permits.
A. Design and Installation Considerations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
2
2 Getting Started
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components, surrounds and fronts are
shipped in separate packages.
• The fiber logs may be packaged separately and must
be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the insta-
llation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
CAUTION
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
Inspectapplianceandcomponentsfordamage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibilityfor, and the warranty will be voided
by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruse of any component partnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING
WARNING
WARNING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
6
D. Inspect Firebox
Surface cracking or crazing of firebrick material is normal
andexpected. Thefollowingtypesof cracksareacceptable
and do not require replacement of the unit or the firebox:
• Cracks that do not propagate entirely thru the material.
• Lightfracturelines or “spider-webbing”on the surfaceof
the material.
• Cracks that are less than 1/32 in. wide and less than 3
in. long.
• If cosmetically unacceptable, such cracks may be
repaired with the SRV-PACK service kit. See Service
Parts List.
Cracks that are unacceptable:
• Cracks greater than 1/32 in. wide and 3 in. long are at
risk of growing.
• Cracks that penetrate entirely through the firebrick
material.
Inspection for cracking should be run when the appliance
is cool. Cracks tend to close as the appliance heats up.


Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 7
3
3 Fireplace Size Requirements

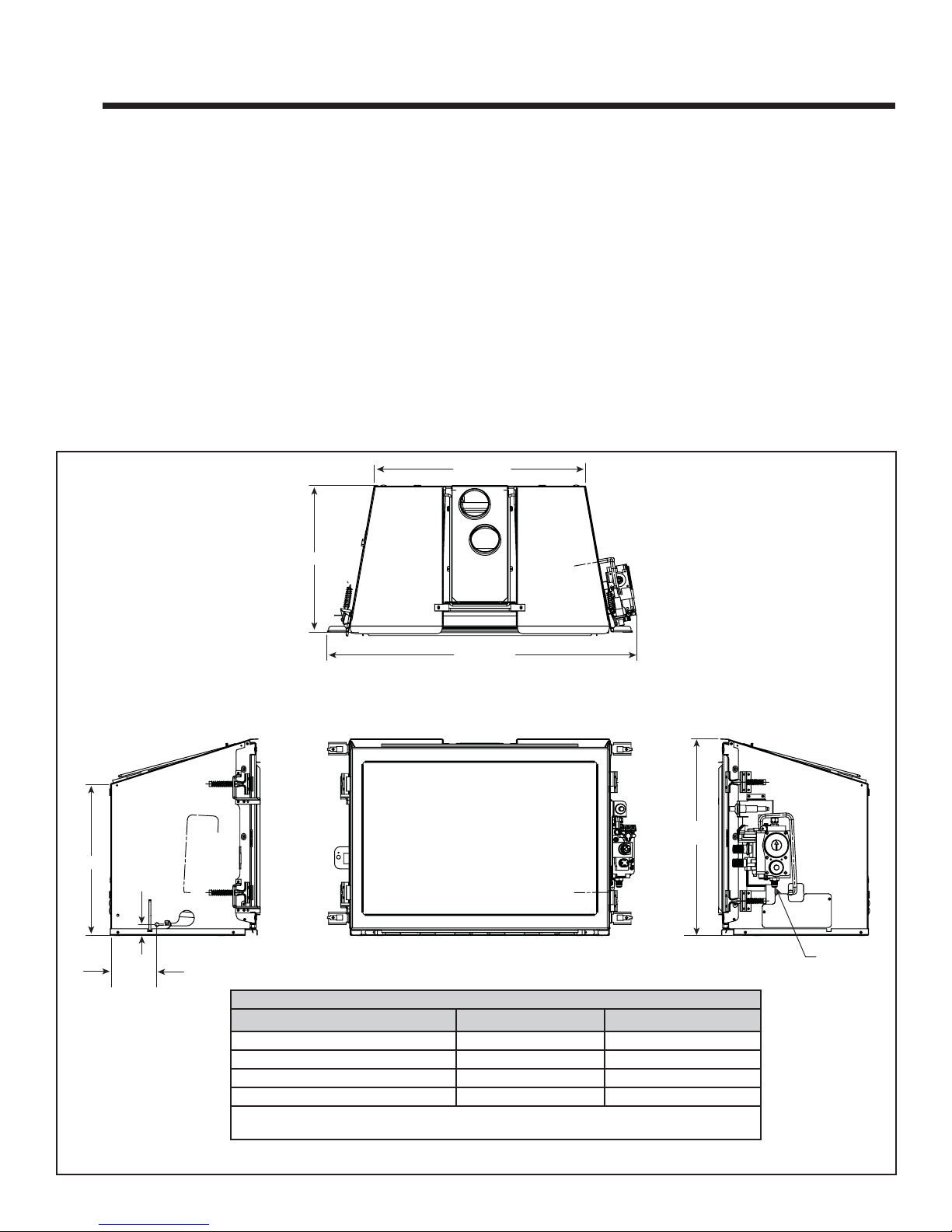

Figure 3.1 Fireplace Opening
NOTE: For actual appliance dimensions refer to Section 15.
20-3/8 in.
14-7/16 in.
29-3/4 in.
15 in.
5-9/16 in.
1-1/16 in.
18-15/16 in.
GAS INLET
(GAS BALL VALVE NOT SHOWN)
MINIMUM EXISTING WOODBURNING FIREPLACE SIZE
Location Inches Millimeters
Front Width 30-7/8 784
Rear Width 25-5/8 651
Depth 15 381
Height 19-1/2 495
* NOTE: If exhaust collar on insert and fireplace damper do not line up, add 4 inches (102
mm) to minimum fireplace height for bends in vent pipe.
A. Minimum Fireplace Opening
Minimum fireplace opening requirements are shown in
Figure 5.1.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
• Thefirebrick(refractory),glassdoors,screenrails,screen
mesh and log grates can be removed from a factory
built firebox in order to gain minimum gas insert opening
requirements.
• Anysmoke shelves,shields andbafflesmaybe removed
from the factory built firebox if attached with mechanical
fasteners.
• Themetalfloorofthe solidfuelfireboxmay beremovedto
facilitatethe installationofthe insert. Theappliance may
notbe placeddirectly onthe baseof theouter wrap,a1/4
inch airspace must be provided between the insert and
thefloor oftheouter wrap. Usethe levellinglegsto raise
the insert a minimum of 1/4 inch. The original fireplace
may never be returned to solid fuel in this condition.
The sidewalls and top structure of the firebox may not
be altered with the exception of removable baffles and
dampers.
• Cutting of any sheet metal parts of the fireplace in which
the gas fireplace insert is to be installed is prohibited,
except the floor as tested for and as noted above.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
8
B. Clearances

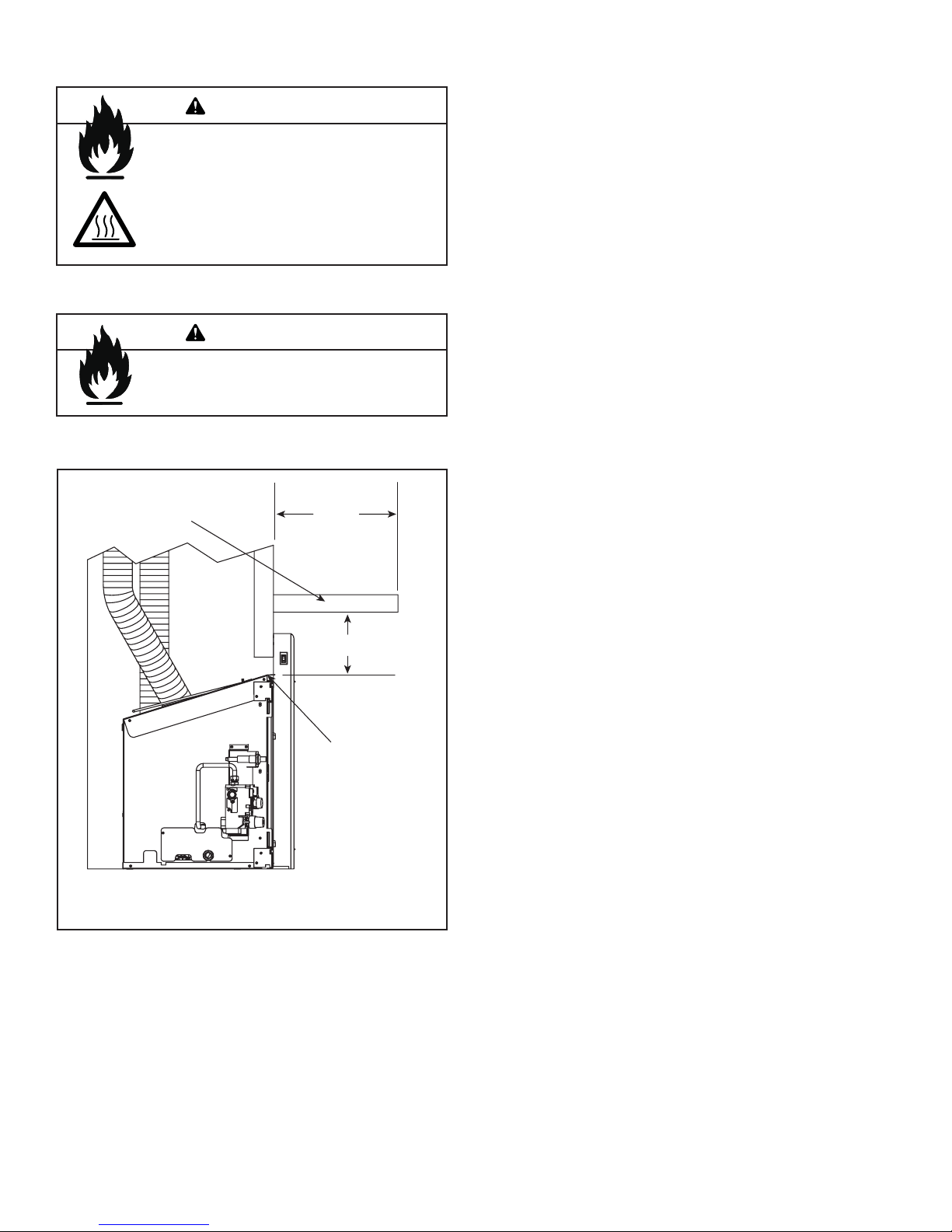

Figure 3.2 Clearances to Mantels or other Combustibles
above Appliance
Fire Risk.
• Locate and install appliance to all clearance
specifications in manual.
Fire Risk.
Odor Risk.
• Clearancetocombustiblematerial under the
insert is 1/4 inch (0.6 cm).
• Use leveling legs to raise insert minimum
1/4inchabove combustible material or outer
wrap of factory built firebox.
TOP OF UNIT
MANTEL 12 in.
MAX.
12 in. MAX.
WARNING
WARNING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 9
Fire Risk.
Asphyxiation Risk.
• Terminations MUST meet minimum clearances.
• Exhaust gases are hot.
• Nearby vents may draw fumes into house.
A. Vent Termination Minimum Clearances
Figure 4.1 specifies minimum vent heights for various
pitched roofs.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0

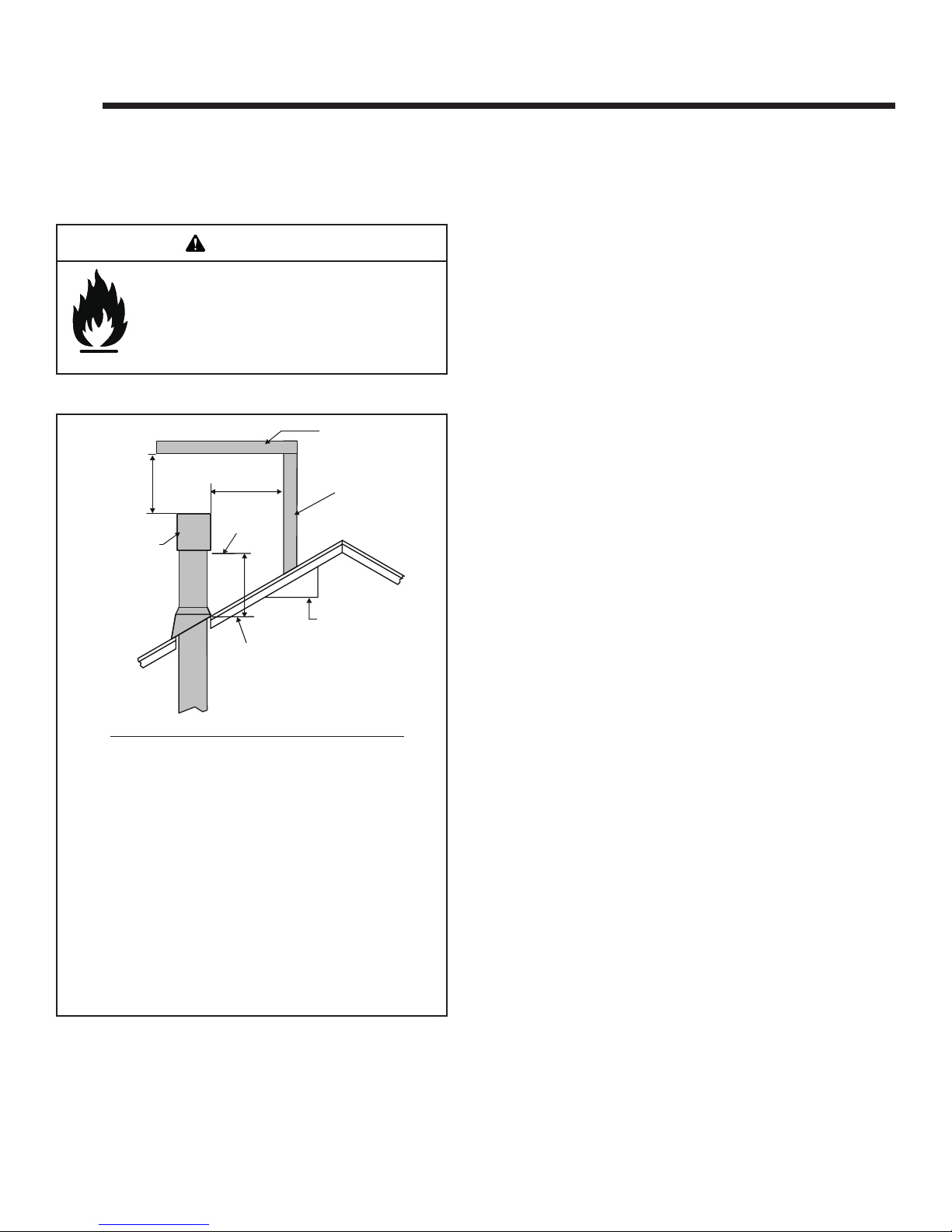

Figure 4.1 Minimum height from roof to lowest discharge
opening
4
4 Termination Locations
* 3 foot minimum in snow regions
WARNING
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
10
CAUTION
ALL vent specifications MUST be followed.
• This product is tested and listed to these specifications.
• Appliance performance will suffer if specifications are not
followed.
Figure 5.1
C. Measuring Standards
Vertical measurements listed in the vent diagram (Figure
5.1) were made using the following standard:
• Vertical terminations are measured to top of chimney.
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
Do NOT connect this gas appliance to a
chimney flue serving a separate solid fuel or
gas burning appliance.
• May impair safe operation of this appliance
or other appliances connected to the flue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
B. Horizontal Venting
Horizontal venting is NOT allowed.
5
5 Vent Information and Diagrams
A. Vent Table Key
The abbreviations listed in this vent table key are used in
the vent diagrams.
Symbol Description
VMIN Minimum Vertical Run Length 14 ft.
VMAX Maximum Vertical Run Length 50 ft.
WARNING
TERMINATION
CAP
EXHAUST
VENT PIPE
V= 14 FT. MINIMUM
50FT. MAXIMUM
3 INCH COLLAR
(Factory installed to
stainless steel section)
WARNING: DO NOT
BLOCK PIPE END WITH
INSULATION OR ANY OTHER
SEALING MATERIAL
STAINLESS STEEL
PIPE - 3 FT. MIN.
REQUIRED (INCLUDED)
INLET AIR
VENT PIPE
COLLAR ATTACHMENT
BRACKET
EXHAUST COLLAR
INLET AIR COLLAR
SEAL DAMPER
AREA
FLASHING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 11
6
6 Installation Preparation
Fire Risk.
A hearth or hearth extension (if present) must
comply with either of the following:
• Thesolidfuelburning fireplace manufacturer’s
specification.
• Local building codes required by authority
having jurisdiction.
• NFPA 211
Prepare the existing solid fuel masonry or factory built
non-combustible firebox for installation.
A. Flue Damper
Fully lock the solid fuel fireplace’s flue damper in the open
position, OR completely remove it.
B. Chimney
• Ensure chimney is constructed of non-combustible
materials.
• Ensure chimney is clean and in good working order.
• Ensure that all chimney cleanouts fit properly to prevent
air leakage into chimney.
C. Gas Line
D. Hearth or Hearth Extension
E. Fireplace Conversion Notice
Permanently attach the label with the following warning
to the inside lower back of the fireplace firebox into which
the insert is being installed. Silicone may be required to
properly secure the label.
Fire Risk.
This fireplace has been converted for use with
a gas fireplace insert only and cannot be used
forburningwood or solid fuelsunlessalloriginal
partshavebeen replaced, and the fireplacere-
approved by the authority having jurisdiction.
F. Remote Control
The receiver for the remotes must be installed BETWEEN
the base pan of the insert and the firebox of the wood-
burning fireplace (see photo below).
Note: If the factory built fireplace has no gas access hole
provided, an access hole of 1 inch (25 mm) diameter or
less may be drilled through the lower sides or bottom of the
firebox in a proper workmanship - like manner. This access
holemustbe plugged with non-combustibleinsulationafter
the gas supply line has been installed.
• Install gas line into firebox cavity.
• Check local codes and gas line sizing requirements
following NFPA54. See Section 8.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals,or techniciansunder thedirectionofcerti-
fied professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fireplace
as specified by the professionals.
• Ensure all joints are properly engaged and the chimney
is properly secured.
EXISTING BOTTOM OF
FIREPLACE
REMOTE
RECEIVER
UNIT
EXISTING SIDE
REFRACTORY
WARNING
WARNING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
12
A. Venting Components
7
7 Installing Vent Pipe and Appliance
Thevertical venttermination systeminstalled onthis model
includes:
• One 3-foot section stainless steel flexible pipe (included
with insert).
• Onelengthof 3-inchflexible vent pipefor combustion air
(included with vent kit).
• Flexible vent pipe for exhaust air (included with vent kit).
• One pipe-to-cap adaptor (included with vent kit).
• One vertical termination cap (included with vent kit).
B. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3-inch flexible vent pipe(s) down through the
chimney.
• Securethe exhaustflexible ventpipe tothe 3foot section
stainless steel flexible vent pipe using the factory-
installed 3-inch collar in the stainless steel section of
pipe (see Figure 7.1).
• Use 3 screws to attach either a 4 foot or 30 foot section
of inlet air vent to the inlet collar on the collar slide plate
(see Figure 7.1). NOTE: The collar slide plate may be
removed from appliance to aid installation.
• Seal opening between flex vent and chimney just above
insert.Unfaced fiberglassinsulation may beused forthis
purpose.
CAUTION
Sharp Edges
• Wearprotective gloves and safety
glasses during installation.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 13
Figure 7.1
STAINLESS STEEL
ADAPTER FOR EXHAUST
(MUST BE INSTALLED)
INLET AIR VENT PIPE
3 INCH
COLLAR
OPTIONAL
LINK-ZC-ADPB
(For Flashing Class-A Pipe)
TERMINATION
CAP
(SQUARE FLASHING
REMOVED)
EXHAUST VENT PIPE SUPPLIED
WITH TERMINATION KIT
INLET AIR VENT COLLAR
(LINK-DV30 SHOWN)
ALTERNATIVE INSTALLATION
FOR VENTING THROUGH
WOOD-BURNING
CLASS A PIPE
CLASS A
WOOD PIPE
Note: Inspect for exhaust collar gasket
to insure positive exhaust seal.
LOCKING
TAB
LOCKING
HANDLE
SLIDING PLATE

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
14
Figure 7.2
CUT AND BEND
FLASHING AS NEEDED
TO FIT CHIMNEY
SEALANT
ADHESIVE
• Trim chimney top plate to minimize excess overhang or
bend over flue tile (see Figure 7.2).
• Place 3/8 inch bead of 300º F silicone on flue tile top.
C. Placing, Securing and Leveling the
Appliance
• Install insert (without surround attached) into existing
fireplace while pulling collar slide plate forward.
• Install gas line into hole provided on insert side.
• If applicable install remote control wires into insert side
(see Section 6, F.).
• Secure collar slide plate to appliance by placing locking
handle into position with locking tabs (see Figure 7.1)
and secure with #8 screw.
• Leveltheappliance fromsideto sideand front toback. If
necessary, usetheleveling legsincluded withthemanual
bag to set each corner of the base.
• Position any excess flexible vent pipe back up into
chimney without sagging. Twist and push flex vent
together to shorten.
• Install fiberglass insulation pieces to back face of
surround.
• Attach surround. Follow instructions accompanying
surround.
• Push insert so that surround becomes tight against face
of fireplace.
Fire Risk.
Only an approved Hearth & Home Technologies
surround may be used to cover integral grills on
solid fuel burning fireplaces.
• No other components such as shrouds, sheet-
metal plates, etc., may be used to seal off vents.
Failuretoposition the parts in accordancewiththesediagrams
or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
Explosion Risk.
Combustion Fume Risk.
WARNING
WARNING
WARNING
• Connect vent sections per installation instructions.
• The 3 foot section of stainless steel flexible pipe MUST
be attached directly to the exhaust collar on the collar
slide plate.
• Connectexhaustvent pipe ONLYto exhauststarting collar
and termination cap center collar.
• Connect inlet air vent ONLY to inlet air collar on appliance
and either the termination cap inlet air collar OR terminate
within chimney.
• Do NOT allow vent to sag below connection point to
appliance.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 15

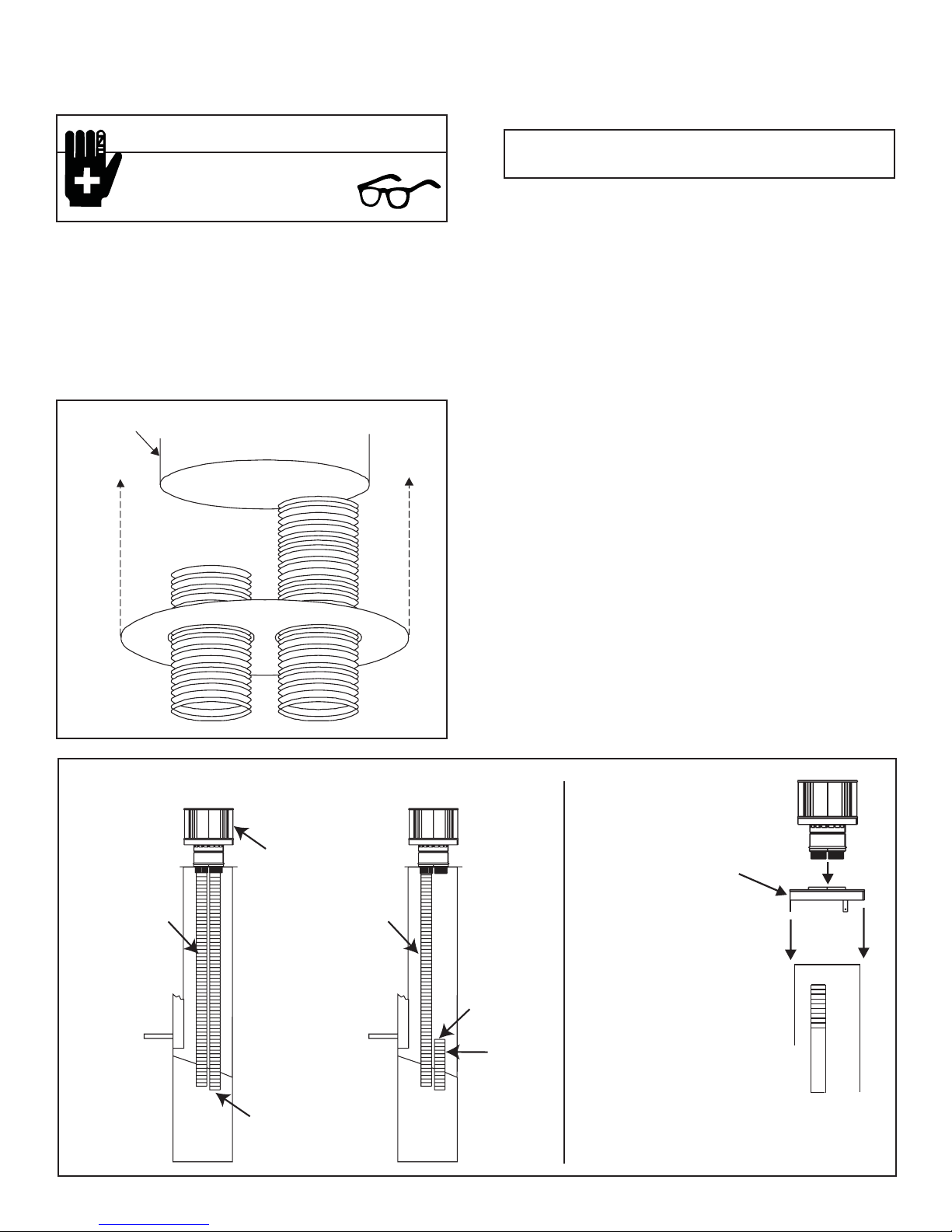

D. Installing Adaptor and Termination Cap
To install adaptor see Figure 7.3.
CLASS A PIPE
Figure 7.3
Damper Flashing Kit (Optional)
For use with LINK-DV4-30B Liner Kit.
Note: Damper may have to be removed to use this kit.
• Run flex liners through 3” holes in damper flashing.
• Attach damper flashing to firebox roof with self tapping
screws included in kit.
Figure 7.4
To help eliminate cold air drafts, it may be necessary to
place non-combustible insulation around the flues as they
go though the damper.
Note: The LINK-DV4-30B system REQUIRES this
insulation.
Masonry Factory Built
Wood Burning
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
LINK-DV30B
Installation LINK-DV4-30B
Installation
INLET AIR
VENT PIPE
WARNING:
DO NOT BLOCK
THIS PIPE END!
EXHAUST
AIR
VENT PIPE
INLET AIR
VENT PIPE
Note: Untwist
the pipe while
extending it, to
achieve full 30’
length.
Remove 18 inch x 18 inch flashing on cap by removing
3 screws. Connect both the LINK-ZC-ADPB to Class
A Pipe and the termination cap to the LINK-ZC-ADPB
with the self tapping screws provided.
OPTIONAL LINK-ZC-ADPB
FOR USE WITH CLASS A
WOODBURNING PIPE
OR
CAUTION
Sharp Edges
• Wearprotective gloves and safety
glasses during installation.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
16
• Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
• Incoming gas line should be piped into the valve
compartment and connected to the 1/2 inch connection
on the manual shutoff valve.
• Check all fittings and connections of appliance which
may have loosened during shipping.
8
8 Gas Information
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
A. Fuel Conversions
Before making gas connections ensure that appliance be-
ing installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to
meet the appliance and locality needs must be made by
a qualified technician using Hearth & Home Technologies
specified and approved parts.
B. Gas Pressures
Proper input pressures are required for optimum appli-
ance performance. Gas line sizing requirements need to
be made following NFPA54.
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
Verify inlet pressures.
• High pressure may cause overfire condition.
• Low pressure may cause explosion.
• Verify minimum pressures when other
household gas appliances are operating.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
NOTE: Gasline may be run fromeithersideof the appliance
provided the hole in the outer wrap does NOT exceed 2-1/2
inches in diameter and does not penetrate the firebox.
NOTE: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 inch (13 mm) T-handle manual shut-off valve and
flexible gas connector are connected to the 1/2 inch (13 mm)
control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Pressure requirements for appliance are shown in the
table below. Minimum pressures must be met when other
household gas appliances are operating.
Refer to Section 15 for location of gas line access in ap-
pliance.
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
NOTE: The gap between supply piping and gas access
hole may be caulked with high temperature caulk or stuffed
with non-combustible, unfaced insulation to prevent cold air
infiltration.
WARNING
WARNING
Pressure Natural Gas Propane
Minimum inlet pressure 5.0 inches
w.c. 11.0 inches w.c.
Maximum inlet gas pressure 14.0 inches
w.c. 14.0 inches w.c.
Manifold pressure 3.5 inches
w.c. 10.0 inches w.c.
WARNING
C. Gas Connection

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 17
Fire hazard.
Do NOT change the valve settings.
• This valve has been preset at the factory.
• Changing valve settings may result in fire
hazard or bodily injury.
HIGH ALTITUDE INSTALLATIONS
U.L. Listed gas appliances are tested and approved without
requiring changes for elevations from 0 to 2000 feet in the
U.S.A. and Canada.
Wheninstalling thisapplianceat anelevationabove 2000feet,
itmaybe necessary to decrease the inputrating by changing
the existing burner orifice to a smaller size. Input rate should
be reduced by 4% for each 1000 feet above a 2000 foot
elevation in the U.S.A., or 10% for elevations between 2000
and 4500 feet in Canada. If the heating value of the gas has
beenreduced,theserulesdo not apply.To identify the proper
orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 feet (in
Canada), check with local authorities.
CHECK FOR GAS LEAKS
Explosion Risk
Fire Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• Afterthegasline installation is complete, all
connectionsmustbetightenedandchecked
for leaks with a commercially-available,
non-corrosive leak check solution. Be sure
to rinse off all leak check solution following
testing.
Fittings and connections may have loosened
during shipping and handling.
Fire or Explosion Hazard
• Gas buildup during line purge may ignite.
• Purge should be performed by qualified technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
• A small amount of air will be in the gas supply lines.
When first lighting appliance it will take a short time for
air to purge from lines. When purging is complete the
appliance will light and operate normally.
WARNING
WARNING
WARNING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
18
A. Wiring the Appliance
9
9 Electrical Information
Note:This appliance mustbe electricallywired andgrounded
in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest
edition or the Canadian Electric Code, CSA C221.1.
ON/OFF Switch
• An ON/OFF switch is included with the decorative
surround/decorative front and should attached to
surround/facing.(See Installation instructionsfor remote
control).
• If desired an additional wall switch or thermostat may
be added to system as shown in Figure 9.1.
Appliance Requirements
• This appliance DOES NOT require 110-120 VAC to
operate.
• It is recommended that a 110 VAC junction box be
connectedfor usewith fanor remotecontrol. (SeeFigure
9.2 for junction box wiring).
• Prevent accidental appliance operation when not attended.
• Unplug or remove batteries from remote control if absent or
if appliance will not be used for an extended period of time.
• Property damage possible from elevated temperatures.
CAUTION
ON
OFF
ON/OFF
SWITCH
REMOTE SWITCH
PIGTAIL
OPTIONAL WALL SWITCH,
THERMOSTAT OR REMOTE
STANDING
PILOT
WHT
RED
VALVE
Note: Electrical wiring must be installed by a licensed
electrician.

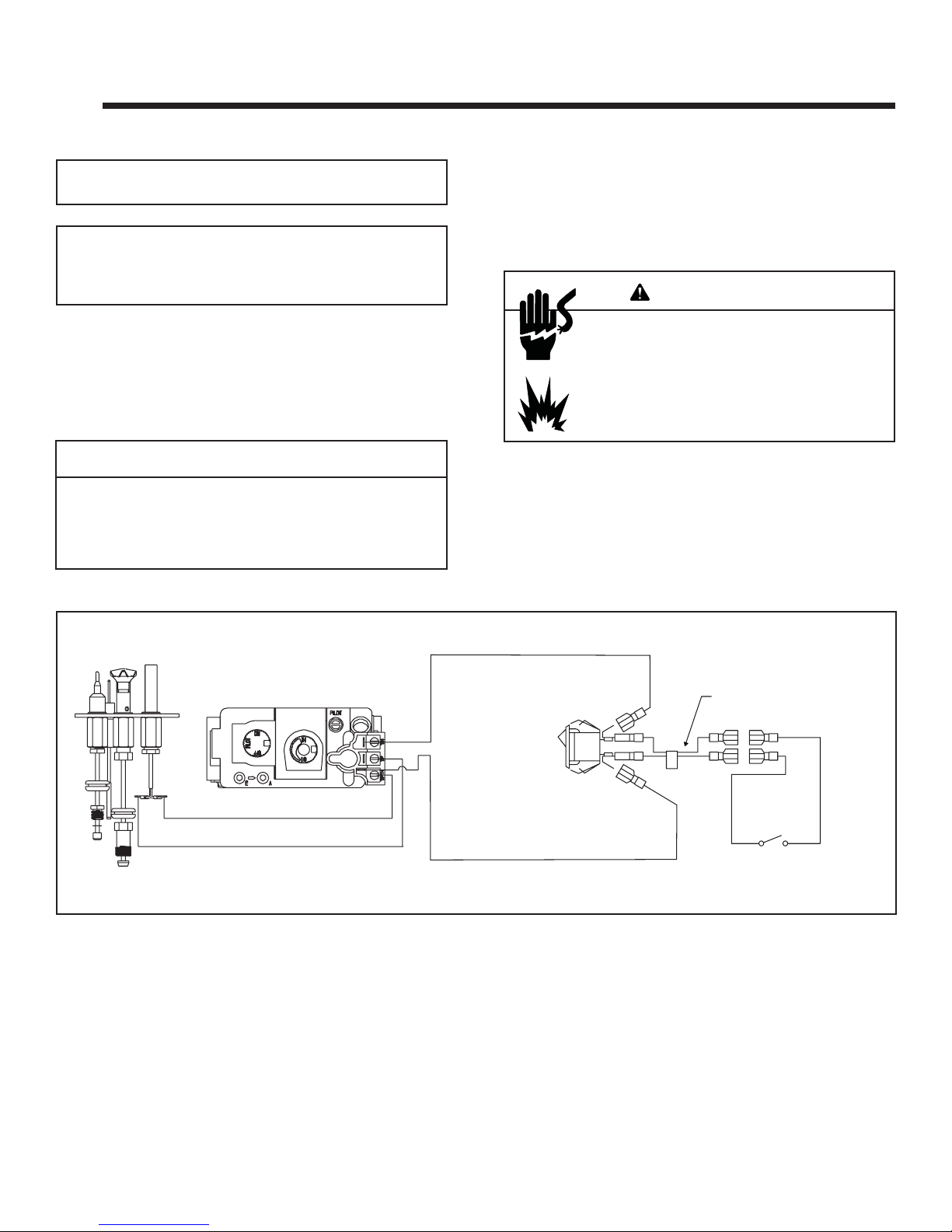

Figure 9.1 Standing Pilot Ignition Wiring Diagram
Wire 110V to electrical junction box.
Do NOT wire 110V to valve.
Do NOT wire 110V to wall switch.
• Incorrect wiring will damage millivolt valves.
• Incorrect wiring will override IPI safety lockout
and may cause explosion.
WARNING
• A 110-120 VAC circuit for this product must be protected
withground-faultcircuit-interrupterprotection,incompliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08 19
B. Junction Box Installation

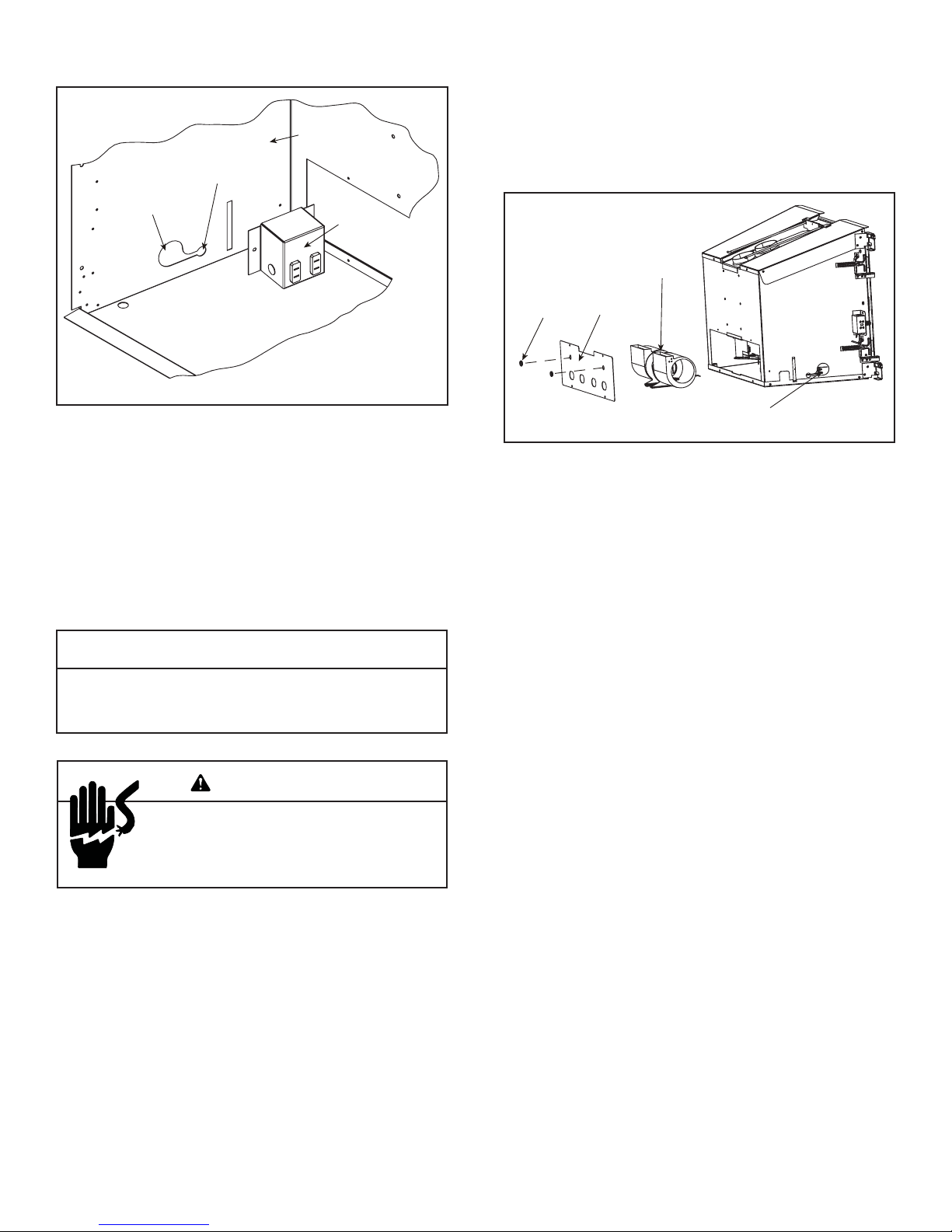

Figure 9.2 Junction box installation
FEED PLUG
THROUGH HOLE
INSERT RELIEF
AROUND CORD IN THIS END
FROM OUTSIDE OF UNIT
JUNCTION
BOX
SIDE
WALL
Optional Accessories
Connecting the electrical junction box is required if using
a blower or remote.
• Plug the cord into a convenient outlet.
• An electrician may install an outlet box inside the
fireplace. Place the outlet in the lower, back corner of
the fireplace.
• Must use cord supplied.
C. Installation for Fan (Optional)
On units already installed removal of decorative front,
surround and gas insert is required.
• Detach flexible liner from back of unit if insert is installed.
• Remove the four screws on the cover plate (see Figure 9.3).
Figure 9.3
RUBBER
GROMMETS
FAN
ATTACH
GROUND WIRE
COVER
PLATE
• Bend up the tabs on the base pan (see Figure 9.4).
• Place the blower in between the bend up tabs.
• Install and wire the blower per instruction shipped with
the fan.
• The ground wire of the fan can clip on the side of the
base pan.
• Reinstall the cover plate back on the unit. Make sure the
fan does not make contact with the back wall to prevent
noise from vibration.
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105º C rated
wire.
• Wire must have high temperature insulation.
WARNING

Heat & Glo • FB-ZC-S • 2019-910 Rev. G • 11/08
20
Figure 9.4 Fan Wiring Diagram
JUNCTION BOX
VARIABLE SPEED CONTROL
TEMPERATURE
SENSOR SWITCH
WHT
GRN
BLK
BLK
110-120 VAC
BLOWER
BLOWER RECEPTACLE
BLK
BLK
BLK
BLK
WHT
GROUND
WHT
BLK
BLK
BLK
REMOTE
RECEPTACLE
INSERT STUD THROUGH HOLE
AND SECURE WITH WING NUT
WING
NUT
TEMP SWITCH
BRACKET
FAN TEMPERATURE
SENSOR SWITCH
SPEED CONTROL
(RHEOSTAT)
REMOTE
OUTLET FAN
OUTLET BEND UP
TABS
JUNCTION BOX
NOTE: If any of the original wire as supplied
with the appliance must be replaced, it must be
replaced with type 105ºcrated wire.
NOTE: Do NOT install blower if using operable
glass doors.
