Heat & Glo Heat & Glo 6000TRXI-IPI User manual

1
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Underwriters
Laboratories Listed
Model:
6000TRXI-IPI
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed
plumber or gas fitter;
• a CO detector shall be installed in the room
where the appliance is installed.
- Do not store or use gasoline or other
flammable vapors and liquids in the vi-
cinity of this or any other appliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your build-
ing.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be
performed by a qualified installer, service
agency, or the gas supplier.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
1. This appliance may be installed in an af-
termarket, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
2. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat & Glo dealer with any
questions or concerns. For the number of your nearest
Heat & Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2006
Heat & Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471,
5328356, 5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165,
6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802,
6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250,
780403, 1418504 or other U.S. and foreign patents pending.
Owner’s Manual
Installation and Operation

2Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLY SUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes ............................................... 7
Appliance Certification ................................................................... 7
Installation Codes .......................................................................... 7
High Altitude Installations ............................................................... 7
Section 2: Getting Started ......................................................... 8
Introducing the Heat & Glo Gas Fireplaces ................................... 8
Pre-installation Preparation ........................................................... 8
Section 3: Installing the Fireplace .......................................... 10
Constructing the Fireplace Chase .............................................. 10
Step 1 Locating the Fireplace ................................................. 10
Step 2 Framing the Fireplace................................................... 11
Step 3 Installing the Vent System ............................................ 13
A. Vent System Approvals ........................................... 13
B. Installing Vent Components .................................... 20
C. Vent Termination .................................................... 23
Step 4 Positioning, Leveling, and
Securing the Fireplace................................................. 25
Step 5 Install the Optional Heat-Zone-Gas Kit ........................ 26
Step 6 The Gas Control Systems ........................................... 26
Step 7 The Gas Supply Line ................................................... 27
Step 8 Gas Pressure Requirements ...................................... 27
Step 9 Wiring the Fireplace .................................................... 28
Step 10 Finishing ...................................................................... 30
Step 11 Installing Trim, Logs and Ember Material .................... 31
Installing the Trim ......................................................... 31
Positioning the Logs .................................................... 31
Shutter Settings ............................................................ 31
Placing the Ember Material .......................................... 31
Glass Specifications .................................................... 31
Step 12 Before Lighting the Fireplace ....................................... 32
Step 13 Lighting the Fireplace .................................................. 33
Step 14 Climate Control ............................................................ 33
After the Installation ..................................................................... 33
Section 4: Maintaining and Servicing Your Fireplace ......... 34
Î = Contains updated information.
Î
Î

7
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Appliance Certification
The Heat & Glo fireplace models discussed in this Installers
Guide have been tested to certification standards and listed
by the applicable laboratories.
Certification
MODEL: 6000TRXI-IPI
LABORATORY: Underwriters Laboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88-2000•CSA2.33-M98•UL307B
Installation Codes
The fireplace installation must conform to local codes. Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation Codes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(in the United States), or to the CSA C22.1 Canadian Electric
Code (in Canada).
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
High Altitude Installations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S. A. and in Canada.
When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat & Glo Quality Systems
registered by SGS ICS

8Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
2Getting Started
Introducing the Heat & Glo Gas Fireplaces
Heat & Glo direct vent gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control

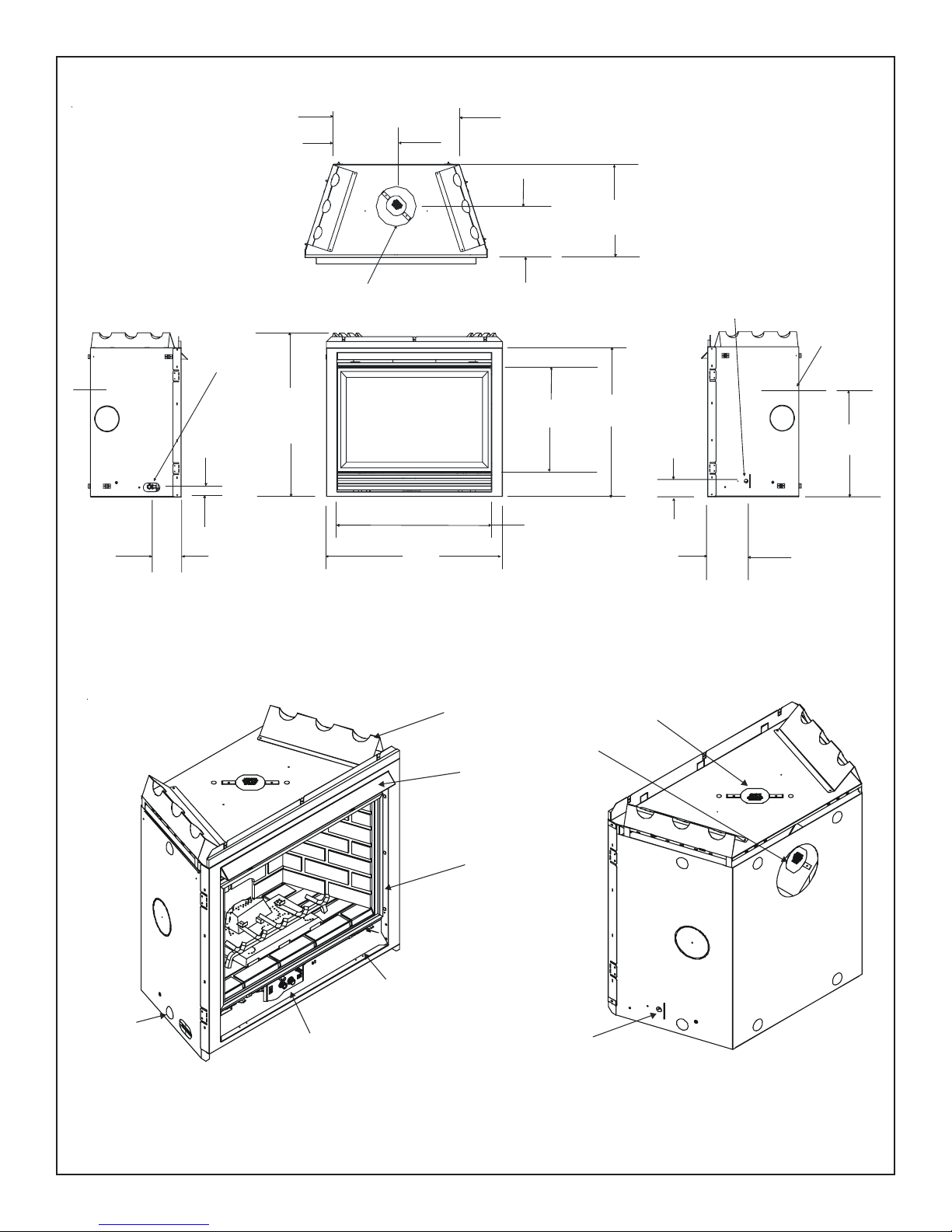

systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
The Heat & Glo Warranty will be voided by, and Heat & Glo
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Heat & Glo.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not manu-
factured and approved by Heat & Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

9
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Figure 1. Diagram of the 6000TRXI-IPI
TOP VENT COLLARS
REAR VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
TRIM
DOOR
HOOD
TOP STANDOFFS
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
V
ENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
8
(203mm)
8 (203mm)

10 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
3Installing the Fireplace
Step 1. Locating the Fireplace
The following diagram shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
Surround Sides* .................. 0 ....................... 0
Top ................................... 3 1/2 ................... 89
Ceiling** ............................. 31 .................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top ..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
* See Figure 3.
** The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 38).
The distance from the unit to combustible construction
is to be measured from the unit outer wrap surface to
the combustible construction, NOT from the screw heads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 23 and 24 in this manual.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is one inch (25 mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gas fireplace and/or its vent system. Vertical vents that run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOP SPACERS AND
CONSTRUCTION OF THE CHASE MAY VARY WITH THE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDING CODES. THEREFORE, YOUR LOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-built fireplace chases should be constructed in the
manner of all outside walls of the home to prevent cold air
drafting problems. The chase should not break the outside
building envelope in any manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home. Additionally, in re-
gions where cold air infiltration may be an issue, the inside
surfaces may be sheetrocked and taped for maximum air
tightness.
To further prevent drafts, the wall shield and ceiling firestops
should be caulked with high temperature caulk to seal gaps.
Gas line holes and other openings should be caulked with
high temp caulk or stuffed with unfaced insulation. If the
appliance is being installed on a cement slab, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
THE CHASE SHOULD BE CONSTRUCTED SO THAT ALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.
A BC D E
42” 22” 36” 51” 72”
Note* 42” 22” 40” 57” 80”
*If venting with (2) 900 elbows off rear of unit
the dimensions C, D, and E, will change.

11
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Framing should be constructed of
2 X 4 lumber or heavier.
A. ............. 42”*
B. ......... 38 1/2”
C. ............... 22”
D. ......... 42 3/4”
E. ......... 27 7/8”

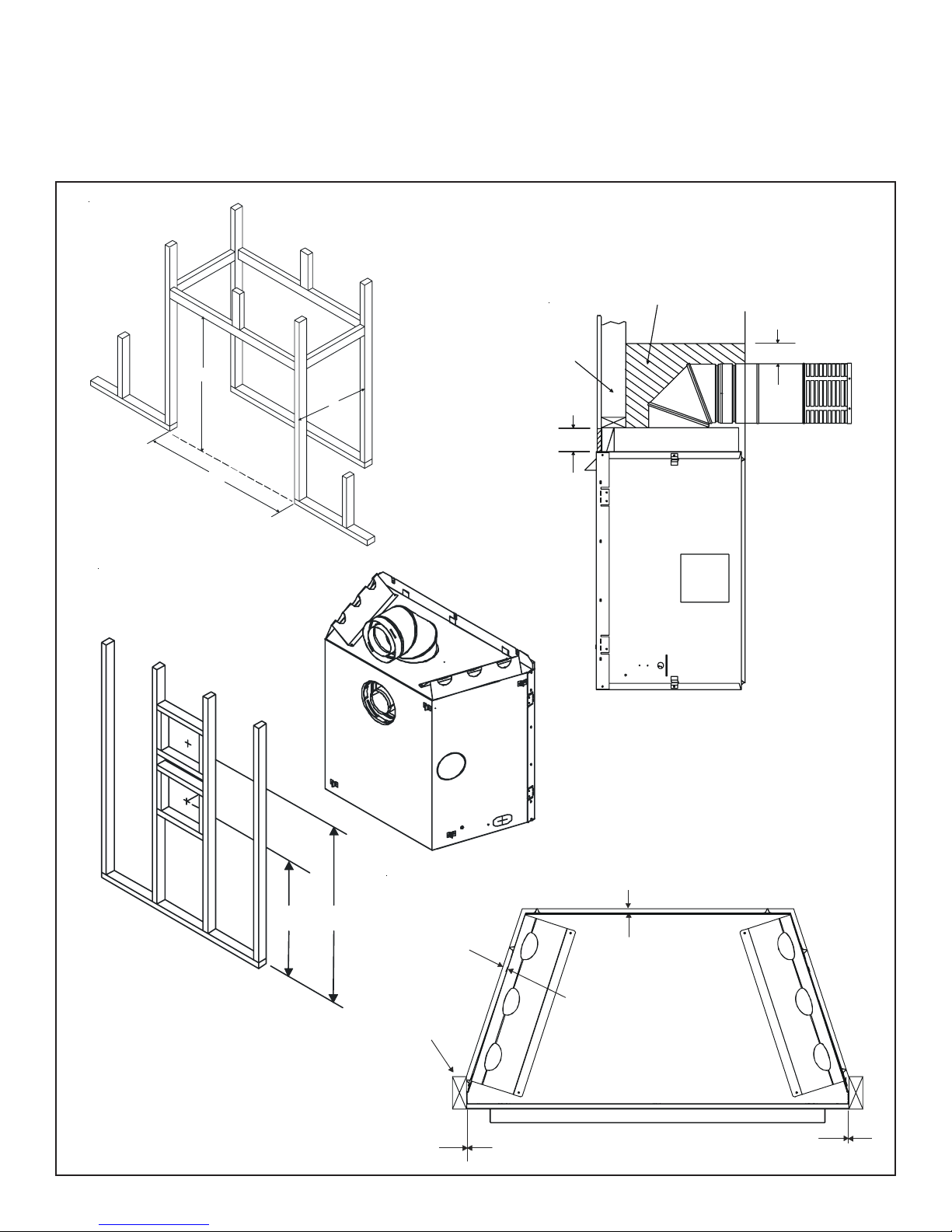

Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows center of 10” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
E D
WALL
STUD
3 1/2”
3 ”
Noncombustible zone is defined
by 3” above the elbow for the
entire width and depth (behind
the front header) of the firebox.

12 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06

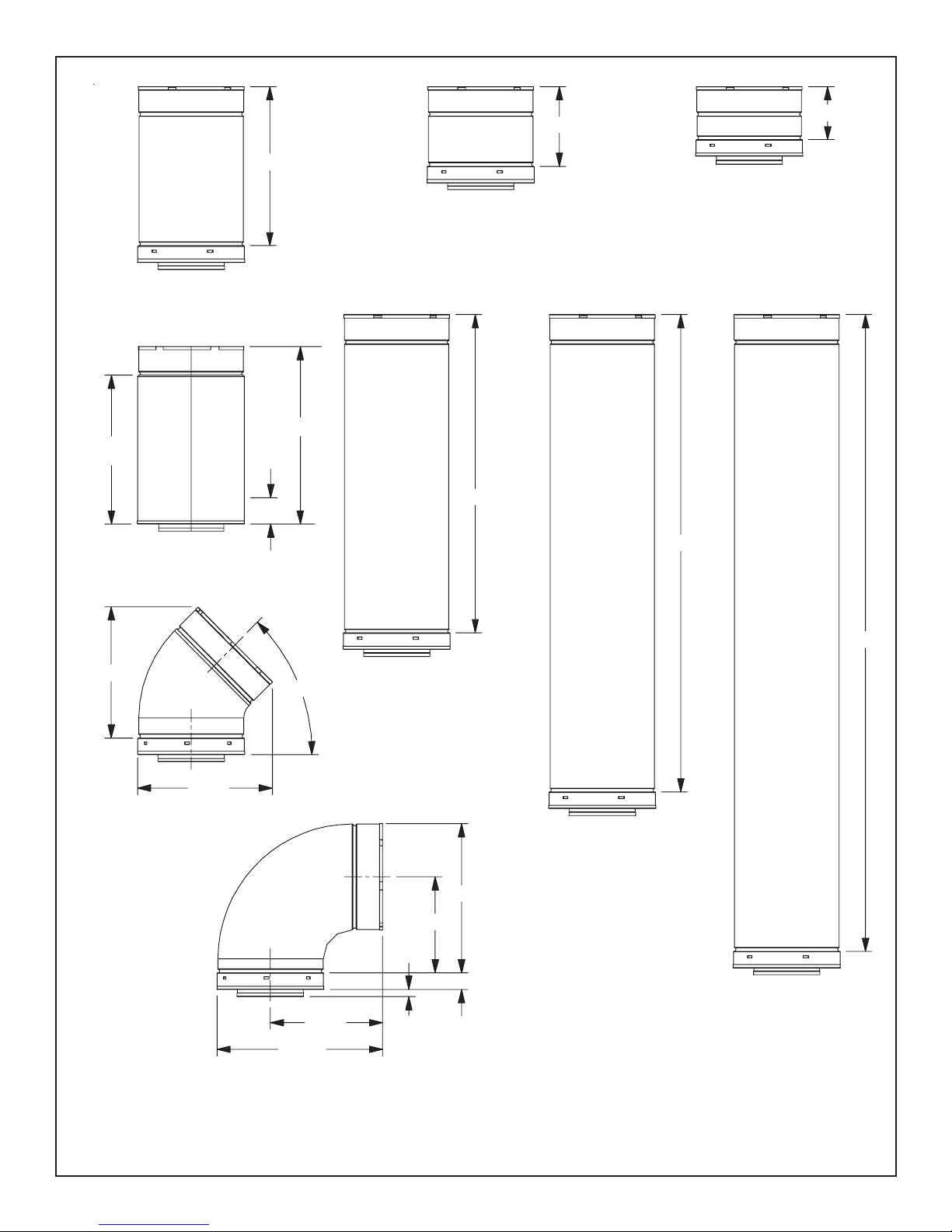

Figure 4. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
NOTE: PIPES OVERLAP 1-1/4 INCHES AT EACH JOINT.
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

13
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use DVP-series direct vent
pipe components and terminations (see Figures 4 and 5).
Approved vent system components are labeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal vent runs. NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the type
of fuel burned and the venting configuration used.
Termination Kits
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
This model has vent starting collars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
(Required to have a
minimum of 3 feet of
vertical in the vent system)
DVP-TVPVK-80
DVP-TVHW
DVP-TRAP DVP-TB1
SERIES
HORIZONTAL
TERMINATION
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
PIPE LENGTH
CEILING
FIRESTOP
90 DEGREE
ELBOW
WALL FIRESTOP

14 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Flue Restrictor Instructions
Remove screws with a 1/4 nut driver. Adjust to de-
sired position per table. See Flue Restricting chart
(see Figure 9).
Figure 8.
Figure 7
5
4
3
2
1
1
2
3
4
5
Adjustable Flue Restrictor (see Figure 8).
Figure 6.
Straight Up Vertical Venting
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.4 M)
NOTE: On vertical venting
configurations over 10 feet
adjust the flue restrictor
(2027-102) installed on the
unit. See flue restrictor in-
stallation instructions.
CAP
V

15
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
HORIZONTAL VENTING
Kit No. H Max. Run
DVP-TRAP 24" (610 mm)
Figure 10. Corner Installation
NOTE: This model is NOT tested and NOT
approved to use 45° elbows in corner instal-
lations. 90° elbows may be used in corner
installations.
Match the amount of vertical you have in the system
with the chart to find the appropriate position to set
the Flue Restrictor.
- CHART -
Vertical Top Vent
NG
Top Vent
LP
Rear Vent
NG
Rear Vent
LP
4' 2-2 2-3 No
Restrictor
No
Restrictor
8' 3-3 2-3 2-2 No
Restrictor
15' 3-4 3-4 3-3 2-3
20' 4-4 3-4 3-4 3-4
25' 4-4 3-4 3-4 3-4
30' 4-4 4-4 4-4 3-4
35' 4-4 4-4 4-4 3-4
40' 4-5 4-4 4-4 4-4
Figure 9.
H
45-DEGREE
ELBOW
90-DEGREE
ELBOWS

16 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: On vertical venting configurations where
the vertical component is over 10 feet, adjust
the flue restrictor installed on the unit to improve
flame appearance.

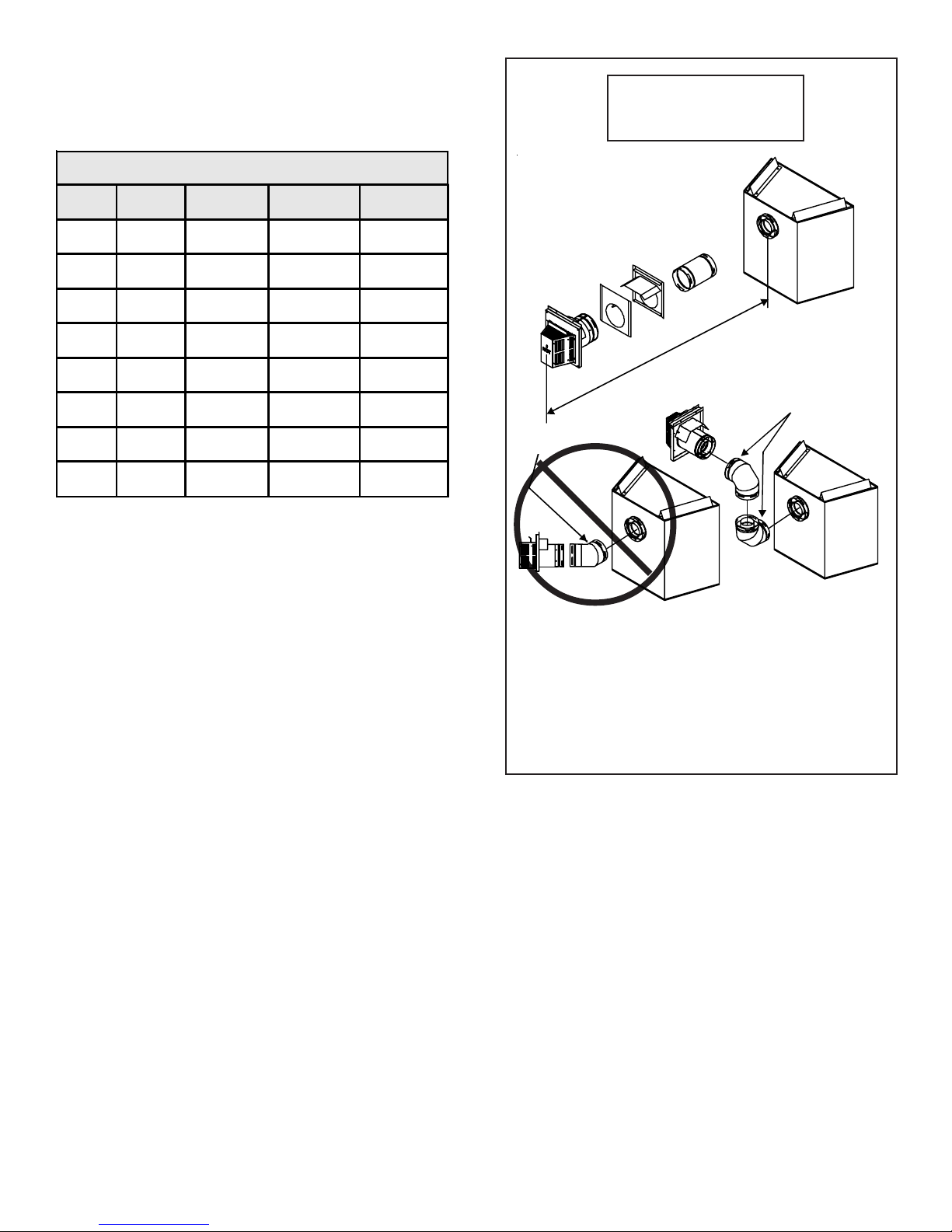

Figure 11. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)

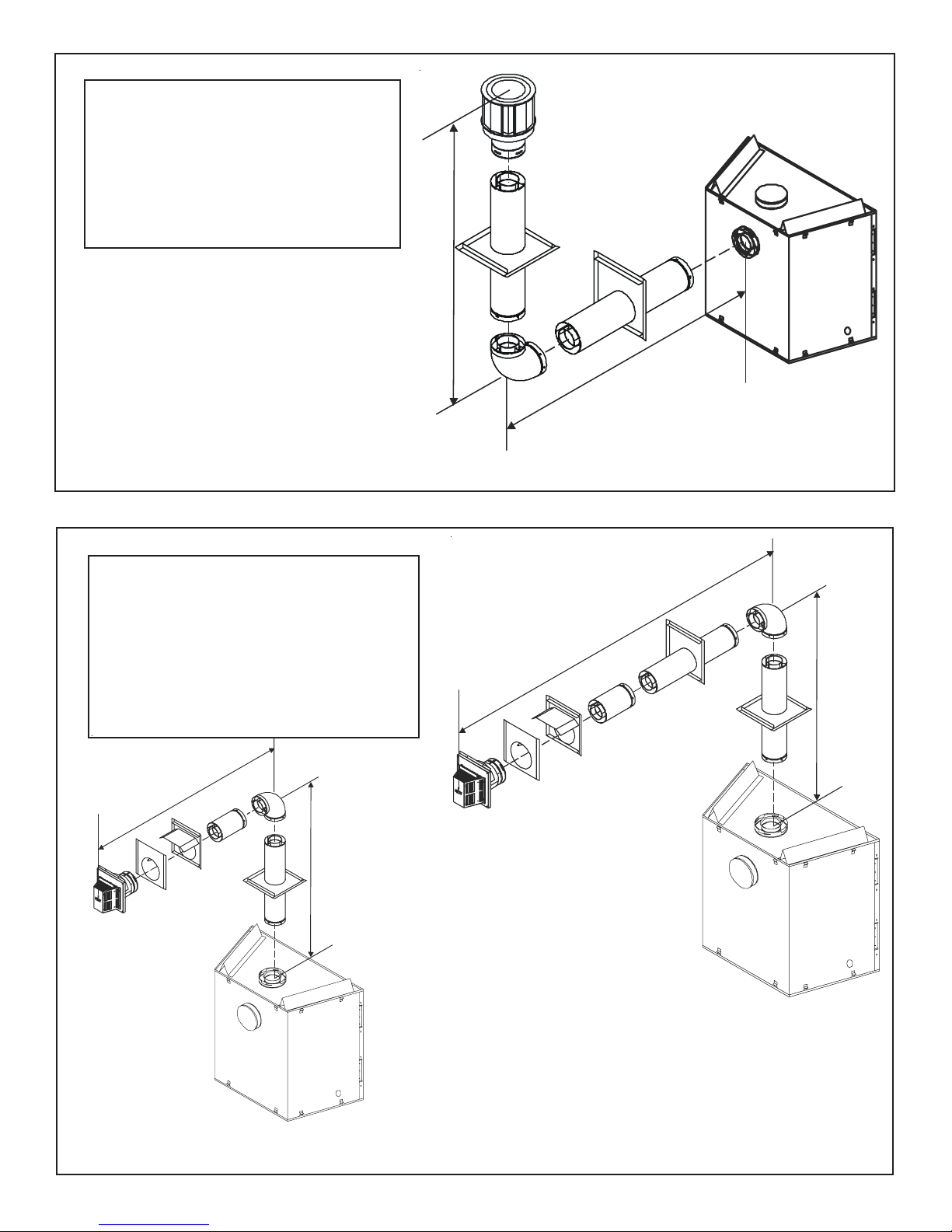

Figure 12. Venting with One 90° Elbow
NOTE: If a 90o elbow is first attached to the unit,
the maximum horizontal run is 3-feet (914mm).
NOTE: For corner installations: A 6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
V
H
H
V

17
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06

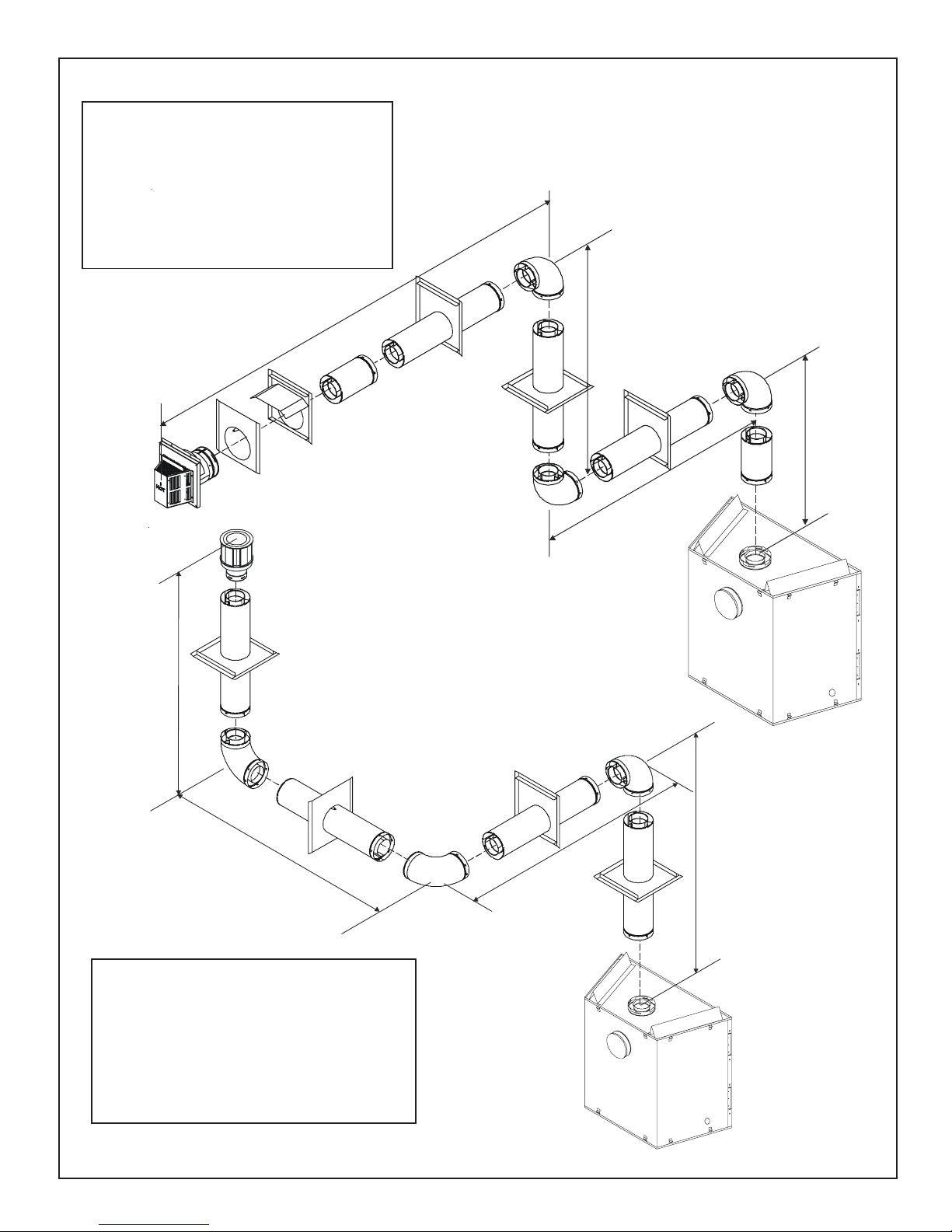

Figure 13. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 = 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
= 20´ MAX. (6.2m)

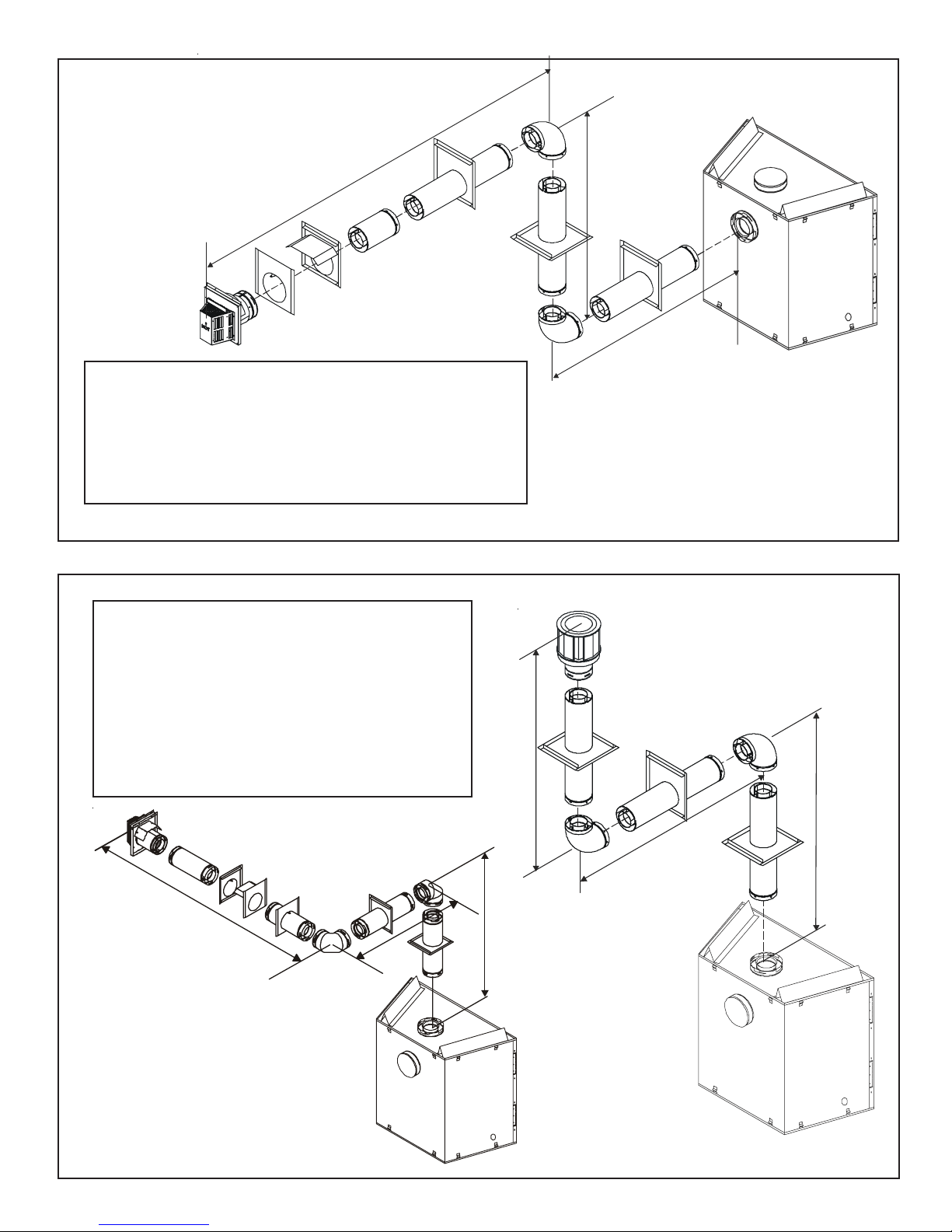

Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1 (FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
= 20´ MAX. (6.2m)
V+V1+H = 40' MAX.(12.4m)
H
1
V
H
V
V
1
H
H
1
H
V

18 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Figure 15. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40´MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V H H + H1+ H2
1´MIN. (305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN. (610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN. (914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN. (1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40´MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
H
V
H
1
V
1
H
H
1
2
V
H

19
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H1 = 20' MAX. (6.2m)
V + V1+ H + H1= 40' MAX. (12.4m)
V + V1(FT.) H + H1(FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H +H1= 20' MAX. (6.2m)
NOTE: V+V1+H +H1= 40' MAX. (12.4m)

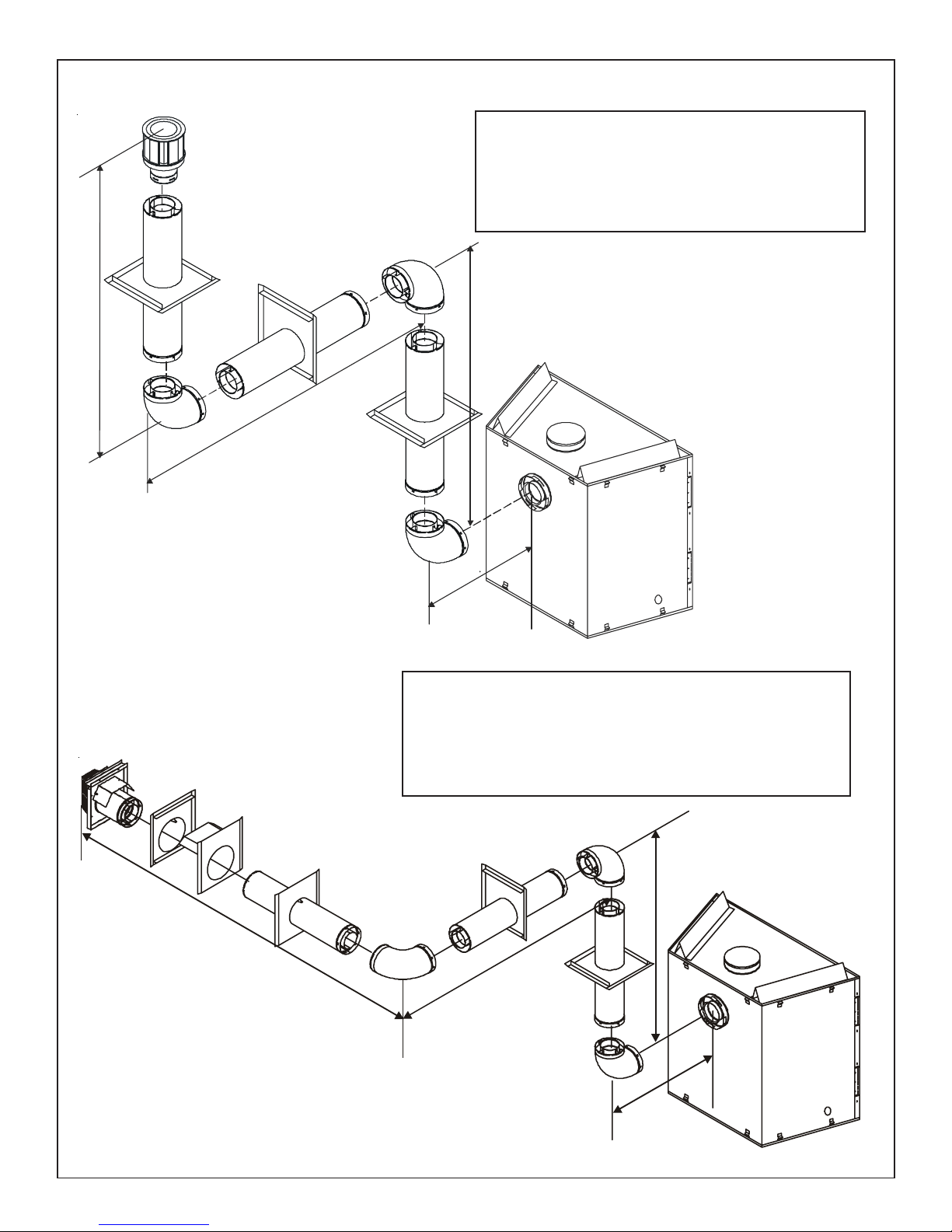

Figure 16. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

20 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
!
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 17).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAIN ATTACHED IF
THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 17.
Venting Out the Top Vent
Remove the two screws in the top vent collar seal cap and
remove the top vent collar seal cap and two pieces of in-
sulation inside the top two starting collars (See Figure 17).
Remove the heat shield from inside the TOP five inch flue
from outside of the firebox.
The glass must be taken off again for positioning the logs
when the unit is finally installed in place and finished around
it. Re-install the glass door. Attach vent system to the top
starting collars.
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAIN ATTACHED TO THE REAR
VENT COLLARS IF THE VENT SYSTEM IS AT-
TACHED TO THE TOP STARTING COLLARS.
WARNING: FAILURE TO REMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING: YOU MUST LEAVE THE INSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.

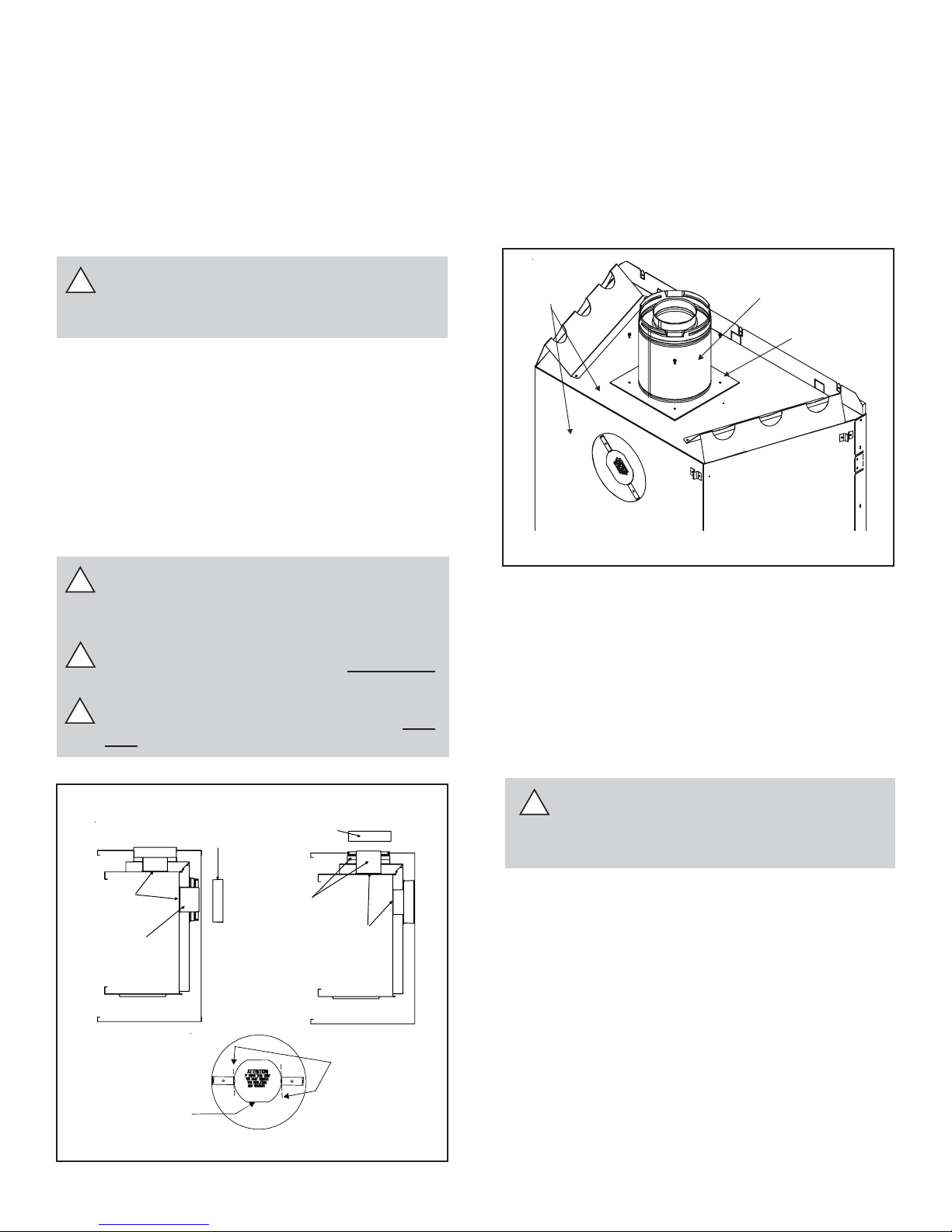

Figure 17
CUT
HERE
Venting Out Rear Venting Out Top
!
!
!
HE AT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HE AT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasket material.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
the fireplace:
• Make sure that the fiberglass gasket supplied in the
manual bag seals between the first 8 inch (203mm)
vent component and the outer fireplace wrap. Using 2
self-tapping screws from the manual bag secure that
gasket to the outer wrap (see Figure 18).
Figure 18. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
DVP PIPE:
2. Assembling Vent Sections
Refer to Cinch Pipe and Termination Cap installation in-
structions.
1. Attaching the Venting to the Fireplace
Refer to Cinch Pipe and Termination Cap installation in-
structions.
!
WARNING: ENSURE THAT THE FIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALS BETWEEN THE FIRST VENT COMPONENT
AND THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
to the fireplace, skip to the sections, Install Firestops and
Vent Termination.

21
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
3. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF HEAT
SHIELD 570-290 ABOVE THE FIRST 900ELBOW IN
THE VENTING SYSTEM.
Figure 19

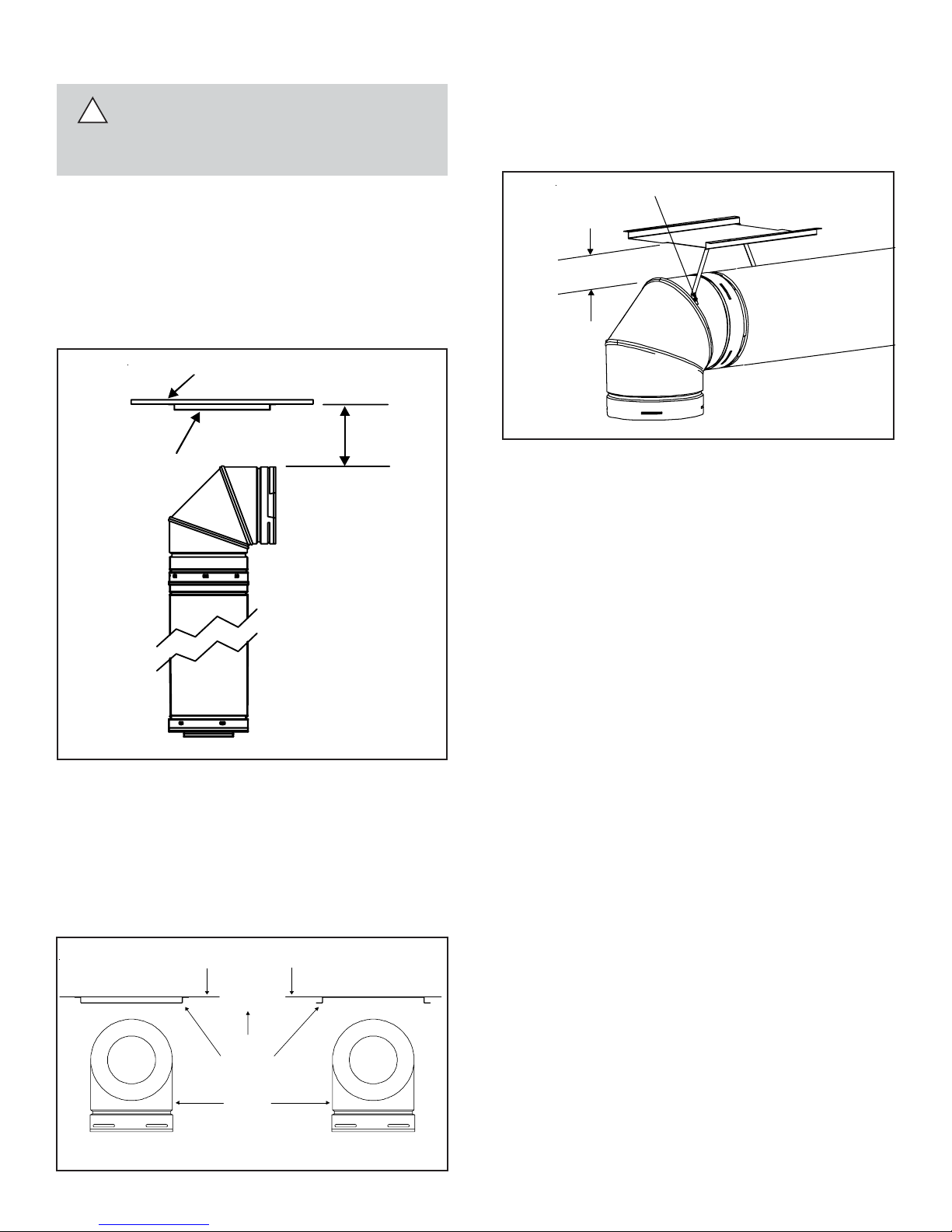

To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surface of the elbow to any combustible surface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED. Install per the following steps. See Figure 19.
!
Figure 20
CORRECT INCORRECT
2. Fasten the shield in place using the four pilot holes pro-
vided in the part. The shield should be oriented such that
the 13 1/8 inch dimension (longest dimension) is run-
ning in the same direction the elbow is pointing. The
shield should be centered directly above the elbow, and
positioned so that it creates a 1/2 inch airspace between
the shield and the combustible surface. See Figure 20.
4. Install Support Brackets
Refer to Cinch Pipe and Termination Cap installation in-
structions.
COMBUSTIBLE SURFACE
DIRECTION
UP
HEAT SHIELD
90 ELBOW
0
Figure 21
• If the combustible materials are not in place at the time
of install the elbow heat shield may be screwed to the
exhaust pipe (see Figure 21). Cut the tabs as shown
and bend down. Secure the heat shield to the pipe main-
taining 3” to 4” between the pipe and shield.
3”
(76mm)
SCREW
Refer to Cinch Pipe and Termination Cap installation in-
structions.
• Continue adding vent components, locking each succeed-
ing component into place.
• Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
around the preceding component’s vertical axis. If an el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
HEAT
SHIELD
3” MIN.
(76mm)
COMBUSTIBLE
SURFACE

22 Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
5. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model DVP-TRAP does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
• Cut a 10-inch by 12-inch (245mm x 305mm) hole through
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continue the vent run through the firestops.

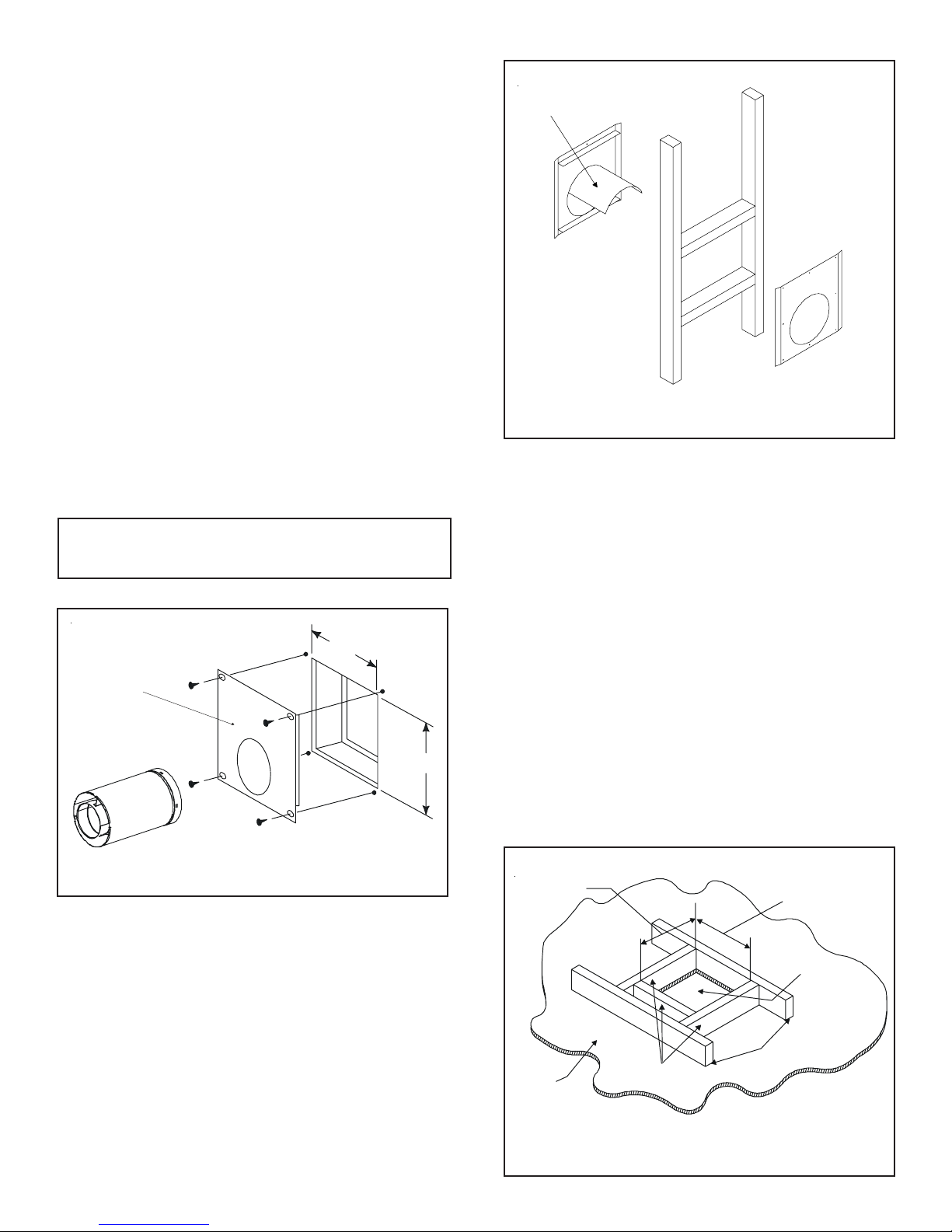

Figure 22. 10" x 12" Hole and Vent Pipe
Figure 23. Heat Shield, Interior & Exterior Firestops
10"
12"
INTERIOR
WALL SHIELD
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through ceilings:
• Position a plumb bob directly over the center of the verti-
cal vent component.
• Mark the ceiling to establish the centerpoint of the vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cut a 10-inch x 10-inch (254mm x 254mm) hole through
the ceiling, using the centerpoint previously marked.
• Frame the hole with framing lumber the same size as the
ceiling joists.
Figure 24. 10" x 10" Hole & New Framing Members
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
10" (254mm)
10" (254mm)

23
Heat & Glo • 6000TRXI-IPI • 386-901 Rev. I • 1/06
Figure 25. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
secure the ceiling firestop on the ceiling side of the previously
cut and framed hole.
If the area above the ceiling IS an attic, position and secure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 26. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
!
C. Vent Termination
Refer to Cinch Pipe and Termination Cap installation in-
structions.
WARNING: THE TERMINATION CAP MUST BE
POSITIONED SO THAT THE ARROW IS POINT-
ING UP.
Figure 27. Trapezoid Termination Caps
!
WARNING: VENTING TERMINALS SHALL
NOT BE RECESSED INTO A WALL OR SID-
ING. VENT TERMINATION CLEARANCES MUST
BE FOLLOWED TO AVOID FIRE DANGER. SEE
VENT TERMINATION MINIMUM CLEARANCES DI-
AGRAM ON FOLLOWING PAGE.
7-1/4 in.
(184mm)
